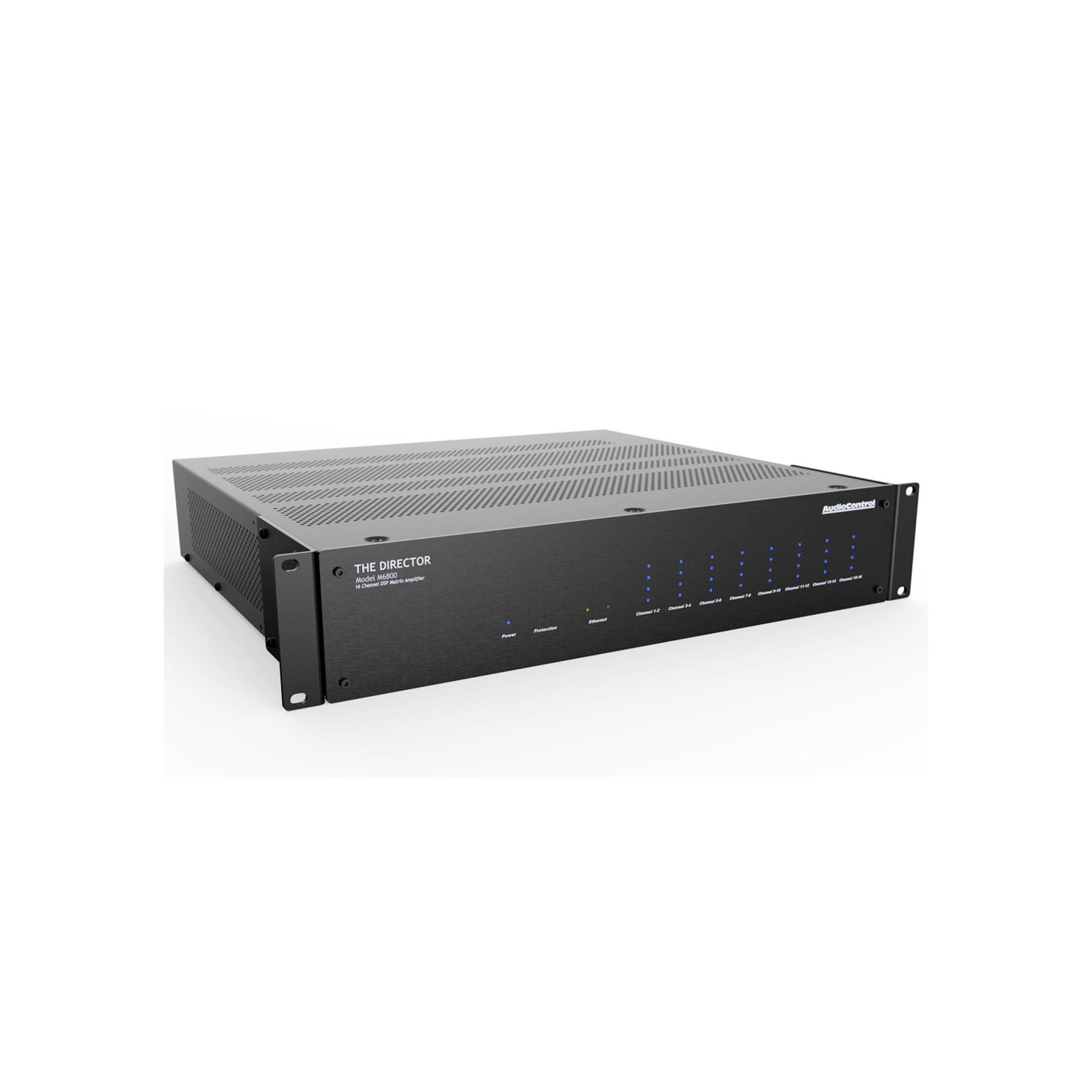

AudioControl M6800 16CH Network Matrix DSP Power Amplifier with Dante

$12,699

When a whole-house audio system demands high levels of audio performance, but the physical installation space is limited, the AudioControl Director M6400 and M6800 are ideal solutions. Requiring only two rack spaces, the M6400 16 channel power amplifier produces at least 65 Watts per channel into 8 Ohms, and 100 Watts per channel into 4 Ohms, with all channels driven. The M6800 produces at least 100 Watts per channel into 8 Ohms, and 200 Watts per channel into 4 Ohms. Extensive protection features prevent damage to your loudspeakers.

These 16 channel power amplifiers provide high levels of power, pristine sound quality, flexible matrix input switching, plus a number of installation-friendly features that makes them the perfect product for performance oriented audio systems. The Introduction Director M6400 and M6800 are American-designed and built, “set and forget” components which will provide a lifetime of trouble-free service for your multi-room audio system. The Director M6400 and M6800 are designed and manufactured by AudioControl, the only electronics company in the world that specializes in amplifiers, equalizers, signal processors and audio analyzers. Our passion for high quality, meticulous attention to detail, and pro sound heritage shows itself in the dozens of awards we have won for our designs, products, and service.

Details
  • Category
    Amplifiers
  • Brand
    Audiocontrol
  • Warranty
    5 years
Specifications

INPUTS
Inputs: 7 RCA Unbalanced, 7 XLR Balanced
Input Sensitivity: 1.42 Vrms for full output
Maximum Input Voltage: 2.7 Vrms
Input Impedance: 100 kΩ

OUTPUTS
Amplifier Channels: 16
Power Output (8Ω): 100 watts per channel
Power Output (4Ω): 200 watts per channel
Power Output (8Ω Bridged Mono): 400 watts
Minimum Speaker Load: 4Ω

CONTROL
Remote Power Trigger: +12 VDC or Dry Contact Closure

GENERAL
Power Consumption (Standby): < 2W
Power Consumption (Idle): 53W
Power Consumption (1/8 power): 330W
Power Consumption (maximum): 2400W
BTU/Hour Output (Standby): 6.8 BTU/hr
BTU/Hour Output (Idle): 180 BTU/hr
BTU/Hour Output (1/8th power, loud listening level): 460 BTU/hr
BTU/Hour Output (maximum): 2124 BTU/hr
Protection: clipping, short circuit, thermal, DC offset

WEIGHT & DIMENSIONS
Dimensions: 19”W x 17”D x 3.2”H (2U)
Weight: 43.0 lbs (19.5 kg)

IN THE BOX
M6800, Power Cord, Manual, Warranty

Features
  • Digital and Analog Input Matrix
  • High Power Levels
  • Superior Sound Quality
  • Unparalleled Energy Efficiency
  • Ethernet Control
  • Signal Processing
  • LightDrive Anti-clipping
  • Self Resetting Protection Features
  • Pacific Northwest Heritage
  • 16 channels of AudioControl amplification
  • Any zone can play any input source
  • Efficient power amplifiers and power supplies
  • Power consumption is less than 2 Watts in standby
  • Rack mountable 2U form factor
  • Removable rack ears
  • Light weight
  • Stackable with other Director or Architect Models
  • Signal sense independent for each zone
  • Input assignment independent for each zone
  • Super wonderful signal processing allows for a wide variety of EQ options and adjustments
  • 12V Master trigger usable with contact closure or 12V external source
  • A and B digital inputs assignable to any zone •
  • A and B digital outputs assignable from any analog or digital input
  • Analog RCA loop-through outputs
SKU: AC-M6800D
