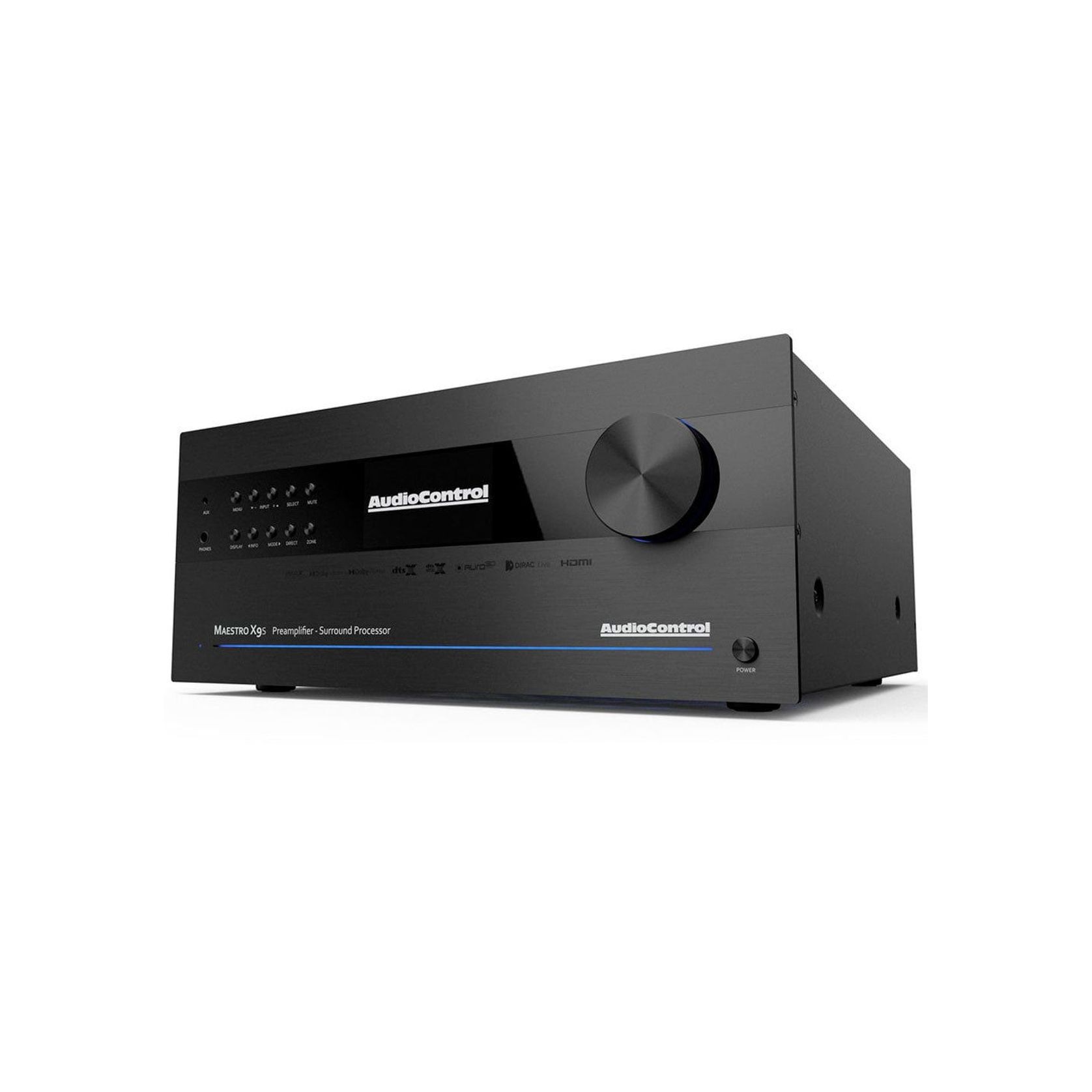

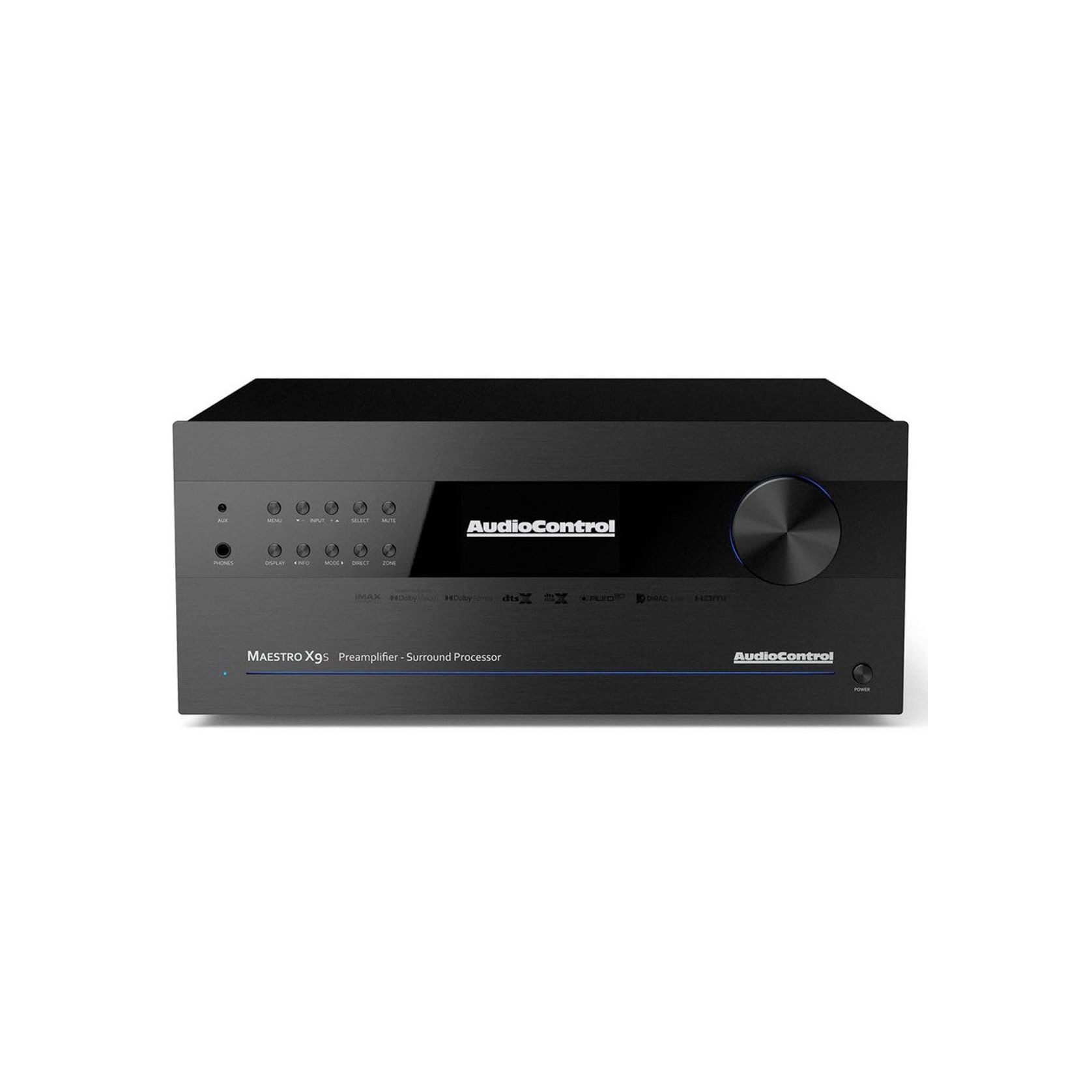

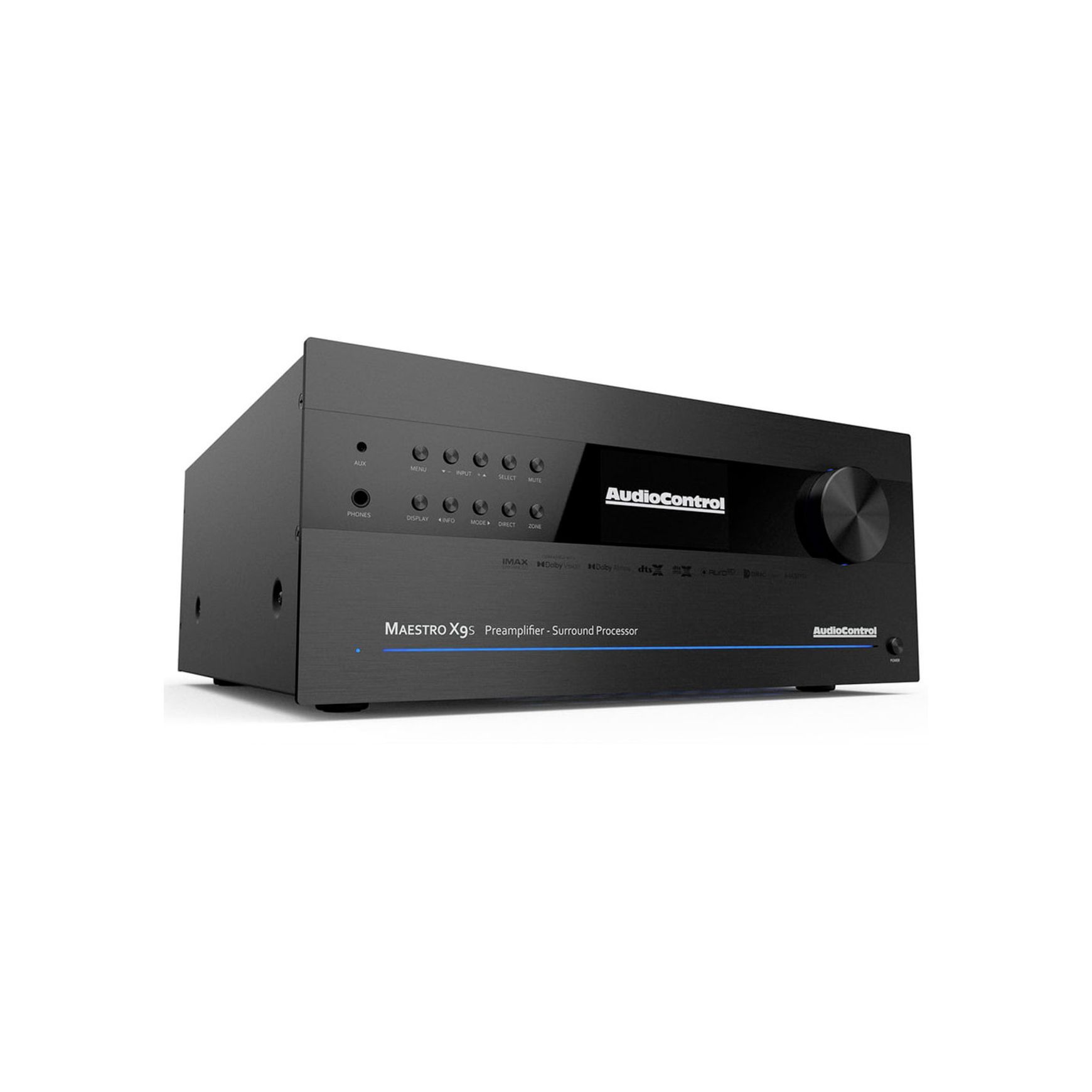

AudioControl Maestro X9S 16 Channel Processor

$18,999

​AudioControl’s high-performance processors enable home theater specialists and A/V integrators to create systems that deliver new levels of precision, power and control. The Maestro X9S supports the most sought after immersive surround formats, such as Dolby Atmos, Auro-3D, DTS:X, and IMAX Enhanced, with 16-channels of balanced and unbalanced outputs, including four user-configurable outputs. The Maestro X9S offers a full complement of inputs for connection to the latest audio/video components.

The  Maestro X9S houses the very latest in audio and video processing technology, featuring Dirac Live® room correction to overcome acoustic anomalies in any space, and ESS SABRE PRO DACs that ensure unprecedented levels of detail and clarity along with earth-shaking, authoritative bass response.

Enthusiasts will enjoy intuitive app-based control, Google Chromecast®, Apple® AirPlay 2, Roon Ready, Bluetooth with aptXHD® support, Wi-Fi streaming connectivity options, and integrated web-based configuration.

All of this outstanding technology has been wrapped quite elegantly within a beautifully designed chassis, distinguishing AudioControl’s Immersive AV Processor lineup from any other solution.

Details
  • Category
    Amplifiers
  • Brand
    Audiocontrol
  • Warranty
    5 years
Specifications

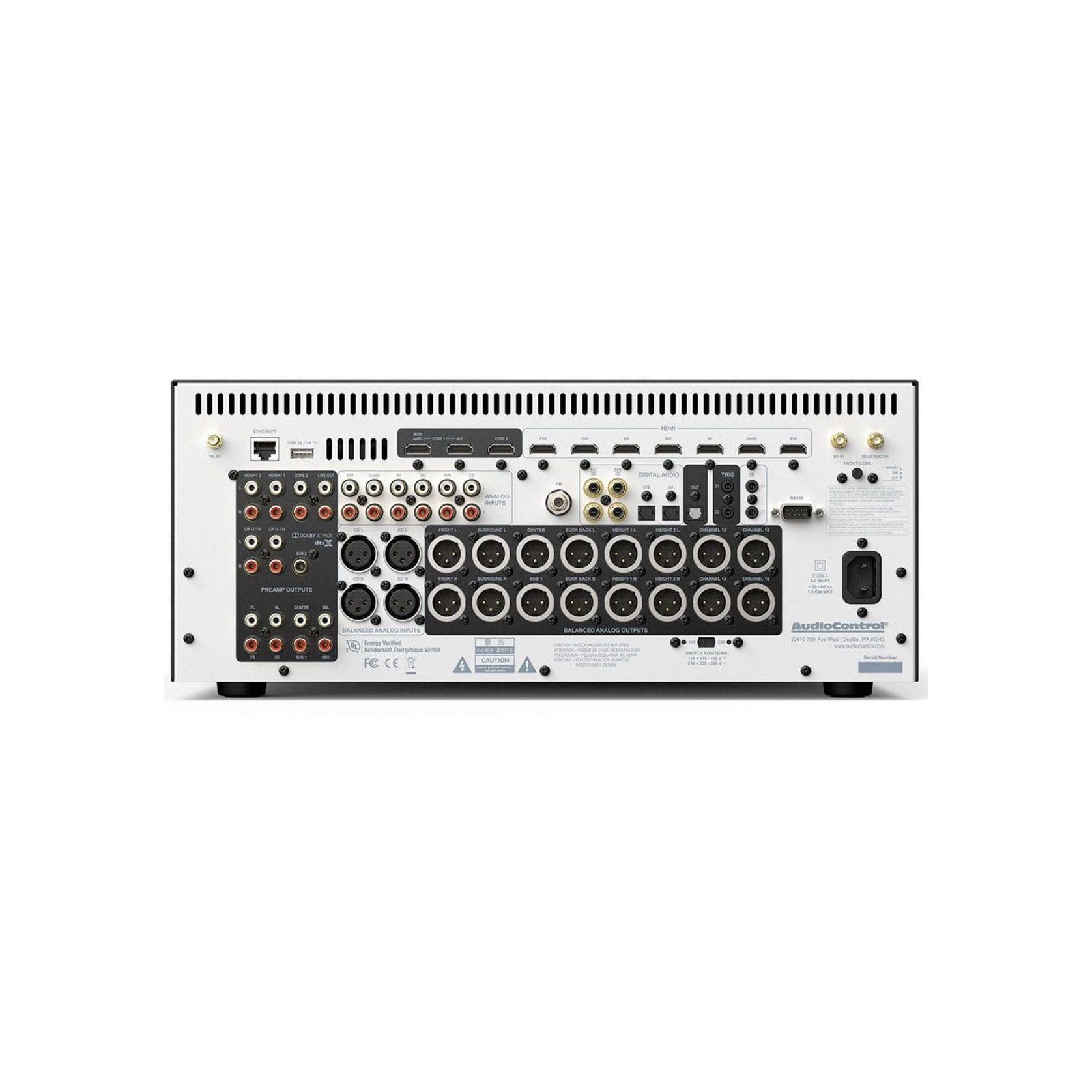

INPUTS
Audio Inputs: 7 HDMI, 2 XLR, 6 RCA Phono, 4 Coax SPDIF, 2 Toslink
Nominal sensitivity: 1V, 2V, 4V (user selectable)
Input Impedance: 47 kΩ
Signal to Noise (A-wtd ref 100W) normal/stereo direct: 103 dB/118 dB
Frequency Response: 20 Hz – 20 kHz ± 0.2 dB
Video Inputs: 7 HDMI (HDMI 2.1 / HDCP 2.3)

OUTPUTS
Preamp Audio Outputs: 16 channels (balanced XLR), 16 channels (unbalanced RCA), 2 channels zone 2 (unbalanced RCA), 1 Toslink
Nominal output level: 1 Vrms (max. 5 Vrms)
Output impedance: 560 Ω
THD+N (20 Hz – 20 kHz): -100dB
Main Video Outputs: Dual (2) HDMI (eARC support)
Second Zone Output: 1 HDMI
Headphone Output: 1 1/4″

CONTROL
IP Ethernet
Wifi
RS232 Serial Control
12 Volt Trigger Outputs: 2
IR Receiver Inputs: 2​​

GENERAL
Power consumptoin (standby): <0.5W
Power consumption (idle, typical): 40W (170 BTU/hour)
Power consumption (maximum): 50W (170 BTU/hour

WEIGHT & DIMENSIONS
Dimensions (including terminals and feet): 17”W x 16.9”D x 7.3”H (4U)
Weight: 27.1 lbs. (12.3 kg)

IN THE BOX
Maestro X9S, HTR-3 remote with 2 x AAA batteries, DAB/FM antenna, 3 x WiFi/Bluetooth antennas, calibration microphone, USB cable, power cord, user manual, warranty

Features
  • 9.1.6 decoding for Dolby Atmos, DTS:X, IMAX Enhanced, and Auro-3D
  • 8K UHD / HDMI 2.1 and HDCP 2.3
  • All inputs support 8K/60P and 4K/120P
  • ES9038PRO SABRE audiophile DACs (140 dB of dynamic range)
  • Includes Dirac Live® & Dirac Live® Bass Control
  • 16 balanced XLR outputs with OPA1612 HiFi Audio op-amps
  • Pairs perfectly with Savoy G4, Pantages G4, and Avalon G4 power amplifiers
  • Supports Dolby Vision, HDR10+, HDR10, and HLG
  • 4 user-assignable output channels
  • 7 HDMI inputs / 3 HDMI outputs including Zone 2 (eARC compatible)
  • IP, IR, RS232, and Wifi control
  • Apple® AirPlay 2
  • Google Chromecast built-in streaming support
  • Bluetooth® with aptXHD® support
  • Roon Ready and supports MQA
SKU: AC-MAESTRO-X9S
