Axis H1600XXL DS - Double Sided Fireplace

By Sculpt Fireplace Collection
Website
Black
Steel

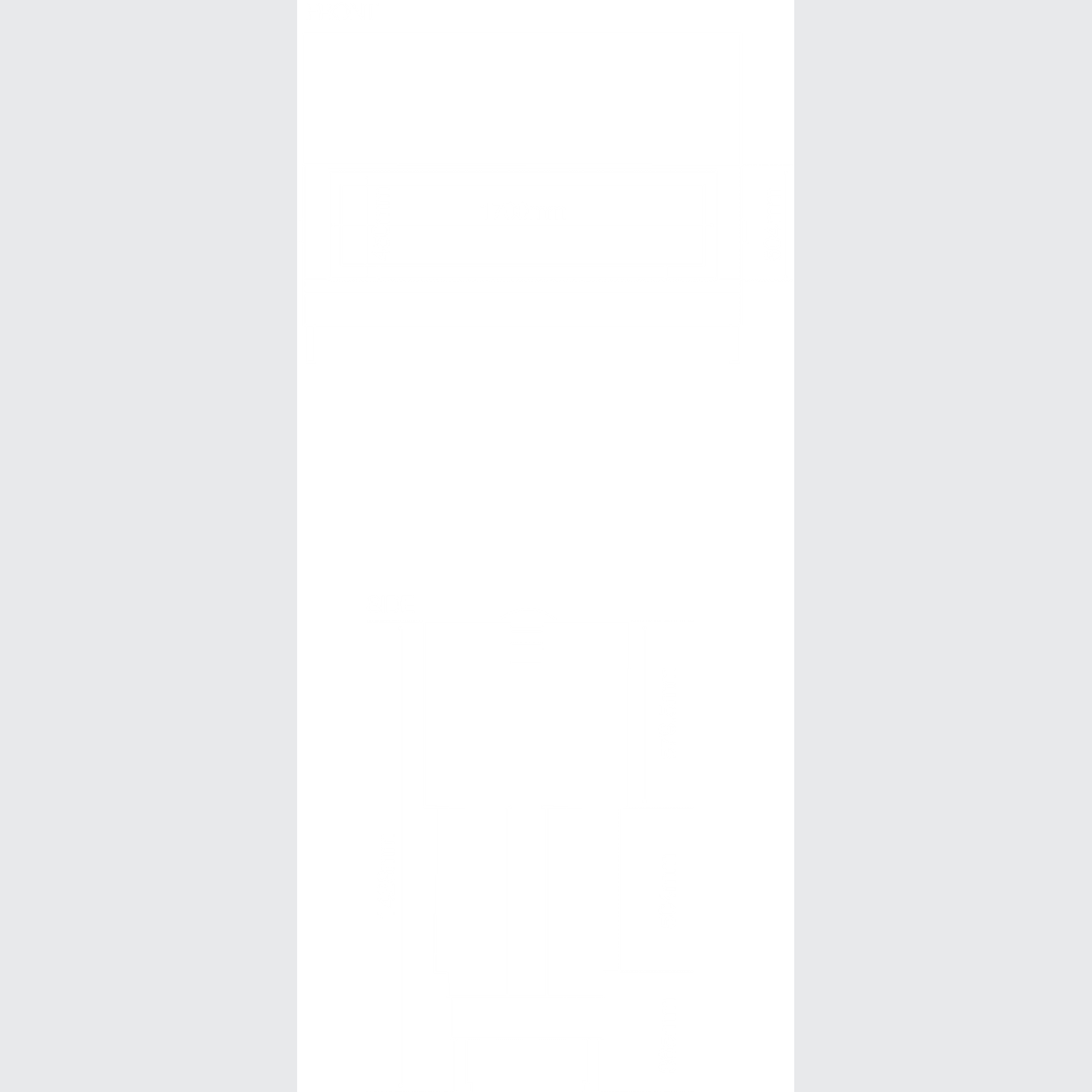

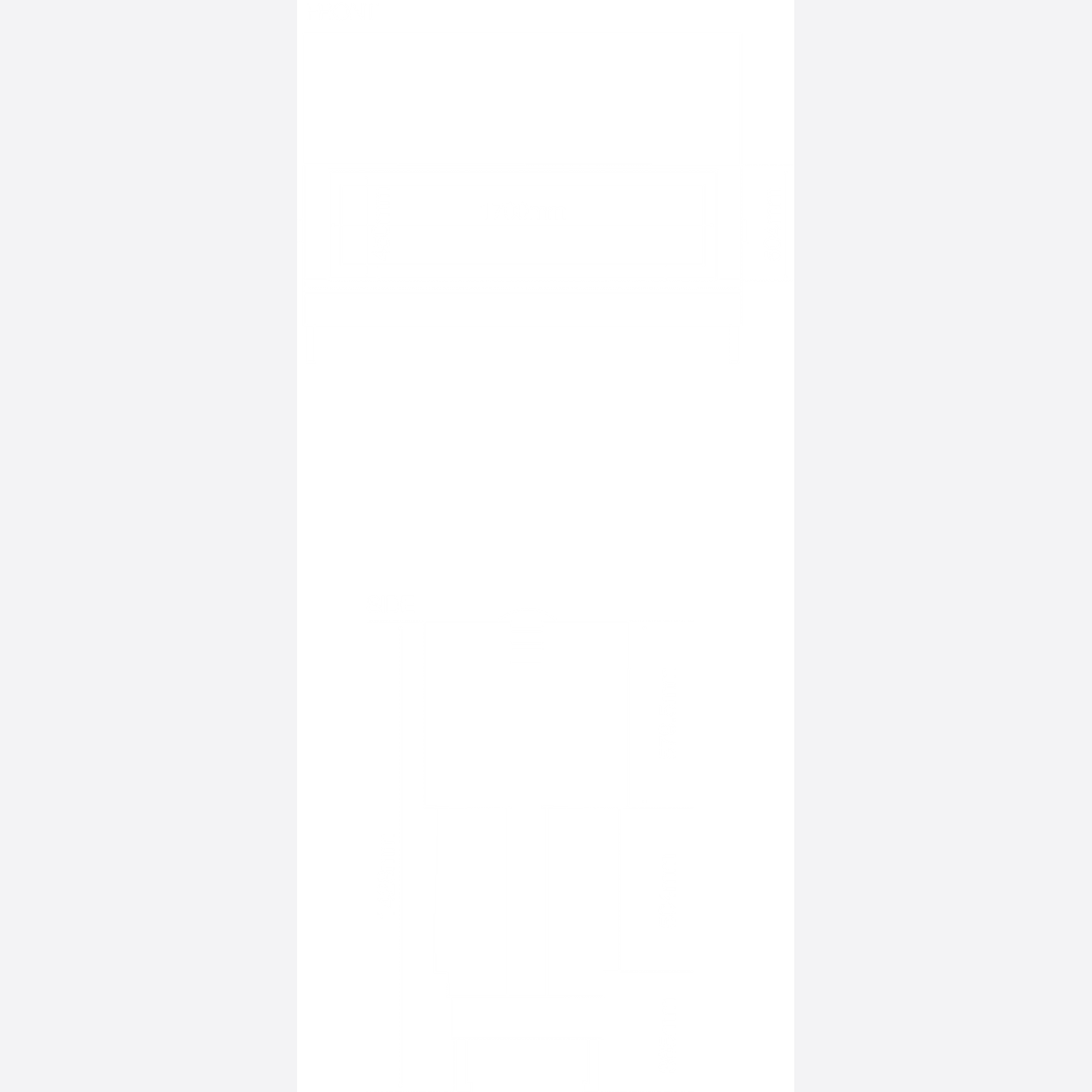

L504 x W1700 x H1428 mm - 530kg

Discover the extraordinary advantages of the Axis H1600XXL double-sided wood fireplace from the renowned Sculpt Fireplace Collection. As Australia's largest inbuilt wood fireplace, this masterpiece redefines elegance and innovation. Its remarkable Triple Burn System combines powerful radiant heat from the 1.7-meter glass viewing area, exceptional heat accumulation via 60mm thick refractory ceramic firebricks, and unparalleled convection through the Double Air Flow System (DAFS). The double-sided option enhances design possibilities, serving as a captivating room divider while providing convenient access from both sides with its lift door. Embrace the advantages of this environmentally conscious marvel, boasting reduced CO2 emissions, a longer-lasting fire, cleaner glass, and total combustion of firewood, ensuring a seamless blend of performance and aesthetic appeal.

Step into the realm of ultimate warmth with the Axis H1600XXL double-sided wood fireplace. Explore the sophistication of the Sculpt Fireplace Collection and its cutting-edge design, expertly crafted in the Rhône-Alpes region of France. Revel in the charm and efficiency of a designer statement, perfectly suited for residential or commercial applications. With the Axis H1600XXL, bask in the comfort of its exceptional heating capabilities and timeless elegance, making it the centerpiece of any grand space. Experience ease and safety with its damper-locking mechanism and convenient glass wash system, ensuring minimal maintenance. Invest in the Axis H1600XXL double-sided wood fireplace, and delight in the harmonious blend of remarkable features and captivating allure, perfectly suited to elevate your home to new levels of grandeur and style.

Details
  • Category
    Wood Fireplaces
  • Range
    Contemporary Inbuilt
  • Brand
    Axis
  • Year
    2015
  • Warranty
    10 years
Specifications

Material:
Solid steel firebox construction with 60mm hand-assembled interlocking firebricks

kW Output:
30kW

Heating capacity (m2):
Up to 300m2*

Facade:
Clean frameless design (no trim)

Glassdoor:
Secure lift up glass door with locking mechanism or forward levering for easy cleaning

Minimum flue height:
5.4m

Flue dimensions:
300mm, 350mm, 400mm

Heat Transfer:
Hot Air Transfer/ Ducting to other rooms by up to 6 different points

Hearth dimension:
Minimum 500mm in front of any part of the fireplace, 250mm on either side and 75mm thick

Outside air kit:
Recommended for well insulated homes

Warranty:
10 year fire brick warranty*

Weight:
530kg

*Heating capacity (when used as a slow combustion heater) is based on 2.4m ceiling heights and 6-star rated homes. Factors such as building characteristics, quality of insulation, type of firewood used and climatic zone will also affect the heating output. *In accordance with Australia and New Zealand Standard AS/NZS 2918:2001 *All product pictures are a guide only, all wood fires must be installed as per AS/NZS 2918: 200 *E&OE. See T’s & C’s.

Performance

AXIS firebricks are guaranteed for 10 years and the fireboxes are guaranteed for 5 years. This excludes ash pan, ash grate and fire grate retainers which are guaranteed for 1 year.

The warranty becomes effective at the date of purchase.
