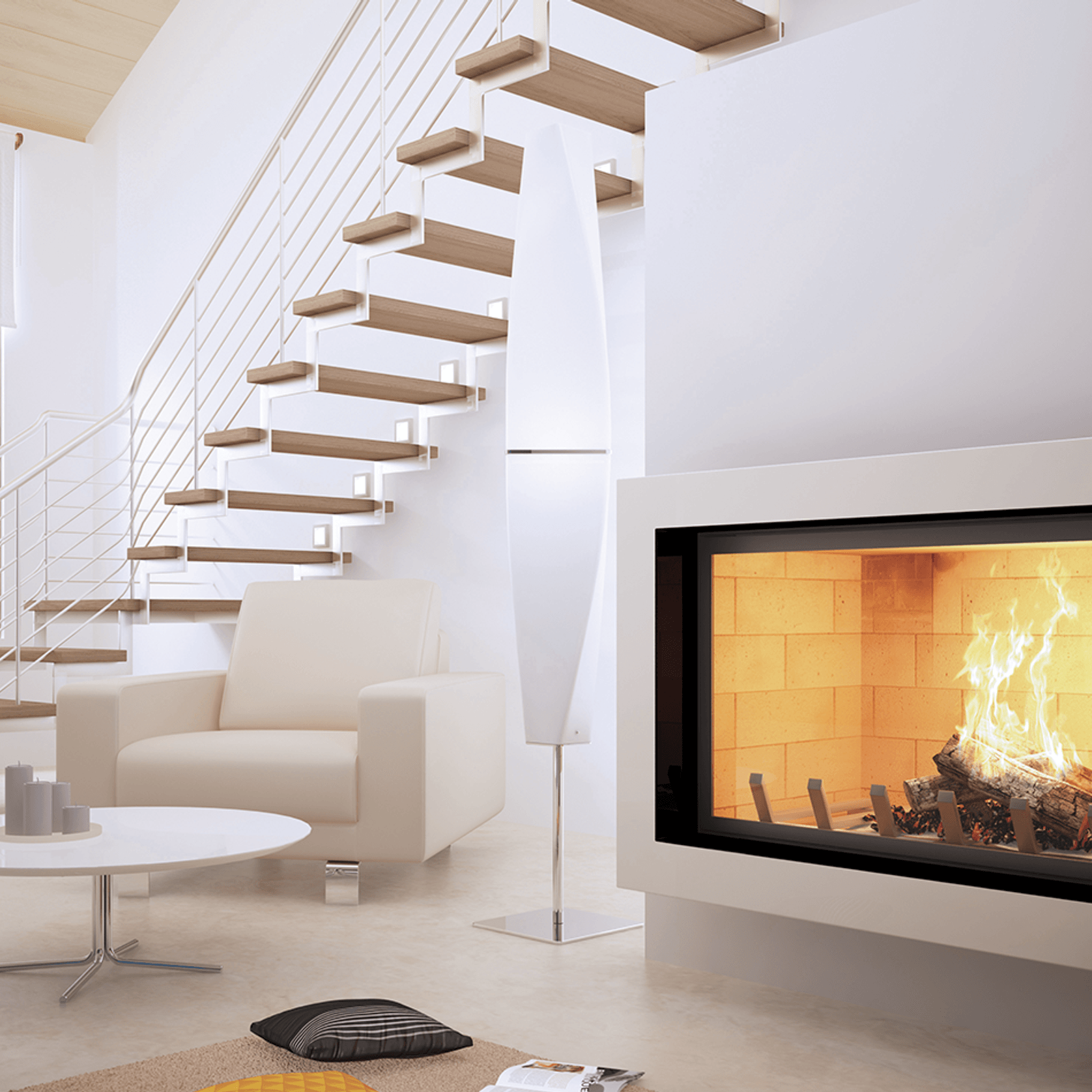

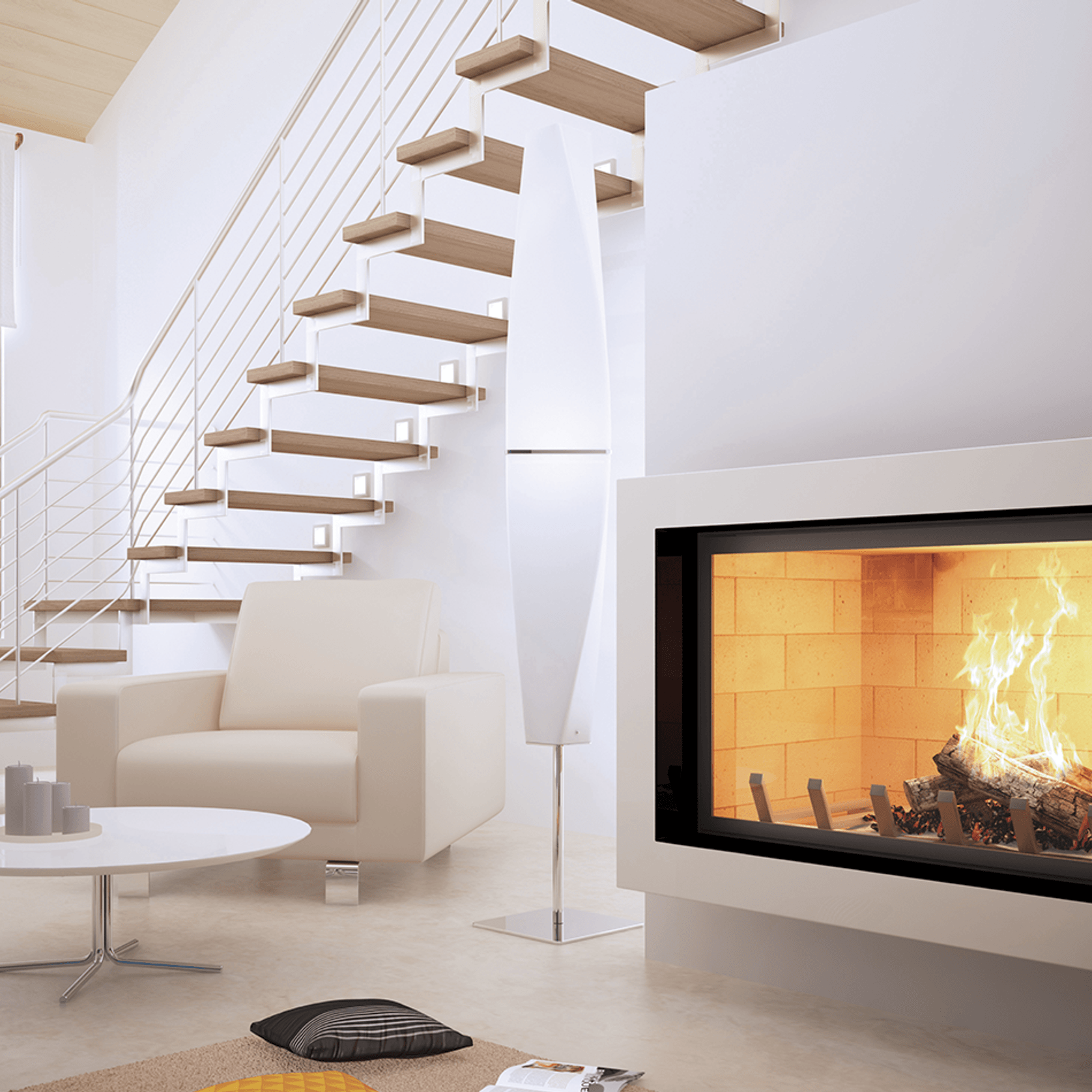

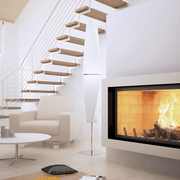

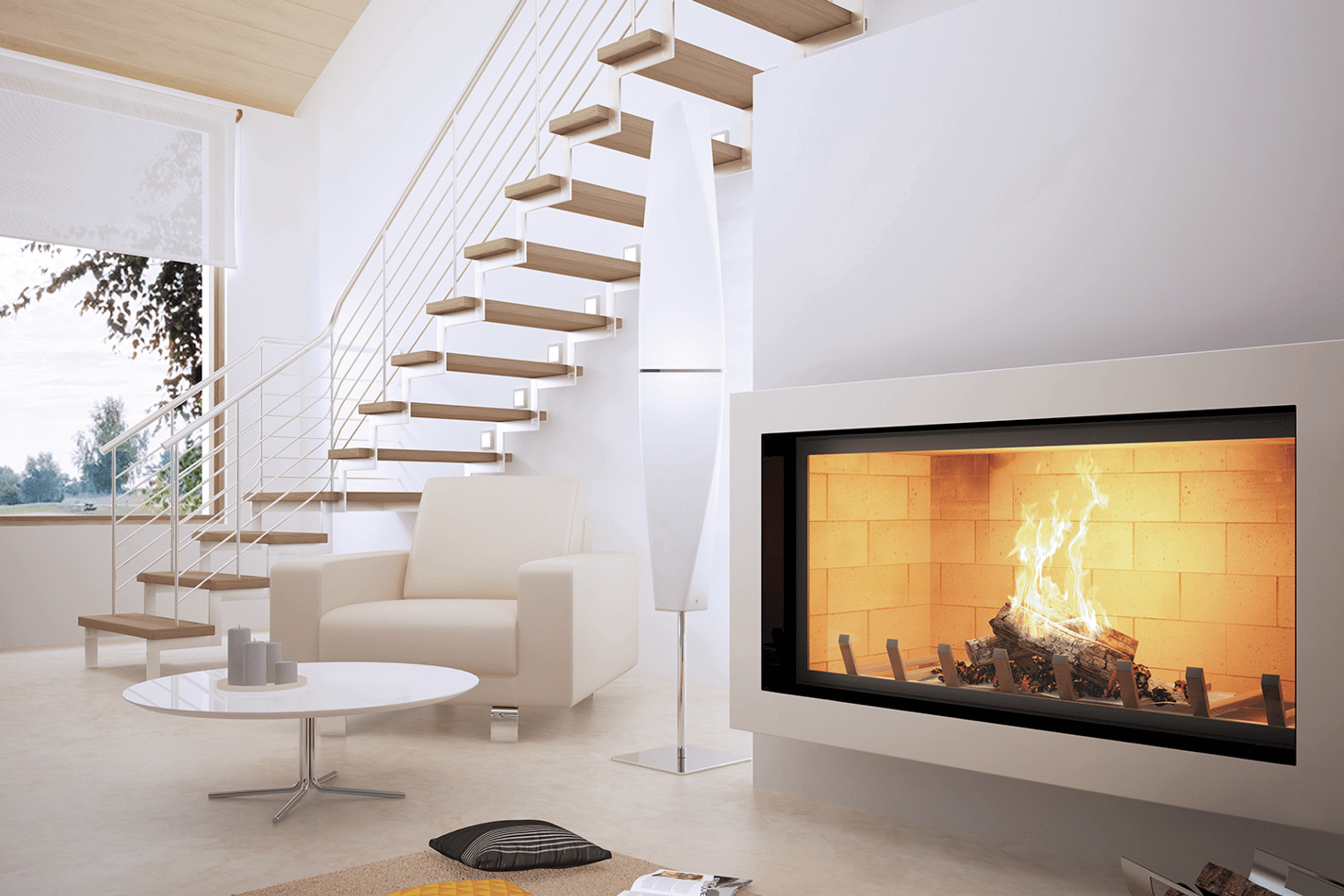

Axis H1400 - Contemporary Inbuilt Fireplace

The hand-crafted Axis H1400 is a French-engineered steel firebox that is sure to add a grand statement to any home.

Specs

Material:
Solid steel firebox construction with 60mm hand-assembled interlocking firebricks (sand-stone colour)

kW Output:
32.5kW

Heating capacity (m2):
180- 320m2*

Facade:
Clean frameless design (no trim)

Glassdoor:
Swing and secure lift up glass door with locking mechanism

Minimum flue height:
5.4m

Flue dimensions:
300mm, 350mm, 400mm

Includes hot air transfer kit:
Two ducts and two registers

Hearth dimension:
Minimum 500mm in front of any part of the fireplace, 250mm on either side and 75mm thick

Outside air kit:
Recommended for well-insulated homes

Warranty:
10-year fire brick warranty*

Weight:
400kg

*Heating capacity (when used as a slow combustion heater) is based on 2.4m ceiling heights and 6-star rated homes. Factors such as building characteristics, quality of insulation, type of firewood used, and climatic zone will also affect the heating output. *In accordance with Australia and New Zealand Standard AS/NZS 2918:2001 *All product pictures are a guide only, all wood fires must be installed as per AS/NZS 2918:2001 *E&OE. See T’s & C’s.

Performance

AXIS firebricks are guaranteed for 10 years and the fireboxes are guaranteed for 5 years. This excludes ash pan, ash grate and fire grate retainers which are guaranteed for 1 year.

The warranty becomes effective at the date of purchase.
