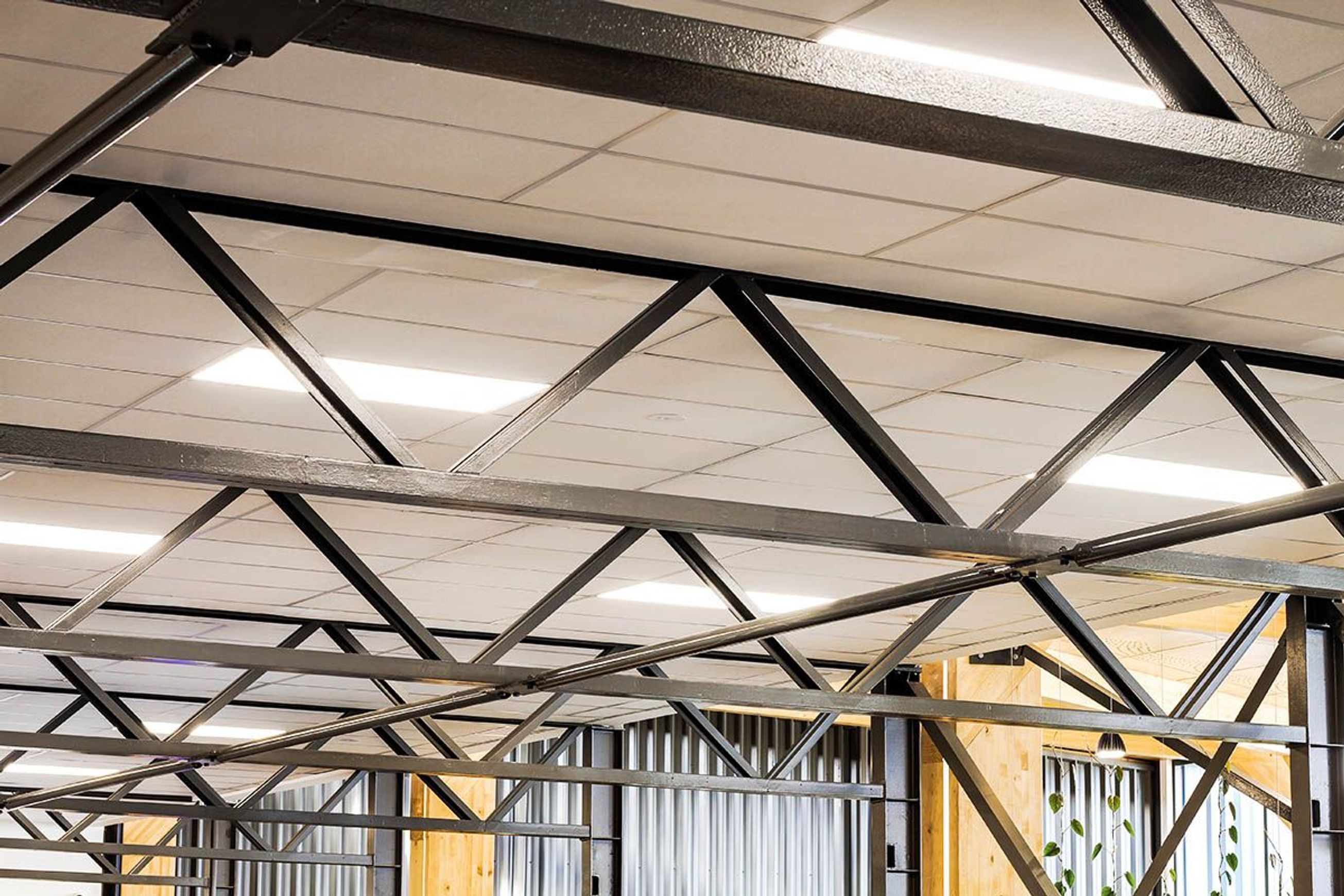

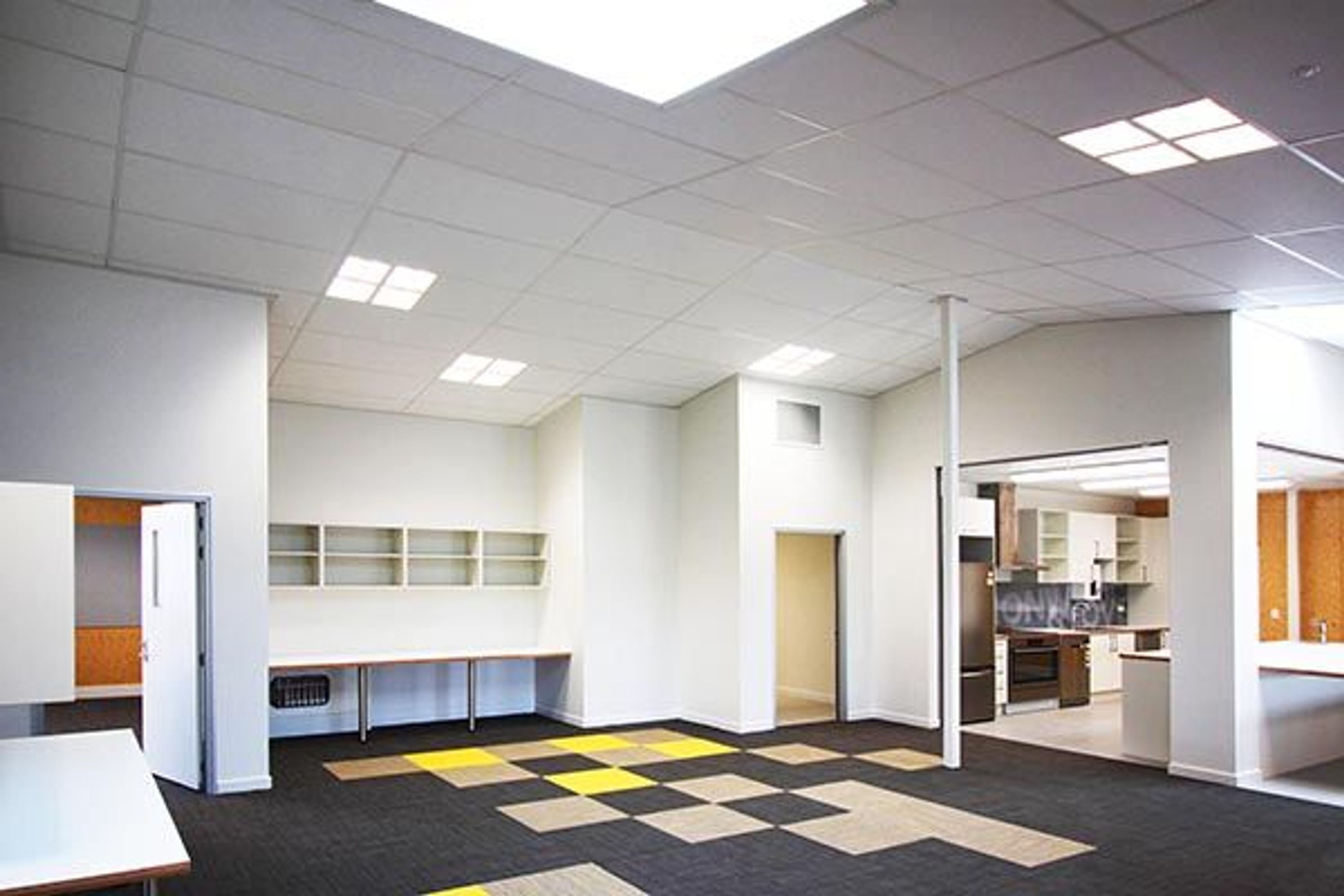

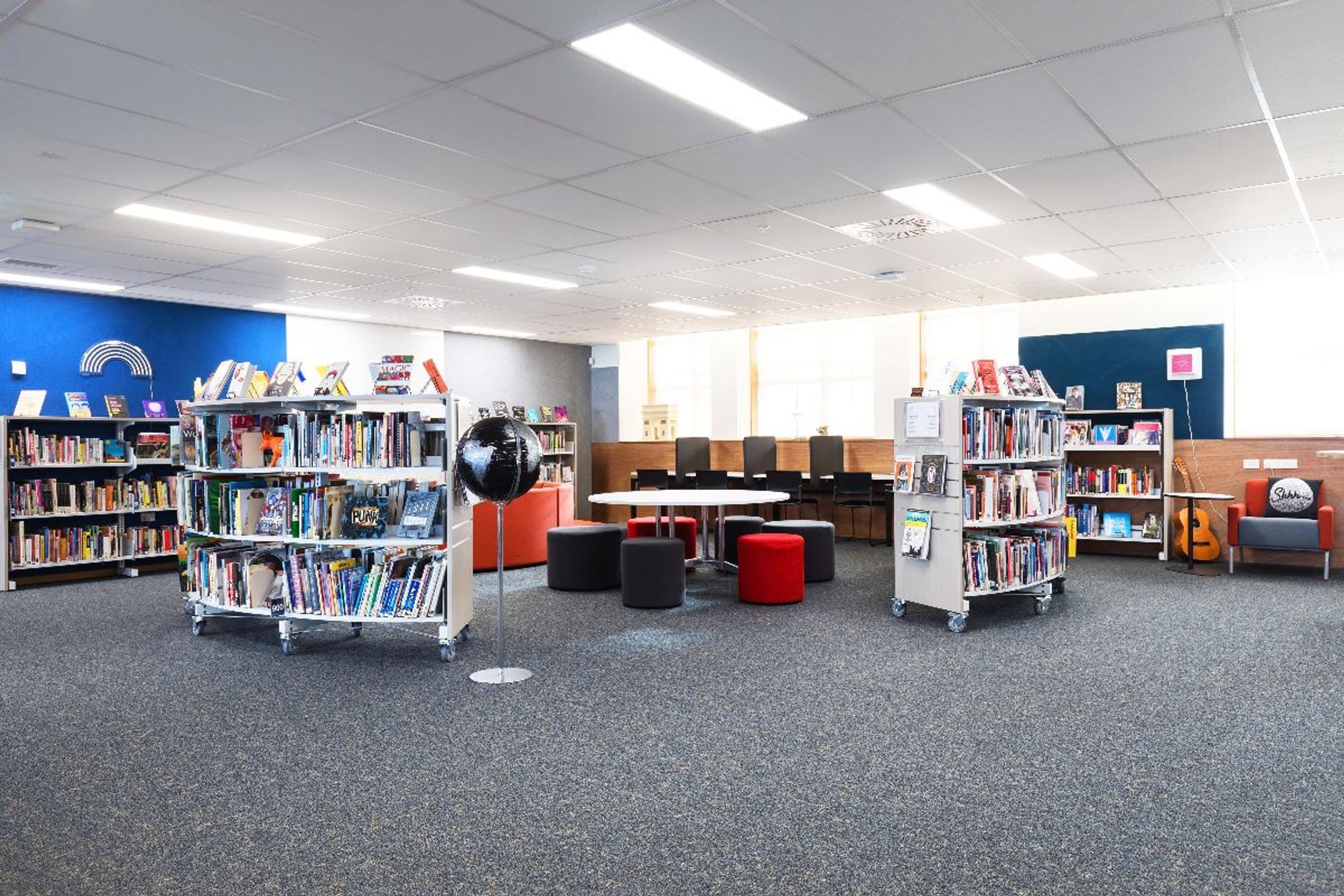

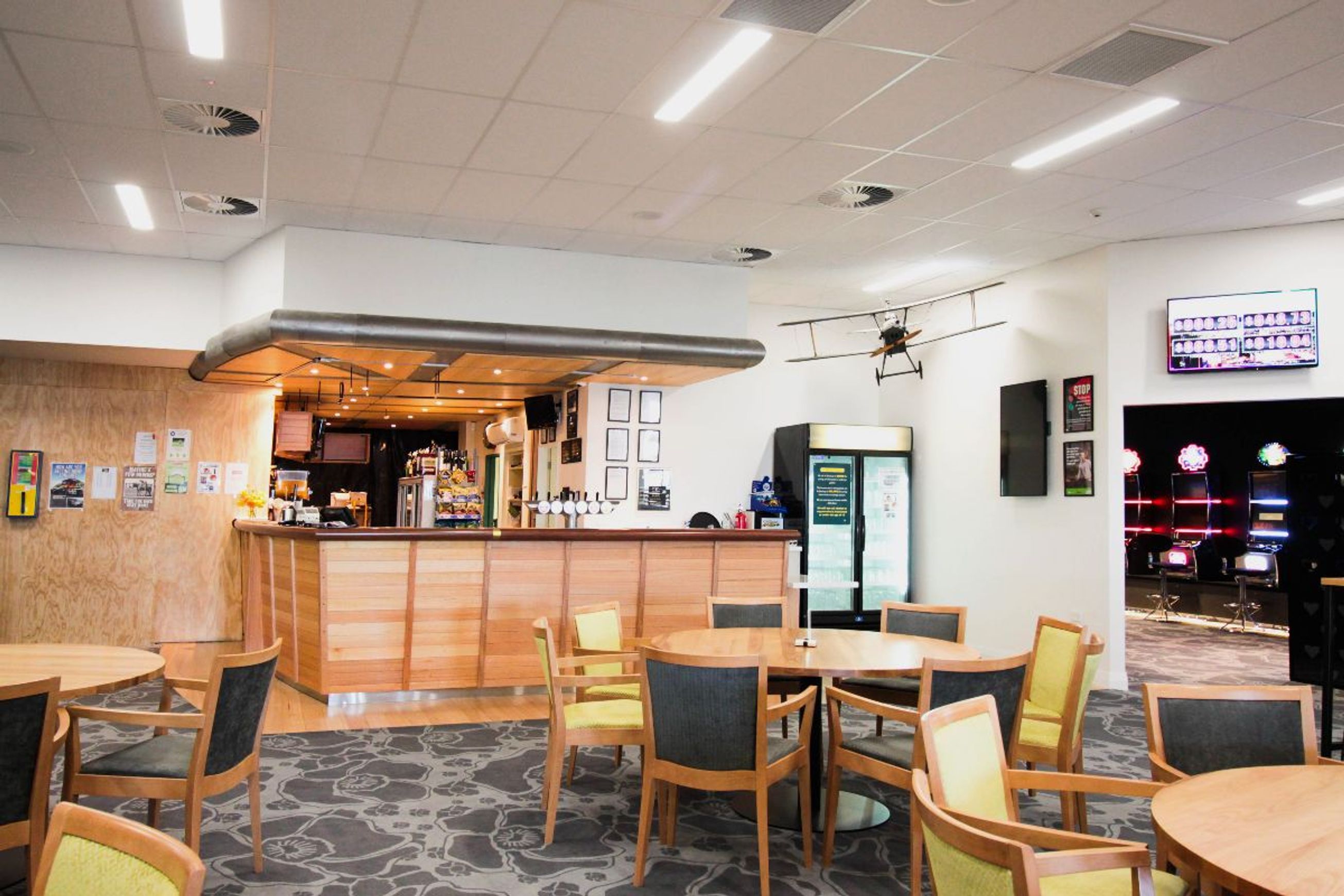

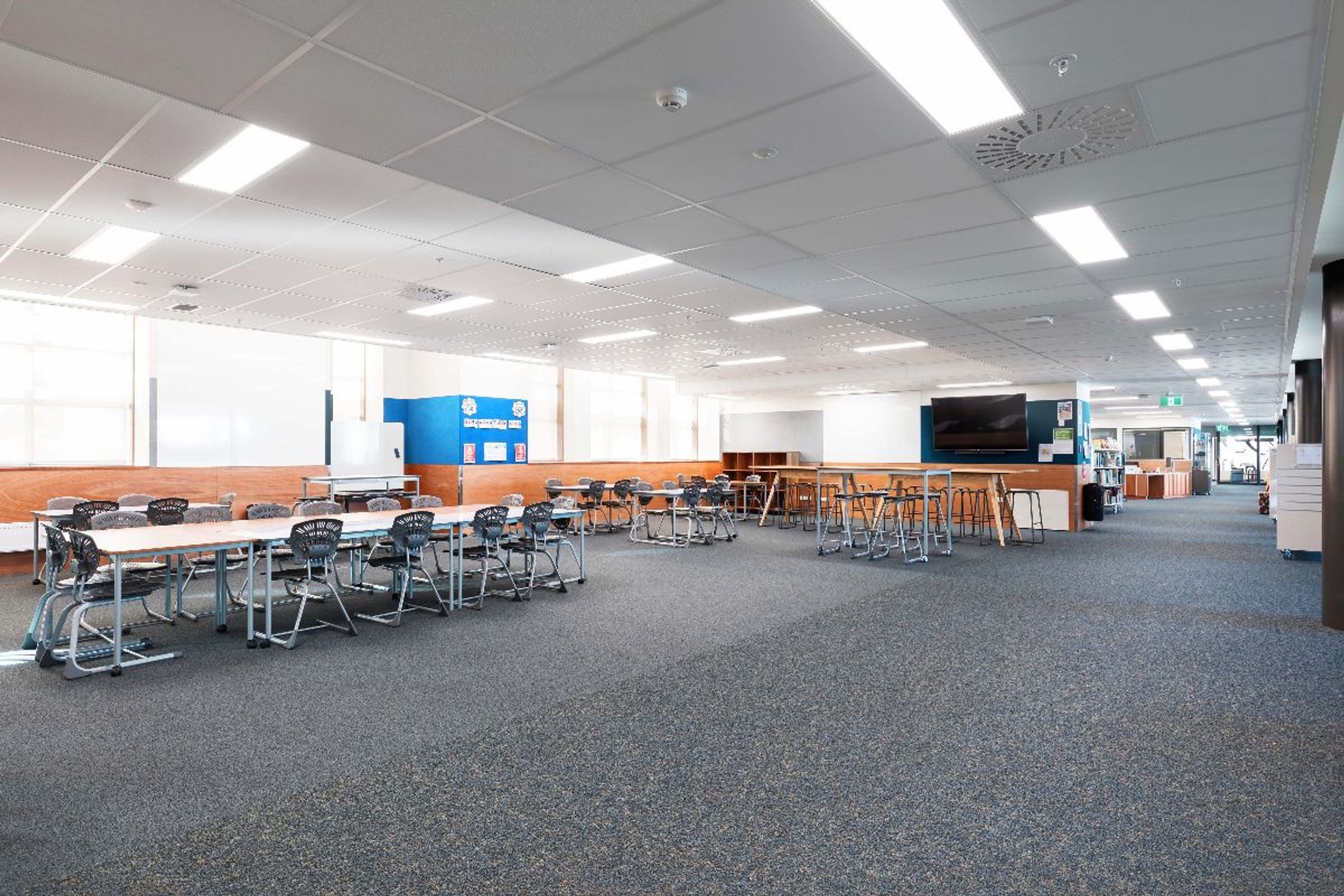

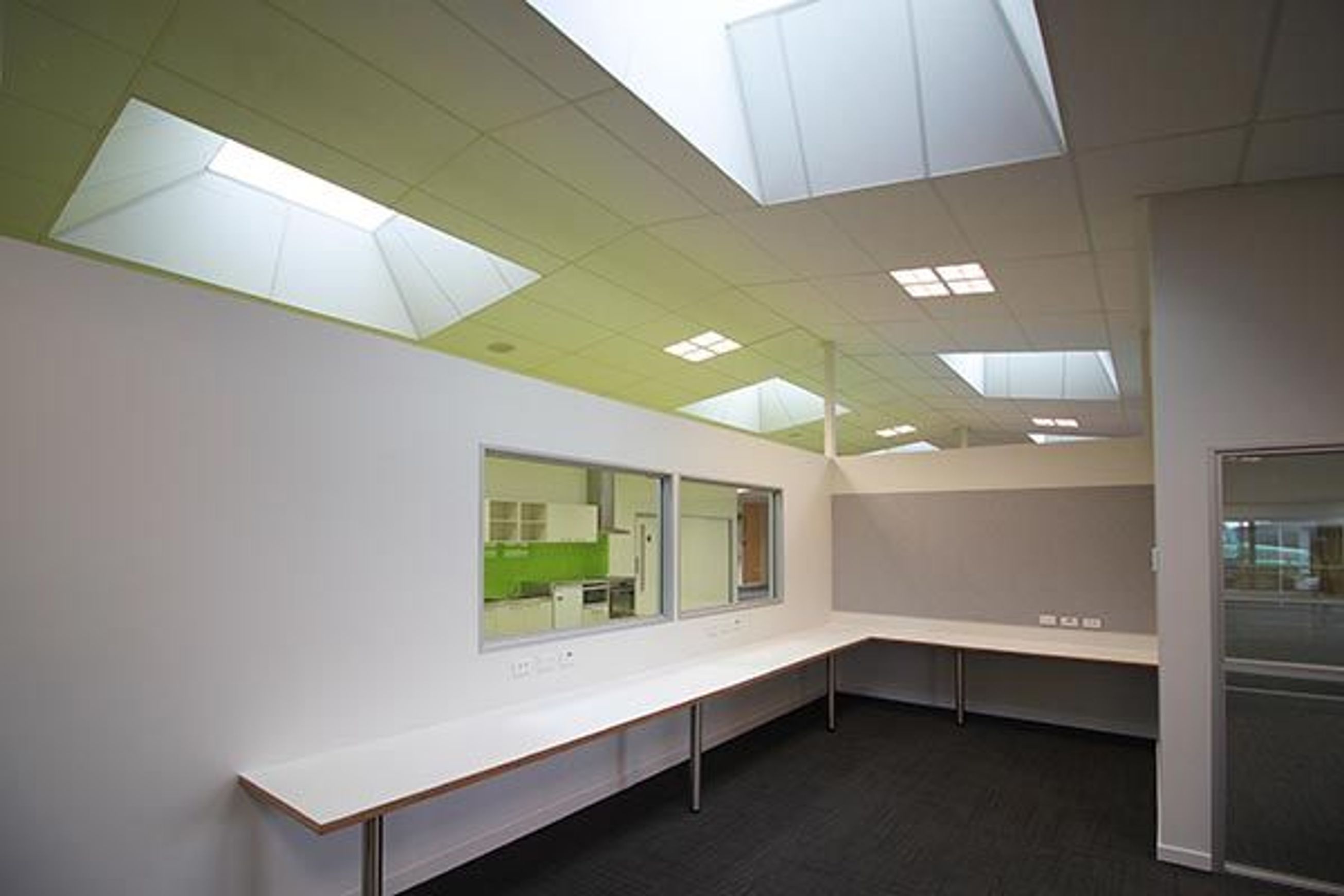

Phonic Combo + Acoustic Ceiling Tile

By T&R Interior Systems
Visit Website

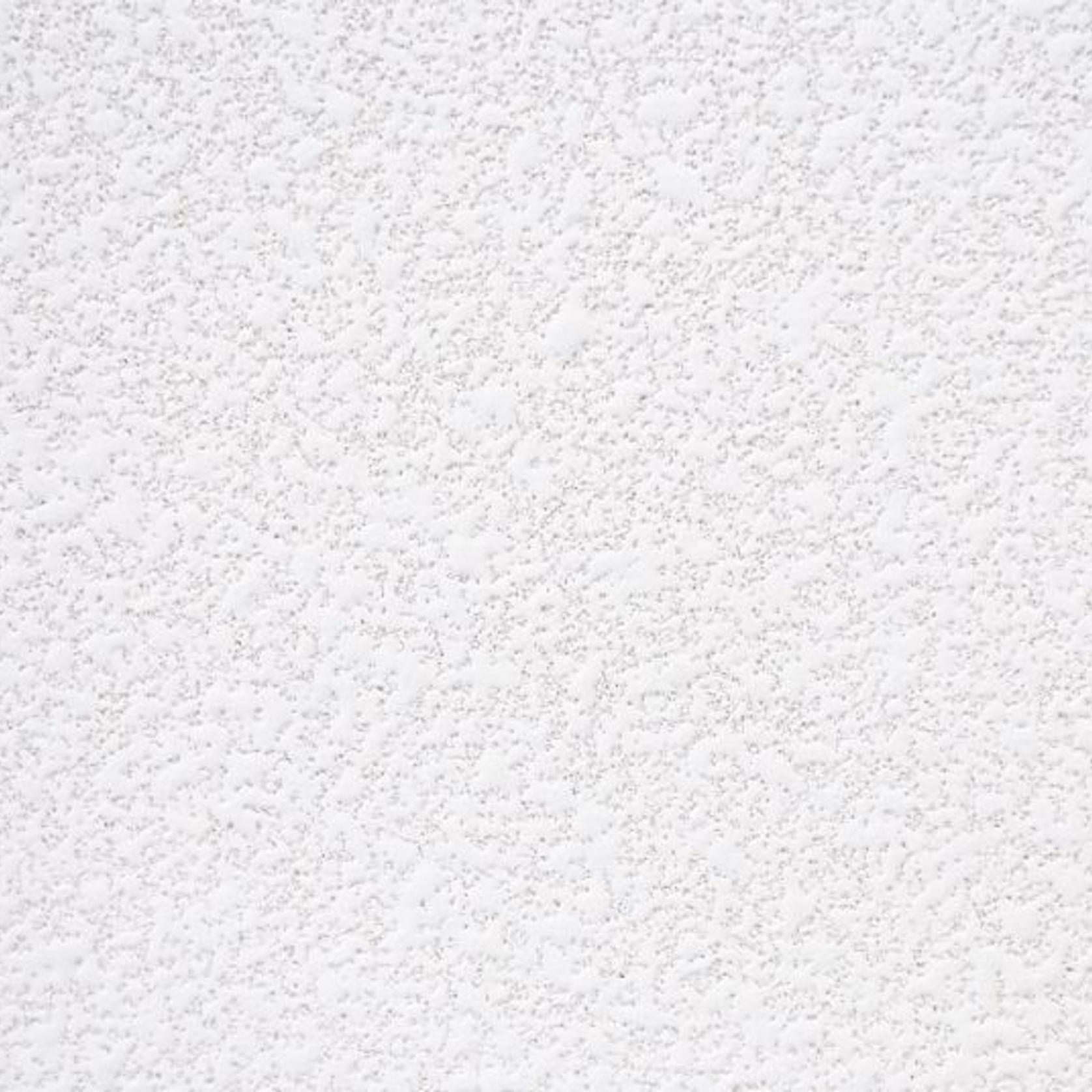

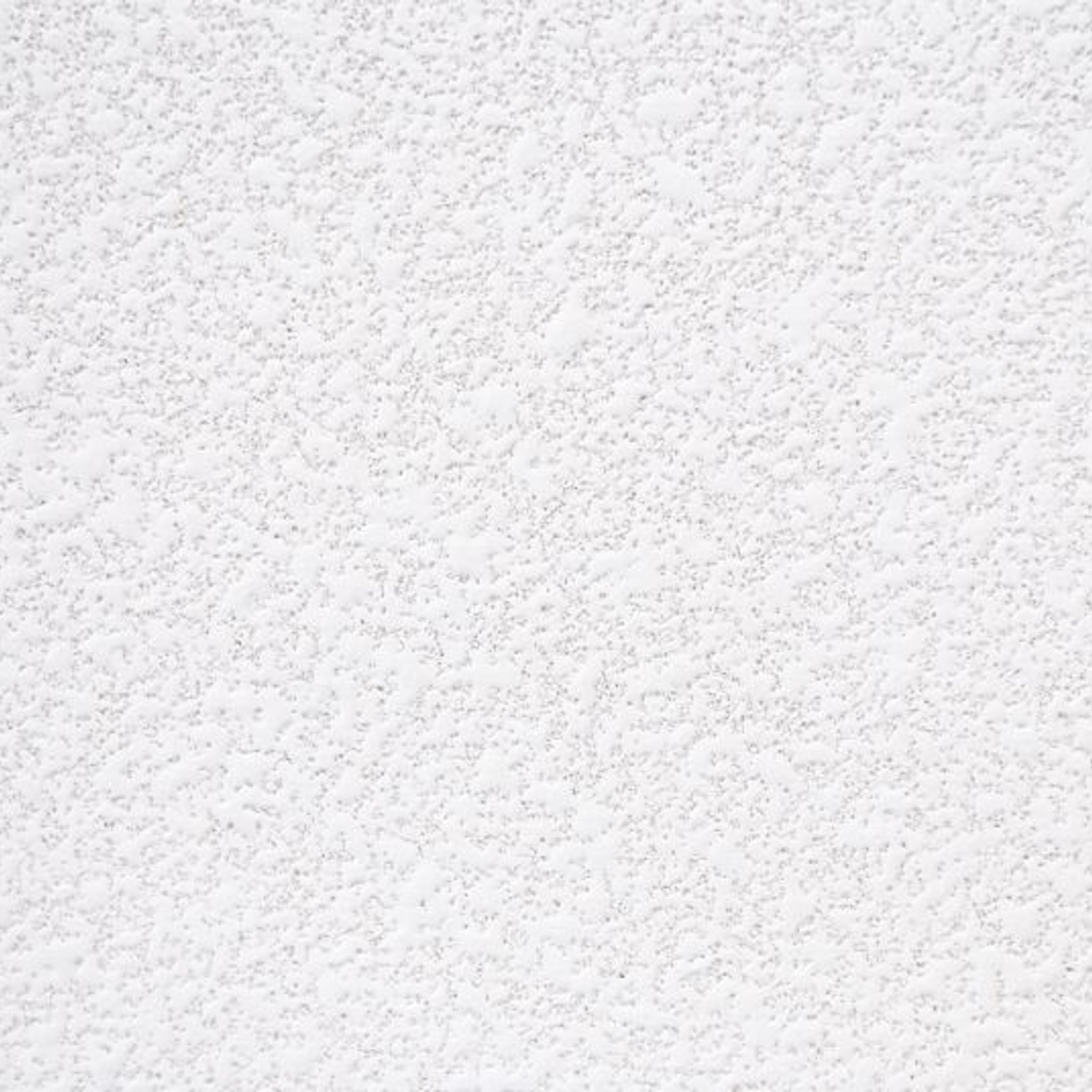

C Max Combo Plus is a composite tile with a refined white painted, monolithic, pre-finished face. It has an absorptive layer with an attenuating backer behind. Combo Plus not only has amazing acoustic properties (and meets Ministry of Education requirements) but also is a much better solution for seismic requirements. Performance data demonstrates an NRC of 0.85 and a minimum CAC of 42, that can be increased to a CAC of 52 quite easily.

The invention comprises two layers of material that are flexibly attached together with an air gap in between. This allows each of the layers to flex and vibrate and to define a cavity. The resulting tile weight is only 7.5kg/m2.

Details
  • Category
    Acoustic Tiles, Ceiling Tiles
  • Range
    Phonic Ceiling Tiles
Specifications

Absorption

  • NRC 0.85
  • SAA 0.94
  • aw 0.80

Attenuation

  • CAC & D n,c,w 42 with the ability to increase easily

Weight - 7.5kg/m²

LR > 87%

Fire Test ISO 5660 Parts 1 & 2 - Group 1 – S

Moisture Rate 1%

Mineral Fibre Layer

  • Thickness - 15mm
  • Conductivity W/mK - <=0.065W/mk
  • Density kg/m³ - 280-320kg/m3
  • Moisture Rate (JC/670-2005 ) - <=3%

Fibreglass Testing

  • 20mm
  • 0.49-0.042W/mk
  • 100kgm3
  • <1%

Performance data demonstrates an NRC of 0.85 and a minimum CAC of 42, that can be increased to a CAC of 52 quite easily

Size: 1200 x 600 *2400 x 600 *1500 x 300 *1200 x 300

Colours – white, black available by indent and MOQ

30 year lifetime system warranty to withstand conditions up to 40° and 99% relative humidity without visible sag when used with a T&R brand suspension system.
