The EconoGlaze glazing bar system from UGS is an effective, universal glazing fixture system that is designed to provide a simple yet secure mounting and sealing method for various glazing materials in glazing thicknesses of 4mm, 6mm, 8mm and 10mm.

Details
  • Category
    Fixed Canopy Roof, Pergolas
  • Range
    Econoglaze
  • Designer
    Universal Glazing Systems
  • Warranty
    10 years
General
  • Country of origin
    New Zealand
  • Type of use
    Commercial and Residential
  • Package type
    Special packaging required
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation recommended
  • Assembly
    Professional assembly recommended
Specifications

The EconoGlaze glazing bar assemblies are available in 2 standard lengths, 4050mm and 6050mm, and are easily cut to finished length.

Scope of use

The EconoGlaze glazing bar can be mounted directly onto timber, aluminium or steel supporting members such as purlins, rafters, etc. If greater spans are required, the EconoGlaze glazing bar has been designed to fit onto various other aluminium or steel profiles to provide increased supported span lengths if necessary.

Features

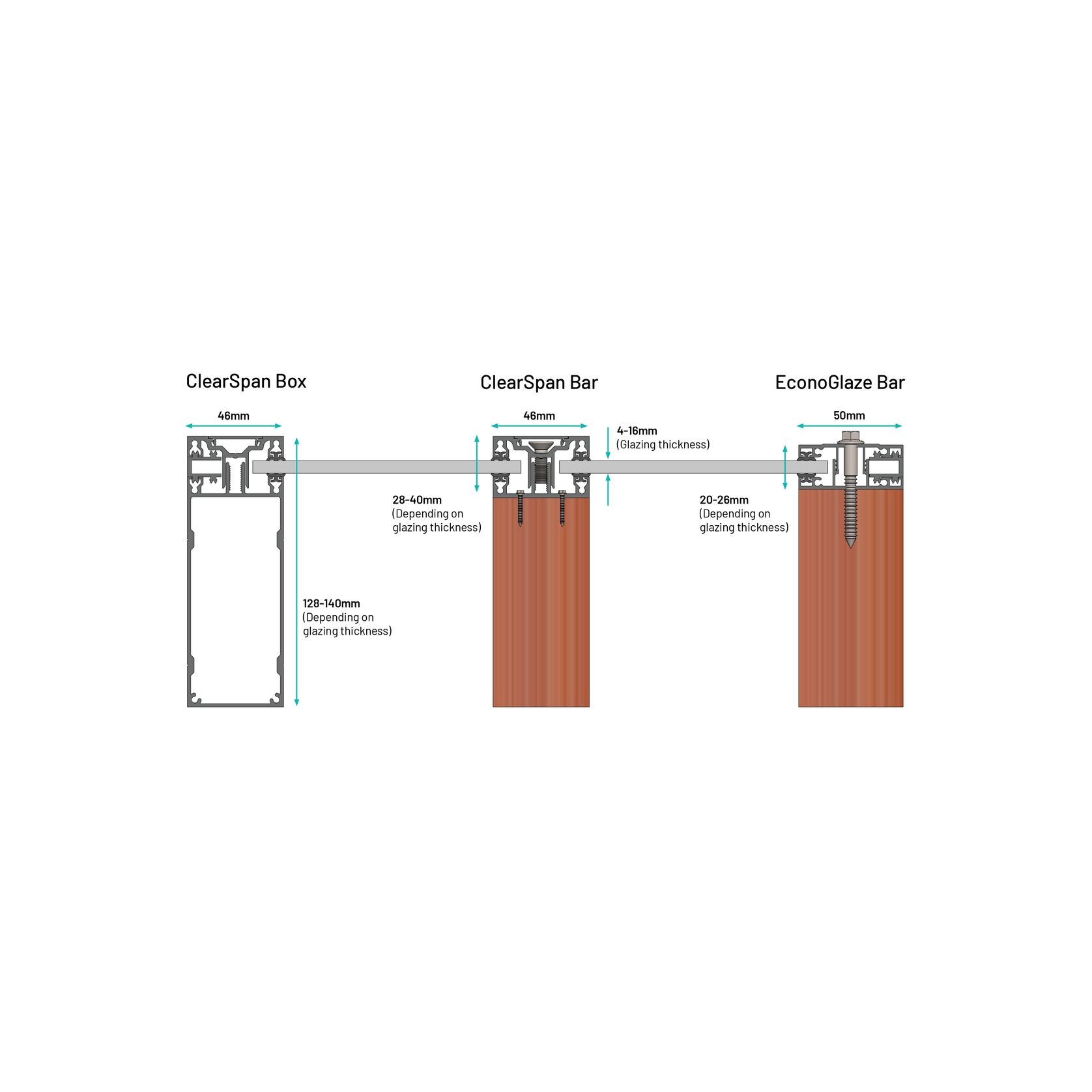

An economical option compared with the Clearspan Bar. At 50mm wide, it may be better suited to attach to Aluminium rafters.

Universal Glazing Systems (UGS)
Visit Website

More from
Universal Glazing Systems (UGS)

ClearSpan Glazing Box System
ClearSpan Glazing Box System
By Universal Glazing Systems (UGS)
Clearspan Glazing Bar System
Clearspan Glazing Bar System
By Universal Glazing Systems (UGS)

About the
Seller

Family owned and locally operated in New Zealand, Universal Glazing Systems (UGS) is based in Kumeu, Auckland and was created in 2018. Our Engineering background was essential in designing the glazing systems with strength and adaptability, while keeping the installation process simple and the products looking exceptional.

With the engineering and design foundations laid, Mike Dilloway came on board and brought his knowledge of the roofing market to help UGS grow. With his sales background and passion for helping people, UGS has quickly grown to be one of the major suppliers of outdoor pergolas and canopies in New Zealand.

Proudly NZ made, we pride ourselves in offering a range of structural glazing solutions that create a contemporary living environment for both residential and commercial projects. We offer a wide range of customisable and bespoke glazing products. Polycarbonate, Acrylic or Glass - we can cover any budget or design.
