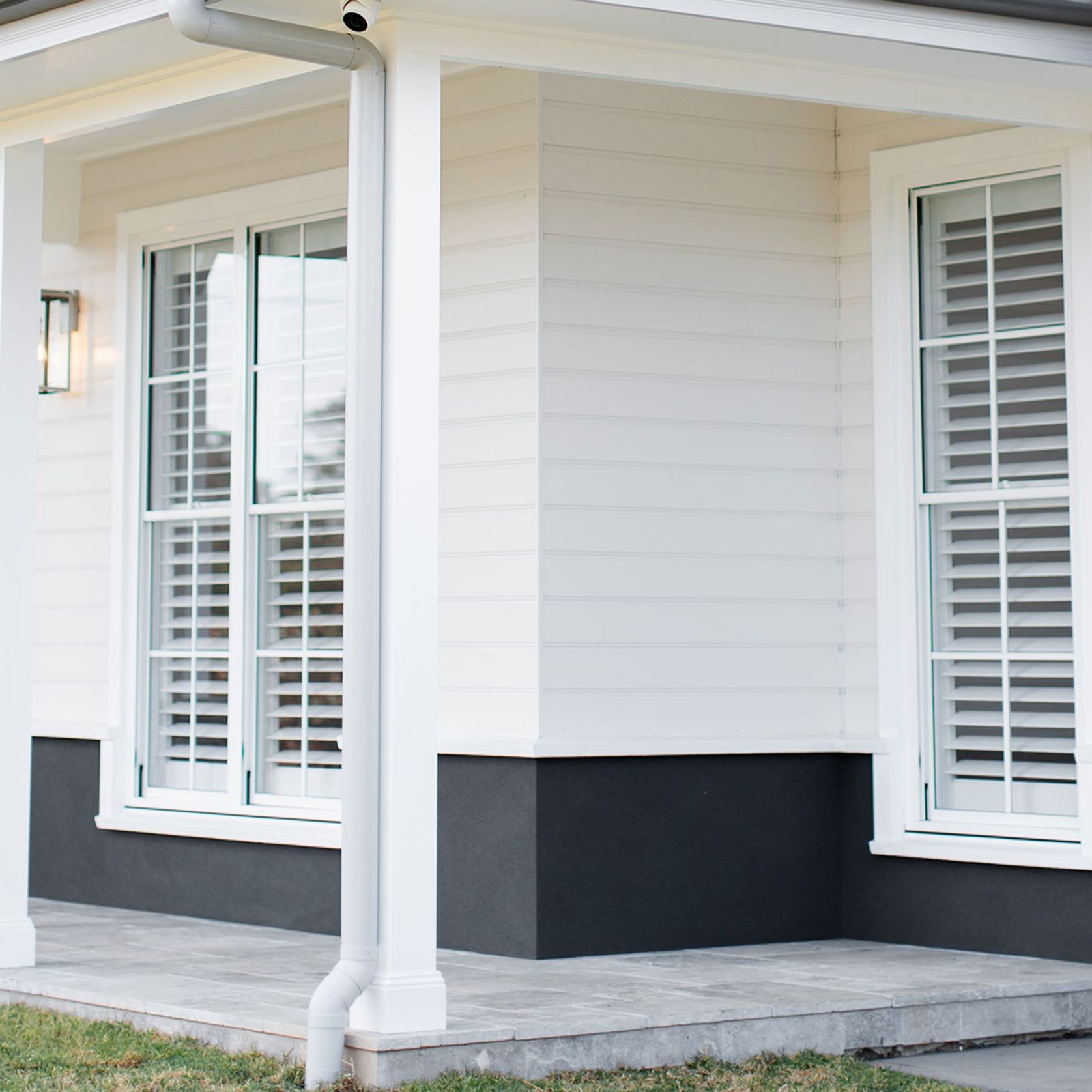

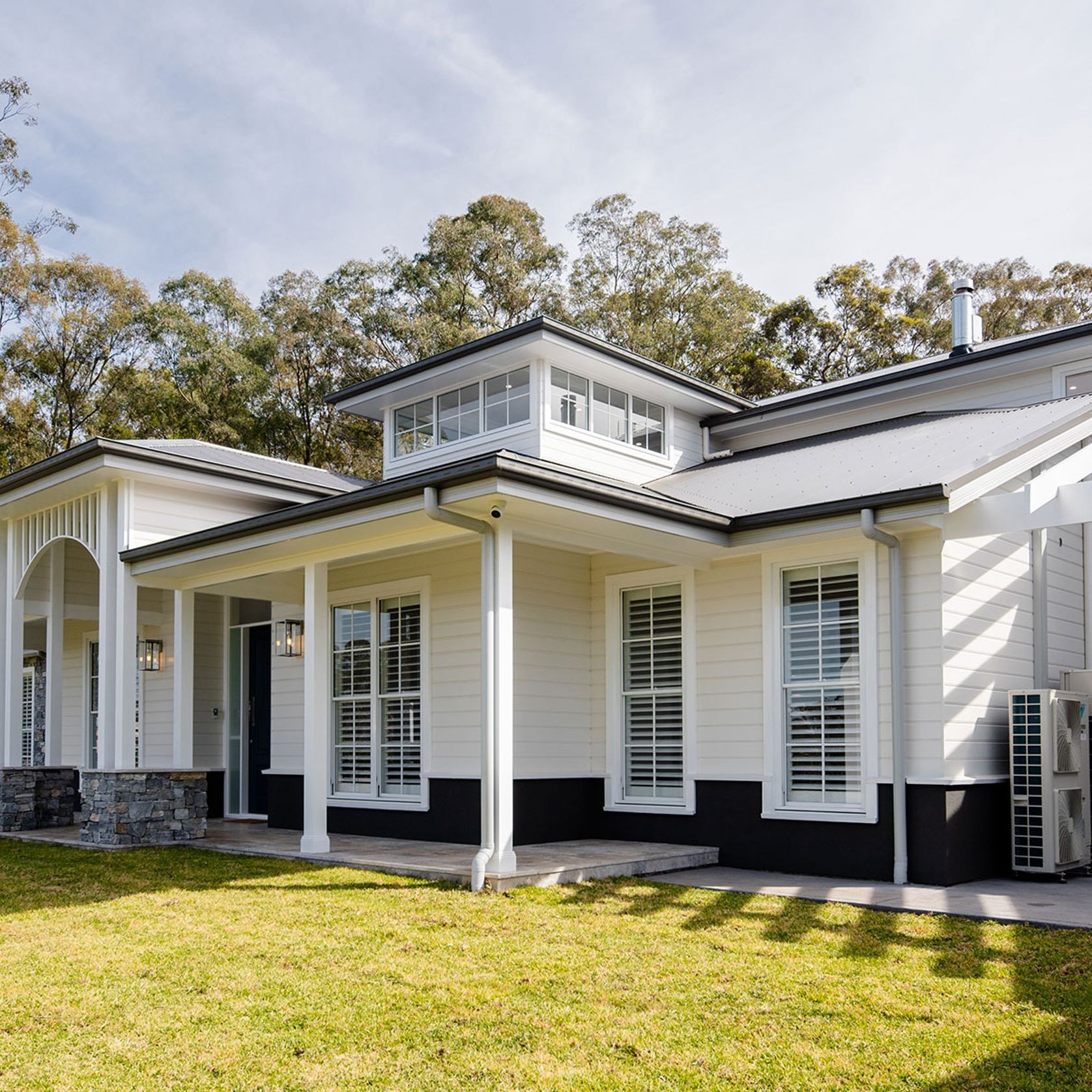

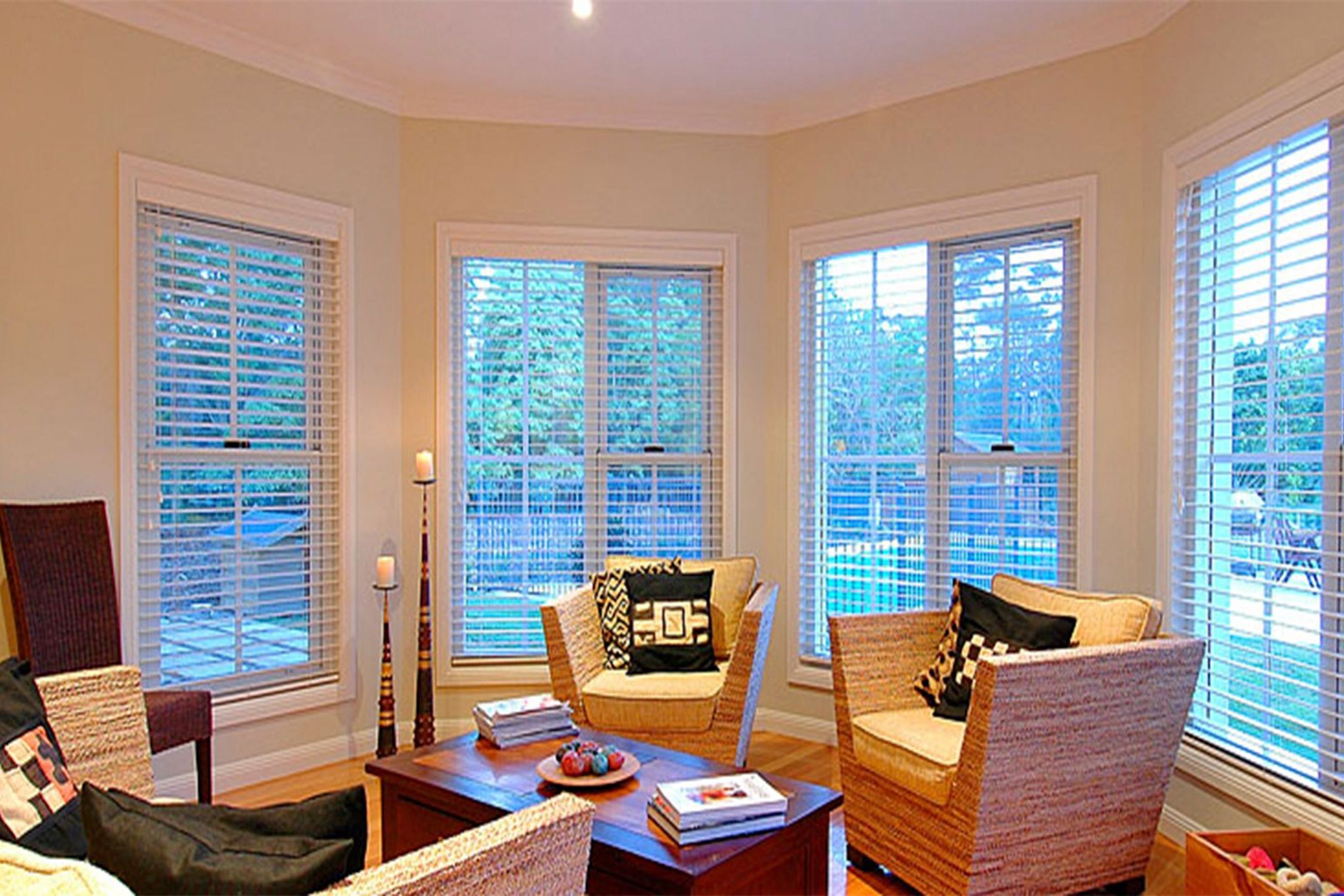

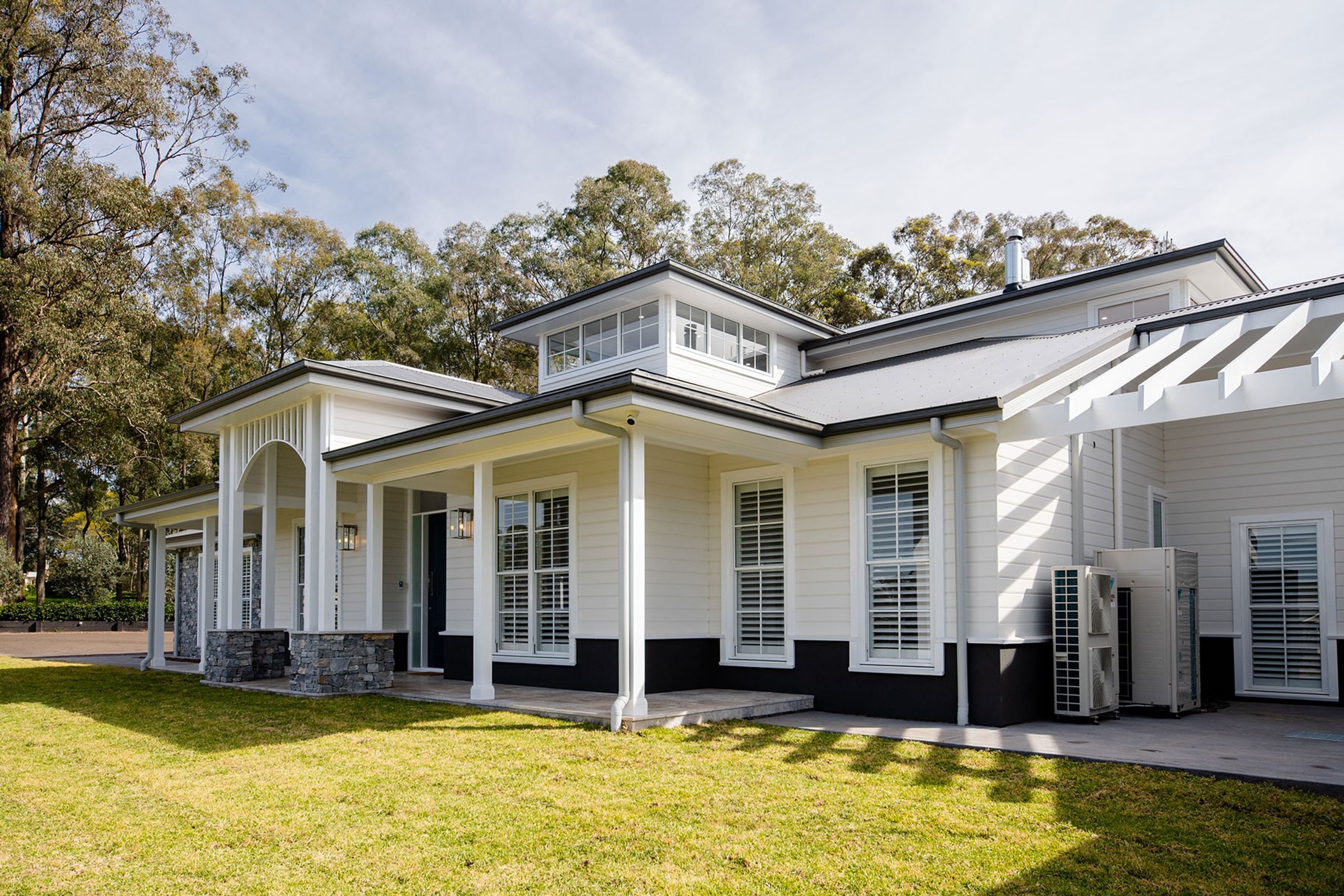

Elevate | Series 453 | Double-Hung Window
by Architectural Window Systems
City of Liverpool, Australia
- 395.7K profile views
- 36 saves
For beauty, choice and flexibility across large installations, check out the Elevate™ Series 453 Commercial Double-Hung Window.
Product Details
- Product
- Elevate | Series 453 | Double-Hung Window
- Category
- Sash Windows
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
J Mammone ArchitectureArchitects
Taylor KnightsArchitects
Freckle ArchitectureArchitects
BANHAM ArchitectsArchitects
Habitat Studio ArchitectsArchitects
Kister ArchitectsArchitects
Shane Marsh ArchitectArchitects
Woods BagotArchitects
Brcar Morony ArchitectureArchitects
RobertsonCollectifArchitects
Create ArchitectureArchitects
Chan ArchitectureArchitects
DX ArchitectsArchitects
AO Design StudioArchitects
Hindley & CoArchitects
ArdelArchitects
Studio SnellArchitects
Robert Harwood ArchitectsArchitects
Design by ADBuilding Designers
Reitsma & AssociatesBuilding Designers
Glow DesignBuilding Designers
APC BuildBuilders
Walters MacriPhotographers
Nadine K DesignBuilding Designers
Studio UrboBuilding Designers
KarmatectureBuilding Designers
Gold Leaf ConstructionsBuilders
Escea Fireplace CompanyManufacturers and Suppliers
Design by JonesInterior Designers
Distinct InnovationsDesign & Build
Millboard DeckingManufacturers and Suppliers
Seidler GroupDesign & Build
Cunningham Custom HomesDesign & Build
Centor®Manufacturers and Suppliers
Alberse HomesBuilders
Alex Urena Design StudioBuilding Designers
Venn ConstructionsBuilders
For beauty, choice and flexibility across large installations, check out the Elevate™ Series 453 Commercial Double-Hung Window.
- Specs

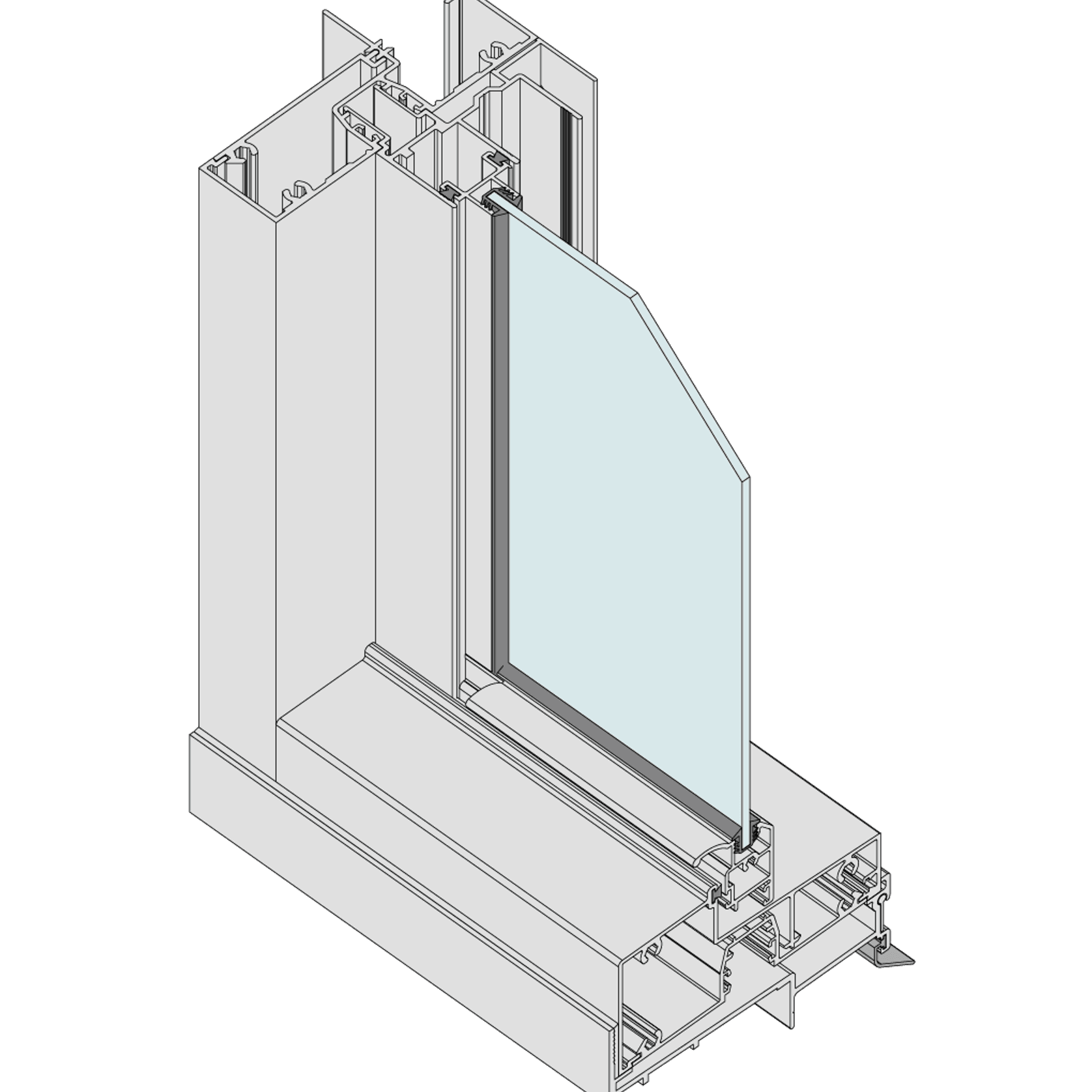

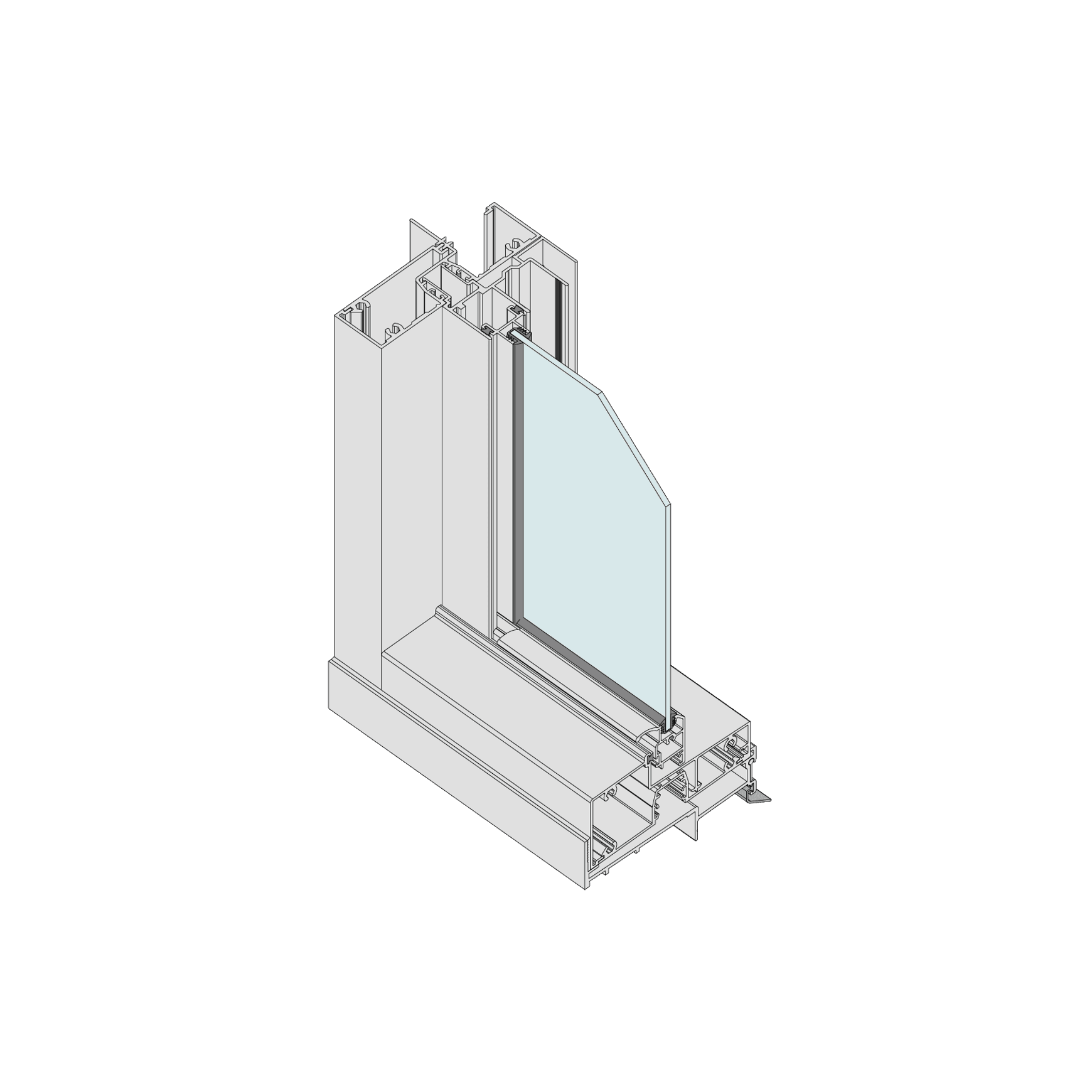

- Vertical sliding, double-hung sashes are inlaid directly into commercial framing to suit larger window spans.
- This window can even be fitted with concealed flyscreens to give your building a sleek, modern appearance.
- Tested to a high water resistance of 200Pa, the clever bi-fold design allows sashes to bypass each other for easy cleaning from inside the building. Fixed lowlights can also be glazed from the inside in elevated installations through a simple customisation at assembly.
- If security is a concern, you can breathe easy with the added protection of our heavy-duty, key lockable catch with die-cast keeper.
- These windows are also suitable for use in cavity brick and brick veneer construction. So convenient!
- Maximum Panel Height *1050mm
- Maximum Panel Width *1155mm
- Maximum Glass Thickness ≤ 7.50mm
- SHGC Range 0.29 - 0.64
- Uw Range 4.9 - 6.5
