Elevate | Series 660 | Double Glazed 150mm Framing

by Architectural Window Systems

City of Liverpool, Australia

392.0K profile views
36 saves

Visit Website

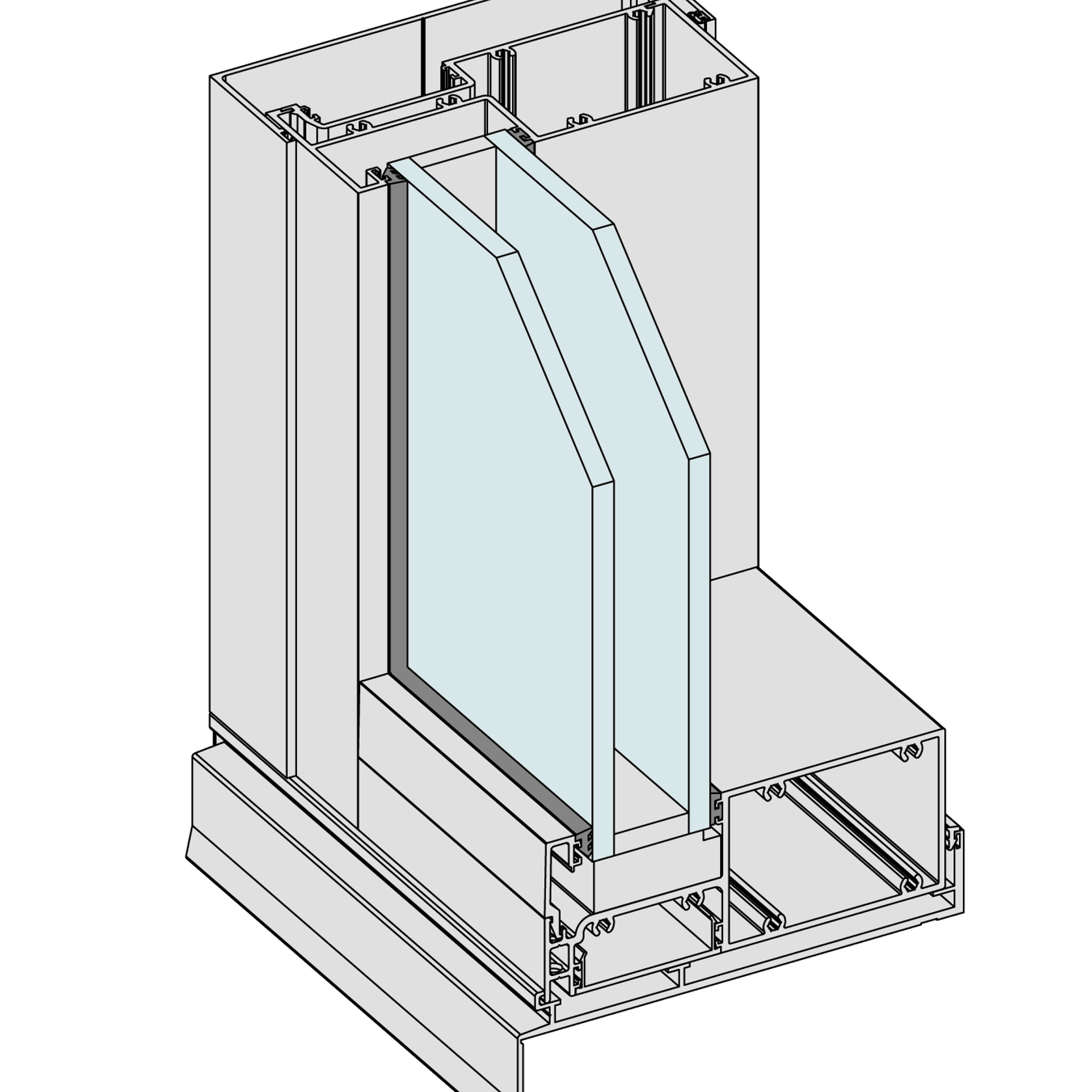

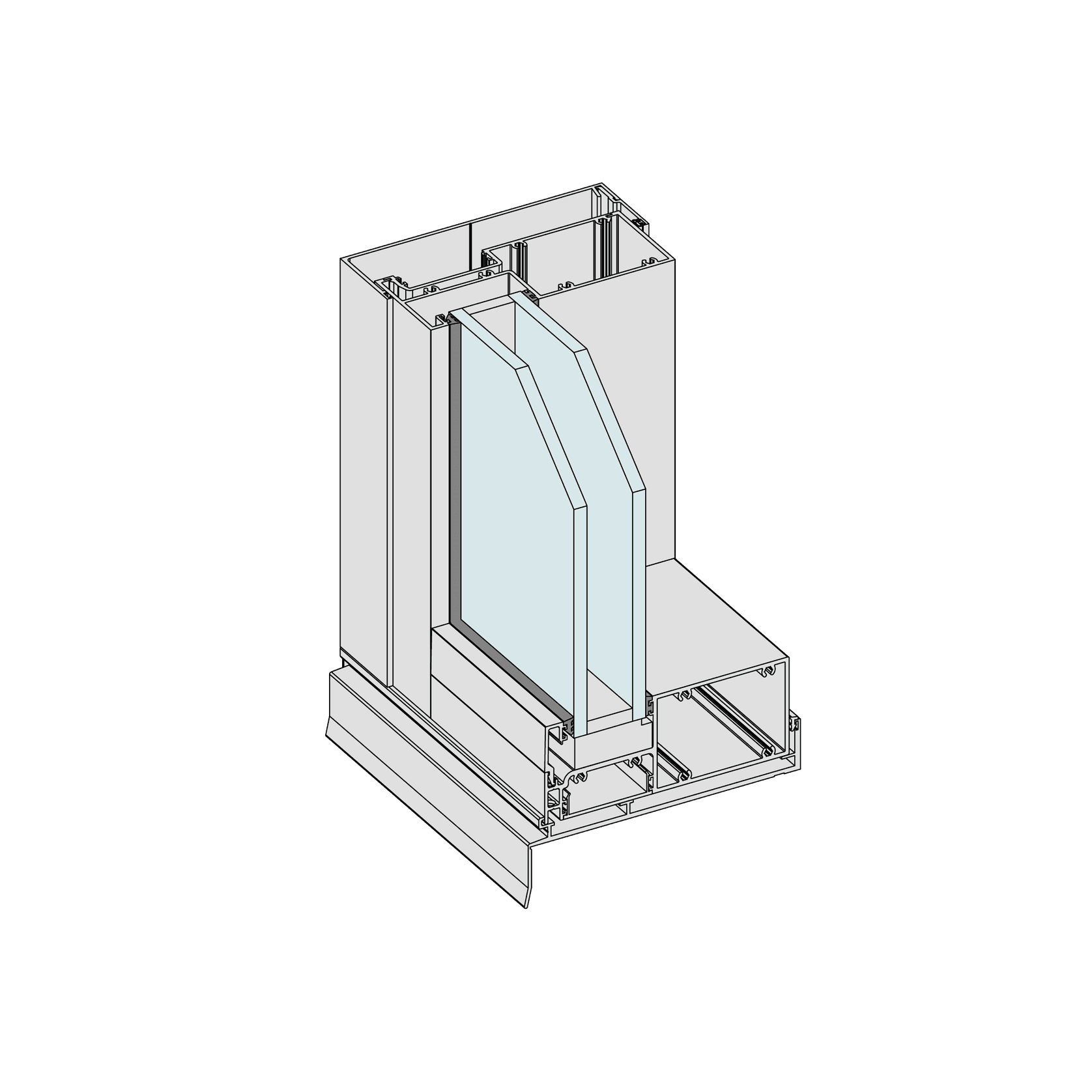

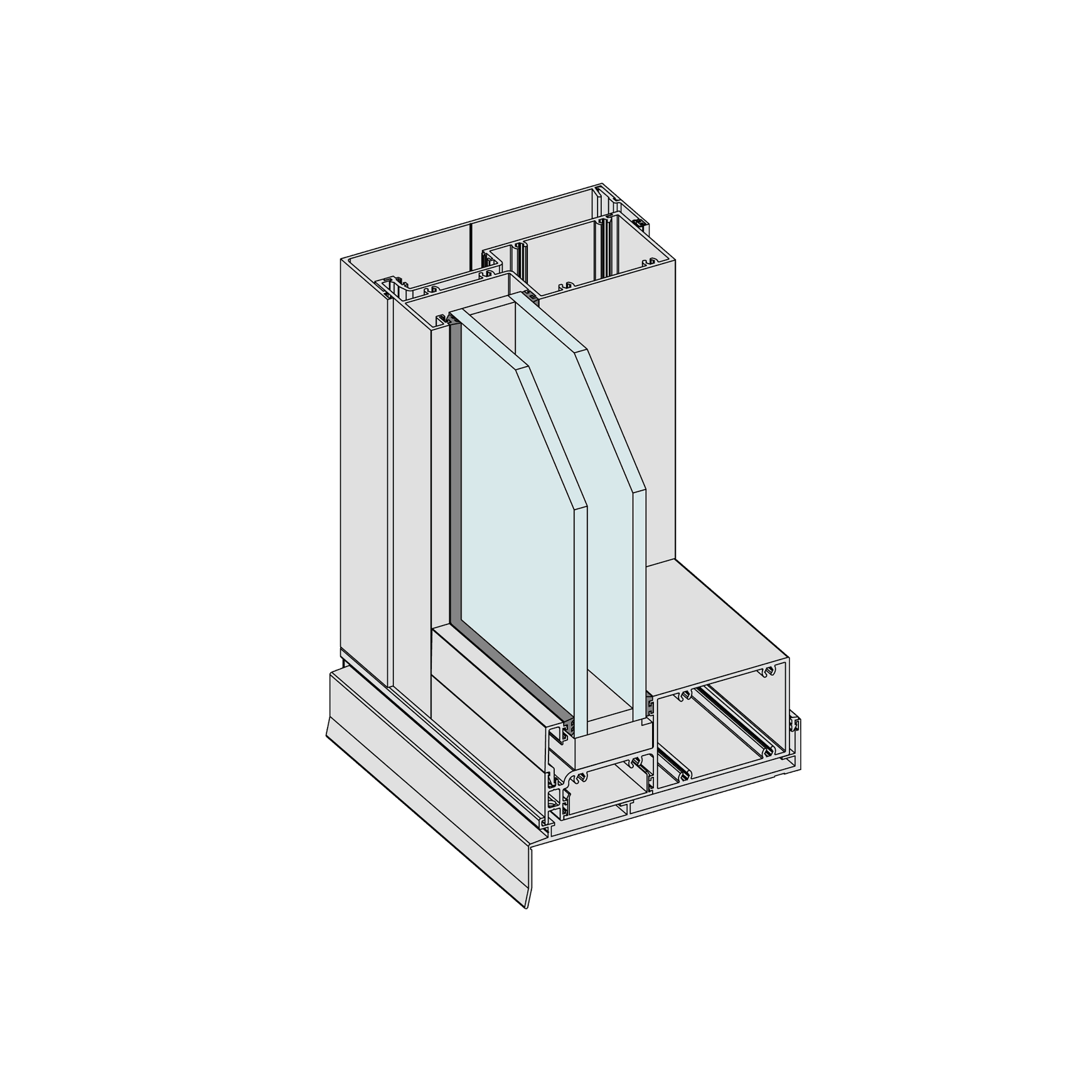

FrontGLAZE™ double glazed shopfront framing system designed to IGUs up to 44mm
Basic 150 x 60mm framing system with a large variety of accessories including sub-frames, COC transom, matching doors that will also accept up to 36mm double glazing and a variety of door thresholds.
Glazing pocket designed to accept up to 44mm insulating glass units (IGU's) with 12mm bite plus another 8mm to cover glass production and installation tolerances.
Pocket reducers for thinner IGU glazing options.
Compatible with a large range of other Elevate™ framing systems, including sliding doors.
Snap together and interlocking expansion mullions.
50mm Thick door designed to accept double glazing and a large variety on industry standard hardware.
Successfully tested to resist up to 450Pa water

Product Details

Product: Elevate | Series 660 | Double Glazed 150mm Framing
Category: Sash Windows
Sold by: Architectural Window Systems
Range: Elevate | Commercial ThermalHEART

Architectural Window Systems is specified by

(33) Professionals

Elevate | Series 660 | Double Glazed 150mm Framing

Visit site

FrontGLAZE™ double glazed shopfront framing system designed to IGUs up to 44mm Basic 150 x 60mm framing system with a large variety of accessories including sub-frames, COC transom, matching doors that will also accept up to 36mm double glazing and a variety of door thresholds. Glazing pocket designed to accept up to 44mm insulating glass units (IGU's) with 12mm bite plus another 8mm to cover glass production and installation tolerances. Pocket reducers for thinner IGU glazing options. Compatible with a large range of other Elevate™ framing systems, including sliding doors. Snap together and interlocking expansion mullions. 50mm Thick door designed to accept double glazing and a large variety on industry standard hardware. Successfully tested to resist up to 450Pa water

FrontGLAZE™ double glazed shopfront framing system designed to IGUs up to 44mm
Basic 150 x 60mm framing system with a large variety of accessories including sub-frames, COC transom, matching doors that will also accept up to 36mm double glazing and a variety of door thresholds.
Glazing pocket designed to accept up to 44mm insulating glass units (IGU's) with 12mm bite plus another 8mm to cover glass production and installation tolerances.
Pocket reducers for thinner IGU glazing options.
Compatible with a large range of other Elevate™ framing systems, including sliding doors.
Snap together and interlocking expansion mullions.
50mm Thick door designed to accept double glazing and a large variety on industry standard hardware.
Successfully tested to resist up to 450Pa water

Specs

Maximum Panel Height* Various

Maximum Panel Width* Various

Maximum Glass Thickness 44mm

SHGC Range0.21 - 0.55

Uw Range2.3 - 2.5

Downloads

Downloads (2)2 Direct downloads • 6 Available on request

Get more Specific.

Architectural Window Systems

awsaustralia.com.au

Visit the Architectural Window Systems website for the full range, specification detail and where to buy this product.

Visit Website

Frequently asked questions about
Elevate | Series 660 | Double Glazed 150mm Framing

The Elevate | Series 660 | Double Glazed 150mm Framing is supplied by Architectural Window Systems. It is also on their website, and you can browse every product Architectural Window Systems lists on ArchiPro.

Architectural Window Systems does not publish a price for the Elevate | Series 660 | Double Glazed 150mm Framing on ArchiPro. for pricing, or visit their website.

Yes. It is part of the Elevate | Commercial ThermalHEART range from Architectural Window Systems, where you can see every product in the range together.

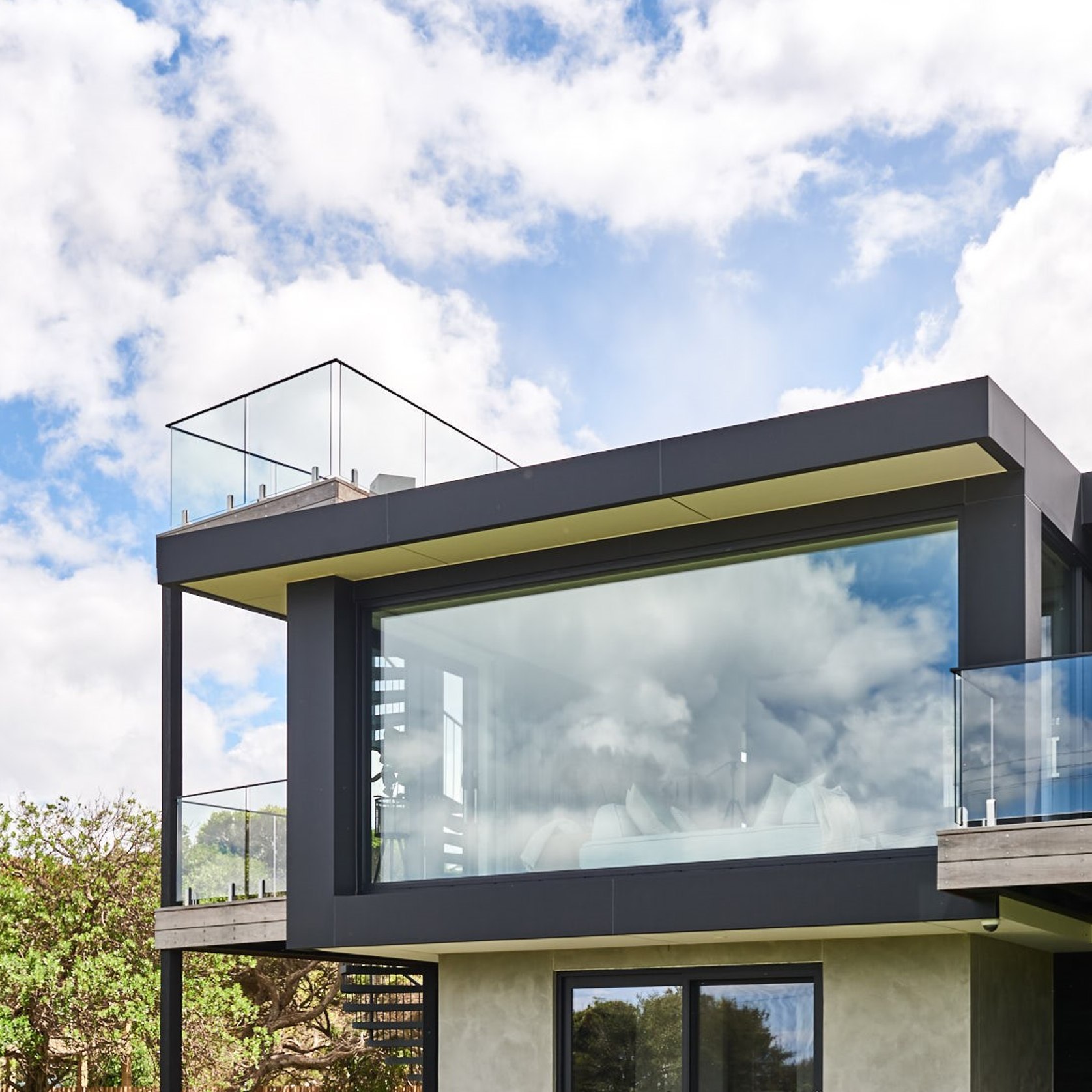

Yes. It has been specified in projects on ArchiPro, including Dangerfield Home by Architectural Window Systems. See how it was used in a finished space.
