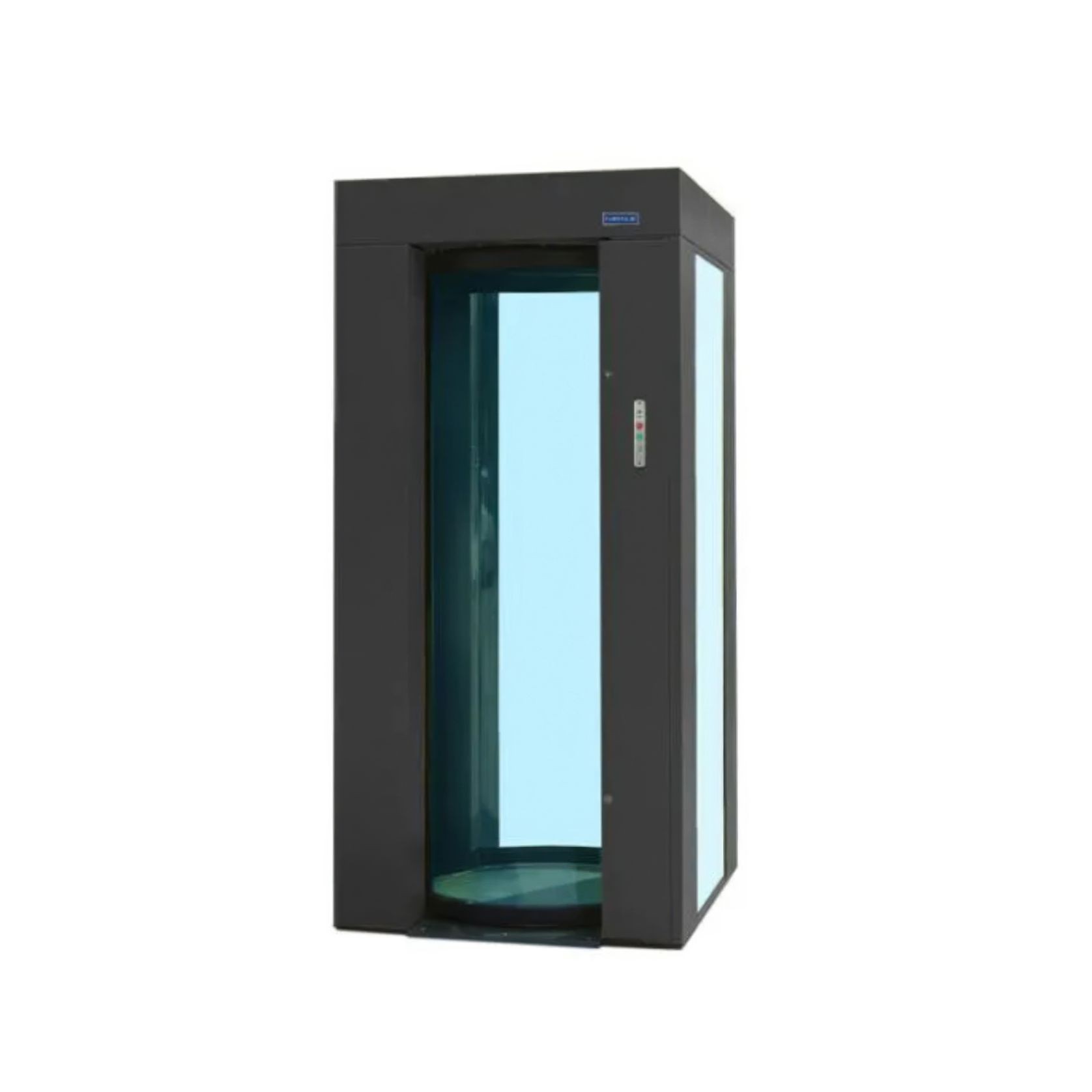

CT484 | Security Cabins

Aero NZ

The CT series Portals represent one of the architectural solutions for the construction of emergency entrances. Particularly suitable for ministries, banks, industries and airports.

Depending on the need, CT484 is available assembled (standard) or in parts to be assembled on site (optional); a feature that allows them to satisfy the widest space requirements related to transport and introduction into the premises.

Details
Specifications
  • DIMENSIONS:
  • CT484 L 1050 x P 1050 x H 2230 mm
  • FREE PASSAGE AREA:
  • - CT484 L 580 x H 2000 mm
  • WEIGHT: from 700 Kg up to 1050 Kg according to the model and additional options
  • POWER SUPPLY: 100 – 240 VAC, 50/60 Hz
  • VOLTAGE: 12 24 V d c with back up batteries for uninterrupted operations in case of power loss (from 100 up to 1000 cycles)
  • CONSUMPTION: 85 W
  • THROUGHPUT: 3-4 full cycles/ 1 one sense; 4-6 full cycles/ 1 two senses according to the model and additional options
  • FRAME:
  • -demountable, in painted steel frame 30/10
  • -steel sides on applications
  • -non-slip resin-coated transit floor 25 mm thick (cabins do not need to be recessed)
  • PAINTING AND FINISHING RAL: standard RAL colour 9011 with textured finish (glossy finish, stainless steel and special colours only on request)
  • GLASS: Bulletproof glass doors and sides 20/21mm BR2/S P6B (different crystal thicknesses are available on request)
  • LIGHTING: inside lighting with 12 V, 50 60 Hz led spots
  • MOVEMENT: 24 V d c electric motors assisted sliding doors movement with reversible option for manual opening in case of total power loss
  • ELECTRONICS: microprocessor based electronics
  • ACCIDENT PREVENTION MEASURES: self adjusted braking, speed control and accident prevention devices
  • PROGRAMMABLE OPTIONS: emergency escape/door locks automatic/manual transit passage one/both directions
Options & Accesories

ACCESSORIES AND EQUIPMENT

  • Main logic board, self-diagnosis
  • Standard RAL 9011 with orange peel finish
  • Emergency pushbutton
  • Multilingual voice messages
  • Led spot light 12 V
  • Fail safe locking piston for external door
  • Fail secure locking piston for internal door
  • Possibility to insert Metal Detector
  • 2 back-up batteries 12 V - 7 Ah (120 cycles or 3h)
  • Menu-guided command and setting console
  • Single transit, anti-hostage, object check, weighing system through loading cell

OPTIONAL ON REQUEST:

  • RC 4 resistance level available according to the UNI EN 1627
  • Metal Detector
  • FB 4 bullet proof frame resistance level available according to the EN 1522
  • Certified glasses BR4/S P8B
  • Different RAL colour
  • Traffic light / intercom system
  • Application of magnetic stripe or proximity badge readers, biometric recognition systems
