Digital Cylinde Lock
by dormakaba
Christchurch, New Zealand
- 71.8K profile views
- 15 saves
Practical TouchGo transponder in the form of a key ring. The transponder can unlock doors without having to be taken out of a trouser pocket or handbag. Available in white and black, also as a card holder or wristband.
Product Details
- Can be installed in any door made of wood, glass or metal
- Suitable for installation in fire doors
- Increased drill protection for enhanced security
- Award-winning modern design
- Available in black or white
- Modular design - On-site length adjustment possible
Applications
Digital cylinder lock
The card works on the outside knob only, where access authorisation is checked. A typical application environment is offices.

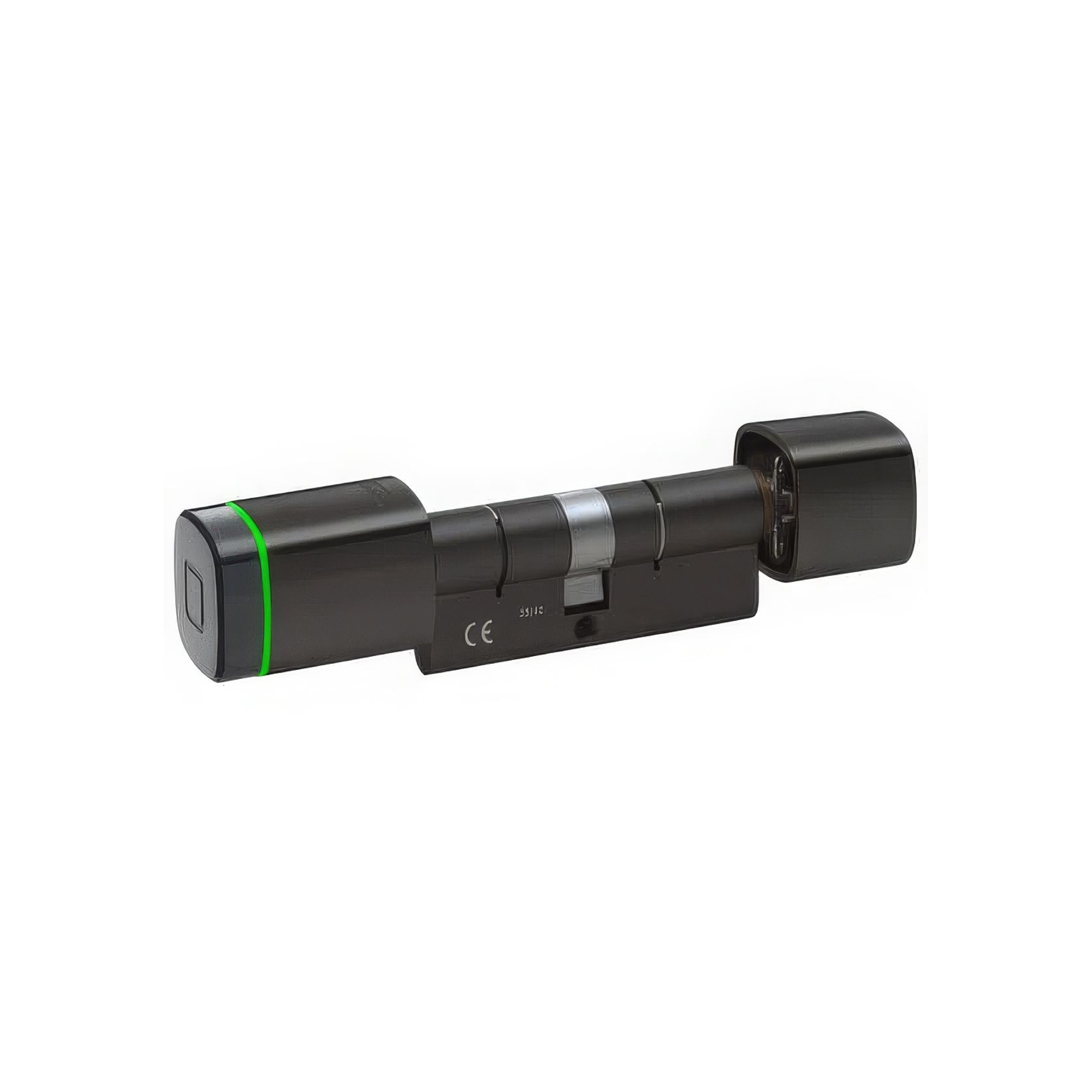

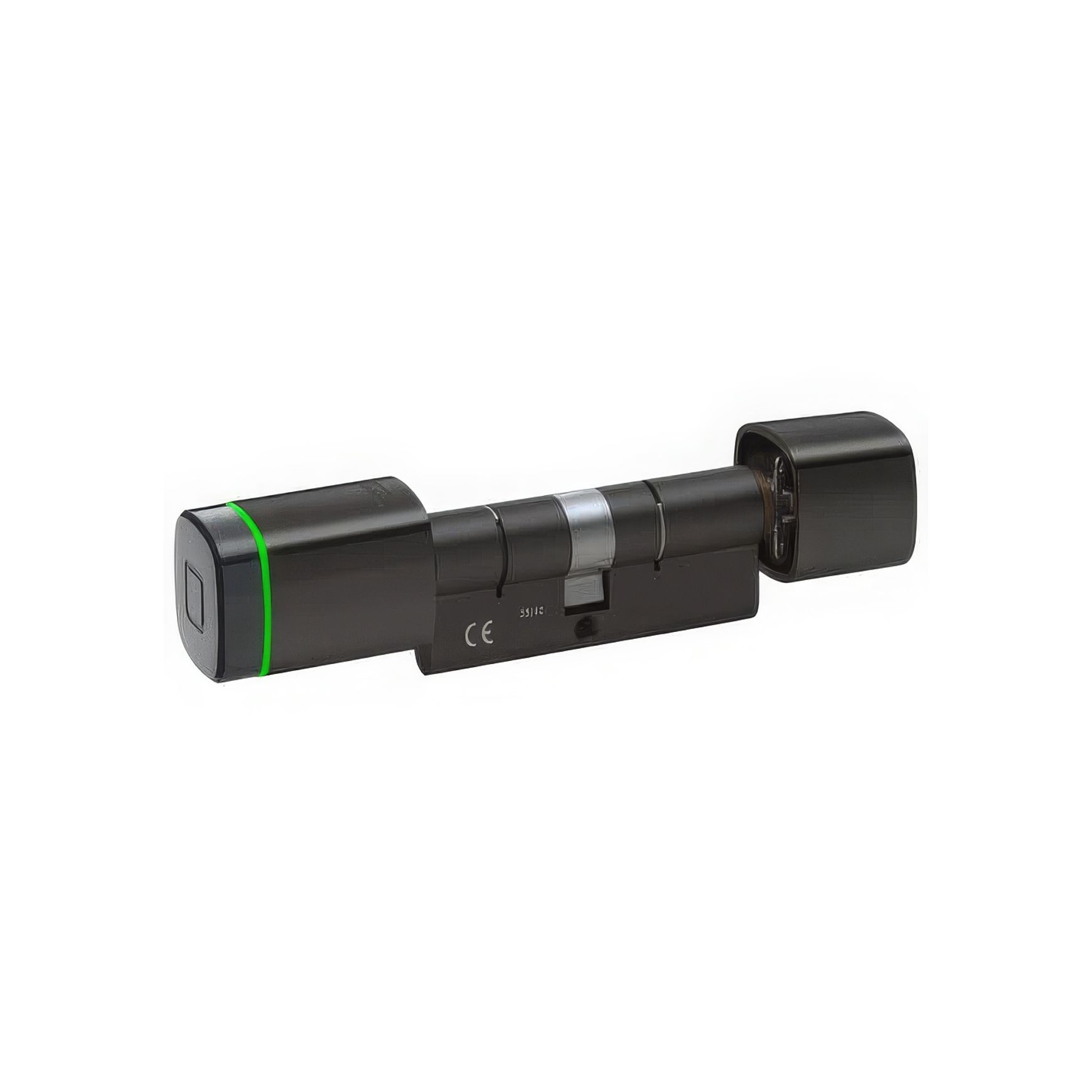

Digital cylinder lock - dual
This digital cylinder lock is suitable for areas where both knobs (inside as well as outside) are operated by the badge, e.g. transition areas, corridors, organisation of different building sectors, etc.

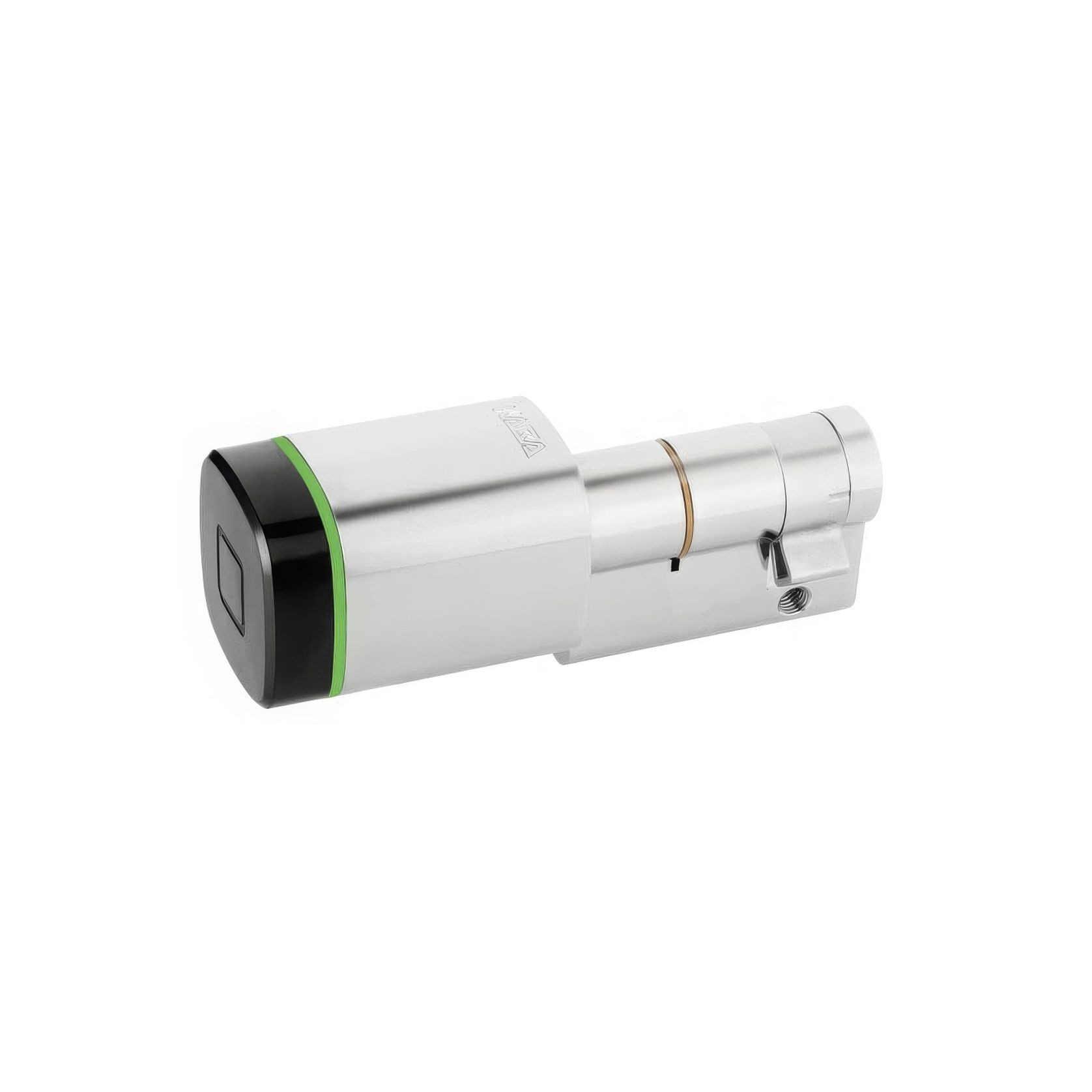

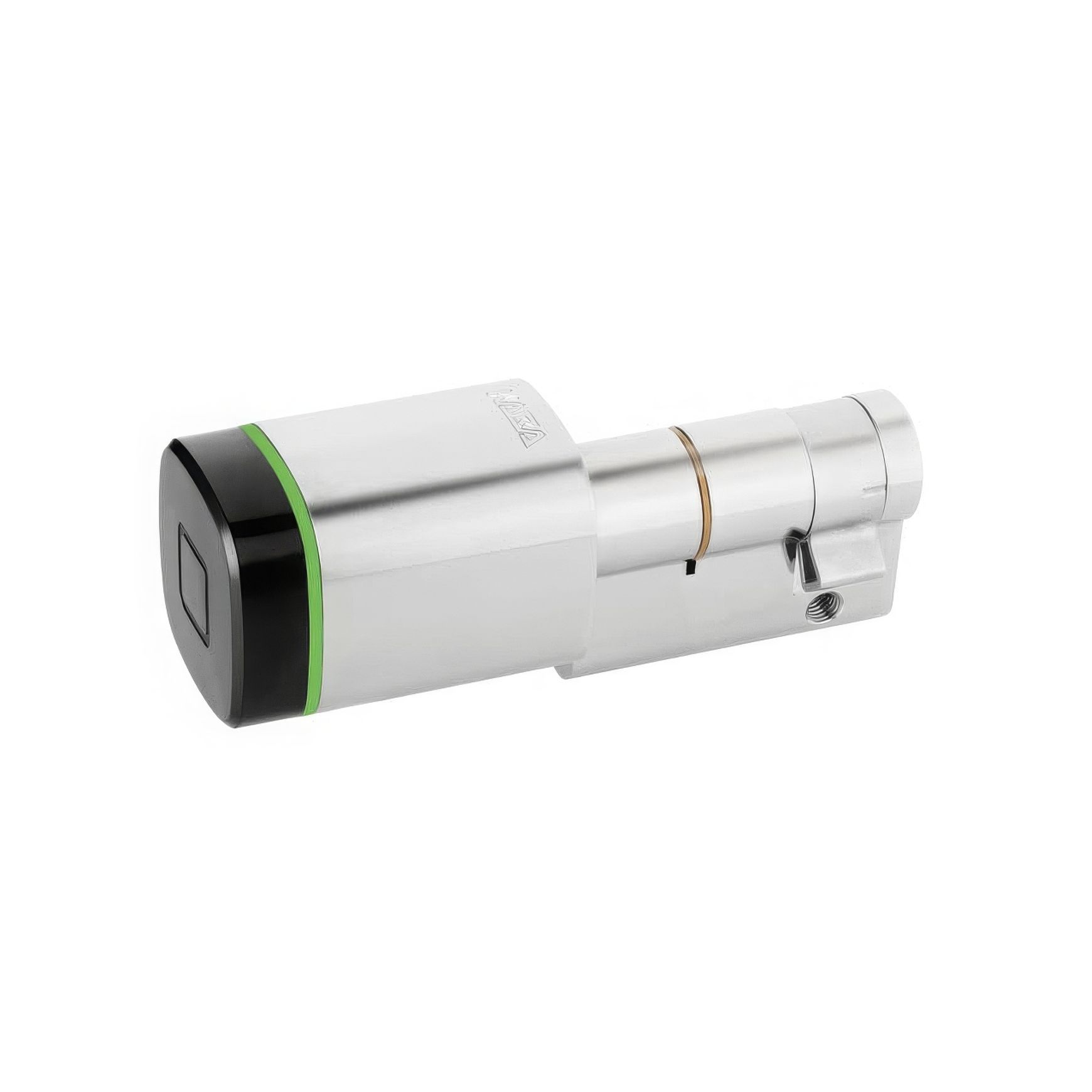

Digital cylinder lock - half

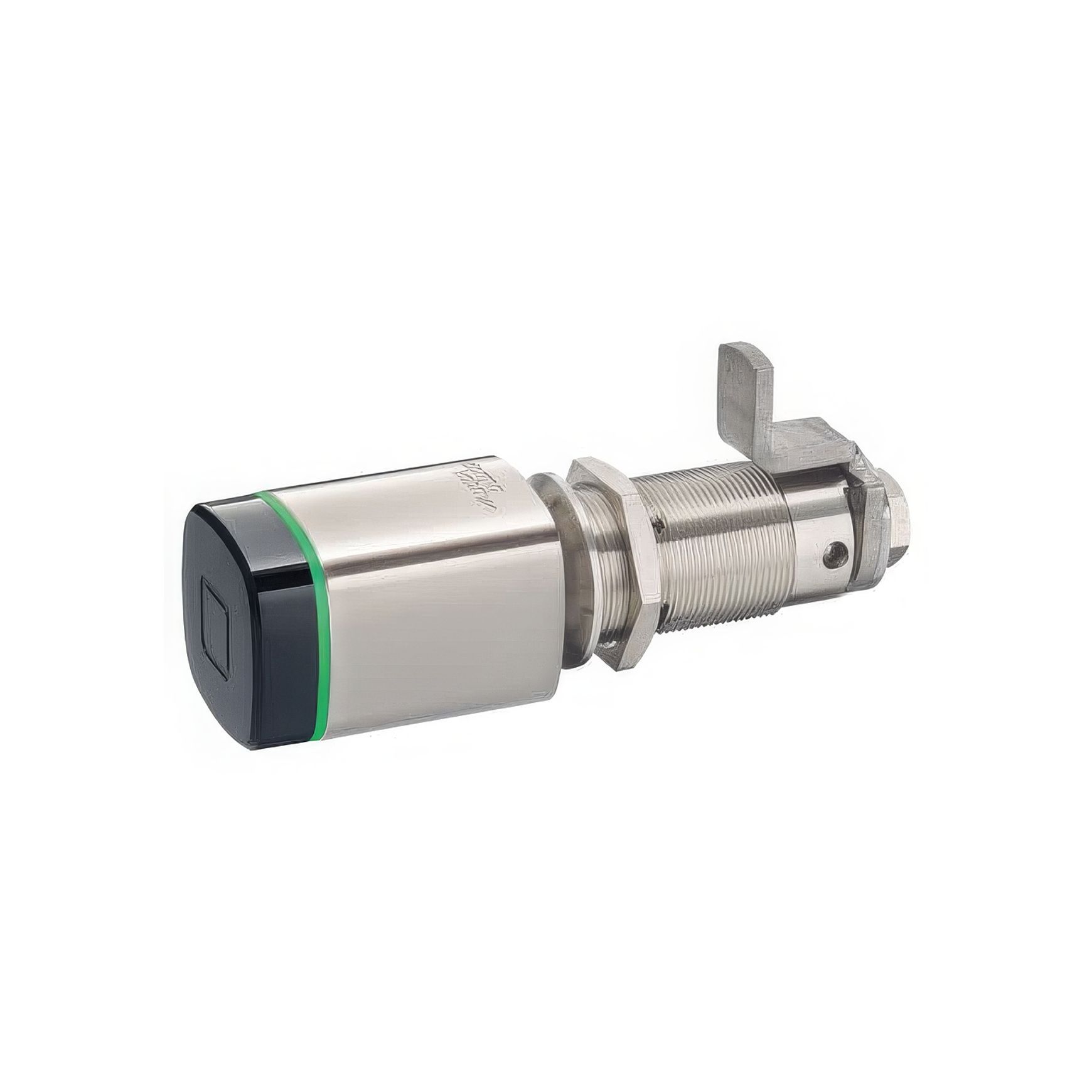

This device is best for doors that only open from one side, e.g. cabinets.
Digital cylinder lock – anti-panic
This version is for panic locks. The lock cam is turned into a defined standard position. There is also a version without inside knob available.
The above cylinder locks can all be integrated into fire doors and are available with increased drilling protection (VdS class BZ+).
Technical Data
Supported RFID standards
- LEGIC (advant & prime)
- MIFARE (DESFire & Classic)
- OSS-SO (LEGIC advant, version 1.00)
Versions

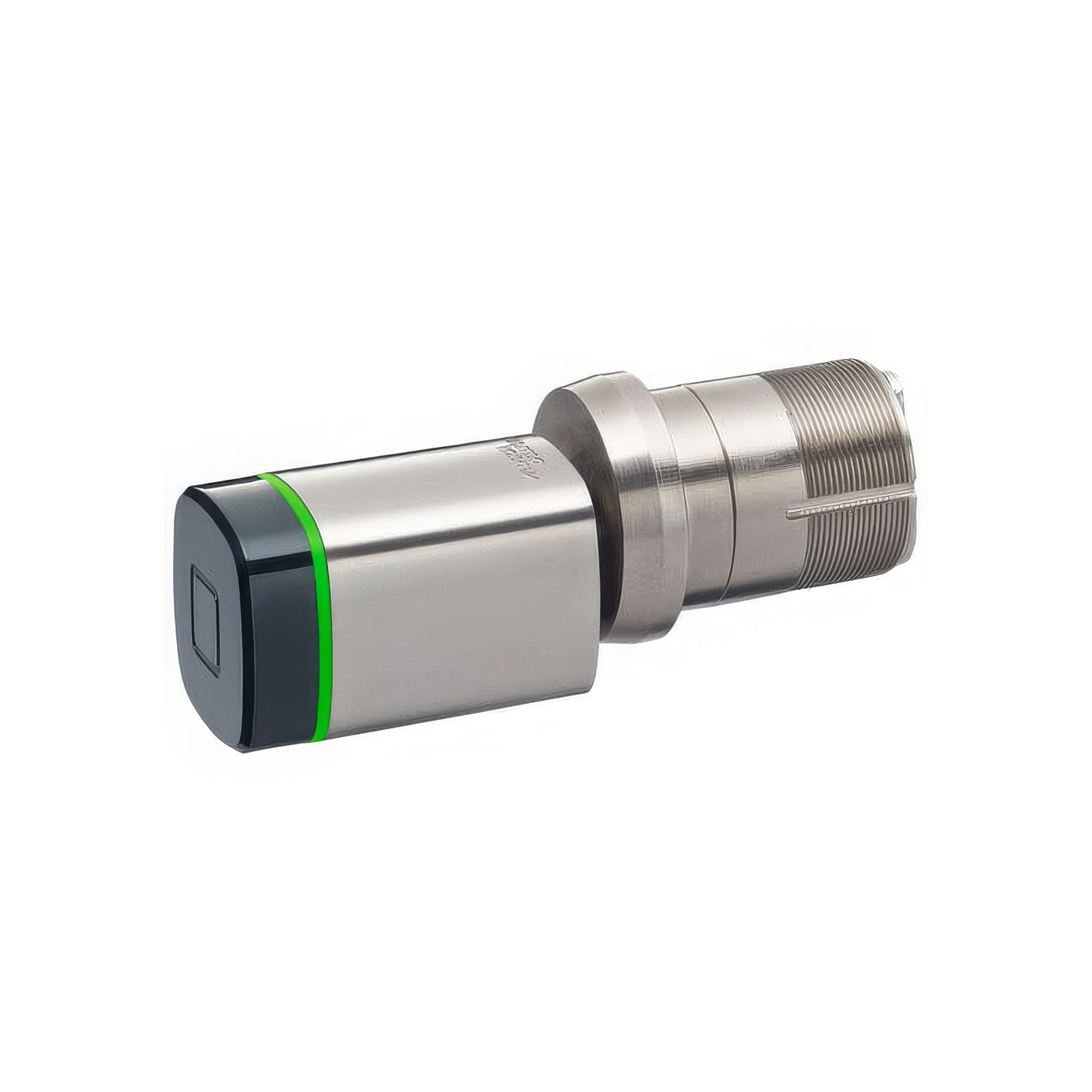

- Euro profile and Australian oval cylinder
- Types Euro: Standard, half and dual
- Finishes: nickel-plated (stainless steel look), polished brass, black, bronze look
- ‘Protected’ option: high pick resistance (insurance category BZ+)

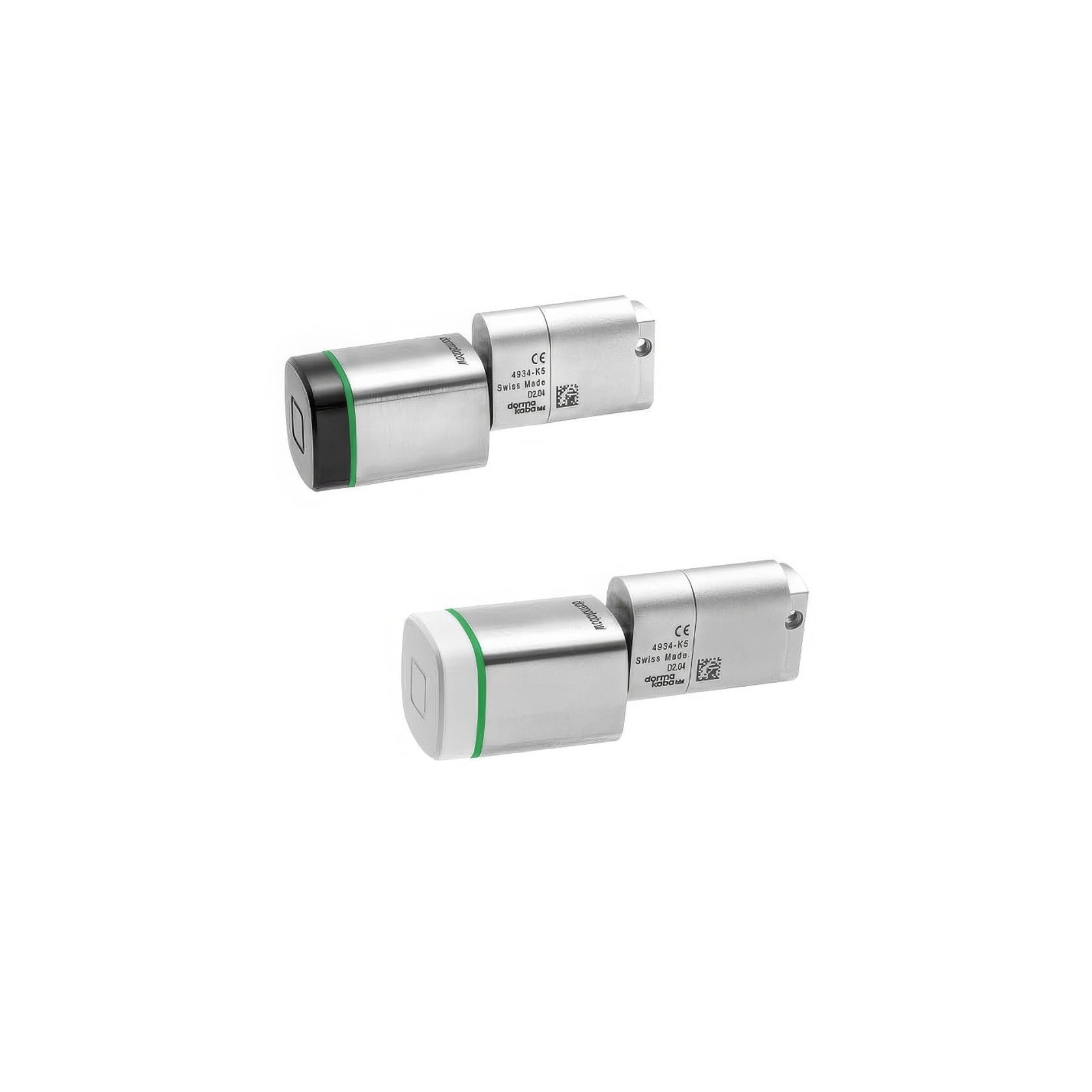

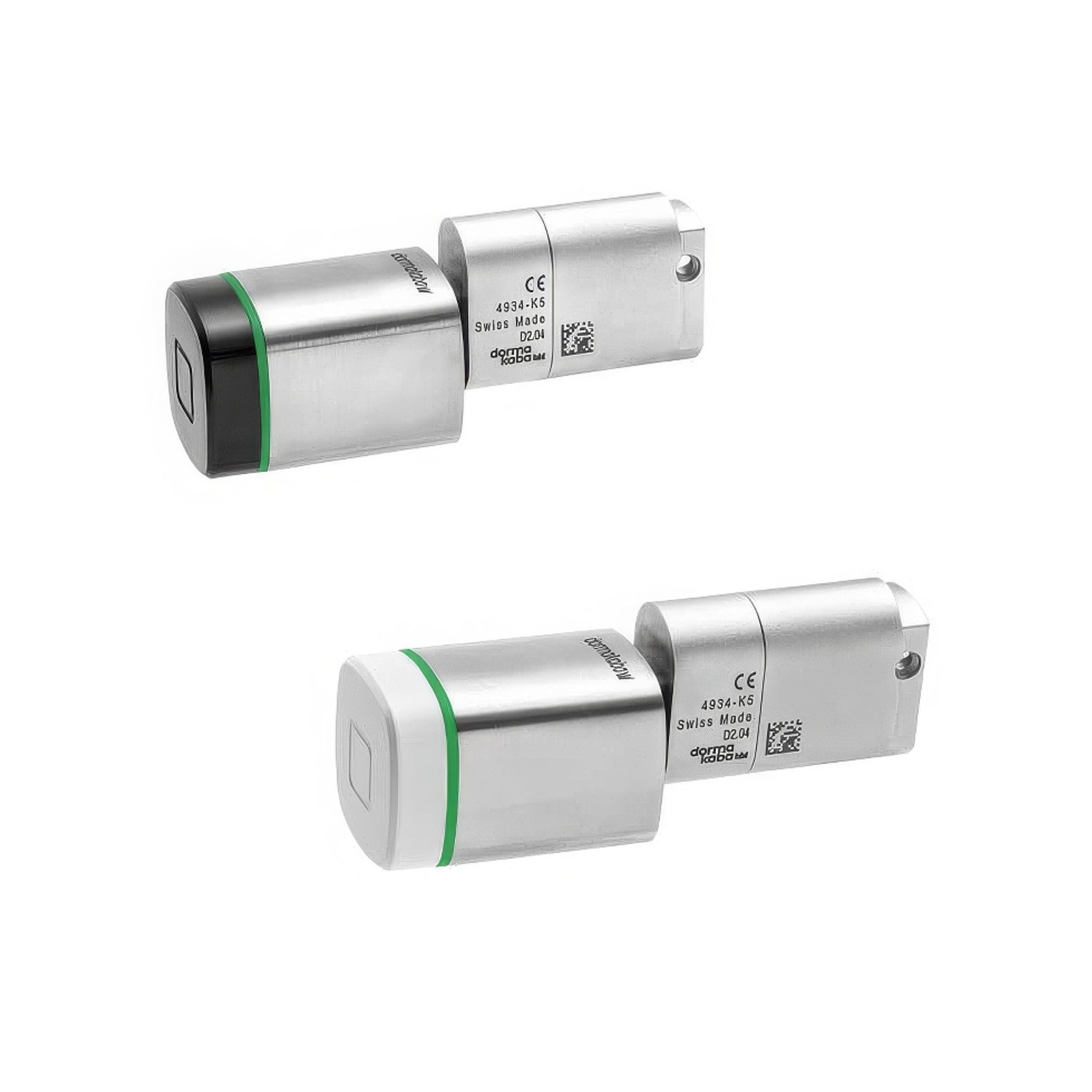

- Antenna cover: black or white
Dimensions
- Cylinder length: from 30/30 mm
- Adjustable in 5mm increments (Euro profile only)
- Max. cylinder length: 220 mm
- External knob: Ø 36 x 45 mm
- Internal knob: Ø 36 x 29 mm
- Small internal knob: Ø 30 x 27 mm
Radio interface
- IEEE 802.15.4 Power supply
- Battery: 1 x 3 V CR2 lithium
Environment/service life
- Temperature: -25°C to +70°C
- Protection type: up to IP56 (outside)
- Humidity: 0 to 95%, non-condensing
- Battery life at 20°C: up to 50,000 cycles or up to 3 years
Certificates
- Insurance category BZ+ (‘Protected‘ option)
- Fire safety: EN 1634-2: 95 mins
Product Details
- Product
- Digital Cylinde Lock
- Category
- Digital Door Locks
- Sold by
- dormakaba
- Range
- Digital Door Locks
- Designer
- dormakaba
- Brand
- dormakaba
- Type of use
- Commercial and Residential
- Package type
- Special packaging required
Practical TouchGo transponder in the form of a key ring.
The transponder can unlock doors without having to be taken out of a trouser pocket or handbag. Available in white and black, also as a card holder or wristband.
Product Details
- Can be installed in any door made of wood, glass or metal
- Suitable for installation in fire doors
- Increased drill protection for enhanced security
- Award-winning modern design
- Available in black or white
- Modular design - On-site length adjustment possible
Applications
Digital cylinder lock
The card works on the outside knob only, where access authorisation is checked. A typical application environment is offices.
Digital cylinder lock - dual
This digital cylinder lock is suitable for areas where both knobs (inside as well as outside) are operated by the badge, e.g. transition areas, corridors, organisation of different building sectors, etc.
Digital cylinder lock - half
This device is best for doors that only open from one side, e.g. cabinets.
Digital cylinder lock – anti-panic
This version is for panic locks. The lock cam is turned into a defined standard position. There is also a version without inside knob available.
The above cylinder locks can all be integrated into fire doors and are available with increased drilling protection (VdS class BZ+).
Technical Data
Supported RFID standards
- LEGIC (advant & prime)
- MIFARE (DESFire & Classic)
- OSS-SO (LEGIC advant, version 1.00)
Versions
- Euro profile and Australian oval cylinder
- Types Euro: Standard, half and dual
- Finishes: nickel-plated (stainless steel look), polished brass, black, bronze look
- ‘Protected’ option: high pick resistance (insurance category BZ+)
- Antenna cover: black or white
Dimensions
- Cylinder length: from 30/30 mm
- Adjustable in 5mm increments (Euro profile only)
- Max. cylinder length: 220 mm
- External knob: Ø 36 x 45 mm
- Internal knob: Ø 36 x 29 mm
- Small internal knob: Ø 30 x 27 mm
Radio interface
- IEEE 802.15.4 Power supply
- Battery: 1 x 3 V CR2 lithium
Environment/service life
- Temperature: -25°C to +70°C
- Protection type: up to IP56 (outside)
- Humidity: 0 to 95%, non-condensing
- Battery life at 20°C: up to 50,000 cycles or up to 3 years
Certificates
- Insurance category BZ+ (‘Protected‘ option)
- Fire safety: EN 1634-2: 95 mins
