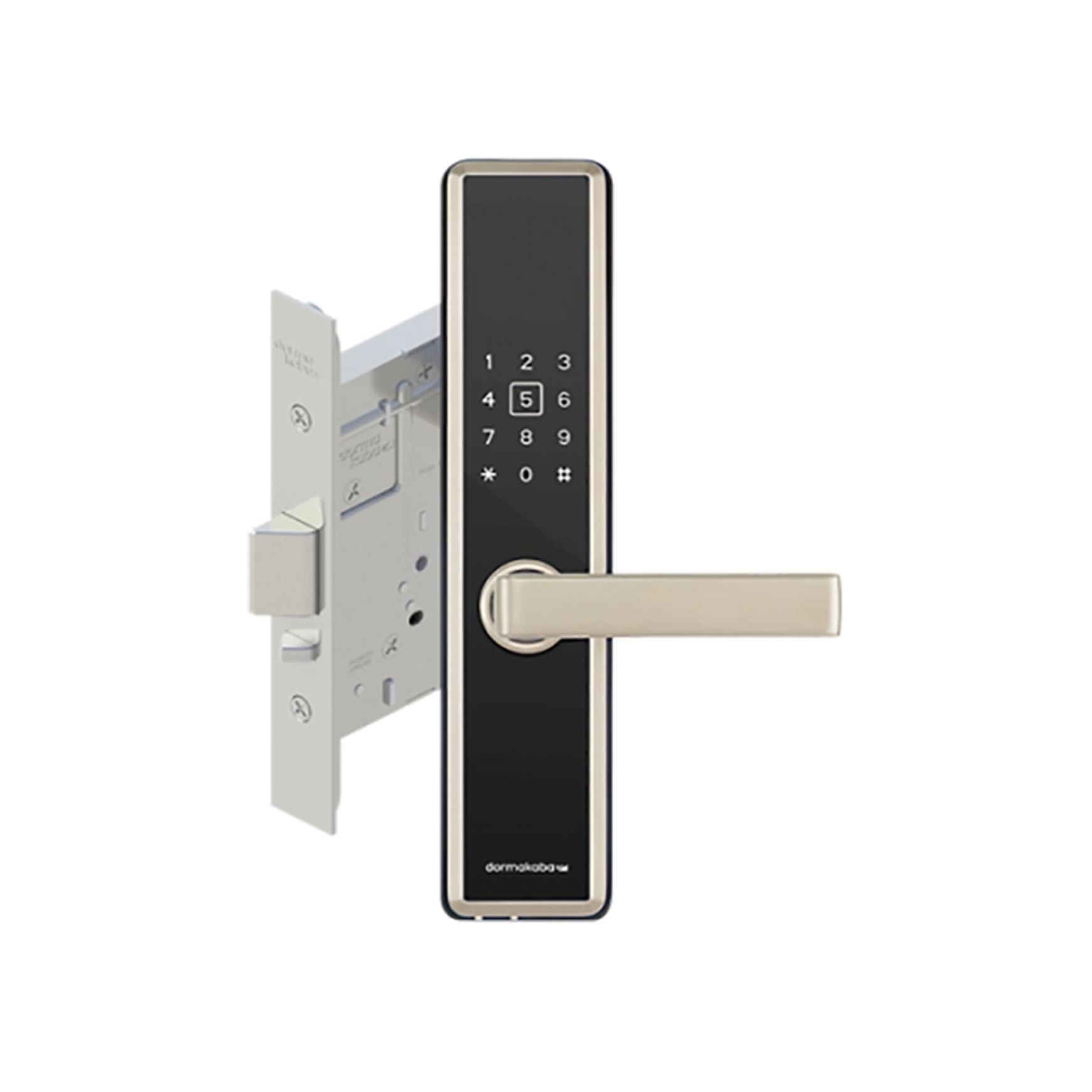

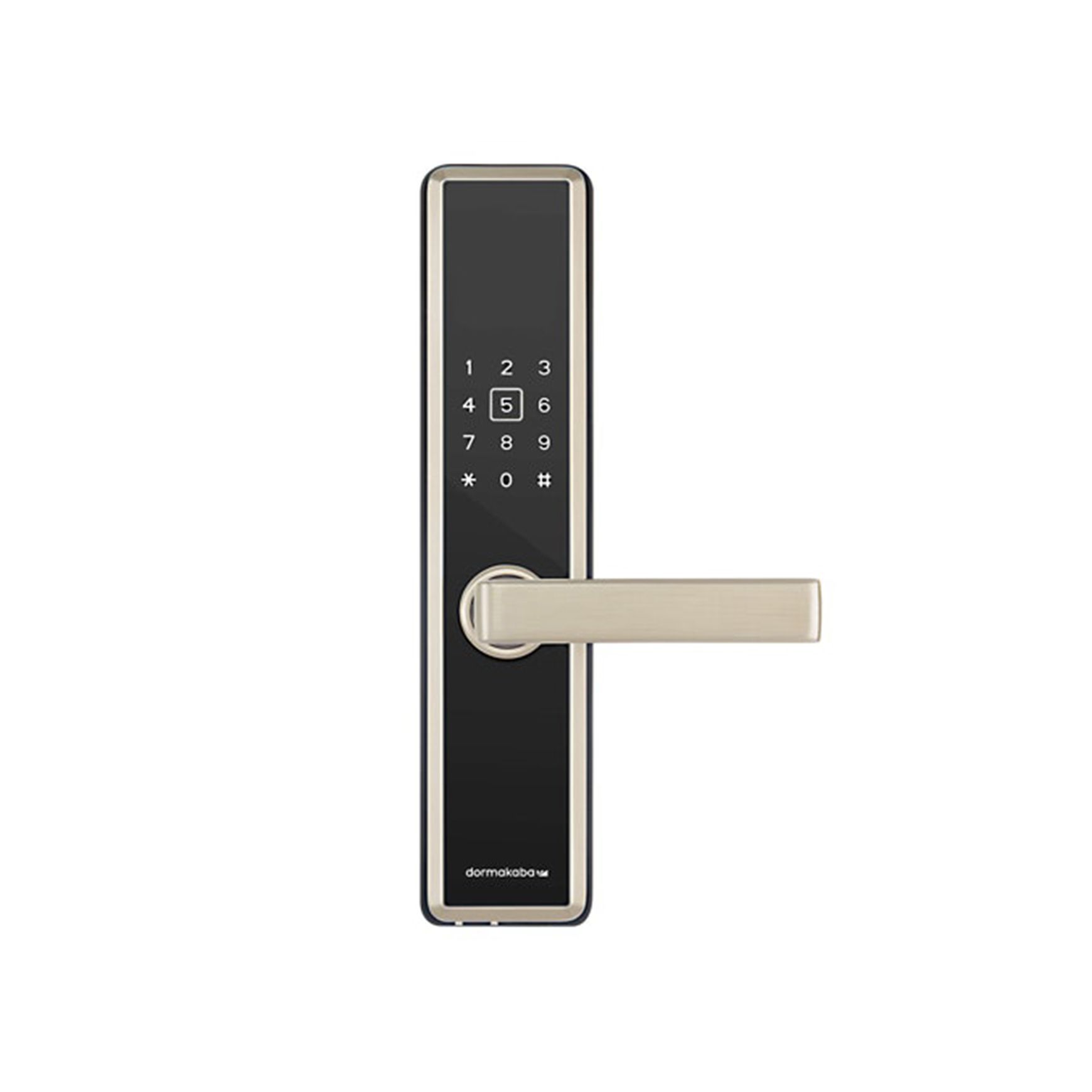

Dormakaba M5 Digital Smart Door Lock Matt Nickel with Black Silver Trim DKM5BLENIB

Features:

• Mobile access
• Digital touchpad
• Battery-powered - no need for wiring
• Voice-guided programming
• Programmable administration
• code/card registration
• Up to 100 RFID Cards – 70 general users
• 10 Pin codes – 7 general users
• Visitor friendly with optional passage mode
• Wrong try lock-out delay
• Low battery alert & external emergency power supply
• Mechanical key override
• Fire-rated

Specifications:

• Keypad Illuminated: 12 keys
• Mortice type: Australian style, 60mm backset EN Mortice
• Finish: Nickel Black with Silver Trim Finish

Storage:

• Card Key: 100
• Card Configuration: 2 large cards (RFID cards), 2 small cards (fobs)
• Pin code: 10
• Mechanical key override: 3 keys included
• BLE Devices: 10

Enrolment and Verification:

• M5 Model: Smart lock APP, RFID card key/ tag, pin code, mechanical key override
• Verification time (sec): less than 1s
• Length of pin code: 6-12 digits

App:

• Platform:
  • iPhone (iOS 8.0 and above)
  • Android-based Smartphone (Android 5.0 and above)
• Language: English and Chinese
• Verification methods: Password, pattern, and fingerprint (if the smartphone is equipped with a fingerprint sensor)
• Device management: Add/delete/modify the device, Information checking, and notification
• Functions: Open/close lock, time sync, key sharing, and audit trail

Operating Environment:

• Temperature (Degrees Celsius): -20 to +55 Degrees
• Humidity (%): 0 to 90%, non condensing
• Weather Protection: IP54

Lock Features and Functions:

• Power input: 4 x 1.5V AA Alkaline battery
• Voice Prompt: Voice guidance in English/Chinese
• Low Battery Alarm: Yes
• Break-in and Tamper Alarm: Yes
• Wrong pin code lockout alarm: Yes
• Passage Mode: Yes
• One-time Password: Yes
• Password Sharing: Yes
• Scramble Password: Yes
• Unclosed Door Warning: Yes
• Optional Features: Safety handle design BLE function
• Backup Unlock Mechanism: External emergency battery or mechanical key
• Door Thickness: 35mm - 50mm

Dimensions:

• External Body:
  • Width: 65mm
  • Height: 285mm
  • Depth: 27.5mm
• Internal Body:
  • Width: 65mm
  • Height: 280mm
  • Depth: 27.5mm

Protection:

• Fire Rating: Successfully tested up to 2 hours (depending on the type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
