FritsJurgens System M+ Concealed Top Pivot

Satin Stainless Steel

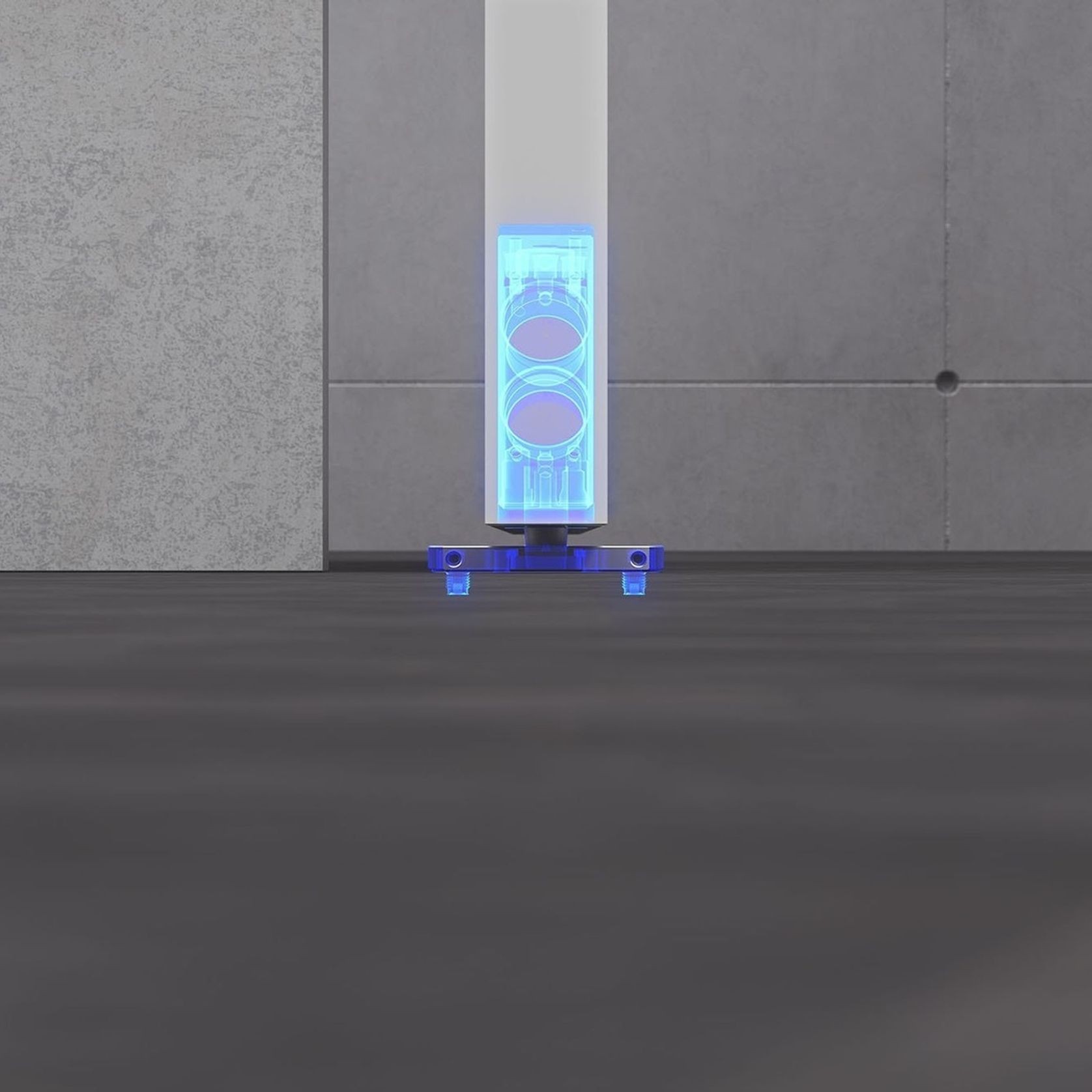

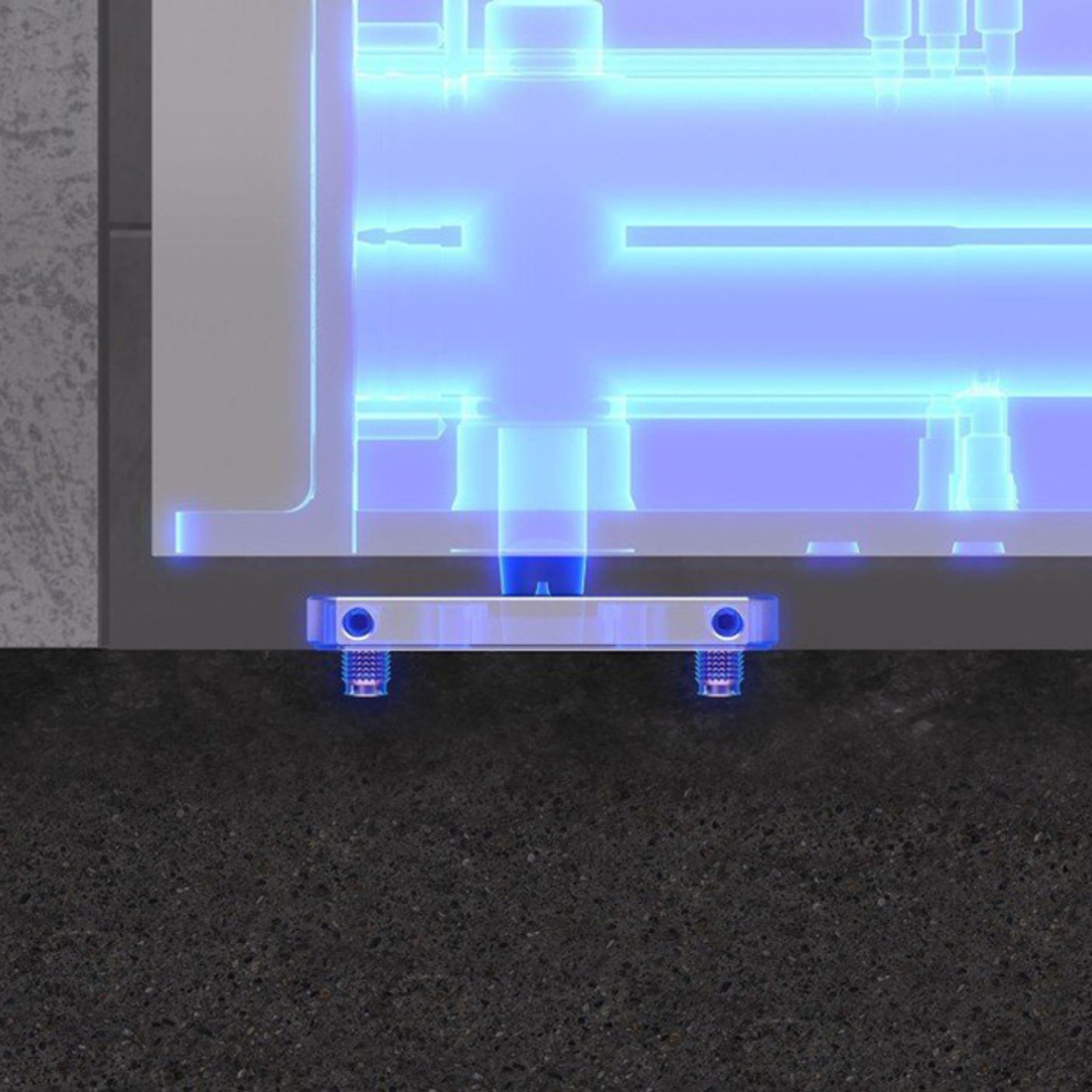

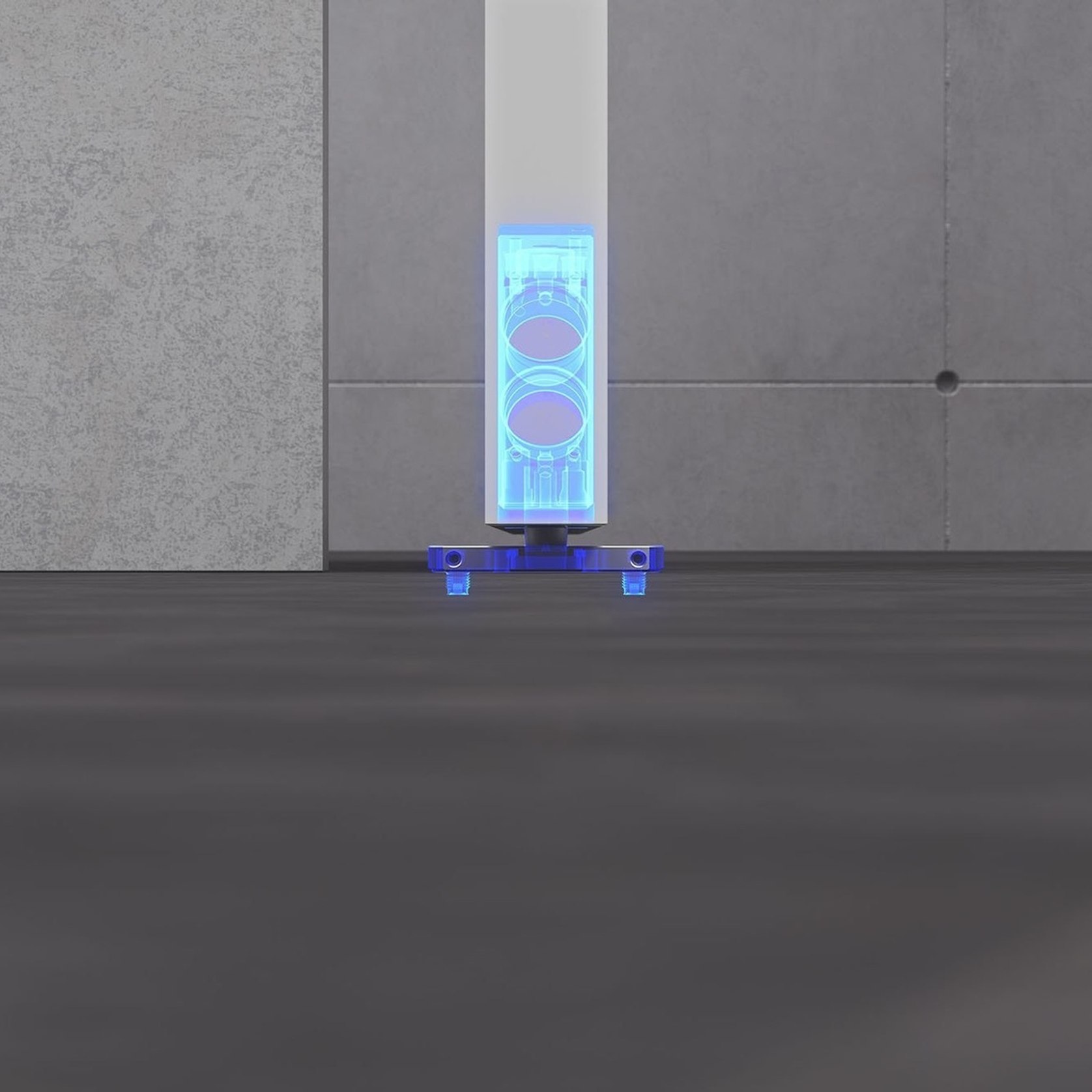

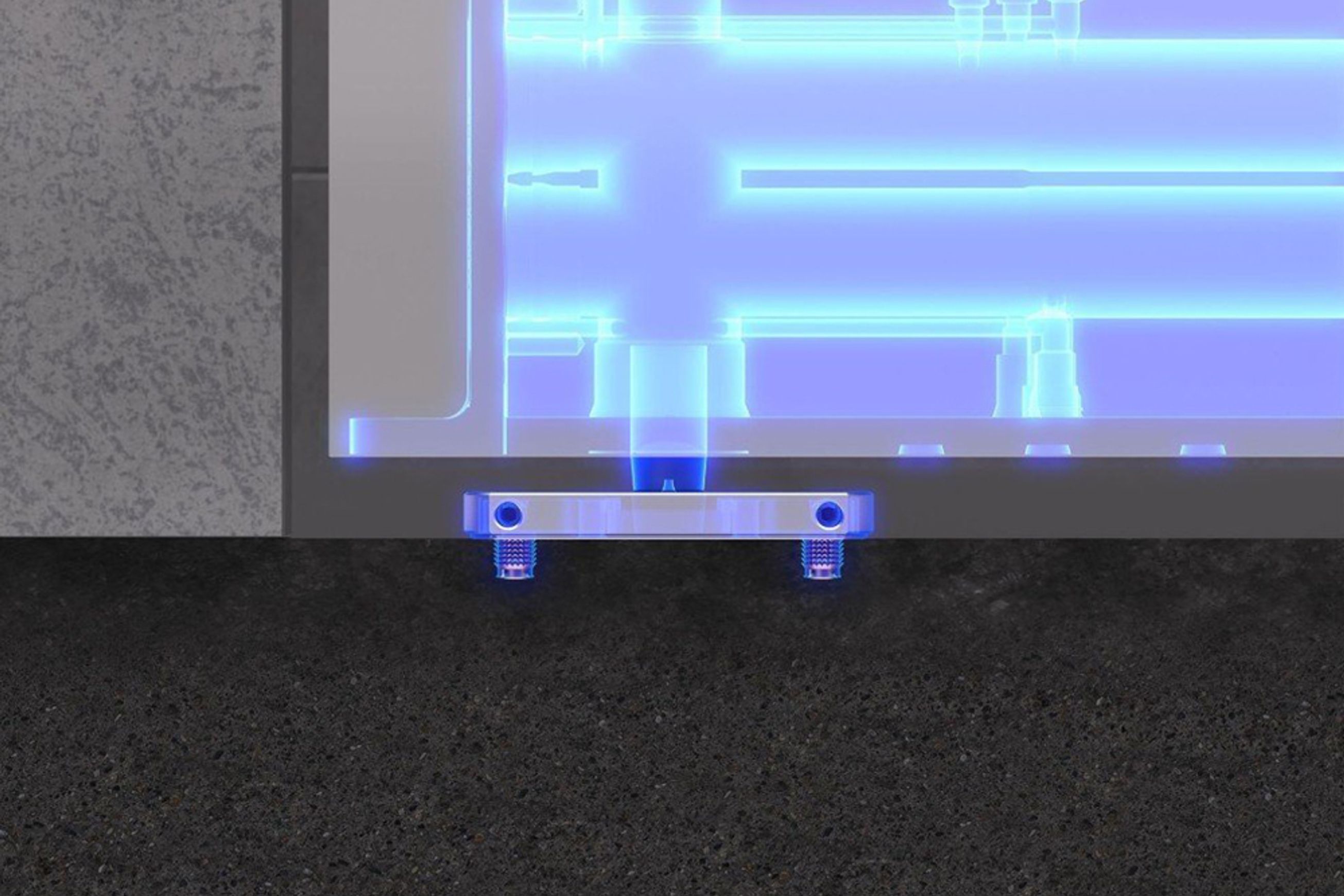

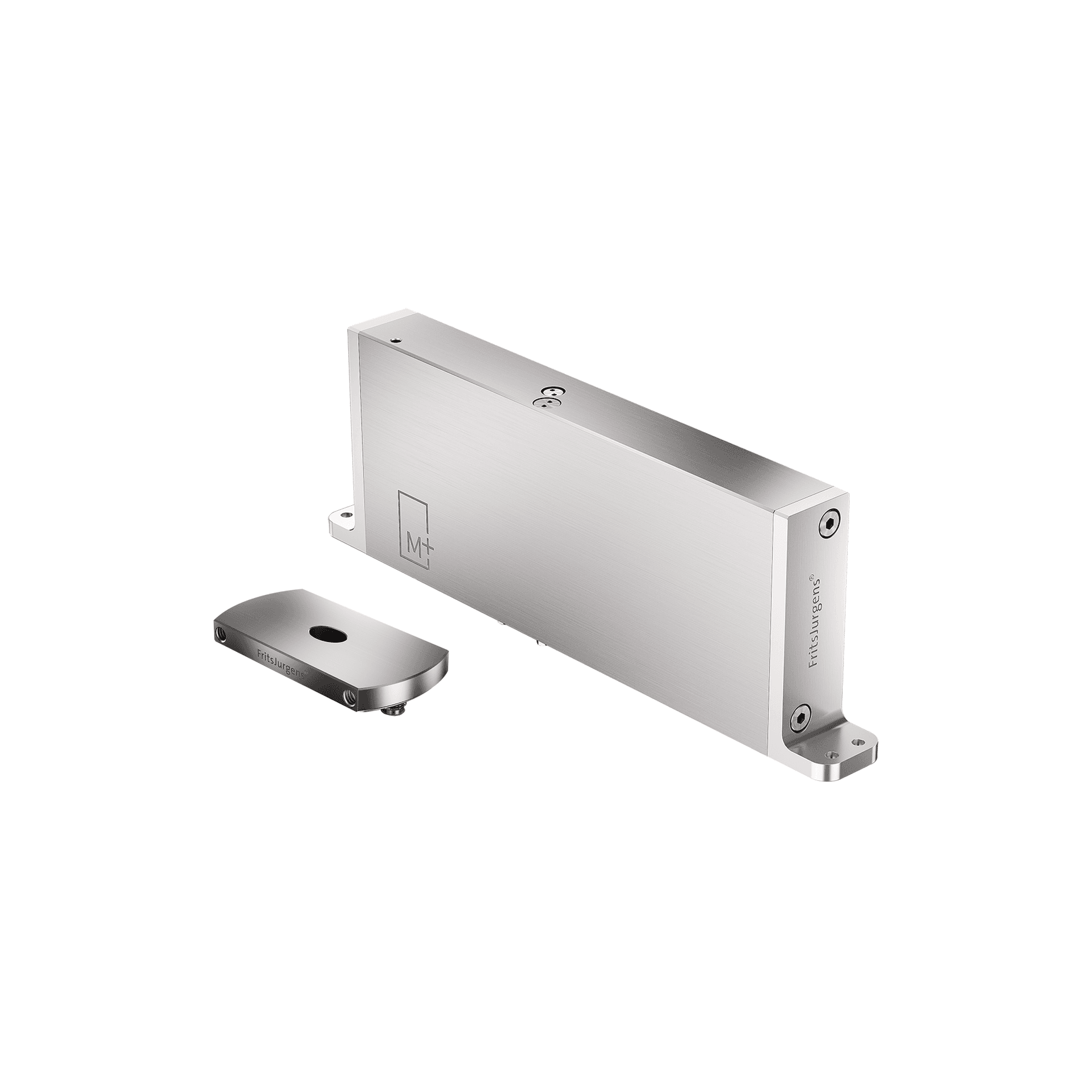

FritsJurgens System M+ Concealed Top Pivot with Standard Floor Plate

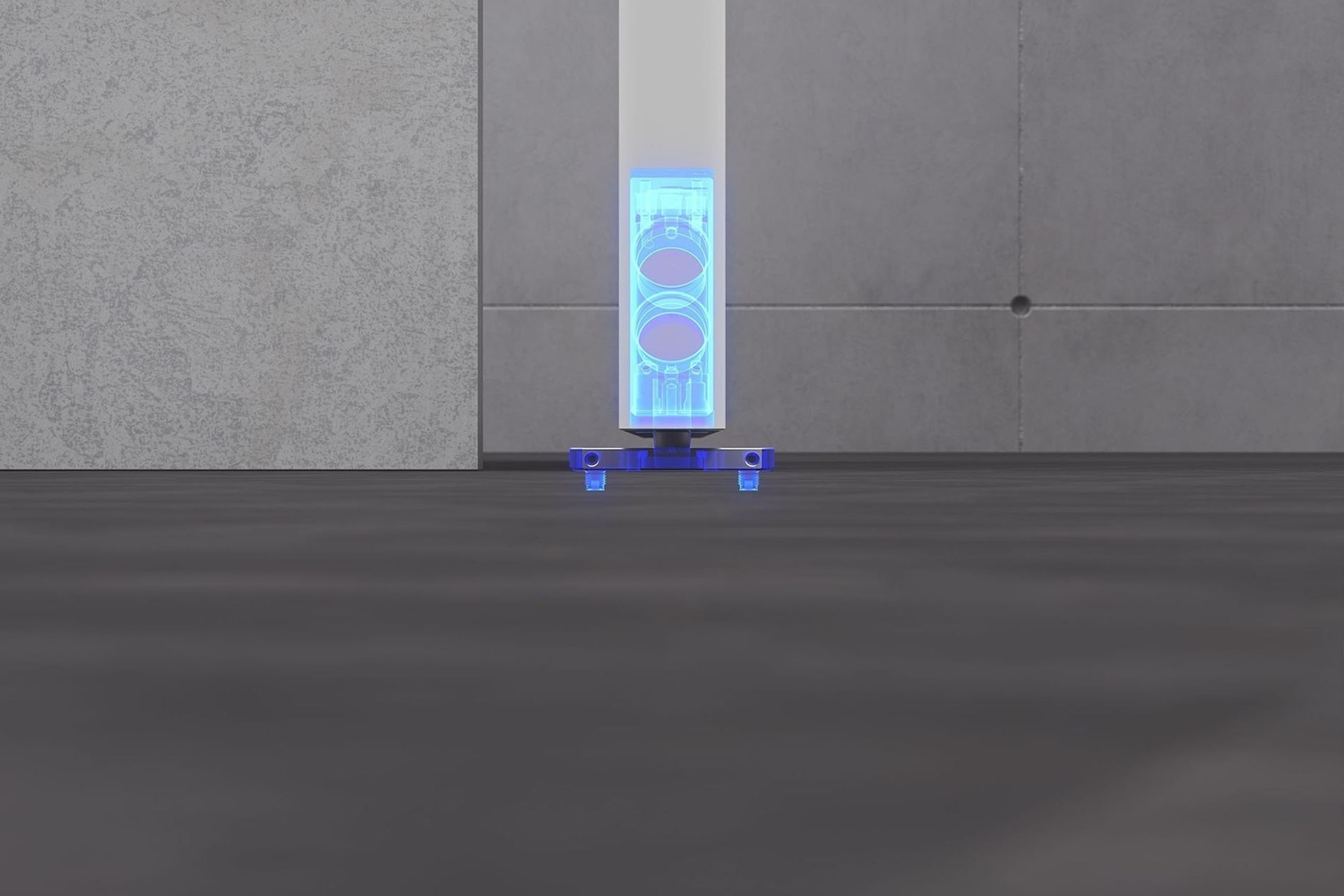

Top Pivot Function - a real all-rounder. The ability to position the system from the door’s side reduces unused space while retaining the beautiful, distinctive pivot door movement. The top pivot is the top side of the pivot point and anchors the pivot door in the ceiling.

FritsJurgens System M+ takes the System M pivot hinge range to a new level. This adjustable pivot hinge brings Latch Control to ensure proper latching, guaranteed control over the movement of doors up to 500 kg, and extra adjustability for the movement of the door. System M+, like System M, is equipped with motion technology which creates and controls the movement of the pivot door.

PIVOT SELECTION TOOL

Functionalities:

  • Fully adjustable door movement: Thanks to Damper Control, 30° Speed Control, and Latch Control, System M+’s movement is fully adjustable.
  • Proper latching: Latch Control ensures that doors with latching bolts always close properly. Ideal for exterior pivot doors.
  • Small to oversized doors: System M+ is suitable for light doors and heavy doors in a range of 80 kg to 500 kg for ultimate design freedom.
  • Latch Control: Provides the ability to adjust the pivot hinge to latch the door properly.
  • Damper Control: Ensures a smooth and elegant closing movement and protects your door from touching the wall (back-check).
  • 30º Speed Control: Allows you to determine the speed of the pivot door through the last part of the closing movement.

Features:

  • No structural elements in floor and ceiling
  • Quick and simple to install
  • Maintenance free
  • For new and existing situations
  • Easily adjustable with the door in place
  • Suitable for timber, steel, framed glass and massive cladded doors
  • For single and double action doors
  • For internal and external doors
  • For commercial and residential environments
Details
  • Category
    Pivots
  • Range
    Bellevue
  • Brand
    Bellevue
Specifications

Specifications:

  • Dimensions: 294.8mm x 32mm x 99,6mm
  • Weight: 2.6 kg
  • Material: Stainless Steel | Anodized aluminum
  • Corrosion Resistance: EN 1670 - class 5 (norm:0-5)
  • Door Acting: Single and double-acting
  • Door weight: Up to 500 kg
  • Minimum Door Thickness: 40mm
  • Maximum Door Width: 400 - 5000 mm
  • Hold Positions: 90º, -90º and 0º
  • Finish: Satin Stainless Steel
Scope of use

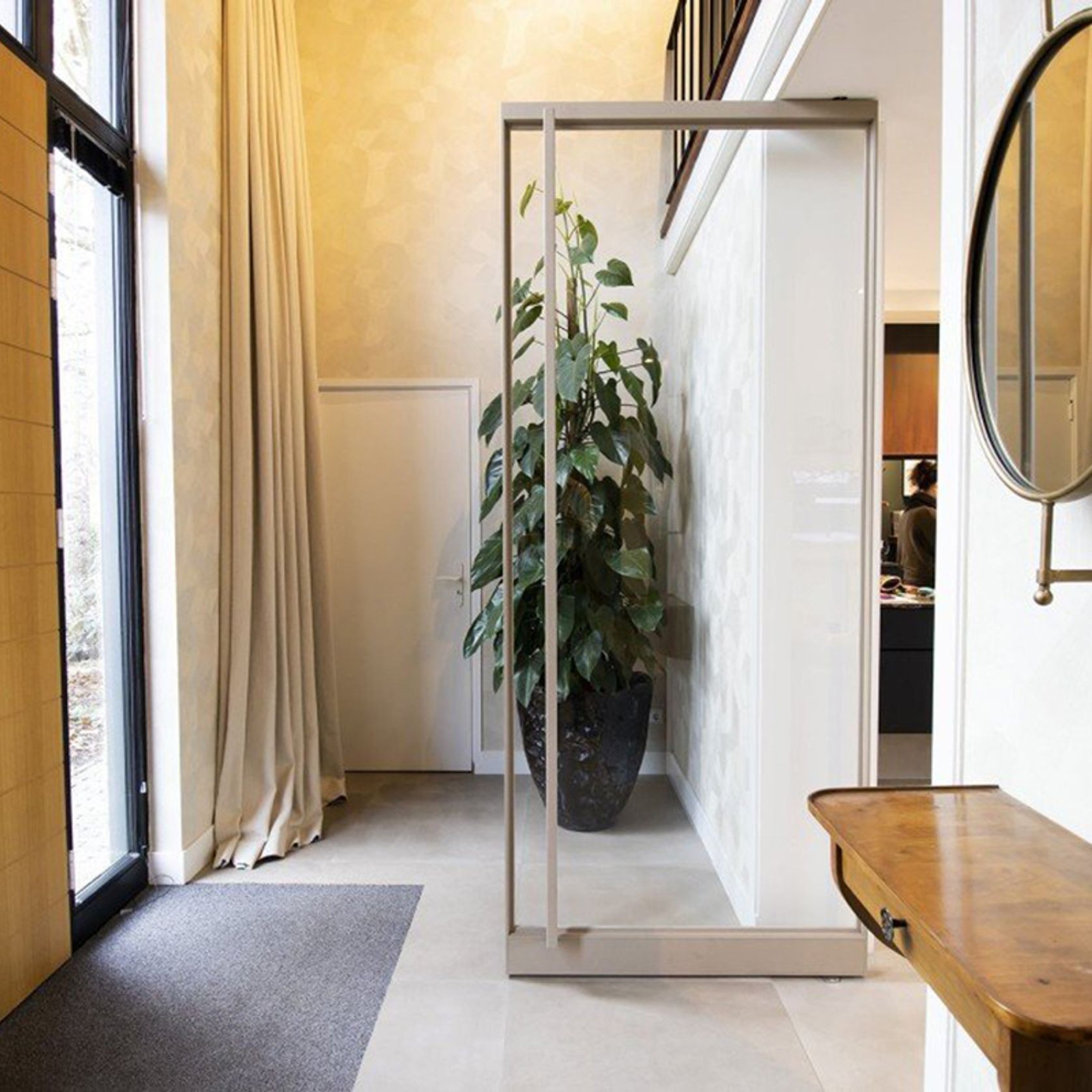

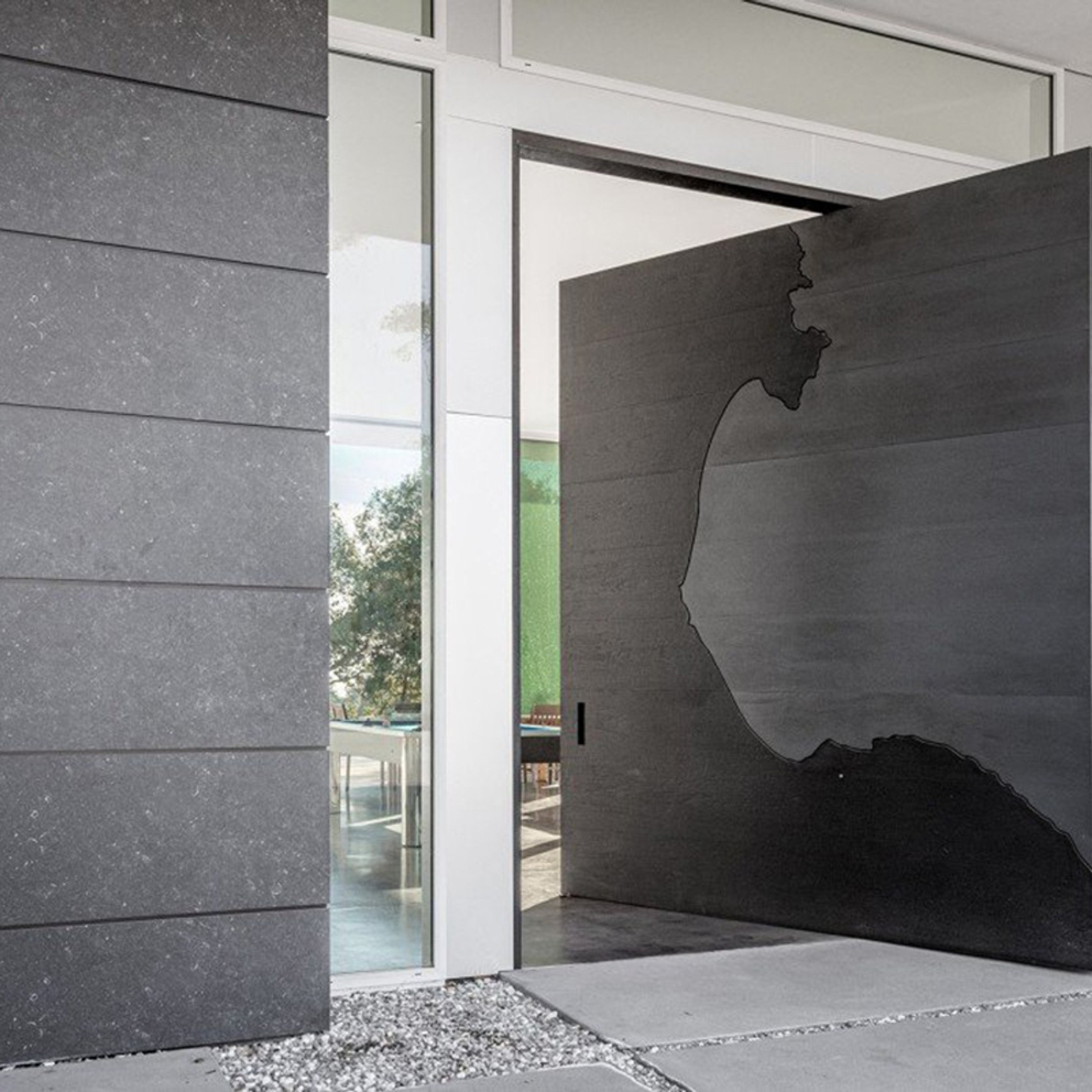

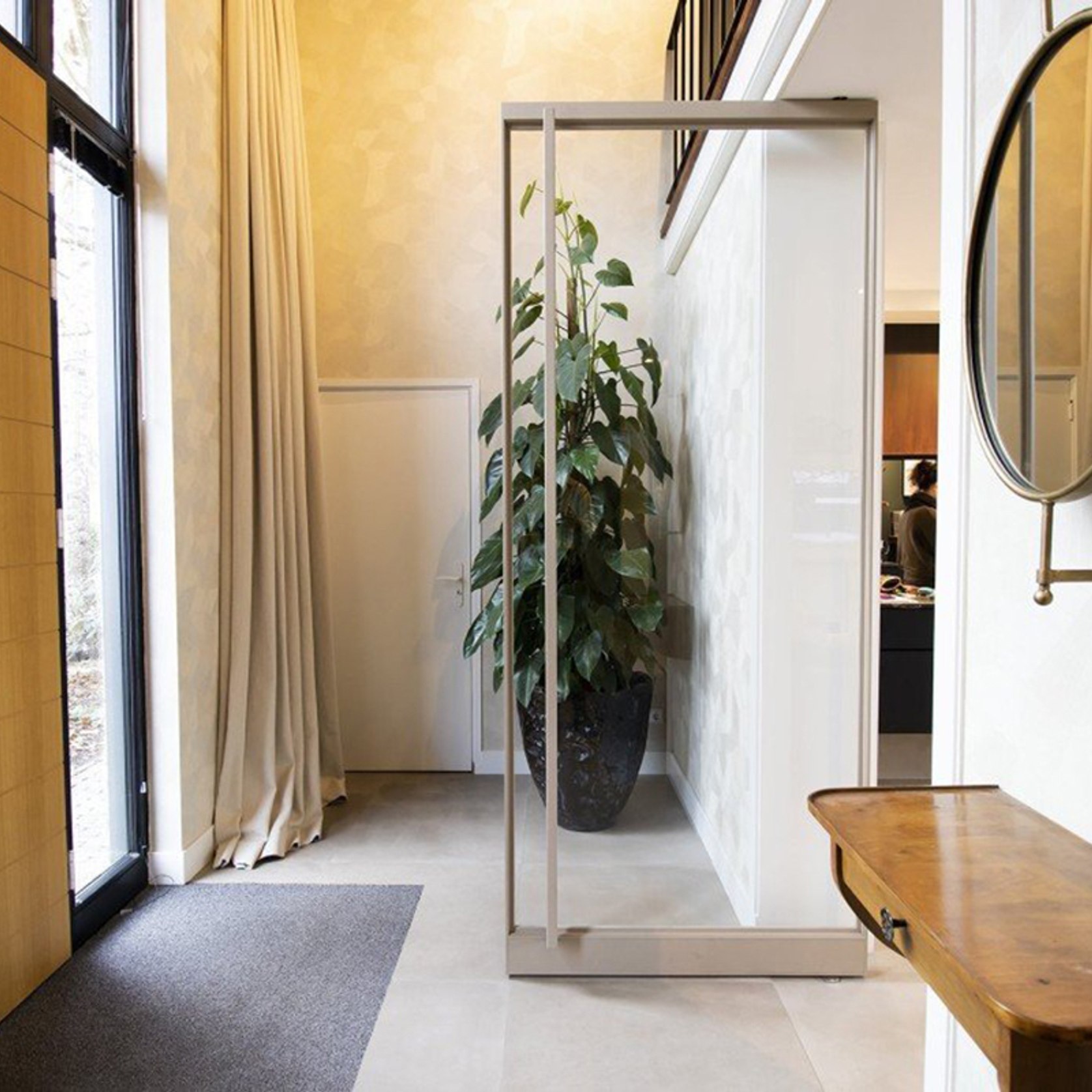

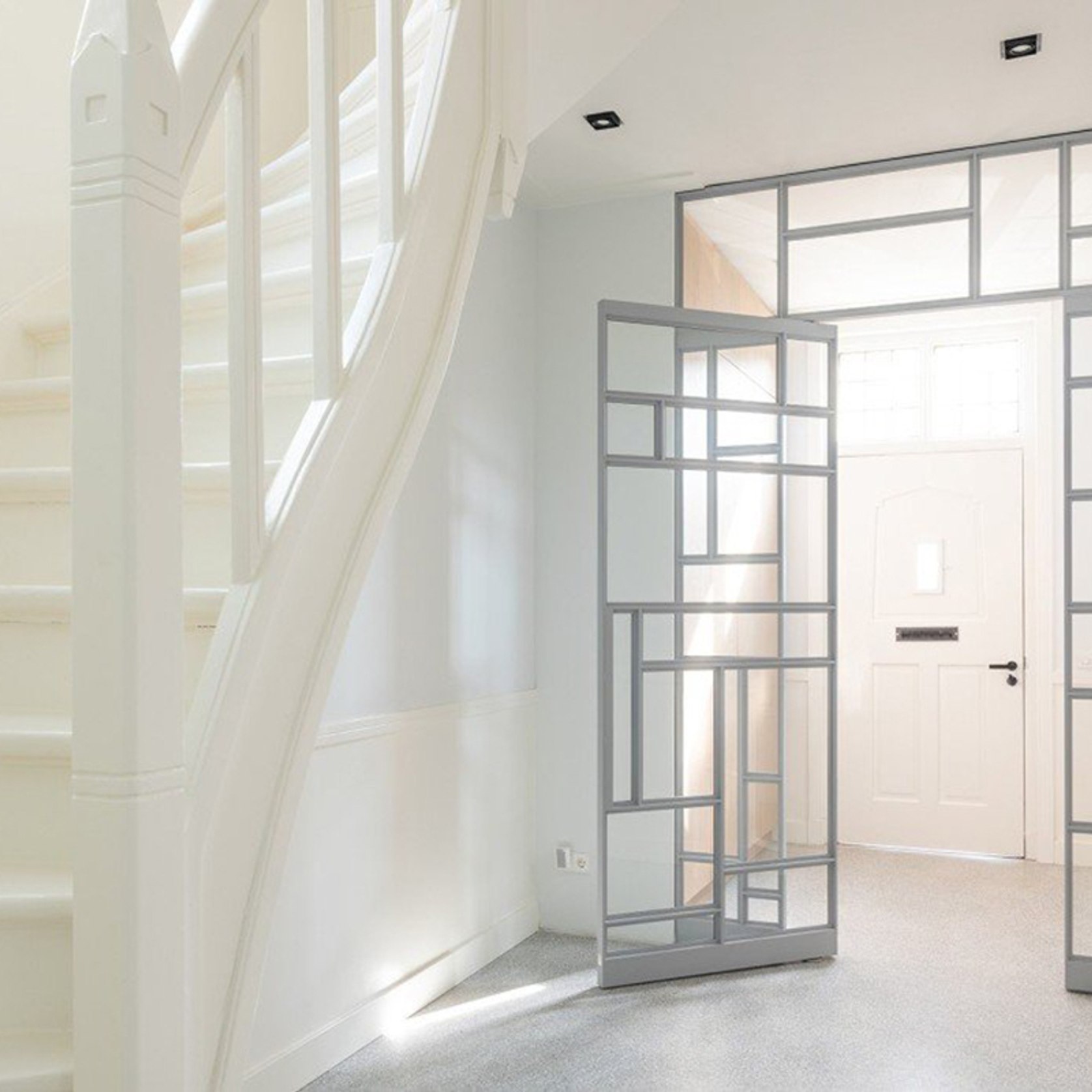

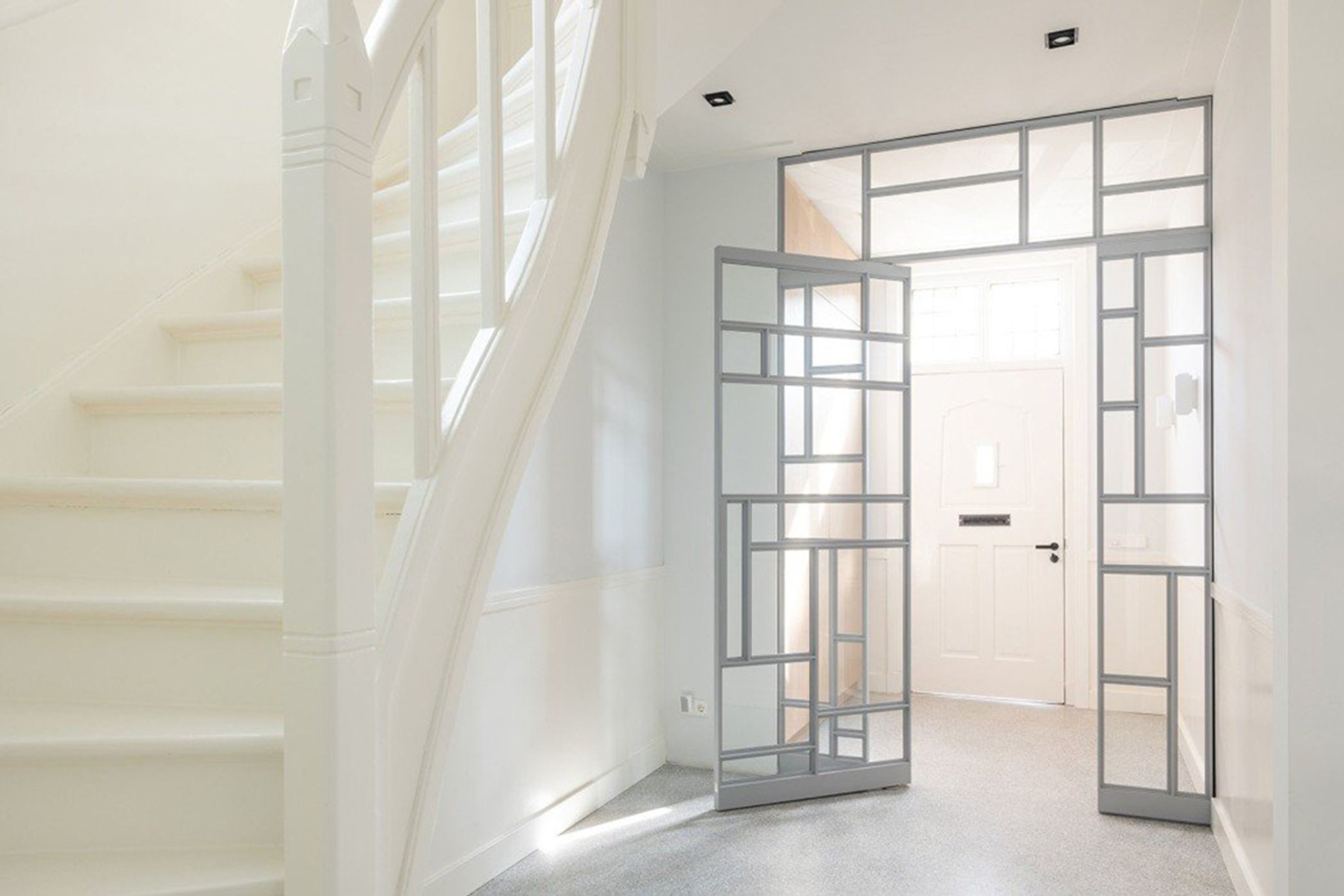

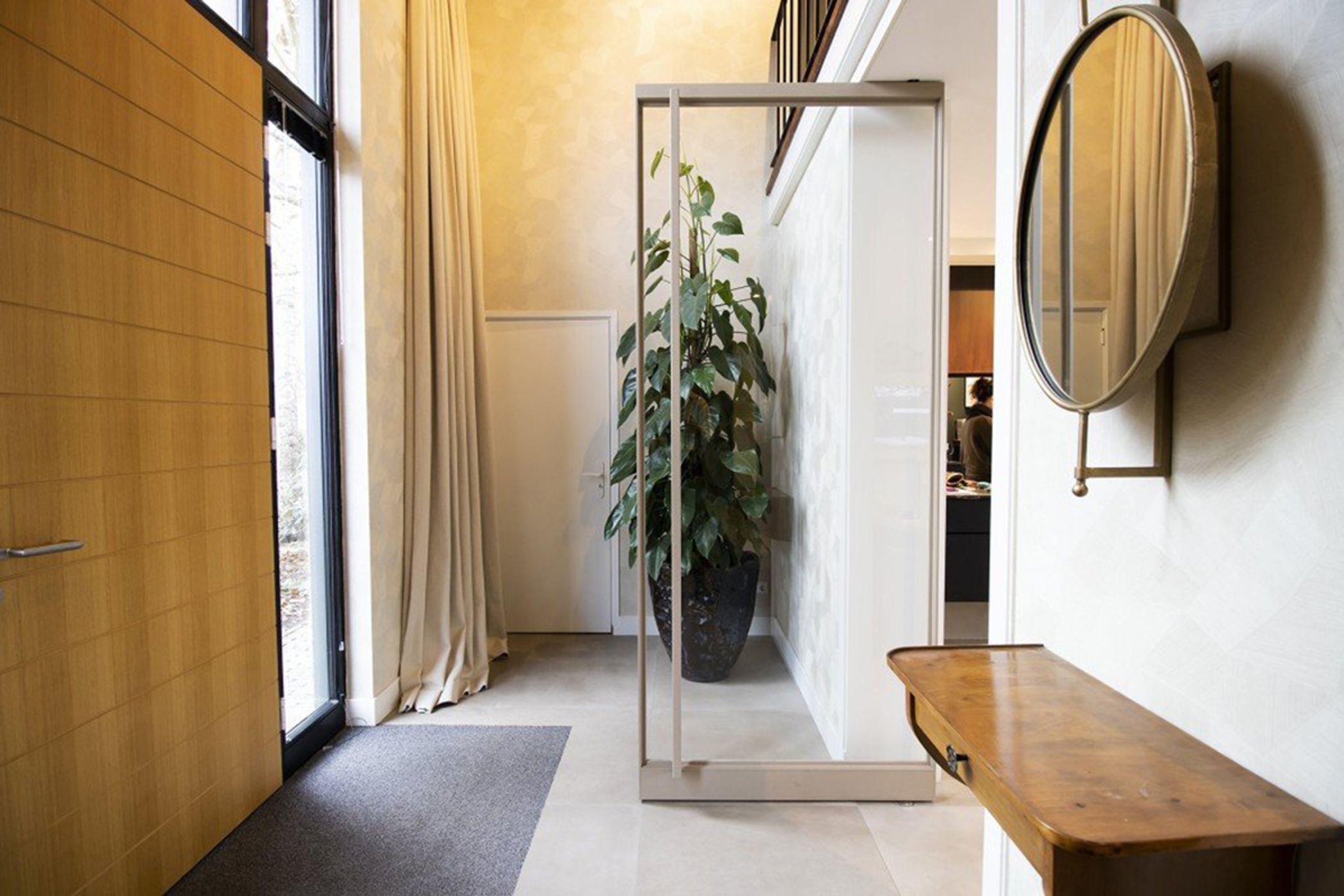

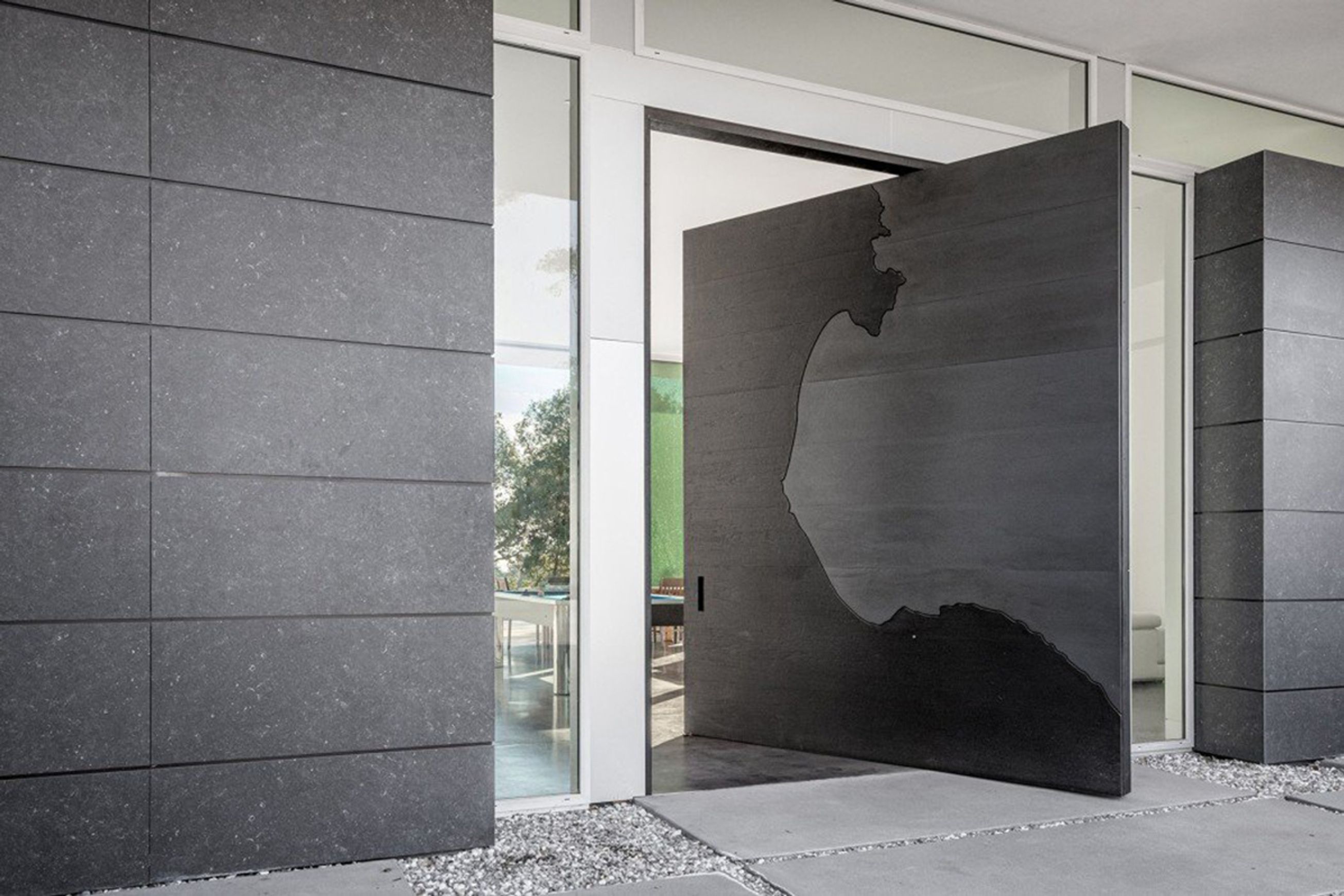

Top Pivot suitable for countless types of placements for both interior, and exterior situations. From grand entrances to bathroom doors, pivoting walls, double doors, cupboard doors, even windows.

SKU: BELVFJSSTM70CSSS
