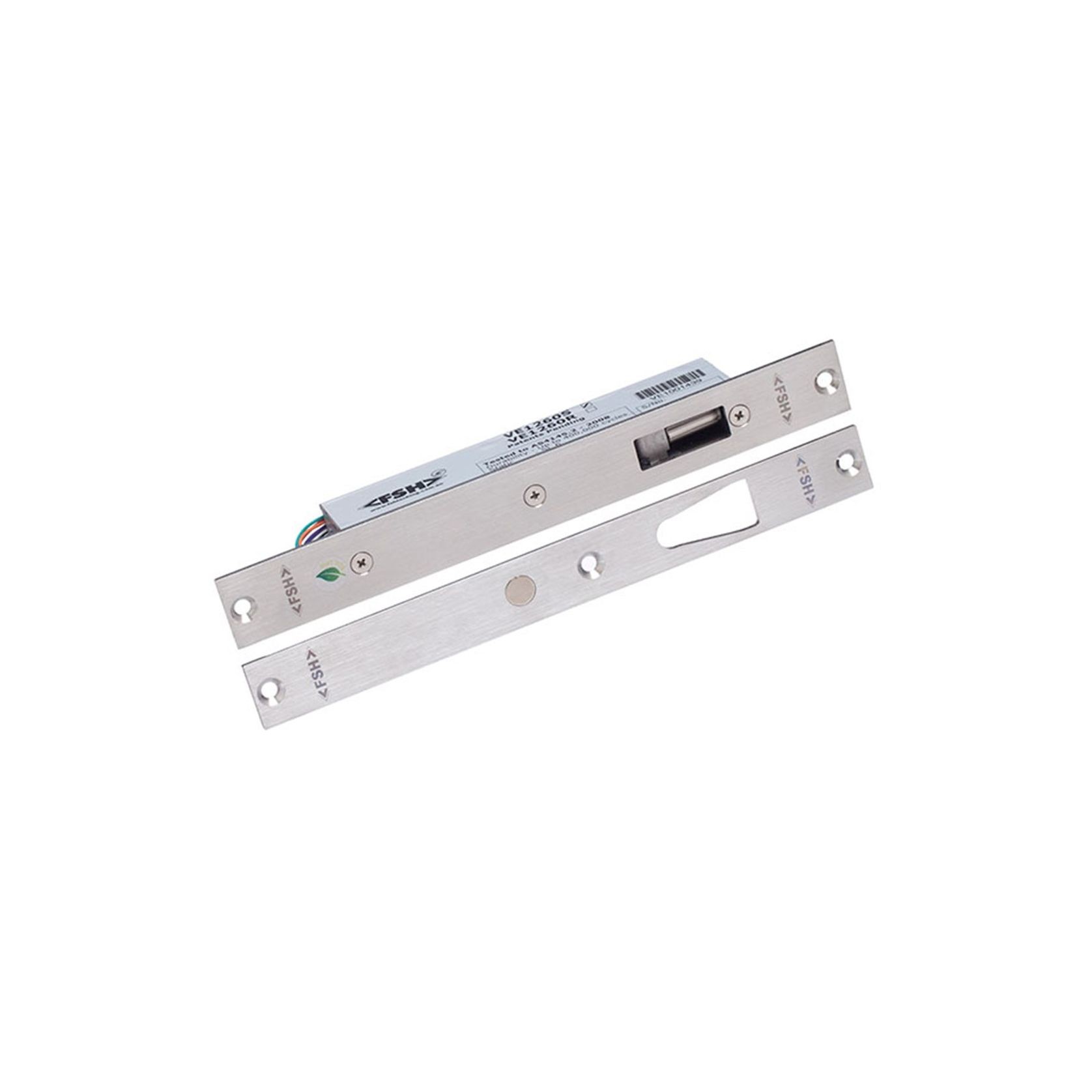

FSH Drop Bolt (V Lock) Square Edge
VE1260S

Drop Bolt Function - designed to retract in the event of a power outage or the activation of the emergency break-glass switch. The previous door locking system's locking plate is replaced by an electric door strike system.

Features:

Patented EcoLock™ VE1260 range is a high torque motor driven drop bolt with up to 35kg pre-load/side load tolerance
It can be installed vertically or horizontally and can be used on 180° swing through opening doors
Fire rated to 4 hours
Releases with up to 35kg of pre-load/side load
Motorised locking device
Simple PTO/PTL locking mode changeover
Square end face plate for retro fitting to existing installations
Tested to 400,000 cycles
12Vdc initial current draw 1Amp standby/sleep mode less than 15mA @ 12Vdc
Fully monitored including door position reed

Tags

hardware door hardware door handles door locks handles

Product Details

Product: FSH Drop Bolt (V Lock) Square Edge Fire Rated VE1260S
Category: Door Bolts
Sold by: Keeler Hardware
Size: 256mm
Range: FSH
Brand: FSH
Country of origin: Australia
Type of use: Commercial and Residential
Package type: Fragile - handle with care
Care and cleaning: Easy maintenance
Installation: Tools required
Assembly: Professional assembly recommended

Product Variants

Colours
Max Door Gap
Holding Force
Multi Voltage

Keeler Hardware is specified by

(34) Professionals

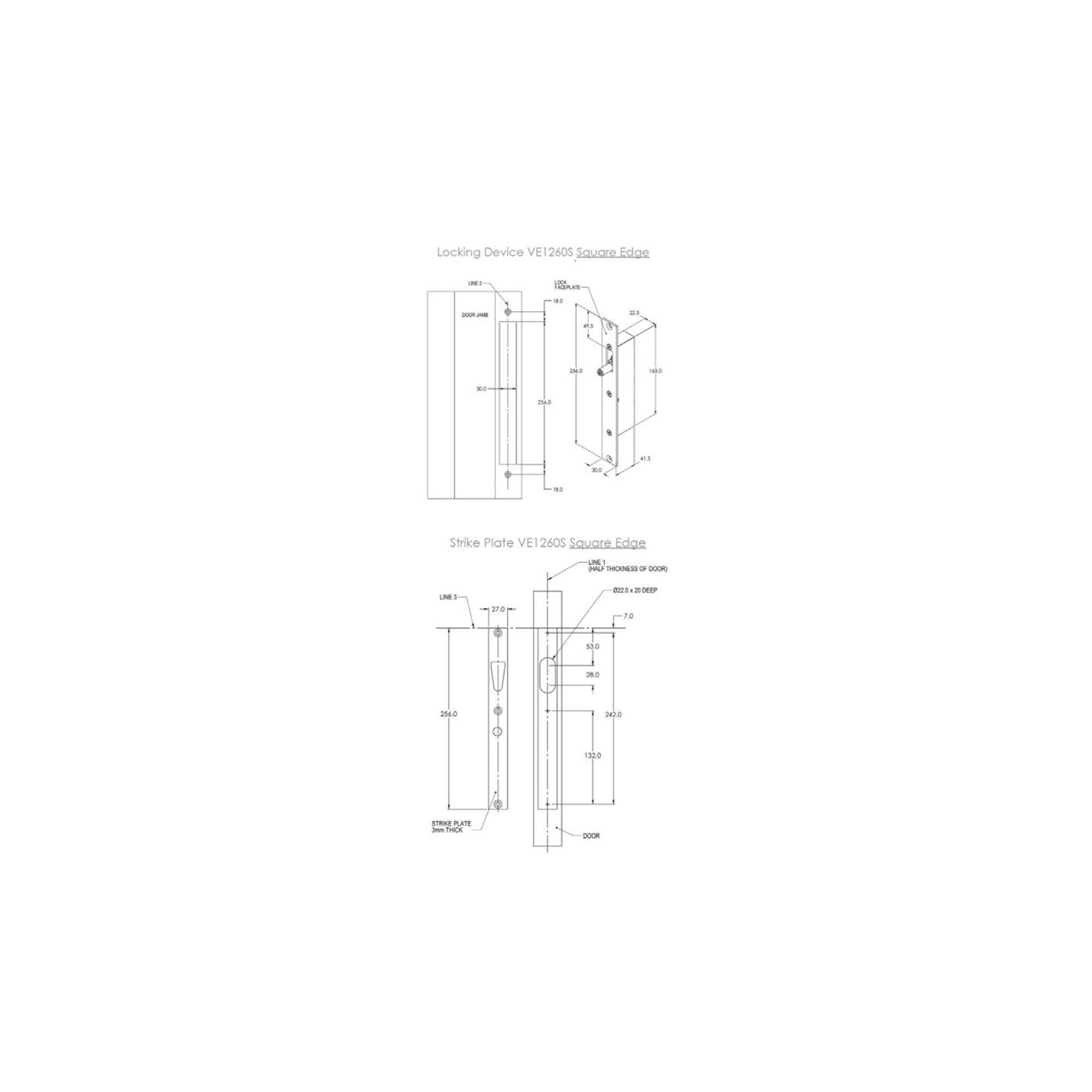

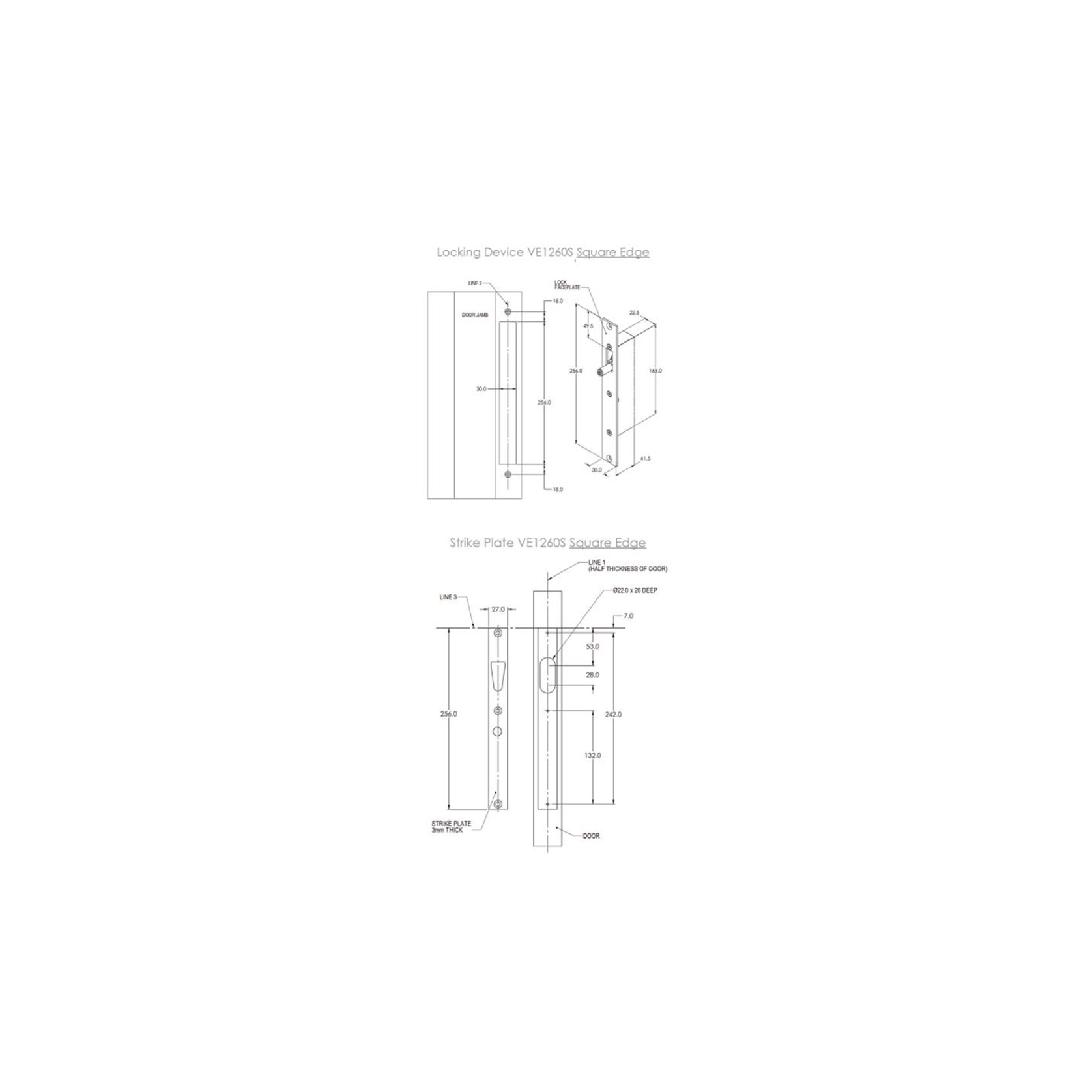

FSH Drop Bolt (V Lock) Square Edge Fire Rated VE1260S dimensions

Visit site

The previous door locking system's locking plate is replaced by an electric door strike system. Features: Patented EcoLock™ VE1260 range is a high torque motor driven drop bolt with up to 35kg pre-load/side load tolerance It can be installed vertically or horizontally and can be used on 180° swing through opening doors Fire rated to 4 hours Releases with up to 35kg of pre-load/side load Motorised locking device Simple PTO/PTL locking mode changeover Square end face plate for retro fitting to existing installations Tested to 400,000 cycles 12Vdc initial current draw 1Amp standby/sleep mode less than 15mA @ 12Vdc Fully monitored including door position reed

FSH Drop Bolt (V Lock) Square EdgeVE1260S Drop Bolt Function - designed to retract in the event of a power outage or the activation of the emergency break-glass switch.

The previous door locking system's locking plate is replaced by an electric door strike system.

Features:

Patented EcoLock™ VE1260 range is a high torque motor driven drop bolt with up to 35kg pre-load/side load tolerance
It can be installed vertically or horizontally and can be used on 180° swing through opening doors
Fire rated to 4 hours
Releases with up to 35kg of pre-load/side load
Motorised locking device
Simple PTO/PTL locking mode changeover
Square end face plate for retro fitting to existing installations
Tested to 400,000 cycles
12Vdc initial current draw 1Amp standby/sleep mode less than 15mA @ 12Vdc
Fully monitored including door position reed

Specs: Specifications:

Multi Voltage: 12Vdc to 30Vdc

Holding Force: 1000 Kg.

Face Plate Dimensions:Length: 256mm
Width: 30mm
Thickness: 3mm

Body Dimensions:Length: 163mm
Width: 22.5mm
Depth: 41.5mm

Strike Dimensions:Length: 256mm
Width: 27mm
Thickness: 3mm
Scope of use: Drop Bolt perfect for applications where an electric strike is impractical, such as swing-through, double-action doors.
