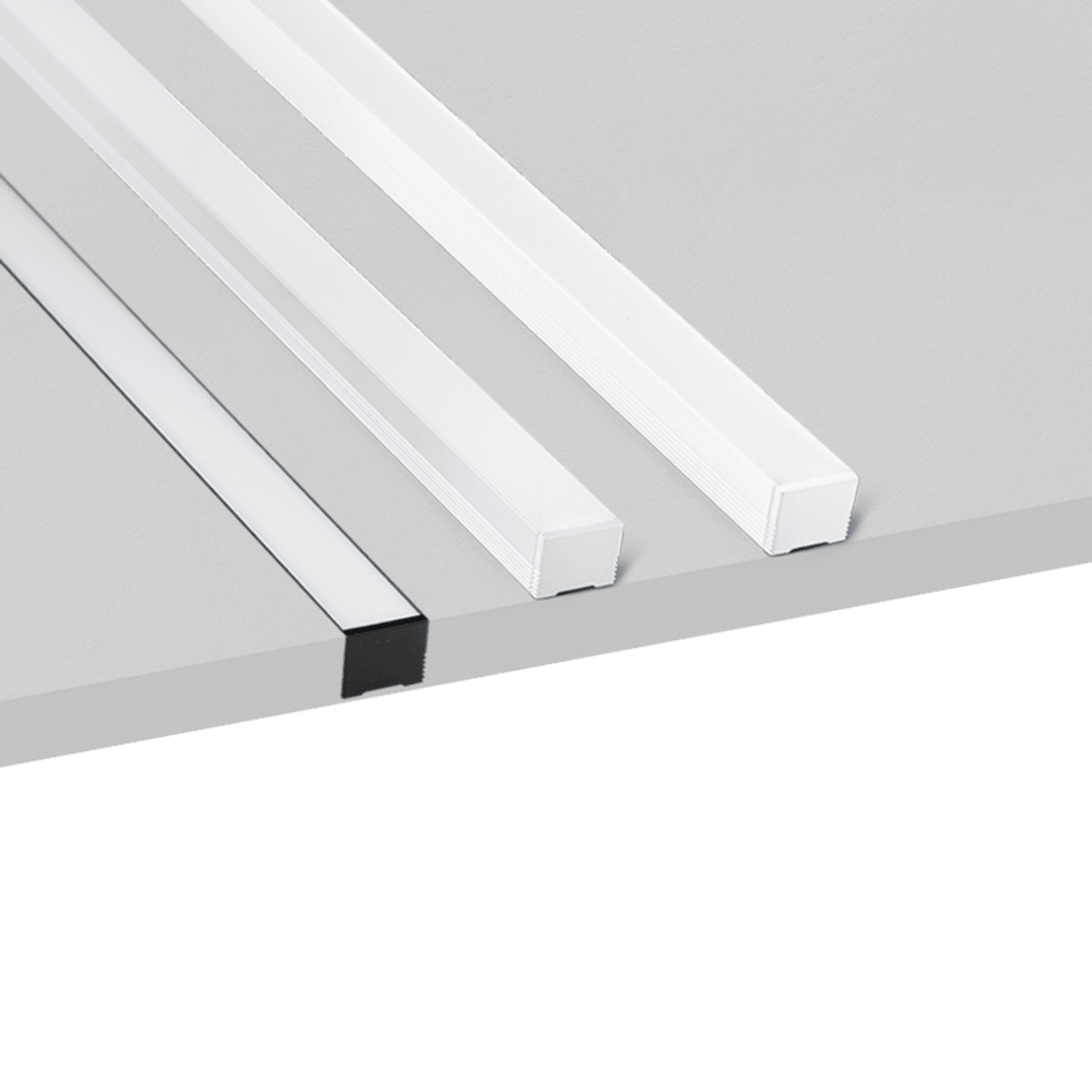

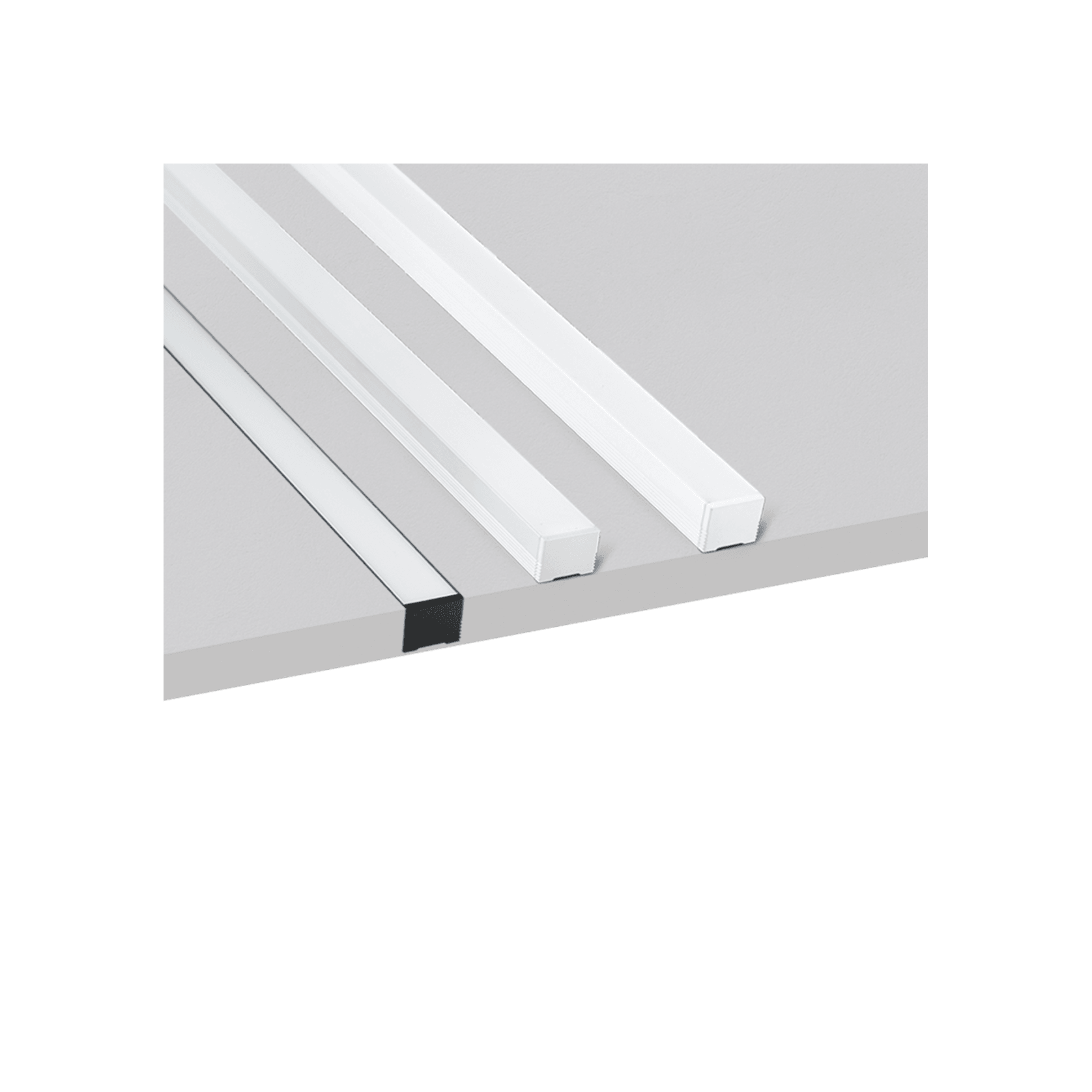

Surface Mounted Linear LED Profile

Ghost linear profile series offers new lighting possibilities to suit a wide range of applications. Able to be surface mounted or recessed to create a trimless apperance. Available in a wide array of sizes with various accessories.

Constructed from high grade 6063T extruded aluminium with a natural anodised surface treatment as standard for an architectural appearance. High quality opal PMMA diffuser minimises the visibility of dots when used in conjunction with CoLab’s vast LED strip portfolio.

Details
  • Category
    Linear Lighting
  • Range
    Linear Profiles
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage/m:

  • Deltaflex
    •5W
    •10W
    •15W
    •20W
    •20W (RGB)
    •23W (Tunable White)
    •30W (RGBW)
  • Zeroflex
    •10W
    •15W
  • Powerflex
    •10W
    •12W
    •18W
    •21W

Luminous Flux/m:

  • Deltaflex
    •5W: 420 - 480 Lm
    •10W: 780 - 810 Lm
    •15W: 1103 - 1286 Lm
    •20W: 1378 - 1604 Lm
    •20W(RGB): 880 Lm
    •23W (Tunable White): 2407 Lm
    •30W (RGBW): 1659 Lm
  • Zeroflex
    •10W: 900 - 1000 Lm
    •15W: 1350 - 1500 Lm
  • Powerflex
    •10W: 1344 - 1536 Lm
    •12W: 1680 - 1920 Lm
    •18W: 2520 - 2880 Lm
    •21W: 2940 - 3360 Lm

Luminaire Efficacy:

  • Deltaflex
    •5W: 84 - 96 Lm/W
    •10W: 78 - 81 Lm/W
    •15W: 74 - 86 Lm/W
    •20W: 69 - 80 Lm/W
    •23W: 105 Lm/W
  • Zeroflex
    •10W: 90 - 100 Lm/W
    •15W: 90 - 100 Lm/W
  • Powerflex
    •10W: 134 - 154 Lm/W
    •12W: 140 - 160 Lm/W
    •18W: 140 - 160 Lm/W
    •21W: 140 - 160 Lm/W

CCT:

  • 2700K
  • 3000K
  • 4000K
  • 2700 - 6500K (Tunable White)
  • RGB
  • RGBW

Distribution: 110°

Mounting:

  • Surface
  • Recessed

Size: Width 16mm x Height 13mm x Length 2500mm

Finish Options:

  • Natural Anodised
  • White
  • Black
  • Custom

Warranty: 5 Years
