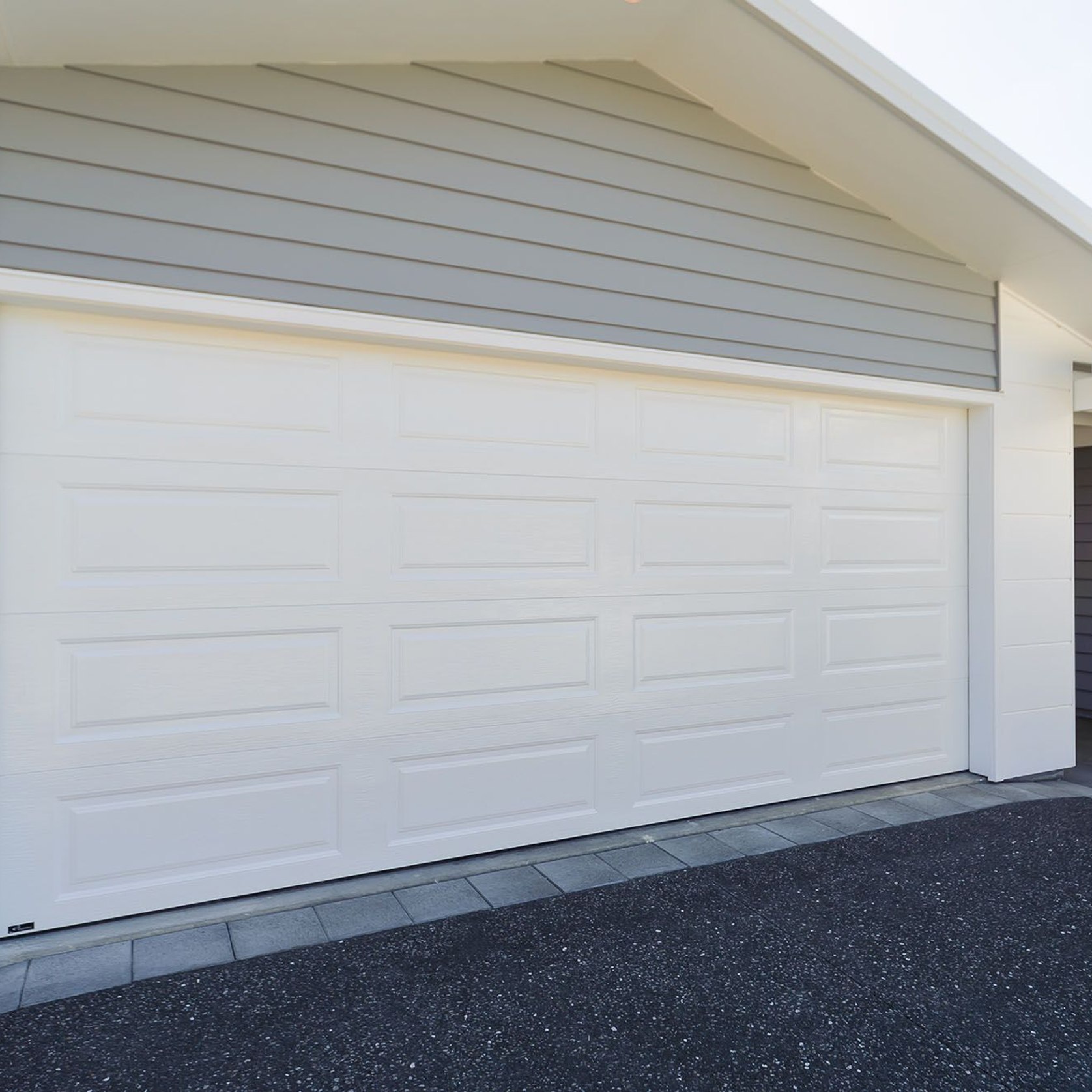

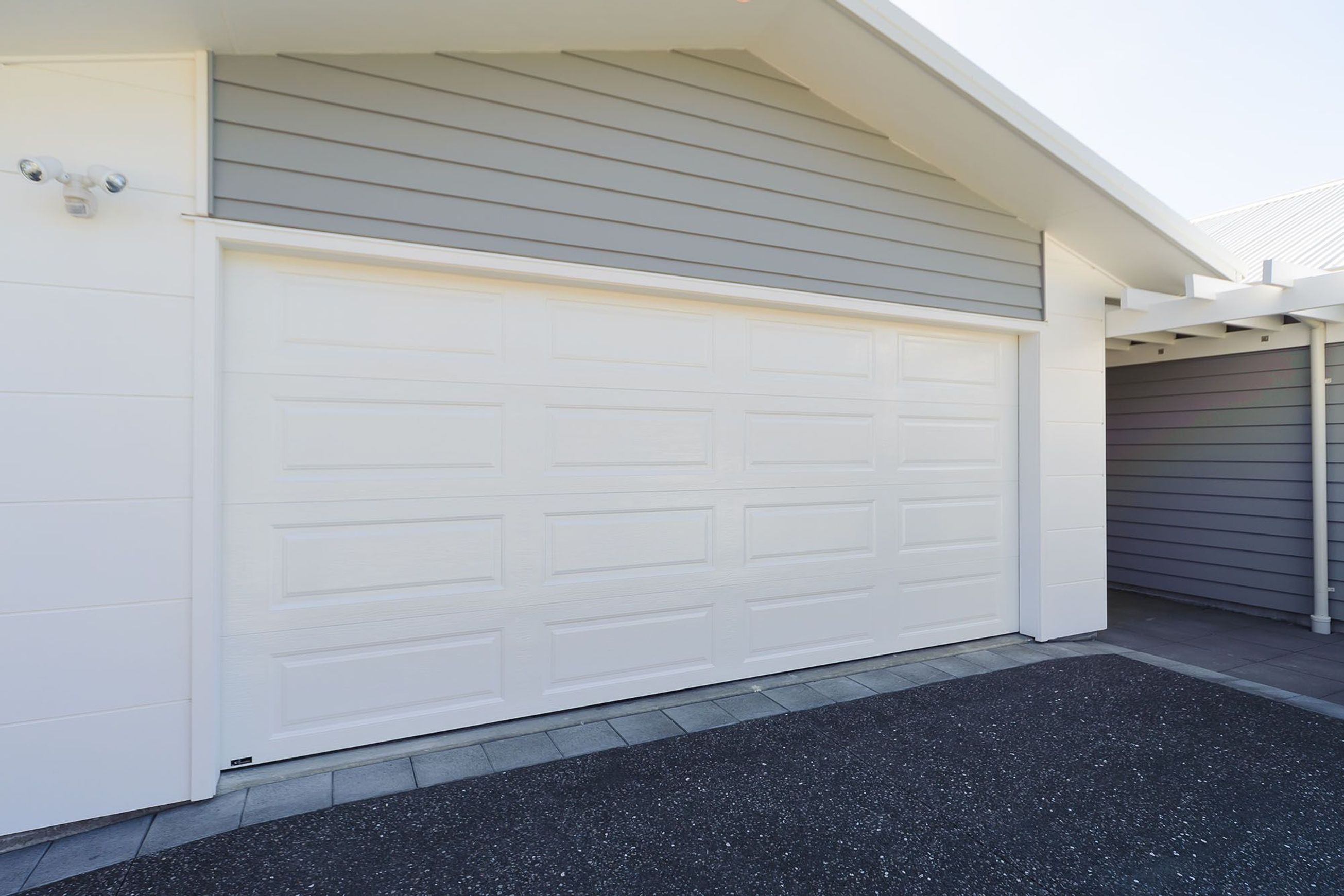

Grange Sectional Garage Door
ATTRACTIVE
The wide raised pattern design of the Garador Grange pressed panel is produced from heavy gauge steel to produce a reliable and distinguished horizontal dimension to entry point to your garage and home.
The ‘rectangular’ raised pattern design available in either a smooth or woodgrain finish produces a refined feel that complements home ranging from the traditional to the modern.
A garage door with a sweeping horizontal feel created by its rectangular, (370mm H x 990mm W) raised pressings; the Grange lends itself to modern architecture while still maintaining its traditional style.
The number of pressings across your door is determined by the overall width of the opening and the resulting amount is spaced out evenly.
Designed to be operated with an automatic garage door opener, we recommend our Garador Precision Opener with either the Chain or Belt-drive configuration for reliable operation of your Grange Sectional Garage Door.
The ‘Double Press’ range of window options are recommended for the Grange sectional door as their size and position across the door will match the remaining pressings. Glazing with acrylic or toughened glass is available.
Manufactured by roll-forming 0.6 BMT COLORSTEEL® and then pressing the detail into the panel, the Grange will provide a touch of the traditional to the front of your home.
- CategoryGarage Doors, Entry Automation
- RangeSectional Garage Door
SIZE RANGE
Available in Daylight Opening Sizes (DLO) from 1825mm to 3440mm in height and from 2400mm to 6600mm in width.
Additional sizes may be available, please discuss your requirements with your local Garador Dealer.
GRANGE 'DOUBLE PRESS' PROFILE - ROLL-FORMED PANEL WITH 'RECTANGLE' PRESSINGS.
Manufactured from 0.6 BMT COLORSTEEL®.
Fixed Sized Pressings of 370mm H x 990mm W - Quantity is width dependent. (2.4m wide panel shown.)
INSTALLATION CLEARANCES
Recommended Clearance Requirements:
• Standard Headroom - 320mm
• Standard Headroom with opener - 350mm
• Low Headroom with opener - 200mm (Opener Recommended)
• Sideroom - 140mm
• Backspace with opener - 3550mm (Door height up to 2300mm)
Download the Garador Framing Specification Sheet
LIFTING SYSTEMS
Doors are provided for standard headroom (350mm) situations unless otherwise specified.
Rear torsion and Intermediate Low Headroom systems are available as optional extras.
SMOOTH & QUIET
Garador sectional garage doors will provide you with a quiet, smooth operation.
Features include:
• Factory fitted, muntins and end styles ensure consistent panel tolerances for trouble-free operation.
• Nylon wheels with ball bearings.
EASY OPERATION
Your Garador sectional door will continue to be easy to open and close, with features such as:
• Ball bearing wheels with a two-piece roll-formed track, allowing the door to run easily and smoothly during opening and closing.
• Full-sized hinges reduce stress loading for consistent operation.
WEATHER PROTECTION
The garage today is used to store many different valuable objects, and in some cases is converted into another room, so weather protection is an important feature of any garage door. The Garador sectional door features:
• Pre-painted steel, to stand up to the harsh New Zealand climate.
• Bottom weather seal which is soft and pliable, helping to stop leaves and rain coming in under the door.
• Mohair option available to reduce gaps between the door and the door jamb, to keep out the weather.
DURABILITY
Your Garador sectional door will continue to operate like new, with features such as:
• Springs designed to exceed the Aus/NZ Standard for garage doors – 20,000 cycles.
• Factory fitted, muntins and end styles ensure consistent panel tolerances for trouble-free operation.
