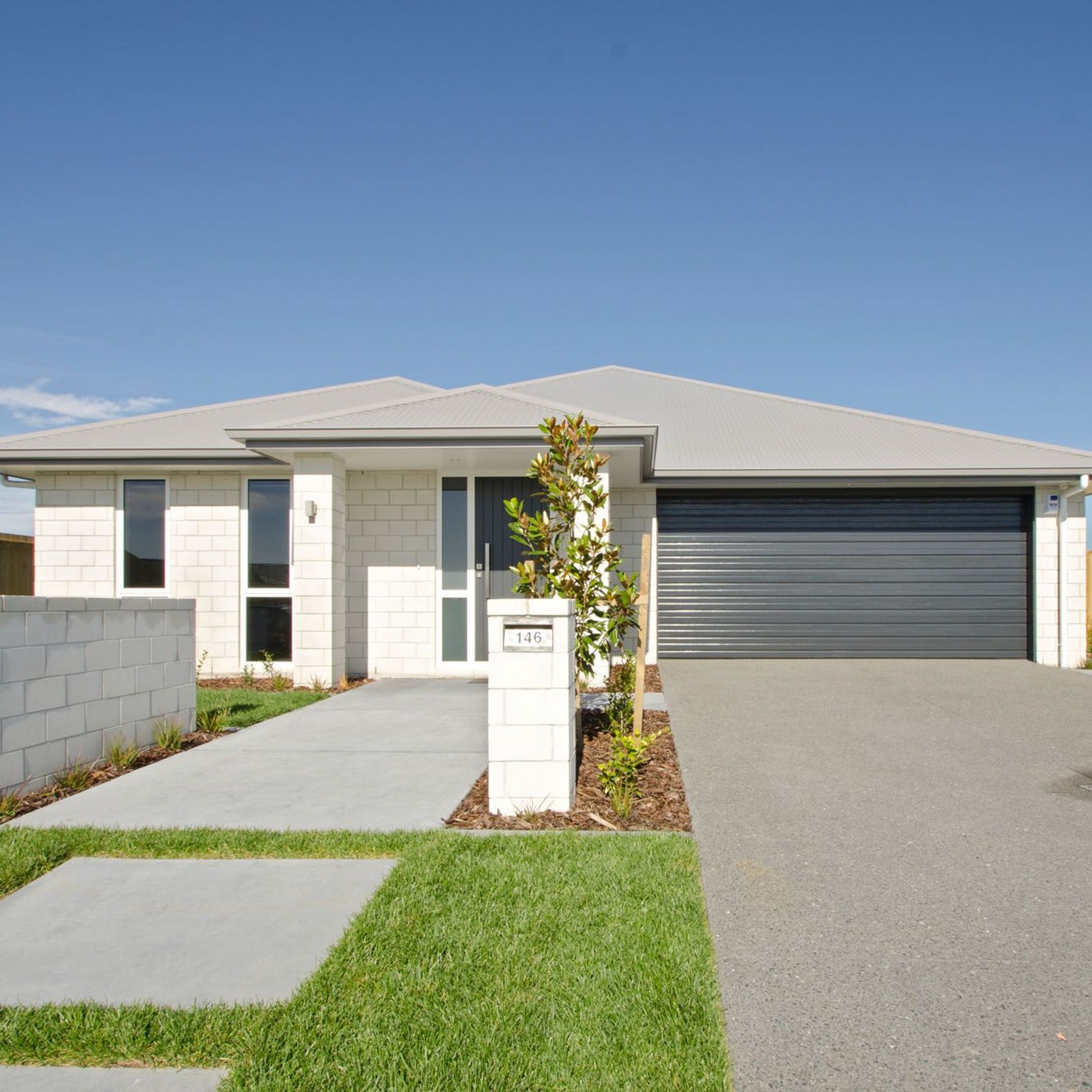

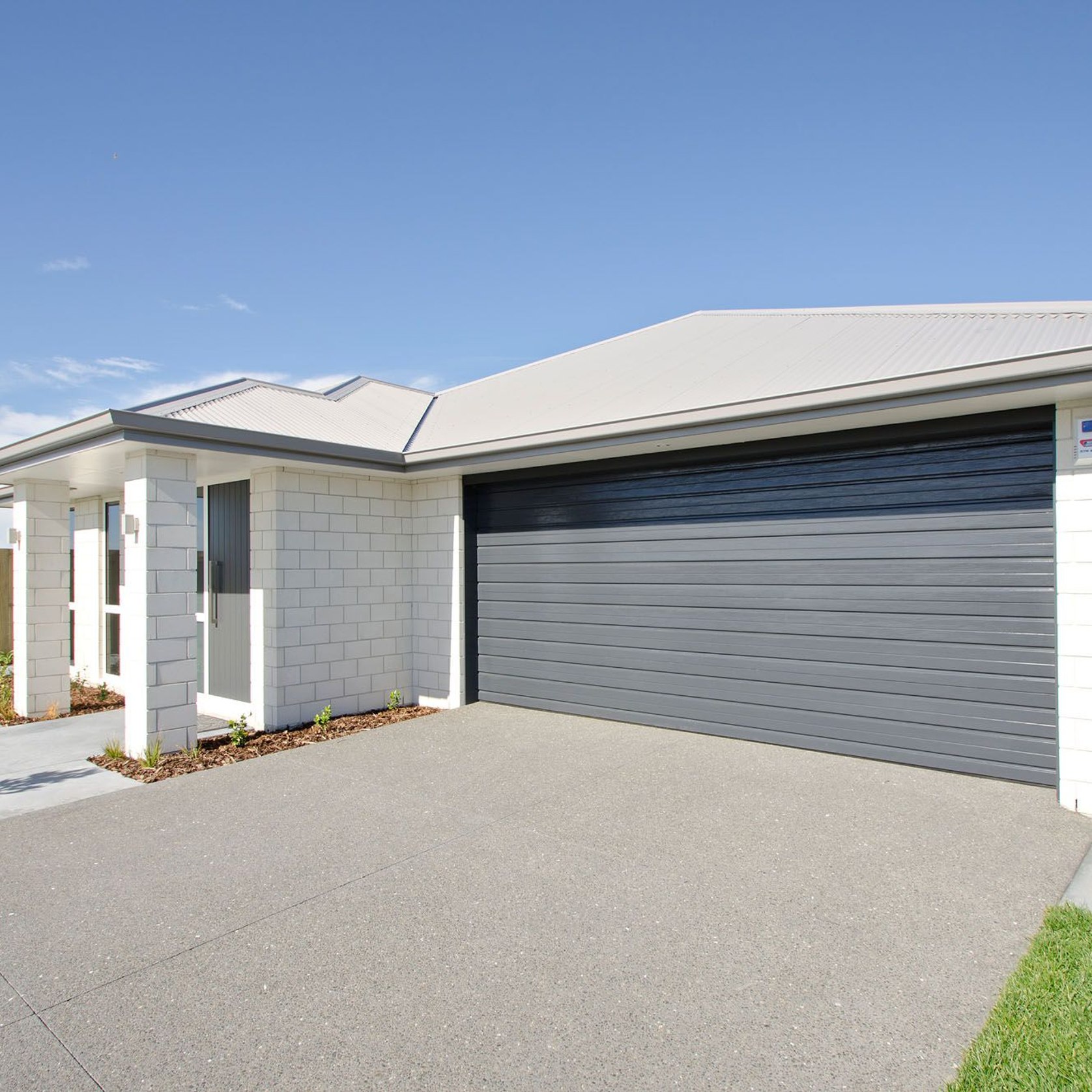

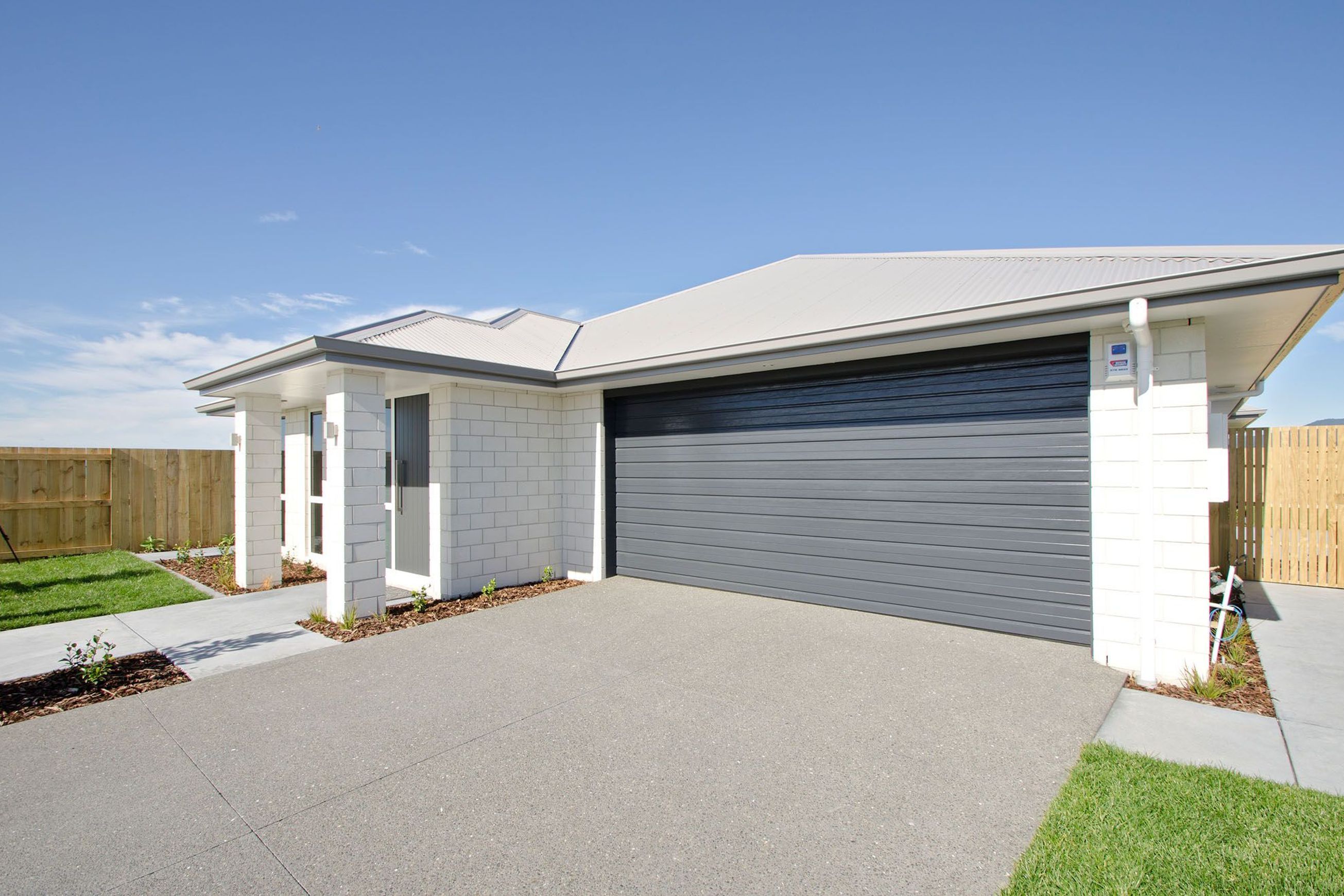

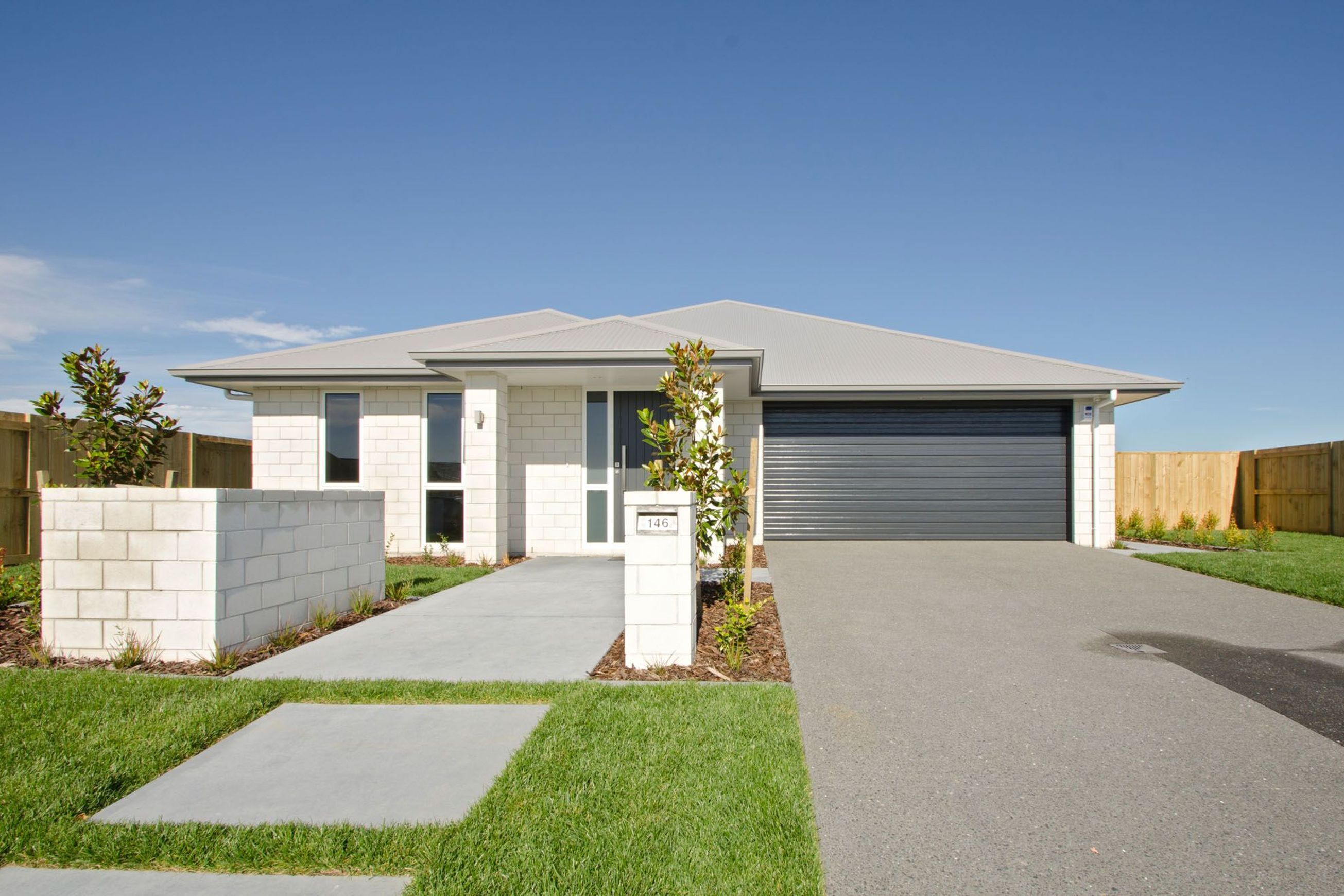

Newport Sectional Garage Door

ECONOMICALThe mixture of deep and fine horizontal ribs across the Newport provides strength and rigidity over wider widths to help keep your home secure.

Specs

SIZE RANGE

Available in Daylight Opening Sizes (DLO) from 1825mm to 3440mm in height and from 2400mm to 6600mm in width.

Additional sizes may be available, please discuss your requirements with your local Garador Dealer.

PROFILE INFORMATION

Horizontal Ribbed profile - 3x deep ribs & 2x fine 'pencil' ribs per panel.

Manufactured from 0.4 BMT COLORSTEEL® or ZINCALUME®steel.

This profile can be fully insulated with precision-cut graphite infused EPS - more details here.

INSTALLATION CLEARANCES

Recommended Clearance Requirements:

• Standard Headroom - 320mm
• Standard Headroom with opener - 350mm
• Low Headroom with opener - 200mm (Opener Recommended)
• Sideroom - 140mm
• Backspace with opener - 3550mm (Door height up to 2300mm)

Download the Garador Framing Specification Sheet

LIFTING SYSTEMS

Doors are provided for standard headroom (350mm) situations, unless otherwise specified.

Rear torsion and Intermediate Low Headroom systems are available as optional extras.

SMOOTH & QUIET

Garador sectional garage doors will provide you with quiet, smooth operation.
Features include:

• Factory fitted, muntins and end styles ensure consistent panel tolerances for trouble-free operation.
• Nylon wheels with ball bearings.

EASY OPERATION

Your Garador sectional door will continue to be easy to open and close, with features such as:

• Ball bearing wheels with two-piece roll-formed track, allowing the door to run easily and smoothly during opening and closing.
• Full-sized hinges reduce stress loading for consistent operation.

WEATHER PROTECTION

The garage today is used to store many different valuable objects, and in some cases is converted into another room, so weather protection is an important feature of any garage door. The Garador sectional door features:

• Pre-painted steel, to stand up to the harsh New Zealand climate.
• Bottom weather seal which is soft and pliable, helping to stop leaves and rain coming in under the door.
• Mohair option available to reduce gaps between the door and the door jamb, to keep out the weather.

DURABILITY

Your Garador sectional door will continue to operate like new, with features such as:

• Springs designed to exceed the Aus/NZ Standard for garage doors – 20,000 cycles.
• Factory fitted, muntins and end styles ensure consistent panel tolerances for trouble free operation.

Insulation

Would insulating your garage door allow you to make better use of your garage?

Whatever’s going on outside temperature-wise, we can help make the space behind your new Garador Insulated Garage Door and Opener much more comfortable, no matter what you‘ve got going on in your garage.

YOU HAVE THE CHOICE

With every home being different and every garage used differently, we’ve created our Insulated Series to give you the choice should you wish to insulate your new Garador Sectional Door.

GET THE USE OF YOUR GARAGE BACK

We've taken our most popular styles of sectional doors and added a sophisticated insulator used the world over. Silver-grey in colour, this unique product is EPS infused with graphite to further absorb infrared energy and reflect heat providing around 20% better insulating performance than standard EPS. A remarkable product matched to a premium brand.

At the same time, your door becomes an excellent barrier to noise pollution. The acoustic qualities of our Insulated Series provide the perfect shield against noise entering and/or exiting your garage - great for busy roads or budding musicians!

All this is fancy stuff but at the end of the day, our new Insulated Series garage doors will help regulate the temperature and noise in your garage so you can use it the way you want to. Yet another reason to talk to your nearest Garador Dealer today about a door & opener package that perfectly fits your lifestyle.

A MORE DISTINGUISHED LOOK

The Mulflute backing that houses our precision-cut insulation is a carbon-grey finish that adds a distinguished look to the internal face of the door.

All this with the same quality hardware, styles and finish on the front of the door that people around New Zealand have come to know and expect from the trusted brand of Garador.

Building or renovating?
You should definitely to consider a door from our insulated series.
