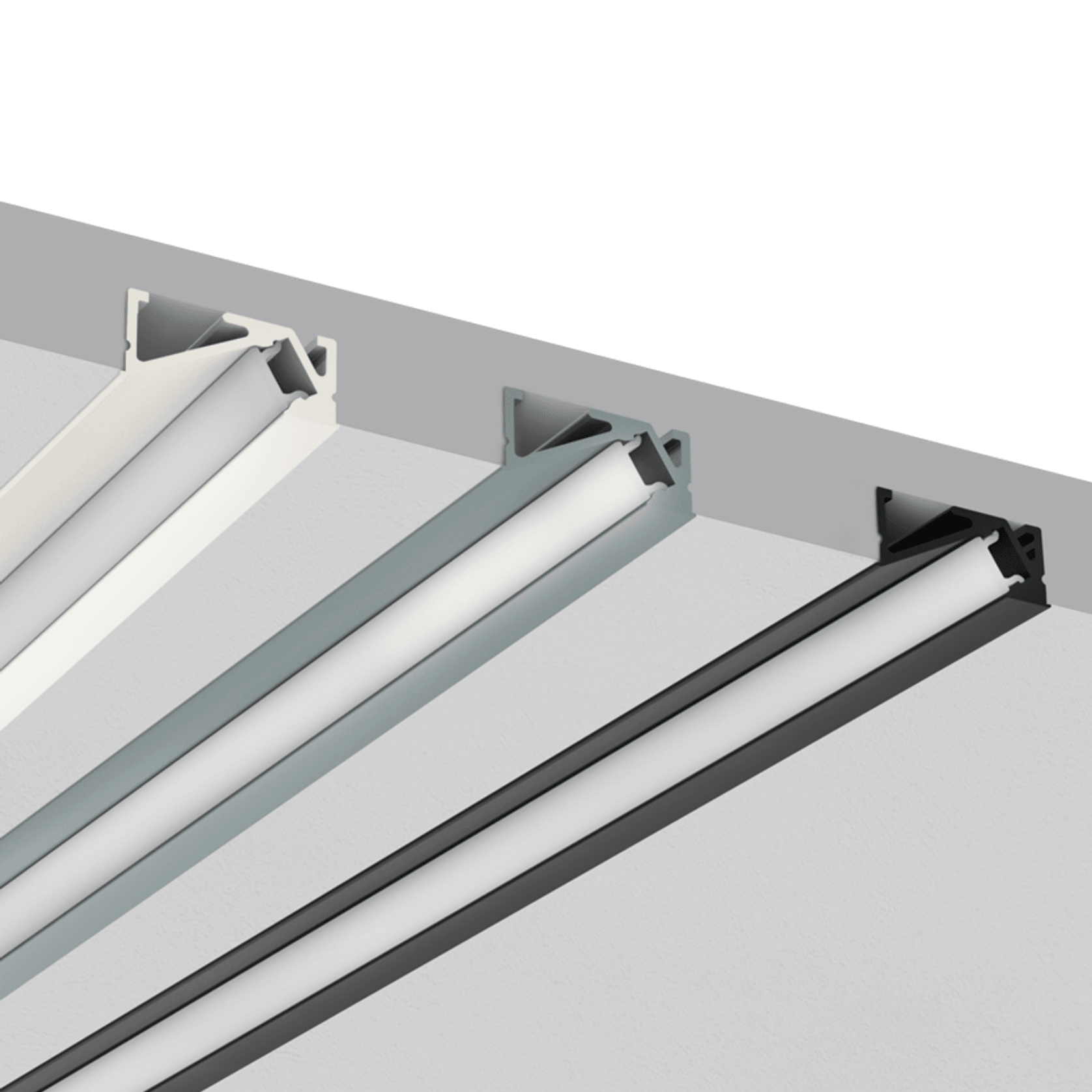

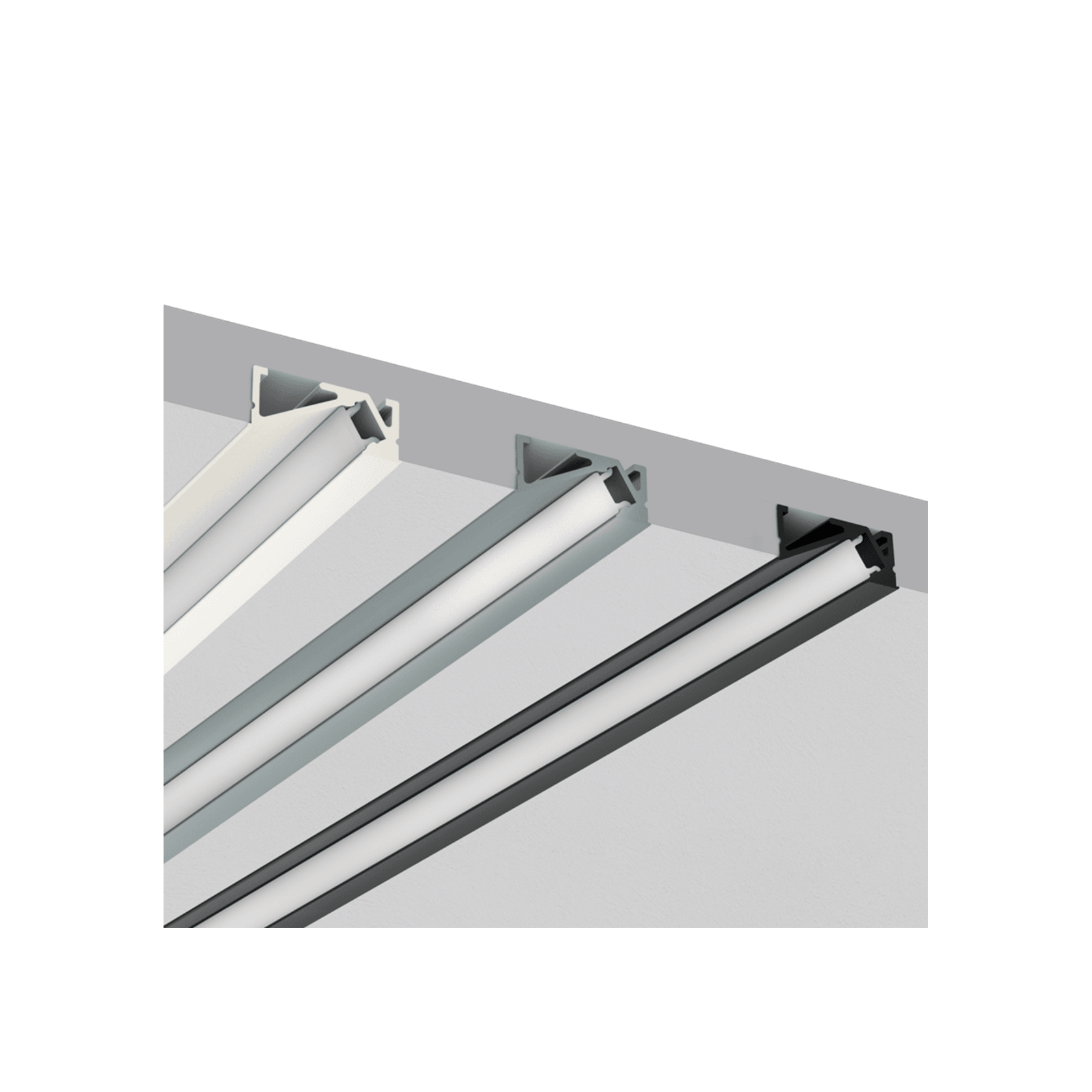

Recessed Mounted Linear LED Profile

Graze linear profile series offers new lighting possibilities for a range of project applications. Pitched LED mounting enables grazing and other angled lighting distribution effects. Perfect for joinery integration, task lighting and architectural features.

Constructed from high grade 6063T extruded aluminium with natural anodised surface treatment as standard, allowing optimal heat transfer and continuous illumination. Uses a high quality opal PMMA diffuser with optional surface finishes available. Perfectly suited to the Deltaflex, Zeroflex or Powerflex series of LED strip lighting.

Details
  • Category
    Linear Lighting
  • Range
    Linear Profiles
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage/m:

  • Zeroflex-Mini
    • 8W
  • Deltaflex-Mini
    • 10W (RGB)
    • 12W
    • 15W (Tunable White)

Luminous Flux/m:

  • Zeroflex-Mini
    • 8W (2700K): 700 Lm
    • 8W (3000K): 763.45 Lm
    • 8W (4000K): 753.74 Lm
  • Deltaflex-Mini
    • 12W (2700K): 843 Lm
    • 12W (3000K): 876 Lm
    • 12W (4000K): 928 Lm
    • 15W (2700-6000K): 1318 Lm
    • 10W (RGB): 294 Lm

Luminaire Efficacy:

  • Zeroflex-Mini
    • 8W (2700K): 87.5 Lm/W
    • 8W (3000K): 95.43 Lm/W
    • 8W (4000K): 94.22 Lm/W
    Deltaflex-Mini
    • 12W (2700K): 70.25 Lm/W
    • 12W (3000K): 73Lm/W
    • 12W (4000K): 77 Lm/W
    • 15W (2700-6000K): 87.9 Lm/W
    • 10W (RGB) 29.4 Lm/W

CCT:

  • 2700K
  • 3000K
  • 4000K
  • Tunable White (2700K - 6000K)
  • RGB

Distribution: 110°

Mounting: Recessed

Size: (Width) 21mm x (Depth) 9mm x (Length) 2500mm

Finish Options:

  • Natural Anodised
  • White
  • Black
  • Custom

Warranty: 5 Years
