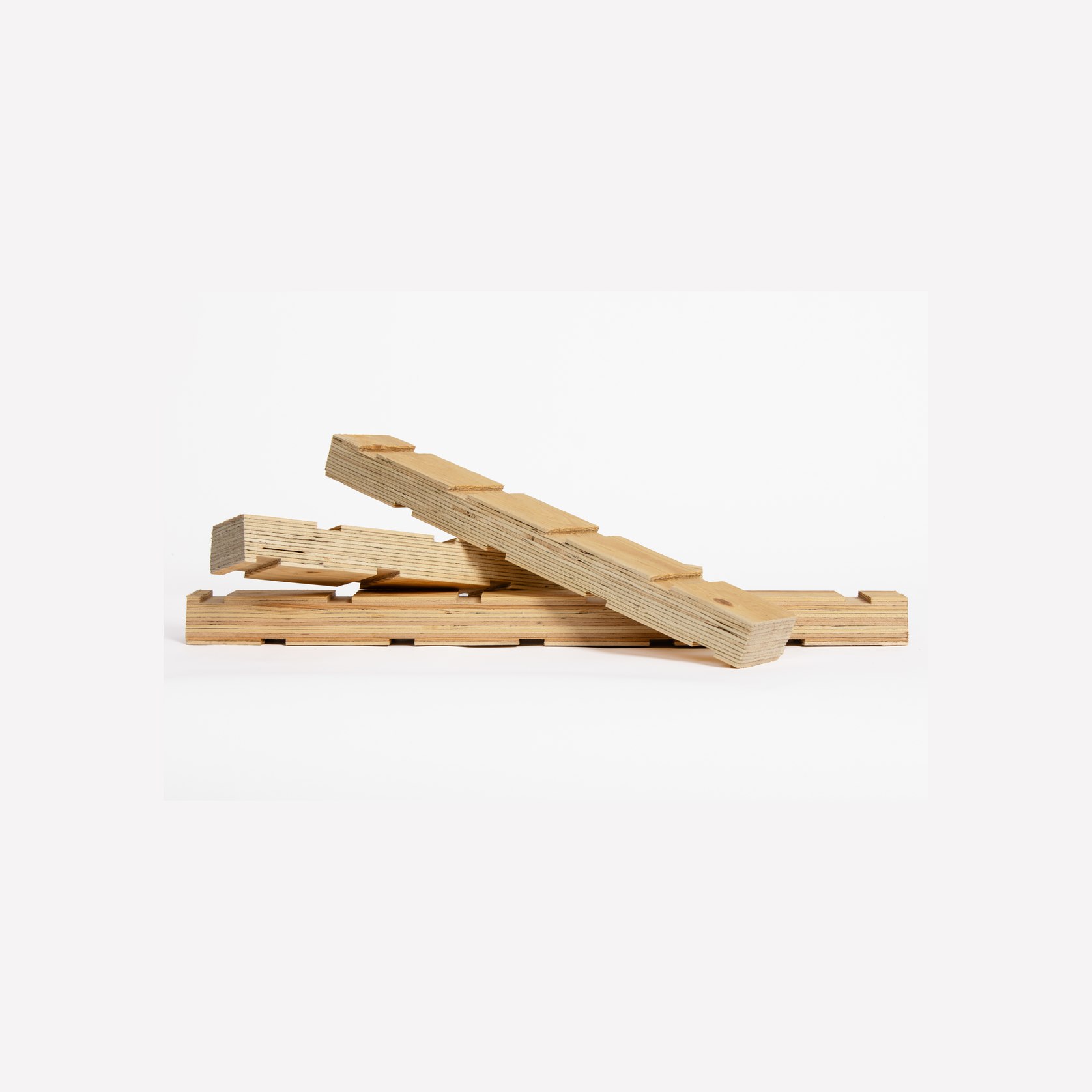

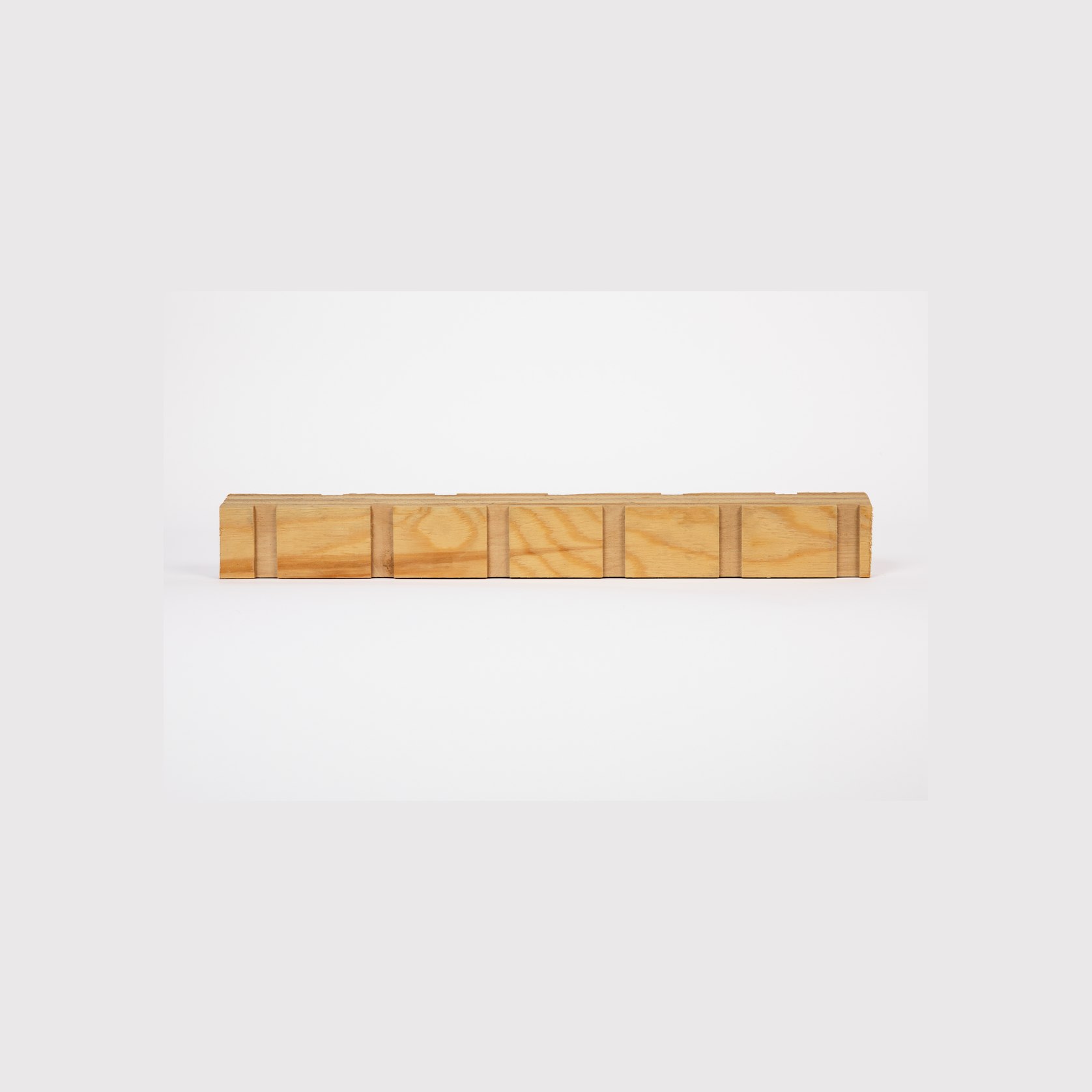

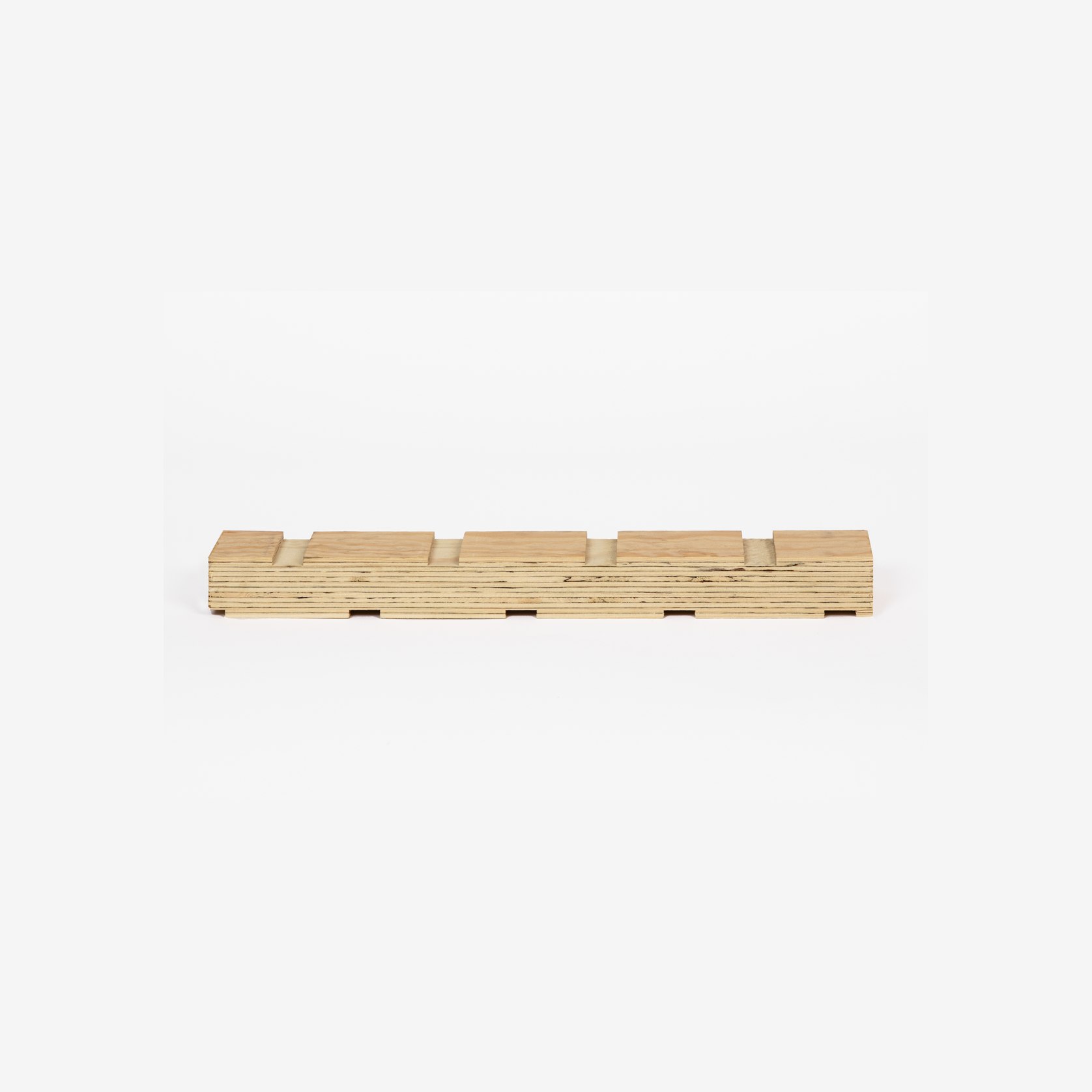

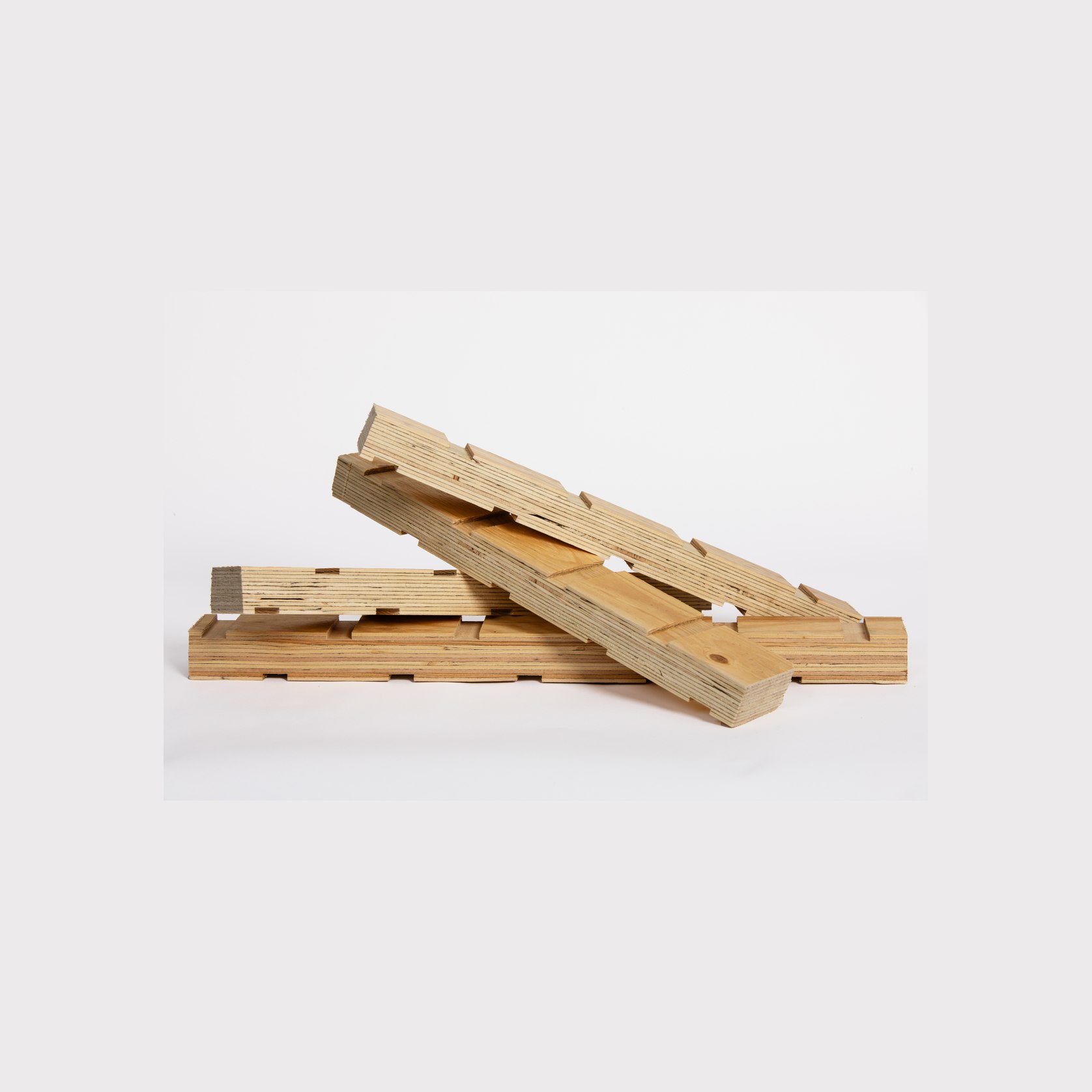

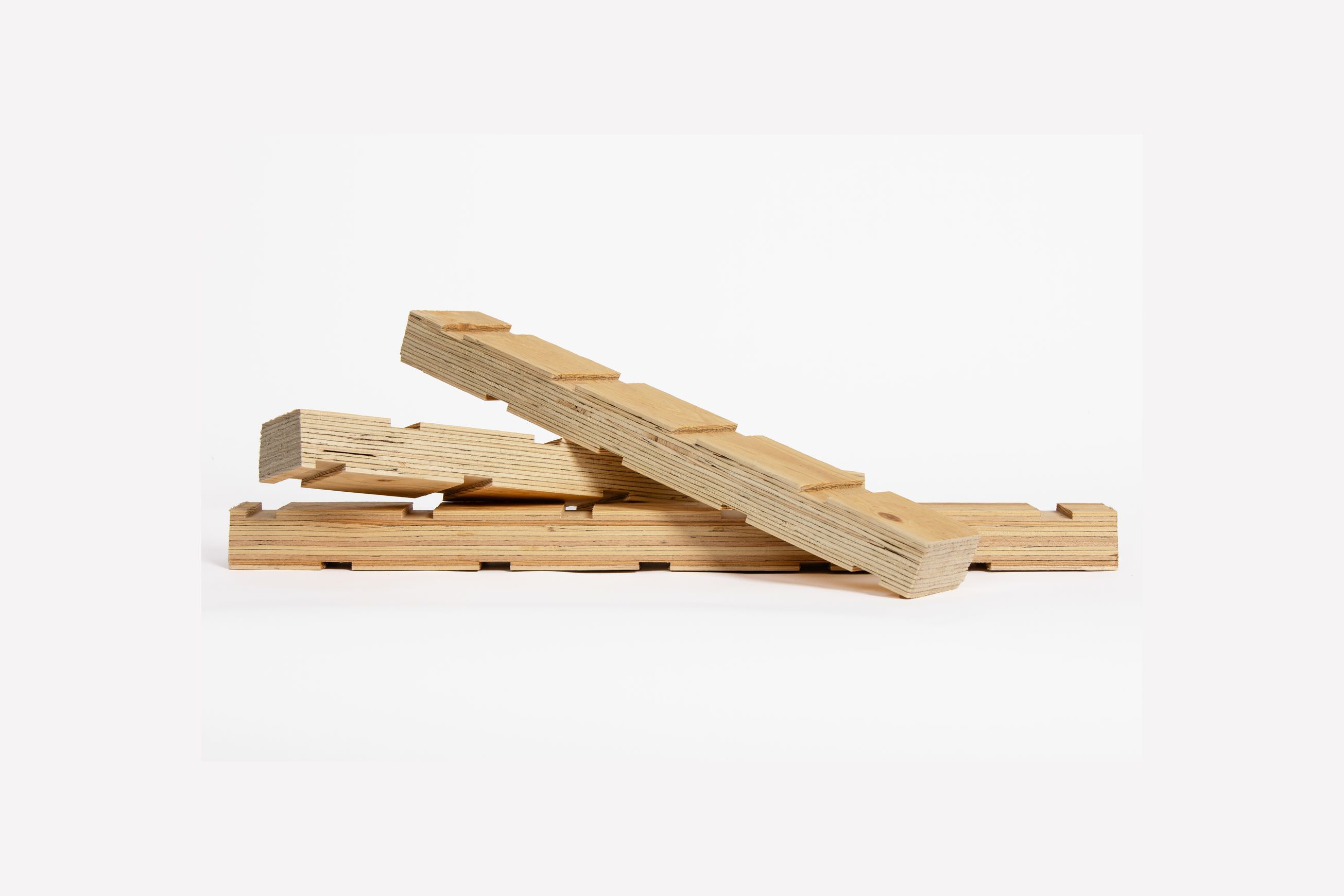

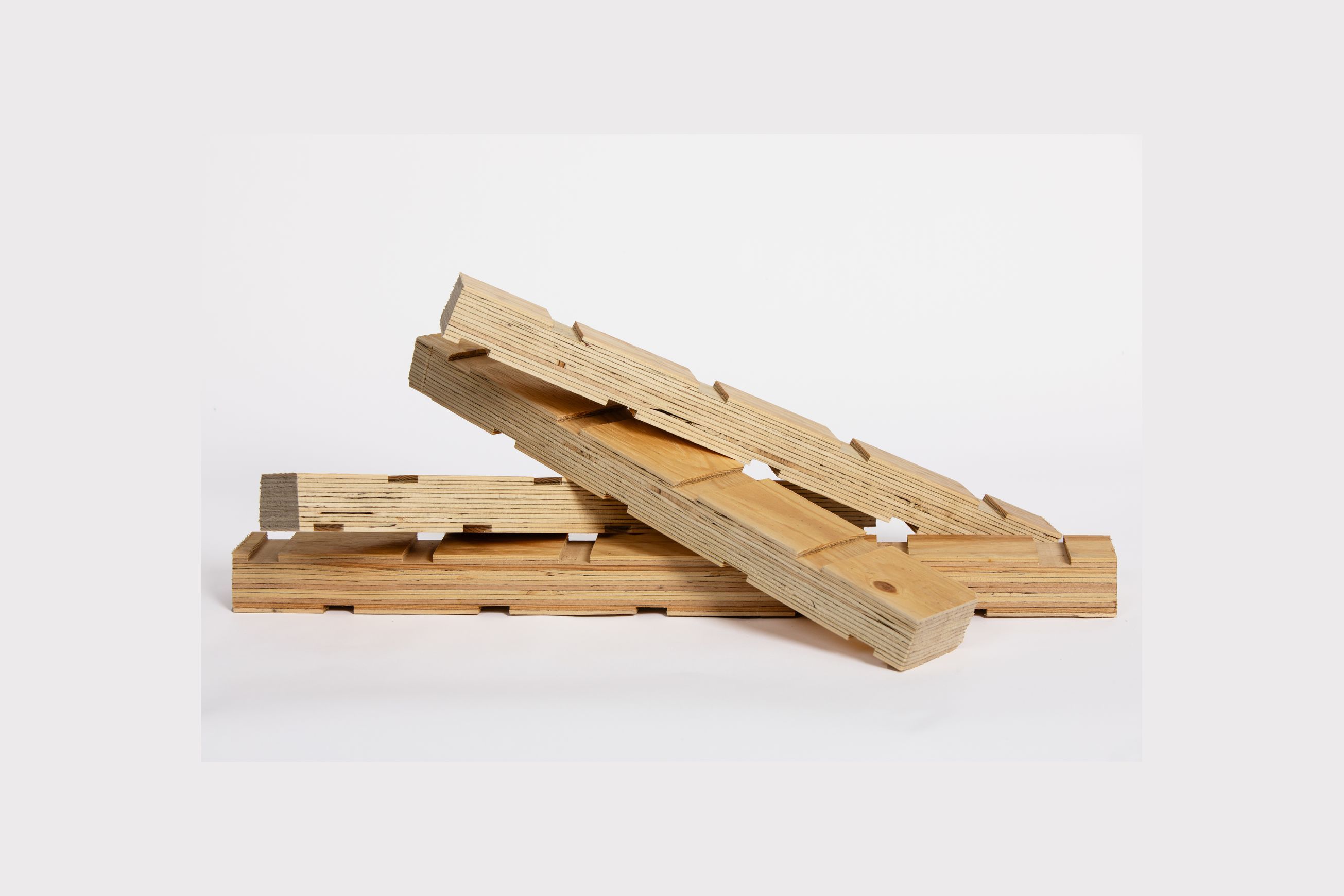

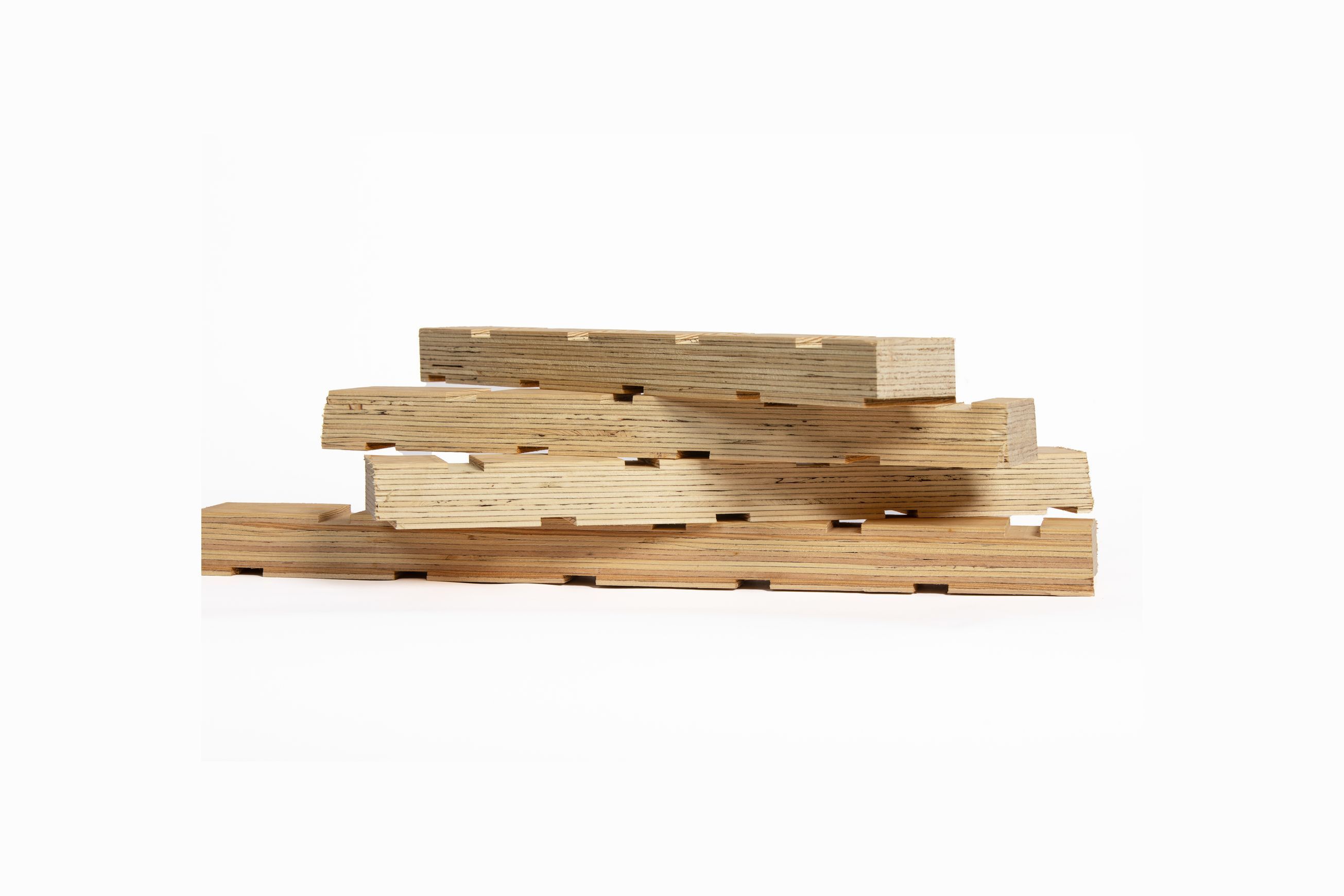

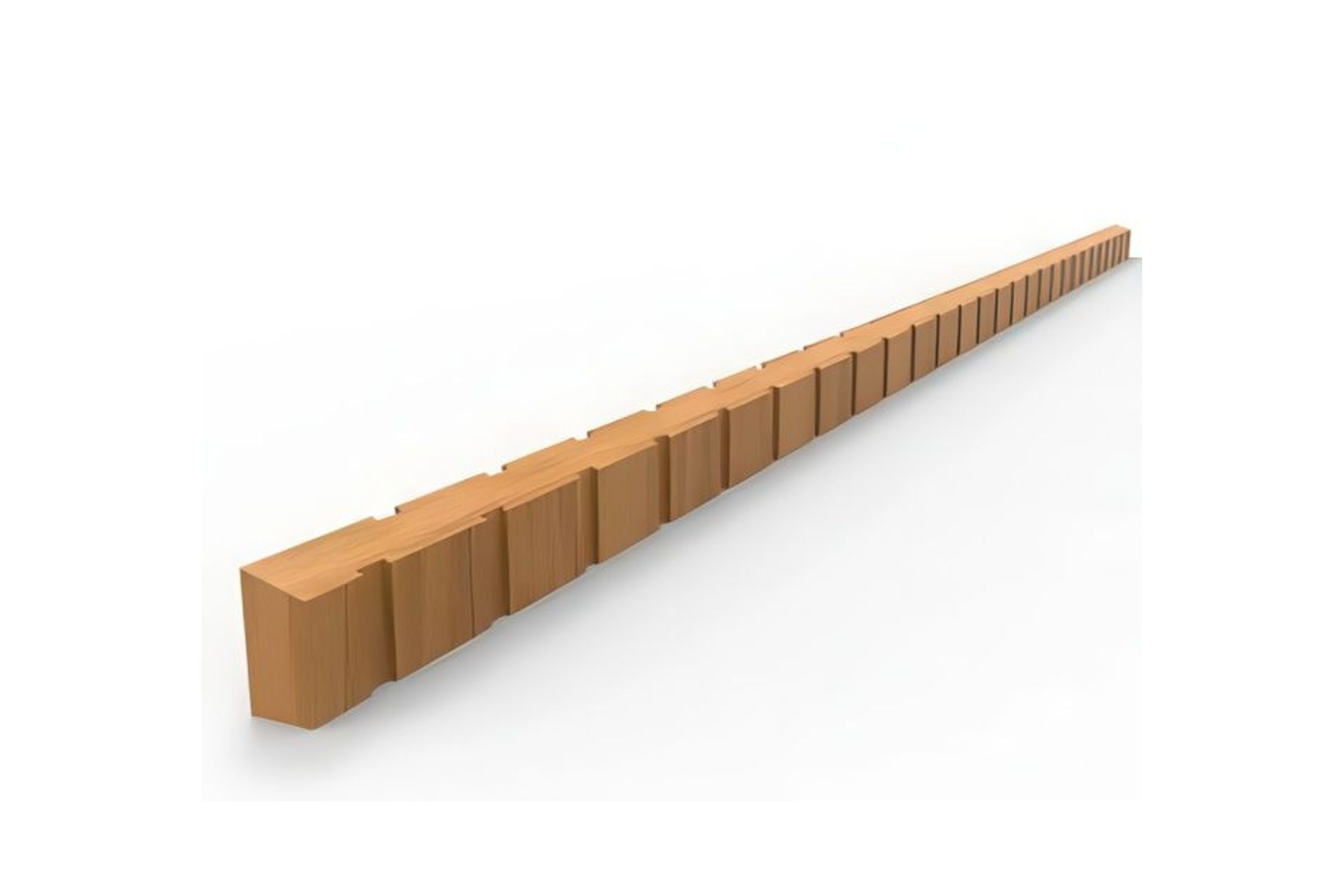

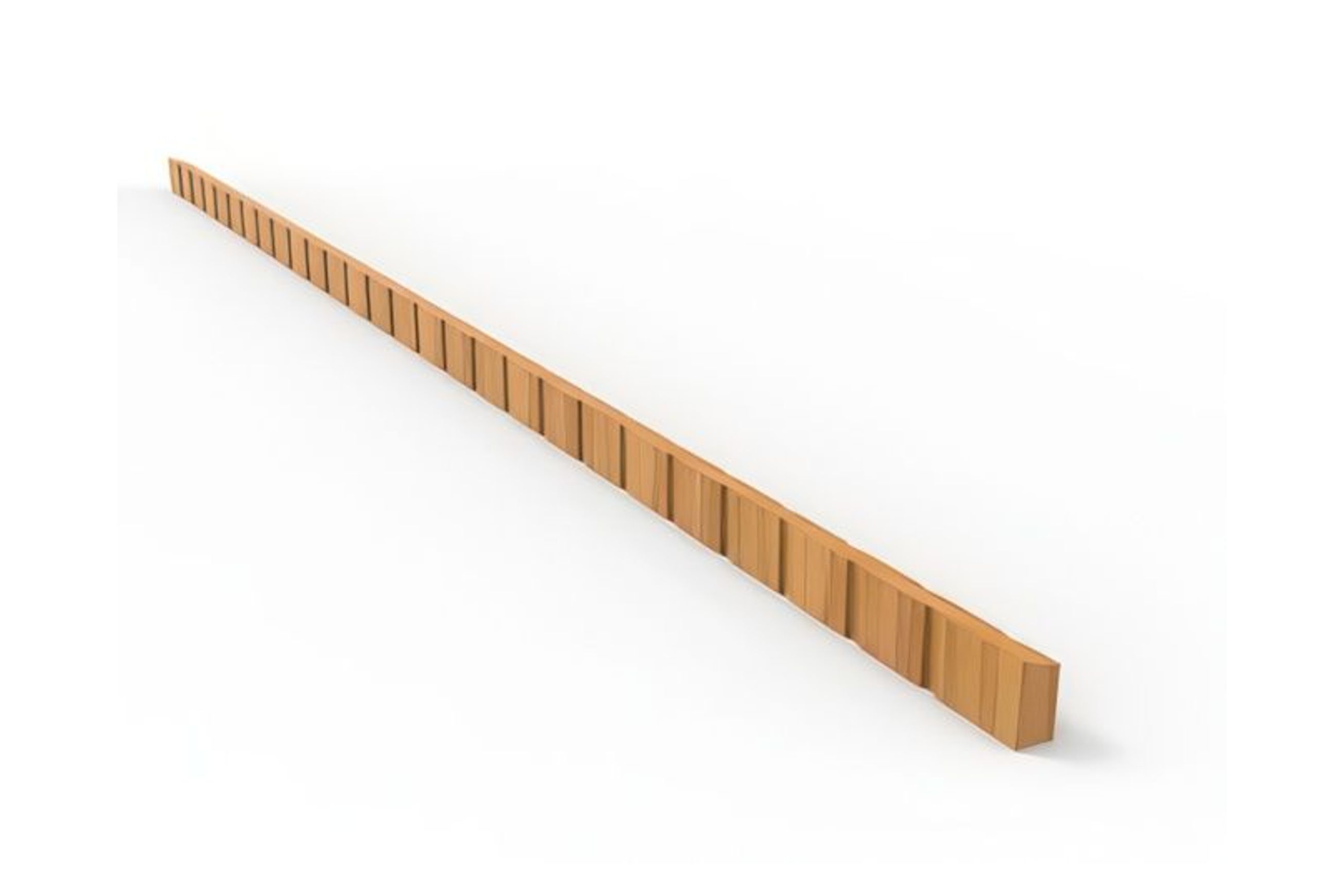

HighFlow™ Cavity Wall Batten
- 27.9K profile views
- 23 saves

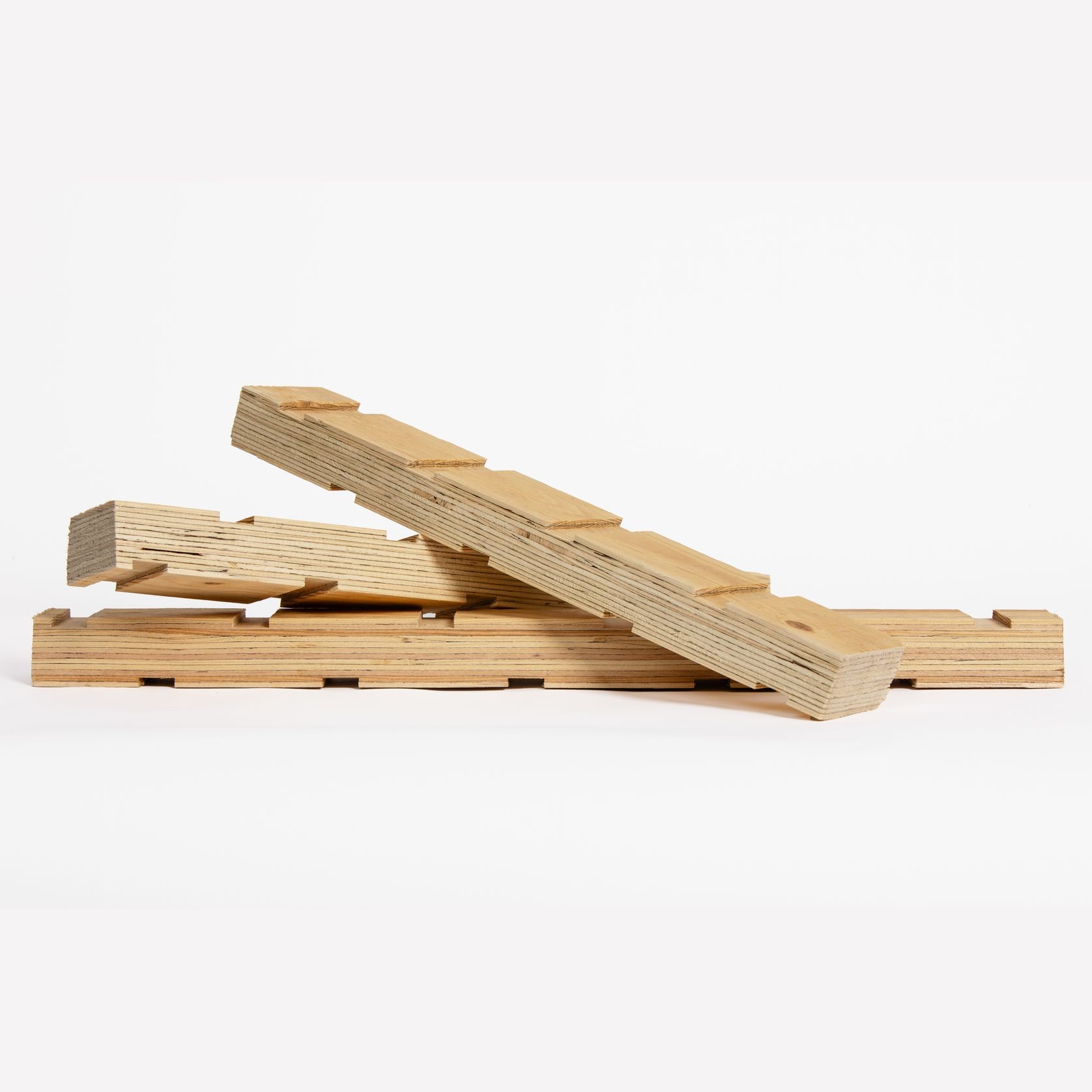

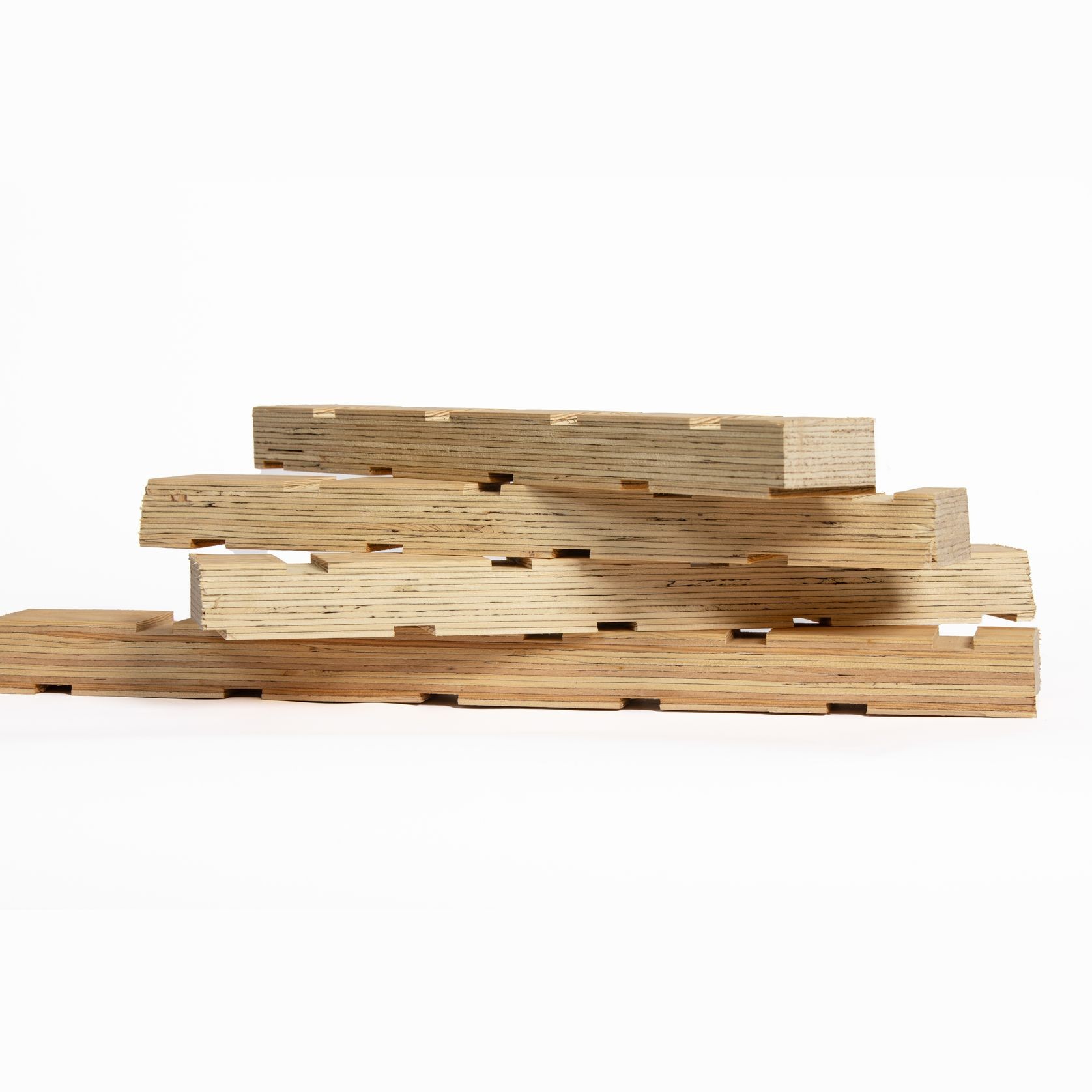

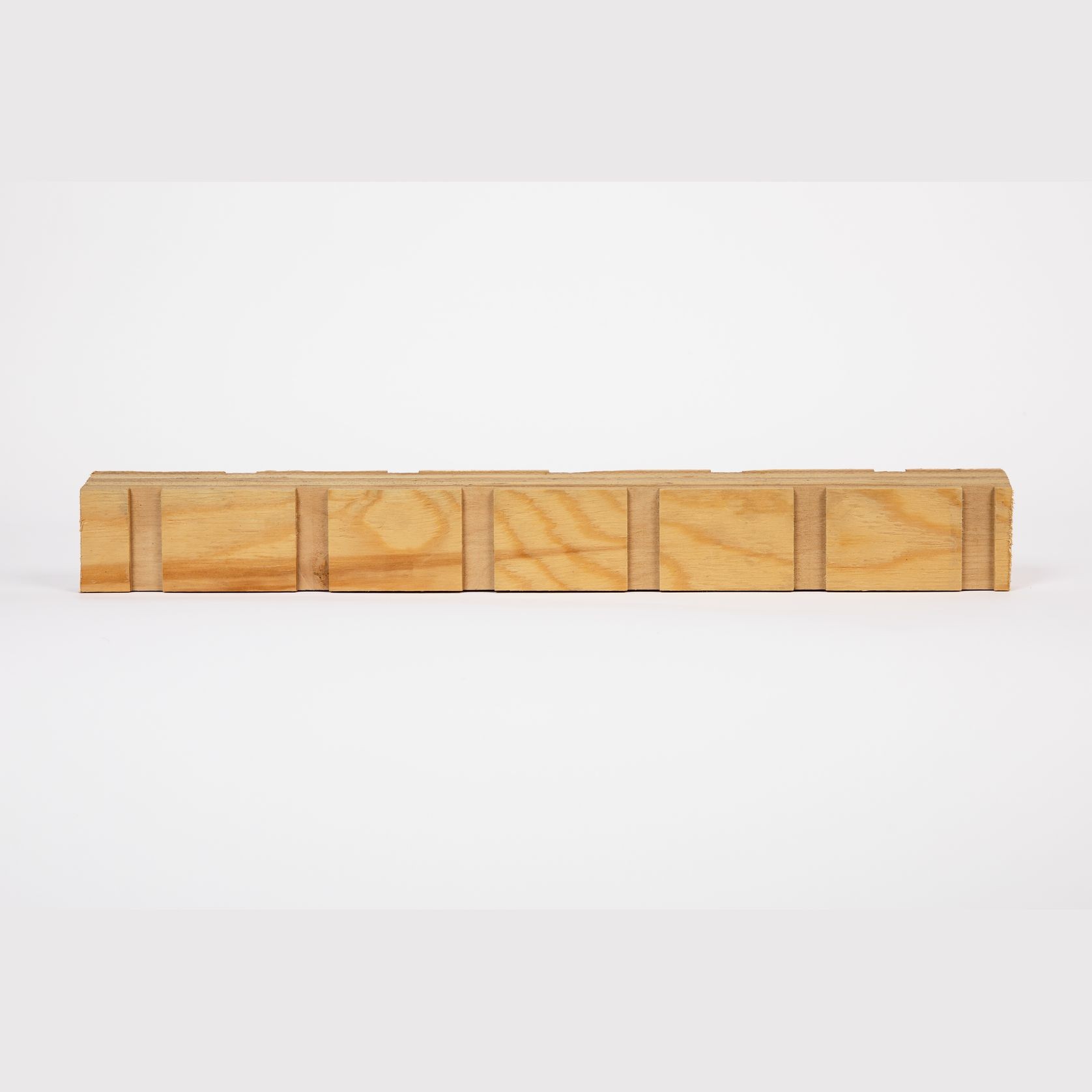

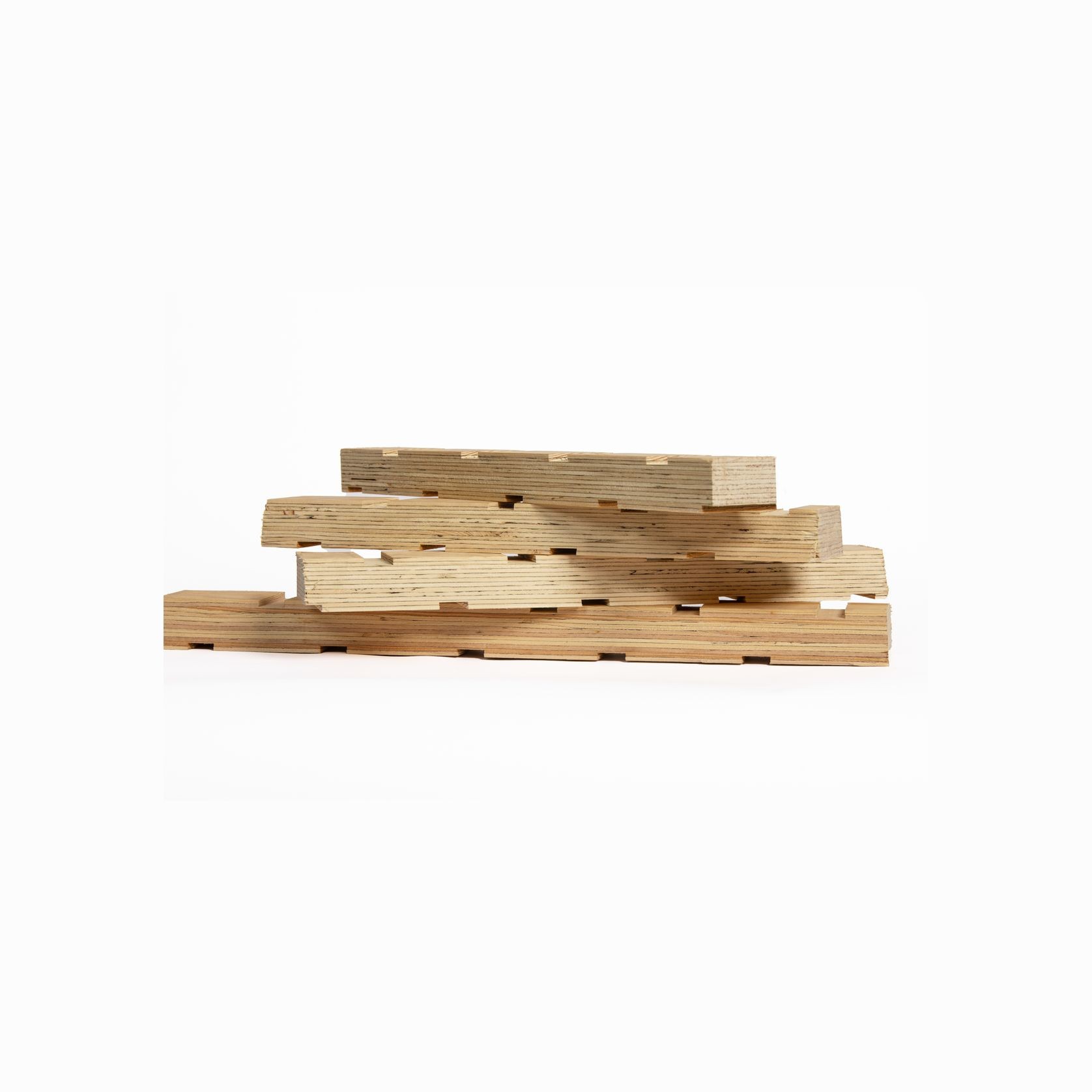

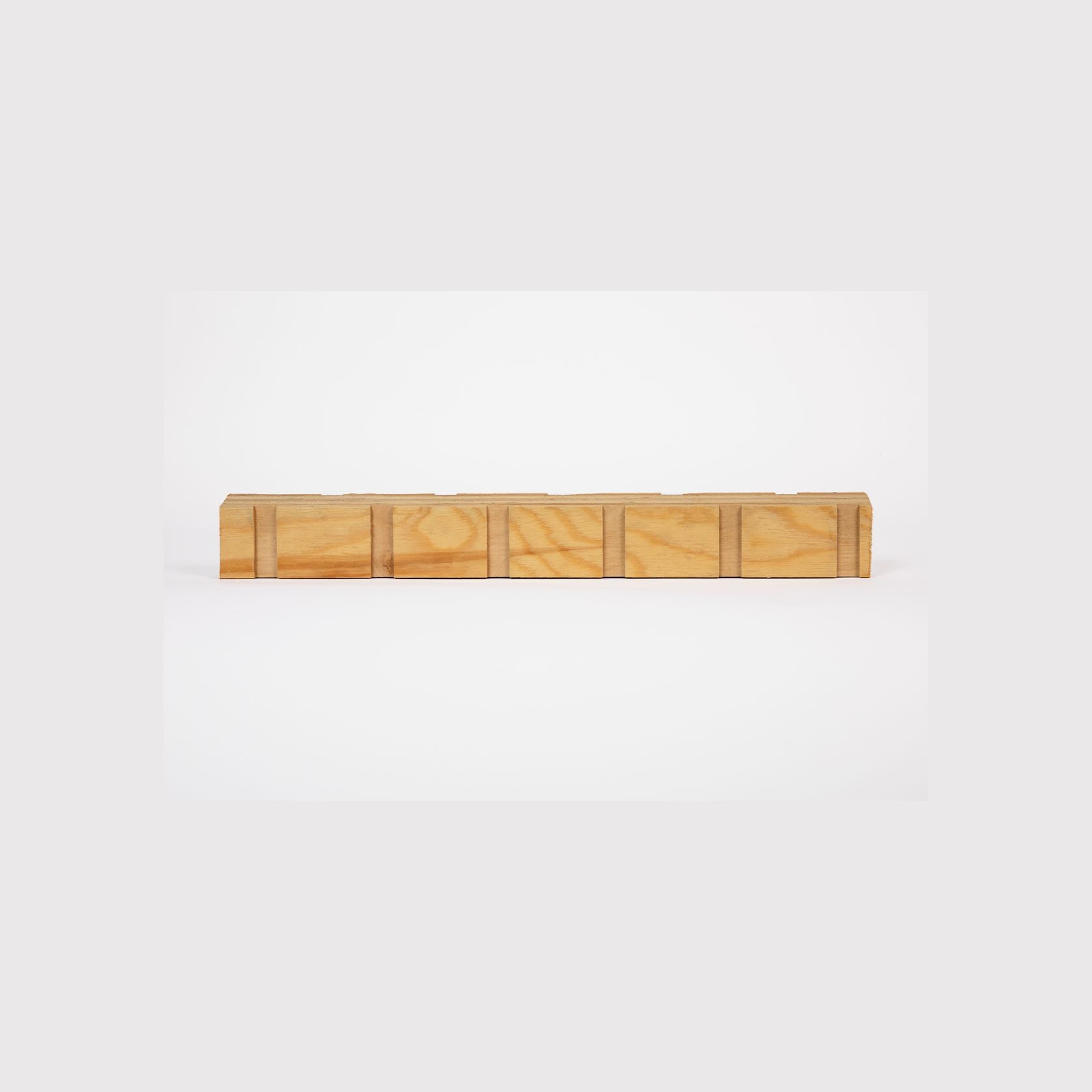

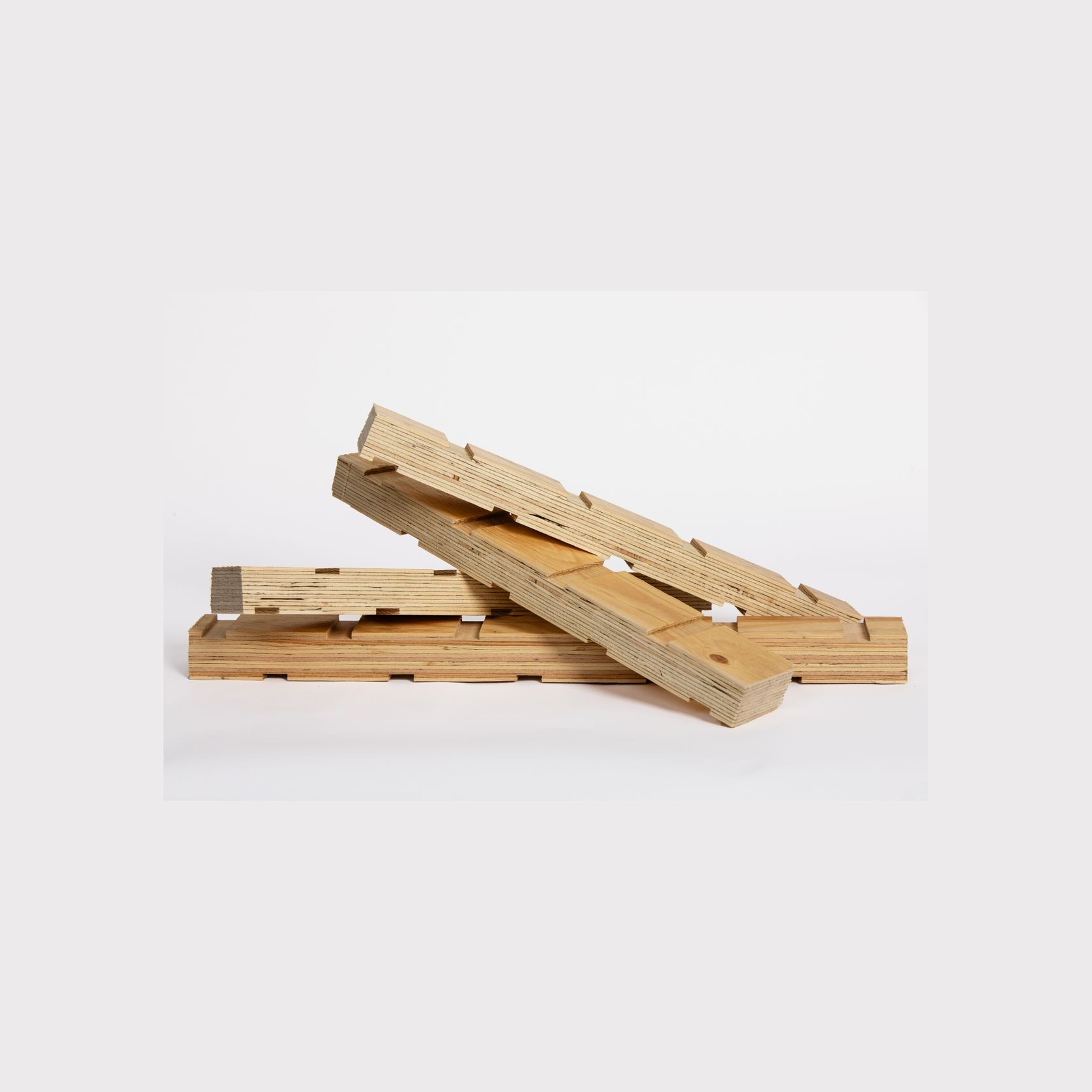

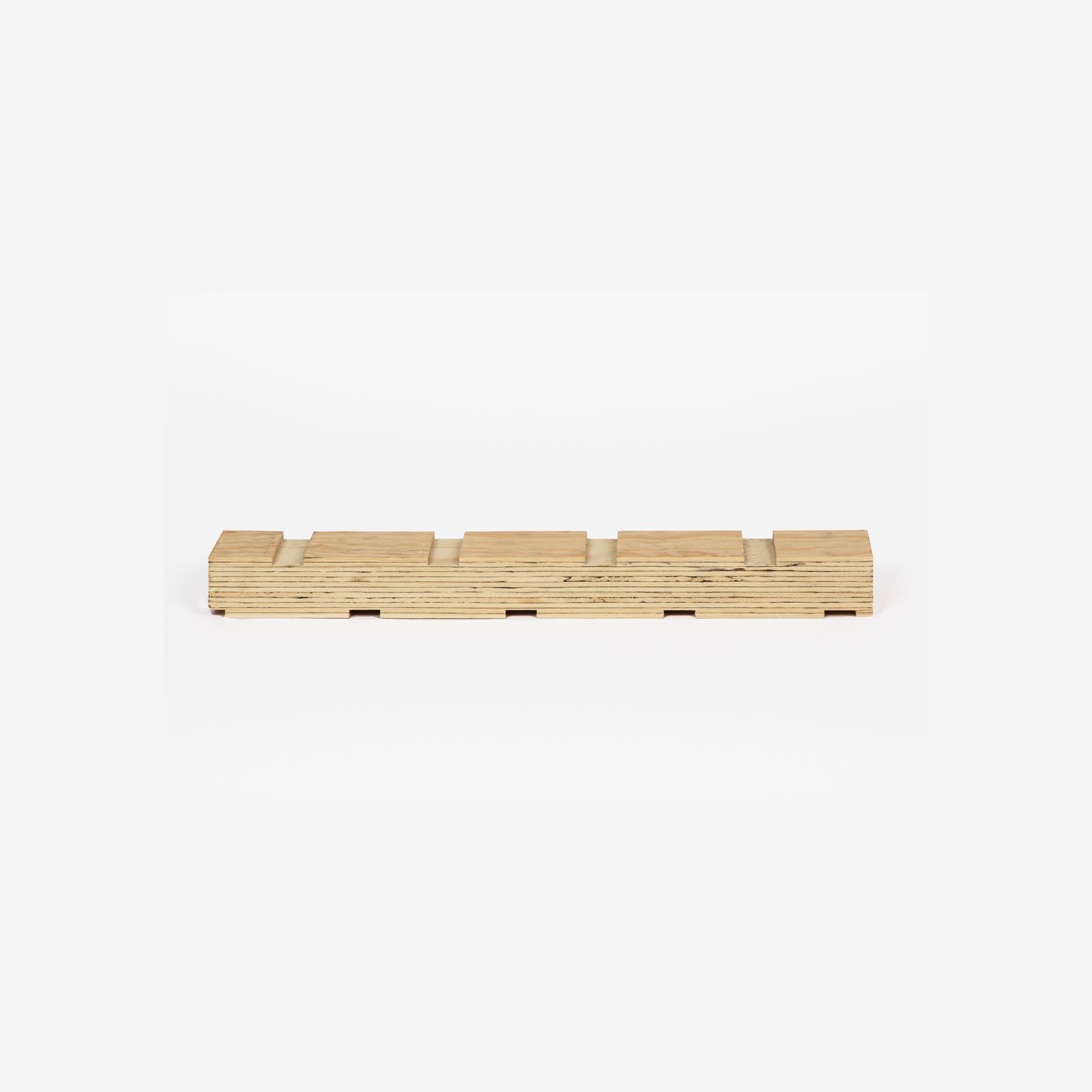

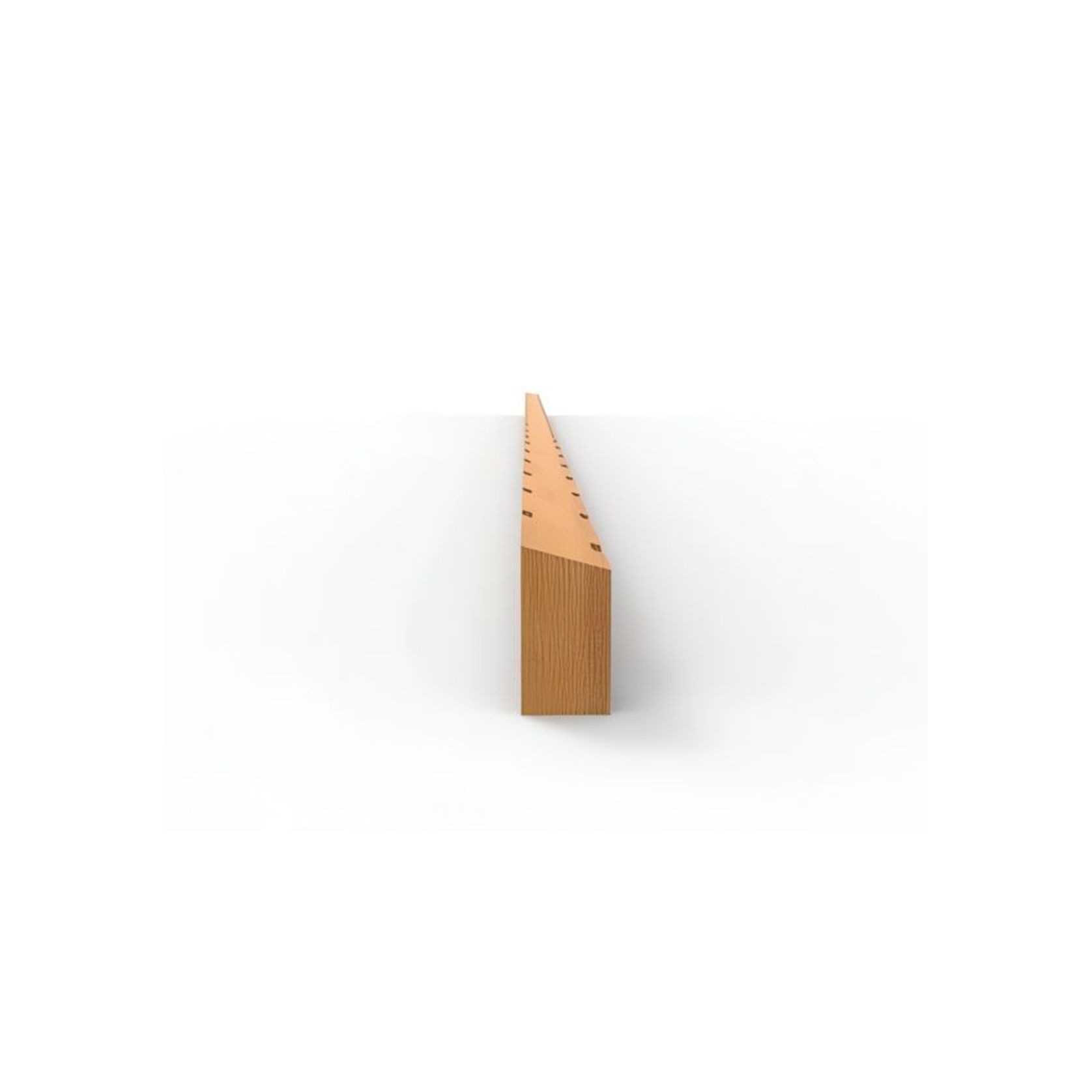

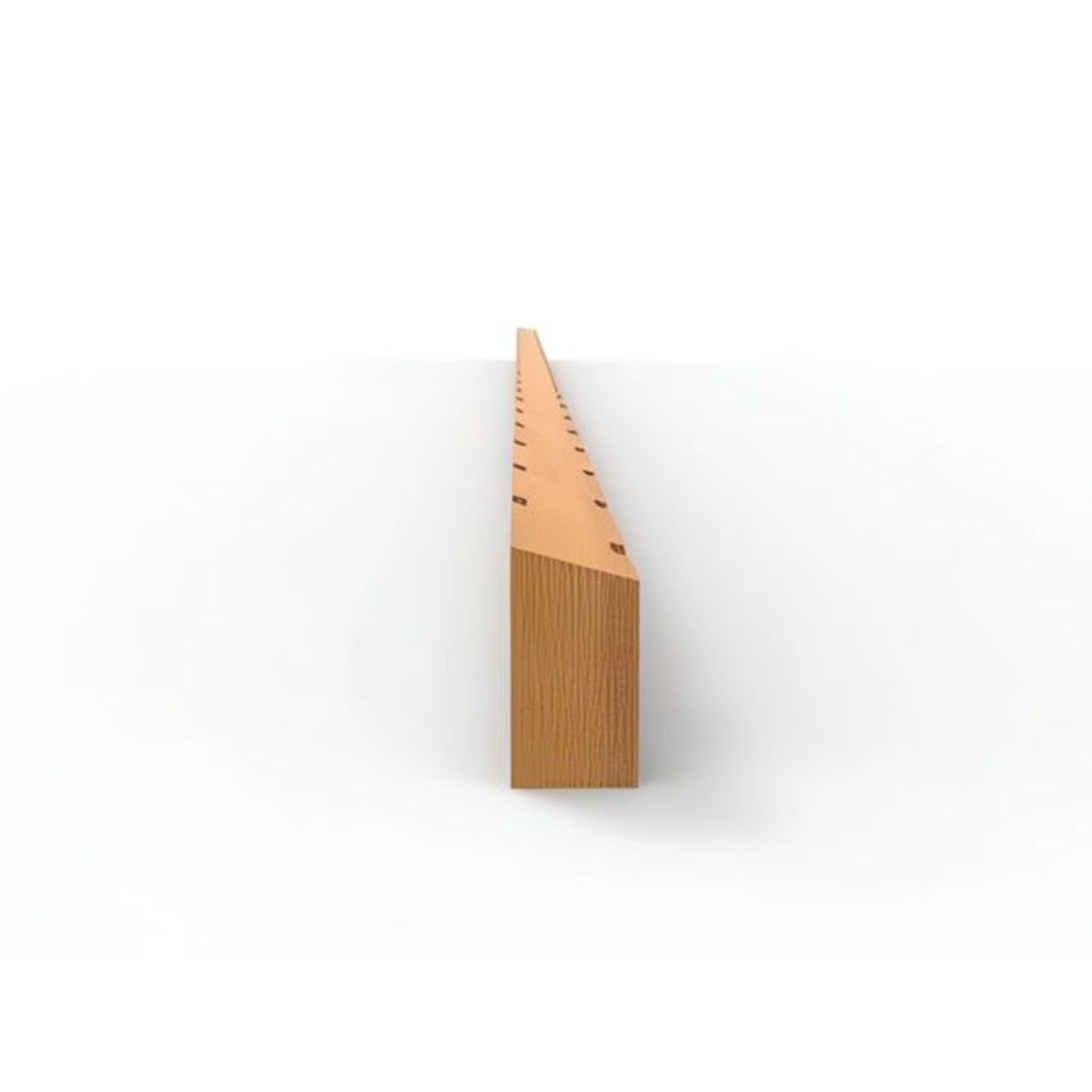

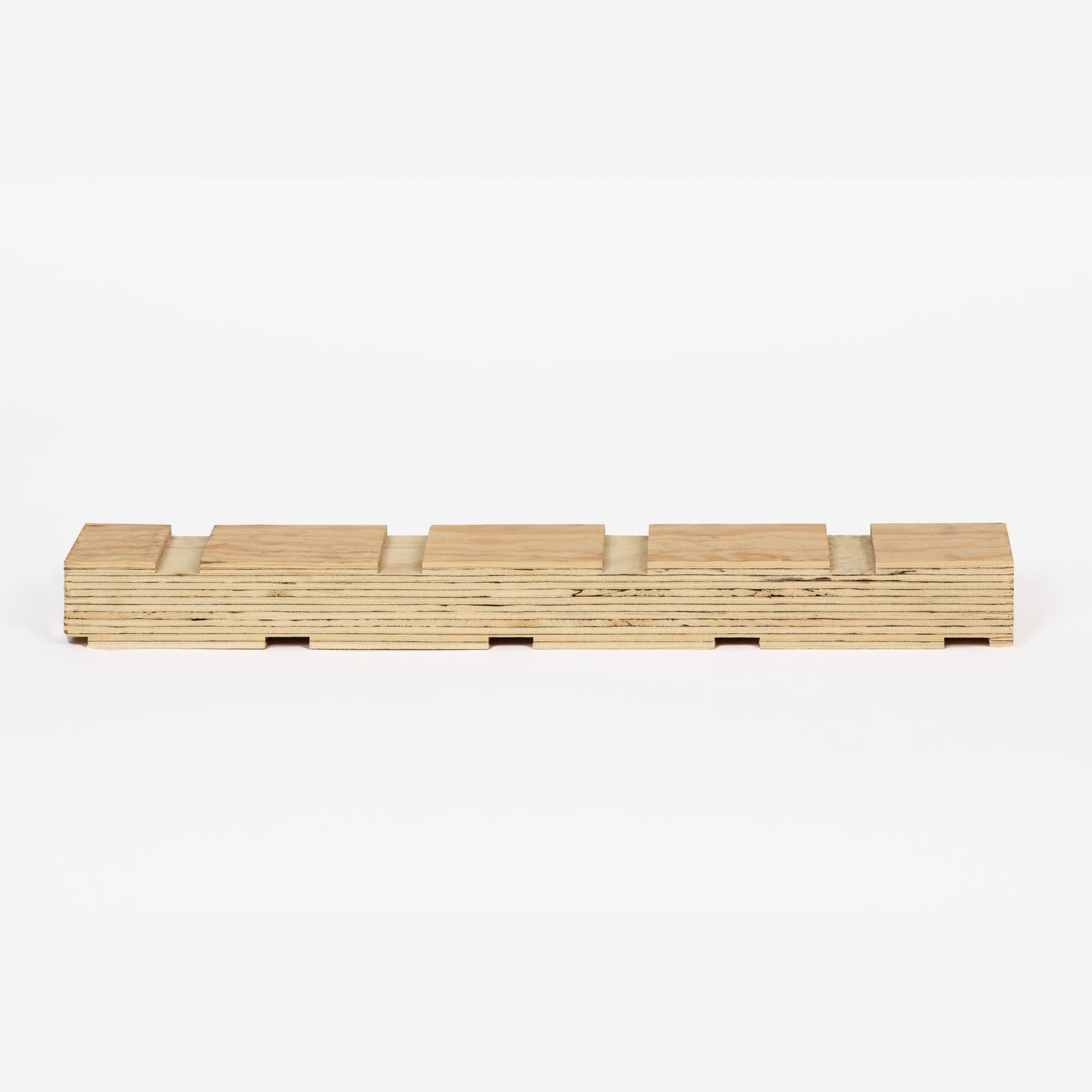

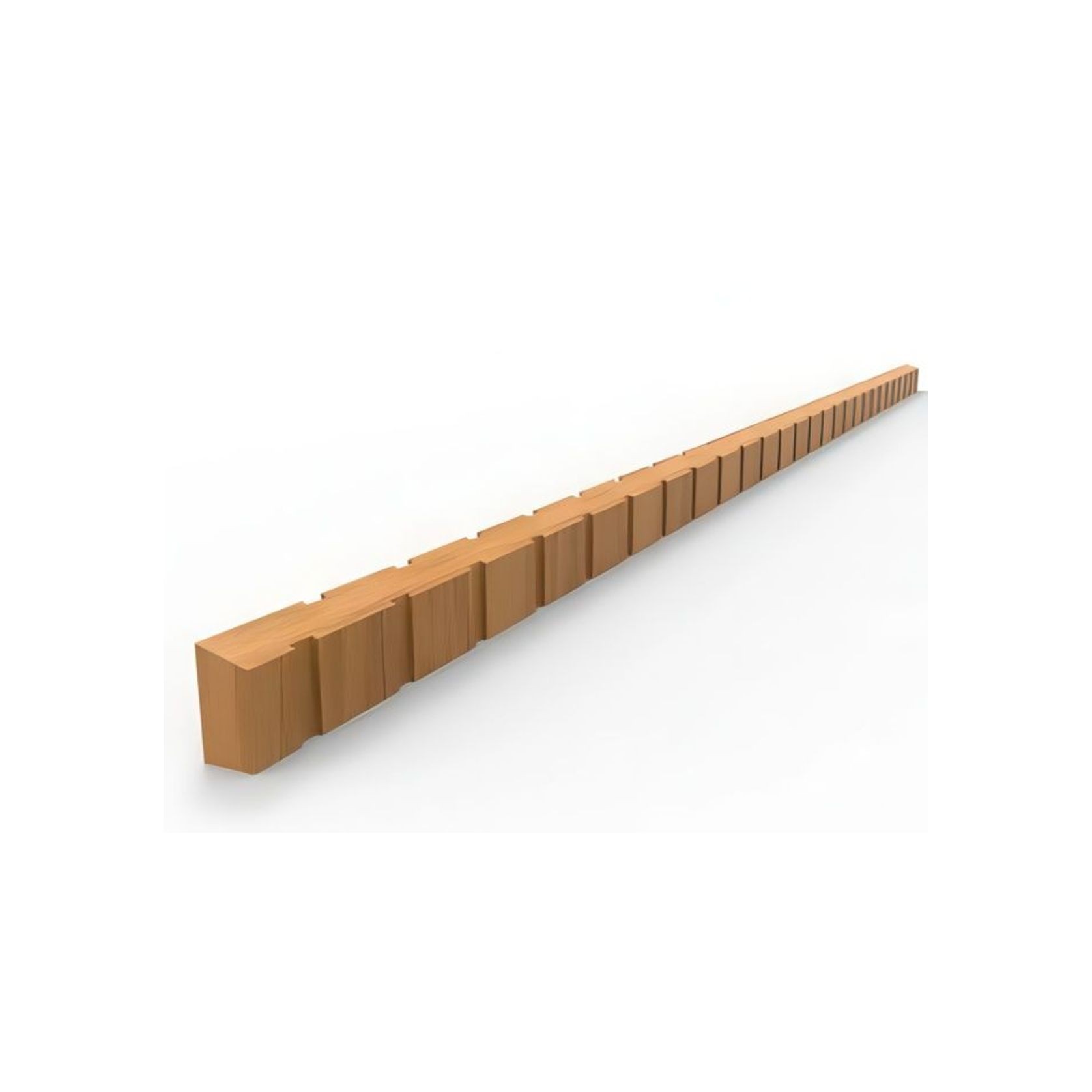

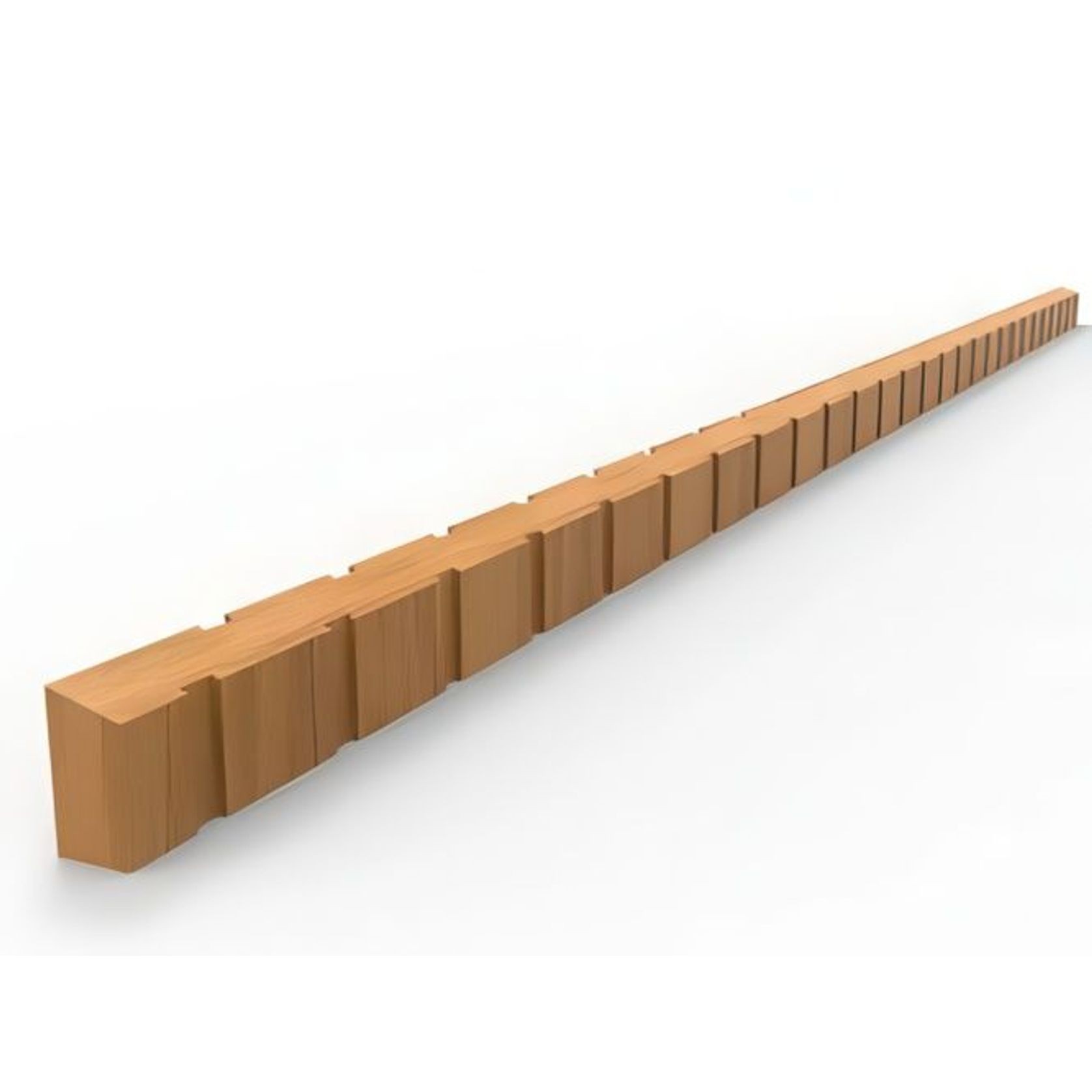

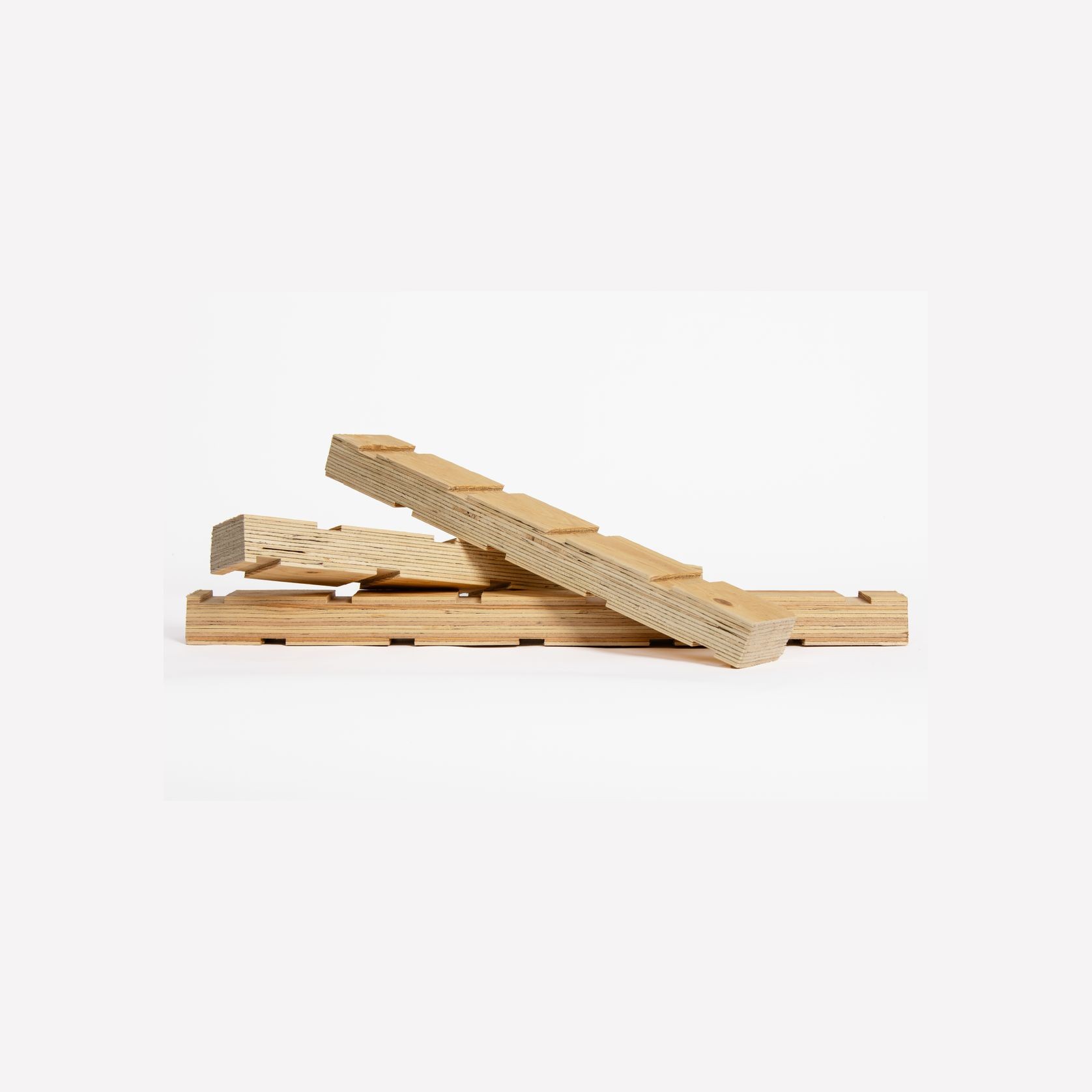

The HighFlow™ Cavity Batten is a patented structural solution for cladding fixing. The HighFlow™ Cavity Batten, meets E2/AS1 standards, delivering 2000mm2/ lineal metre of ventilation with 20mm grooves on both sides. HighFlow™ Cavity battens are also compliant with condensation mitigation requirements of NCC 2025 (Climate Zone 6-8). This batten enhances insulation properties of the wall frame, curbs moisture buildup, and features a bevelled edge for drainage away from the frame. Serving as a structural element, HighFlow™ eliminates the need for additional framing provisions and can be spaced according to cladding manufacturers' specifications. As a Structural Timber Product, HighFlow™ Battens can be secured to with both nails and screws, providing flexibility to the installer’s preference.
Product Details
- Product
- HighFlow™ Cavity Wall Batten
- Category
- Board and Batten
- Sold by
- Highwood Timber
- Designer
- Highwood Timber
- Brand
- Highwood
- Year
- 2024
Highwood Timber is specified by
The HighFlow™ Cavity Batten is a patented structural solution for cladding fixing.
The HighFlow™ Cavity Batten, meets E2/AS1 standards, delivering 2000mm2/ lineal metre of ventilation with 20mm grooves on both sides. HighFlow™ Cavity battens are also compliant with condensation mitigation requirements of NCC 2025 (Climate Zone 6-8). This batten enhances insulation properties of the wall frame, curbs moisture buildup, and features a bevelled edge for drainage away from the frame. Serving as a structural element, HighFlow™ eliminates the need for additional framing provisions and can be spaced according to cladding manufacturers' specifications. As a Structural Timber Product, HighFlow™ Battens can be secured to with both nails and screws, providing flexibility to the installer’s preference.
- Specs

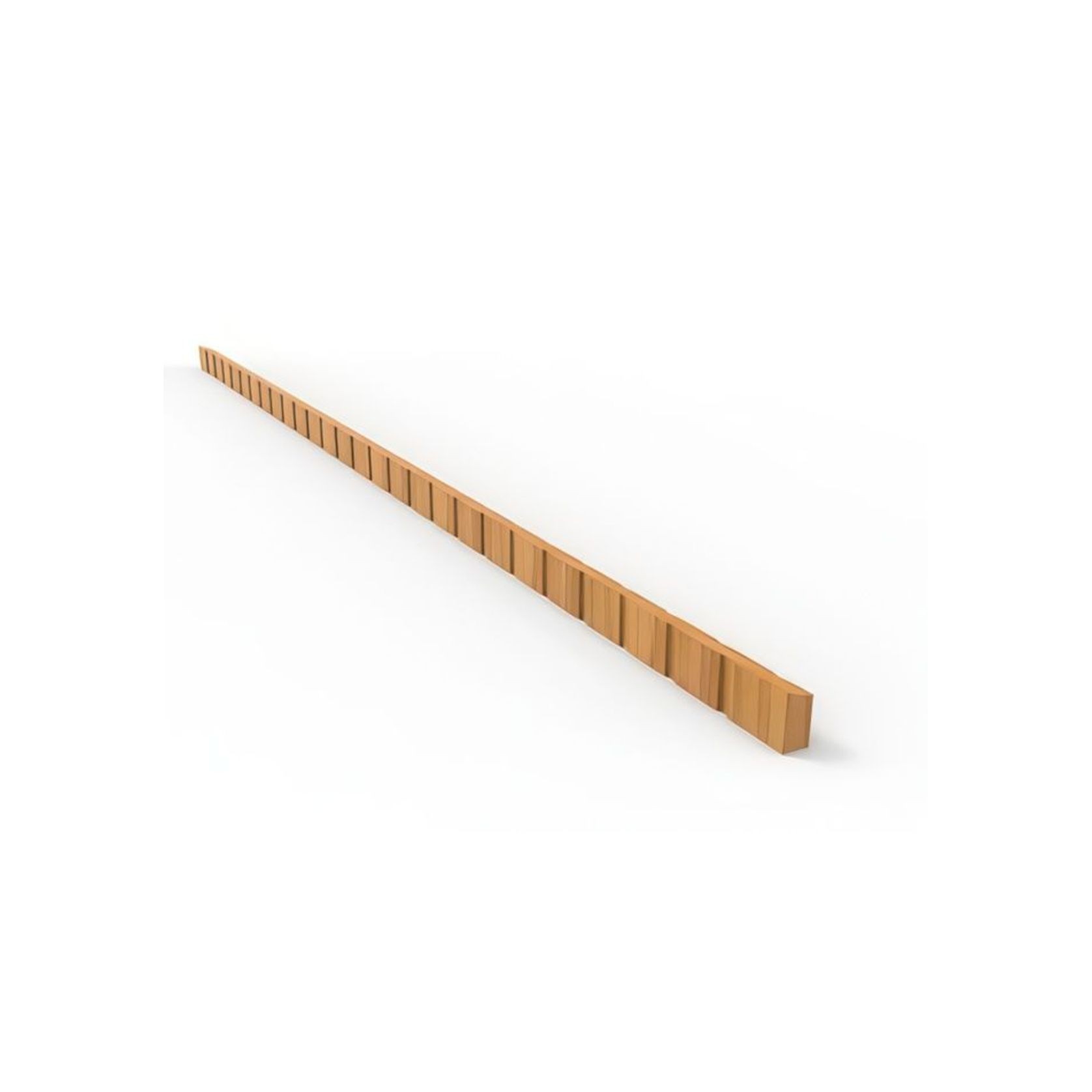

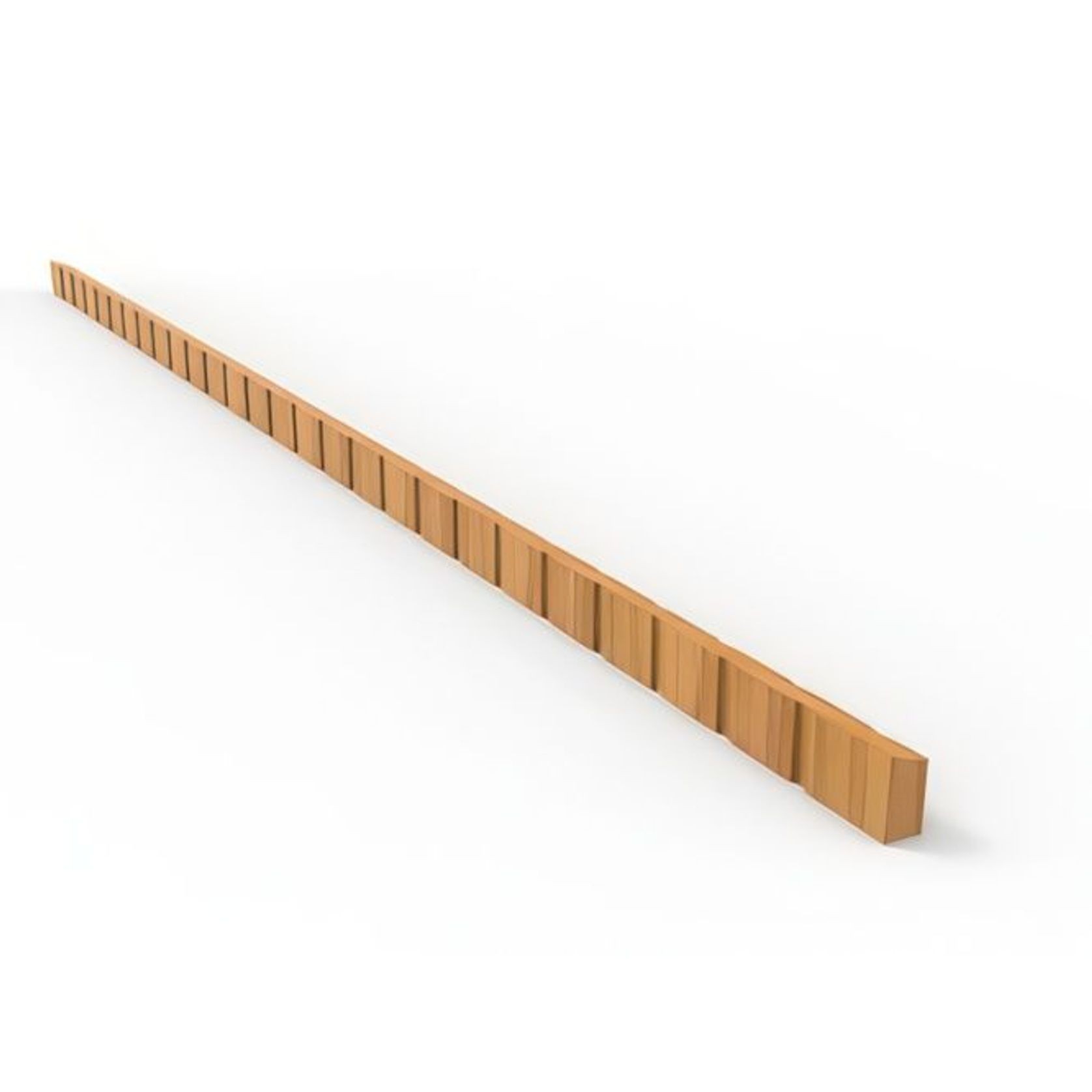

70mm x 35mm x 3600mm or 50mm x 35mm x 3600mm
- Features
Ventilation: HighFlow™ Cavity Battens (Patented) are designed to provide wall cavities with superior ventilation to solid or square members. Exceeding E2/AS1(NZ) standards, and compliant for Condensation Management Requirements of NCC 2025, HighFlow™ Battens reduce the risk of moisture buildup in the frame, reducing mould and creating healthier indoor environments.
Drainage: HighFlow™ Battens offer drainage away from the wall frame, and are designed with a bevelled edge to support this. This acts as a further reduction to moisture buildup in the wall cavity.
Structural Integrity: HighFlow™ Battens are constructed from High Strength Engineered LVL Timber, meaning they are able to support themselves without need for further framing requirements such as nogging. This leads to faster installation on worksites, material savings on projects and ease of installation.
Range of Sizes: HighFlow™ 70 x 35 Battens are suitable for use in all wind regions throughout Australia (up to C4 Cyclonic Wind). For lower wind classifications (up to N3), the 50 × 35 mm HighFlow™ Project option provides the same ventilation and drainage performance in a lighter structural format — offering project efficiency and material optimisation without compromising compliance or quality.
- Scope of use
Wall cavity ventilation, condensation management and Passivhaus construction.
