Index-SM140

By Colab Lighting
Visit Website

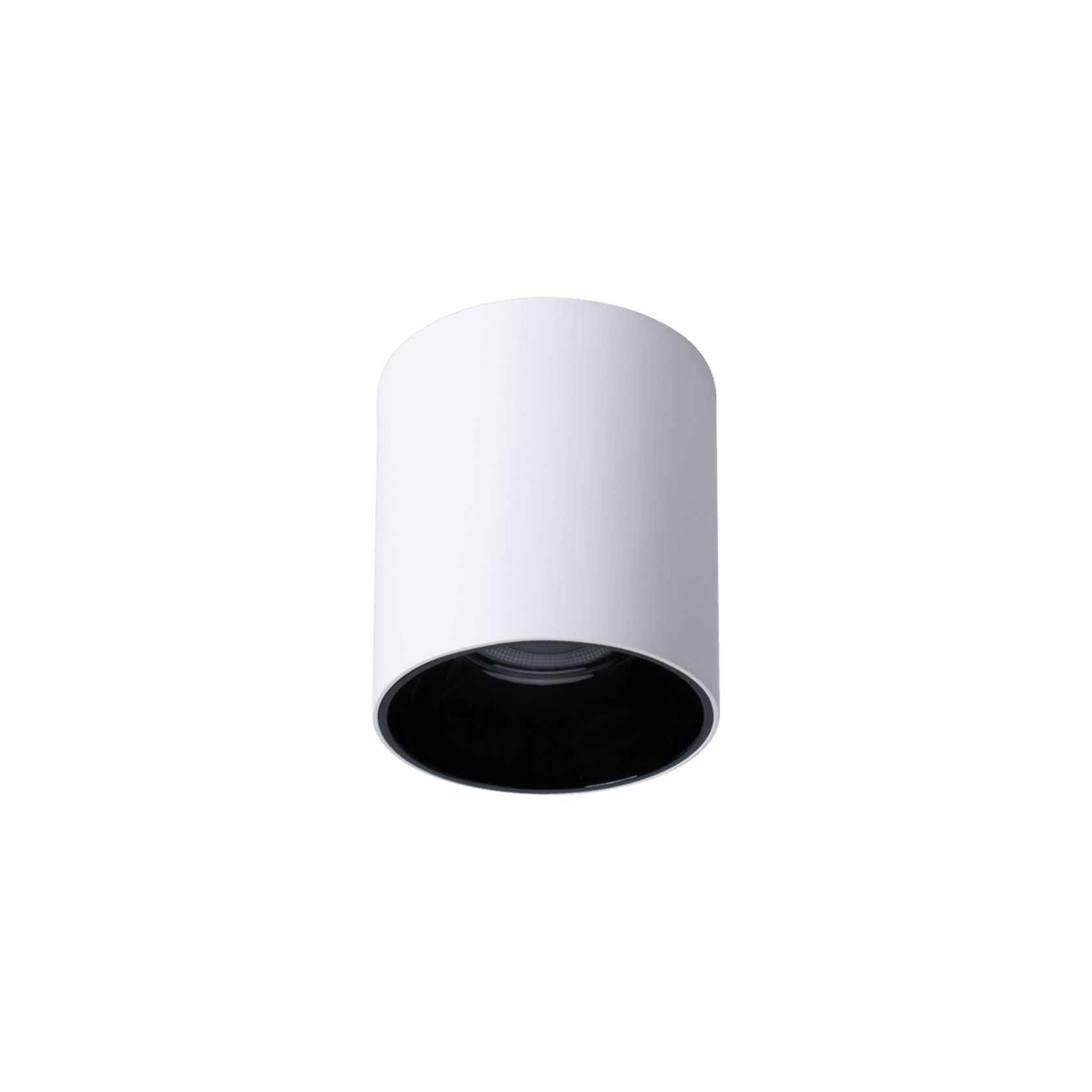

10W-36W Fixed IP Rated Surface / Suspended Mount Downlight

Surface mounted architectural luminaire providing optimised and symmetrical performance with a IP65 rating. Index comes with a wide selection of deep-set baffle options providing visual interest and low-glare illumination. Suspension options are also available.

Quality aluminium construction and incorporating premium components such as Citizen LED technology and Tridonic LED driver. Index-SM series is covered by a 5 year warranty.

Details
  • Category
    Downlights
  • Range
    Downlights
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage:

  • 10W (System 11.3W)
  • 15W (System 16.7W)
  • 20W (System 23W)
  • 25W (System 27W)
  • 32W (System 36W)
  • 36W (System 40W)

Luminous Flux:

  • 854-900Lm
  • 1290-1350Lm
  • 1688-1787Lm
  • 2200-2233Lm
  • 2600-2650Lm
  • 2865-2940Lm

Luminaire Efficacy:

  • 71.16 Lm/W
  • 75.88 Lm/W
  • 76.72 Lm/W
  • 81.48 Lm/W
  • 72.22 Lm/W
  • 71.65 Lm/W

CCT:

  • 3000K
  • 4000K

CRI: >90

Beam:

  • 20°
  • 40°

Colour Deviation: 3-SDCM

UGR: <19

Size: Ø140mm x Height 162mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000 Hrs L80 B10

Finish Options:

  • Black
  • White

Baffle Colour:

  • Black
  • White
  • Specular
  • Gold
  • Bronze

Warranty: 5 Years

Accessories / Options

Accessories / Options:
