Integral Wireless Access Control

System Capacity

SYSTEM COMPONENT         LIMITATION

Integral Server                        1

Integral Client*                       15

Door Locks / Readers            9999

Elevator Floors                       27

Users / Cards                         Unlimited

Anti-Static Interference        >15000V

Working Humidity                 20%-98%

Working Temperature         -20°C - +70°

RFID Card Type                    ISO 14443A MIFARE®

Frequency                             13.56MHz

Induction Distance             Approx. 30mm

Power                                    4 x AA Alkaline Batteries

Integral is available in two simple to use management options:

• “Accommodation” allows you to manage the users and doors much the same as a typical Hotel system where the doors are predefined, and users are given access according to the length of their stay.
• “Commercial” management software operates much the same but allows scheduling and calendar events, suited to a typical commercial building application. • Simple solution requiring no IP networking knowledge.

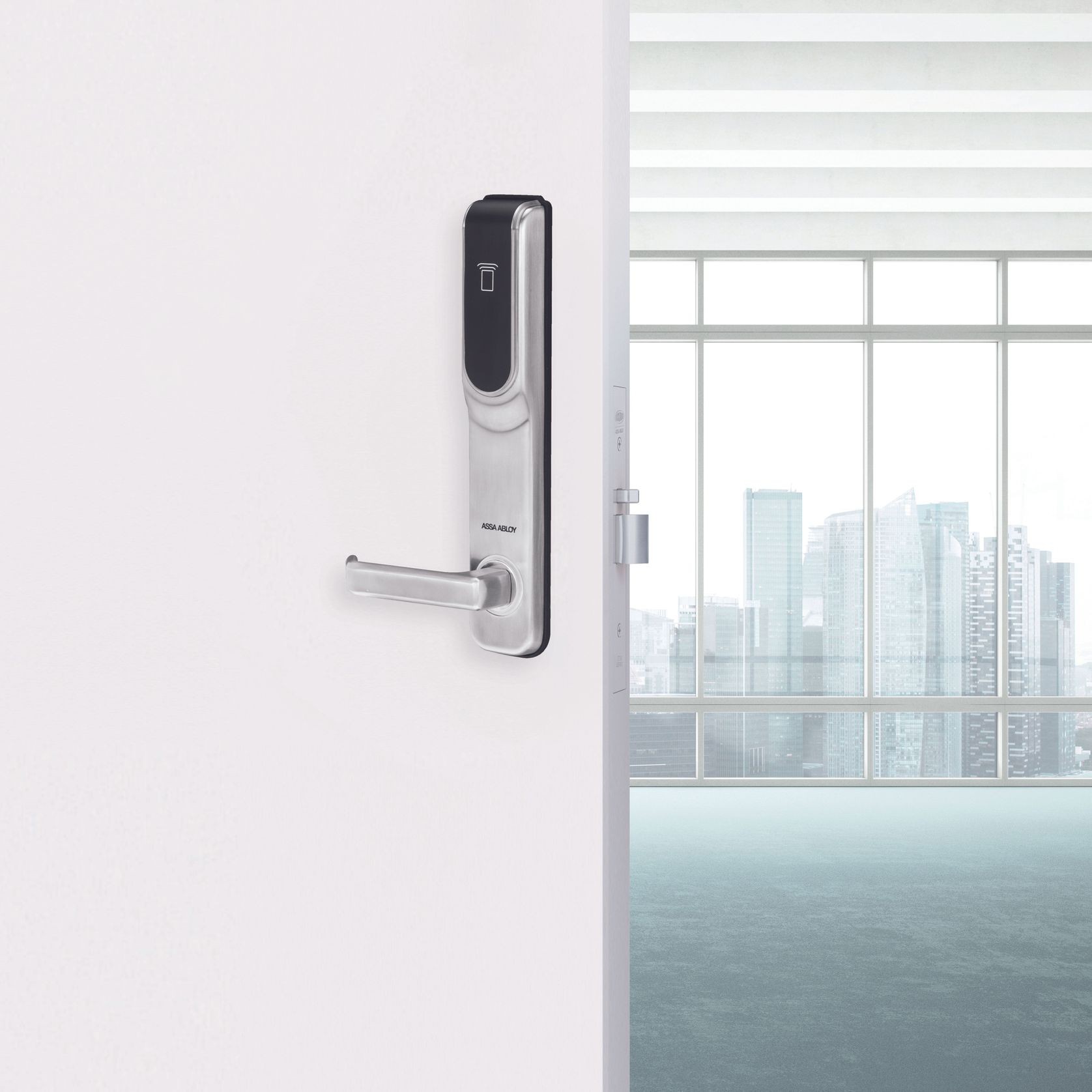

• Stand-alone Electronic Wireless Access Control lockset with RFID Proximity reader
• Powered by 4xAA batteries that provide up to 60,000 operations
• 992 event audit trail • Stainless Steel Escutcheon
• Uses Australian Mortice lock (3772NOHDSS). 530 tubular latch option is also available
• Panic release function – the latch is automatically retracted by the inside handle for easy egress in emergency situations
• 3-point steel latch construction with an anti-friction mechanism • High-quality card reader that reads with optimal accuracy
• Door Opening Time - Open the door after pressing the handle, automatically locks within 5 seconds
• Electronic Privacy - Denies access when privacy is required • Passage mode - Gives the ability to leave the door in the unlocked state
• Available with or without key override
• Under Voltage Indication: Early warning is given for low batteries - units will continue to operate for approximately 50 times until such time the batteries can be changed.
