LEY Low Glare Extruded Linear Light

by Luminaire Studio

Breakwater, Australia

Luminaire Studio logo
  • 42.2K profile views
  • 4 saves
Visit Website

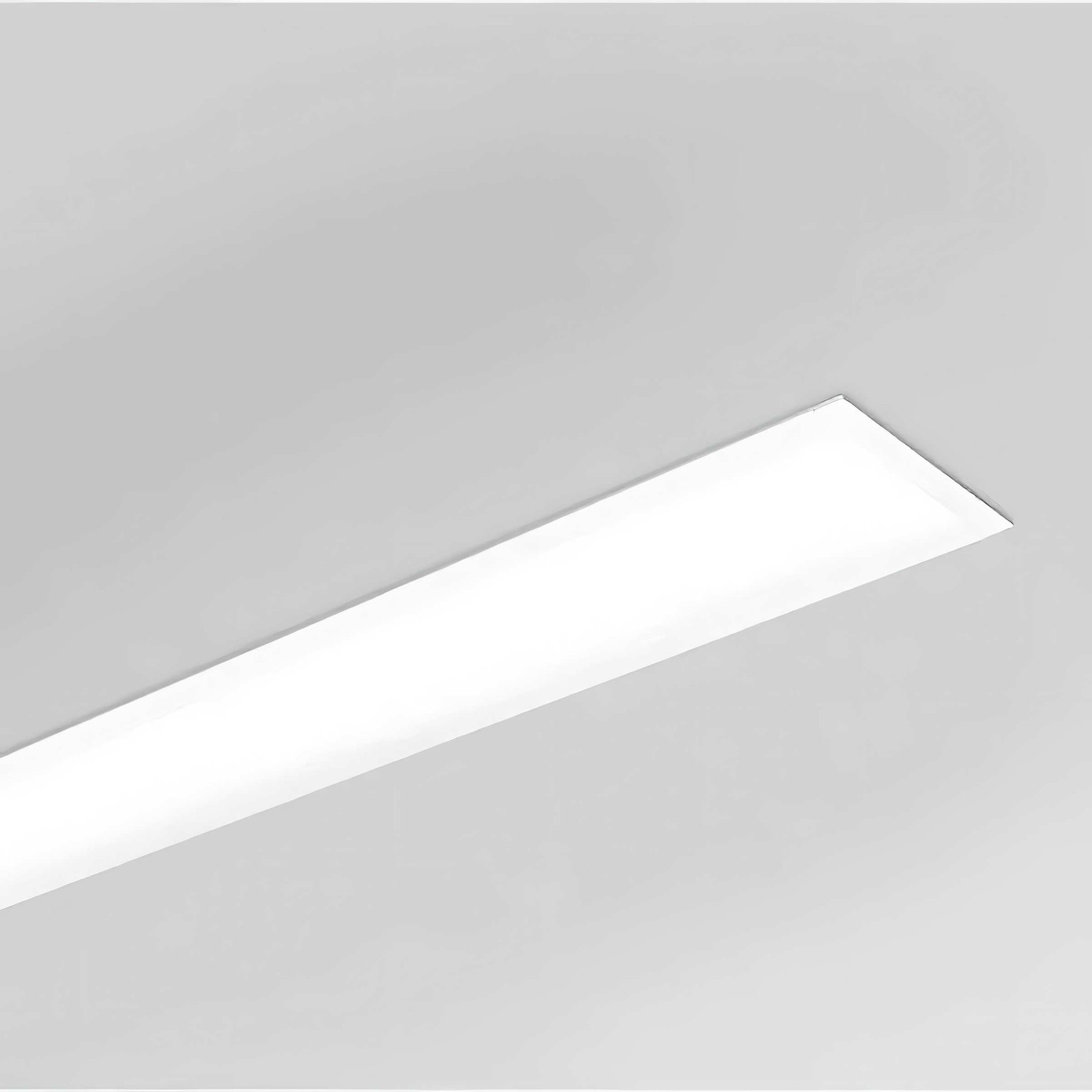

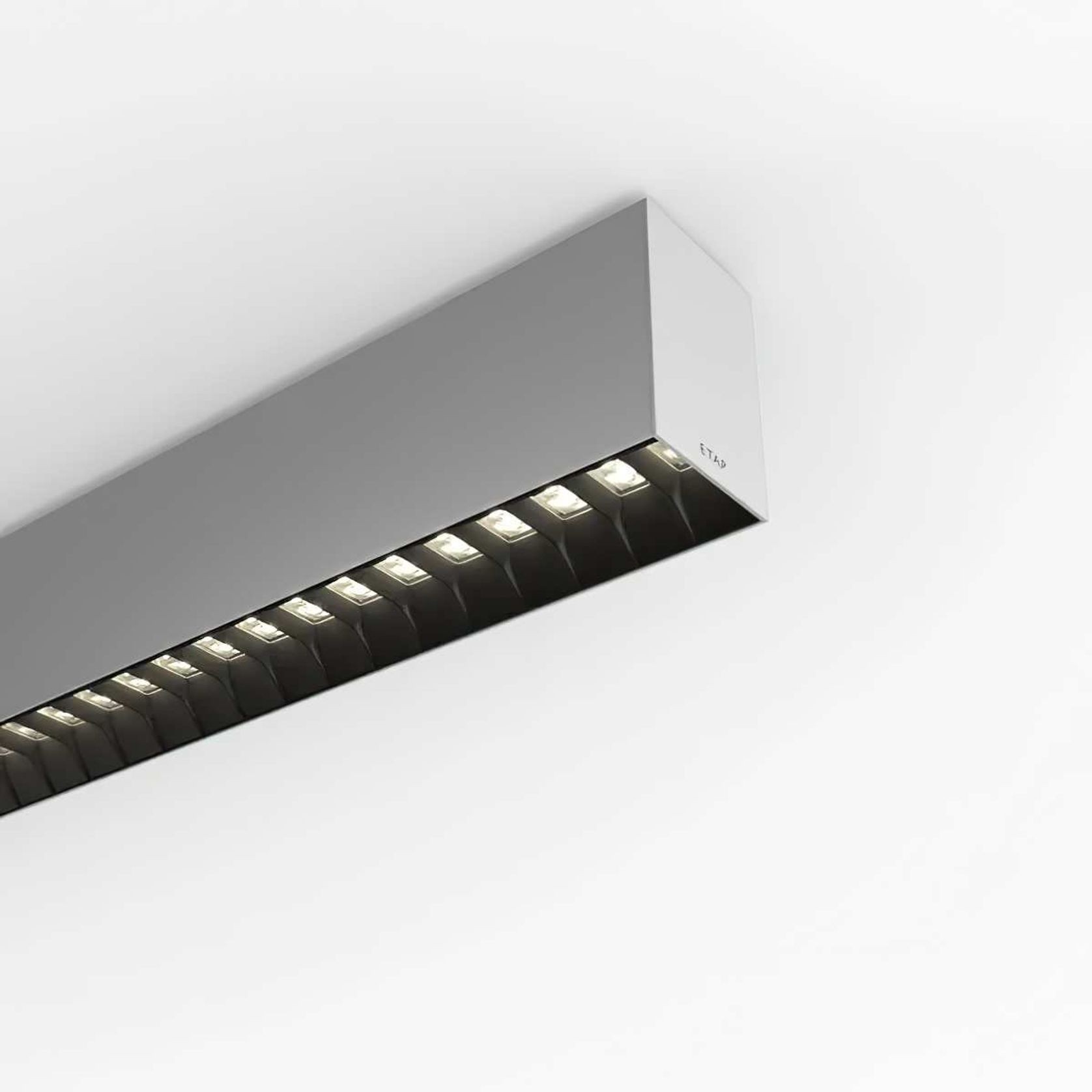

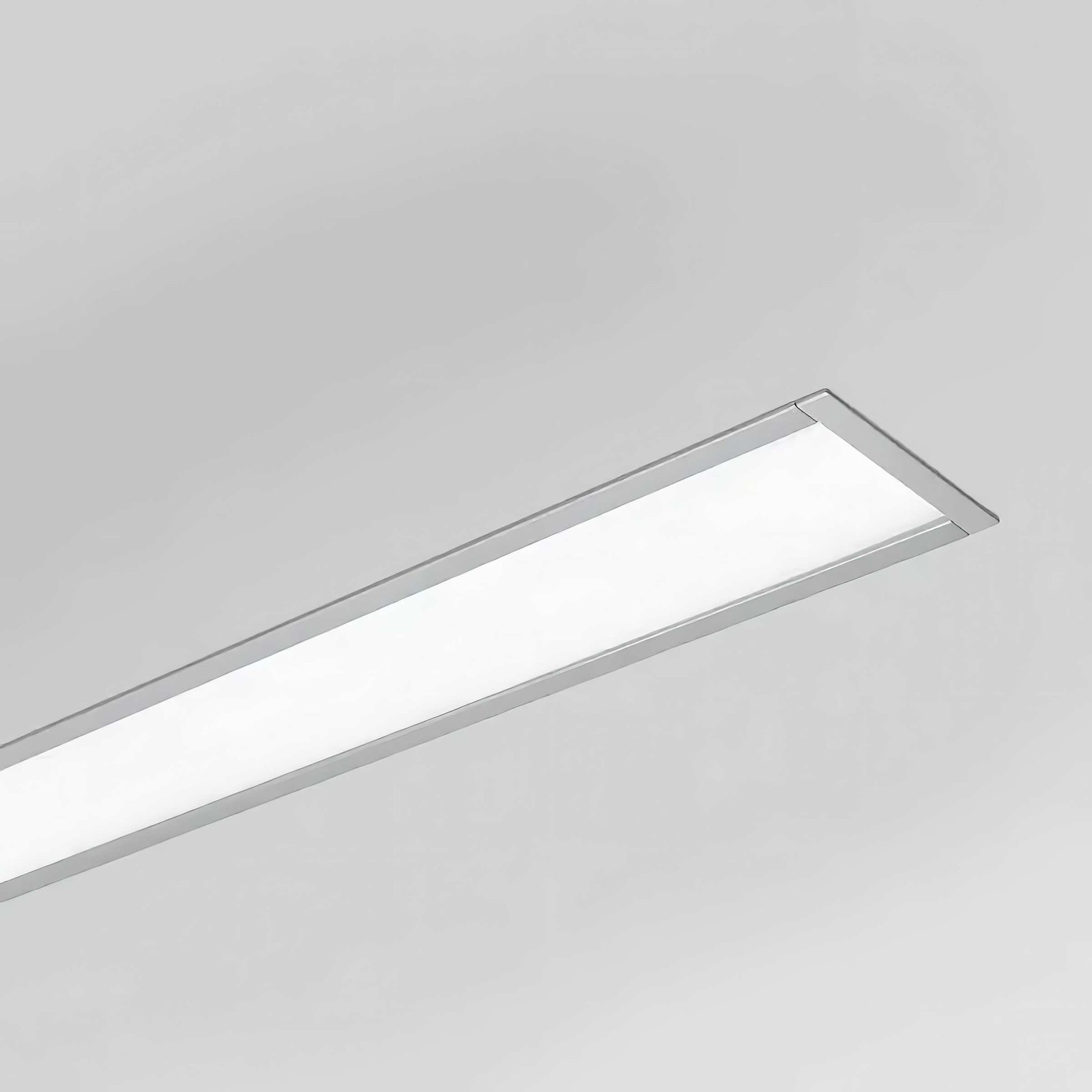

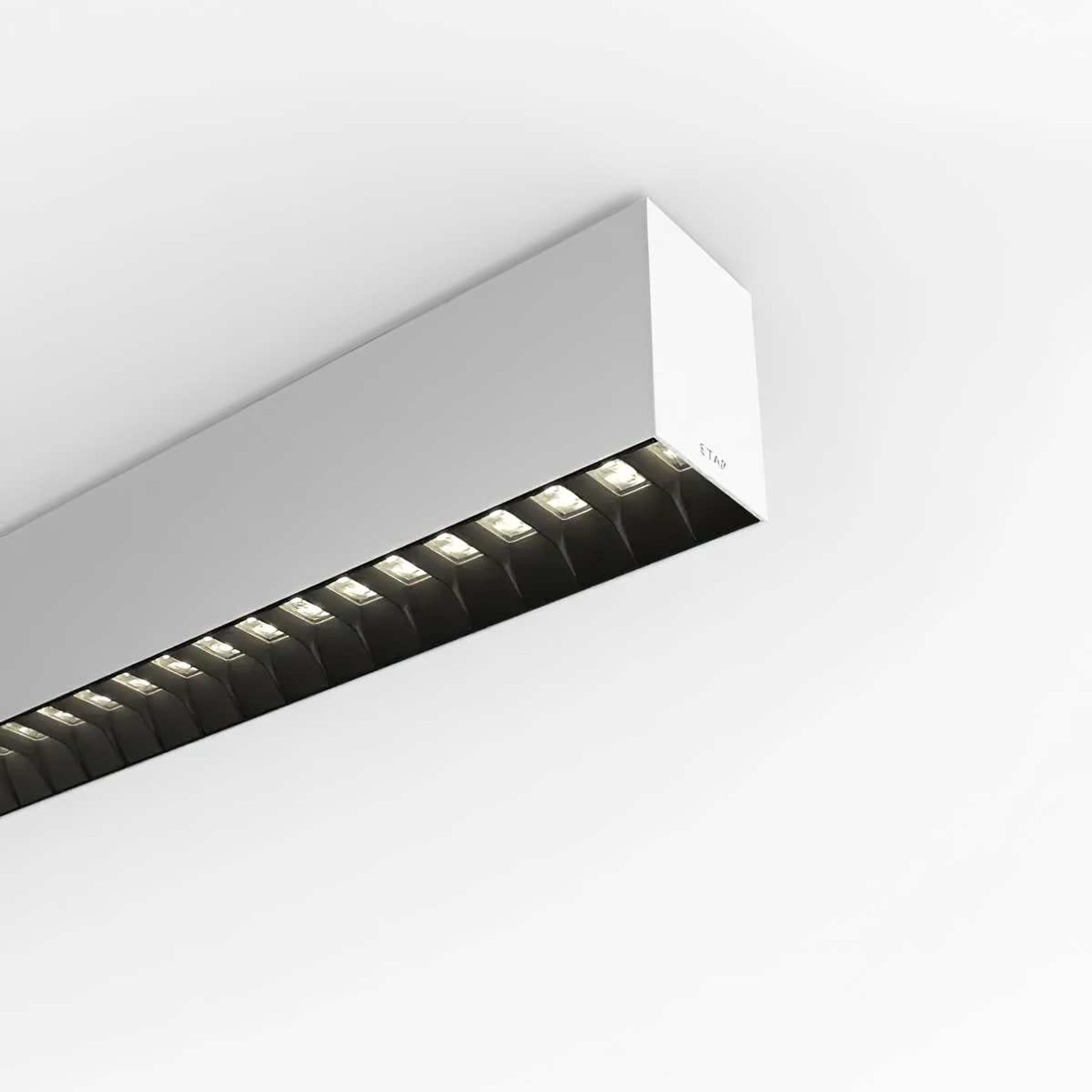

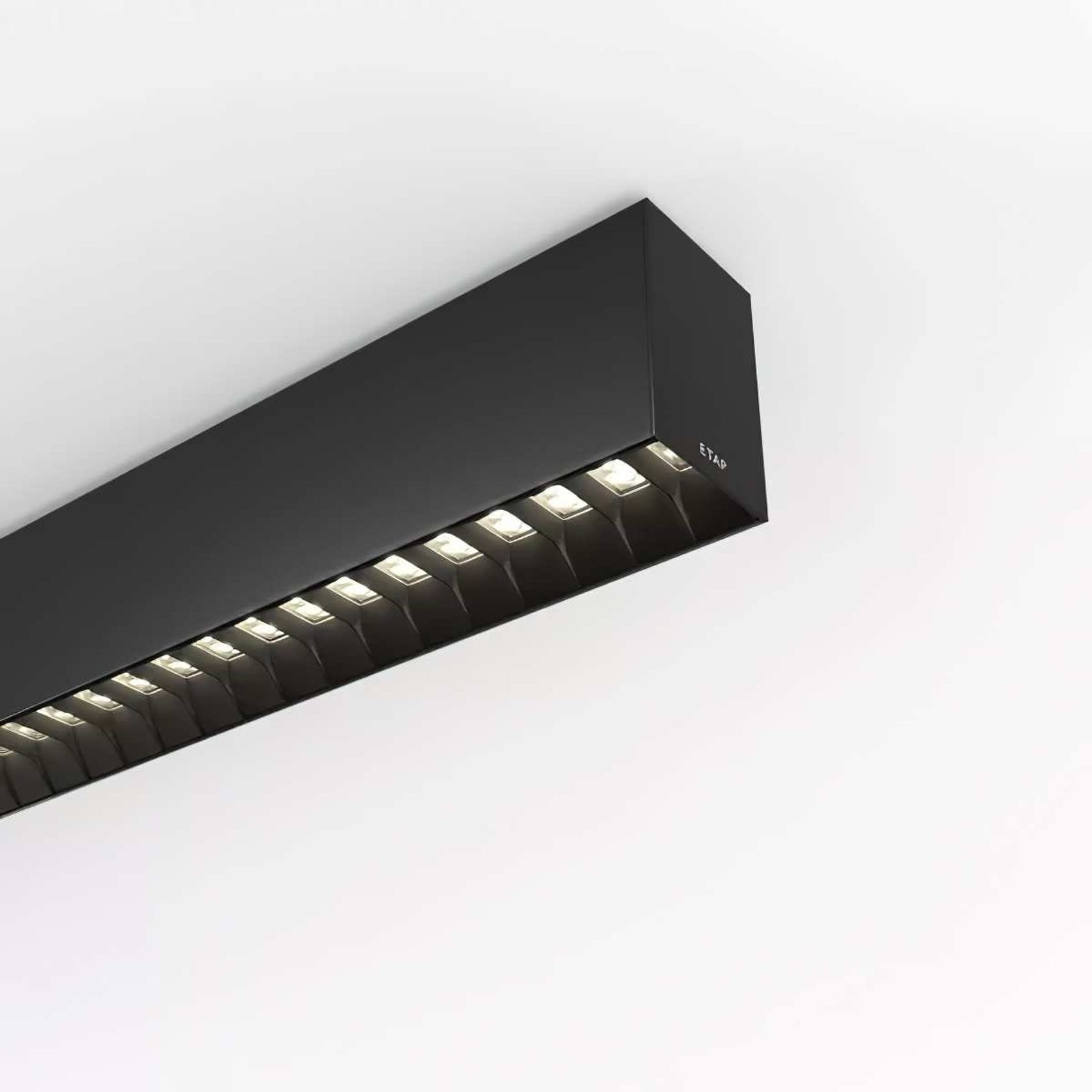

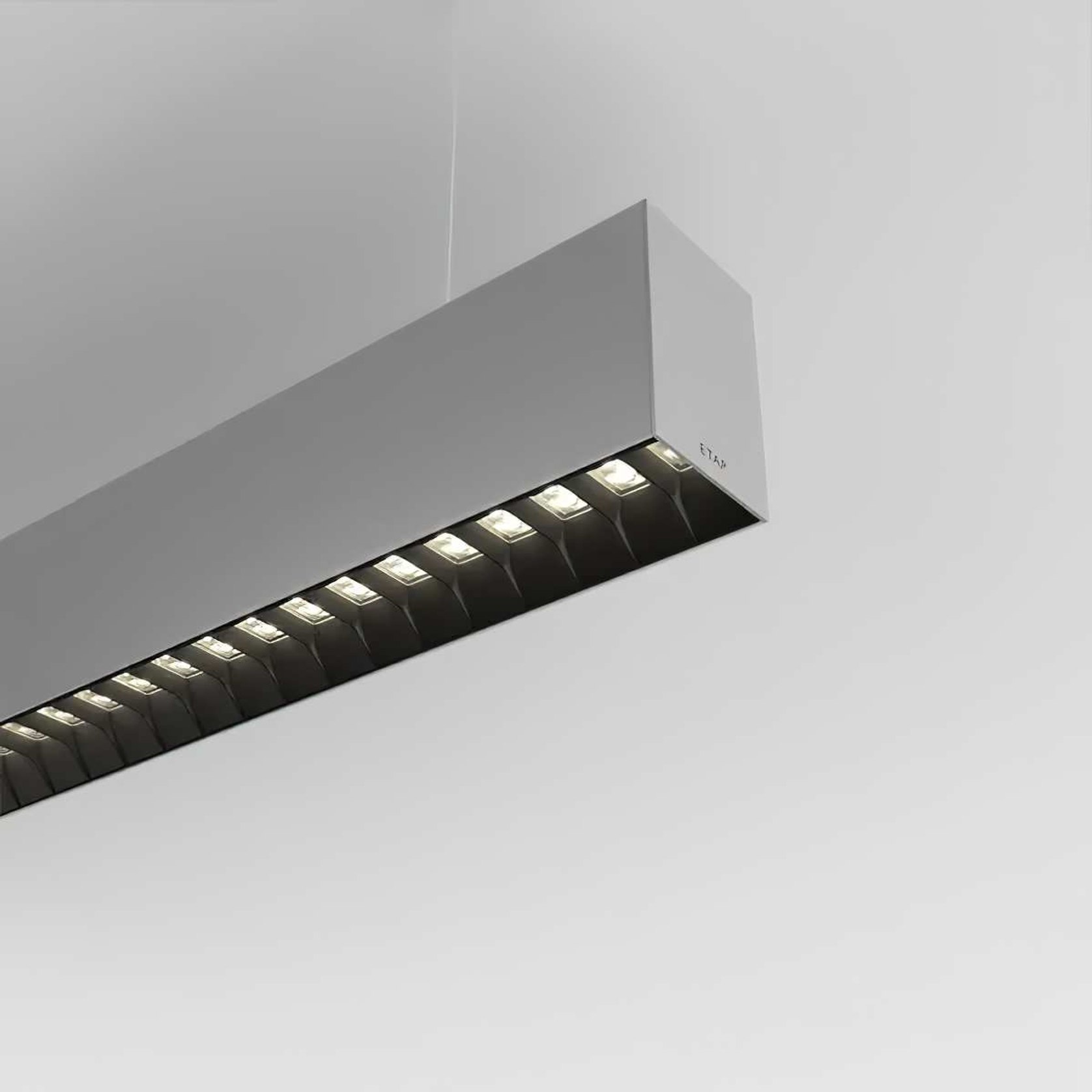

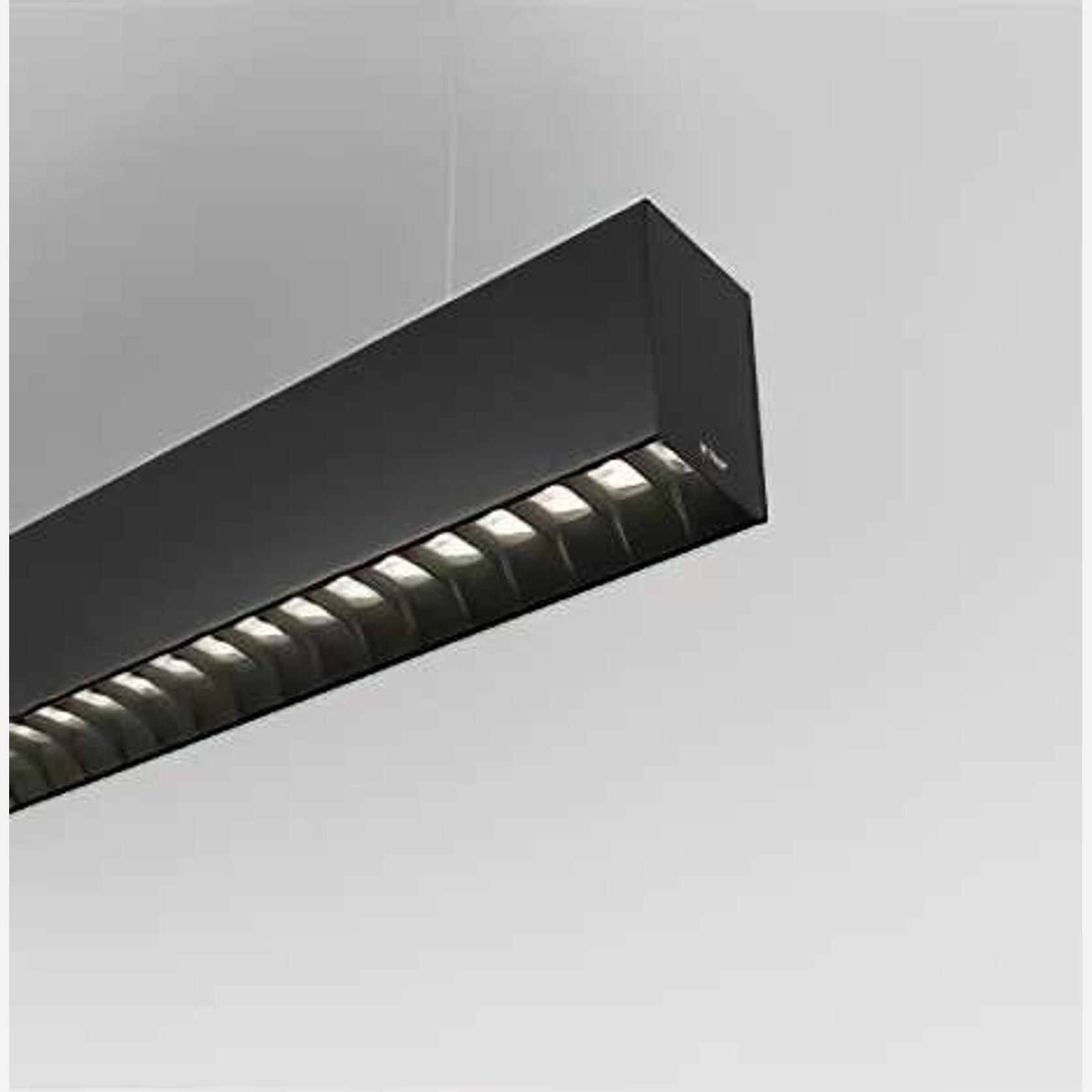

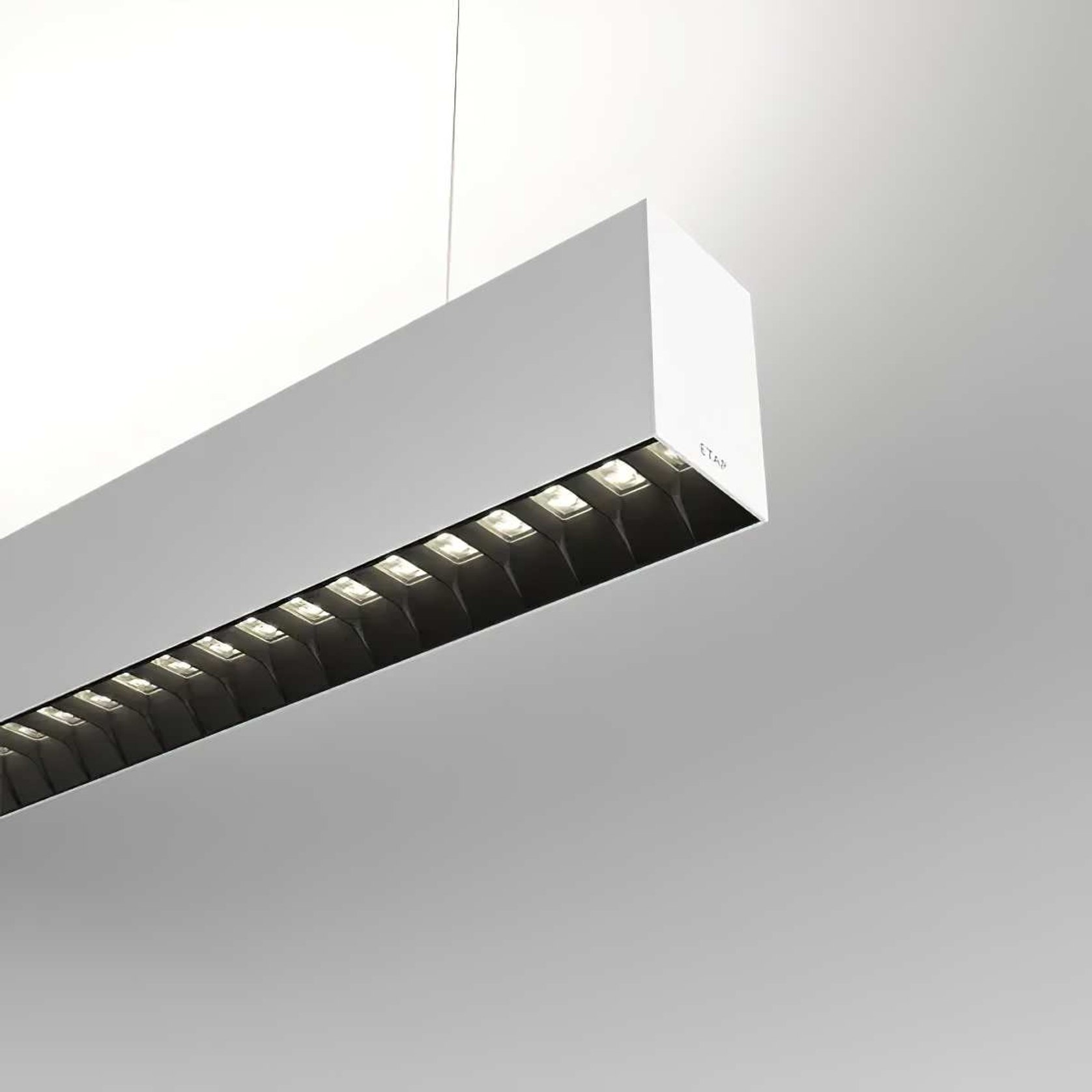

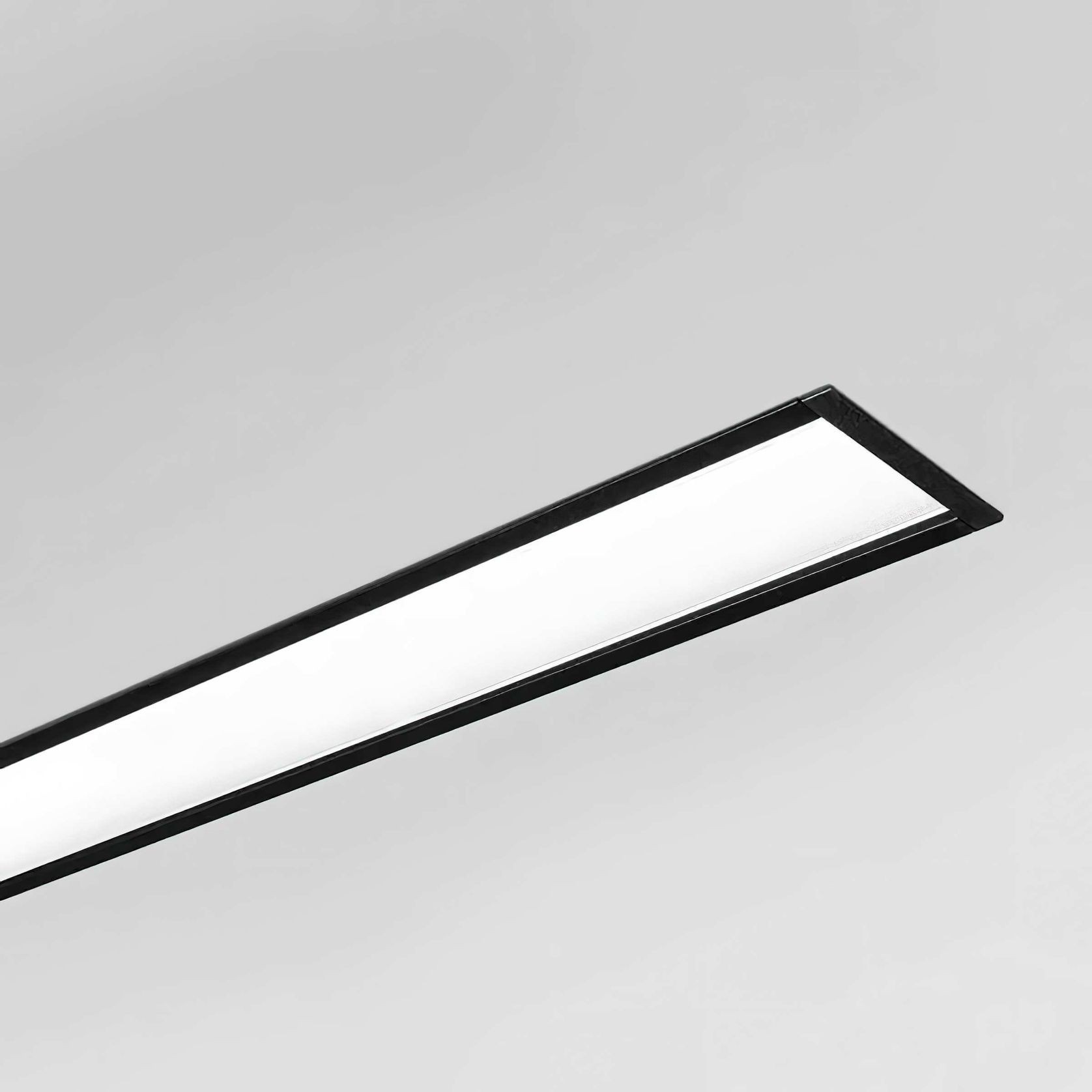

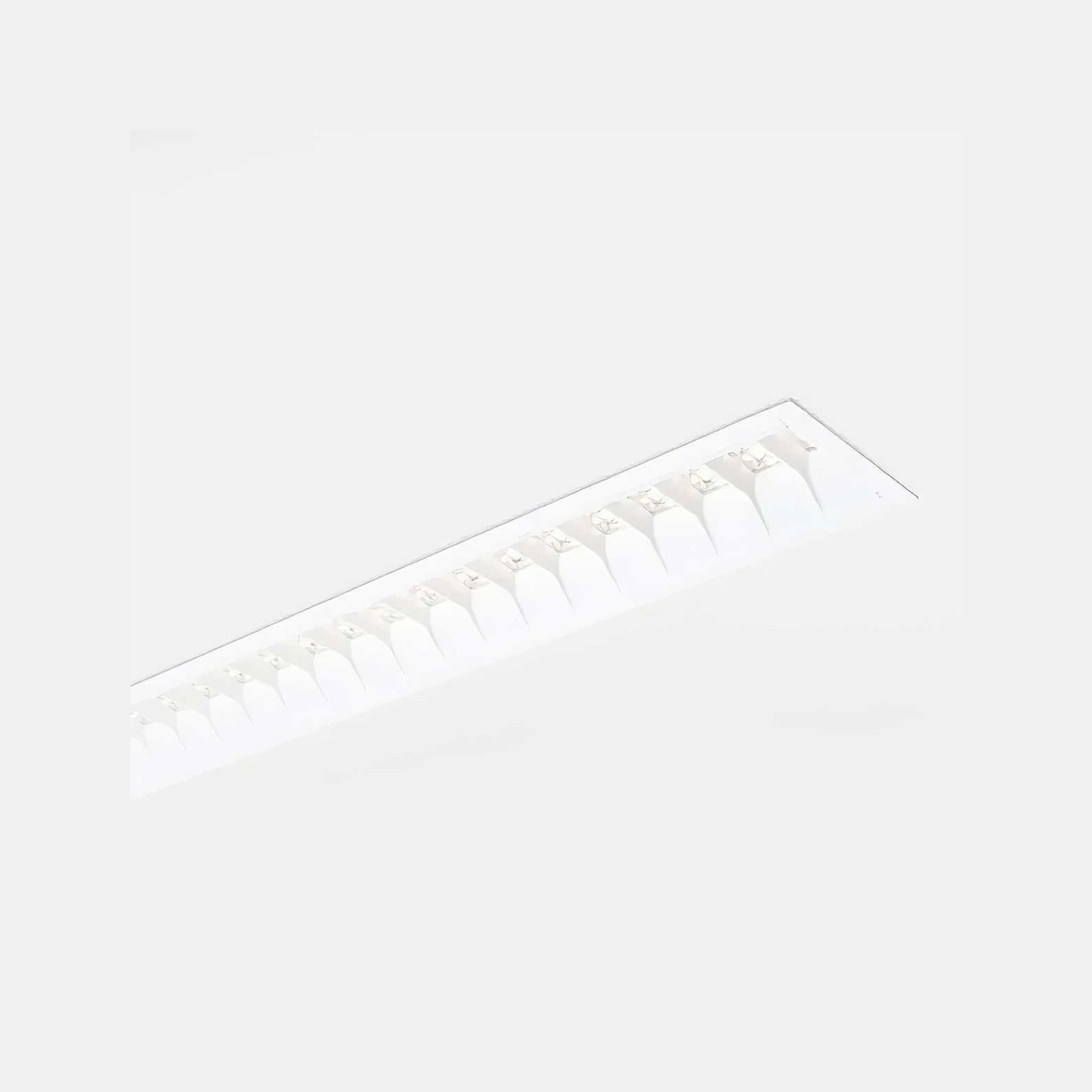

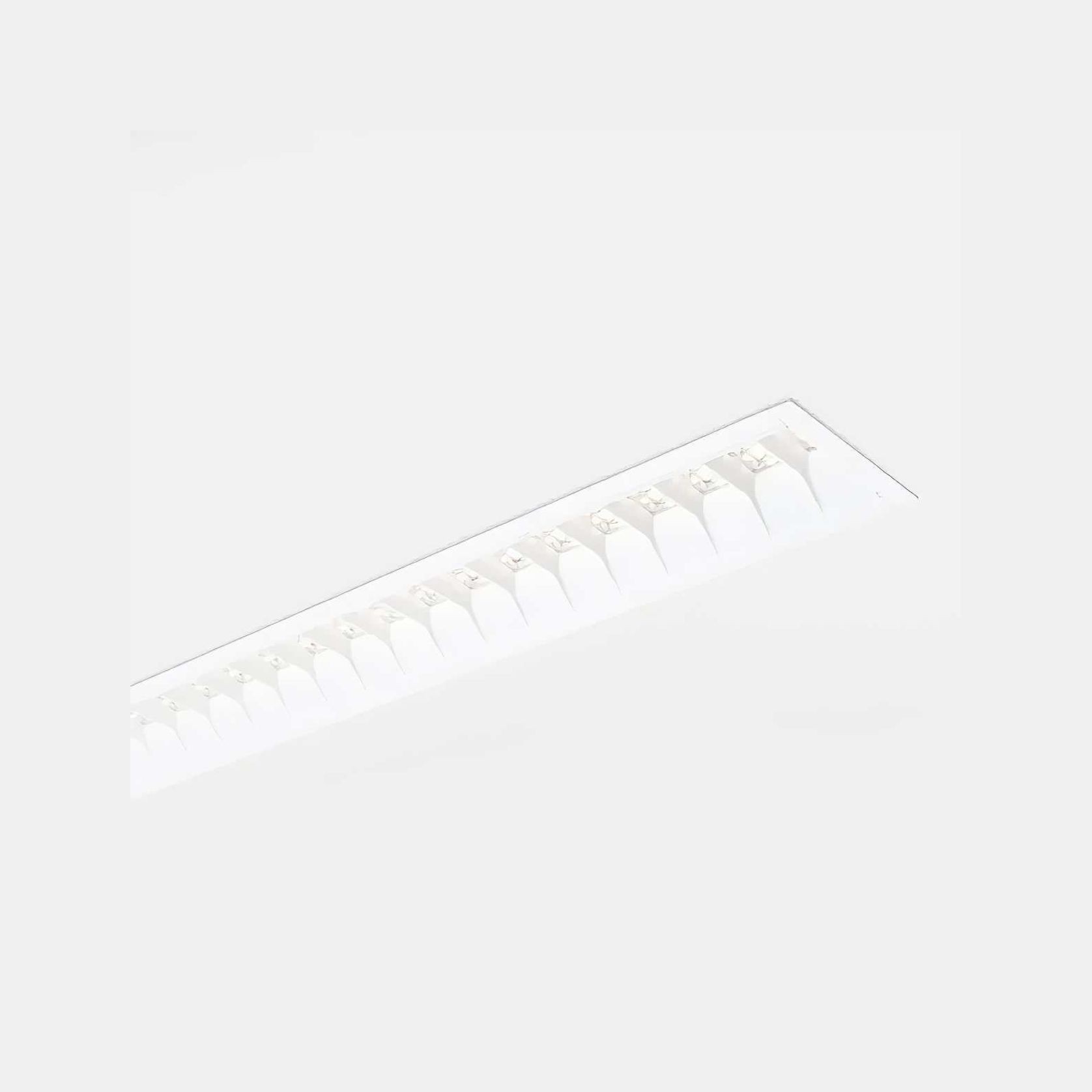

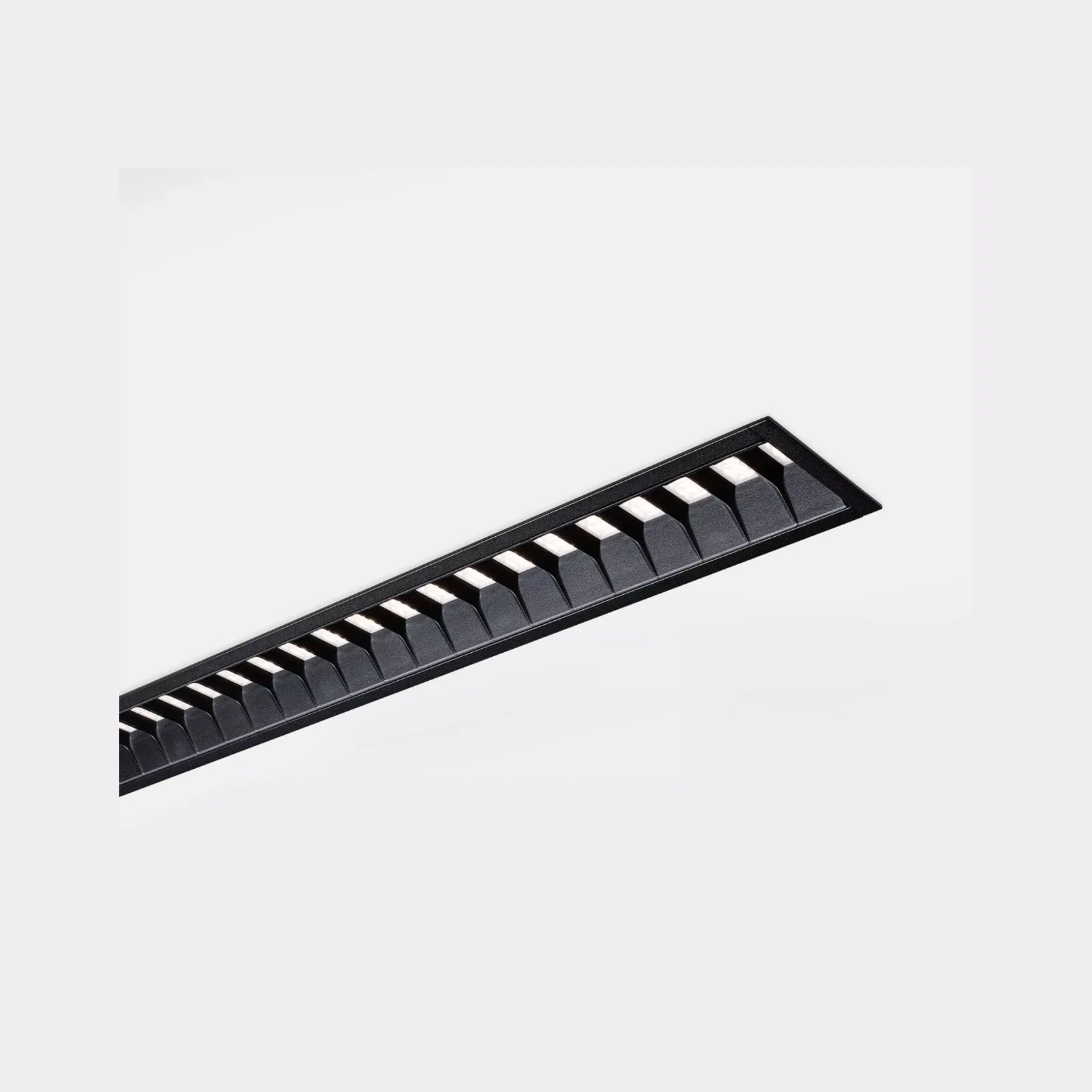

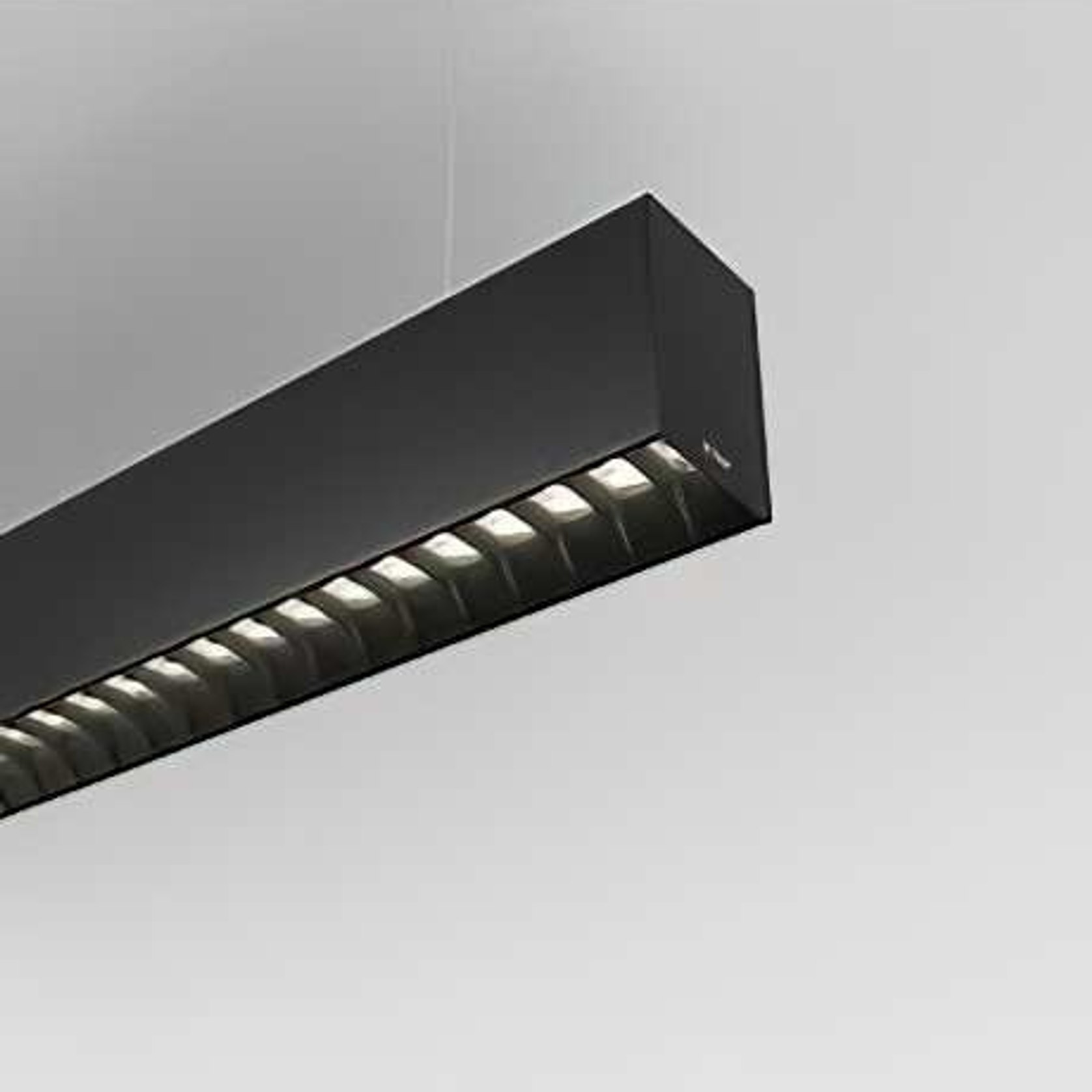

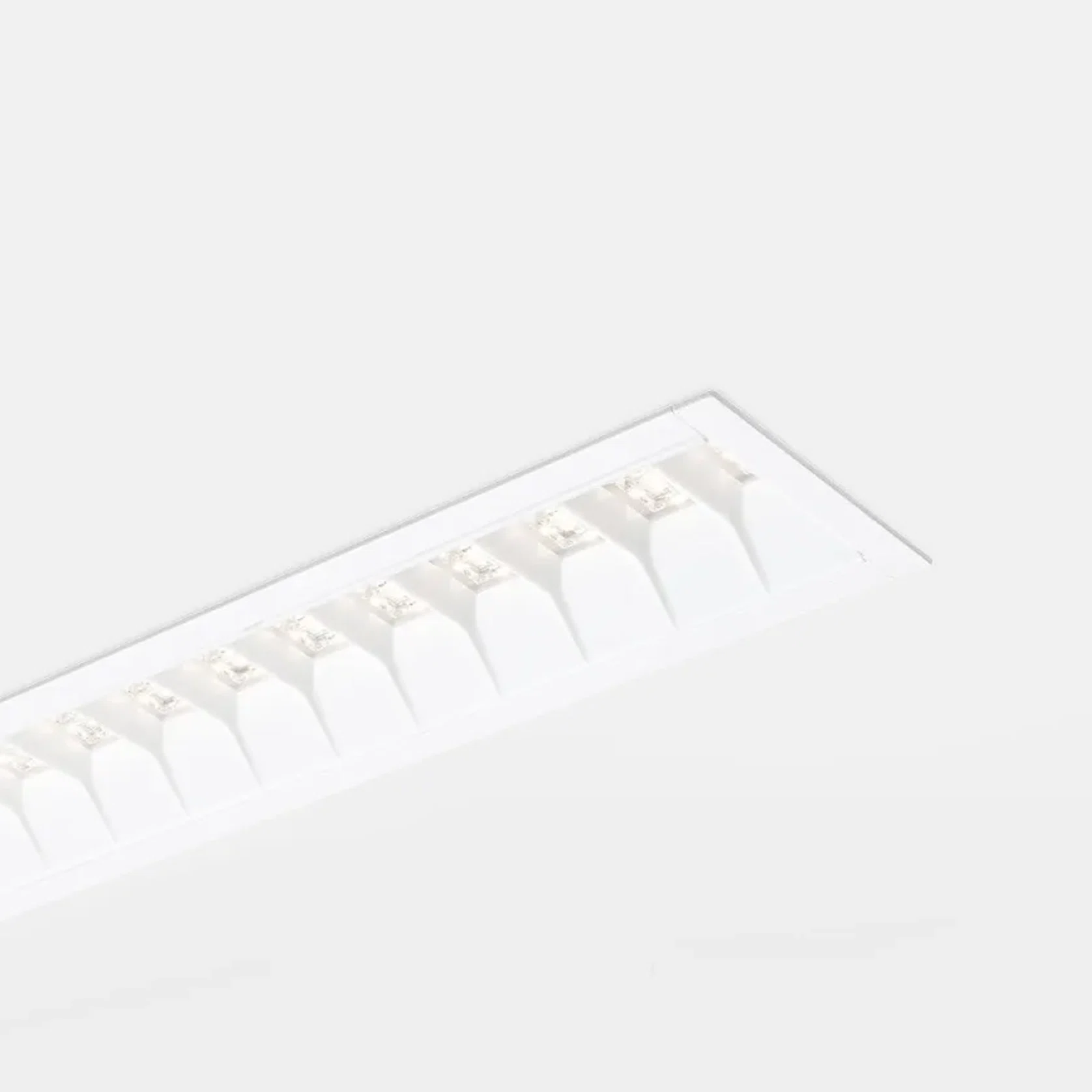

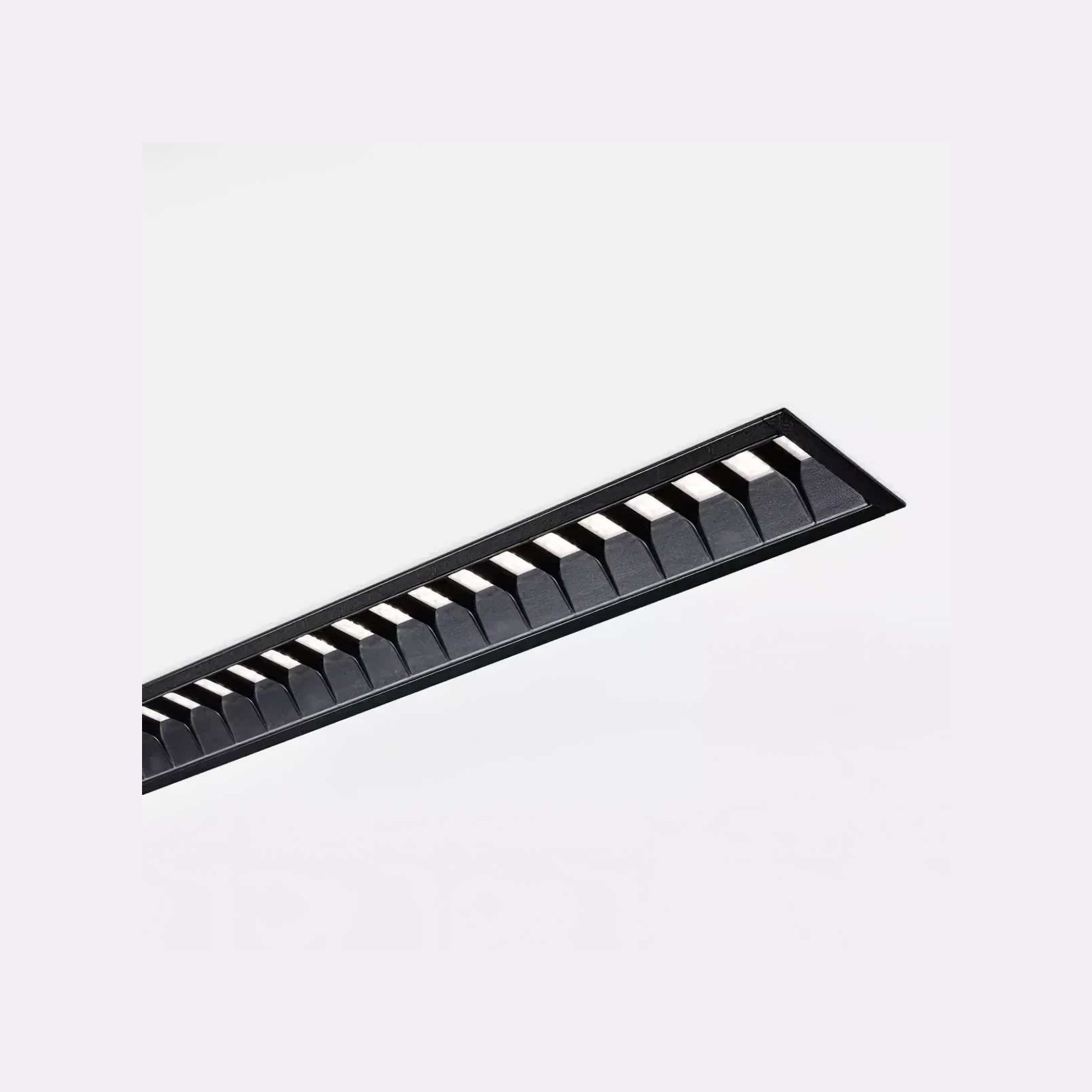

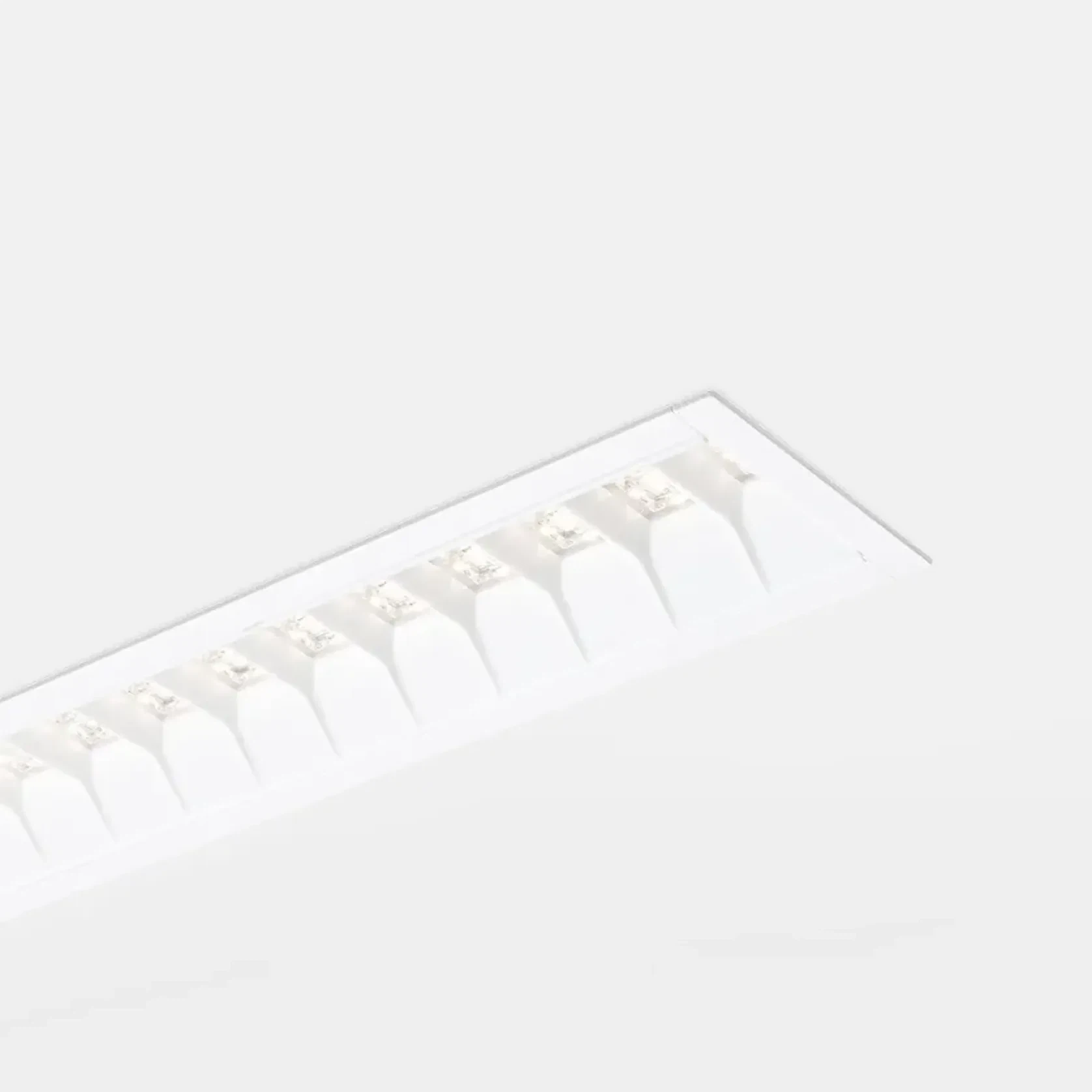

The architectural, IF award winning LEY suspended/surface/recessed LED extruded luminaire in a black/grey/white finish, Direct Sheilded Lens optics, LED-LENs optics or PMMA diffuser – medium wide angle beam. Low in glare UGR<16 and high in efficiency up to 145Lm/W. The LEY superior optics allow the fittings to be spaced 3m+ apart. The LEY offers a unique circular lighting feature, where the LED and driver can be easily replaced at the end of the components life and the LEY can be renovated to original performance.

Tags

Product Details

Product
LEY Low Glare Extruded Linear Light
Designer
ETAP Lighting
Brand
ETAP Lighting
Year
2019
Extras
With dimmer
Light bulb type
LED
Type
Ceiling lights
Country of origin
Belgium
Type of use
Commercial and Residential
Care and cleaning
Easy maintenance
Installation
Professional installation recommended
Assembly
No assembly required
Warranty
5 years

Product Variants

Mounting
Light Temp.
Colours
Optics
Beam
Flux (lm)
Efficiency
Product Code
Size
LEY Low Glare Extruded Linear Light
Visit site

The architectural, IF award winning LEY suspended/surface/recessed LED extruded luminaire in a black/grey/white finish, Direct Sheilded Lens optics, LED-LENs optics or PMMA diffuser – medium wide angle beam.

Low in glare UGR<16 and high in efficiency up to 145Lm/W. The LEY superior optics allow the fittings to be spaced 3m+ apart. The LEY offers a unique circular lighting feature, where the LED and driver can be easily replaced at the end of the components life and the LEY can be renovated to original performance.

Lighting type
Direct-indirect light, Direct light
Fitting type
Surface-mounted, Recessed light, Suspended
Features

Circular lighting, high performing optics, long operational life LLMF=98%@50Khrs

Scope of use

Commercial buildings where quality not quantity of light matters: Schools, Hospitals, offices, shops.

Downloads

Downloads (29)29 Direct downloads • 4 Available on request

Get more Specific.

Luminaire Studio

luminairestudio.com.au

Visit the Luminaire Studio website for the full range, specification detail and where to buy this product.

Visit Website

Awards

2020

IF Design Award

IF Award

2020
AwardIF Design Award
OrganisationIF Award

Frequently asked questions about
LEY Low Glare Extruded Linear Light

The LEY Low Glare Extruded Linear Light is supplied by Luminaire Studio. It is also on their website, and you can browse every product Luminaire Studio lists on ArchiPro.

Luminaire Studio does not publish a price for the LEY Low Glare Extruded Linear Light on ArchiPro. for pricing, or visit their website.

It comes in 4 mounting options (Suspended with Uplighting, Surface Mounted, Suspended, Recessed), 2 light temp. options (4000K White, 3000K Warm White), 3 colour options (Black RAL9005, Grey RAL9006, White RAL9003), 4 flux (lm) options (2800Lm, 5050 lm, 5250 lm, 2700 lm), 4 efficiency options (120lm/W UGR<=19 LLMF=96%@50Khrs, 127lm/W UGR<=16 LLMF=94%@50Khrs, 131lm/W UGR<=16 LLMF=94%@50Khrs, 116lm/W UGR<=19 LLMF=95%@50Khrs) and 21 product code options (BV3RB10M/N3MODOX0, BV3RB10M/N3MODOX2, BV3RB10M/N3MODOX1, BV3SB10M-N3MODOX0, BV3SB10M-N3MODOX2, BV3SB10M-N3MODOX1, BV3UB10M-N3MODOX0, BV3UB10M-N3MODOX2, BV3UB10M-N3MODOX1, BV3SB10M/W3MMDOXO, BV3SB10M/W3MMDOX2, BV3SB10M/W3MMDOX1, BV3SB10M/N3MMDOX0, BV3SB10M/N3MMDOX2, BV3SB10M/N3MMDOX1, BV3SB10M-W3MODOX0, BV3SB10M-W3MODOX2, BV3SB10M-W3MODOX1, BV3RB10M/W3MODOX0, BV3RB10M/W3MODOX2, BV3RB10M/W3MODOX1). Pick one in the row under the description to see it.

It comes in 2 sizes: L1371 x W60 x H90 mm - 5.15kg and L1385 x W76 x H71.5 mm - 4.14kg. For a size that is not listed, .
