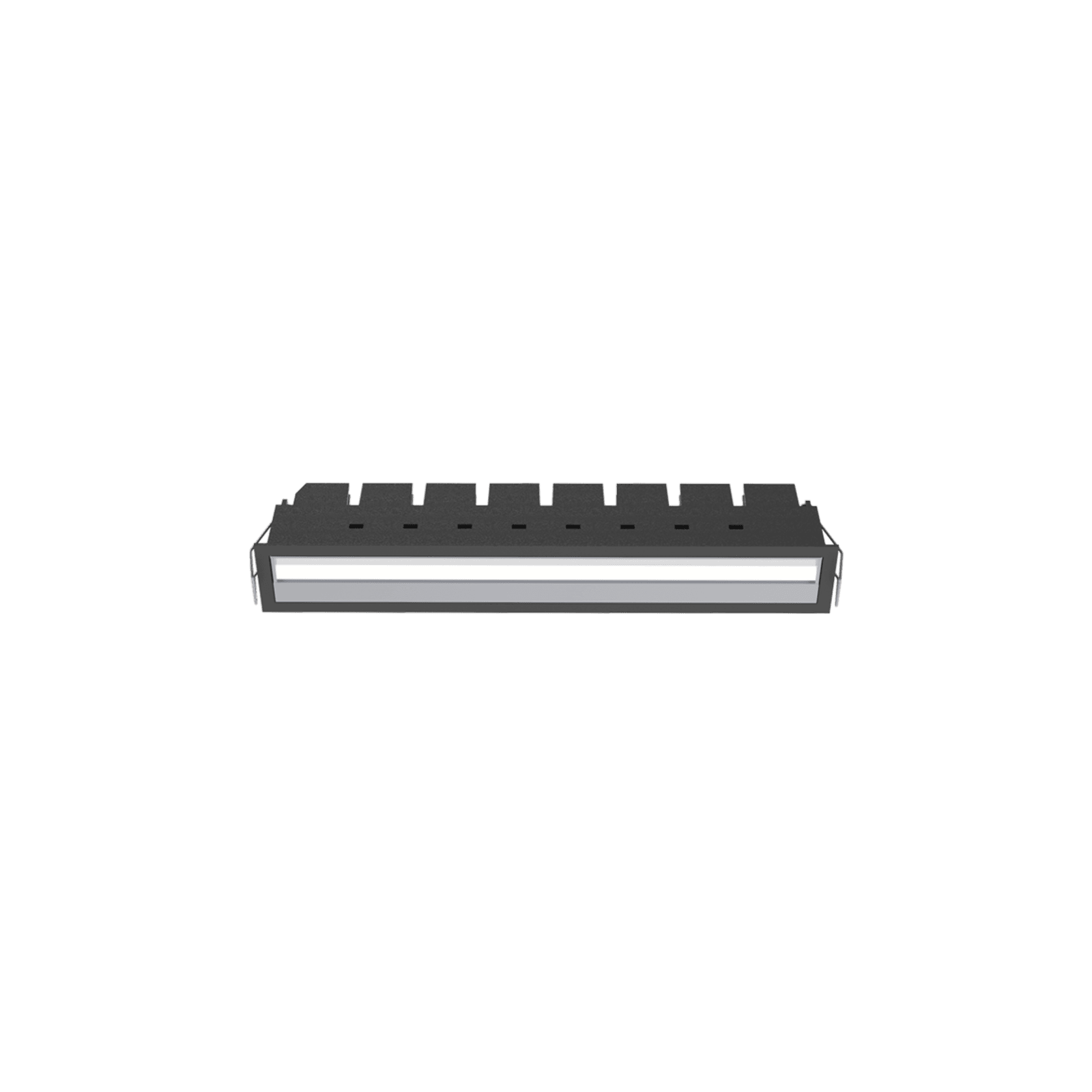

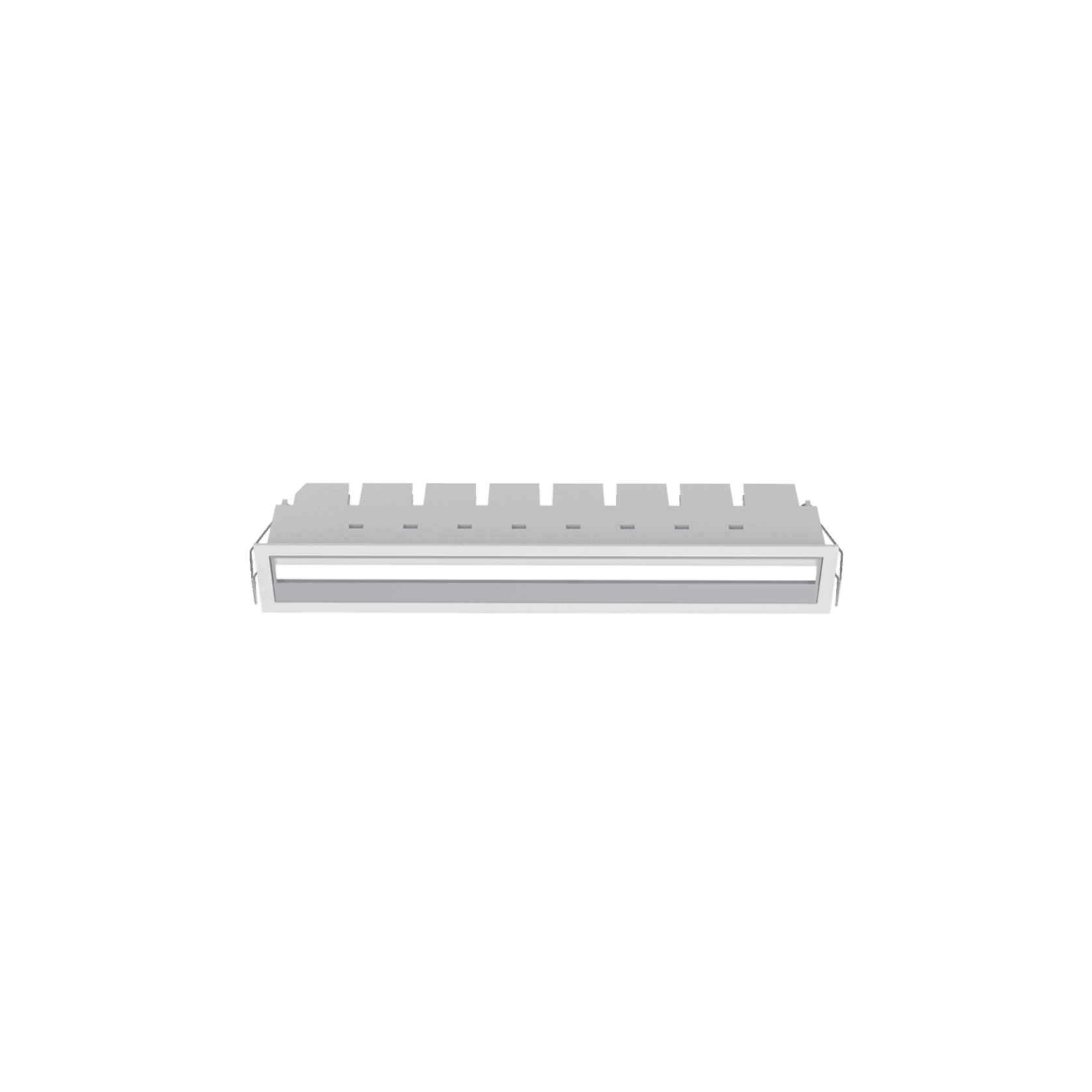

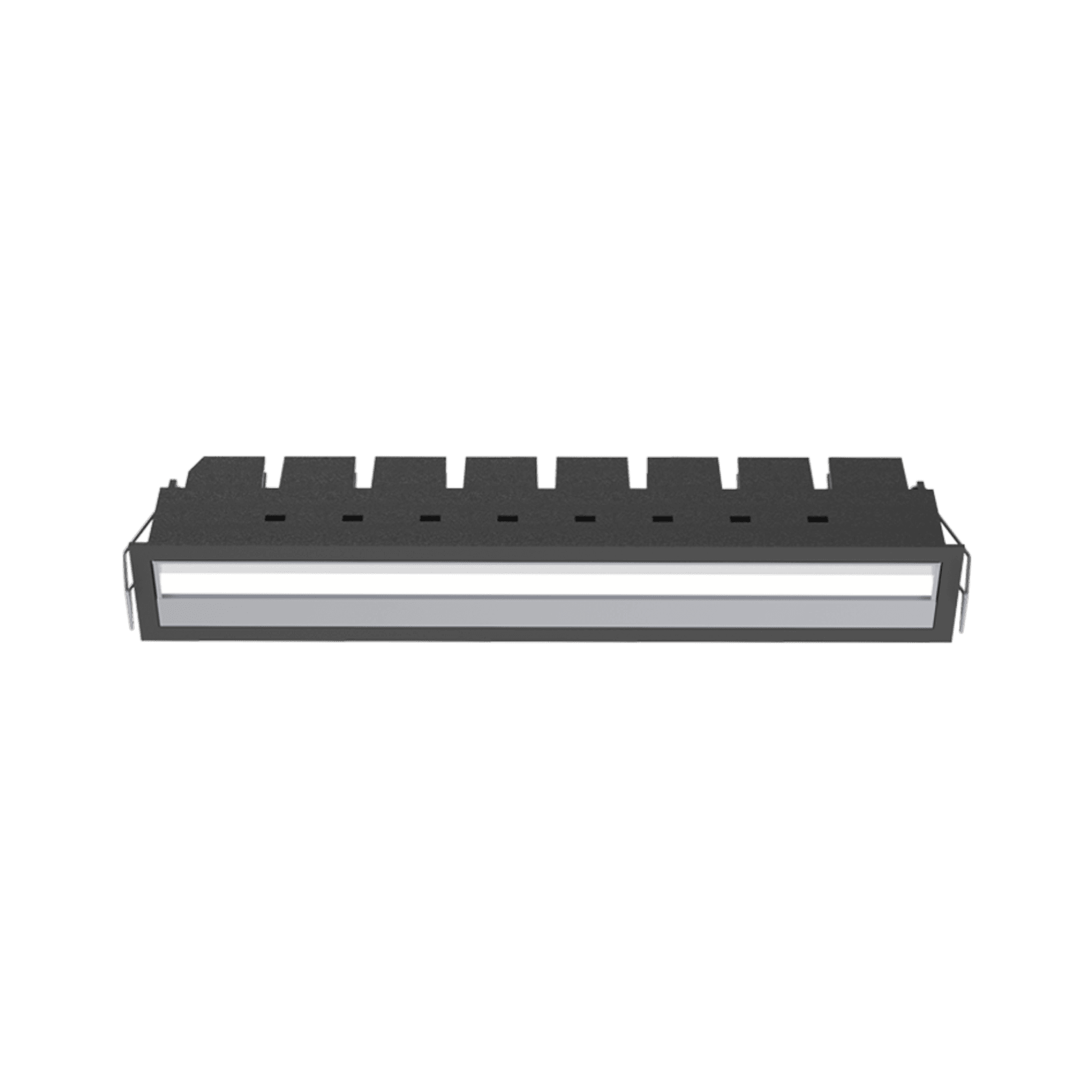

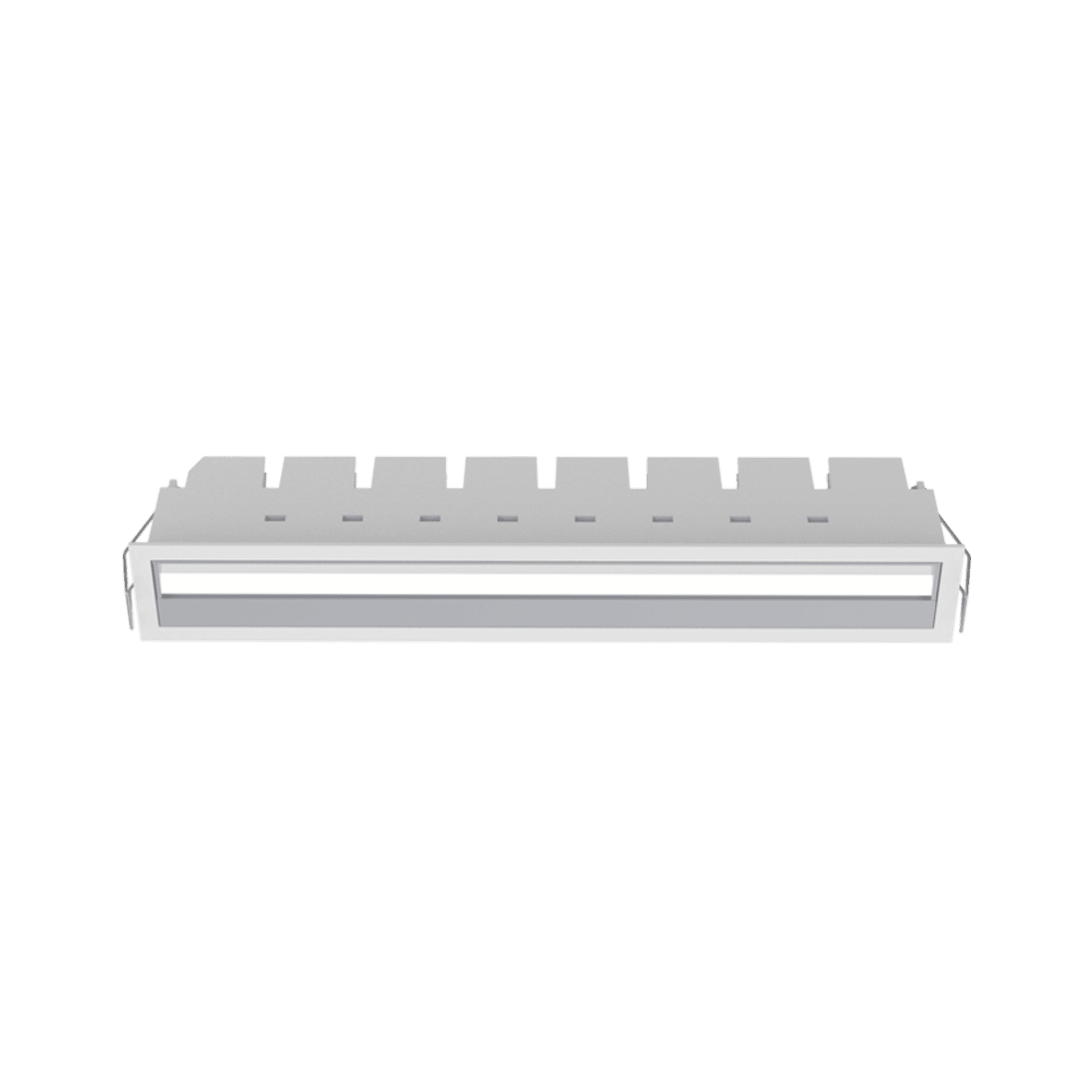

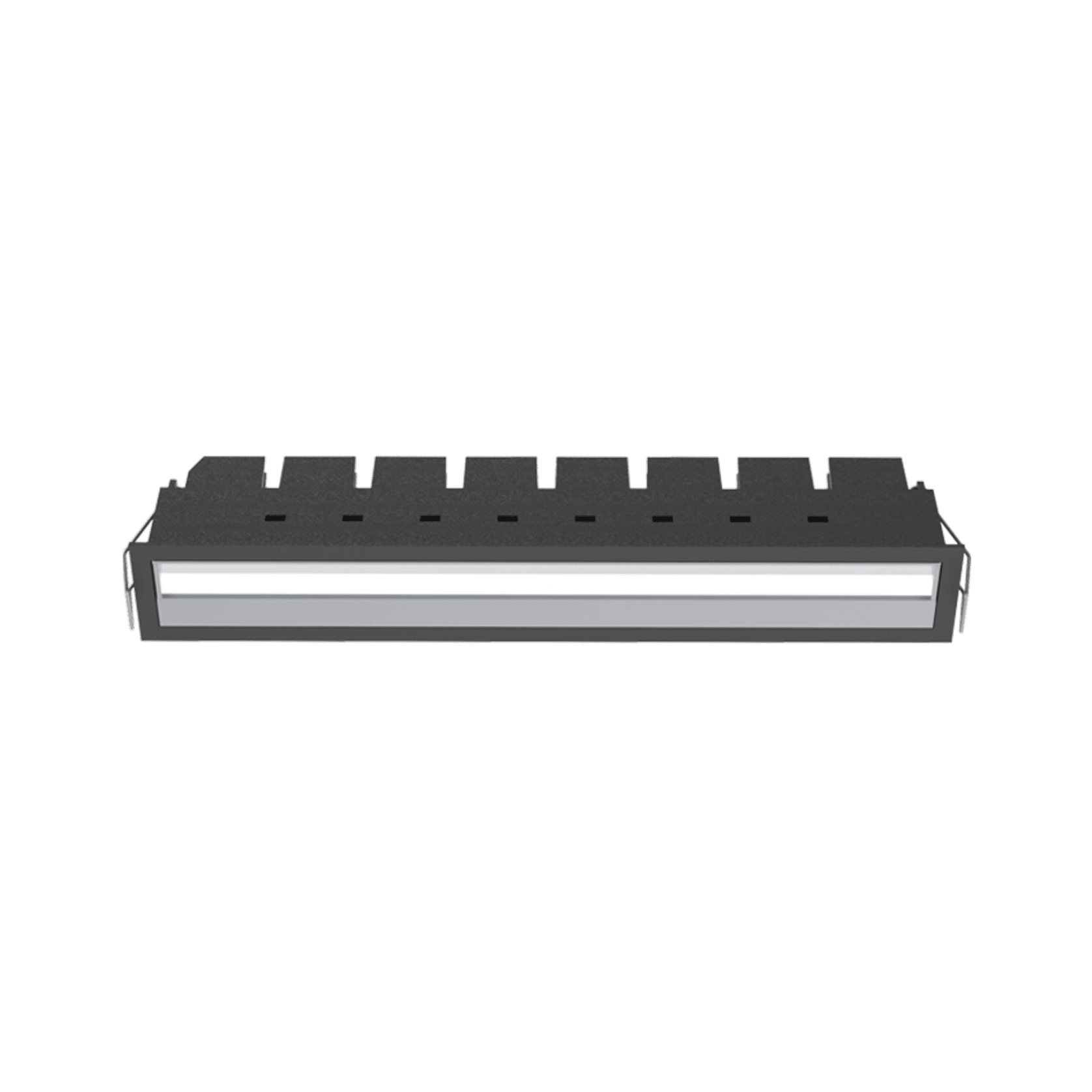

Linie-W10
22W Fixed Linear Wall Washer Recessed Downlight
Fixed recessed LED architectural wall washer series provides asymmetrical distribution with advanced optics in a compact, linear housing. Available in a trim or trimless option for a seamless look.
Quality constructed from a die-cast aluminium structure with a high grade extruded aluminium baffle. Integrating OSRAM LED technology with a TRIDONIC control gear, the Linie series offers a 5 year warranty.
- CategoryDownlights
- RangeDownlights
- Warranty5 years
Technical Specifications
Wattage: 22W (System 24W)
Luminous Flux: 1000-1100Lm
Luminaire Efficacy: 41.66 Lm/W
CCT:
- 3000K
- 4000K
CRI: >90
Beam: Asymmetrical
Colour Deviation: 3-SDCM
UGR: <19
Size: Width 45mm x Length 290mm x Height 60mm
Cut out size: Width 37mm x Length 282mm
Dimming:
- Non-dimmable
- DALI-2
- BLE (basicDIM Wireless / Casambi)
Longevity: >50,000 Hrs L80 B10
Finish Options:
- Black
- White
Baffle Colour: Anodised aluminium
Warranty: 5 Years
Accessories / Options:
- LINIE-WT10-22W
Trimless version
