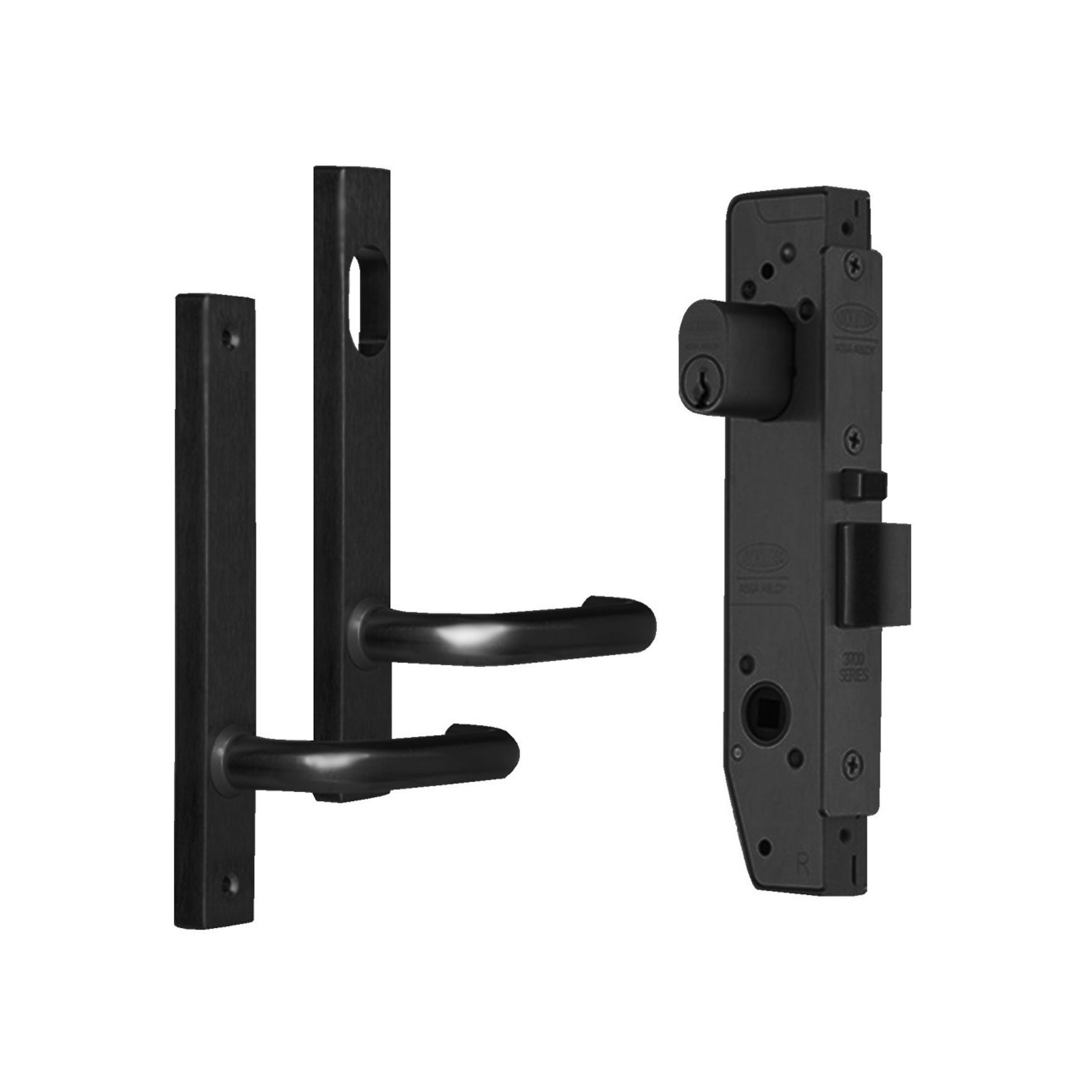

Lockwood Narrow Mortice Lock Kit Cyl/Handles Black
Matt Black
23mm
32mm - 50mm
Lockwood 3782 Narrow Mortice Lock Kit Classroom Function
3782KIT05MBK
Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.
Features:
Mortice lock
- Short backset universal primary mortice lock.
- Easy Red /Green function setting.
- All lock settings are made from under the faceplate allowing for simple in-door configuration.
- Standard primary locks include holdback and anti-lockout capabilities.
- Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
- Operated by key or handle outside or by turnsnib, key or handle inside.
- Zinc diecast body with stainless steel chassis plates for improved strength.
- Electric Strike compatibility.
- 23 mm backset as standard, 25.4, 30 and 38 mm available upon request.
- Suits metal door thickness 35-50 mm.
- 15 mm stainless steel reversible latch bolt.
- Supplied with cylinders.
- Supplied with Selector® 'V' cam.
- Compatible to most restricted keying systems.
- Finish: Matt Black
Details
- CategoryDigital Door Locks, Front Doors, Security Doors
- RangeLockwood
- BrandLockwood
- WarrantyN/A
General
- Country of originAustralia
- Type of useCommercial and Residential
- Package typeFragile - handle with care
- Care and cleaningEasy maintenance
- InstallationTools required
- AssemblyProfessional assembly recommended
Specifications
External furniture
- Narrow stile exterior square end plate.
- Cylinder hole and 70 series tubular lever.
- Concealed fixing.
- Plates are designed to fit back to back.
- External plates supplied with fixing screws.
- Disabled access AS1428.1 compliant lever.
- Plate size: 185 x 26 x 11.5 mm.
- Door Thickness: 32-50 mm.
- Screw fixing centres: 160 mm.
- Finish: Matt Black
Internal furniture
- Narrow stile internal square end plate.
- Plain plate and 70 series tubular lever.
- Visible fixing.
- Plates are designed to fit back to back.
- Disabled access AS1428.1 compliant lever.
- Plate size: 185 x 26 x 11.5 mm.
- Door Thickness: 32-50 mm.
- Fixing holes centres: 160 mm.
- Finish: Matt Black
Technical Specifications
- AS1428.1 Compliant Lever (AS1428.1CO): Yes
- Classroom Function: Yes
- Includes Cylinder/s: Yes
- Narrow Stile Kit 23 mm: Yes
- Square End Furniture: Yes
Scope of use
Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.
What's in the box
Includes:
- 1 x Lockwood Selector Mortice Lock 23mm Backset (3782SS)
- 1 x Lockwood 4800 Series Square End Narrow Plate Internal Furniture (4801/70SC)
- 1 x Lockwood 4800 Series Square End Narrow Plate External Furniture (4905/70SC)
- 1 x Lockwood 570 Oval Cylinder (570C4/VSC)
SKU: ASS3782KIT05MBK
