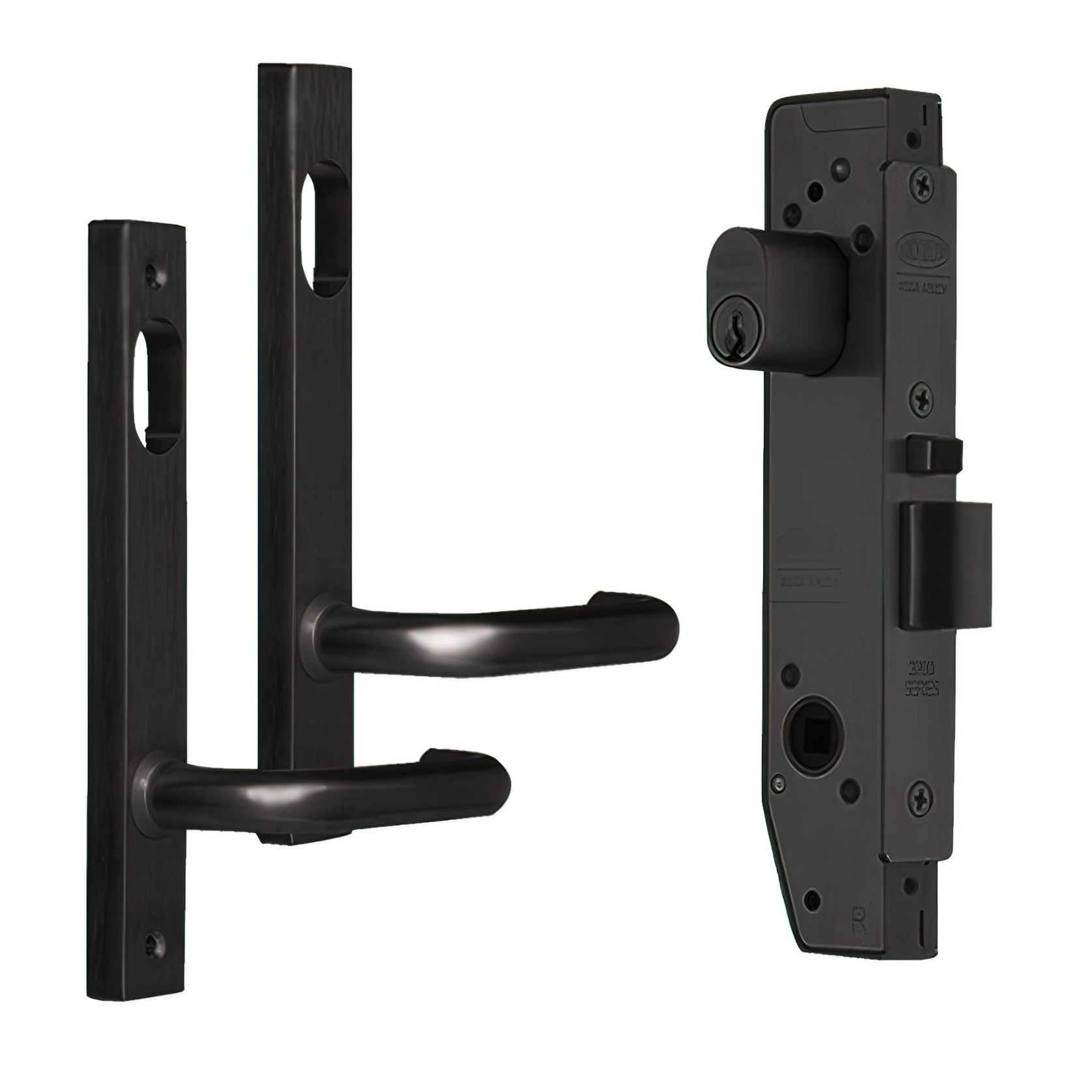

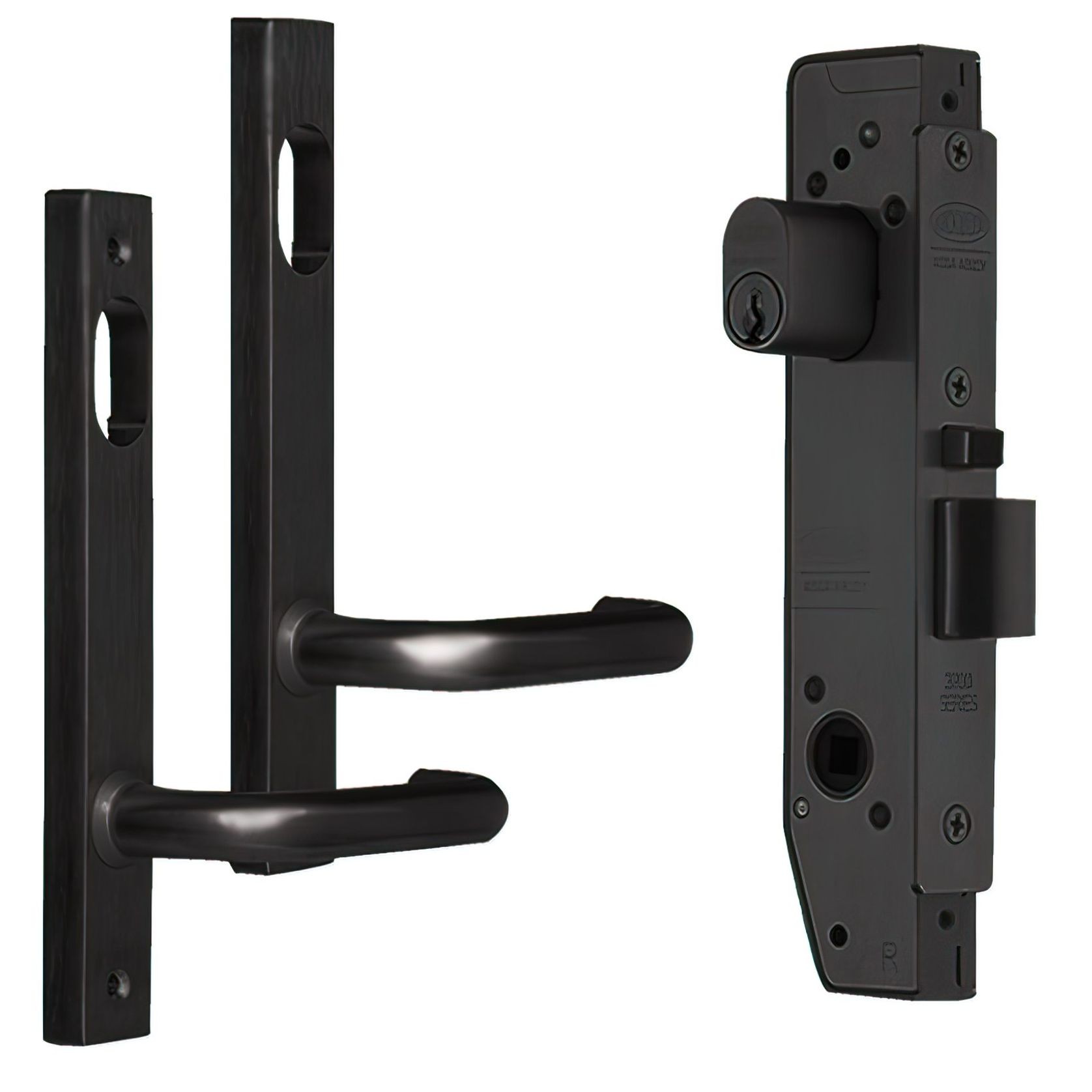

Lockwood Narrow Mortice Lock Kit Black 3782KIT01MBK
Lockwood 3782 Narrow Mortice Lock Kit with Double Cylinder
3782KIT01MBK
Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.
Lockwood Universal Backset Mortice Lock
Features:
- Short backset universal primary mortice lock
- Easy Red /Green function setting.
- All lock settings are made from under the faceplate allowing for simple in-door configuration
- Standard primary locks include holdback and anti-lockout capabilities
- Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected
- Operated by key or handle outside or by turnsnib, key or handle inside
- Electric Strike compatibility
- Supplied with cylinders
- Supplied with Selector 'V' cam
- Compatible to most restricted keying systems
Specifications:
- Backset: 23mm
- Door Thickness: 35mm - 50mm
- Latch Bolt: Reversible 15mm Stainless Steel
- Material:Body: Zinc Diecast
- Chassis: Stainless Steel plates
- Finish: Matt Black
Approvals/Rating:
- Security S7, Corrosion Security C6, Durability D8
Lockwood External and Internal Lever on Plate
Features:
- Narrow stile exterior square end plate
- Cylinder hole and 70 series tubular lever
- Plates are designed to fit back to back
- External plates supplied with fixing screws
Specifications:
- Fixing: Concealed
- Plate Size:Height: 185mm
Width: 26mm
Depth: 11.5mm
Cylinder pitch: 89.9mm
Fixing centres: 160mm - Lever Size:Length: 121mm
Projection: 53mm
Finger clearance: 37mm - Door Thickness: 32mm to 50mm
- Screw Fixing Centres: 160 mm
- Disabled Access: AS1428.1 Compliant Lever
- Finish: Matt Black
Lockwood 570 Oval Cylinder
Features:
- Keyed Cylinder single side only
- Standard V cam included
- Securiturn compatible
- Supplied keyed as random
- Cylinder can be keyed alike allowing one key to operate a range of different products
- Accepts Lockwood Generation 6 BG6570 plug / barrel
Specifications:
- Material: Brass cylinder
- Width: 18mm
- Length: 34mm
- Height: 32mm
- Finish: Matt Black
- CategoryDigital Door Locks
- RangeLockwood
- BrandLockwood
- WarrantyN/A
SPECIFICATIONS: Material:Brass cylinder Width: 18mm Length: 34mm Height: 32mm Finish: Matt Black
Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.
Includes:
- 1 x Lockwood Universal Primary Lock 23mm Backset (3782SS)
- 1 x Lockwood 4800 Series Square End Narrow Plate Internal Furniture (4801/70SC)
- 1 x Lockwood 4800 Series Square End Narrow Plate External Furniture (4901/70SC)
- 1 x Lockwood 570 Oval Cylinder (570C4/VSC)
