Lockwood Elevation Electronic Window Actuator

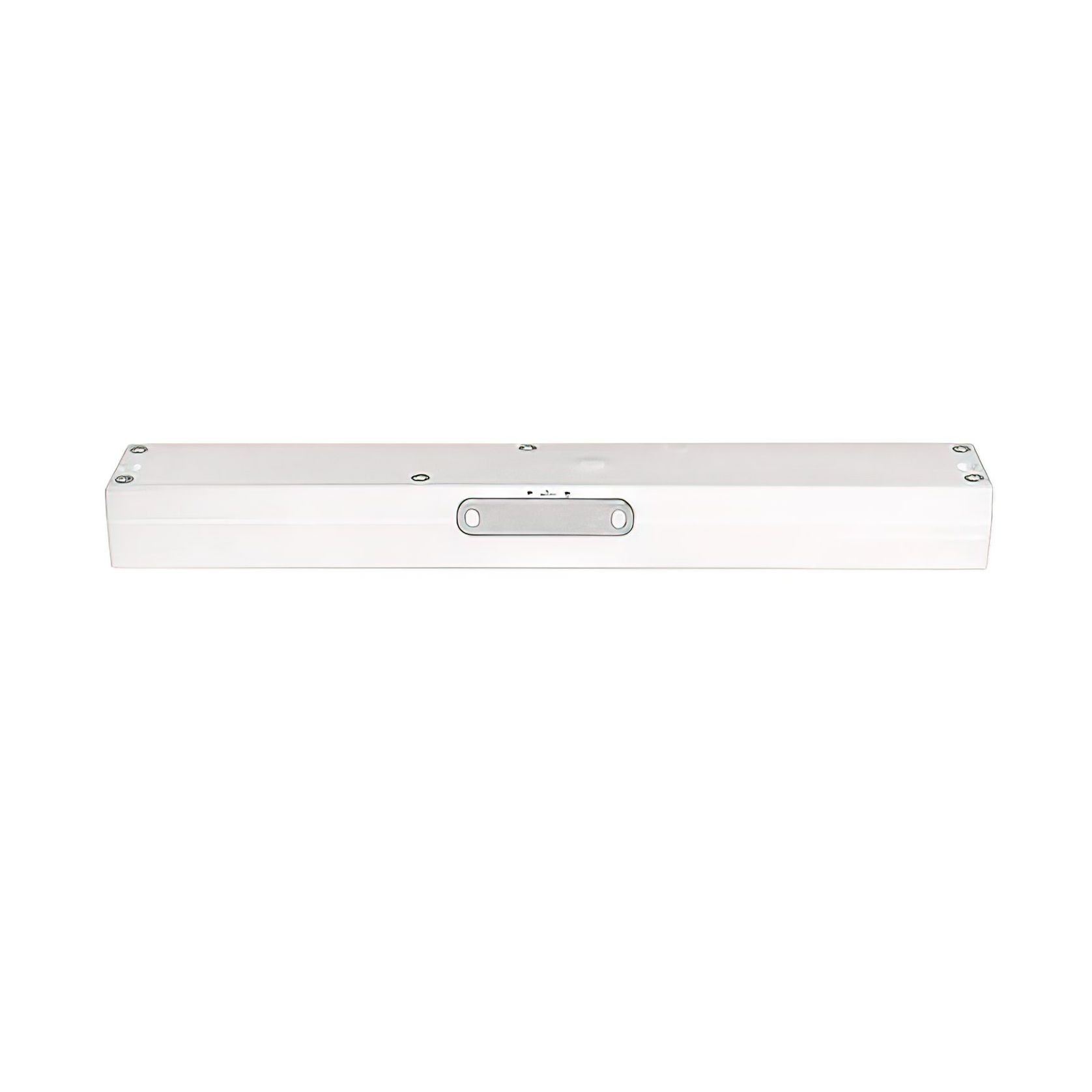

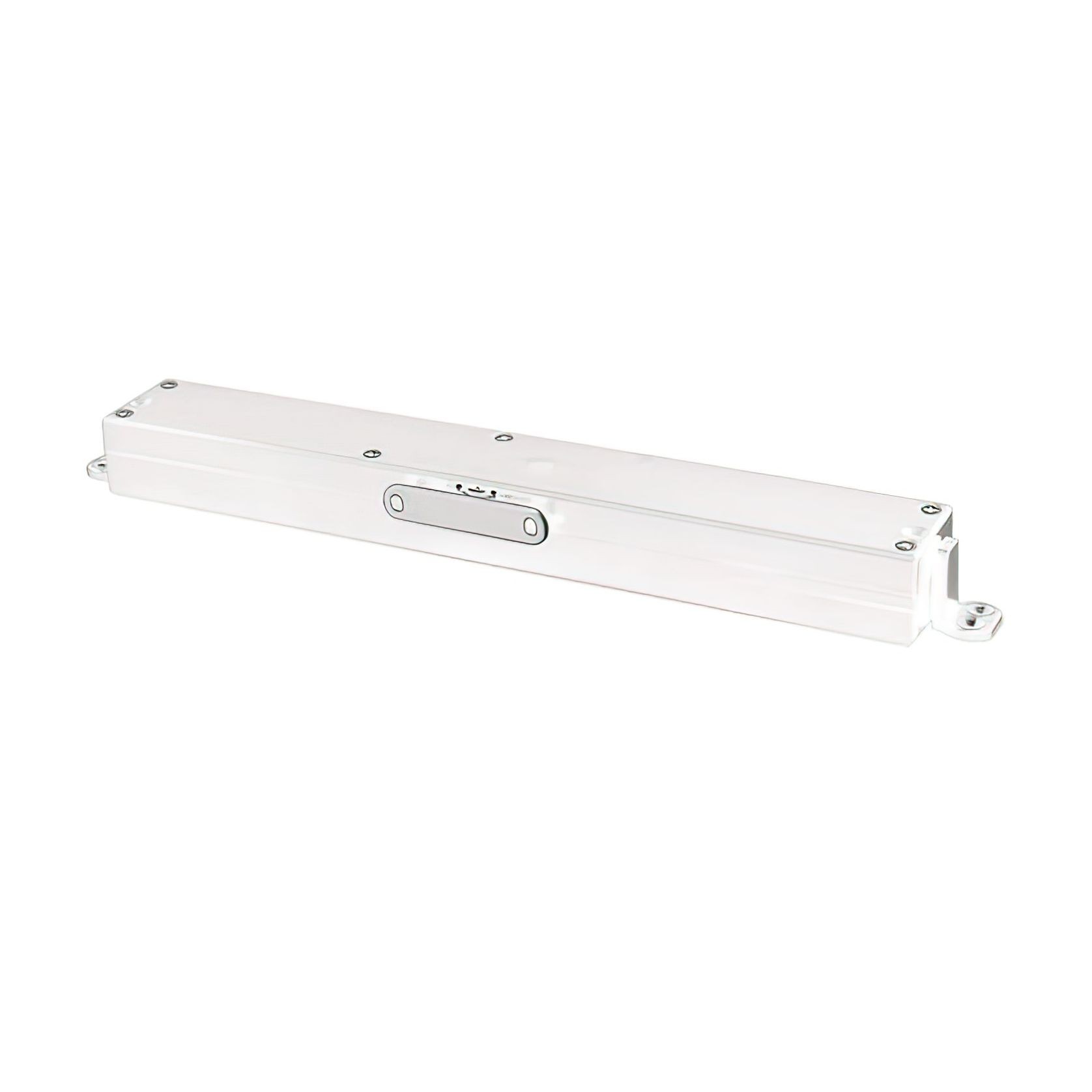

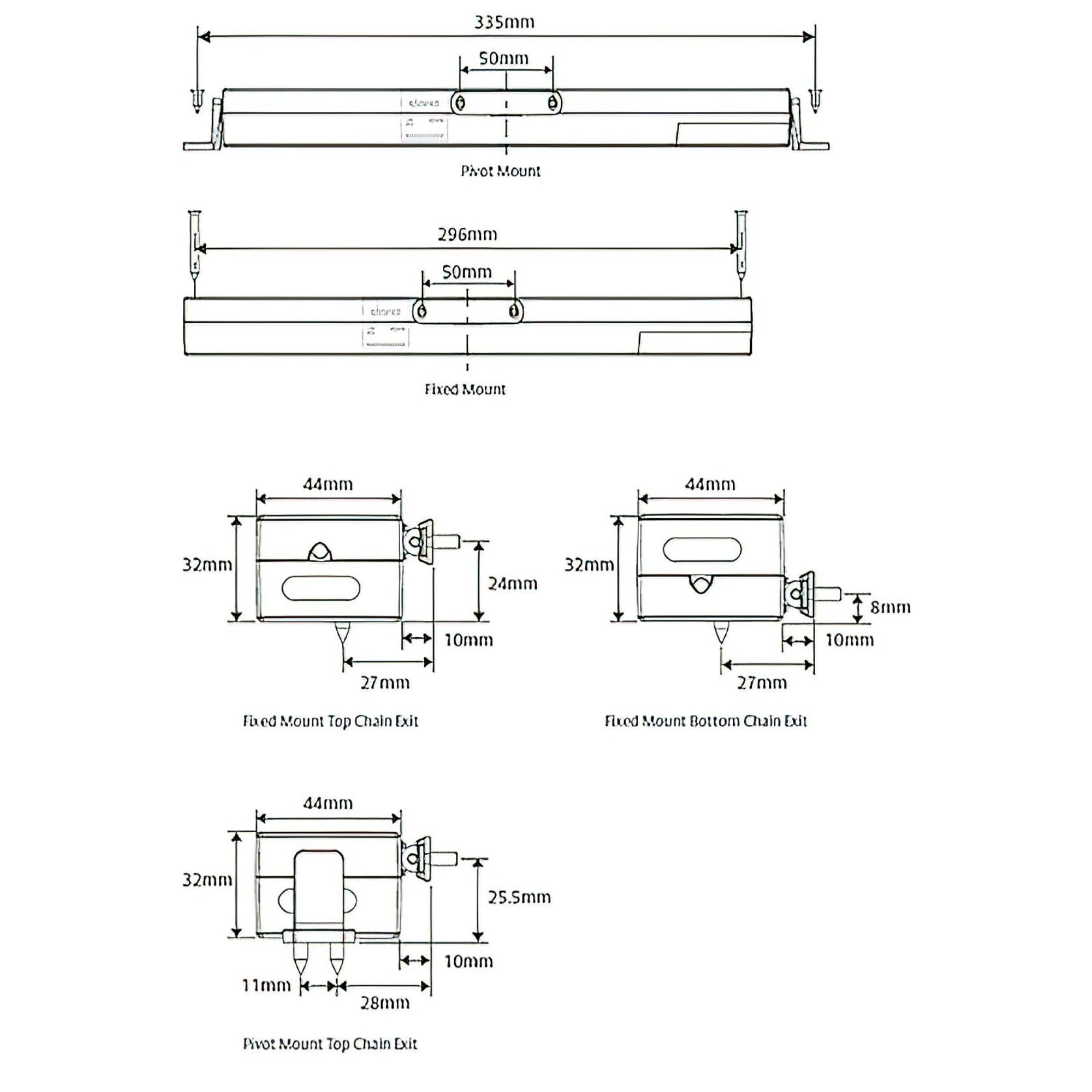

SPECIFICATIONS: Cabling Control Loom: 2m extend up to 300m (Twisted pair) Power Loom: 2m (can extend) 5m Chain Length: 300 mm Chain Limiting: Limit chain between 50mm-300mm atevery 10mm Current: Standby Current 20mA Maximum Peak Load 750mA Dimensions: 32H x 308L x 44D (not including sash bracket) Endurance: 12,000 Cycles Temperature Range: 0 degrees celcius to +60 degrees celcius Humidity: 90% at 35 degrees celcius Materials Furniture body: cast zinc Sash Bracket components: Cast 303SS Chain: 304Stainless Steel Monitoring: Monitor Open Closed 15mm or 50% Negative Holding Force: 220kg Applied force at chain Noise Level: 65dB @ Maximum window Load Open/Close Force: 9kg Voltage: 24-32 VDC Maximum Window width Single Actuator:900mm Maximum Window width Double Actuator:2400mm Minimum Window Height: 300mm Finish: White Standards and Compliance Australian Electrical Regulatory Compliance IP30 Rated (if installed according to installation instructions) DW2 Australian Window Standard (AS4145.3-2001 ) Australian Window Standard for negative force strength pressure (AS4145.3-2001) Notes: Power supplies needs to be ordered separately; One power supply has enough power to operate 2 actuators (windows). Work out if its best to use one power supply to power one window or if the windows are close to each other one power supply can be used to operate both. If two actuators are synchronized they will only count as one on the network. Rain sensors can operate when connected to touch screen display network or wall switch network. If you require a window actuator thats connected to a standalone switch you will need one Network adaptor (EWAC-SNA) per switch. If you require a window actuator thats connected to a Cbus system you will need one Network adaptor (EWAC-SNA) per relay output. You can connect a maximum of two keypads per network You can connect a maximum of four rain sensors per network

• Can be controlled individually or grouped into zones
• Can withstand 220kg applied negative pressure*
• 9kg closing force ensures a tight window seal when closed

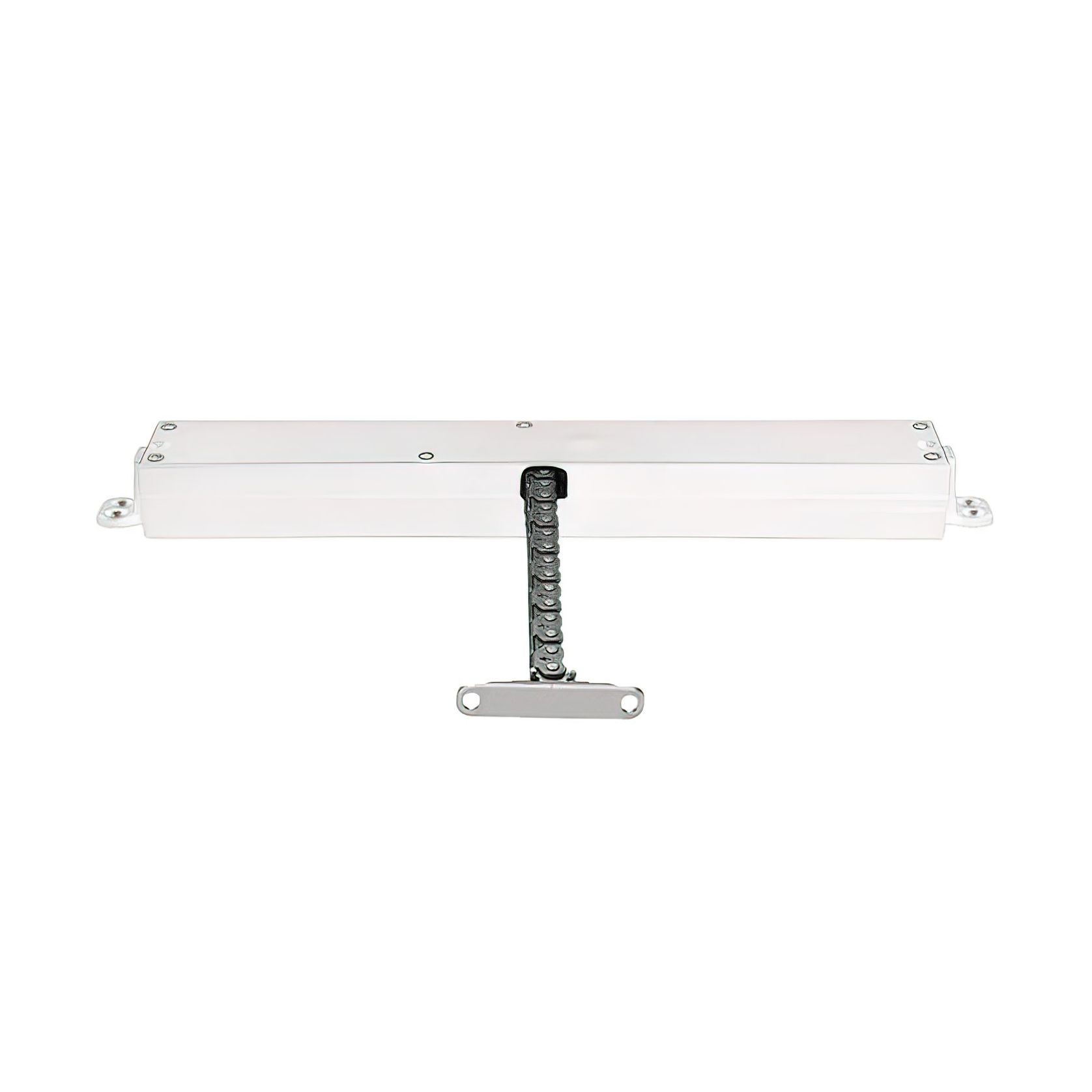

• Smooth chain movement
• 40 seconds Opening/closing time with soft start and stop feature
• Built in anti-collision sensor allows the window to sense an obstacle and stop. 300mm chain opening
• Strong, corrosion resistant stainless steel chain (grade 304)
• Field adjustable chain limiter. Limit chain between 50-300mm at every 10mm
• Quick clutch release Key for easy installation without power connected
• Connect and synchronize a pair of window actuators to one large window
• Ability to install actuator in multiple orientations including top and bottom chain exit
• Will cater for window sashes as short as 300mm high**
• Can connect to touch screen display, standard wall switch or Cbus systems
• Network cabling can span up to 300m without voltage drop
• Connect and control up to 30 window actuators to a touch screen display
• Can connect multiple actuators (30 maximum) to a standard wall switch

• Power supplies needs to be ordered separately; One power supply has enough power to operate 2 actuators (windows). Work out if it’s best to use one power supply to power one window or if the windows are close to each other one power supply can be used to operate both.
• If two actuators are synchronized they will only count as one on the network.
• Rain sensors can operate when connected to touch screen display network or wall switch network.
• If you require a window actuator that’s connected to a standalone switch you will need one Network adaptor (EWAC-SNA) per switch.
• If you require a window actuator that’s connected to a Cbus system you will need one Network adaptor (EWAC-SNA) per relay output.
• You can connect a maximum of two keypads per network
• You can connect a maximum of four rain sensors per network
