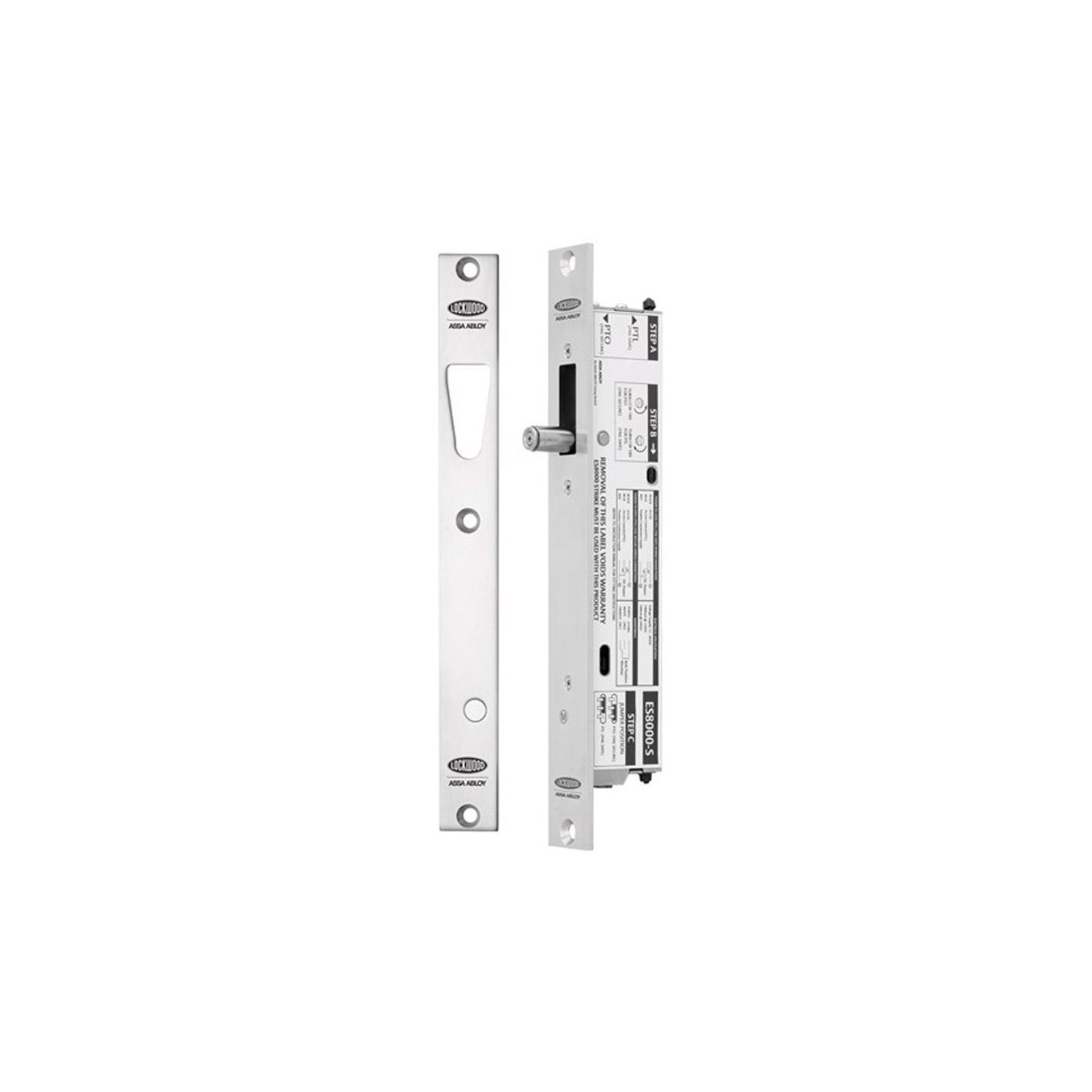

Lockwood V-Lock 12-24VDC Fail Safe Monitored ES80001

Lockwood ES8000 Padde V-Lock 12-24VDC Fail Safe Monitored
​​​​​​​ES8000-1

Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.

• The ES8000, also known as the V-lock is a high torque motorised bolt that moves from the vertical position to the horizontal state when locked. The worlds' first fail-open motor locking mechanism which eliminates the need and cost of an additional key override. Fire rated to 4 hours.

Feautures:

• ES8000 V-Lock
• Overcome the problems of door misalignment in 180 degree swinging doors and the problems of side load
• Door misalignment of up to 3.5mm +/-
• High-torque motorised lock
• Can be concealed from view or surface mounted
• Lock will unlock with up to 15kg of side pressure, when wired in 3 wire mode. (1 x Permanent Power, (positive 12-24vdc) wire Negative (0 volt return) wire, and 1 x Switching input (positive 12-24vdc) wire
• Power to open (fail safe)
• The PA108001010 and the PA108002010 are actually field configurable
• High torque motorised locking and unlocking (3 wire mode)
• High speed operation, unlocks in less than 1 second
