Lockwood Narrow Mortice Lock Kit Cyl/Turn/Handles SC

By Keeler Hardware
Website
Not Applicable

Narrow Cylinder Mortice Lock Kit with Door Lever Cylinder Mortice Lock Kit provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering) Cylinder Mortice Lock Kit Function -where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is operated on the interior and exterior by a knob or lever. Designed to incorporate a greater range of lock functions into one primary lock. First holdback capable lock, also includes an selectable anti-lockout feature. Includes: 1 x 38782SS mortice lock. 1 x 4801/70SC external lever on plate. 1 x 4904/70SC internal lever on plate with turn. 1 x 570 cylinder with keys. 1 x 3772-ADAPTOR turn adaptor. Mortice lock: Short backset universal primary mortice lock. Easy Red/Green function setting. All lock settings are made from under the faceplate allowing for simple in-door configuration. Standard primary locks include holdback and anti-lockout capabilities. Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected. Operated by key or handle outside or by turns nib, key or handle inside. Zinc diecast body with stainless steel chassis plates for improved strength. Electric Strike compatibility. Supplied with cylinders. Supplied with Selector 'V' cam. Compatible to most restricted keying systems. Backset: 23mm backset as standard Suits metal door thickness: 35mm to 50mm. Stainless steel reversible latch bolt: 15mm Finish: Stainless Steel. External furniture: Narrow stile exterior square end plate. Cylinder hole and 70 series tubular lever. Plates are designed to fit back to back. External plates supplied with fixing screws. Disabled access AS1428.1 compliant lever.

Details
  • Category
    Digital Door Locks
  • Range
    Lockwood
  • Brand
    Lockwood
Specifications

Plate SizePlate Size: 185mm x 26mm x 11.5mm Finish: Satin Chrome

Features

Mortice lock:

  • Short backset universal primary mortice lock.
  • Easy Red /Green function setting.
  • All lock settings are made from under the faceplate allowing for simple in-door configuration.
  • Standard primary locks include holdback and anti-lockout capabilities.
  • Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected.
  • Operated by key or handle outside or by turnsnib, key or handle inside.
  • Zinc diecast body with stainless steel chassis plates for improved strength.
  • Electric Strike compatibility.
  • Supplied with cylinders.
  • Supplied with Selector® 'V' cam.
  • Compatible to most restricted keying systems.
  • Backset: 23mm backset as standard
  • Suits metal door thickness: 35mm to 50mm.
  • Stainless steel reversible latch bolt: 15mm
  • Finish: Stainless Steel.

External furniture:

  • Narrow stile exterior square end plate.
  • Cylinder hole and 70 series tubular lever.
  • Plates are designed to fit back to back.
  • External plates supplied with fixing screws.
  • Disabled access AS1428.1 compliant lever.
  • Plate size: 185mm x 26mm x 11.5mm
  • Suits door thickness: from 32mm to 50 mm
  • Screw fixing centres: 160mm
  • Fixing: Concealed
  • Finish: Satin Chrome

Internal furniture

  • Narrow stile internal square end plate.
  • Turnsnib and 70 series tubular lever.
  • Features a unique self adjusting turnsnib tail bar to suit varies door thickness.
  • Visible fixing.
  • Plates are designed to fit back to back.
  • Disabled access AS1428.1 compliant lever.
  • Fixing: Visible
  • Fixing holes centres: 160mm
  • Suits door thickness: from 32mm to 50mm
  • Plate size: 185mm x 26mm x 11.5mm
  • Finish: Satin Chrome

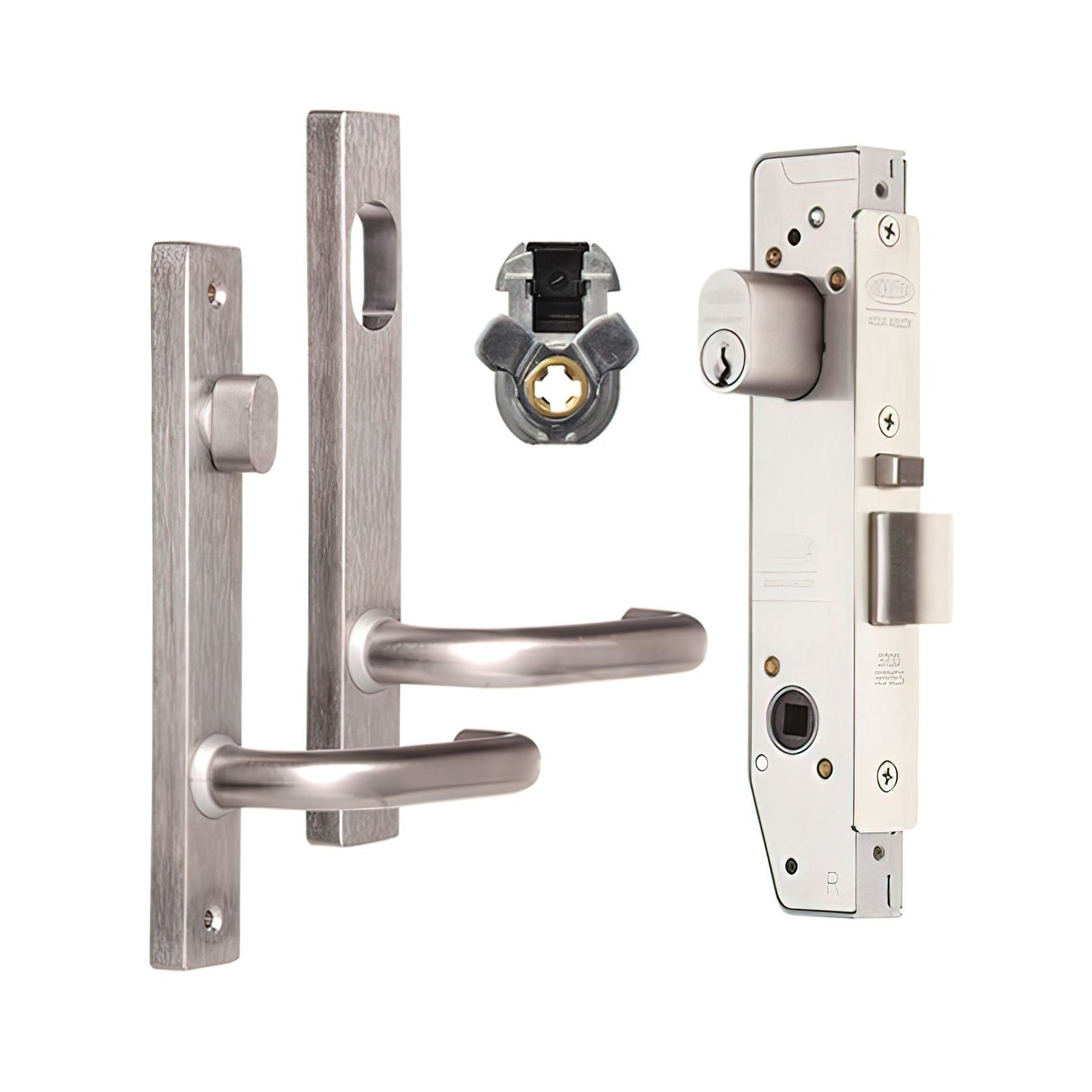

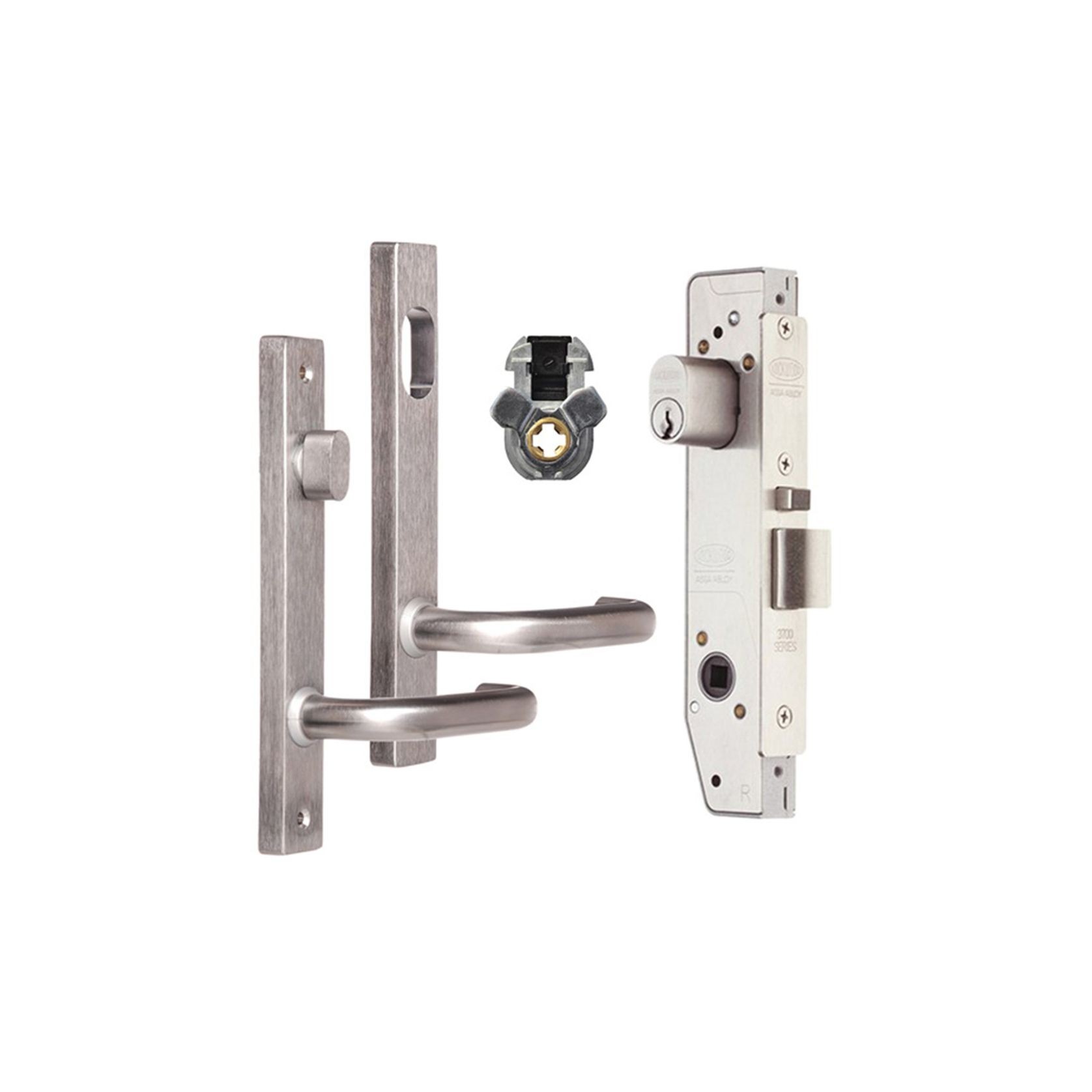

Includes:

  • 1 x 38782SS mortice lock.
  • 1 x 4801/70SC external lever on plate.
  • 1 x 4904/70SC internal lever on plate with turn.
  • 1 x 570 cylinder with keys.
  • 1 x 3772-ADAPTOR turn adaptor.
SKU: MDZC900A19SSS
