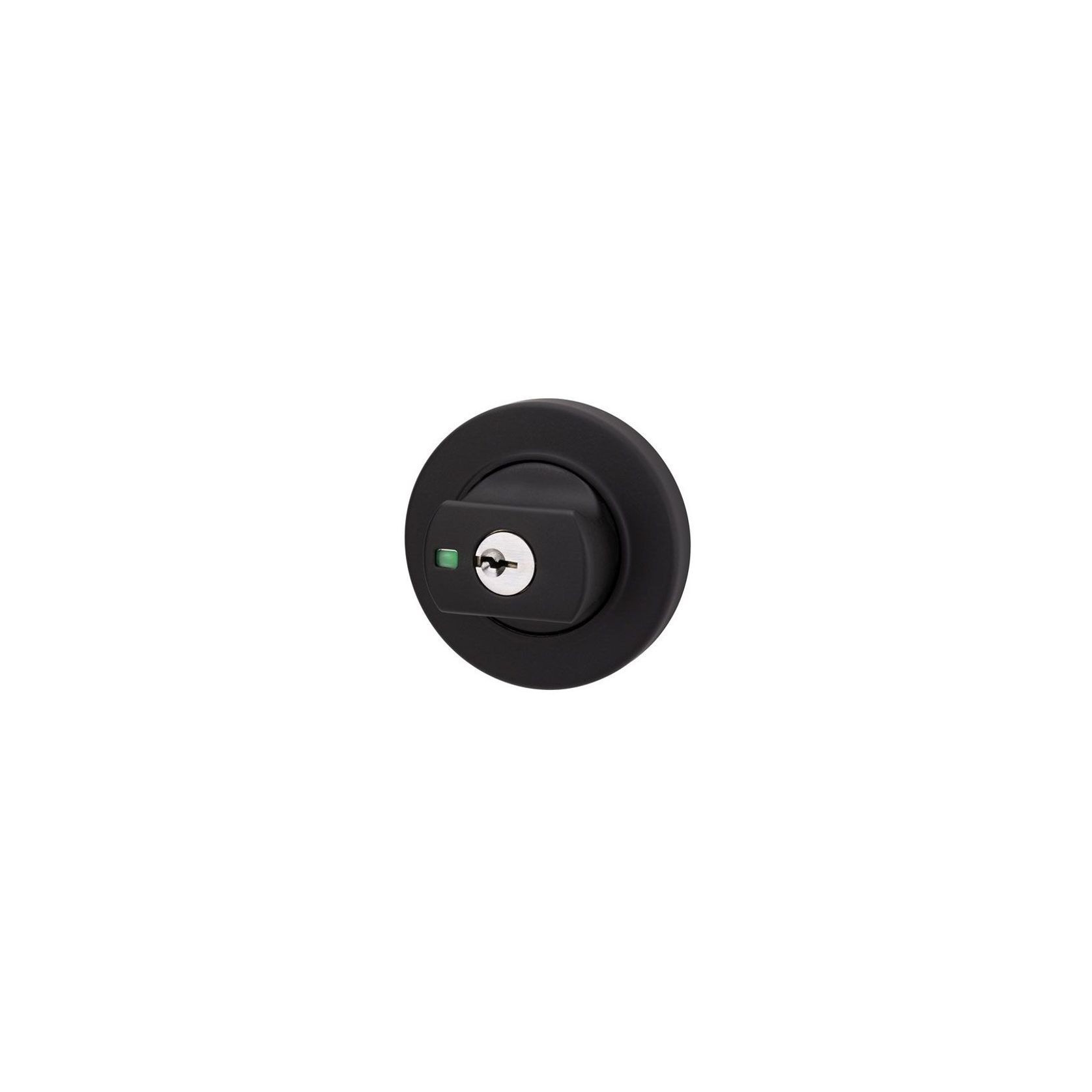

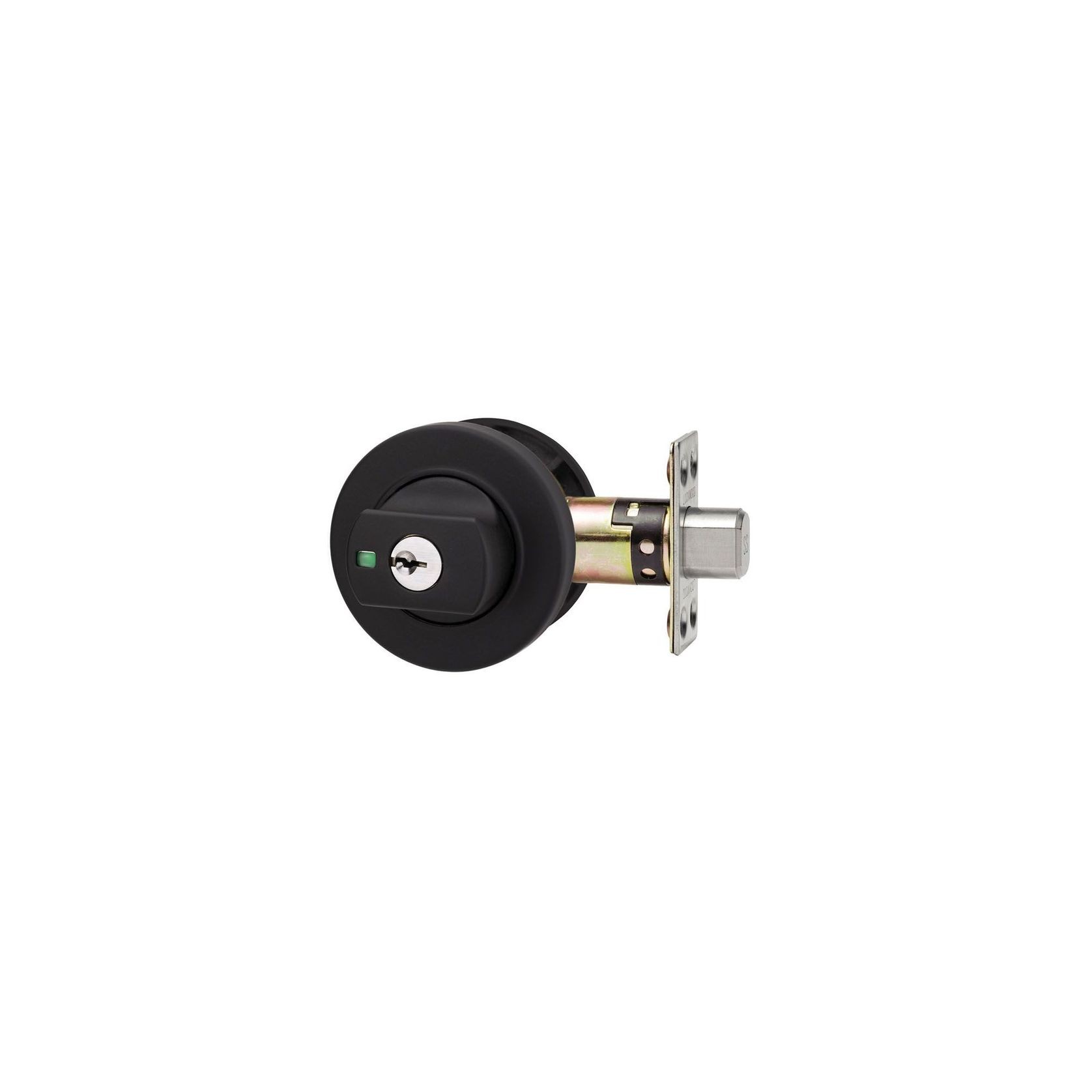

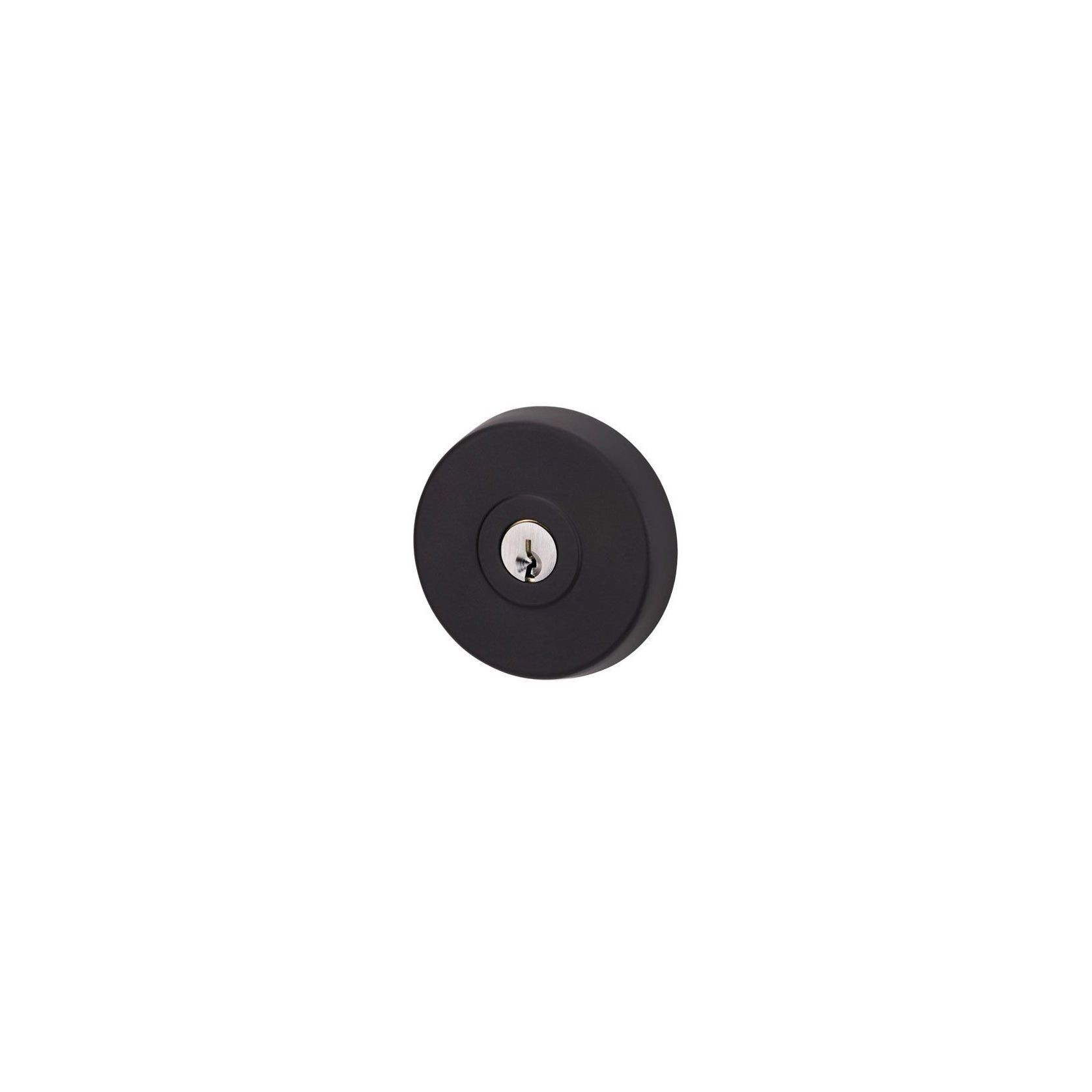

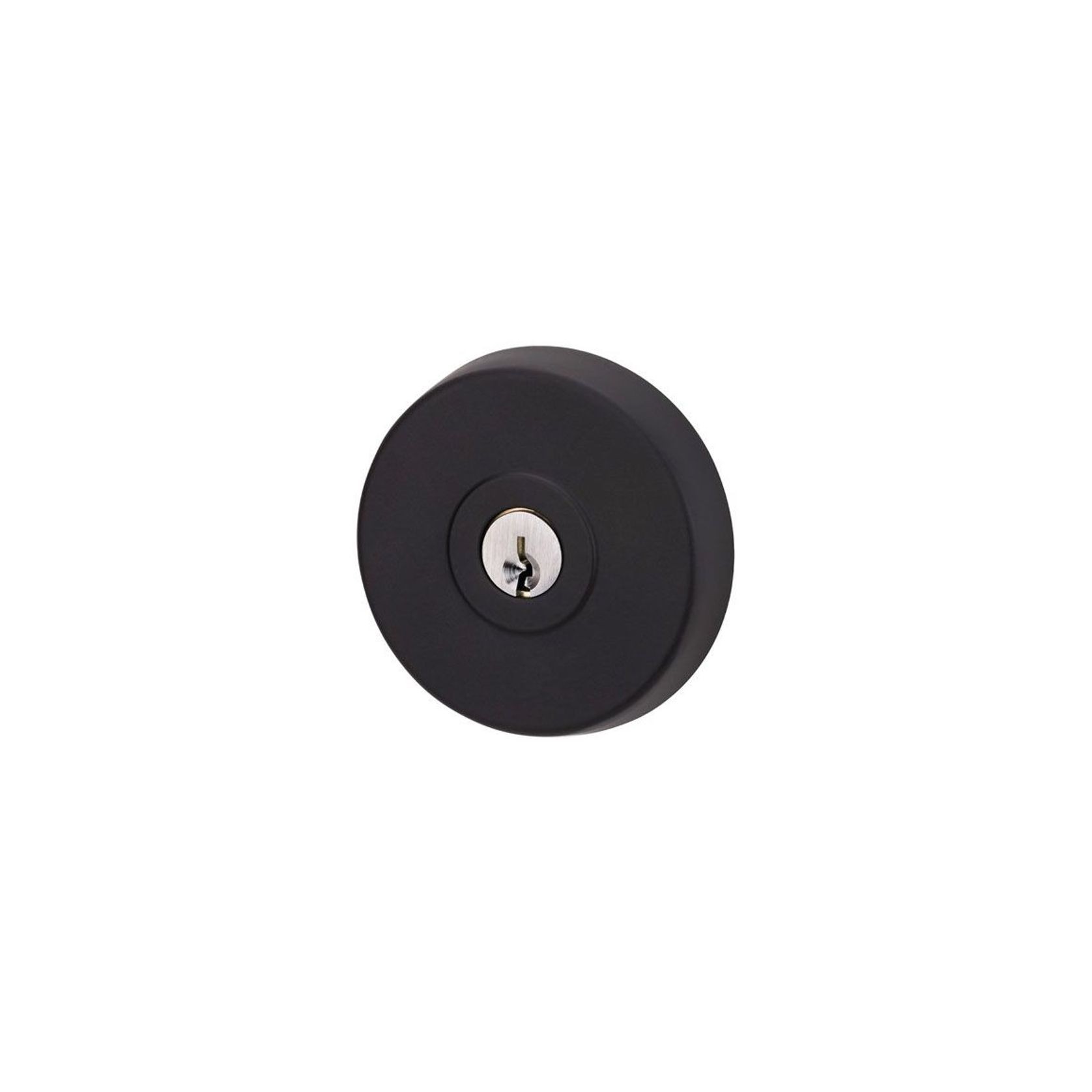

Lockwood Paradigm 005 Double Cylinder Deadbolt

Designed in Australia, the Paradigm® 005 Double Cylinder Deadbolt represents the pinnacle in deadbolt security products. Incorporating innovative safety features including Safety Release™, LockAlert® and DualSelect®, the Paradigm 005 Double Cylinder Deadbolt is ideal for residential and architectural applications.

Its contemporary styling can be combined with the entrance handle and leversets in the Nero range to create an elegant look to any front door.

Features of the Paradigm® 005 Double Cylinder Deadbolt

  • Multi-mode slimline deadbolt providing safety, security and convenience
  • SafetyRelease™ automatically unlocks internal turn knob upon key entry from outside
  • Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
  • High security cut resistant stainless steel bolt
  • Counterbalance bolt distributes load between door and door frame
  • Simple to install, retrofits existing deadbolt door preparations

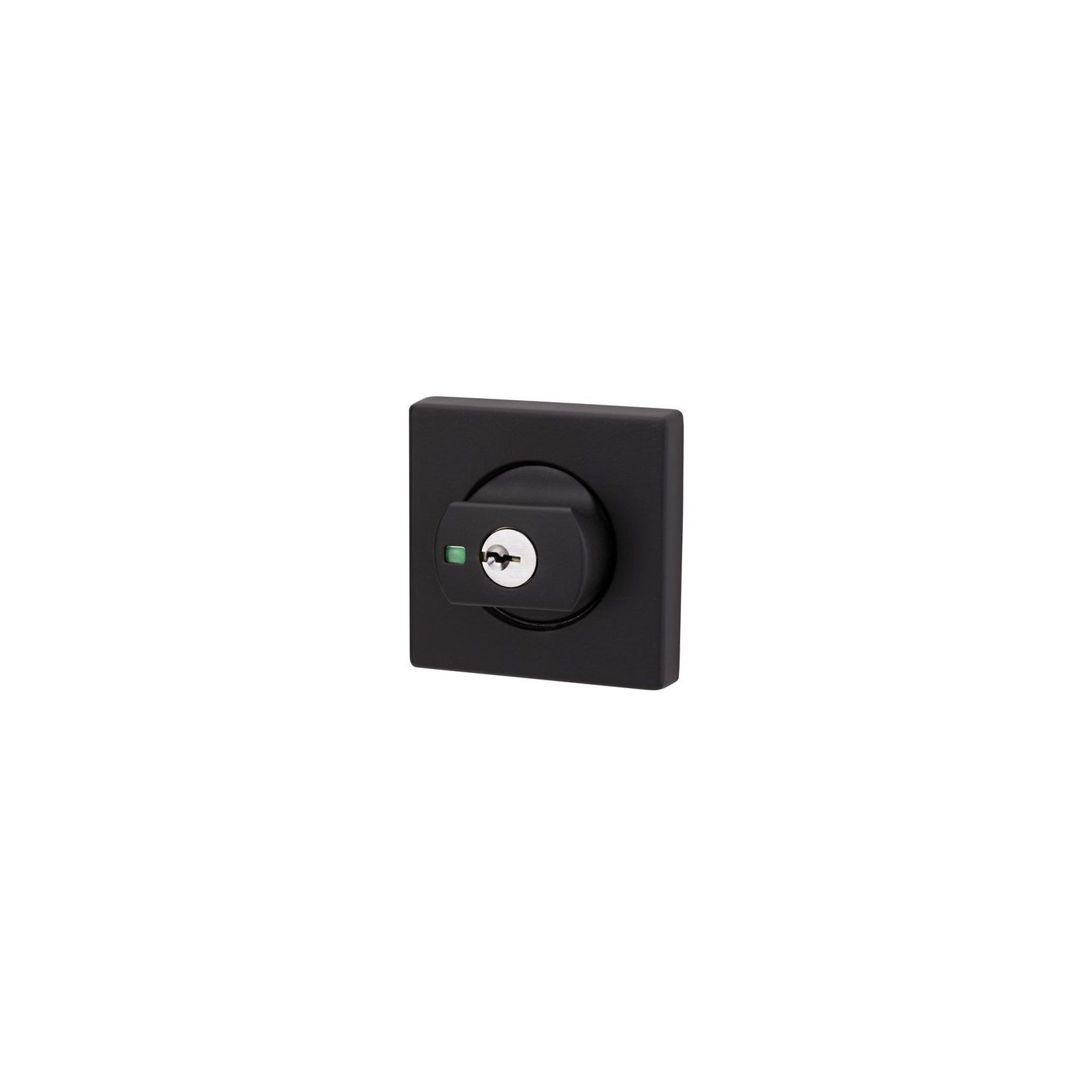

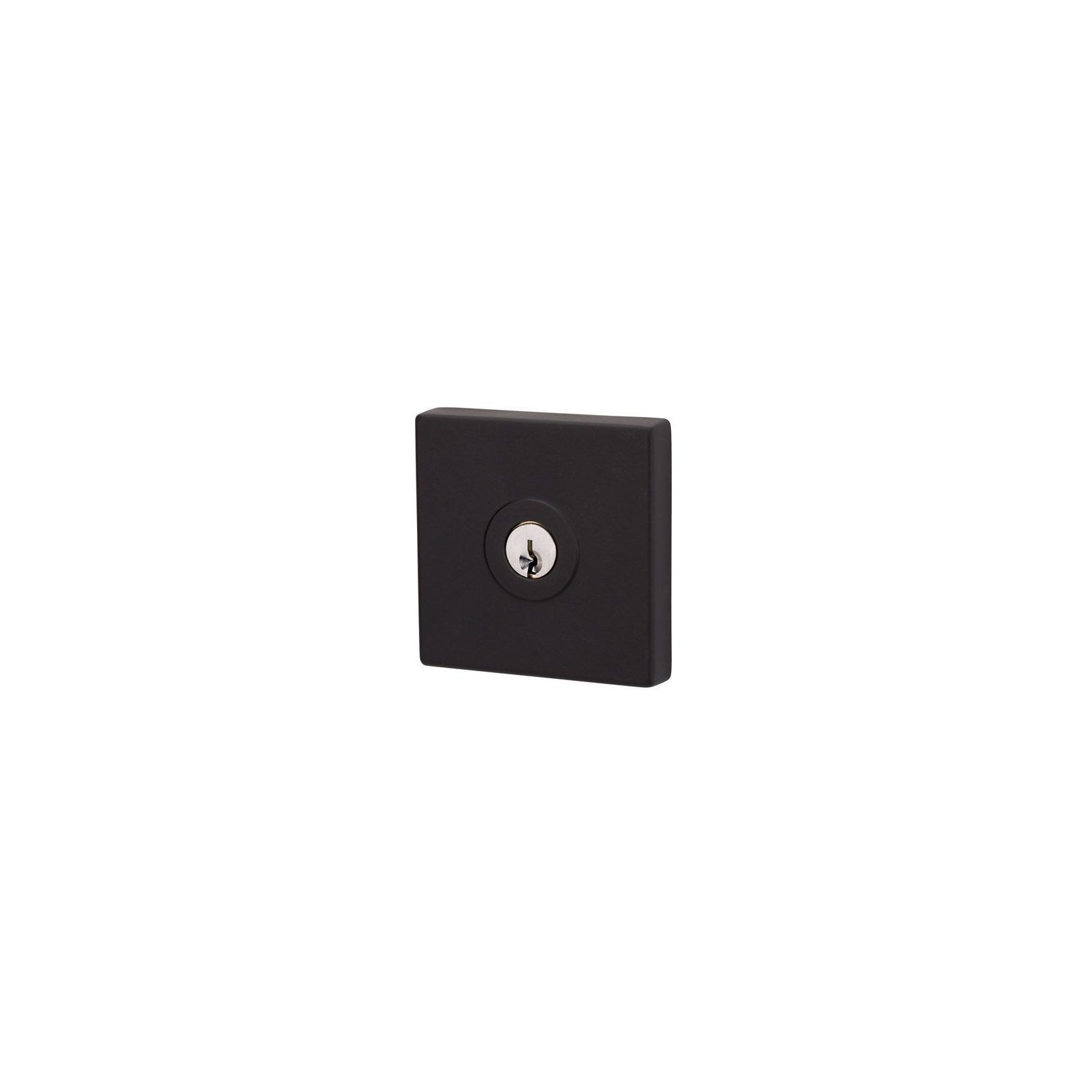

  • Available in round or square designs

LockAlert
The 005 Deadbolt incorporates Lockwood's patented LockAlert status indicator that shows the Lockset mode at a glance. The lockset can operate in three modes:

Secure Mode
Locked from the inside and outside.

Safety Mode
Locked from the outside and free to exit from inside.

Passage Mode
Free to enter from outside and free to exit from inside.

DualSelect®
Turn the key for safety mode.Turn the key further to select secure mode.

SafetyRelease™
Automatically unlocks the internal knob upon entry minimising the risk of being locked in.

Anti-Corrosion
Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test.

Kinetic Defence®
Bump and pick resistant.

Counterbalance Bolt
Proportionally distributes the load between the door and door frame.

Retrofitable
Replace your existing Deadbolt.
Fits 54mm hole.
60-70mm adjustable backset.
32-48mm door thickness.

2 Keys Included
Can be keyed alike to other Lockwood door locks.

Details
  • Category
    Latches and Locks
  • Range
    Nero® Collection
Specs / Details

Backset  60-70mm adjustable

Materials  High purity zinc alloy

Door Thickness  32 to 48mm

Finishes  Matt Black

Bolt  High security cut resistant stainless steel bolt

Strike  Box strike with concealed crossgrain door frame strengthening screw

Cylinder

  • Internal and External
  • 5 pin tumbler mechanism
  • Brass cylinder and barrel

Standards and Compliance

  • Security - Australian Lock Standard AS4145.2-2008
  • Durability - Australian Lock Standard AS4145.2-2008
  • Corrosion - Australian Lock Standard AS4145.2-2008

Keying

Standard Keying

  • Supplied individually keyed with two keys per lock
  • 78,000 key combinations
  • Key blank KB2015P
  • AS 4145.2-2008 K5

Restricted Special Keying

Lockwood locks can be keyed to a number of controlled and/or specially keyed systems.

These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.
