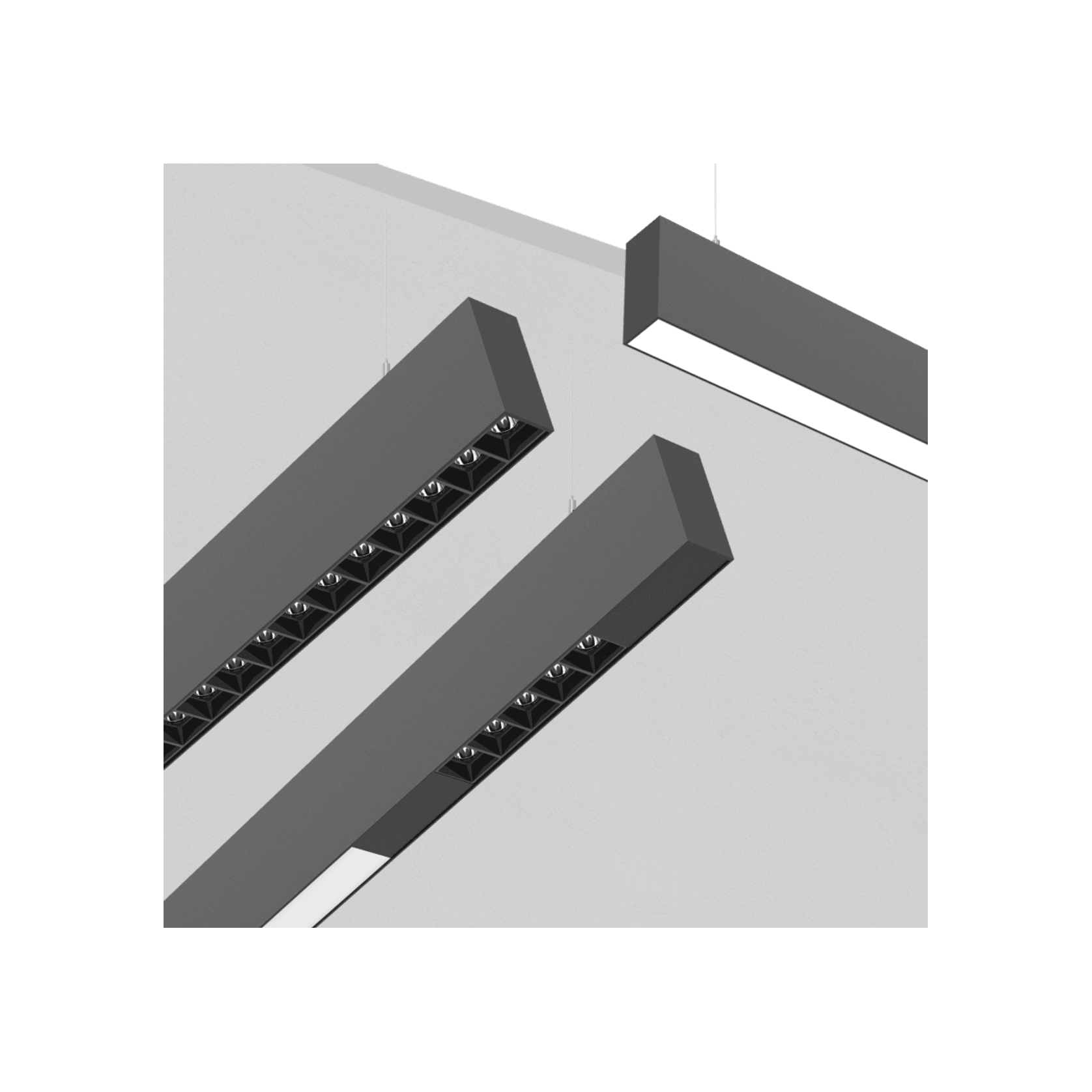

Suspended Mounted Linear LED Profile

Morph-30 LED linear lighting system is a configurable lighting system that uses customisable linear profiles, inserts and accessories to create unique application specific luminaires. The system gives engineers, designers and contractors the ability to create different lighting scenarios and environments in a single luminaire design. It is available as standard in a diffused zero dot LED PMMA diffuser for low visual glare. Low-glare cell modules can also be integrated into the system to provide a fixed light points to aid in task lighting or to create visual interest.

Regardless of the configuration Morph-30 can be wire or rod suspended for a range of applications. The Morph-30 integrates Vossloh Schwabe LEDs and controls, plus optional DALI-2 or Bluetooth dimming. Systems are backed by a 5 year warranty.

Details
  • Category
    Linear Lighting
  • Range
    Linear Systems
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage/m:

  • 11W (System 13W)
  • 19W (System 22W)
  • 28W (System 32W)

Luminous Flux/m:

  • 1068 - 1138 Lm
  • 1735 - 1892 Lm
  • 2380 - 2574 Lm

Luminaire Efficacy:

  • 87.54 Lm/W
  • 86.0 Lm/W
  • 80.44 Lm/W

CCT:

  • 3000K
  • 4000K
  • 5000K

CRI: >85

Distribution: 110°

Colour Deviation: 3-SDCM

Mounting: Suspended

Size: Width 33.6mm x Height 75mm x Length custom

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casmabi)

Longevity: >72,000Hrs L80 B10

Finish Options:

  • White
  • Black
  • Silver
  • Custom

Warranty: 5 Years
