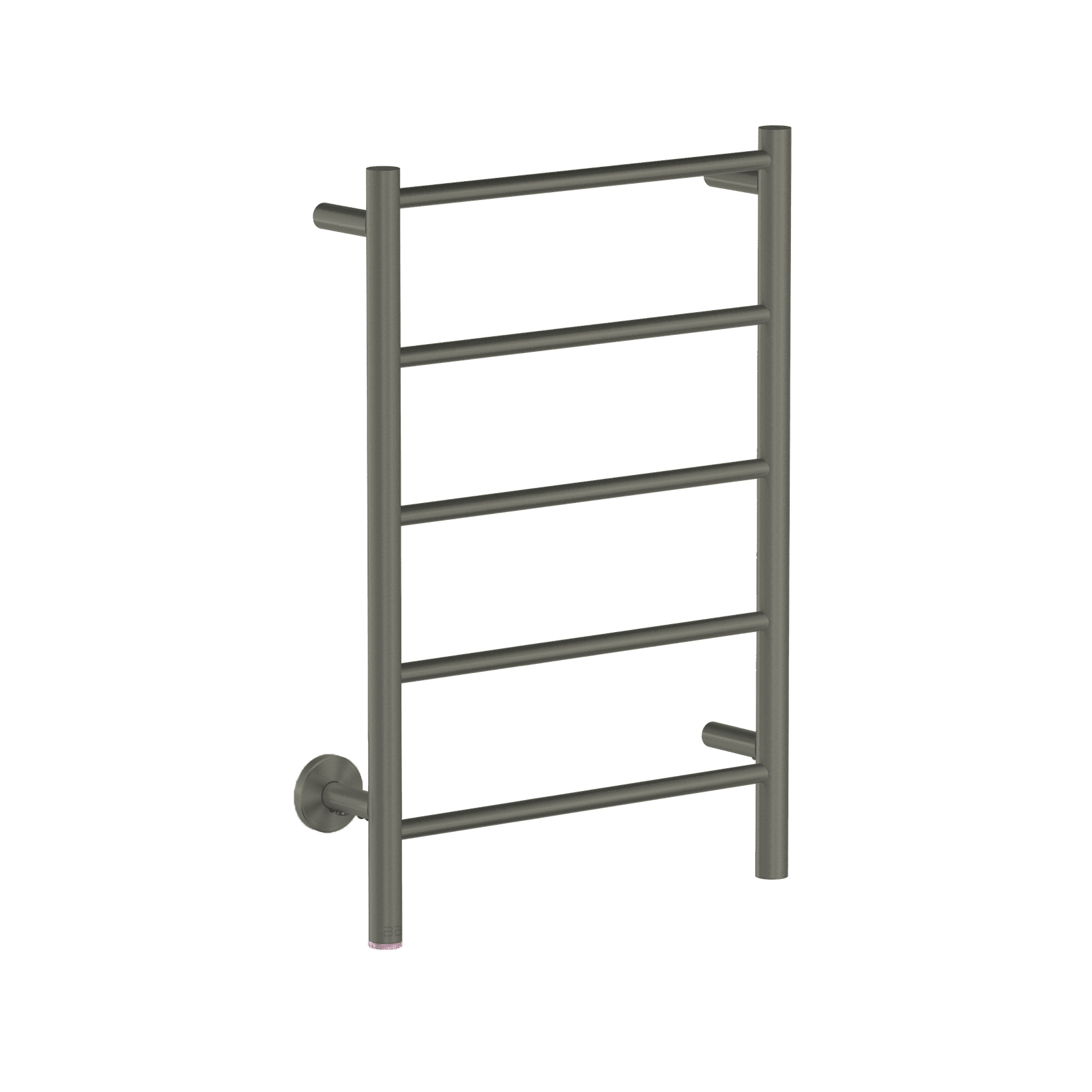

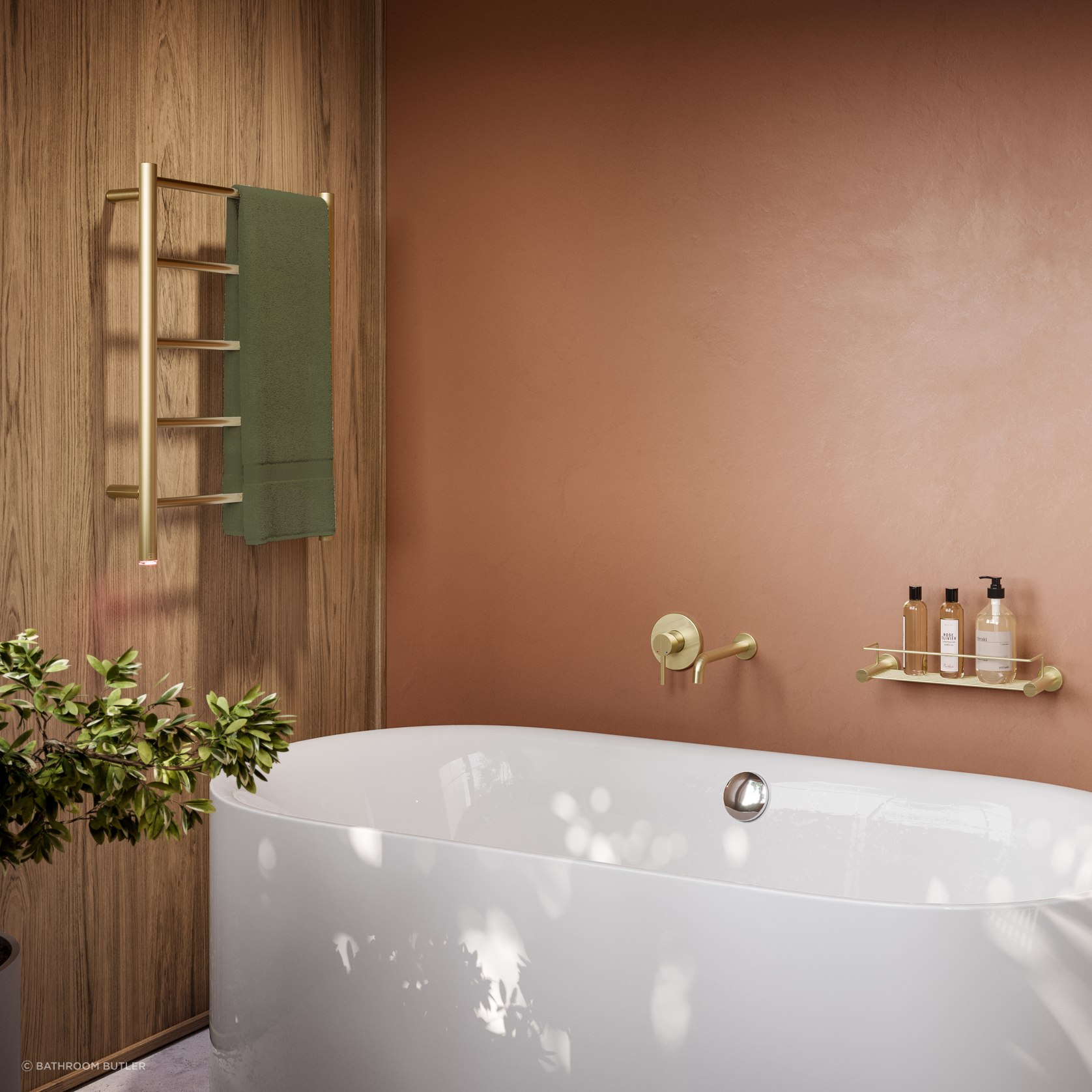

NATURAL 5 Bar 500mm Straight Heated Towel Rail with PTSelect Switch

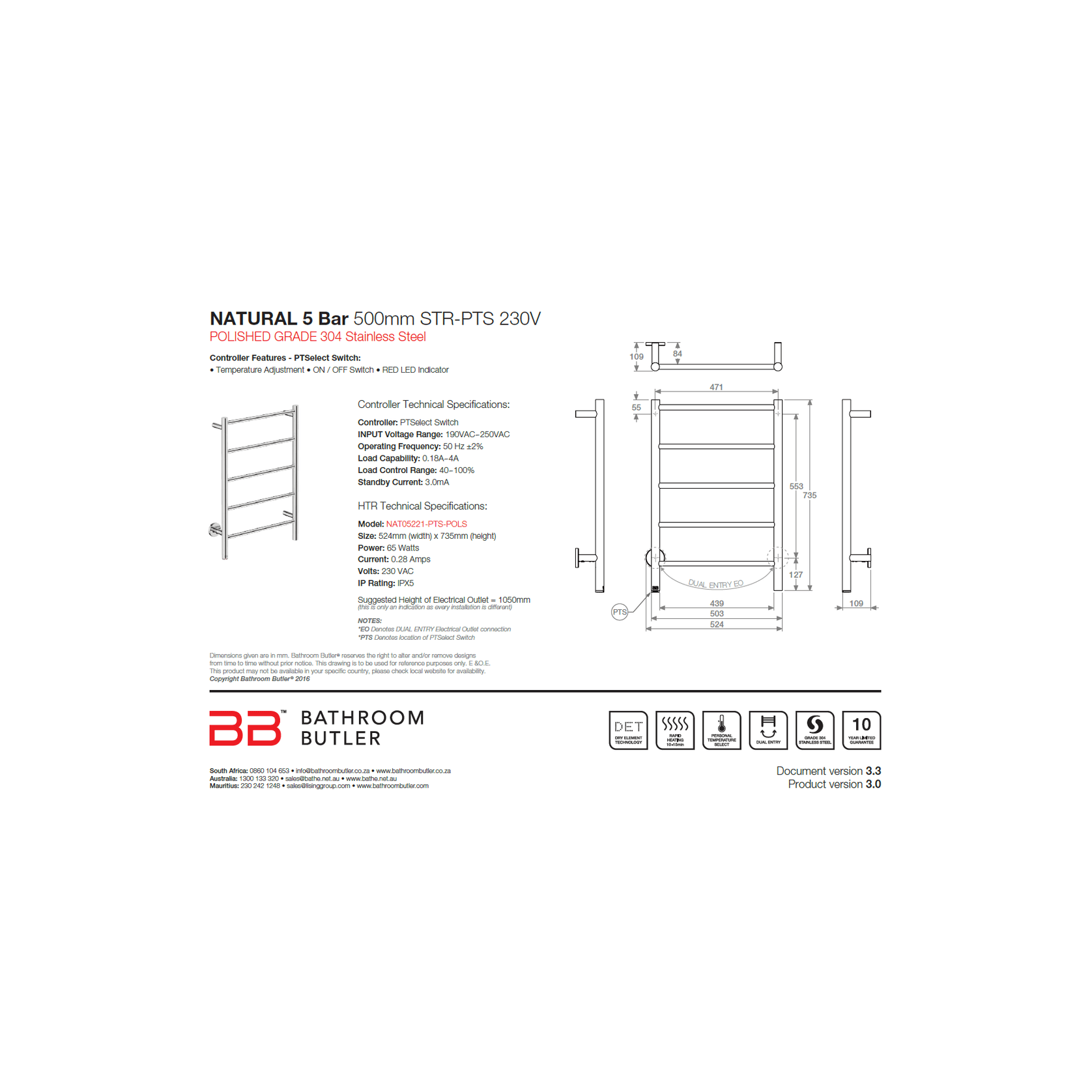

Heated Towel Rails Specs:

Model: NAT05221-PTS

Size: 524mm (width) x 735mm (height) x 109mm (depth)

Power: 65 Watts

Current: 0.28 Amps

Volts: 230 VAC

IP Rating: IPX5

Material: GRADE 304 Stainless Steel

Time Needed for Heated Towel Rail to Reach Optimum Temperature: 10 - 15 mins

Time Needed to add a touch of warmth to dry towels: 30 -40 mins (when folded correctly in four layers)

Time Needed to dry an average used damp towel: 4 – 5 hours (when folded correctly in four layers)

Suggested Height of Electrical Outlet = 1050mm (this is only an indication as every installation is different)

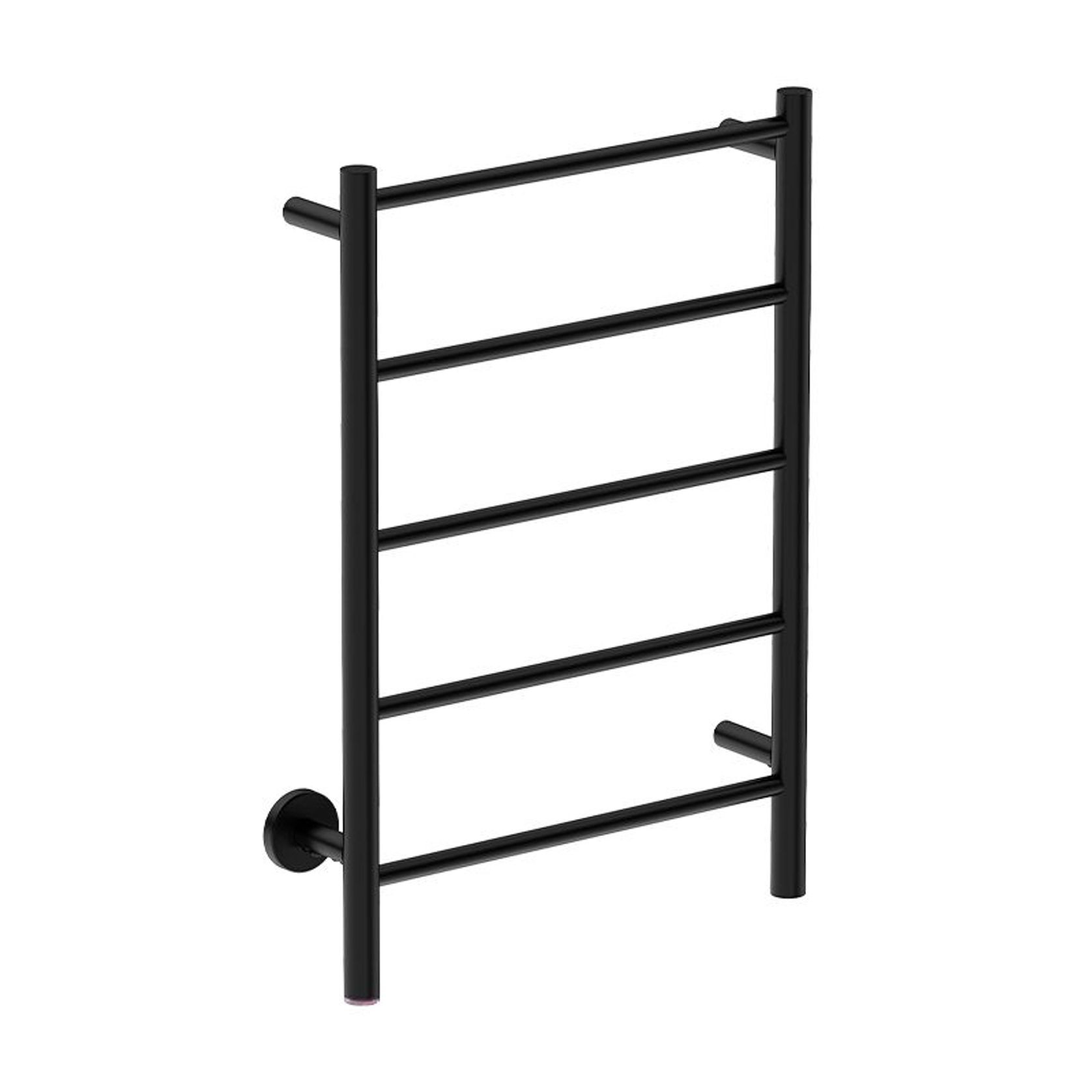

Standard Finishes Available: POLISHED Grade 304 Stainless Steel / MATT Black

Controller Specs:

Controller: PTSelect Switch

Features: Temperature Adjustment + ON / OFF Switch + RED LED Indicator

INPUT Voltage Range: 190VAC~250VAC

Operating Frequency: 50 Hz ±2%

Load Capability: 0.18A~4A

Load Control Range: 40~100%

Standby Current: 3.0mA

The NATURAL 5 Bar 500mm Straight Heated Towel Rail with PTSelect Switch offers luxury and convenience for your bathroom, making it perfect for a variety of applications. It is ideally suited for smaller bathrooms but can also be used in larger spaces where efficient towel drying is desired. With its ability to accommodate up to 2 bath sheets, it provides ample drying space for towels of various sizes. The rotary manual switch allows for effortless control of the on/off function and temperature adjustment, catering to individual preferences. Thanks to its Rapid Heating technology, damp towels become a thing of the past, making it suitable for both residential and commercial settings where maintaining hygienic and dry towels is essential. Additionally, its energy-efficient design, with energy consumption equivalent to that of a 65-watt light bulb, makes it suitable for environmentally-conscious consumers looking to reduce their carbon footprint. Overall, this heated towel rail elevates the bathroom experience, making it a versatile and essential addition to any space.

The functions of the NATURAL 5 Bar 500mm Straight Heated Towel Rail with PTSelect Switch include:

1. Efficient Towel Drying: The heated towel rail effectively dries towels, reducing dampness and preventing bacterial growth.
2. Space Optimization: With its compact design and 500mm width, it is perfect for smaller bathrooms, maximizing space while providing ample towel drying capacity.
3. Accommodation of Bath Sheets: The rail can hold up to 2 bath sheets, offering sufficient space for drying large towels.
4. Temperature Control: The rotary manual switch allows users to effortlessly control the on/off function and adjust the temperature to their desired level for personalized comfort.
5. Rapid Heating Technology: The towel rail reaches its optimal drying temperature within just 10 to 15 minutes, ensuring towels are dry within 4 to 5 hours when folded into four layers.
6. Energy Efficiency: With energy consumption equivalent to that of a 65-watt light bulb, the towel rail reduces energy costs while providing efficient towel drying.
7. Enhanced Bathroom Experience: By keeping towels fresh, dry, and free from bacteria, the heated towel rail elevates the overall bathroom experience, providing comfort and convenience for users.

Adjust the Temperature of your Heated Towel Rail

Whether you like the temperature of your heated towel rail hot, medium or cool, we've got you covered. With the built-in Personal Temperature Selection (PTSelect ) Switch, you can personalise your heated towel rail by adjusting the temperature to what suits you the best. You can also switch on and off as needed and reduce running costs by up to 60% when doing so.

DET - Dry Element Technology

DET is the advanced heating technology that we use in our heated towel rails and it boast benefits of RAPID HEATING, where the heated towel rail heats up to working temperature within 10 -15 mins, as well as DIRECT INTELLIGENT HEATING, where it allows an increase in temperature in the horizontal bars under the damp towel. It also allows for DUAL ENTRY electrical connections with both LEFT and RIGHT hand wiring.

Rapid Heating

RAPID HEATING is a major advantage of DET, where our heated towel rails reach optimum working temperature within 10 -15 minutes of being switched on. This means they are economically efficient to switch on and off as and when needed.

DUAL Entry Electrical Connection

When installing a Bathroom Butler heated towel rail, do you choose a left or right electrical point? Well, it doesn't matter actually! Our heated towel rails have dual entry electrical connection suitable for both left-hand or right-hand wiring, providing a solution for every bathroom design. And because there is no fluid within our rails, you can also install them upside down if it better suits your electric point.

The Perfect Material Choice

GRADE 304 Stainless Steel is the finest material choice for our heated towel rails because its natural corrosion resistance properties prevent rusting, staining, peeling, flaking or chipping. Grade 304 Stainless Steel is also a hygienic material – it is non porous, and it does not collect bacteria or algae.

Cleaning and Care: To keep the product in pristine condition, simply wipe it down with a warm damp cloth and then buff dry with a microfiber cloth. You could also on occasion, use a Chlorine-free stainless steel cleaner to maintain the gorgeous shine. If you use a stainless steel polish, make sure it is abrasive free. When cleaning wall surfaces around your heated towel rail make sure not to use any household detergents that contain Chlorine-based chemicals such as bleach, this will cause permanent damage to the surface of the stainless steel.

What’s in the box:

• Heated Towel Rail
• Mounting kit which includes masonry wall fasteners [Fischer UX 6mm Plastic Plugs and Screws (2 pieces), Fischer UX 8mm Plastic Plugs and Screws (3 pieces)]
• Installation Instructions (1 piece)
• Mounting template (1 piece)

Tools needed (not supplied):

Drill & Drill bits

• 6mm and 8mm Diamond drill bit – if drilling through Ceramic tiles
• 6mm and 8mm Masonry drill bit – if drilling into Masonry (Brick)

Measuring tape

Pencil

PH2 screwdriver

Spirit level

Installation Tip:

• Check for water pipes before drilling
• In Masonry walls, always drill a smaller pilot hole first for better accuracy regarding location and sizing

Manufacturers Warranty:

The Bathroom Butler® heated towel rails (HTRs) are manufactured from polished stainless steel. All stainless steel components of Bathroom Butler’s HTRs, excluding the colour finishes, the heating element, PTSelect Switch and TDC Timer, are guaranteed against any manufacturing defects for a period of 15 years from the date of purchase, as printed on the sales docket, which must be provided as proof of purchase upon return of the goods. This updated Guarantee only applies to HTRs purchased after 1 January 2020, all HTRs purchased prior to 1 January 2020 but after 1 August 2013 carry a 10 Limited Guarantee. All HTRs purchased prior to 1 August 2013 carry a 5 Limited Guarantee.

Heating Element: The heating element is guaranteed against any manufacturing defects for a period of 5 years from the date of purchase.

Controllers: The controllers which include the PTSelect Switch and TDC Timer are guaranteed against any manufacturing defects for a period of one year from the date of purchase.

Colour Finishes: The surface finish of all colour components (including PVD and other coating methods) are guaranteed against any manufacturing defects for a period of one year from the date of purchase.

Excluded from this warranty are damages resulting from force majeure (Acts of God), including, but not limited to, lightning and floods, fair wear and tear, misuse, wilful damage, negligence, repair of device without the approval of Bathroom Butler or damage resulting from incorrect installation.

The manufacturer’s liability is limited to repair or replacement of HTRs only. No claim for consequential damage and/or labour and/or transport will be entertained. Damages arising from misuse of the HTRs will render the warranty invalid.

This warranty is only valid when the product has been purchased from an authorised reseller or country/territory distributor and is only valid within the geographical borders of the country/territory that it was originally purchased. This warranty only extends to the original purchaser of this product and is not transferable.

Towel Holding Capacity: This model has the capacity to dry 2 x folded bath sheets

Heated and Drying Times:

Heated Towel Rail to Heat-Up: 10 – 15 mins

To add a touch of warmth to a dry towel: 30 – 45 mins (when folded correctly in four layers)

To dry an average used, damp towel: 4 – 5 hours (when folded correctly in four layers)

Estimated Running Cost: $8.0/month* (*Electricity costs calculated according to 2021 average rates of $0.2287/kwh. Based on running time 24/7 at 75% setting)

Built-In Controller: The discreetly built-in PTSelect (Personal Temperature Selection) Switch will enable you to switch the heated towel rail on and off as well as adjust the temperature to suite your personal heat preference.

Electrical Wiring: This electric towel rail is hardwired and the electrical connection must be completed by an electrician. This product has a Dual-Entry electrical connection which means it has both LEFT and RIGHT electrical connections, and can be connected to any of the two sides straight out of the box to better suit your electrical point.

Material: Grade 304 Stainless Steel

Stainless Steel has a natural resistance to corrosion and therefore does not require a protective coating which makes this product ideal for the bathroom environment. The shiny polished Stainless Steel finish is often confused with a Chrome finish, however the two could not be more different. While stainless steel will not peel or flake, chrome products on the other hand are susceptible to chipping and pitting due to the nature of a coated surface.
