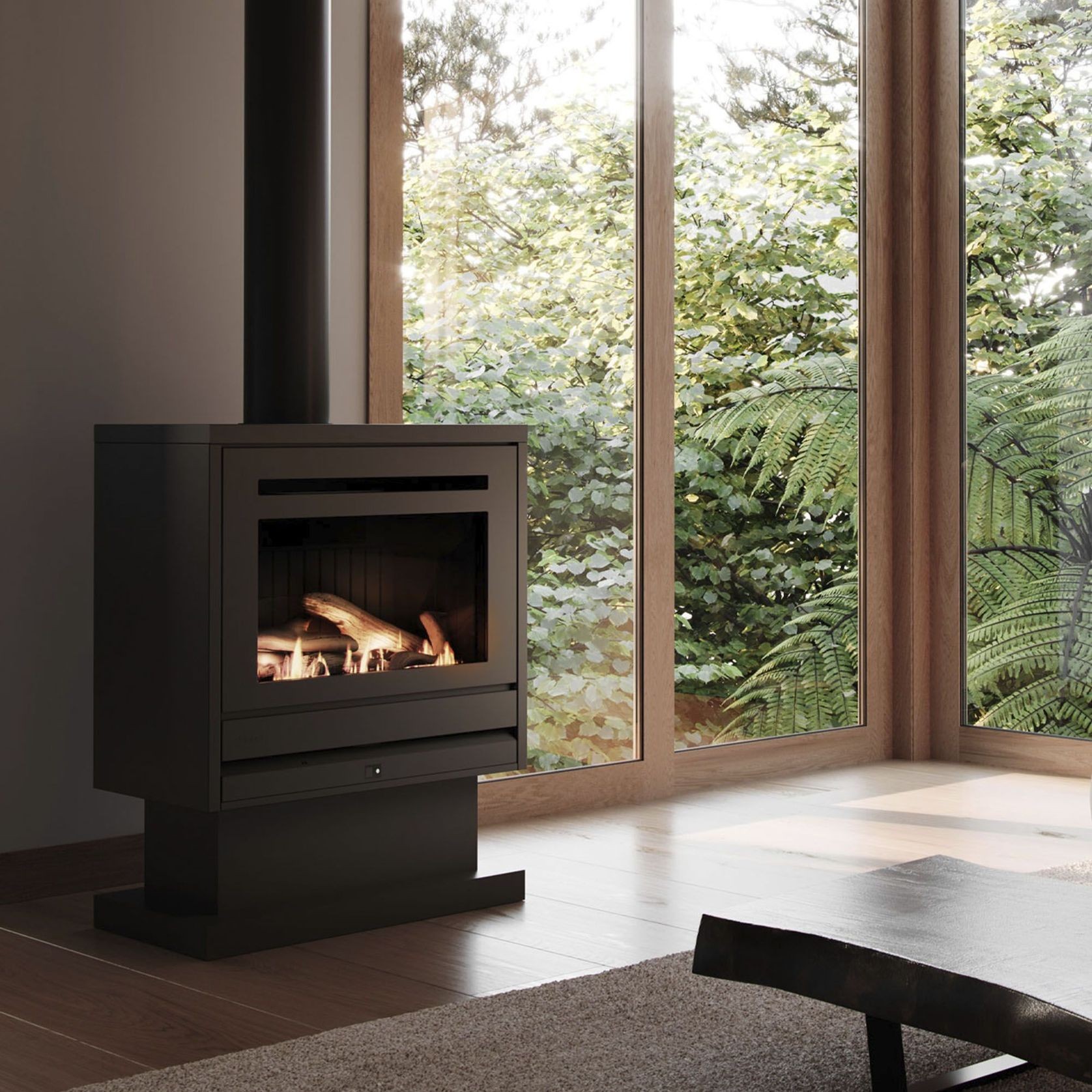

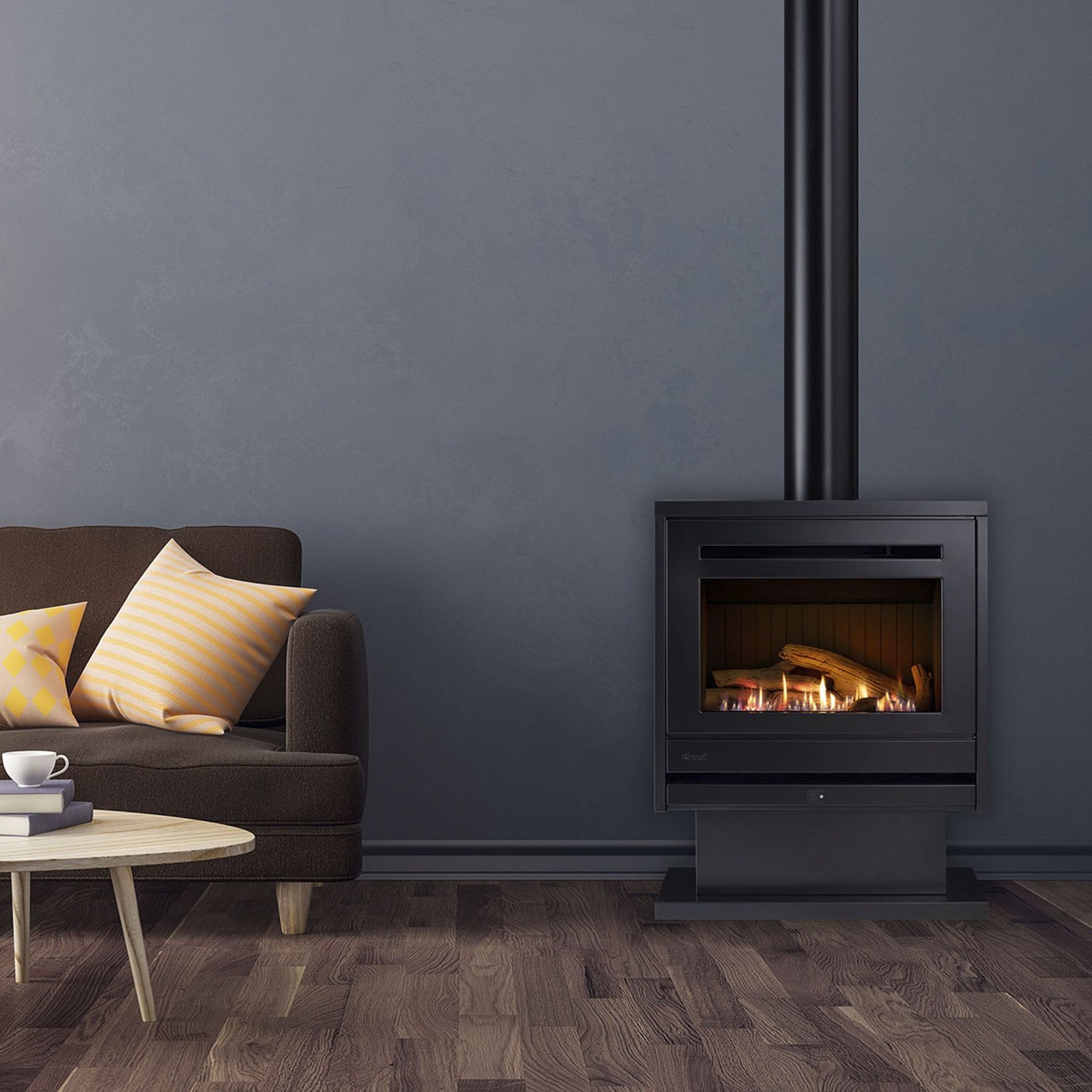

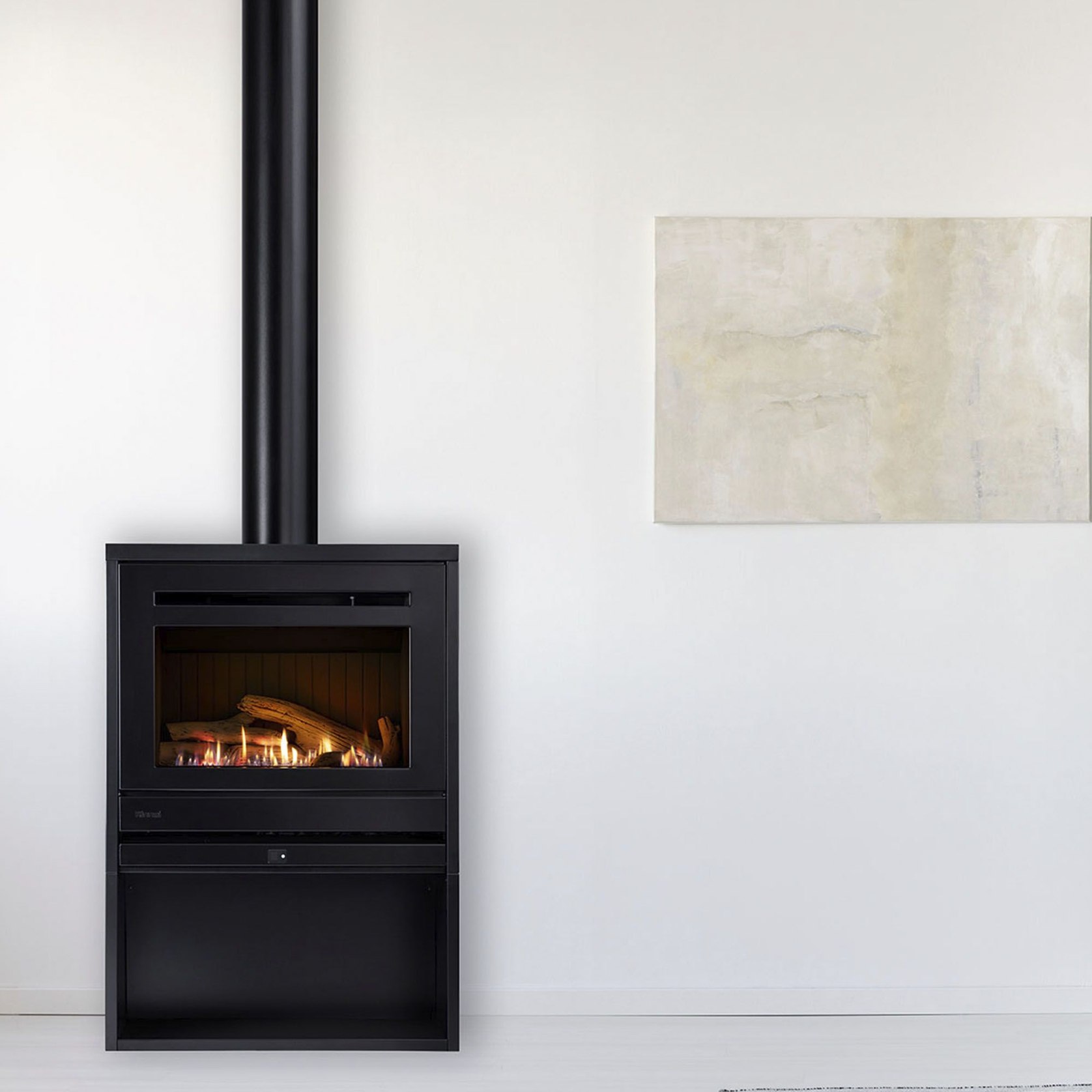

Rinnai Novo Freestander Gas Fireplace

No-fuss replacement for a freestanding wood burner Simple modern lines, a glowing logset and realistic flame picture.

Specs

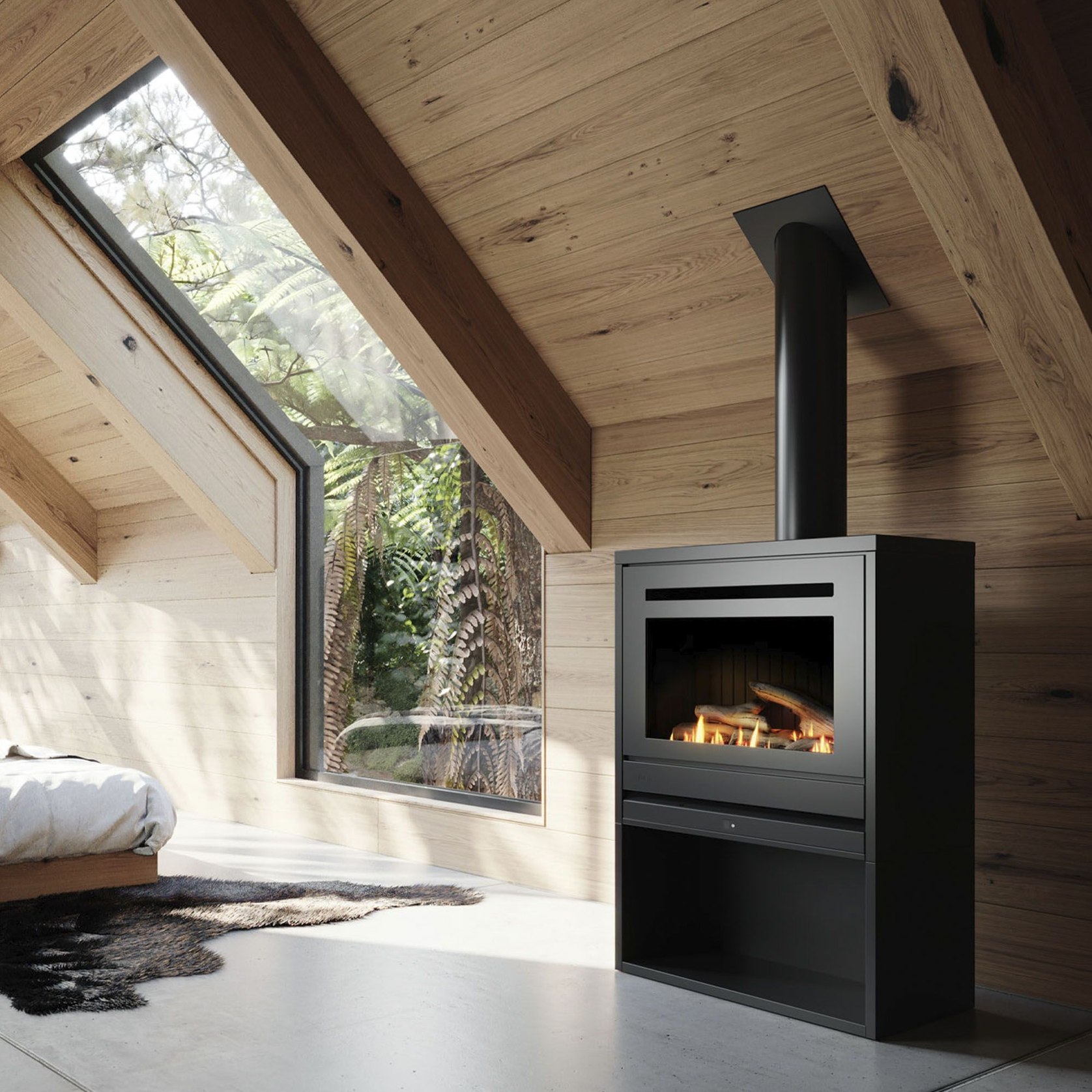

Suitable for freestanding installations in open plan areas and living rooms. As a room sealed appliance it can also be installed in larger bedrooms if this meets the 6.10.6.1 requirements of AS/NZS 5601.1.

Heating areas (up to)
- Upper North Island: 112 m2
- Central and lower North Island: 77 m2
- South Island: 65 m2

• Input - 14-30 MJ/h
• Output - 3.6-6.6 - kW
• Efficiency - 80%
• Warranty - 5 years

Input and output will vary according to gas type and flue configuration. 5 year firebox warranty, 2 year total warranty.

Codes

• RDV2320FN (Novo Cube NG)
• RDV2320FL (Novo Cube LPG)
• R2362GL (Novo Freestander cabinet base)
• R2363GL (Novo Freestander plinth base)

Gas type

Available for Natural Gas or ULPG, specify at the time of purchase

Data plate

Lower right hand side of the base panel (in front on the gas control)

Convection fan

120 V AC 50 Hz 2-speed centrifugal blower

Gas connection

Brass ½ " BSPT male fitting. The gas supply terminates inside the unit—lower RHS of the appliance.

Ignition

230-240 V AC 50 Hz high voltage electronic spark

Installation considerations

Room size, smaller rooms will heat up quickly, and due to the heat of the appliance, the fire will turn to a low setting once the set temperature has been reached.

Flue system

Direct vent coaxial flue. Draws air for combustion from the outside and expels combusted gases to the outside. Appliance must be installed with a Rinnai flue system.

• inner Ø100 mm
• outer Ø170 mm

Noise level

37-45 dB(A)

Electrical

A 1.5 m power cord with a three pin plug is supplied. The power cord passes through a slot in the back left hand corner of the appliance.

Safety devices

Flame failure sensing system, pressure relief, overheat safety switch, air temperature sensor, thermal fuse, overcurrent fuse, and spark detection.

Temperature control

Operated using a basic infra-red remote, or for more features such as timers and thermostatic control, by using a Wi-Fi module (purchased separately) and using the Rinnai Wi-Fi fireplace controller app.

Weight

Novo Cube = approx. 75 kg
Novo Freestander cabinet base = 20 kg
Novo Freestander plinth base = TBD

Performance

Temperature control

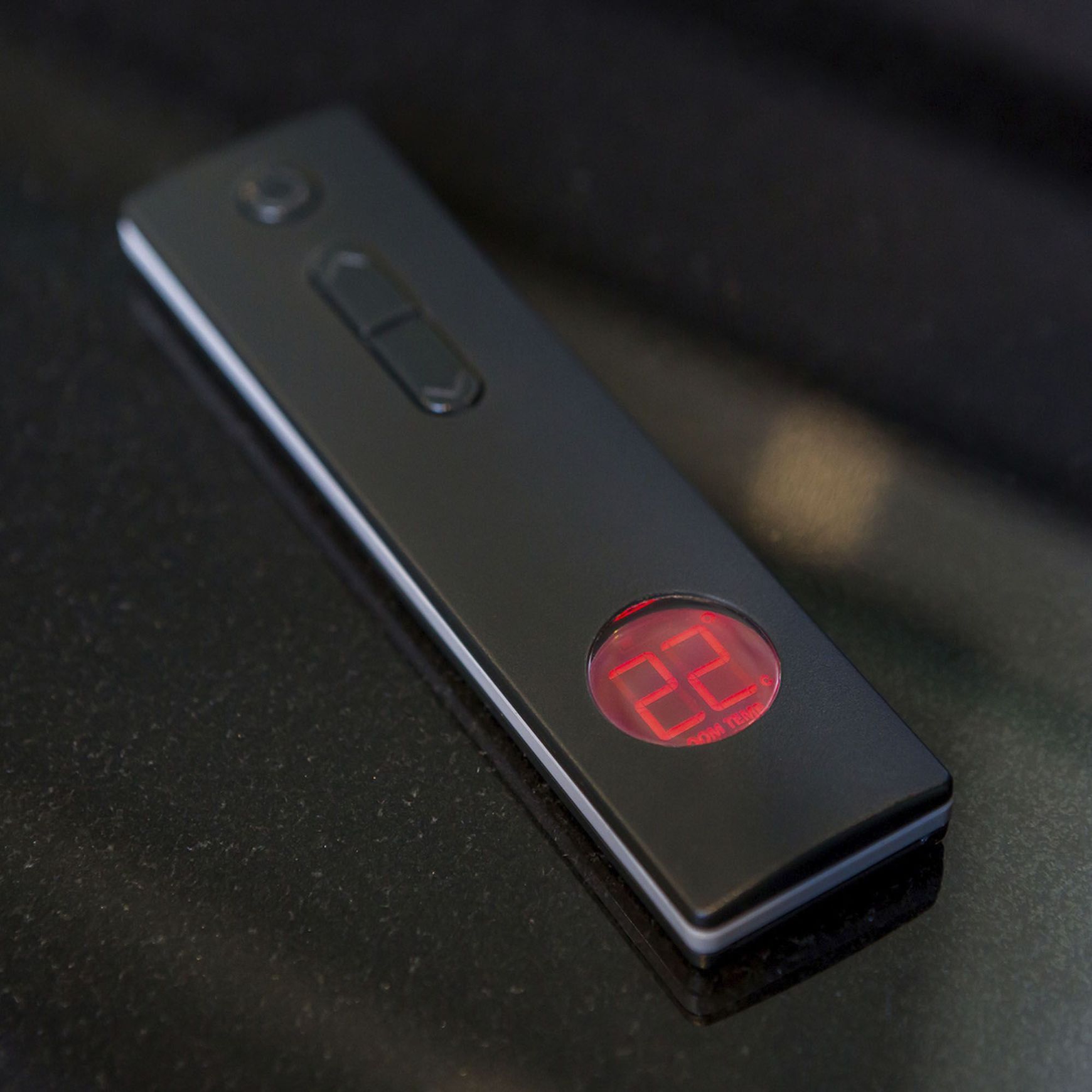

Back-to-basics simple infra-red remote makes operation easy and stress-free, or upgrade to Wi-Fi capability with our Wi-Fi module kit.
