Recess Boxes

See 'Spec Sheets' for Overview and PDFs, and 'Downloads' for DWGs

All single and double roller blind combinations and curtains

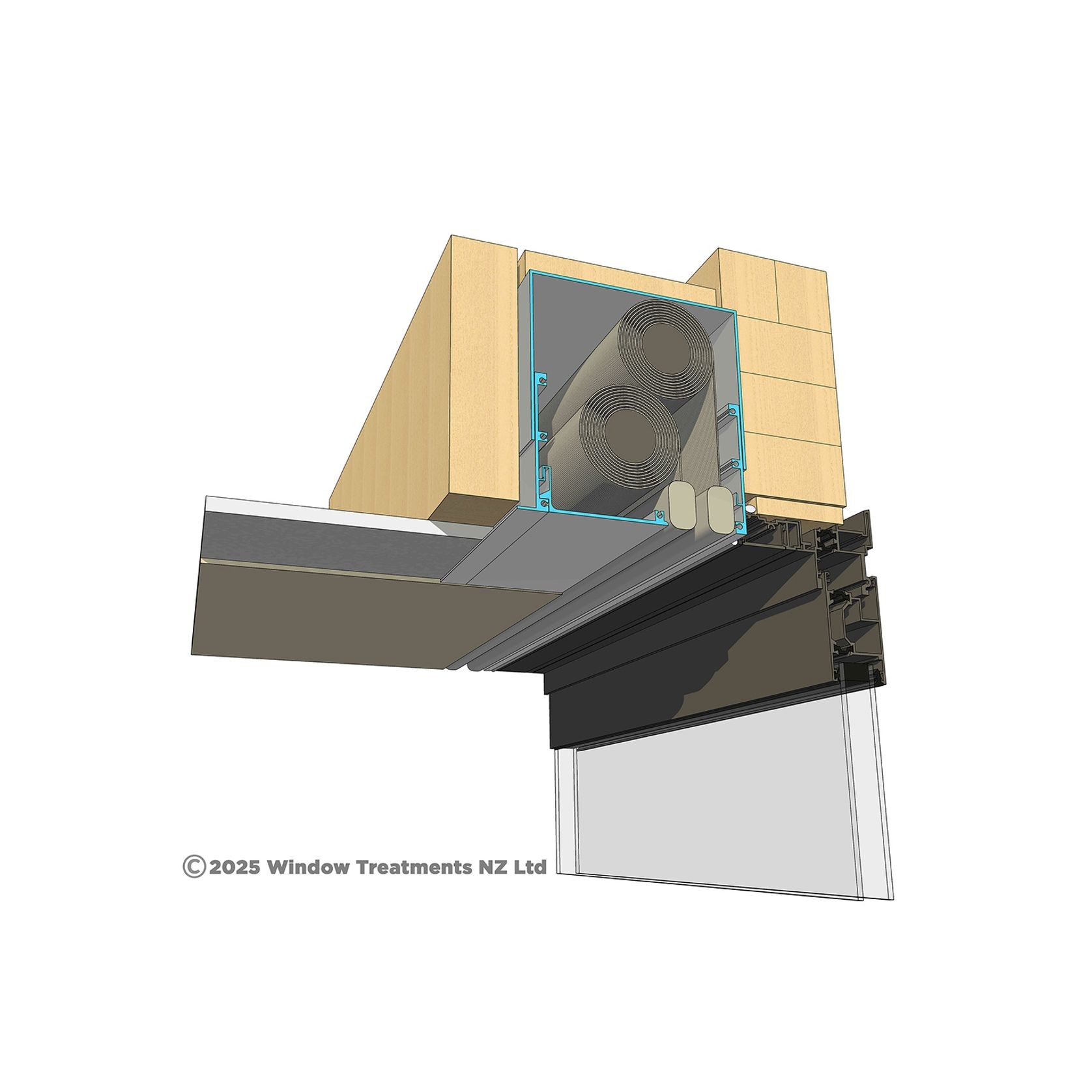

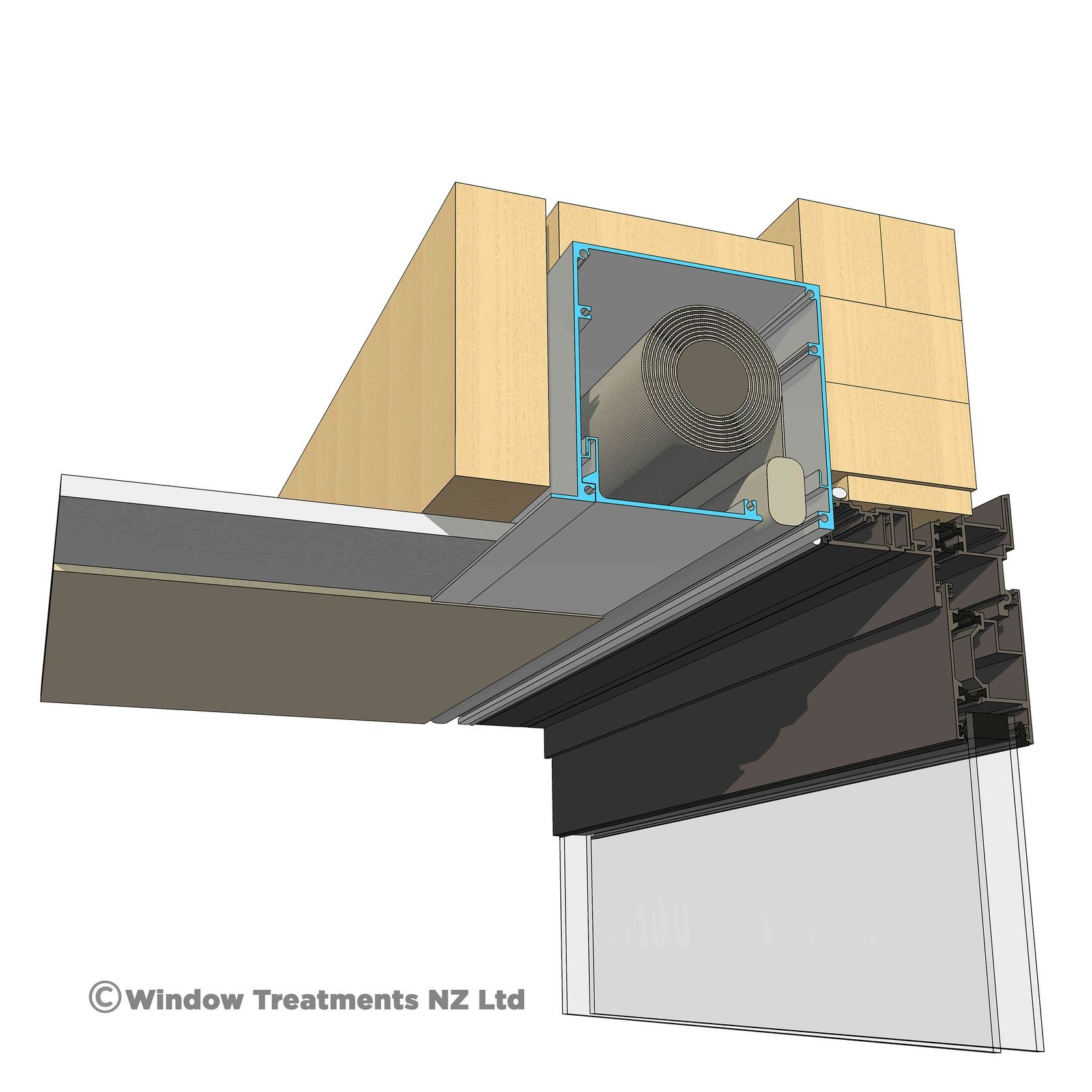

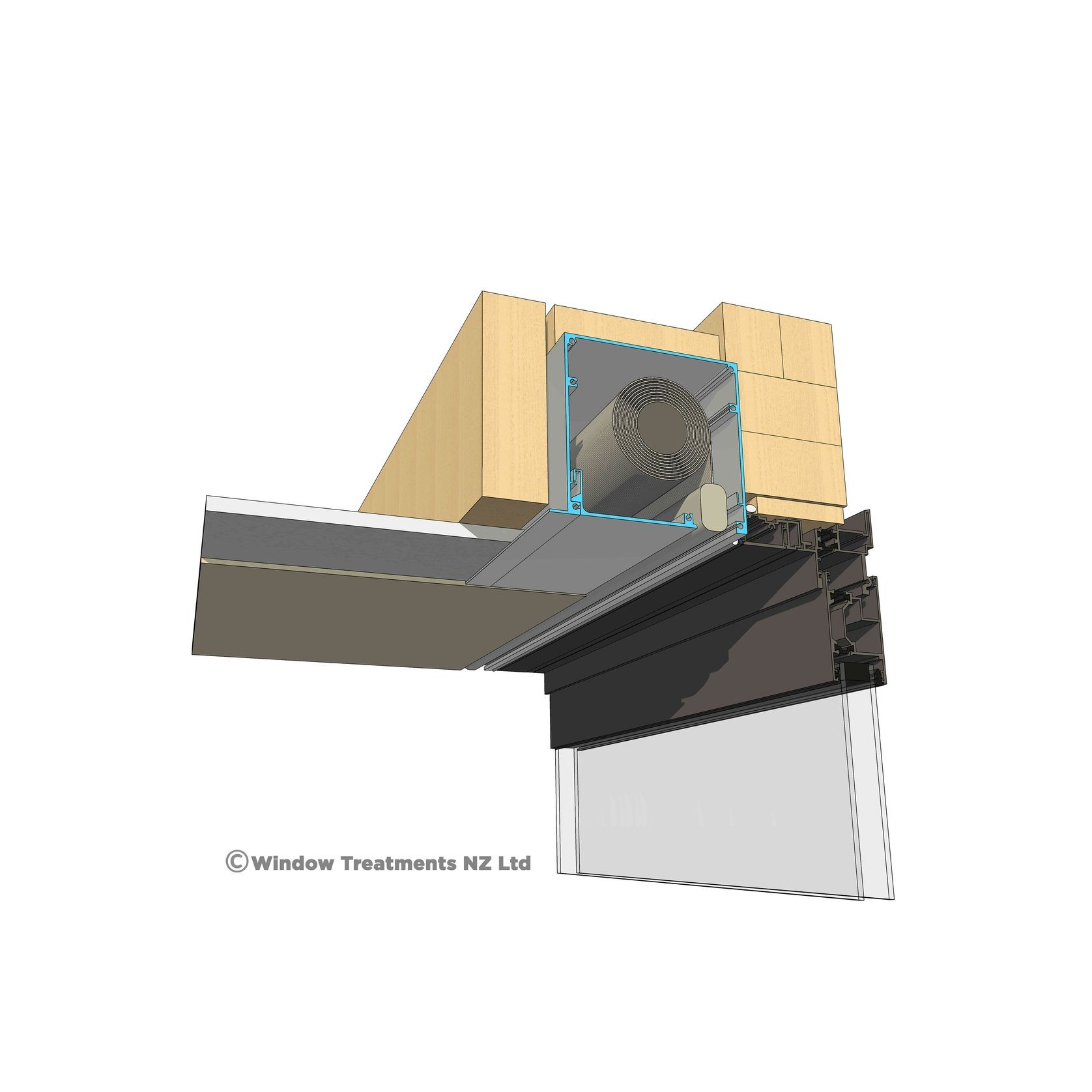

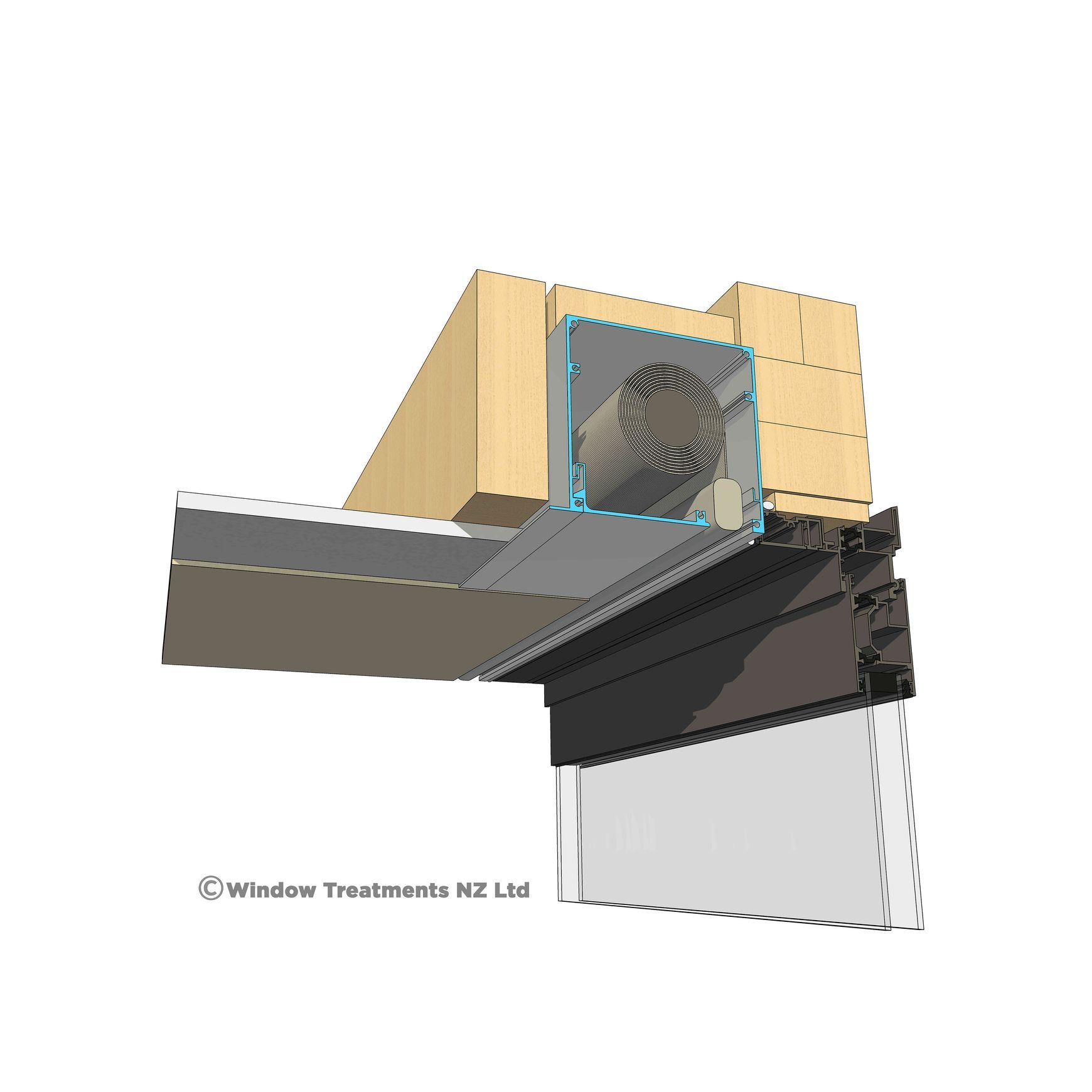

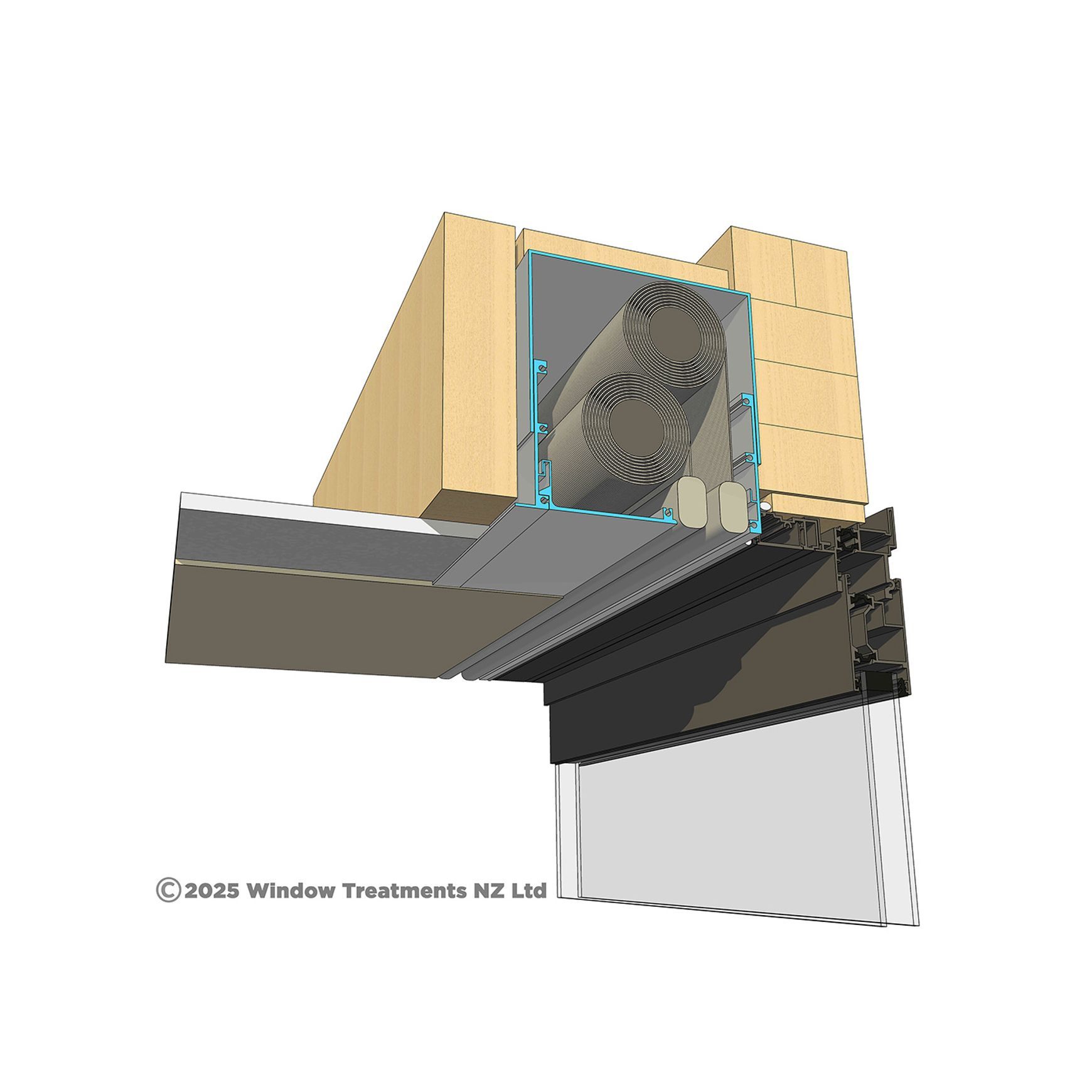

• Modular recessed box for single and double motorised roller blinds, Curtain tracks and headings
  • Standard 4.2m long recess box can be shortened or lengthened to custom size
  • Standard width recess box, 4.2m long profile made from nominal 2mm gauge extruded aluminium
  • Non-standard width recess box,  4.2m long profile made with a combination of nominal 2mm gauge extruded aluminium and folded aluminium sheet
  • A removable extruded aluminium bottom cover concealing the blind within (Curtain tracks and headings do not have a bottom cover)
  • Bottom recess cover can be connected either at the front or the back internal edge of the recess box
  • The sides of the recess box can be either flangeless for negative detail or flanged to provide a tidy cover of the ceiling gib/plaster edge
  • Additional recess box aluminium end cap covers come as standard flangeless or you can choose a flanged end cap cover
  • Mill finish or can be powder coated in standard Window Treatments colours: White, Ivory, Chinchilla, Silver Pearl, Bronze, Anthricite, Black or Anodised
  • Option for LED strip lighting to be fitted inside the recess box
  • PDF and DWG downloads available
