Rondo Duplex Internal Stud Framing System
by CSR Potter Interior Systems
Auckland
- 404.0K profile views
- 52 saves

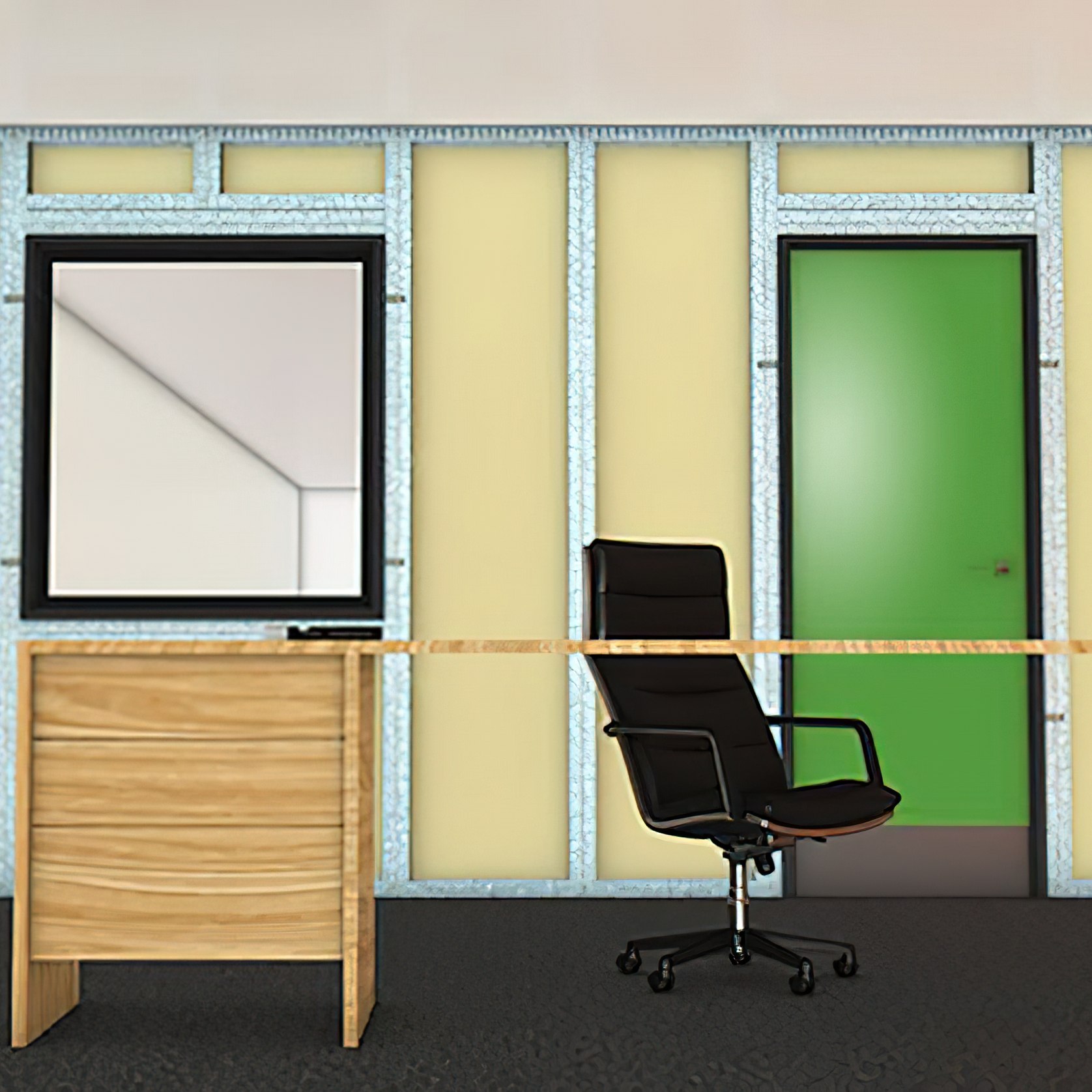

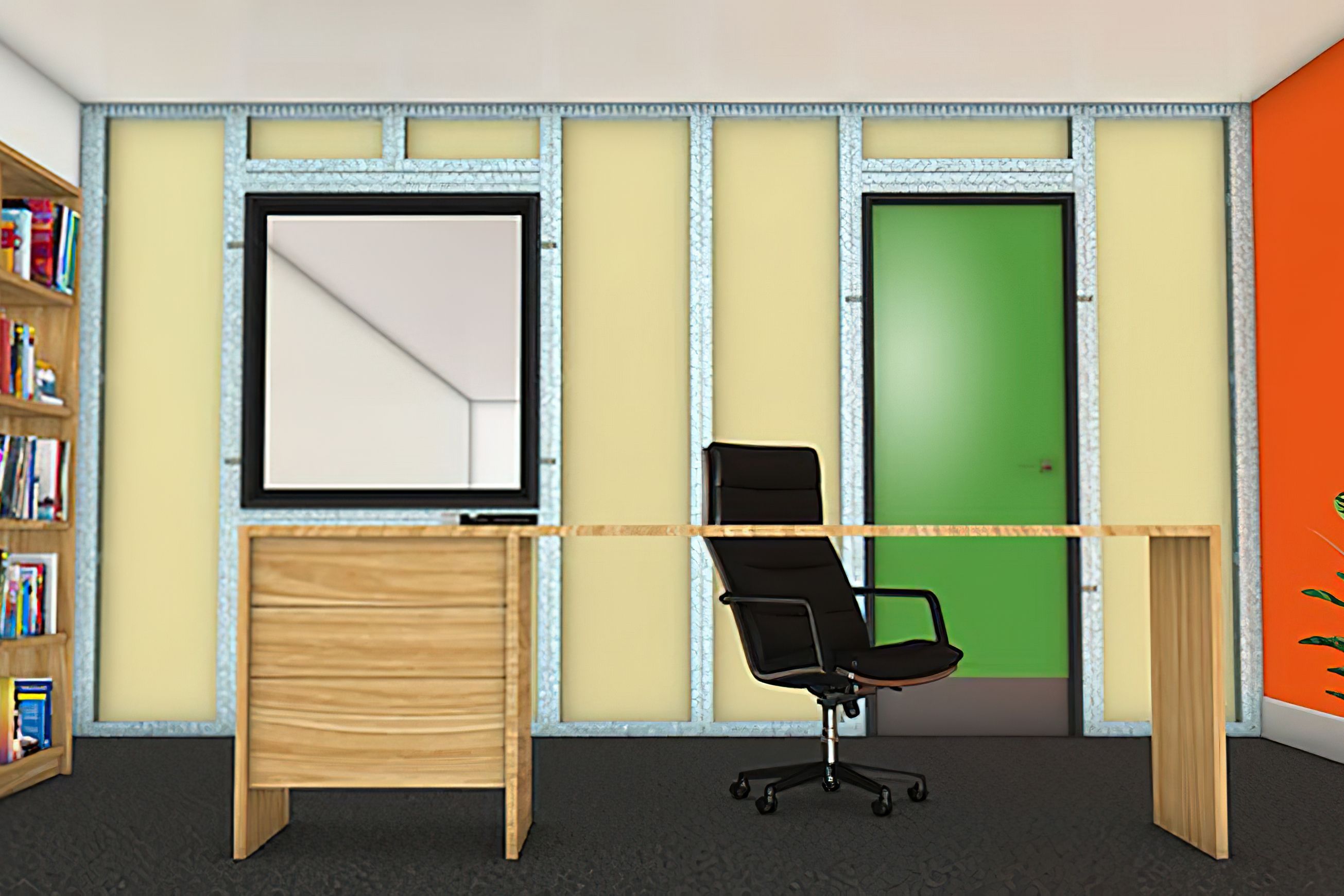

Rondo Duplex Internal Stud Framing System is one Stud that does the job of two. It’s perfect for door openings and glazing in internal wall framing applications where you typically need to install a boxed stud configuration. Less product to install means much quicker installations, delivering you with the all-important labour cost savings.
It can also be used as a Wall Stud where the use of standard Steel Studs would require installation at closer centres. In this application, DUPLEX Stud® provides additional load capacity and reduces not only the material cost but labour cost as well.

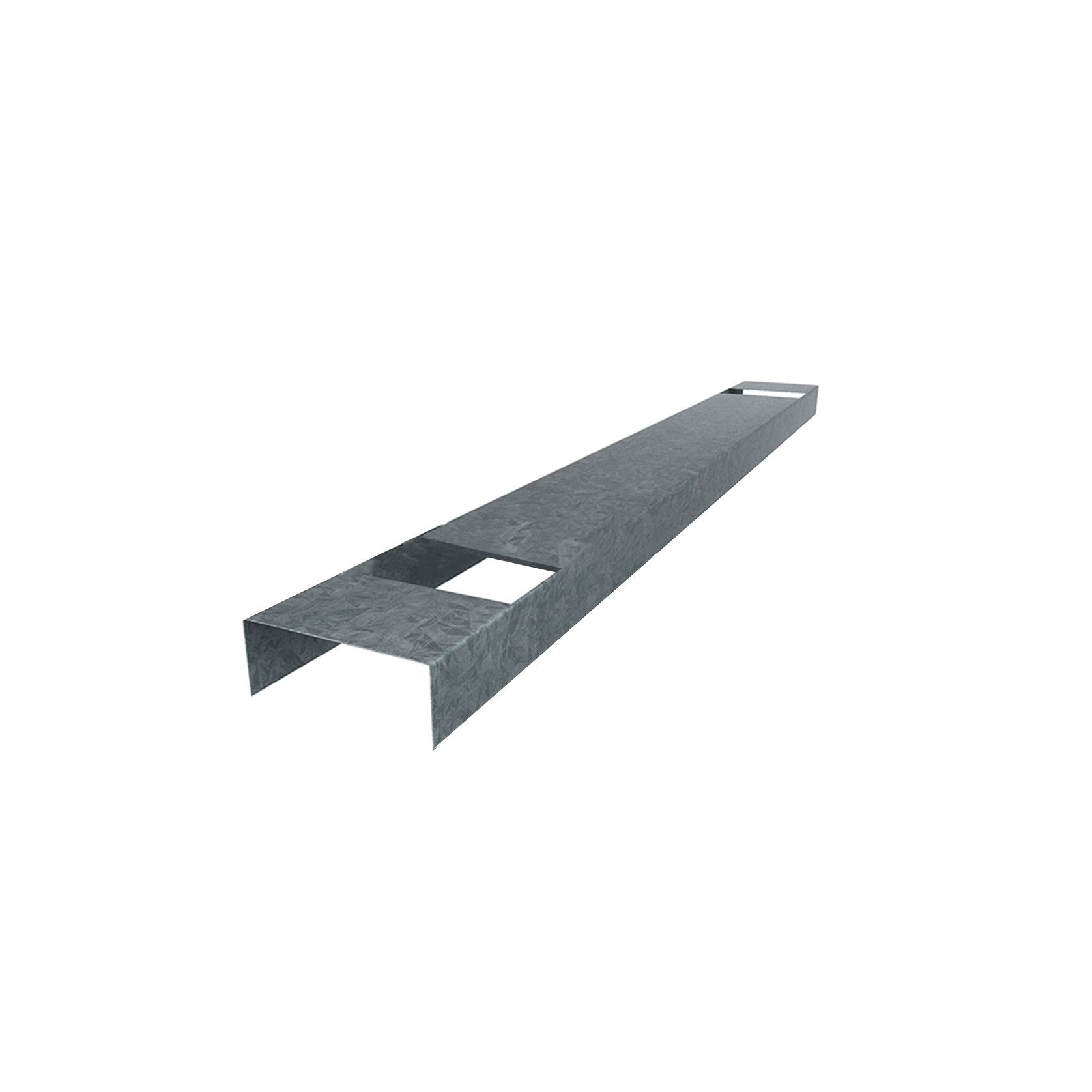

Partnered with new Fixing Brackets and existing medium gauge Slotted Deflection Head Track, the Rondo DUPLEX Stud System® is the perfect addition to the Rondo family of Wall Framing Systems.
Product Details
- Product
- Rondo Duplex Internal Stud Framing System
- Category
- Structural Steel
- Sold by
- CSR Potter Interior Systems
CSR Potter Interior Systems is specified by
ArchiProArchitects
DLA ArchitectsArchitects
architecture+Architects
Matt Brew ArchitectArchitects
YokeArchitects
Chow:Hill ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Fat Parrot ArchitectureArchitects
T Plus ArchitectsArchitects
Designgroup Stapleton ElliottArchitects
RTA StudioArchitects
Origin HeritageArchitects
SA Plumbing SupplyManufacturers and Suppliers
Premium Golf SimulatorsManufacturers and Suppliers
AD ArchitectureArchitectural Designers
VidaSpace®Manufacturers and Suppliers
Mark Scowen PhotographyPhotographers
Bates SurfacesManufacturers and Suppliers
GS Cayless ConstructionBuilders
Lightforge PhotographyPhotographers
AllegionManufacturers and Suppliers
Prestige Garage DoorsManufacturers and Suppliers
CTRL SpaceInterior Designers
Metro Commercial InteriorsConstruction
New Zealand Green Building CouncilAssociations
Fisher® Windows and DoorsManufacturers and Suppliers
Elevate Architectural TransportablesBuilders
QuantumManufacturers and Suppliers
Bob Burnett ArchitectureArchitectural Designers
Autex AcousticsManufacturers and Suppliers
MnM DesignArchitectural Designers
FortéManufacturers and Suppliers
Resene Construction SystemsManufacturers and Suppliers
VADAInterior Designers
Creative ArchArchitectural Designers
FocusplanInterior Designers
Arc AtelierArchitectural Designers
Rondo Duplex Internal Stud Framing System is one Stud that does the job of two.
It’s perfect for door openings and glazing in internal wall framing applications where you typically need to install a boxed stud configuration. Less product to install means much quicker installations, delivering you with the all-important labour cost savings.
It can also be used as a Wall Stud where the use of standard Steel Studs would require installation at closer centres. In this application, DUPLEX Stud® provides additional load capacity and reduces not only the material cost but labour cost as well.
Partnered with new Fixing Brackets and existing medium gauge Slotted Deflection Head Track, the Rondo DUPLEX Stud System® is the perfect addition to the Rondo family of Wall Framing Systems.
- Specs
Features
- Greater load capacity than standard narrow flange wall systems negating the necessity for boxed or back to back configurations or the reducing of Stud centres
- Integrated with the Rondo medium gauge Slotted Deflection Head Track providing better, positive connections
- Like all Rondo Steel Studs, DUPLEX can be manufactured in custom lengths to suit your project
- Duplex Studs are made from G2 grade steel for optimum cost efficiency
- Duplex Studs are made from steel with a minimum gal coating of Z275
- Higher walls can be achieved before noggings are required
- Central rib on fixing flange allows for vertical alignment of wall linings
- Usage
Suitable for
- Replacing single boxed stud to support door frames
- Internal glazing and door jambs
- Access openings for services within the wall framing
- Internal Load Bearing Walls by Rondo Engineered Design
- Incorporation into standard Rondo narrow flange steel internal wall framing
Downloads
Downloads (4)4 Direct downloads • 8 Available on request
Frequently asked questions about
Rondo Duplex Internal Stud Framing System
The Rondo Duplex Internal Stud Framing System is supplied by CSR Potter Interior Systems. It is also on their website, and you can browse every product CSR Potter Interior Systems lists on ArchiPro.
CSR Potter Interior Systems does not publish a price for the Rondo Duplex Internal Stud Framing System on ArchiPro. for pricing, or visit their website.
It is listed under Structural Steel on ArchiPro, where you can compare it with structural steel from other suppliers.
Yes. It is part of the Rondo Framing Systems range from CSR Potter Interior Systems, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The CSR Potter Interior Systems profile on ArchiPro has the rest of their products.
