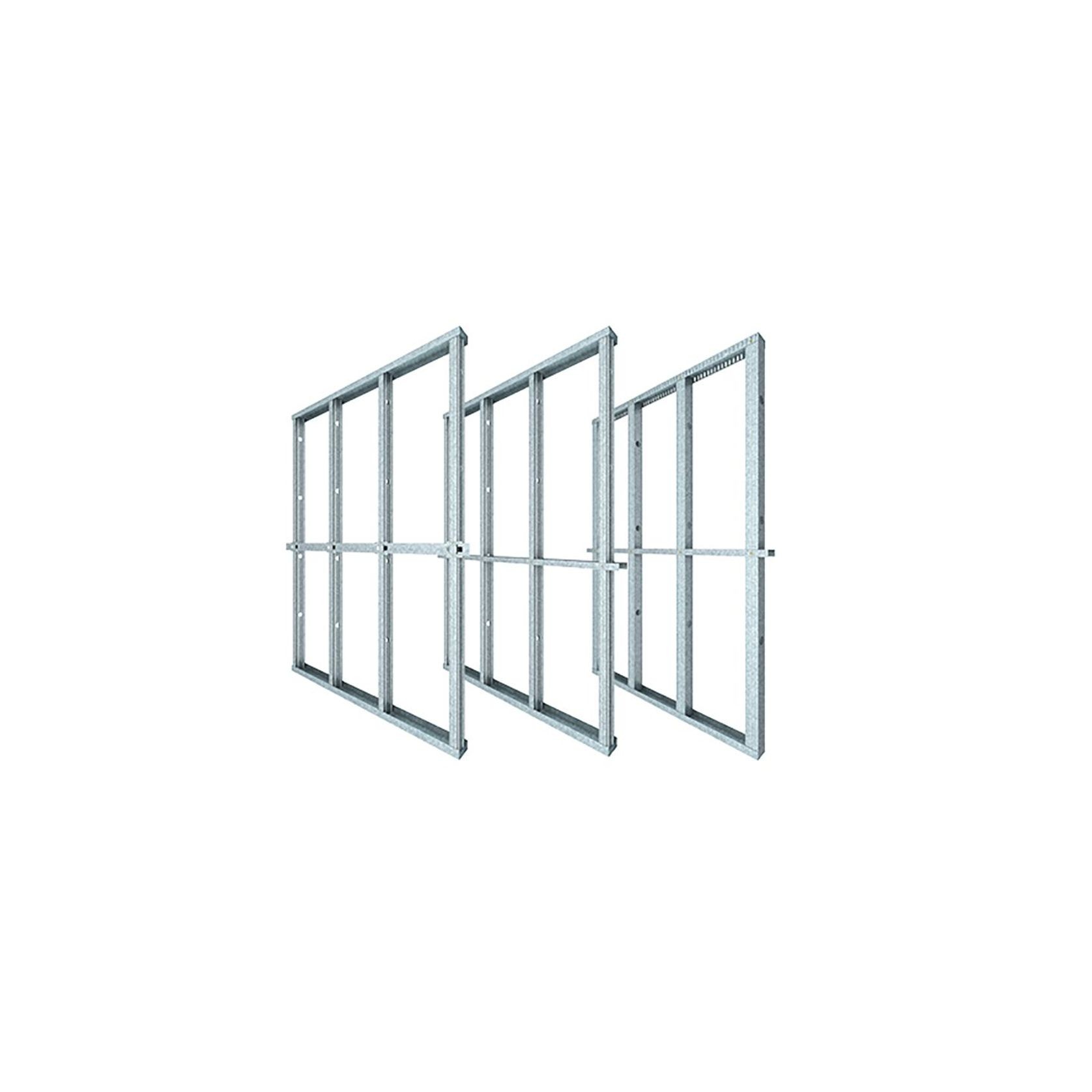

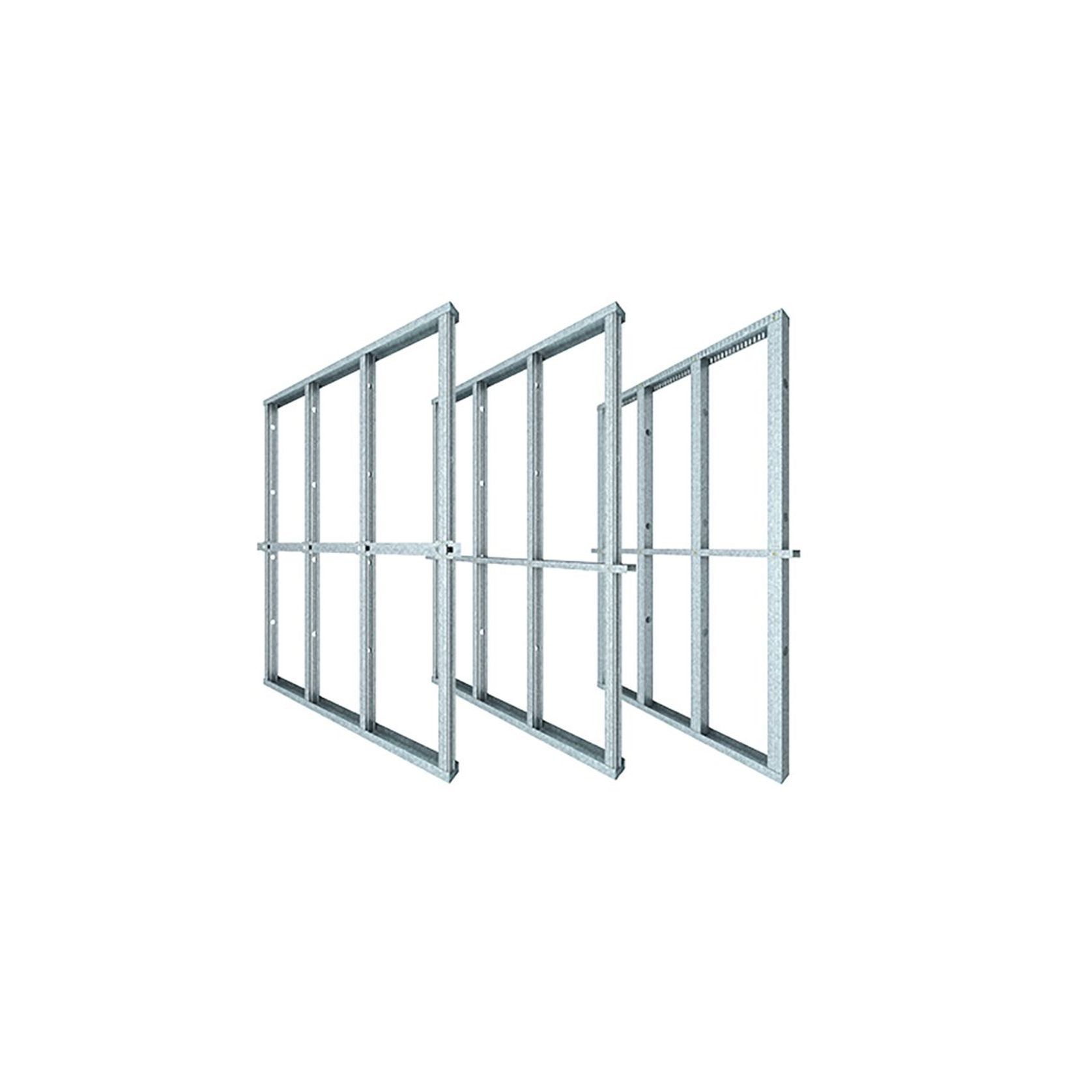

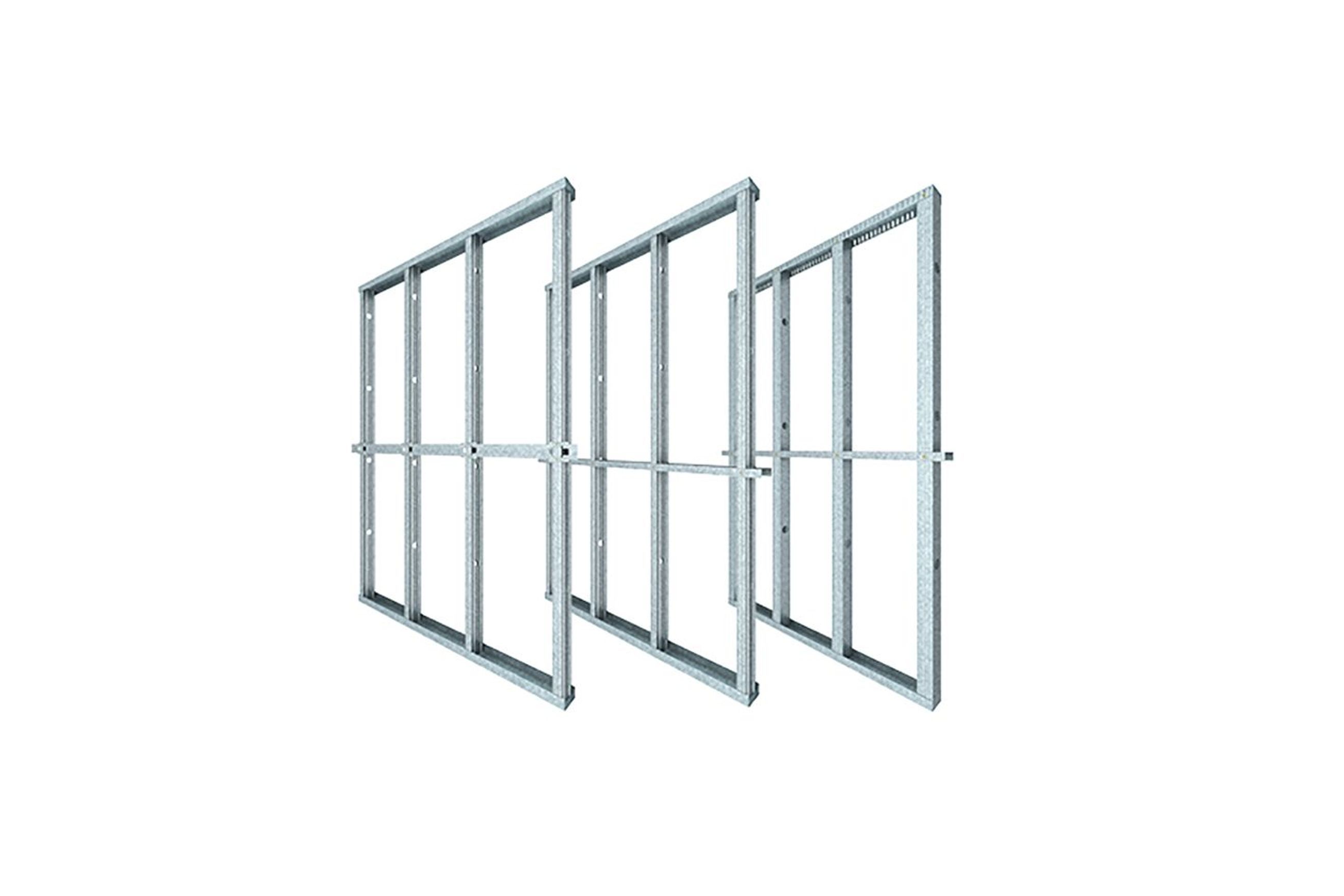

Rondo Steel Stud Track Wall Framing System
by CSR Potter Interior Systems
Auckland
- 404.0K profile views
- 52 saves

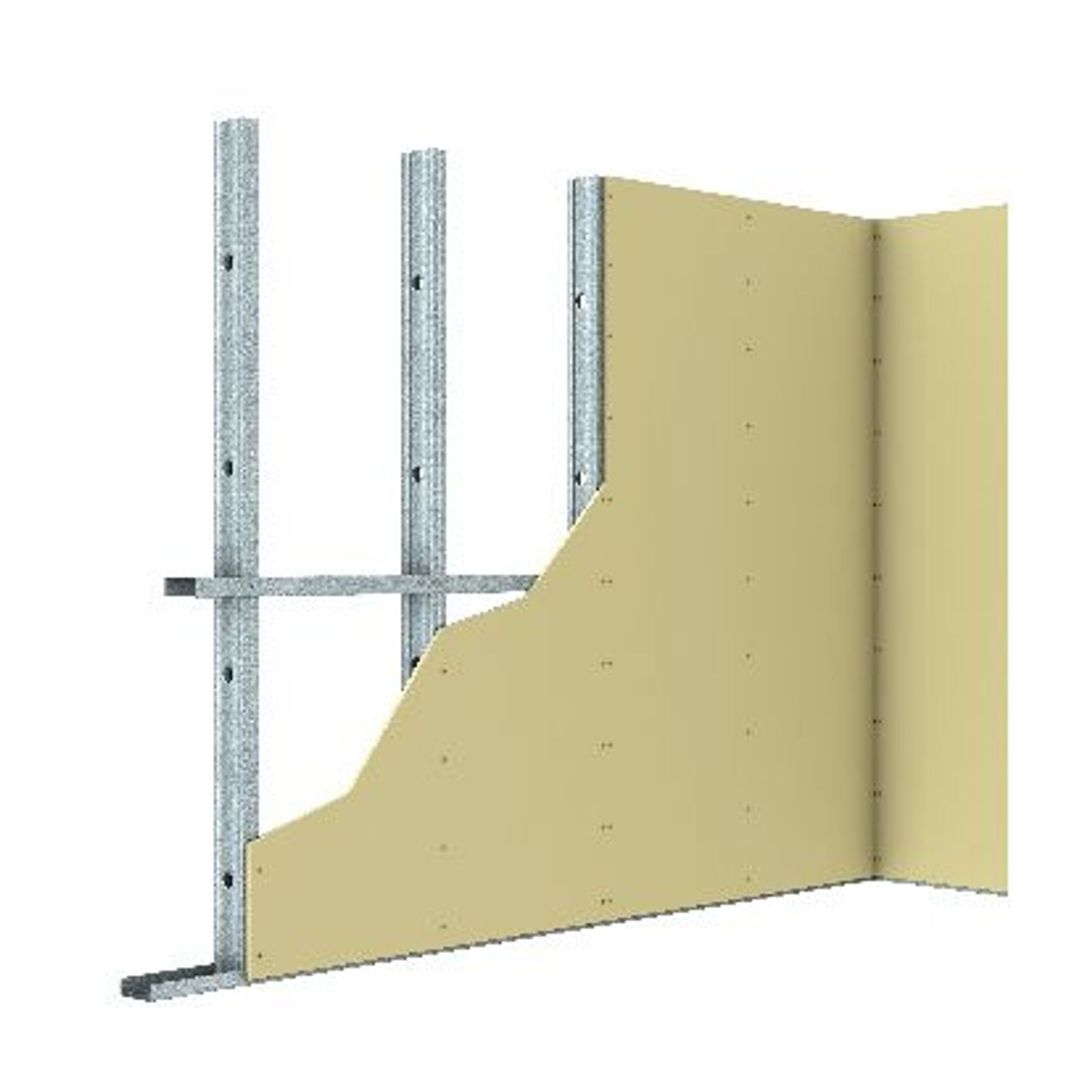

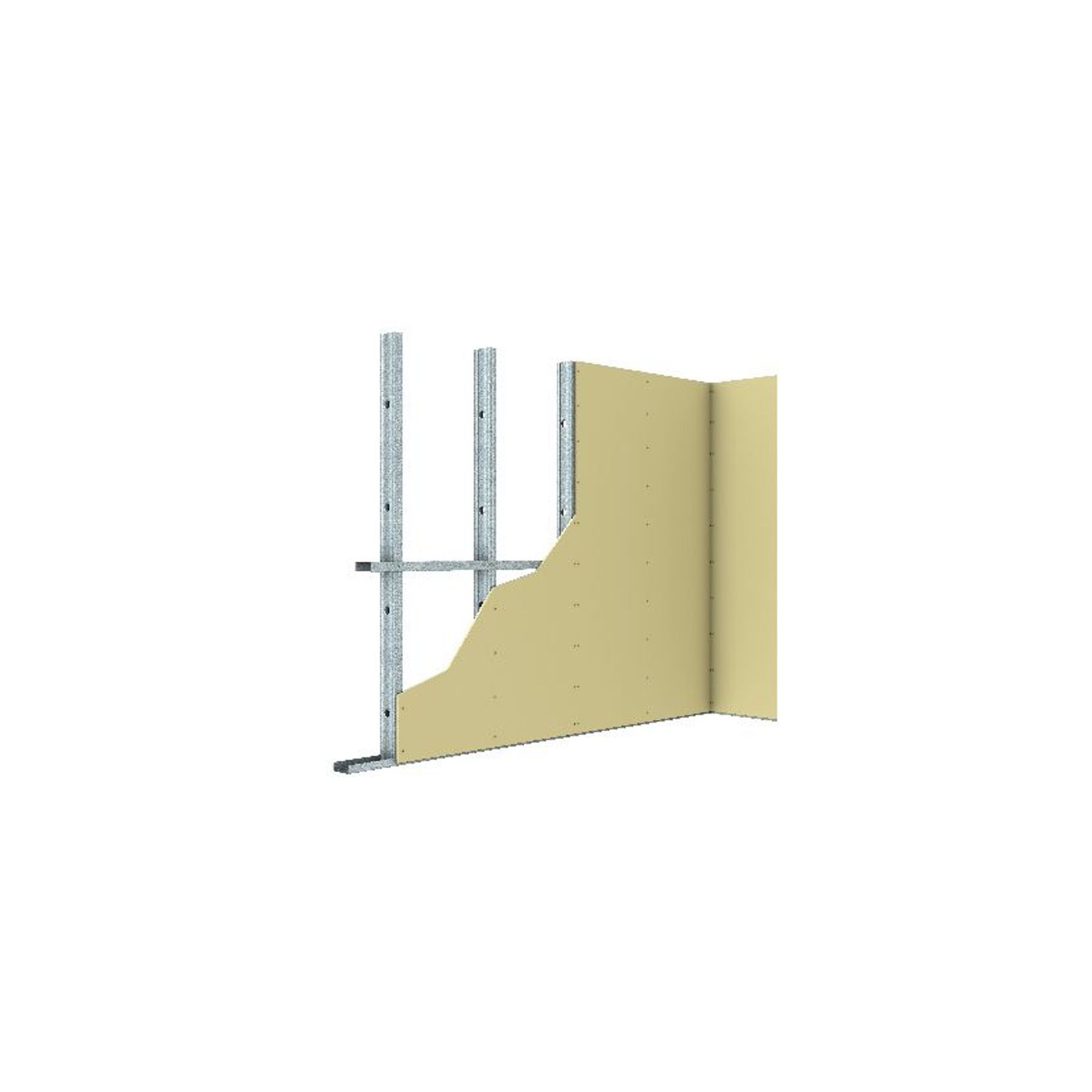

Rondo Steel Stud Track Wall Framing System is designed to not only be stronger but safer, our range of Hemmed Track sections and 51mm (401) and 76mm (403) Wall Stud helps reduce handling injuries on site. The hemmed return lip increases rigidity, preventing unwanted rotation as well as eliminating sharp edges.
The vertical rib in the stud face allows the wall linings to be placed centrally, ensuring easier and faster fixing, while the deeper knurling provides better screw location and retention. What’s more, our studs lock perfectly into each other, creating the best boxed stud profile in the market.
Rondo Steel Stud Drywall Framing Systems comply with all relevant Building Codes for fire-rated, acoustic, seismic and load bearing requirements.
Rondo 0.50bmt, 0.55bmt and 0.75bmt Wall Studs have bell mouthed service holes. Being bell mouthed with no protruding sharp edges eliminates the need for fitting grommets for electrical cabling. Punched round holes are processed at designated centres along our 1.15bmt Wall Studs
Product Details
- Product
- Rondo Steel Stud Track Wall Framing System
- Category
- Structural Steel
- Sold by
- CSR Potter Interior Systems
Product specified by
Rondo Steel Stud Track Wall Framing System is designed to not only be stronger but safer, our range of Hemmed Track sections and 51mm (401) and 76mm (403) Wall Stud helps reduce handling injuries on site.
The hemmed return lip increases rigidity, preventing unwanted rotation as well as eliminating sharp edges.
The vertical rib in the stud face allows the wall linings to be placed centrally, ensuring easier and faster fixing, while the deeper knurling provides better screw location and retention. What’s more, our studs lock perfectly into each other, creating the best boxed stud profile in the market.
Rondo Steel Stud Drywall Framing Systems comply with all relevant Building Codes for fire-rated, acoustic, seismic and load bearing requirements.
Rondo 0.50bmt, 0.55bmt and 0.75bmt Wall Studs have bell mouthed service holes. Being bell mouthed with no protruding sharp edges eliminates the need for fitting grommets for electrical cabling. Punched round holes are processed at designated centres along our 1.15bmt Wall Studs
- Specs
Features
- Available in custom lengths.
- Majority of Stud and Track is hemmed for safety and increased strength, preventing unwanted rotation.
- MAXIframe External Wall Framing System made from 1.2BMT G500.
- Flexible Track available for curved walls.
- Manufactured from BlueScope Steel with a minimum coating of Z275.
- Profiles widths range from 51 to 150mm, and gauges from 0.50 to 1.15BMT.
- Bell mouthed service holes on 0.50bmt, 0.55bmt and 0.75bmt Wall Studs mitigate damages to services.
- Scope of use
Suitable for...
- Non-load and load bearing (by design) partition walls
- Steel Stud Ceiling Systems
- Window and Door Jambs
- Non-Fire Rated and Fire-rated Systems
- Acoustic Wall Systems (by design)
- External Wall systems (by design)
- Light Weight Floor Joists
- Bulkheads
- Seismic Wall System by design
