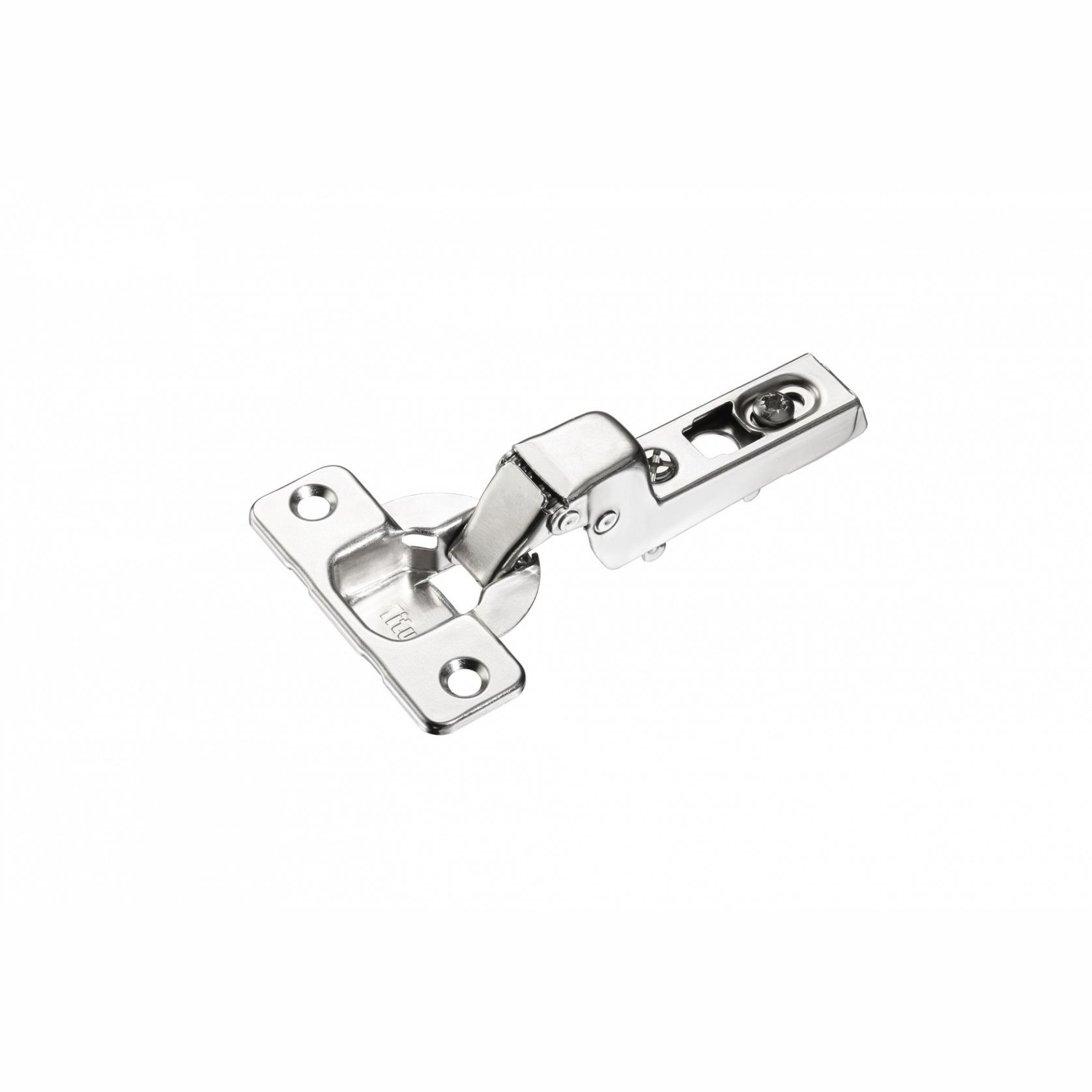

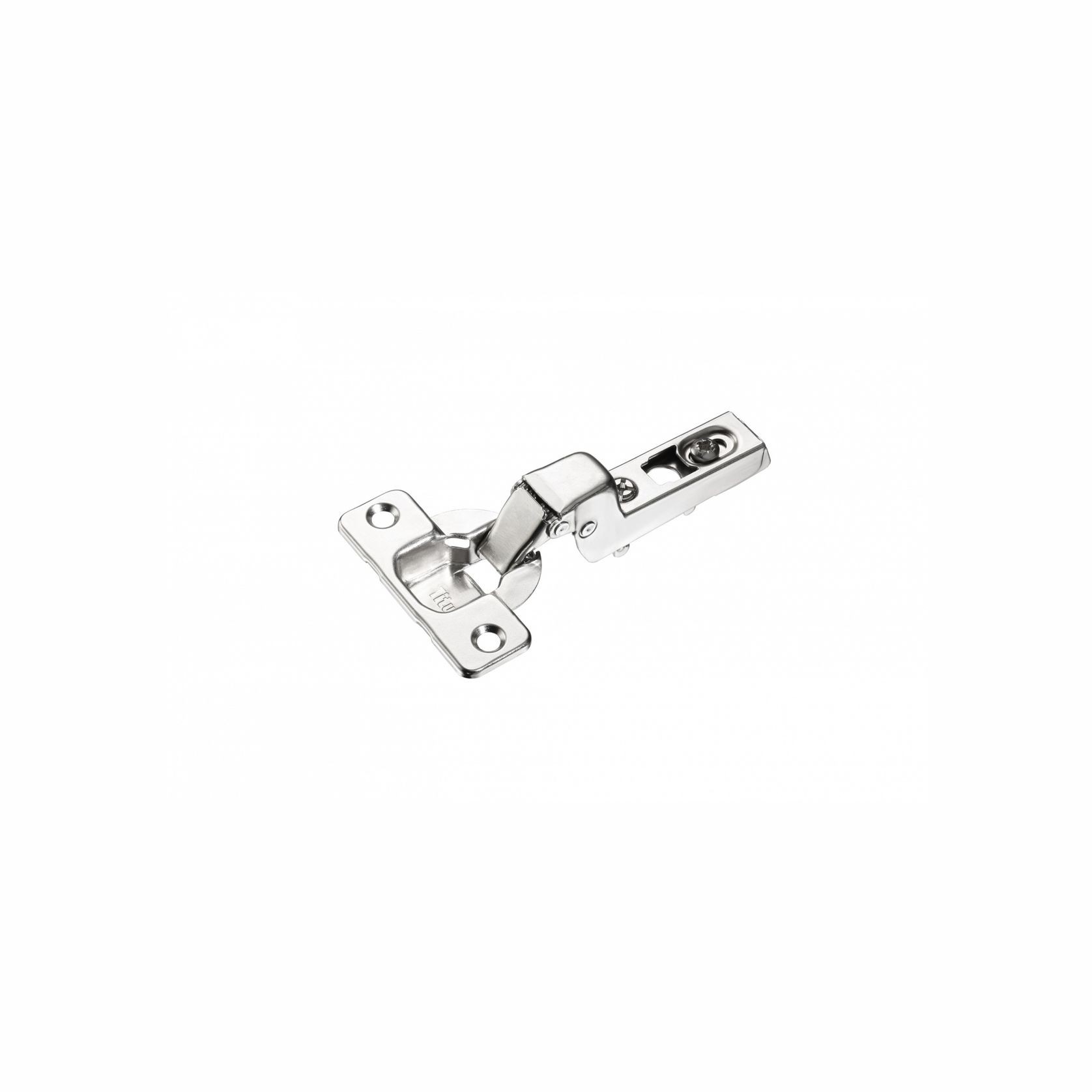

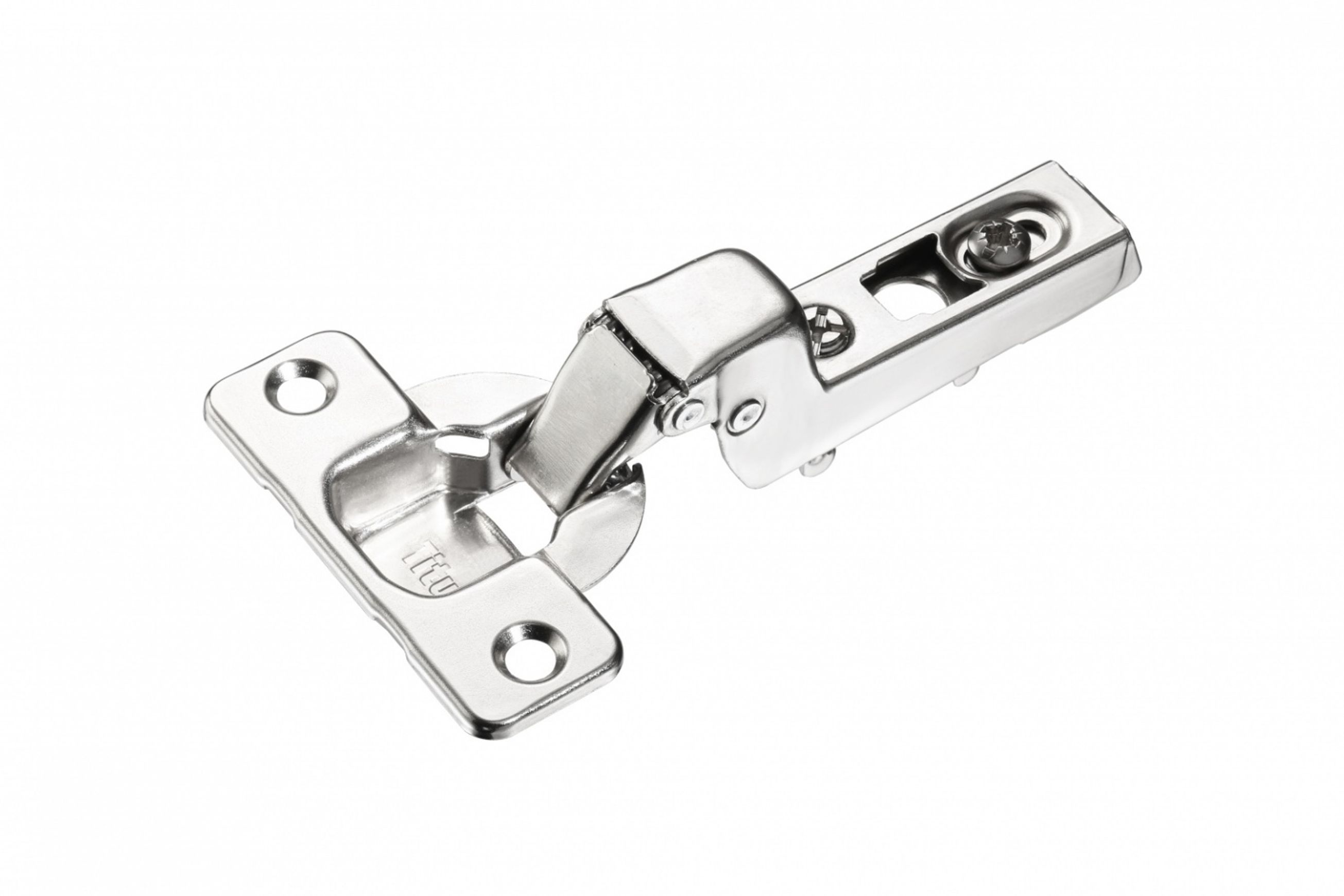

S-type 110 15mm Hinge
- 48.2K profile views
- 3 saves
Titus concealed hinges for cabinet and furniture applications are market leaders in innovation and reliability. The new generation T-type hinge revolutionises furniture hardware with proprietary integrated soft-close damping and intuitive 3-way mounting, particularly for tall cabinets. The low hinge cup depths and high tolerances ensure smooth and consistent performance for the lifetime of the cabinet.
Product Details
- Product
- S-type 110 15mm Hinge
- Category
- Cabinet Hinges
- Sold by
- Titus Tekform
- Range
- Hinges & Dampers
Titus Tekform is specified by
Titus concealed hinges for cabinet and furniture applications are market leaders in innovation and reliability.
The new generation T-type hinge revolutionises furniture hardware with proprietary integrated soft-close damping and intuitive 3-way mounting, particularly for tall cabinets. The low hinge cup depths and high tolerances ensure smooth and consistent performance for the lifetime of the cabinet.
- Specs
- Cranking (mm): 15
- Depth adjustment: +5 / -1.5 mm
- Drilling depth (mm): 11.5 mm
- Hinge cup diameter: 35 mm
- Height adjustment: +2 / -2 mm
- Mounting: Snap-on
- Material: Steel
- Side adjustment: +3 / -1 mm
- Opening angle (°): 110
- Features
- For wooden doors
- Quick and practical assembly of the hinge and mounting plate by pressing gently on the rear part of the hinge arm
- One button disassembly
- Drilling depth: 11.5mm
- Hinge on plate mounting system: 'snap-on'
