Seguin Multivision Hydro80 3V - Hydronic Heating

Handcrafted with raw materials to produce world-class elegance and maximums in heating performance the Seguin Multivision Hydro80 3V has been engineered to encapsulate your entire home heating solution.

Specs

Material:
100% pure cast iron with cast iron, 8-12mm thick

kW Output:
Dry model: 26kW Wet Model: 14kW

Heating capacity (m2):
150-200m2*

Façade:
Clean frameless design (no trim)

Glassdoor:
Secure swing or lift door opening system

Minimum flue height:
4.5m

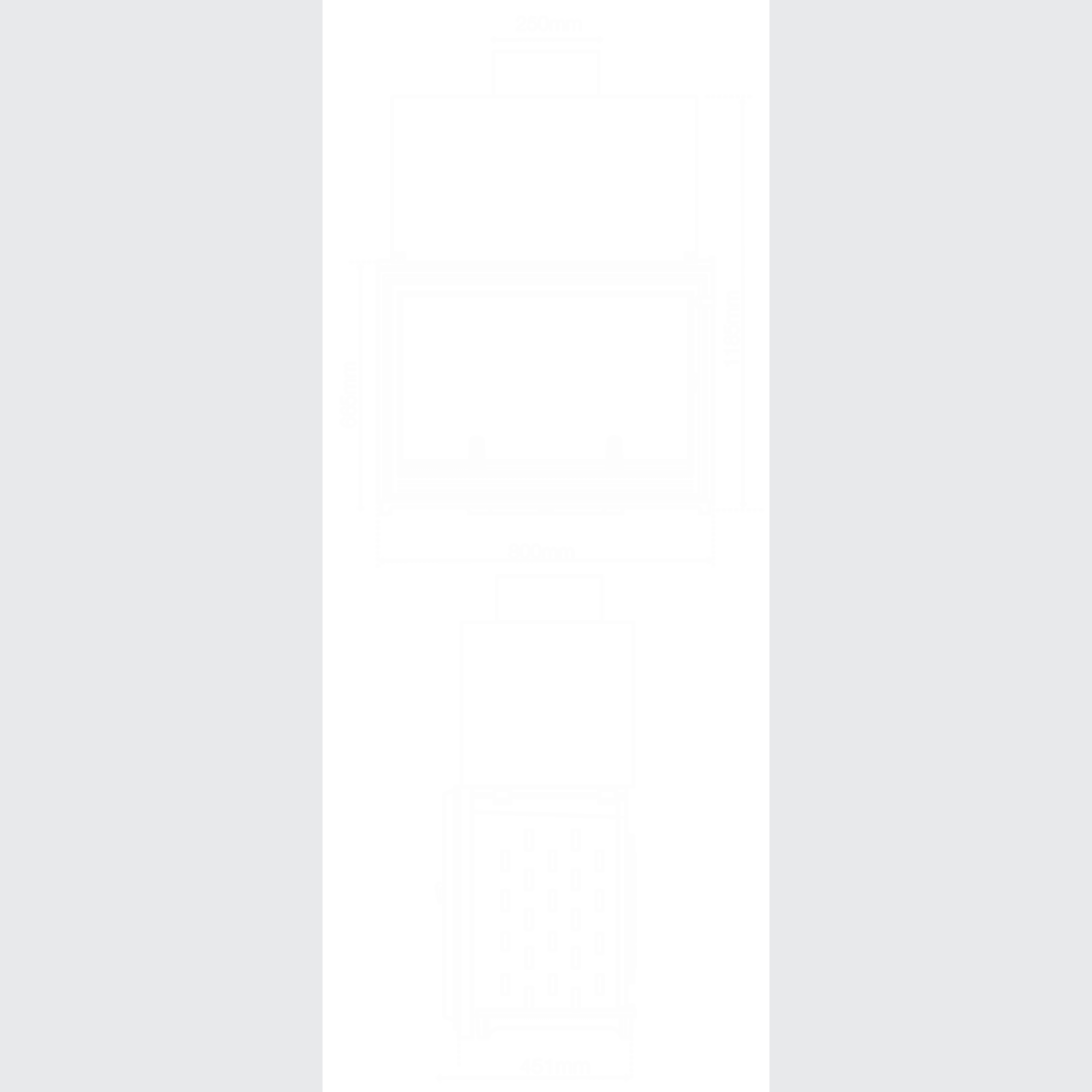

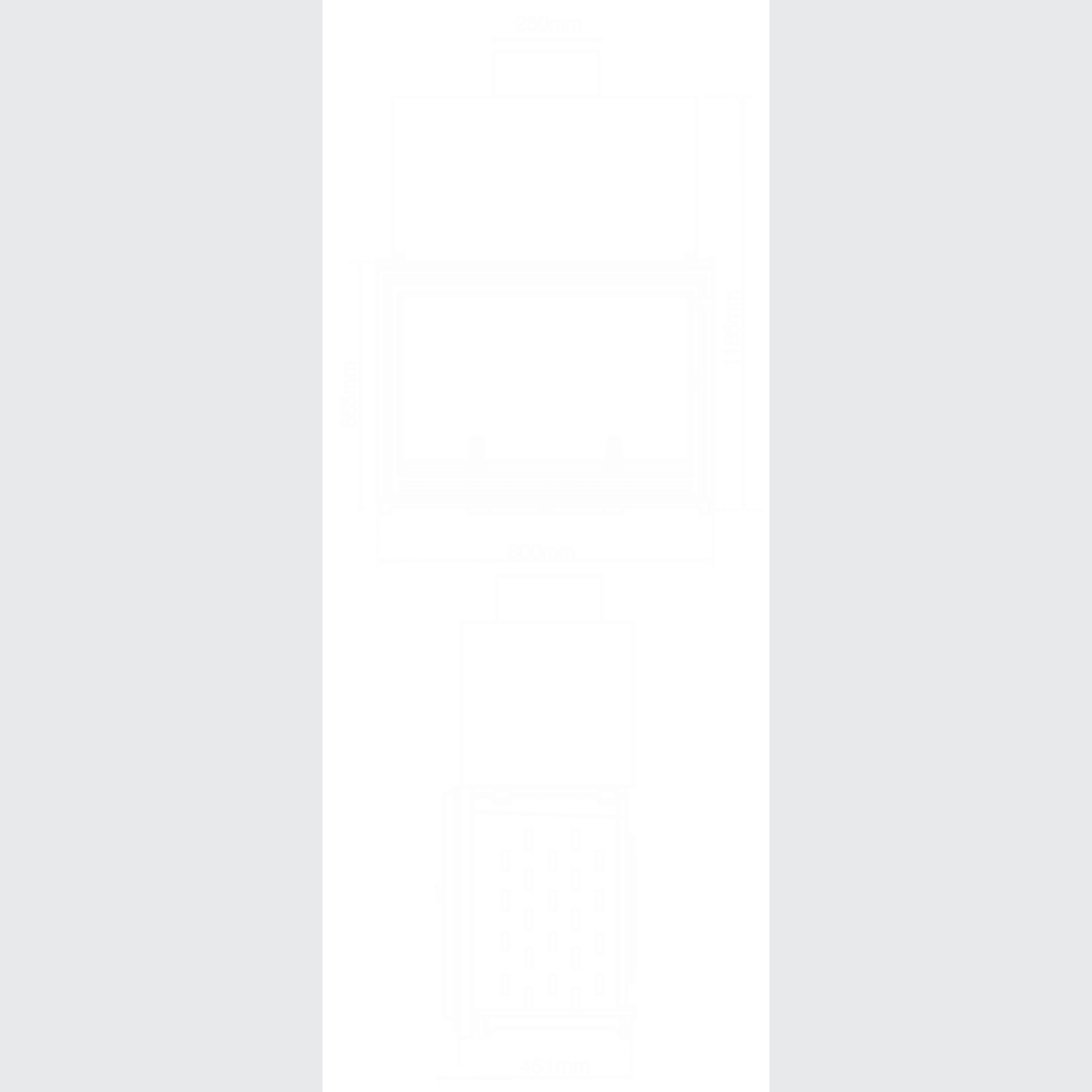

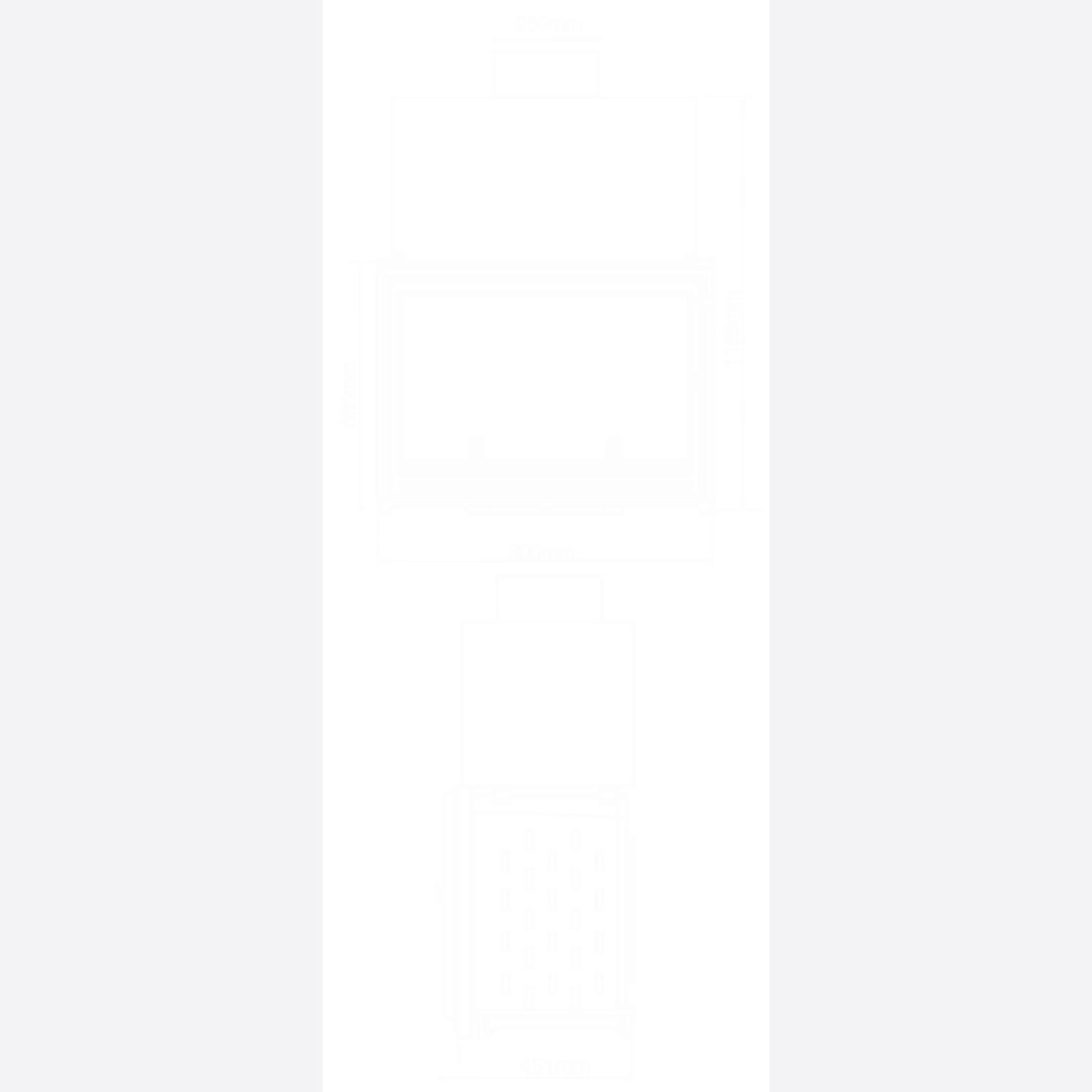

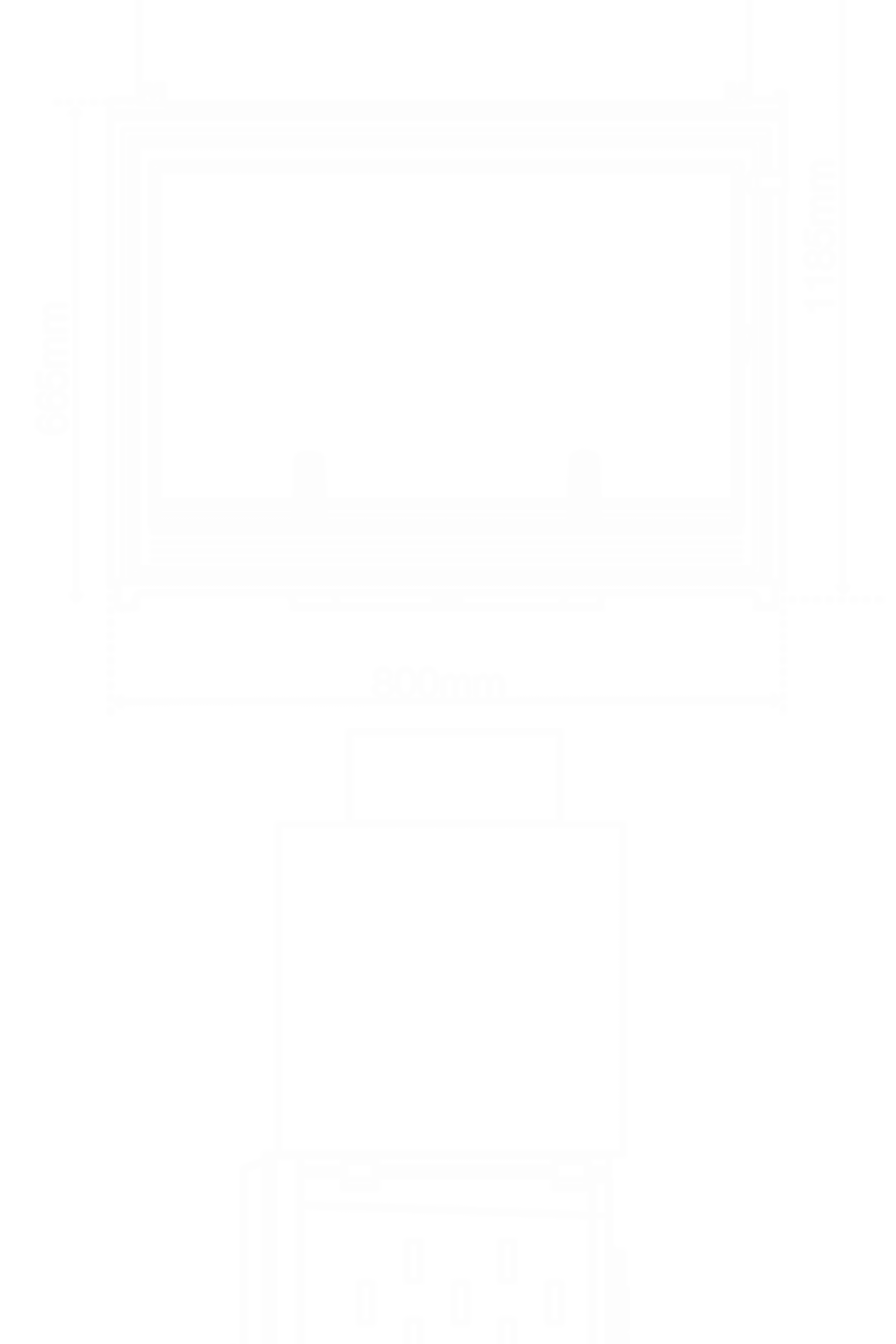

Flue dimensions:
250mm, 300mm, 350mm

Includes hot air transfer kit:
A duct and a register

Hearth dimension:
Minimum 500mm in front of any part of the fireplace, 250 on either side and 75mm thick

Outside air kit:
Recommended for well-insulated homes

Warranty:
10-year firebox warranty*

Weight:
345kg kg

*Heating capacity (when used as a slow combustion heater) is based on 2.4m ceiling heights and 6 stars rated homes. Factors such as building characteristics, quality of insulation, type of firewood used, and climatic zone will also affect the heating output. *In accordance with Australia and New Zealand Standard AS/NZS 2918:2001 *All product pictures are a guide only, all wood fires must be installed as per AS/NZS 2918:2001 *E&OE. See T’s & C’s

Performance

Seguin fireboxes are guaranteed for 10 years. This excludes the ash pan, bricks and fire grate retainers which are guaranteed for 1 year.

The warranty becomes effective at the date of purchase.
