SpaceSeal Acoustic Operable Walls
by Trans-Space
Auckland
- 184.3K profile views
- 32 saves

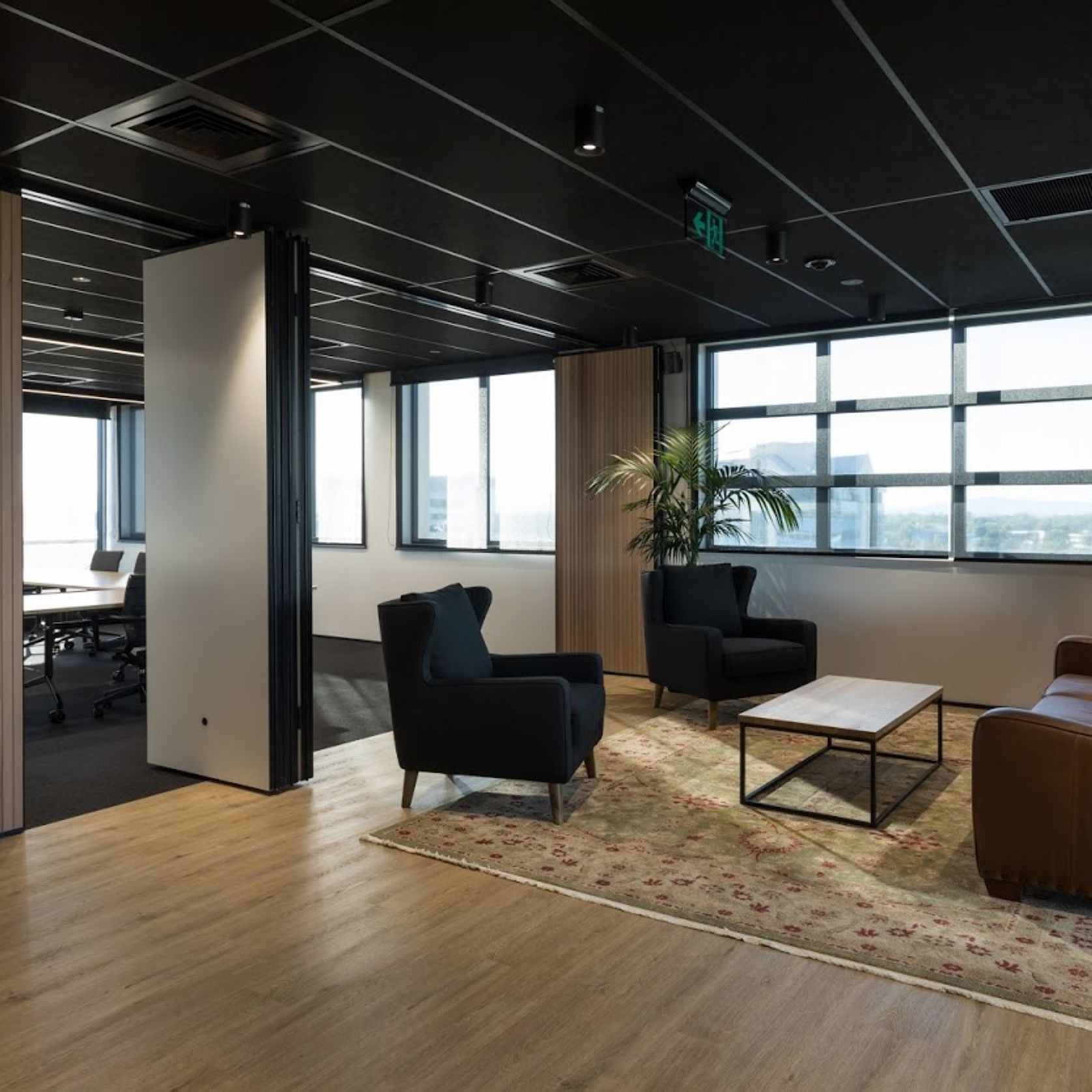

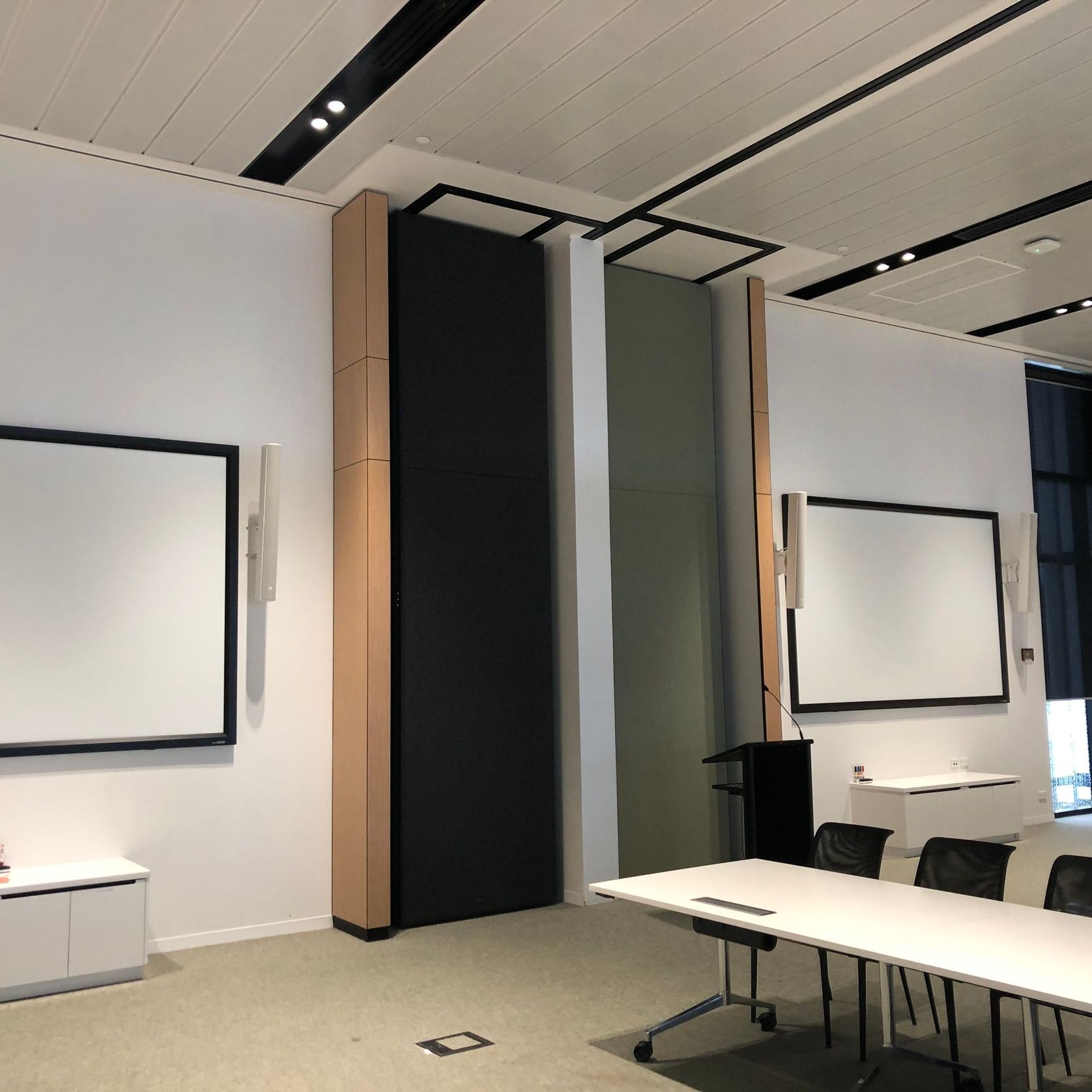

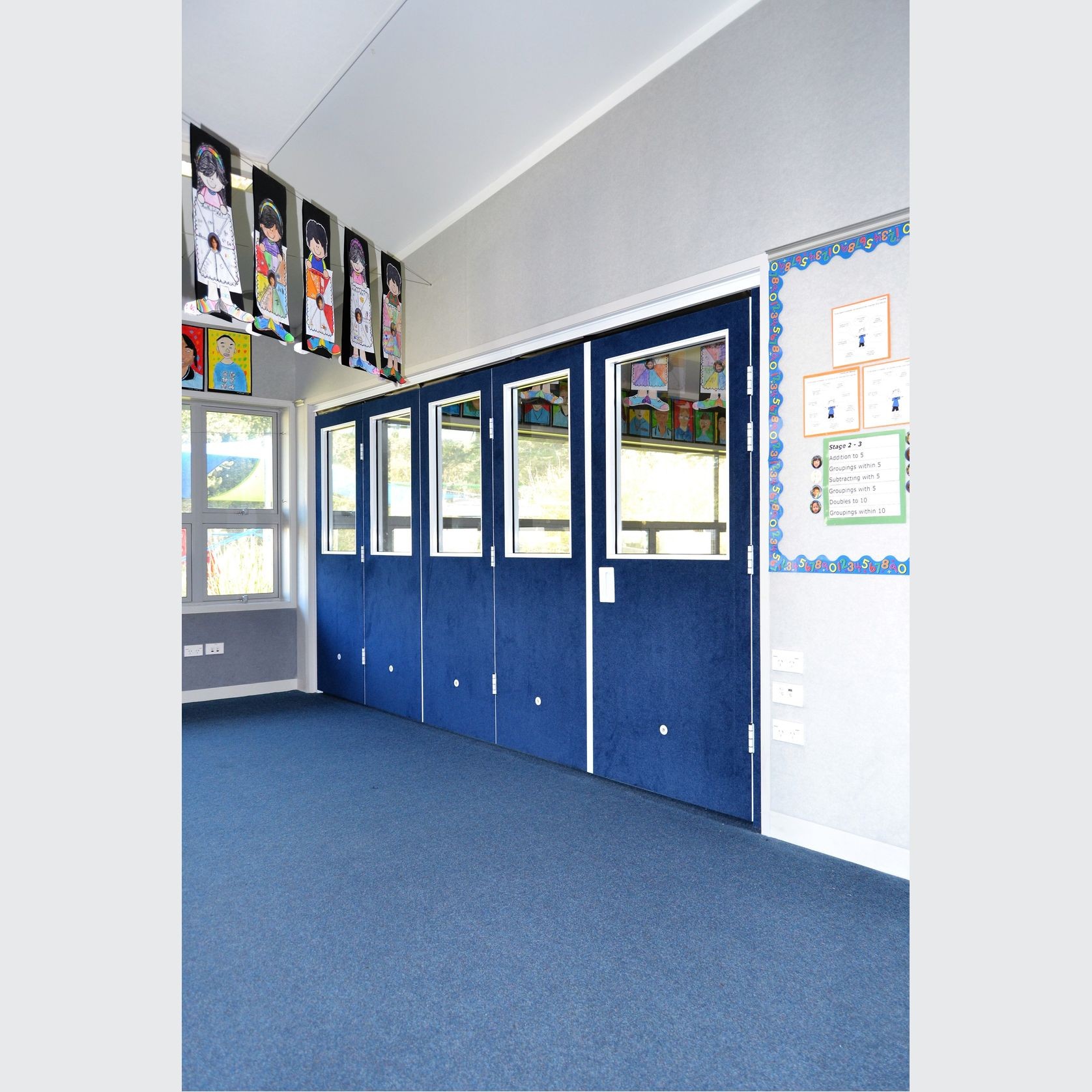

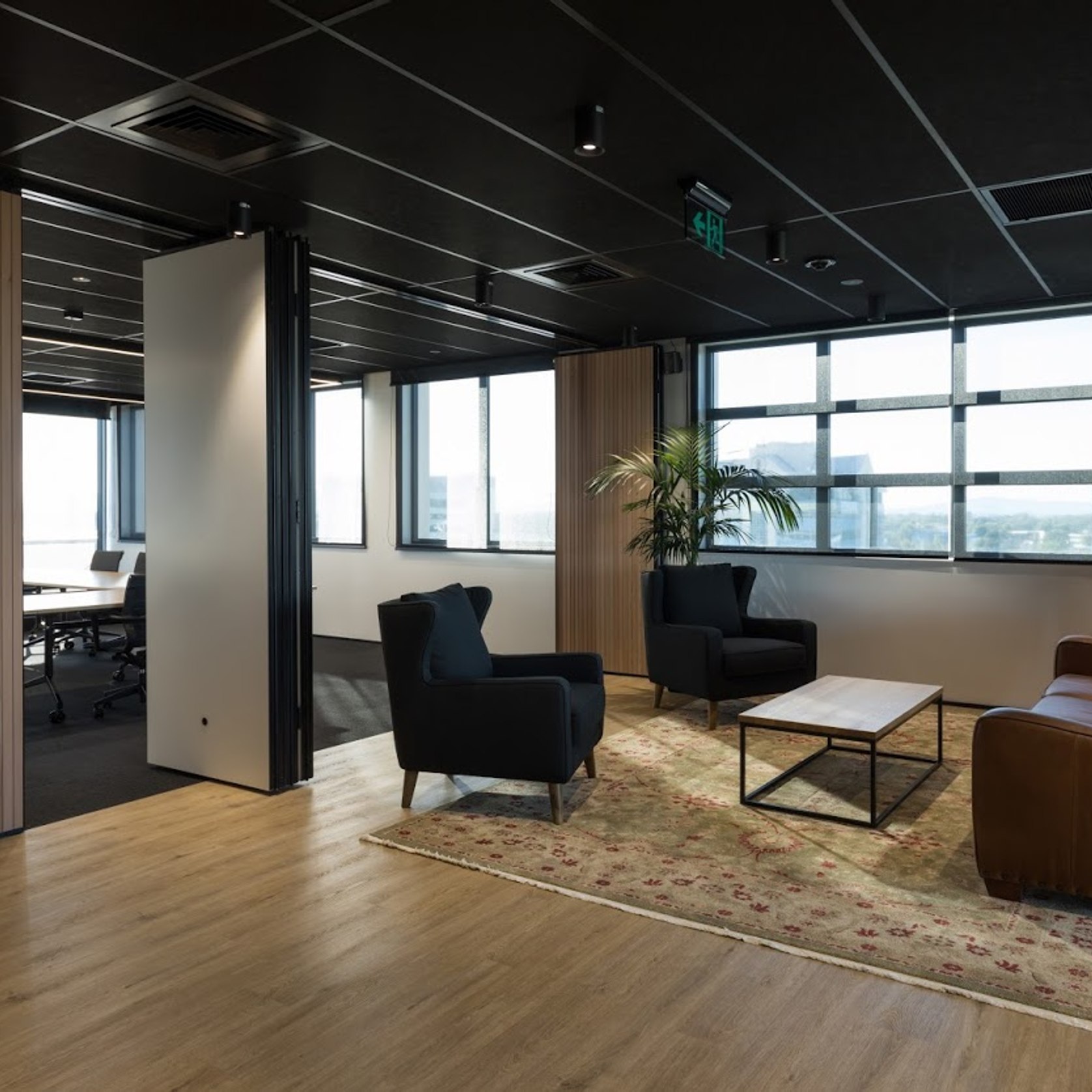

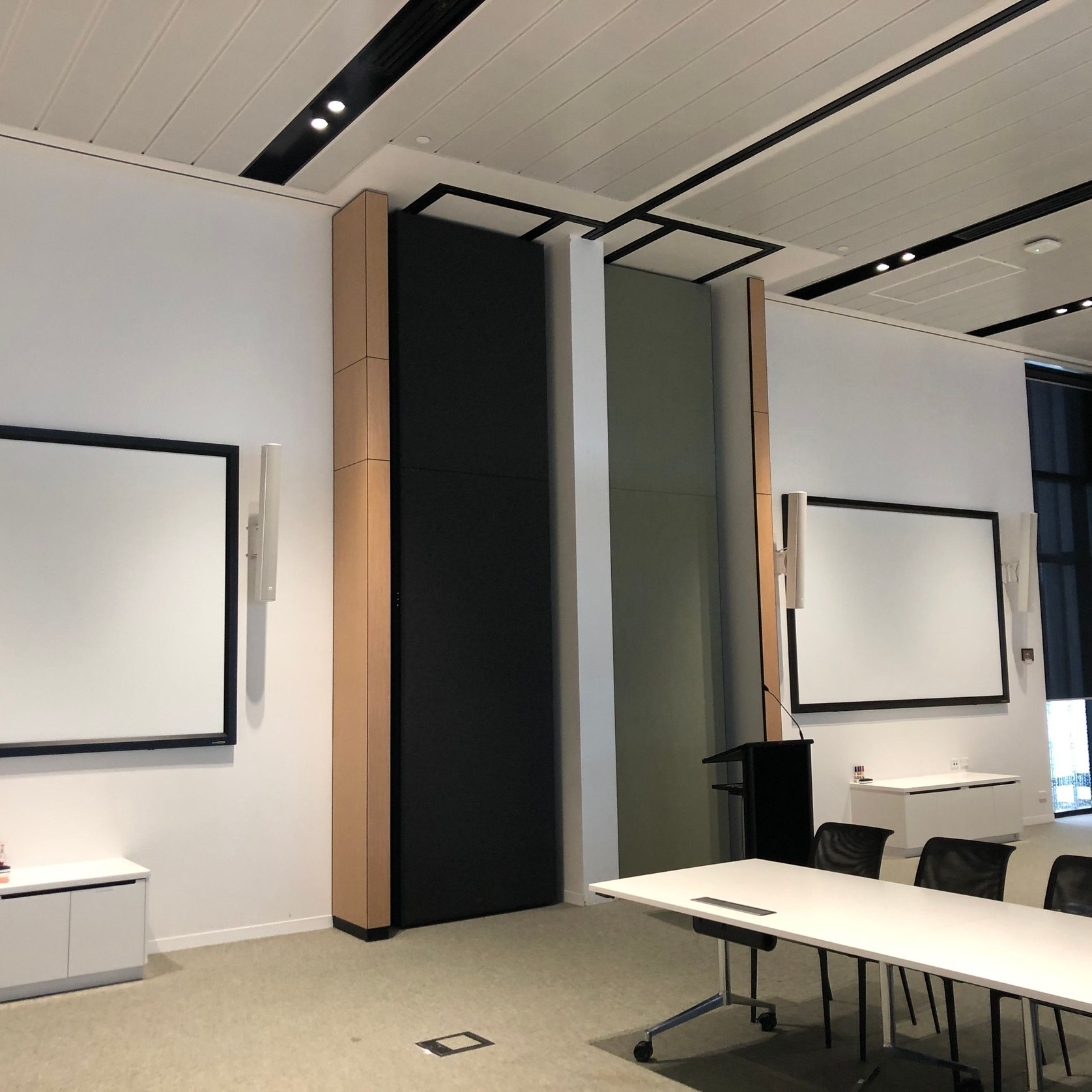

The SpaceSeal Series is designed to be a stylish, convenient and popular solution for schools, community centres, offices, conference, or meeting rooms in retail and hospitality. Offering a varied range of acoustic and configuration options that is suitable in a wide range of environments where maximising space is constantly required while maintaining privacy and sound isolation.
200 Series
The easiest solution to apply in basic room applications while offering reliable acoustic isolation. Specifically designed to be an economical and practical solution to fit most spaces.
400 Series
The best solution for a dynamic and versatile space with the flexibility to combine solid or glass finishes and other configurations. Ideal for space looking to create a flexible environment while maintaining acoustic rating.
500 Series
Offering a combination of high-level acoustic integrity and simplicity of movement. Designed with retractable bottom seals allowing users to manoeuvre the doors with ease.
Product Details
- Product
- SpaceSeal Acoustic Operable Walls
- Category
- Office Screens and Dividers
- Sold by
- Trans-Space
The SpaceSeal Series is designed to be a stylish, convenient and popular solution for schools, community centres, offices, conference, or meeting rooms in retail and hospitality.
Offering a varied range of acoustic and configuration options that is suitable in a wide range of environments where maximising space is constantly required while maintaining privacy and sound isolation.
200 Series
The easiest solution to apply in basic room applications while offering reliable acoustic isolation. Specifically designed to be an economical and practical solution to fit most spaces.
400 Series
The best solution for a dynamic and versatile space with the flexibility to combine solid or glass finishes and other configurations. Ideal for space looking to create a flexible environment while maintaining acoustic rating.
500 Series
Offering a combination of high-level acoustic integrity and simplicity of movement. Designed with retractable bottom seals allowing users to manoeuvre the doors with ease.
- Specs
200 Series
- STC Rating: 35
- Panel Thickness (mm): 75
- Hanging Weight: 17 kgs/m2
- Minimum Panel Width (mm): 600
- Maximum Panel Width (mm): 1200
- Seals: Fixed
- Finish Thickness (mm): 9
- Finish*: Solid
400 Series
- STC Rating: 41
- Panel Thickness (mm): 80
- Hanging Weight: 27kgs/m2
- Minimum Panel Width (mm): 600
- Maximum Panel Width (mm): 1200
- Seals: Fixed
- Finish Thickness (mm): 9
- Finish*: Solid & Glass
500 Series
- STC Rating: 43, 45, 47
- Panel Thickness (mm): 85
- Hanging Weight: 32 – 43 kgs/m2
- Minimum Panel Width (mm): 600
- Maximum Panel Width (mm): 1200
- Seals: Retractable
- Finish Thickness (mm): 12
- Finish*: Solid
- Options
Panels
Appearance similar to a permanent wall
Aluminium framing
MDF skins insulated with fibreglass
- 200 Series – 10mm aluminium protective strip around each edge
- 400 & 500 Series – aluminium trim on the vertical trim only – no visible aluminium on the panel face, leaving a clean look.
Seals
Vertical seals to each jamb are adjustable astragal extrusions
- 400 & 500 Series – Vertical seals between panels are tongue and groove aluminium extrusion astragals with quadruplefinger seals
- 500 Series – Top sweep seals and bottom mechanical seals with a maximum 50mm travel
Configurations
- Single – Individual Panels available in offset or remote stacking.
- Pairs
- Continuously Hinged
Closure
The Trans-Space team will suggest the recommended closing option for your door. This can be achieved with the options below:
- Expanding edge

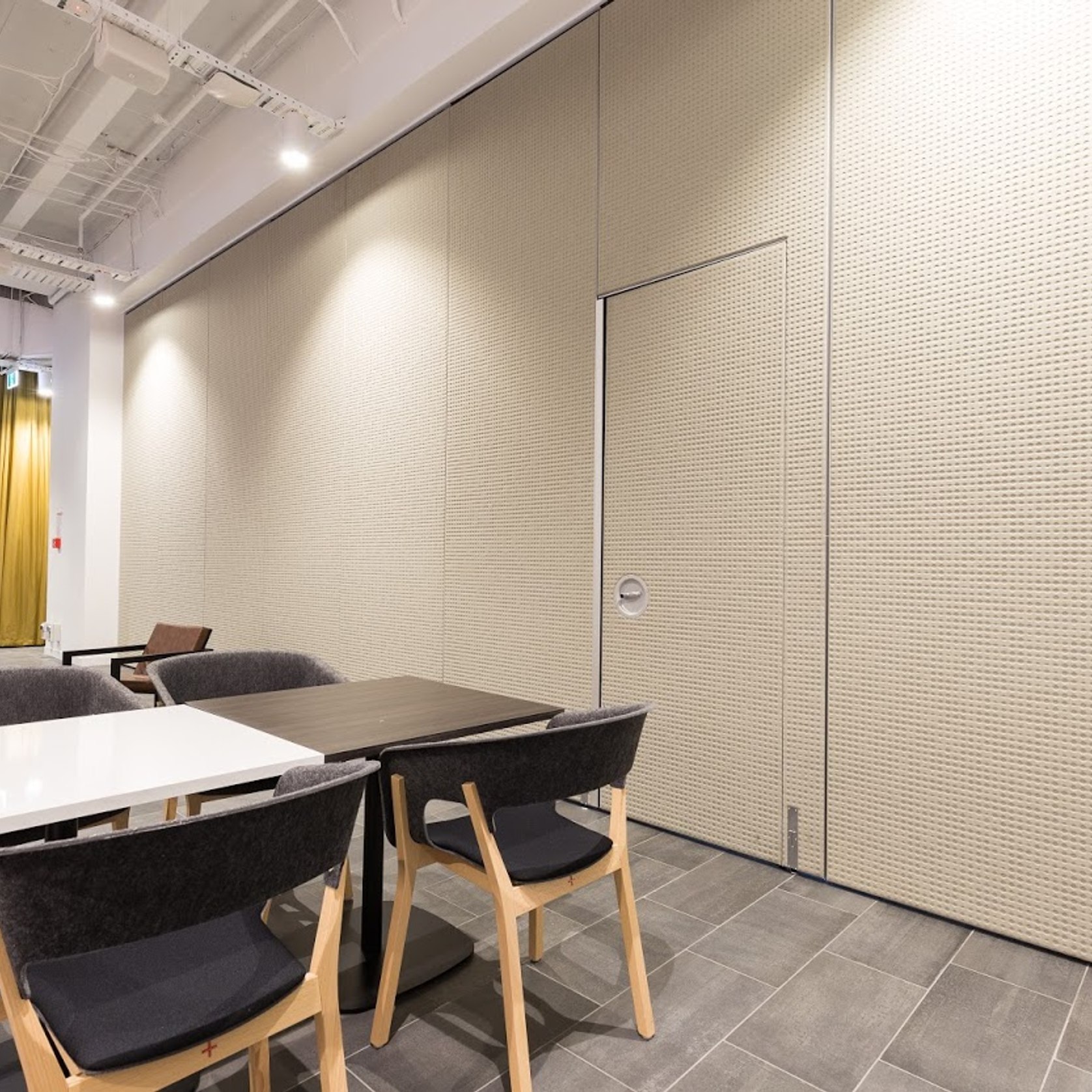

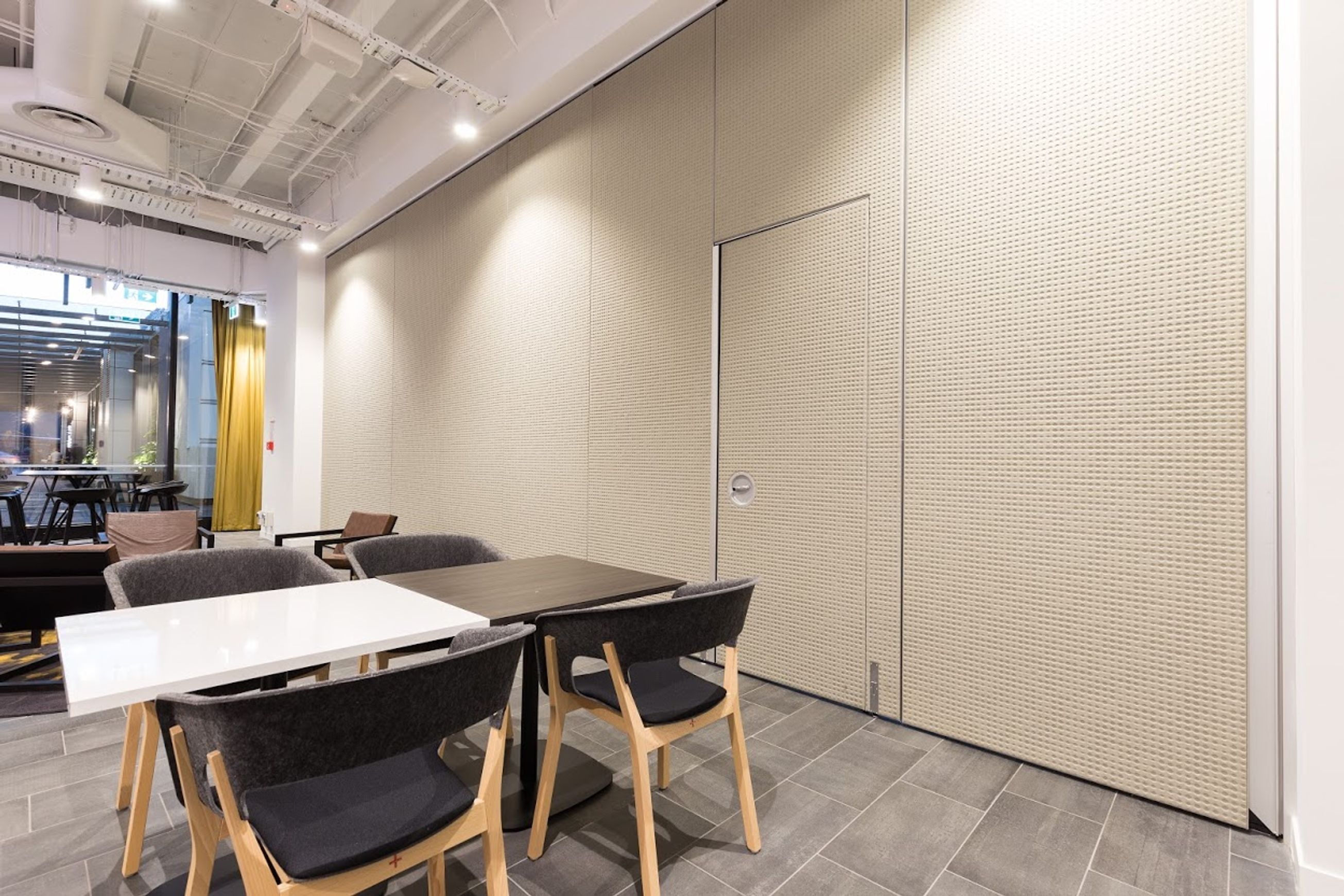

- Jamb Hinged Pass Door
- Lead Panel Pass door
Finishes
Available in various finishes including fabric, sheet, timber laminates, vinyls, paint, whiteboards, autex material or a combination.
Work by Others
- All headworks required to support track. Deflection of head under load to be less than 5mm
- Jambs to be installed straight and plumb. Tolerance 5mm from plumb
- Baffle over the opening to ensure no flanking paths for sound transmission
- Smooth, straight level floor
Downloads
Downloads (24)24 Direct downloads • 10 Available on request
Frequently asked questions about
SpaceSeal Acoustic Operable Walls
The SpaceSeal Acoustic Operable Walls is supplied by Trans-Space. It is also on their website, and you can browse every product Trans-Space lists on ArchiPro.
Trans-Space does not publish a price for the SpaceSeal Acoustic Operable Walls on ArchiPro. for pricing, or visit their website.
It is listed under Office Screens and Dividers on ArchiPro, where you can compare it with office screens and dividers from other suppliers.

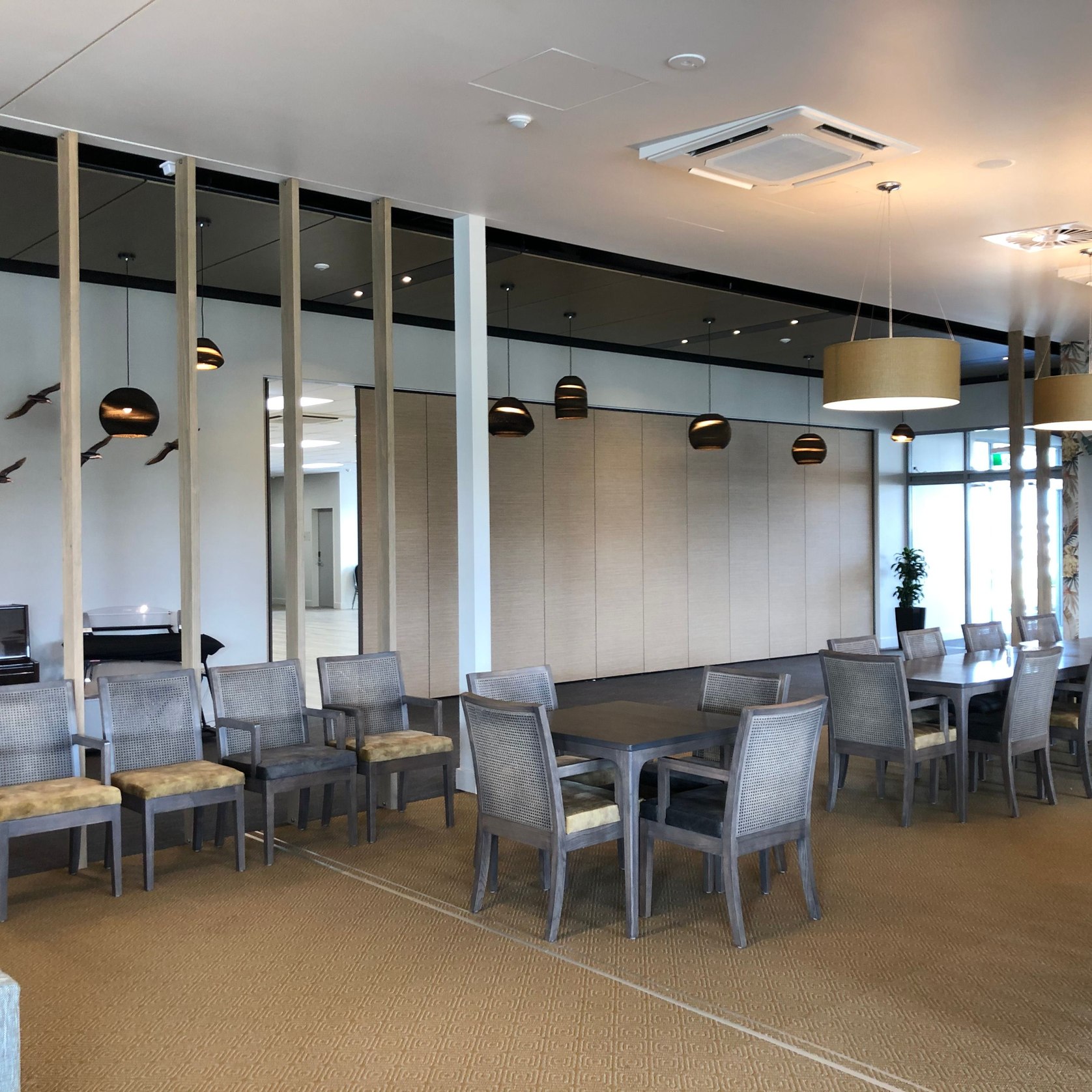

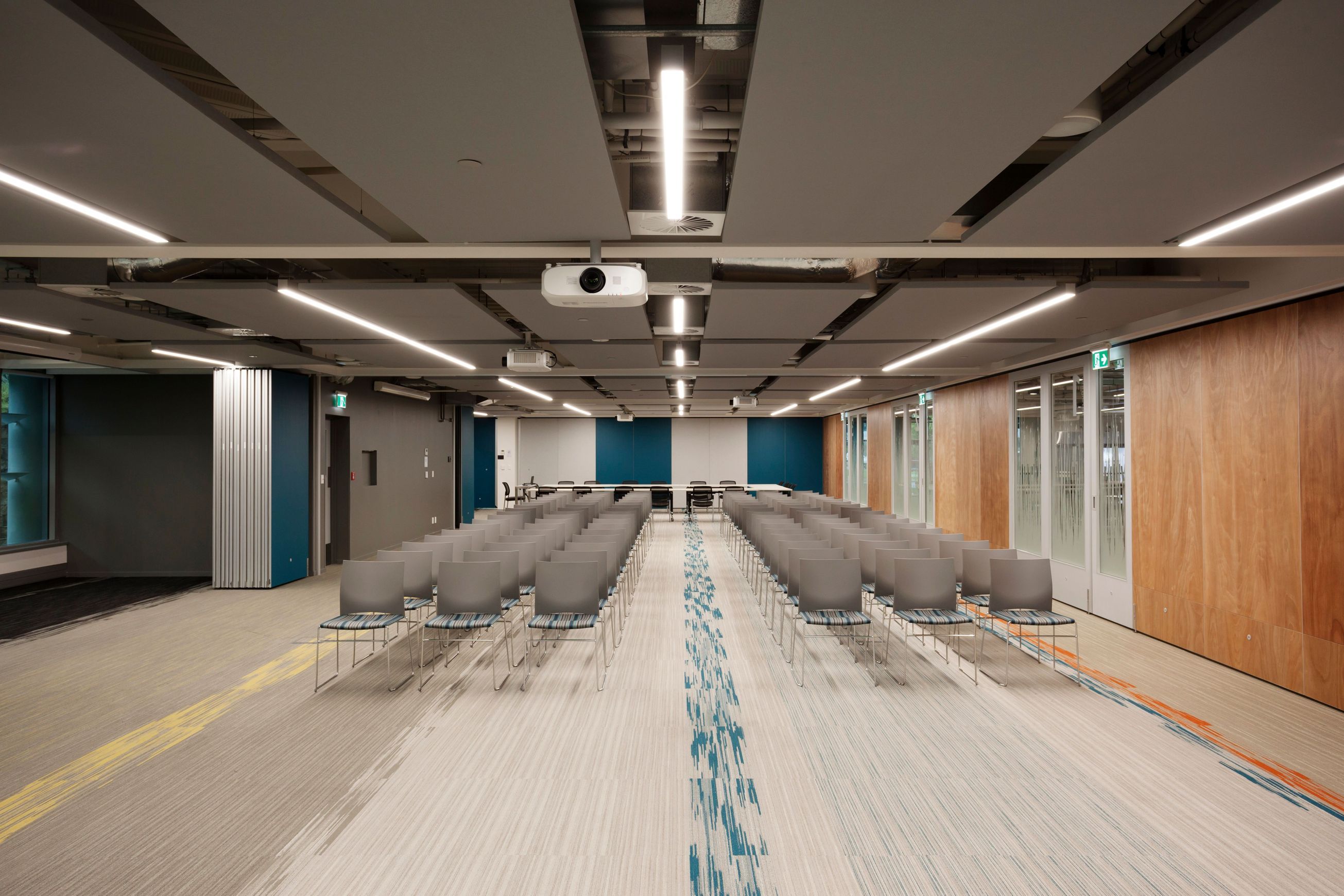

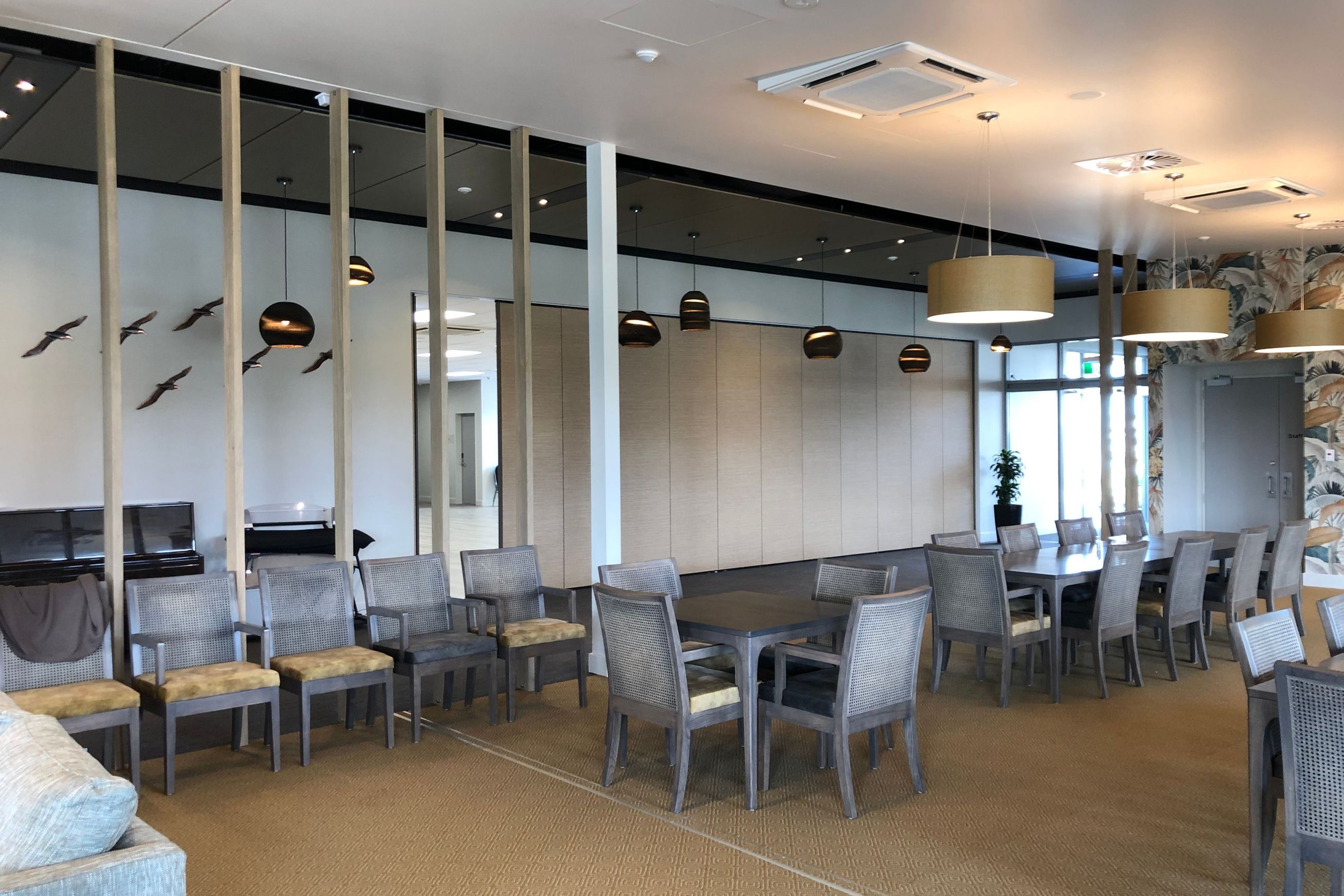

Yes. It has been specified in projects on ArchiPro, including Warehouse Conference Centre - New Plymouth by Trans-Space, Metlife Care Papamoa Pavillon by Urban Lounge Interiors and Katikati Library by McGreals. See how it was used in a finished space.
