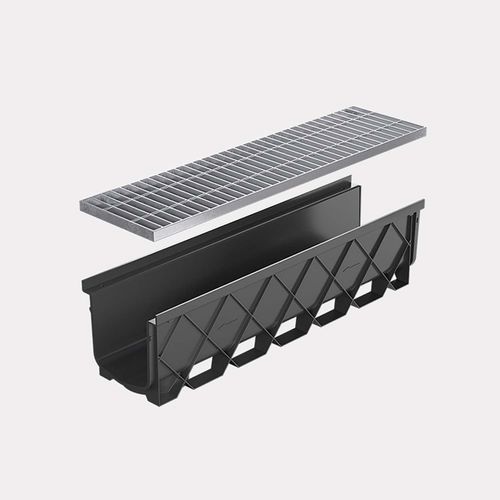

Storm Master® Anti Slip Heel Guard Galvanised Grate

By RELN
Website

RELN Storm Master is the commercial drainage solution with a deep 200mm profile. Storm Master effectively collects and distributes substantial volumes of surface water throughout its system. The Class C Anti Slip Heelguard Grate is perfect for pedestrian areas in commercial applications.

RELN Storm Master is the commercial surface drainage solution, perfect for heavy-use commercial applications, where heavy surface water flows or heavy vehicle and pedestrian traffic is a factor. The range is strong, durable and can withstand 10 tonne of vehicle weight when installed correctly, being the master when it comes to commercial surface drainage.

Details
  • Category
    Stormwater Drainage, Channel Drainage
  • Range
    Storm Master®
Specifications

EXTERNAL DIMENSIONS

Measurement of the external perimeter.

  • Length- 1000mm
  • Width- 273mm
  • Depth- 263mm

INTERNAL DIMENSIONS

Measurement of the internal perimeter.

  • Length- 1000mm
  • Width- 200mm
  • Depth- 200mm

WEIGHT- 21.37kg

Performance
  • Durability – Channel made in Australia from tough, durable, and lightweight UV stabilised recycled plastic. Class B Grate made from Galvanised Steel.
  • Easy to install – Storm Master is a breeze to install with its easy connecting channels, interchangeable grates and hold down feet to stop floatation during the pouring of concrete.
  • Perfect for Commercial Surface Drainage – With a range of accessories and grate options, Storm Master is the perfect large capacity drainage for commercial applications
  • Class C Load Rating – Perfect for commercial applications with slow moving vehicles
  • AS4586 Slip Resistance Classification P5 – Anti-Slip Heel Guard grate complies with the AS4586 Slip Resistance Classification P5
  • Large 200mm profile – A large profile, ideal for clearing high flows of surface water.
  • Plumber-friendly – Bottom outlet can be cut or drilled to fit 90mm PVC stormwater pipe
  • Environmentally friendly – Made from 100% UV stabilised recycled plastic
