WPF 10M /13M/16M Geothermal Hydronic Heating Heat Pump

Name: WPF 10M /13M/16M Geothermal Hydronic Heating Heat Pump
Brand: Stiebel Eltron

Auckland

275.3K profile views
61 saves

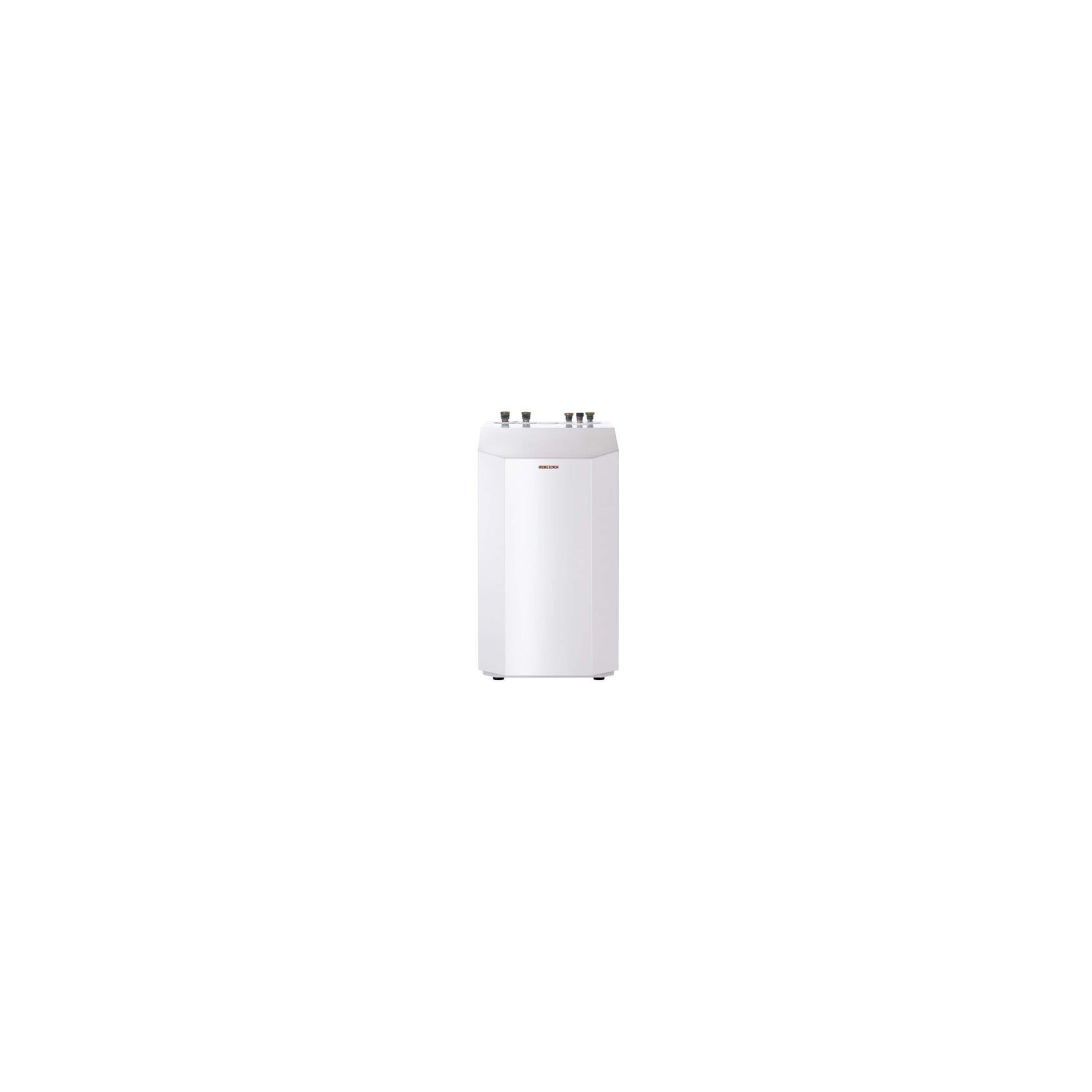

The modular WPF M range of STIEBEL geothermal hydronic heat pumps are systems capable of delivering renewable energy to buildings on a much larger scale. With the ability to cascade up to six heat pumps, the system can deliver a combined output of up to 100 kW, making it perfect for heating larger buildings or apartments. The WPF M range of geothermal hydronic heat pumps can be used with up to two controllers, making system control very easy. The modules can be matched, stage-by-stage, to your individual requirements, to deliver an energy supply solution for DHW and central heating.

Tags

geothermal hydronic heat pumps renewable energy heat pumps heating central heating

Product Details

Product: WPF 10M /13M/16M Geothermal Hydronic Heating Heat Pump
Category: Heat Pumps
Sold by: STIEBEL ELTRON
Range: Heat Pumps
Brand: Stiebel Eltron

STIEBEL ELTRON is specified by

WPF 10M /13M/16M Geothermal Hydronic Heating Heat Pump

Visit site

With the ability to cascade up to six heat pumps, the system can deliver a combined output of up to 100 kW, making it perfect for heating larger buildings or apartments. The WPF M range of geothermal hydronic heat pumps can be used with up to two controllers, making system control very easy. The modules can be matched, stage-by-stage, to your individual requirements, to deliver an energy supply solution for DHW and central heating.

The modular WPF M range of STIEBEL geothermal hydronic heat pumps are systems capable of delivering renewable energy to buildings on a much larger scale.

Specs

Model - WPF 10M

Output at B0/W35 (EN 14511) - 10.02 kW
Coefficient of performance at B0/W35 (EN 14511) - 4.49
Flow rate, heat source side - 2.2 m³/h
Sound power level (EN 12102) - 51 dB(A)
Sound pressure level at a distance of 1 m - 40 dB(A)
Rated compressor voltage - 400 V
Height - 960 mm
Width - 510 mm
Depth - 680 mm
Weight - 112 kg

Model - WPF 13M

Output at B0/W35 (EN 14511) - 12.98 kW
Coefficient of performance at B0/W35 (EN 14511) - 4.57
Flow rate, heat source side - 3.1 m³/h
Sound power level (EN 12102) - 51 dB(A)
Sound pressure level at a distance of 1 m - 40 dB(A)
Rated compressor voltage - 400 V
Height - 960 mm
Width - 510 mm
Depth - 680 mm
Weight - 120 kg

Model - WPF 16M

Output at B0/W35 (EN 14511) - 16.99 kW
Coefficient of performance at B0/W35 (EN 14511) - 4.35
Flow rate, heat source side - 3.8 m³/h
Sound power level (EN 12102) - 51 dB(A)
Sound pressure level at a distance of 1 m - 45 dB(A)
Rated compressor voltage - 400 V
Height - 960 mm
Width - 510 mm
Depth - 680 mm
Weight - 125 kg

Features

10.02 - 16.99 kW heating output at B0/W35

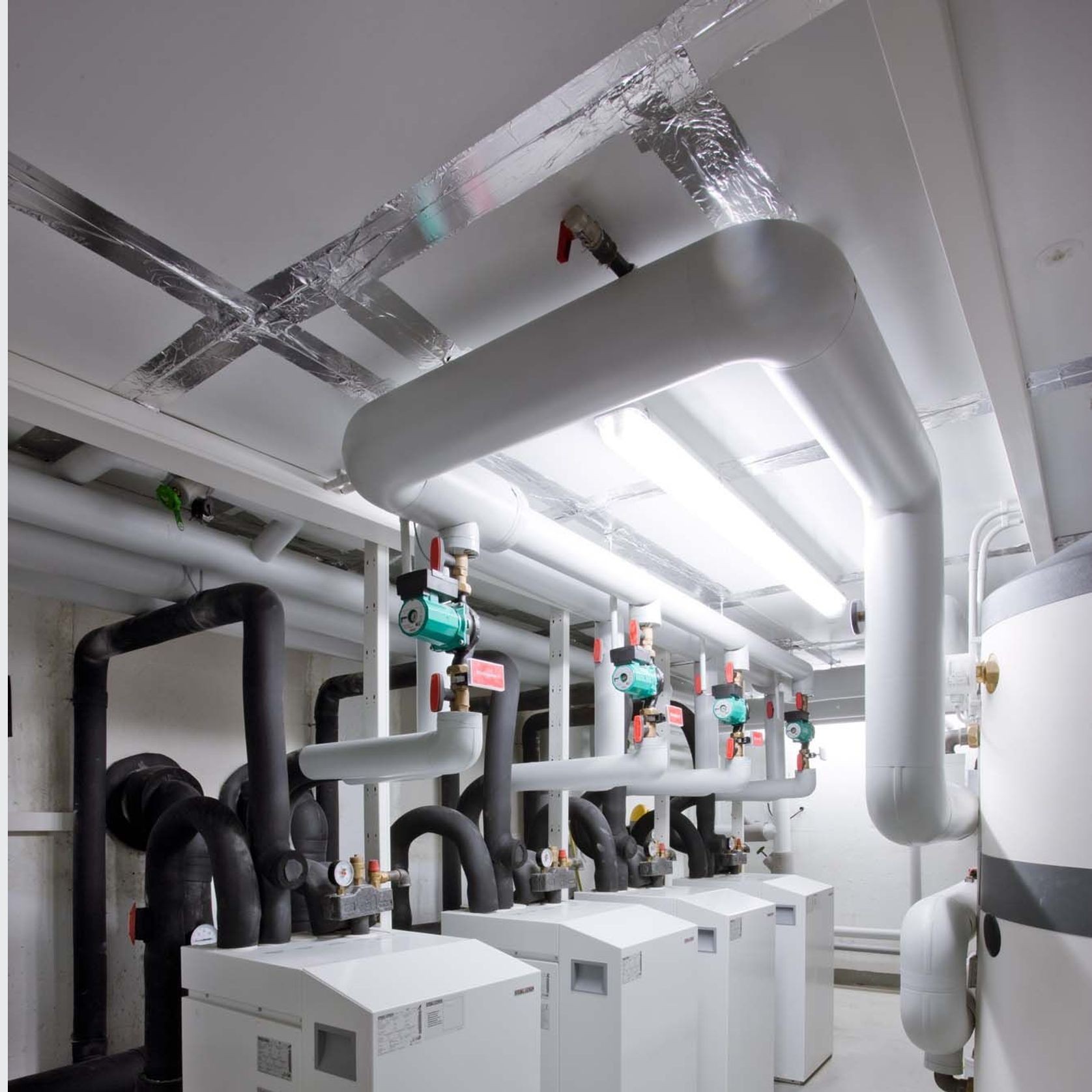

Cascade up to 6 geothermal heat pumps for higher output
Easy system control
Extremely quiet operation
