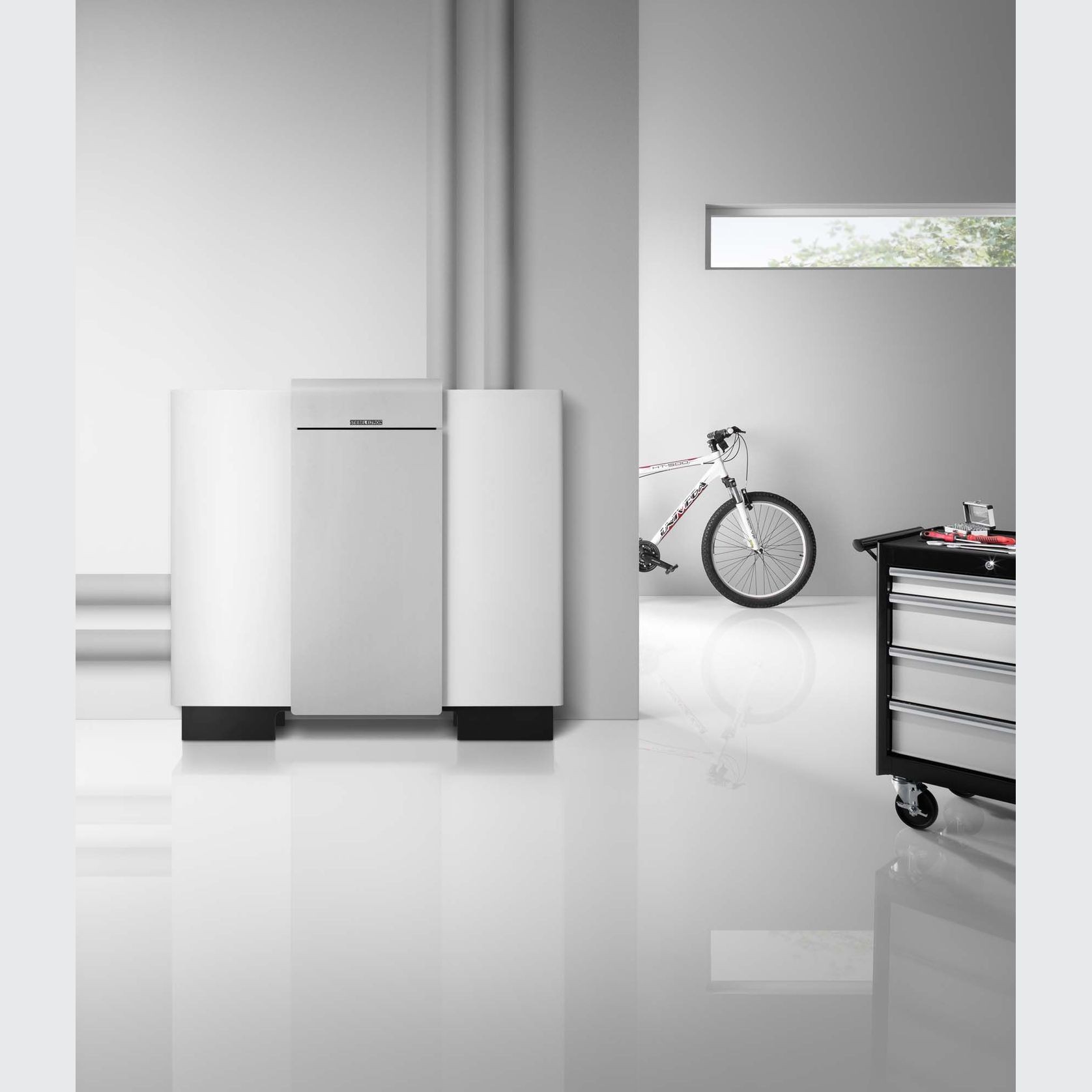

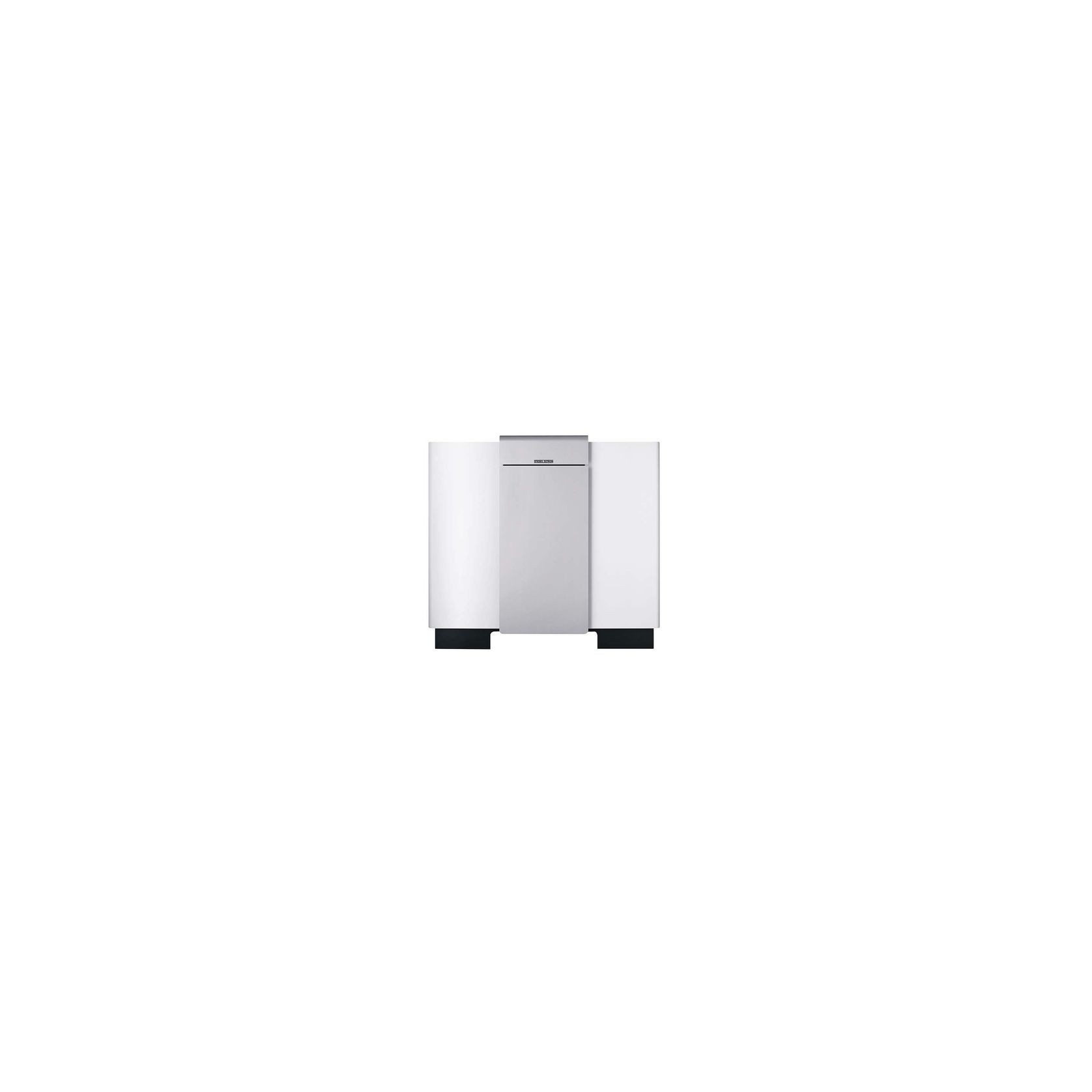

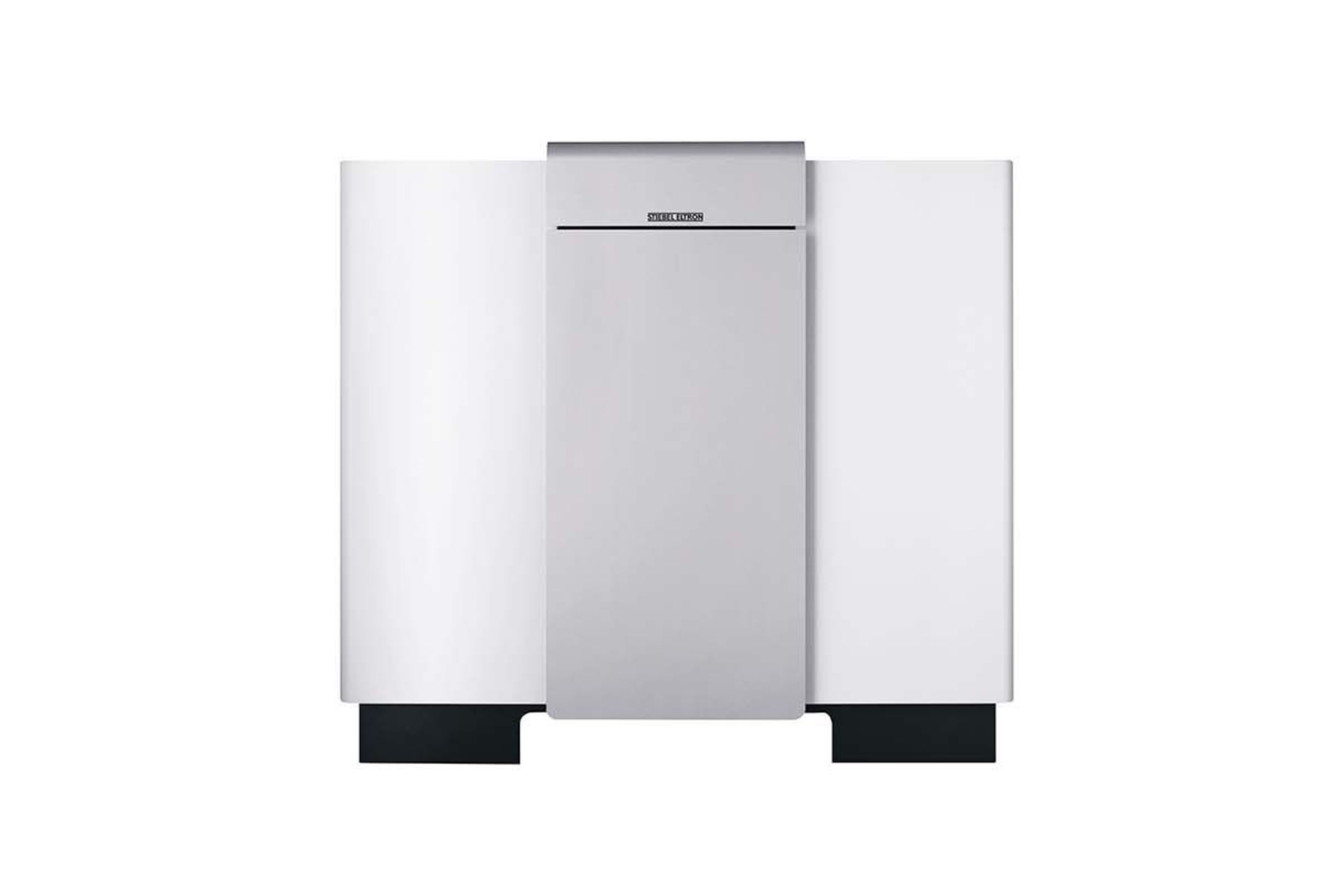

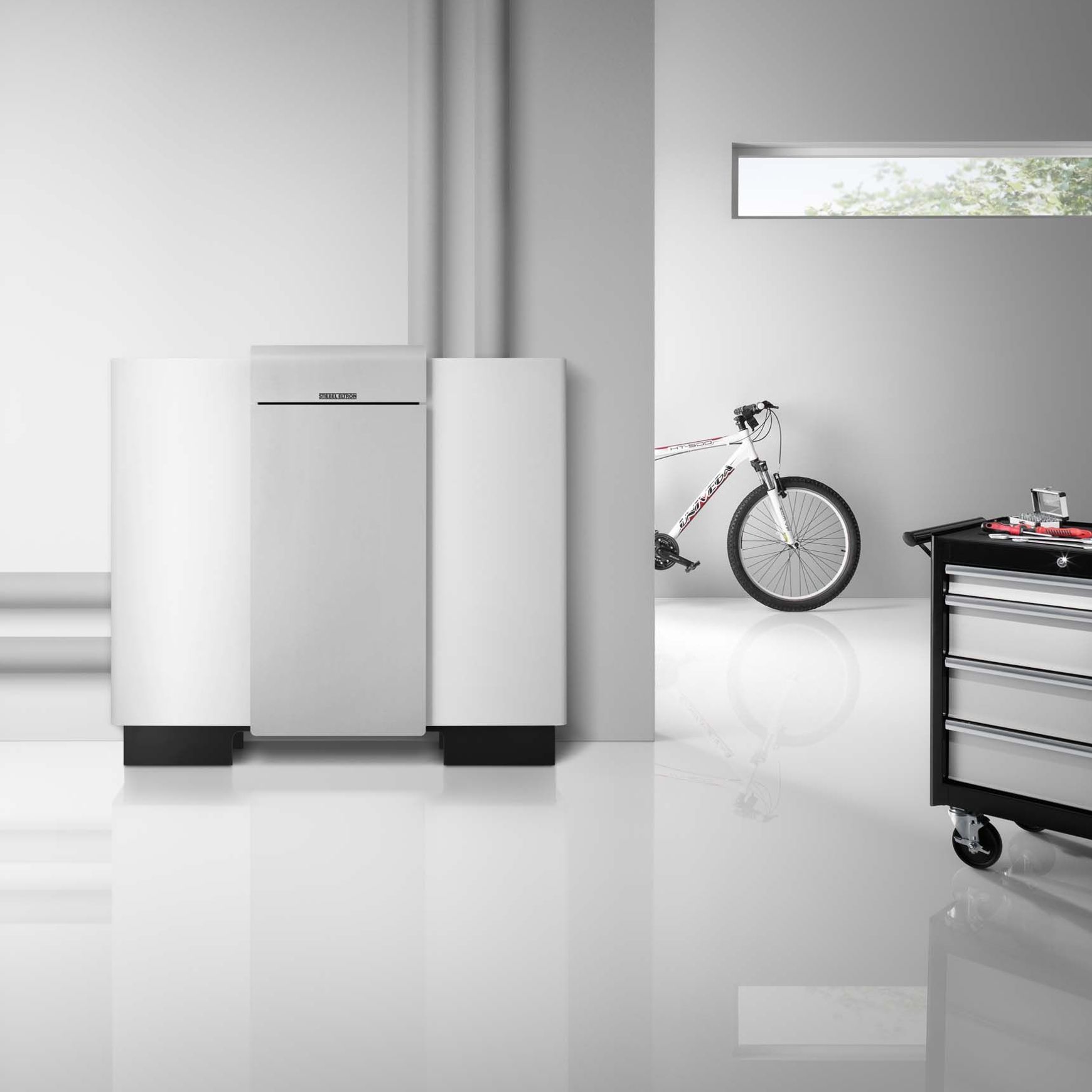

WPF 20 /27/35/40/52/66 Geothermal Hydronic Heating Heat Pump

Designed for residential and commercial complexes with larger heating loads, the stackable WPF range of geothermal hydronic heat pumps are a demonstration of the advancement of heat pump technology. Featuring cascade control which allows additional units to be started dependant on peak loads. Winner of multiple design awards, the WPF 20-66 geothermal heat pumps can be stacked to save space.

Details
  • Category
    Heat Pumps
  • Range
    Heat Pumps
  • Brand
    Stiebel Eltron
Specifications

Model - WPF 20

  • Output at B0/W35 (EN 14511) - 21.5 kW
  • Coefficient of performance at B0/W35 (EN 14511) - 4.66
  • Flow rate, heat source side - 5 m³/h
  • Nominal design flow rate of heating system at A-7/W35 and 7 K - 2.65 m³/h
  • Sound power level (EN 12102) - 54 dB(A)
  • Sound pressure level at a distance of 1 m - 43 dB(A)
  • Rated compressor voltage - 400 V
  • Connections for the heating and source side - G 2
  • Height - 1154 mm
  • Width1 - 242 mm
  • Depth - 860 mm
  • Weight - 345 kg

Model - WPF 27

  • Output at B0/W35 (EN 14511) - 29.69 kW
  • Coefficient of performance at B0/W35 (EN 14511) - 4.85
  • Flow rate, heat source side - 7 m³/h
  • Nominal design flow rate of heating system at A-7/W35 and 7 K - 3.65 m³/h
  • Sound power level (EN 12102) - 55 dB(A)
  • Sound pressure level at a distance of 1 m - 44 dB(A)
  • Rated compressor voltage - 400 V
  • Connections for the heating and source side - G 2
  • Height - 1154 mm
  • Width1 - 242 mm
  • Depth - 860 mm
  • Weight - 345 kg

Model - WPF 35

  • Output at B0/W35 (EN 14511) - 38.04 kW
  • Coefficient of performance at B0/W35 (EN 14511) - 4.78
  • Flow rate, heat source side - 8.8 m³/h
  • Nominal design flow rate of heating system at A-7/W35 and 7 K - 4.48 m³/h
  • Sound power level (EN 12102) - 56 dB(A)
  • Sound pressure level at a distance of 1 m - 45 dB(A)
  • Rated compressor voltage - 400 V
  • Connections for the heating and source side - G 2
  • Height - 1154 mm
  • Width1 - 242 mm
  • Depth - 860 mm
  • Weight - 345 kg

Model - WPF 40

  • Output at B0/W35 (EN 14511) - 43.1 kW
  • Coefficient of performance at B0/W35 (EN 14511) - 4.67
  • Flow rate, heat source side - 10.5 m³/h
  • Nominal design flow rate of heating system at A-7/W35 and 7 K - 5.3 m³/h
  • Sound power level (EN 12102) - 58 dB(A)
  • Sound pressure level at a distance of 1 m - 47 dB(A)
  • Rated compressor voltage - 400 V
  • Connections for the heating and source side - G 2
  • Height - 1154 mm
  • Width1 - 242 mm
  • Depth - 860 mm
  • Weight - 345 kg

Model - WPF 52

  • Output at B0/W35 (EN 14511) - 55.83 kW
  • Coefficient of performance at B0/W35 (EN 14511) - 4.81
  • Flow rate, heat source side - 13 m³/h
  • Nominal design flow rate of heating system at A-7/W35 and 7 K - 6.86 m³/h
  • Sound power level (EN 12102) - 58 dB(A)
  • Sound pressure level at a distance of 1 m - 47 dB(A)
  • Rated compressor voltage - 400 V
  • Connections for the heating and source side - G 2
  • Height - 1154 mm
  • Width1 - 242 mm
  • Depth - 860 mm
  • Weight - 345 kg

Model - WPF 66

  • Output at B0/W35 (EN 14511) - 67.10 kW
  • Coefficient of performance at B0/W35 (EN 14511) - 4.56
  • Flow rate, heat source side - 16.1 m³/h
  • Nominal design flow rate of heating system at A-7/W35 and 7 K - 8.26 m³/h
  • Sound power level (EN 12102) - 61 dB(A)
  • Sound pressure level at a distance of 1 m - 50 dB(A)
  • Rated compressor voltage - 400 V
  • Connections for the heating and source side - G 2
  • Height - 1154 mm
  • Width1 - 242 mm
  • Depth - 860 mm
  • Weight - 345 kg

Features

  • Geothermal hydronic heating for larger complexes
  • 21.5 – 67.1 kW heating output at B0/W35

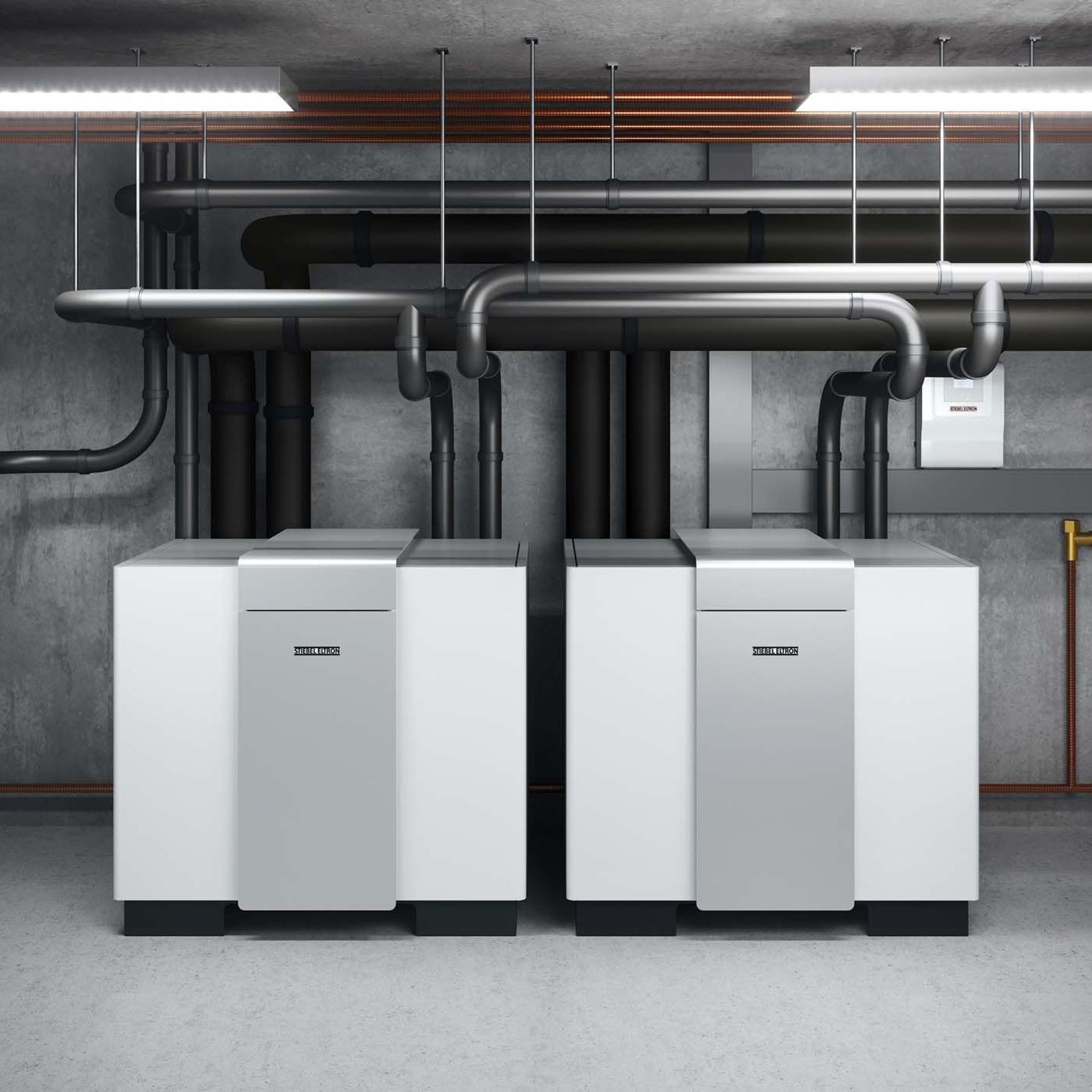

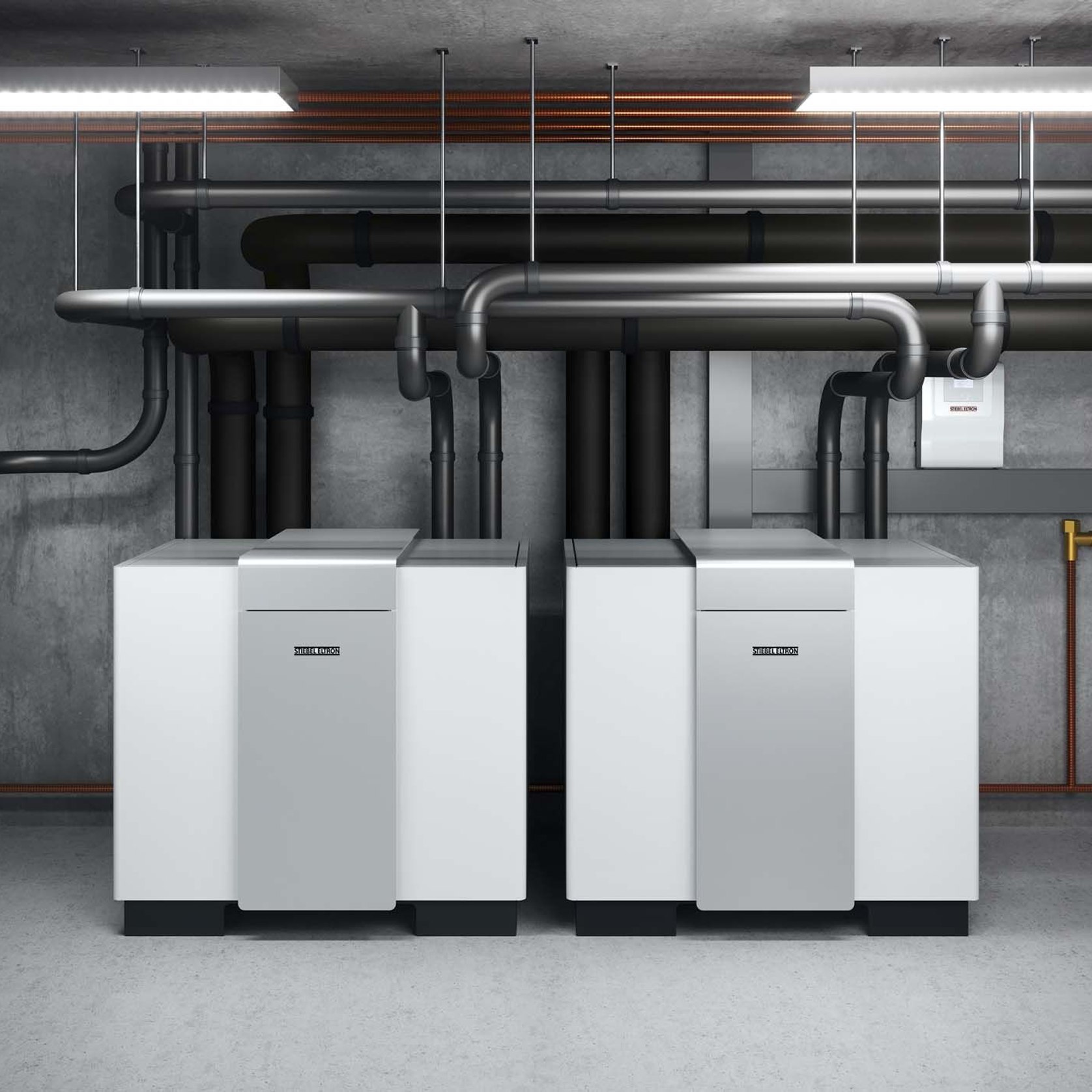

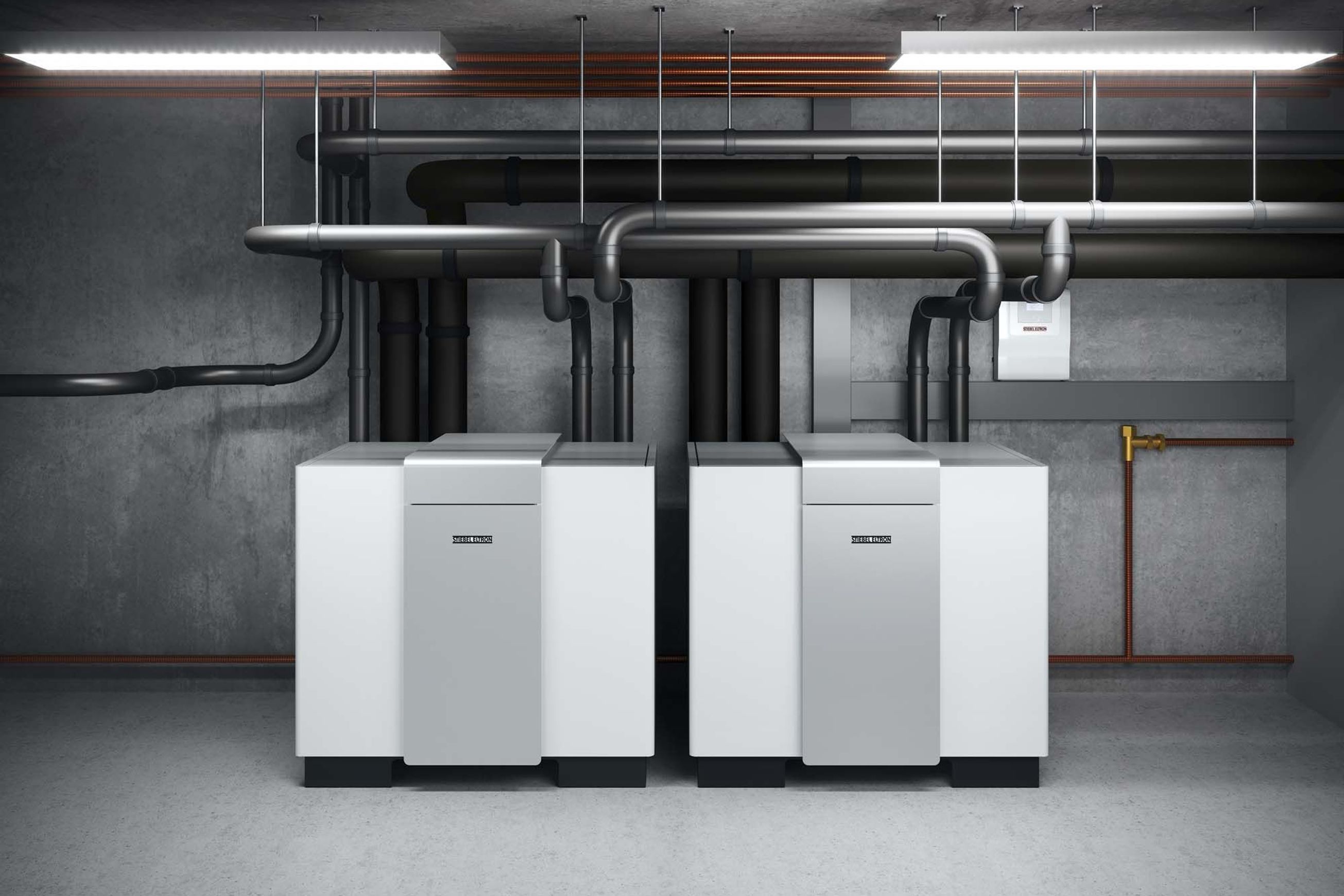

  • Stackable design to maximise available space
  • Cascade control for high output requirements
  • High reliability through robust single compressor design
  • Integrated heat and electricity meters
  • Extremely quiet operation
