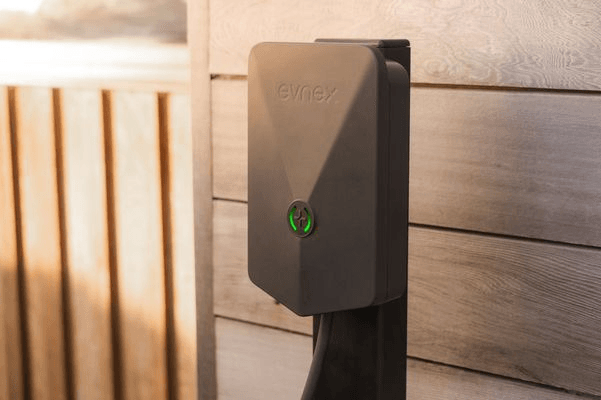

X22 Charger

• Charging power: 22kW (32A, three-phase).
• Dimensions: Height 373mm, width 212mm, depth 142mm.
• Compliance: IEC 61000-6-2:2016, DC leakage detection - 6mA.
• Enclosure: IP54 water resistance rating, IK08 impact rating.
• Cable type: Type 2 plug with 8 metre tethered cable, or universal cable socket.
• Safety features: Home overload protection, load balancing between multiple X22s.
• Warranty: Three-year warranty.
• Connectivity: Cellular, Wi-Fi, or ethernet.

Built for all environments

The X22 is waterproof; resistant to UV, impacts, and fire; and can withstand a freezing -25°C Queenstown winter through to a scorching 55°C Queensland summer.

Up to 10 times faster charging

22kW (32A, three-phase).

Our three-phase X22 provides our fastest charge yet — up to 10 times faster than a standard 3-pin plug — charging most EVs from 20% to full in 4-6 hours.

The X22 requires three-phase power to work at full capacity. If you have a single or two-phase home, explore our single-phase E2 charger.

Solar diversion

Divert unused solar energy to charge your EV.

The X22 comes with built-in solar diversion, allowing you to charge your EV using solar energy unused by your home instead of sending it back to the grid.

Solar export must exceed 4.5 kW for full solar-only charging.

Home overload protection

Protecting your home or business during peak periods.

During peak periods of power use, your energy usage may exceed your building's capacity. The E2 will automatically adjust and lower your charge rate, avoiding an unsafe power supply overload.

Charge scheduling

Tailor your charge with off-peak, free, or clean energy

Make the most of off-peak or free energy rates offered by many energy retailers. Charge your EV overnight when your the load is low, or schedule charging for when grid energy is at its cleanest.

Carbon-tracking capability

Track grid generation sources and carbon emissions

We’re the only chargers in Australia that let you see the generation mix of the grid, breaking out the energy you’re using by its source, cleanliness and carbon footprint — allowing you to make informed decisions on when you charge.

Dedicated charging app

Schedule your charge, check your carbon emissions, enable solar diversion, get a full charging summary, and much more.

Multi-charger sites will also get access to CP-Link, our business and fleet management tool.

Full EV compatibility

The X22 is compatible with all current EVs in Australia and New Zealand.

Please note; some smart charging features are not compatible with a very (very) small number of older models. If you think this may affect you, our knowledgeable team can let you know.

The X22 is our recommended turn-key solution for commercial charging.

Dynamic load balancing

Automatically distribute your building’s energy between all connected Evnex chargers — without requiring expensive upgrades.

When your building’s energy capacity becomes limited we’ll reduce the charge, avoiding overload.

Cloud connectivity

Integrated Wi-Fi, ethernet, and 4G capability allow us to automatically keep your charger up-to-date.

And if you experience any issues, we can troubleshoot, diagnose and — in many cases — fix your charger 100% remotely.

RFID access control

Easily control, manage and measure the use of any charger using RFID-enabled cards or fobs — perfect for shared spaces, fleets, or employee incentives. Grant access to approved users, and eliminate the risk of unauthorised charging.

Centralised dashboards

Multi-charger sites will also get access to CP-Link, our business and fleet management tool, allowing you to easily self-manage access, report on activity, and have visibility of your entire EV charger network.

Future-proof commercial charging

Chat to our dedicated team to find the right commercial charging and installation solution for your business.

Evnex X22 smart EV charger (22kW)

• Tethered charging cable 5m (Type 2) or universal socket option
• Charging plug holster
• Mobile control app (including access to all residential charging features)
• Wi-Fi and LTE-M cellular and ethernet connectivity
• Power sensor
• Current transformer
• 7-day local customer service, product updates, and ongoing support
• User manual
• Installation manual (for use by professional electricians only)
• Installation mounting hardware (for use by professional electricians only)

What's not included

Socket configurations of X-series chargers do not include a charging cable.

RFID cards are available separately.

This purchase option DOES NOT include installation services for this EV charger which is required for it to function as advertised. You are responsible for organising a professional installation service for this product and ensuring the installer follows all the necessary installation instructions.

Want us to take care of the installation?  Get in touch with us directly for an installation quote using an Evnex-approved installer.

Email: [email protected] | Phone: 1800 959 377
