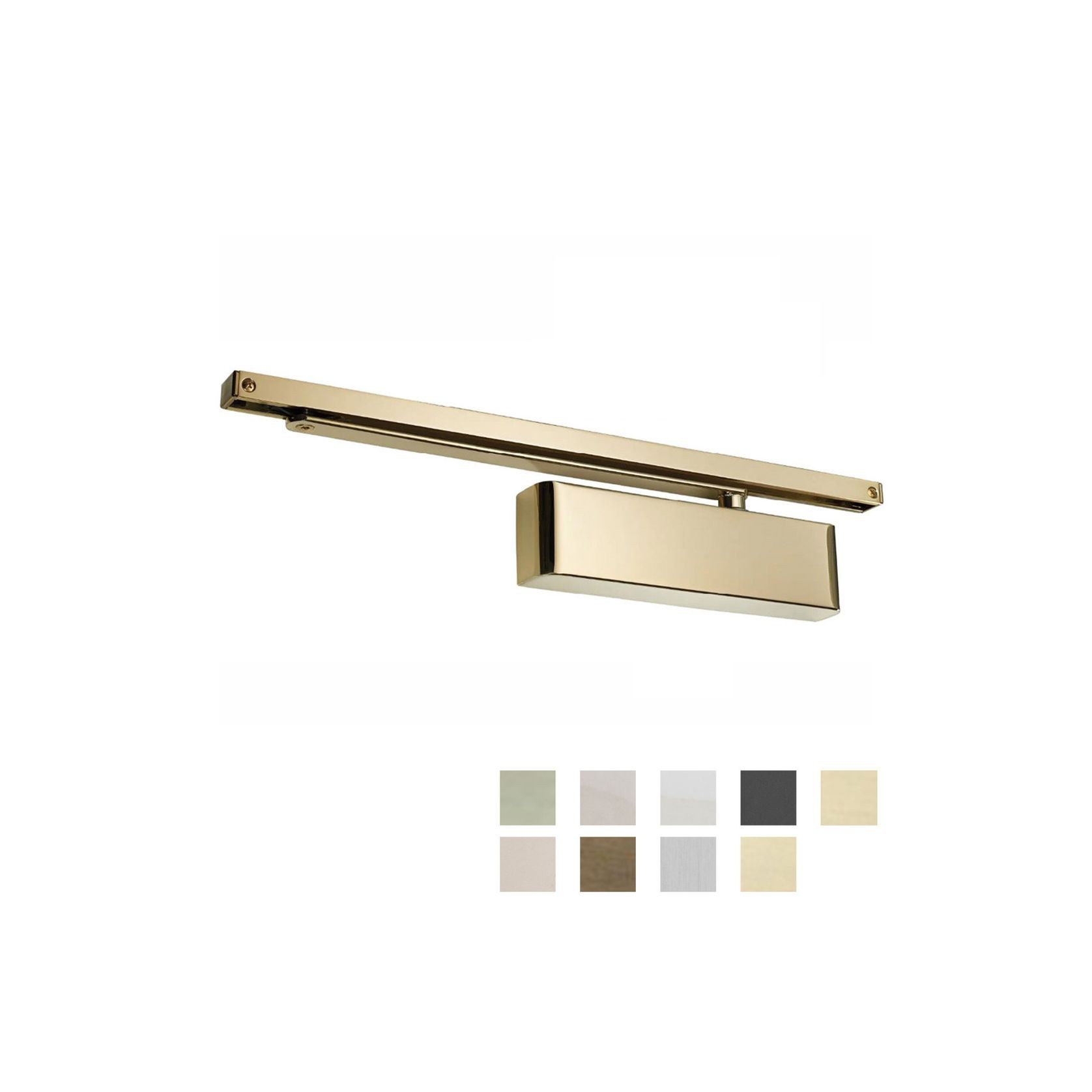

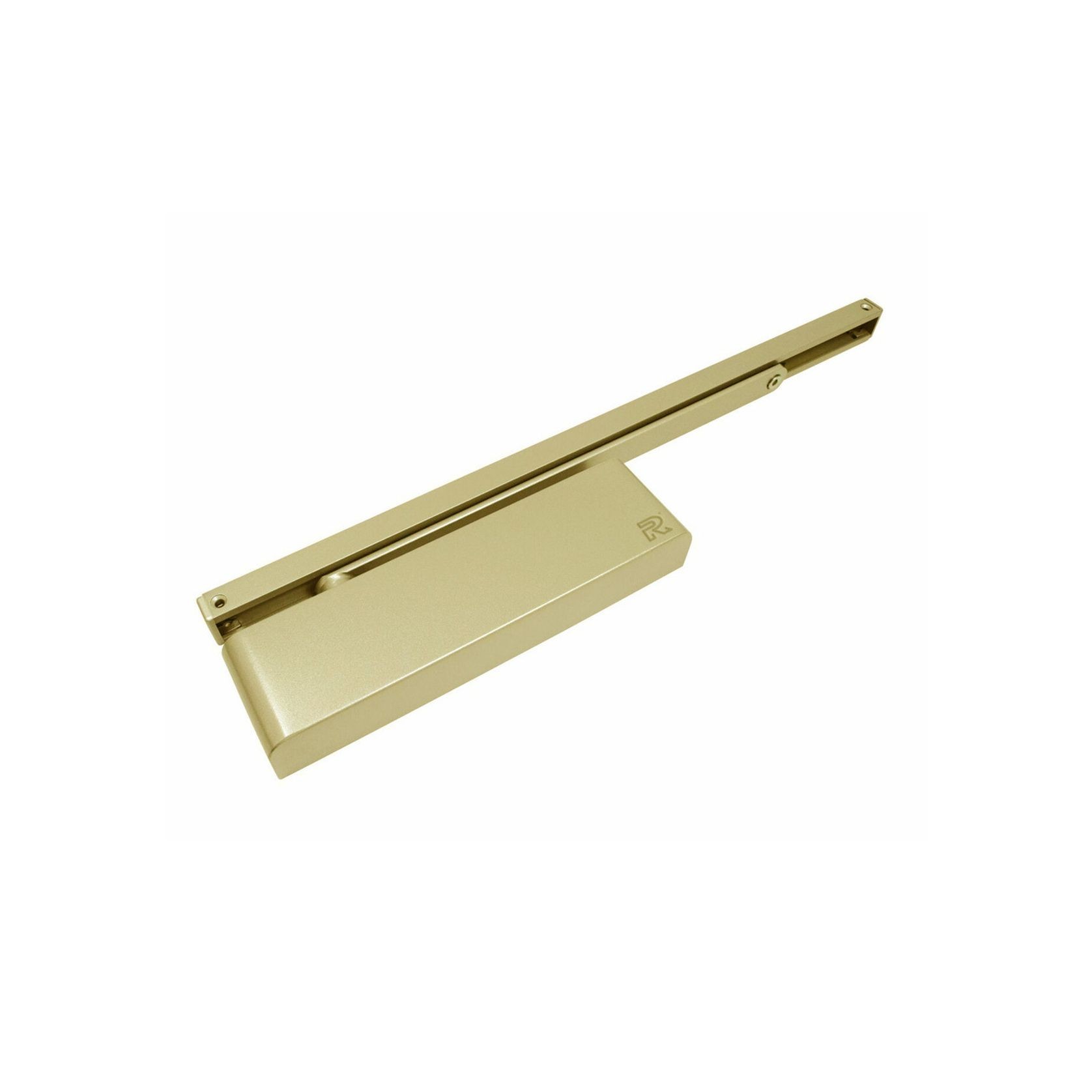

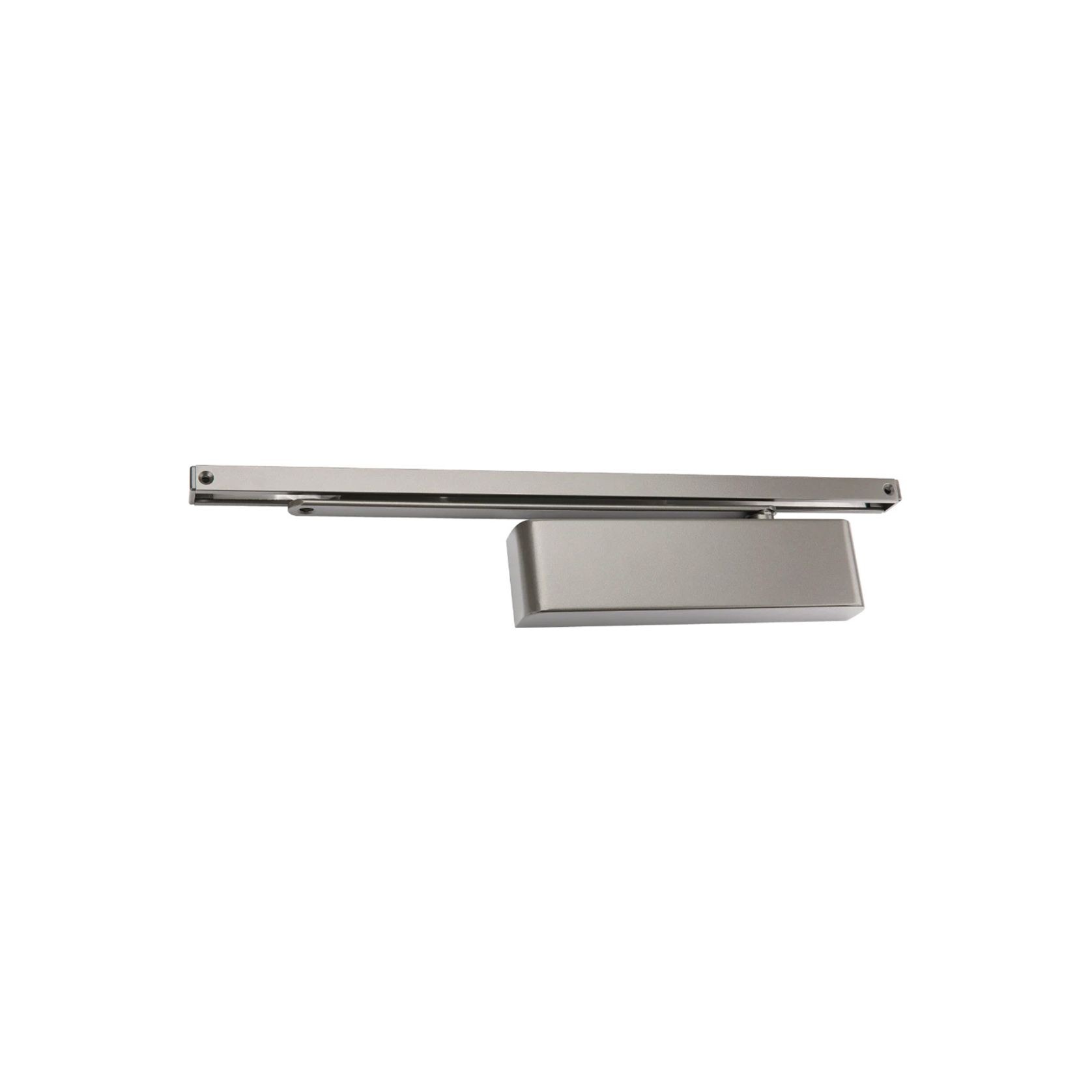

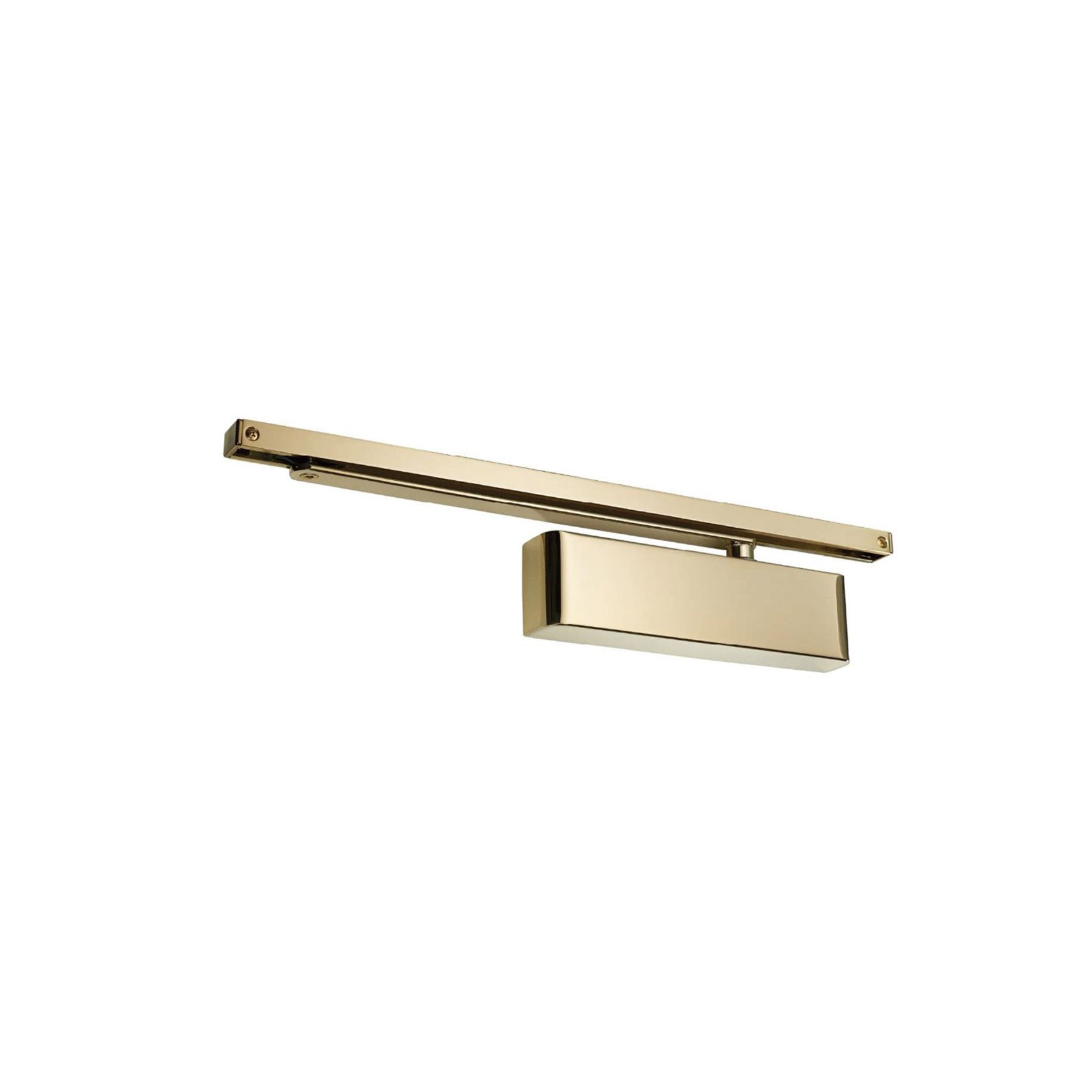

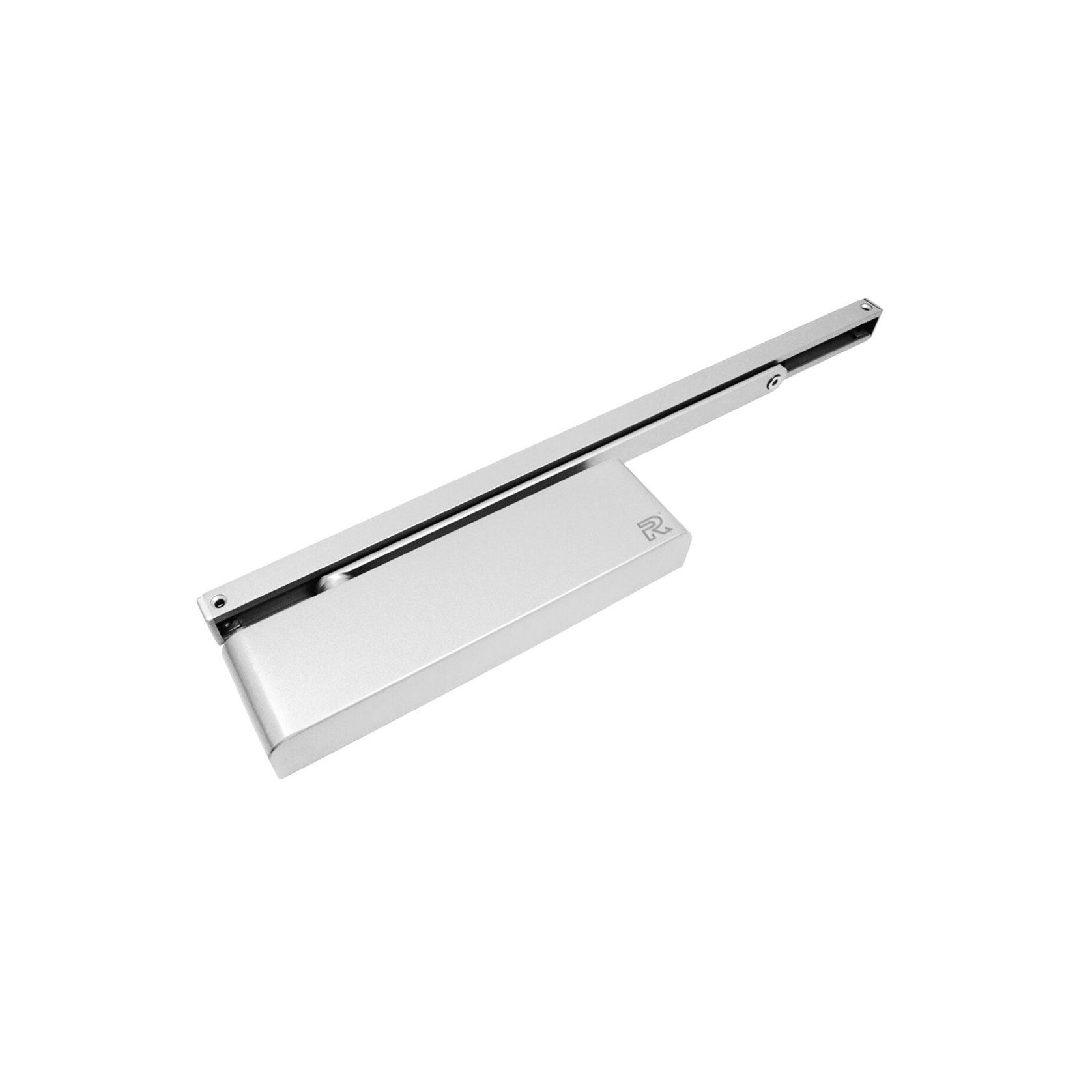

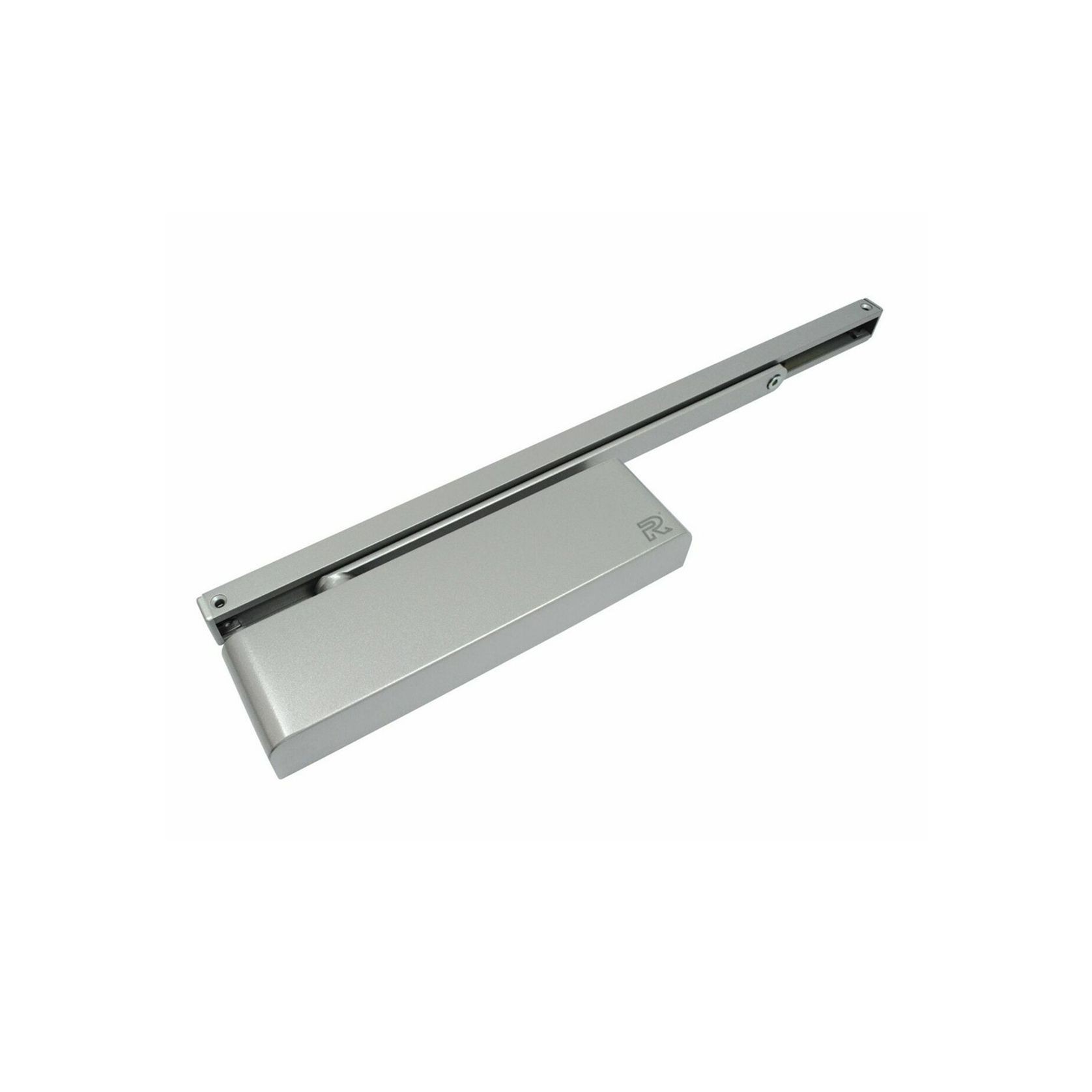

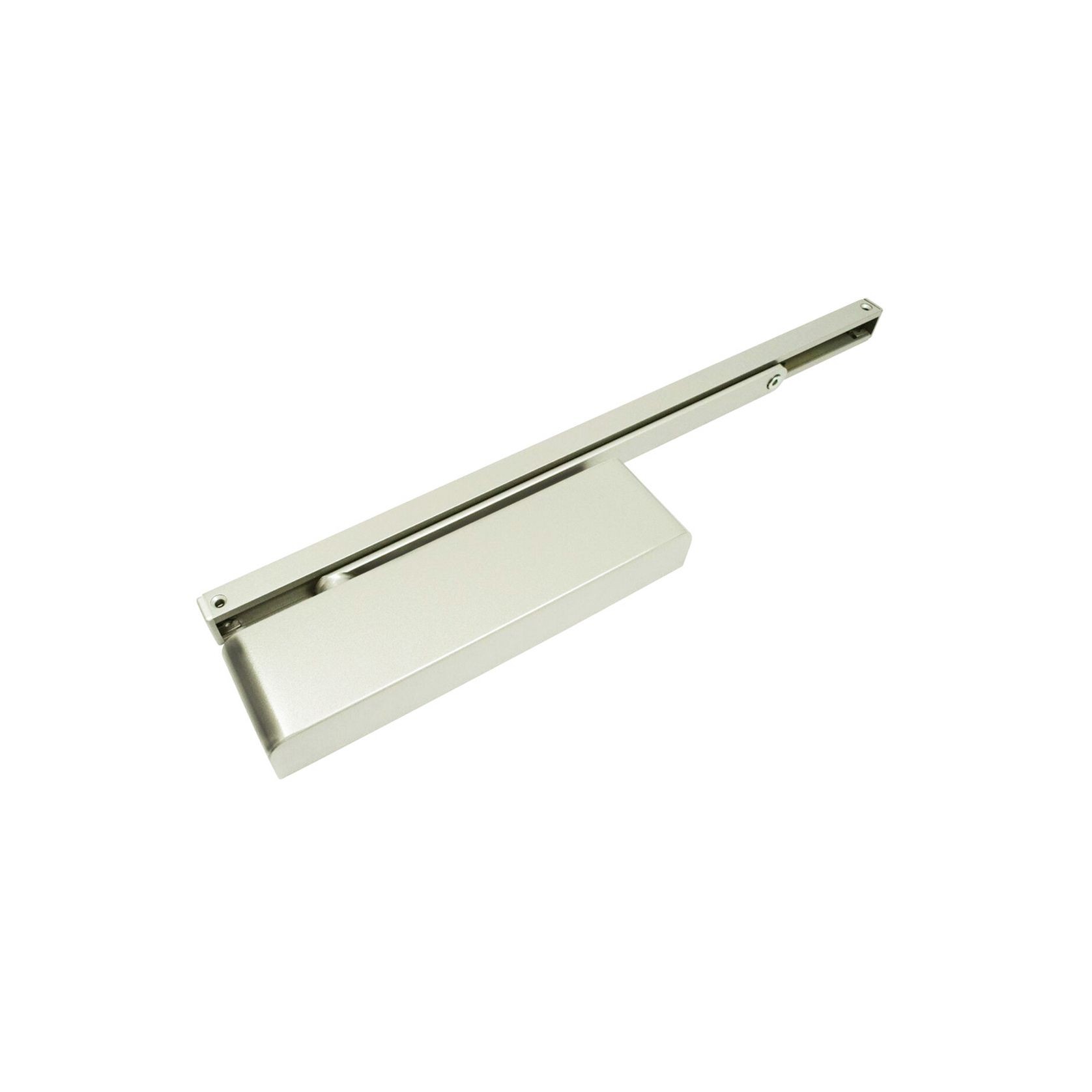

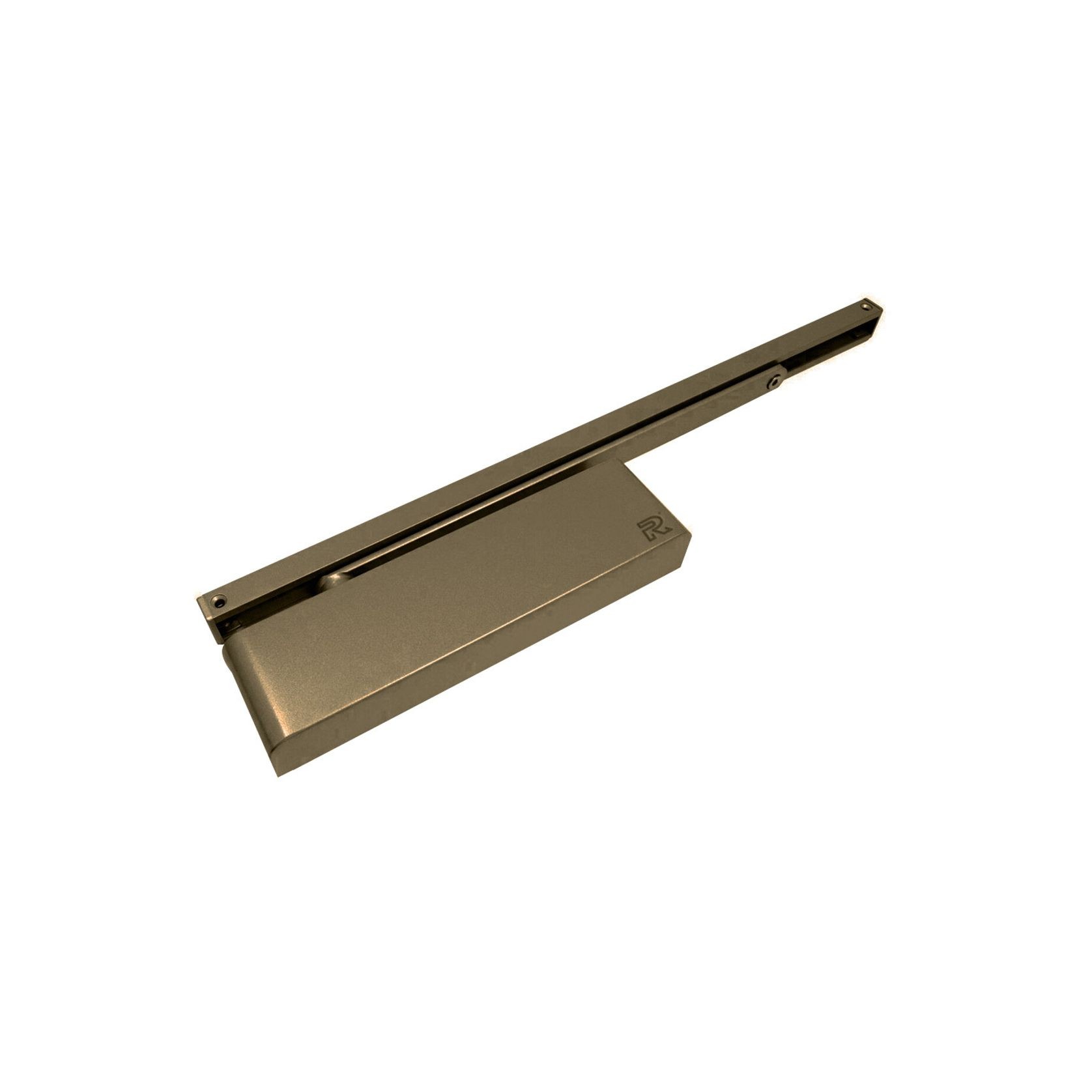

Zanda TS9205 Door Closer Combined Unit Slide Armset

Name: Zanda TS9205 Door Closer Combined Unit Slide Armset
Brand: Zanda Architectural Hardware

Wetherill Park, Australia

992.8K profile views
51 saves

Zanda Door Closer Combined Unit
TS.9205

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

1 x TS9205 mechanism
1 x Slide Armset
1 x Semi-Radiused Cover

Features:

Variable power adjustable EN2-5
Suits doors up to 110kg and 1250mm wide
Universal application can be fitted in Standard, Parallel arm or Transom fitting position
Comes standard with delayed action and back check.
Unique semi-radius cover for an architectural look make your project stand out
Fire tested to Australian standards
Ideal for disability compliant projects due to its ease of opening and efficiency
Closing and latching speeds can be adjusted from the front of the mechanism
Suitable for timber, metal and aluminium doors

Tags

hardware door hardware door handles door locks handles

Product Details

Product: Zanda TS9205 Door Closer Combined Unit Slide Armset
Category: Door Closers
Sold by: Keeler Hardware
Range: Zanda Architectural Hardware
Brand: Zanda Architectural Hardware

Product Variants

Strength
Max Door Width
Max Door Weight
Colours

Keeler Hardware is specified by

(34) Professionals

Zanda TS9205 Door Closer Combined Unit Slide Armset

Visit site

Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts. Includes: 1 x TS9205 mechanism 1 x Slide Armset 1 x Semi-Radiused Cover Features: Variable power adjustable EN2-5 Suits doors up to 110kg and 1250mm wide Universal application can be fitted in Standard, Parallel arm or Transom fitting position Comes standard with delayed action and back check. Unique semi-radius cover for an architectural look make your project stand out Fire tested to Australian standards Ideal for disability compliant projects due to its ease of opening and efficiency Closing and latching speeds can be adjusted from the front of the mechanism Suitable for timber, metal and aluminium doors

Zanda Door Closer Combined UnitTS.9205 Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened.

Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

1 x TS9205 mechanism
1 x Slide Armset
1 x Semi-Radiused Cover

Features:

Variable power adjustable EN2-5
Suits doors up to 110kg and 1250mm wide
Universal application can be fitted in Standard, Parallel arm or Transom fitting position
Comes standard with delayed action and back check.
Unique semi-radius cover for an architectural look make your project stand out
Fire tested to Australian standards
Ideal for disability compliant projects due to its ease of opening and efficiency
Closing and latching speeds can be adjusted from the front of the mechanism
Suitable for timber, metal and aluminium doors

Specs: Specifications:

Strength: EN2-5 up to 850mm to 1250mm and 45kg to 110kg

Mechanism: Rack and Pinion

Adjustable Closing Speed: Yes

Adjustable Latch Action: Yes

Adjustable Delayed Action: Optional

Adjustable Back Check: Yes

Max Door Width: 1250mm

Max Door Weight: 110kg

Opening Angle: 180 degrees

Left Hand and Right Hand Doors Universal Application: Yes

Fire Rated (BS EN 1634-1: 2000): Yes

Tested to BS EN1154: 1997: Yes

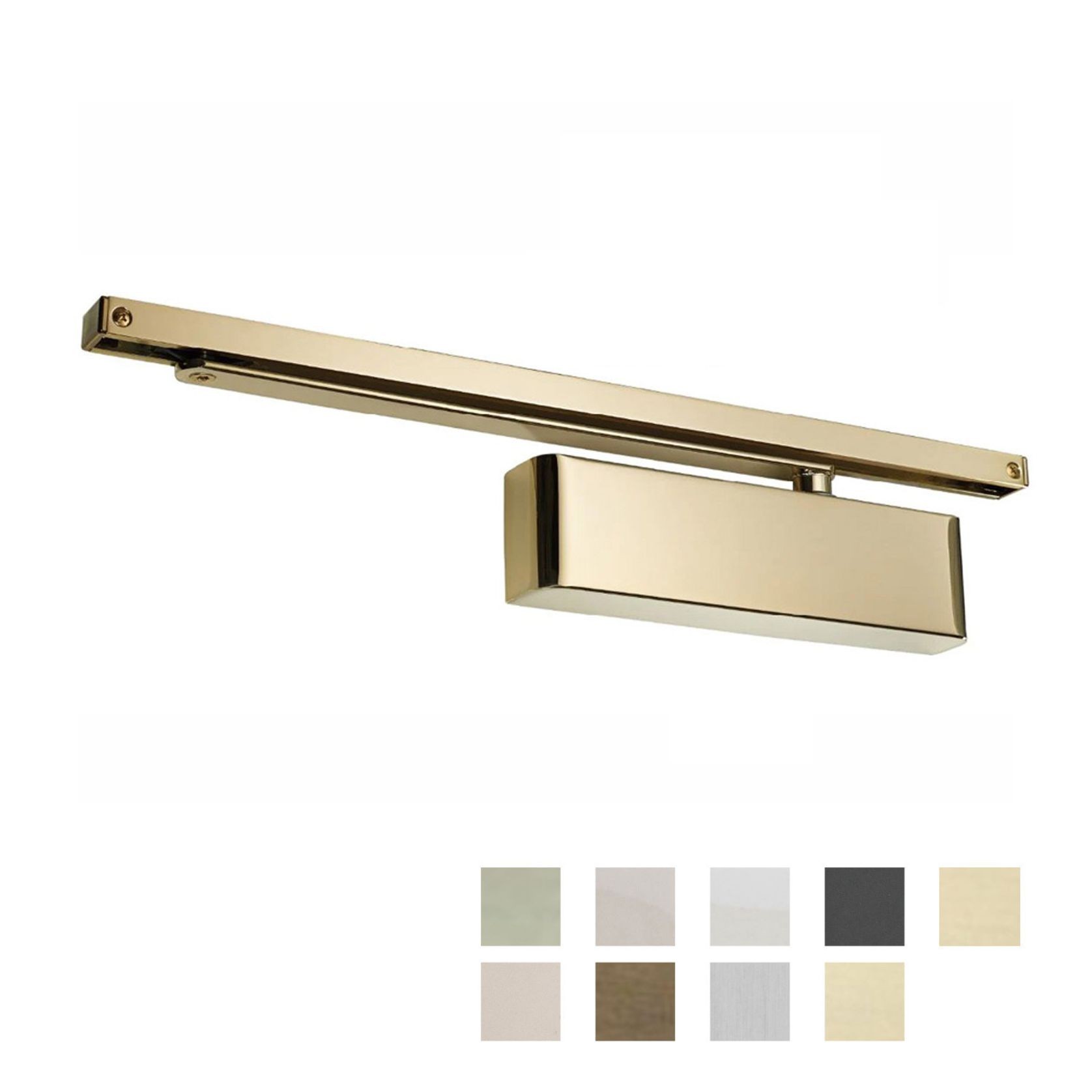

Available Finishes:
Antique Brass

Electro Brass

Graphite Nickel

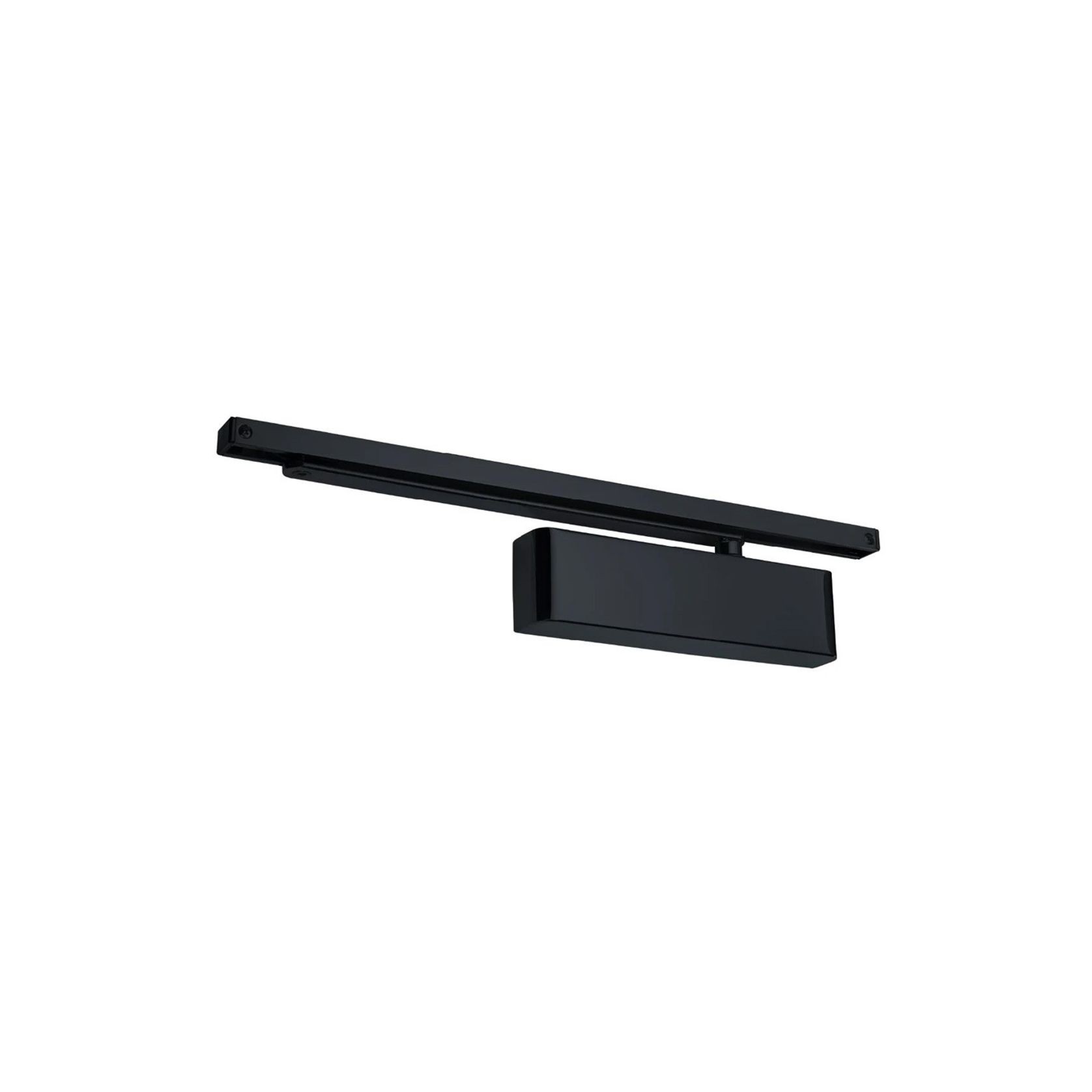

Matt Black

Polished Nickel Plate

Satin Brass

Satin Nickel Plate

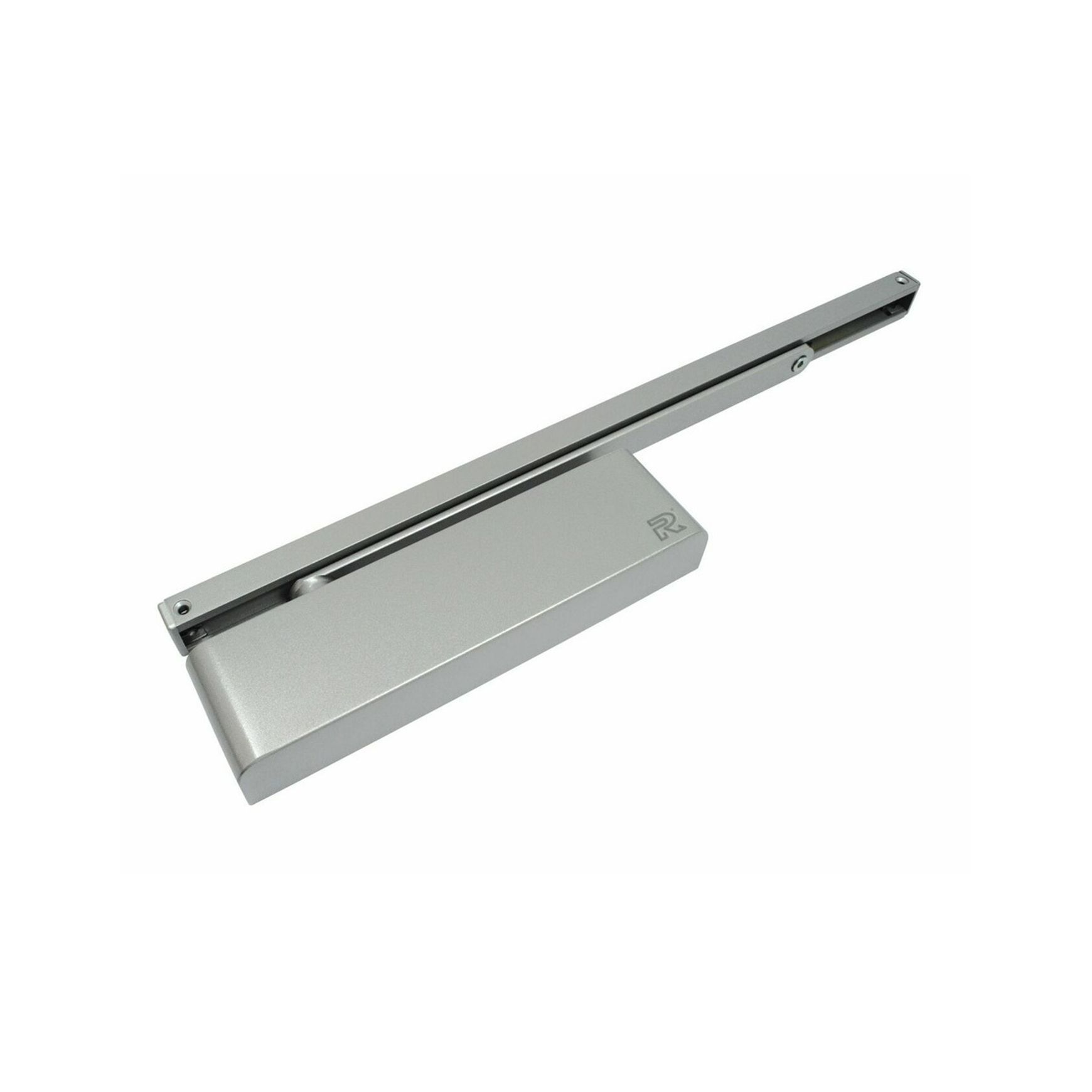

Silver

Stainless Steel

Weather Bronze
Scope of use: Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
