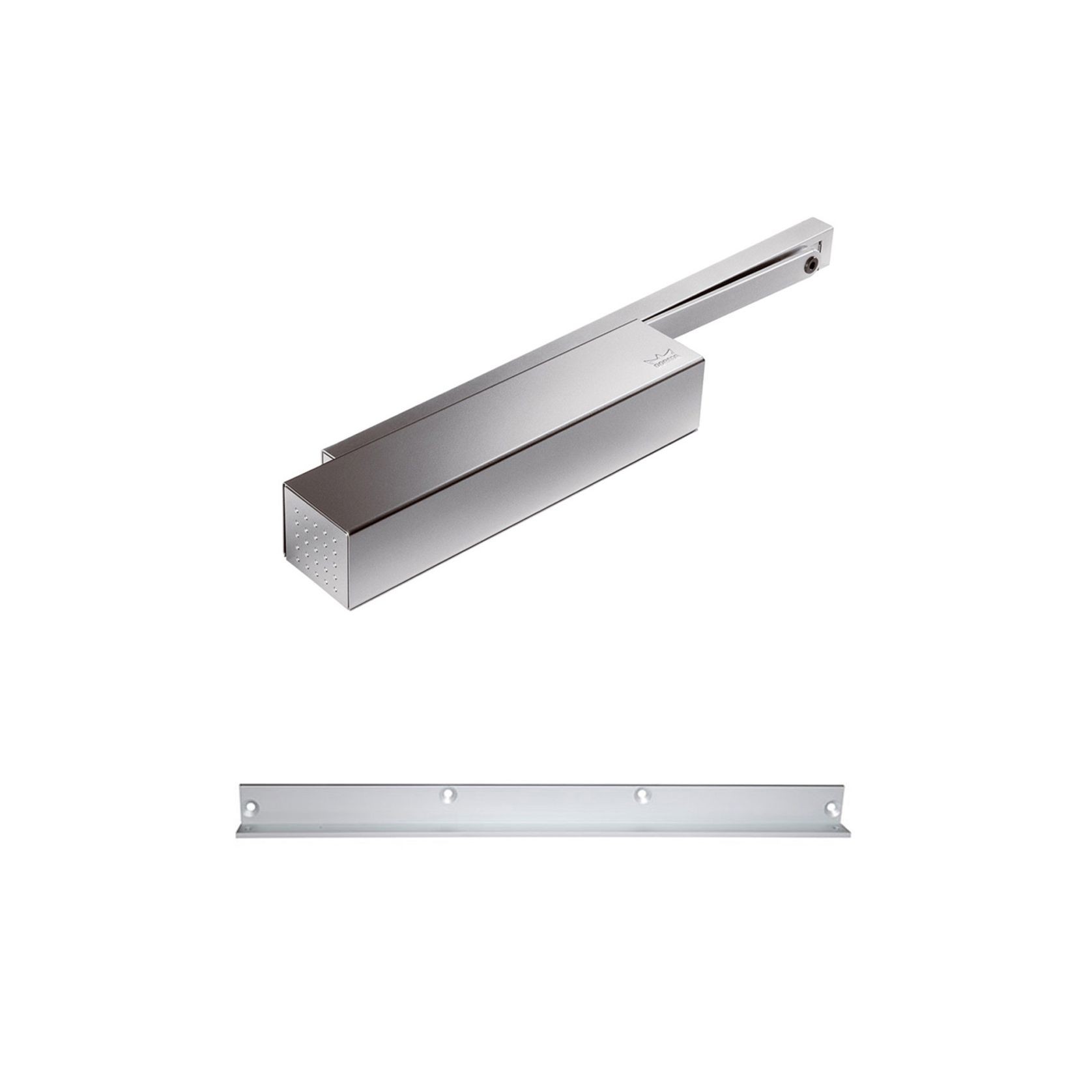

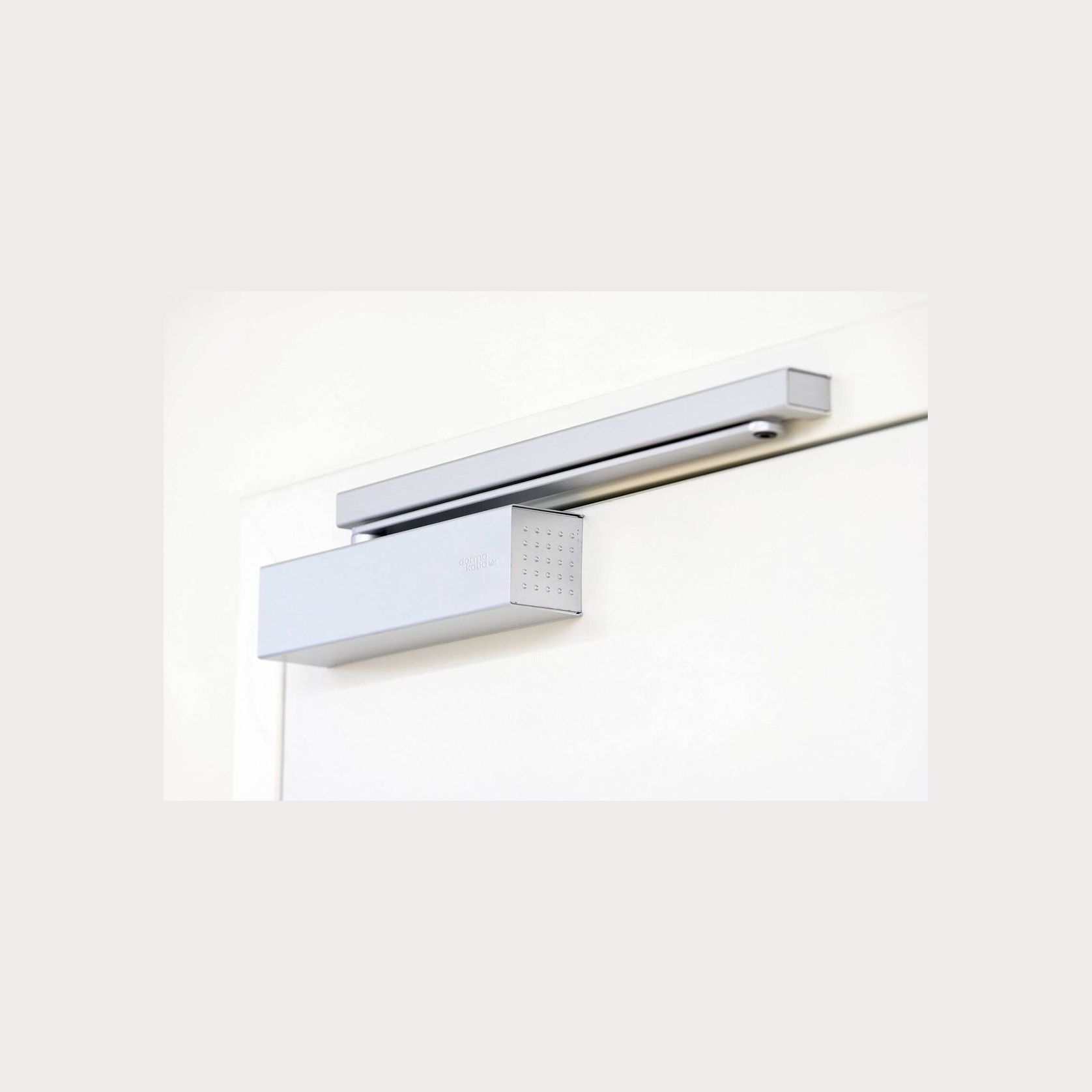

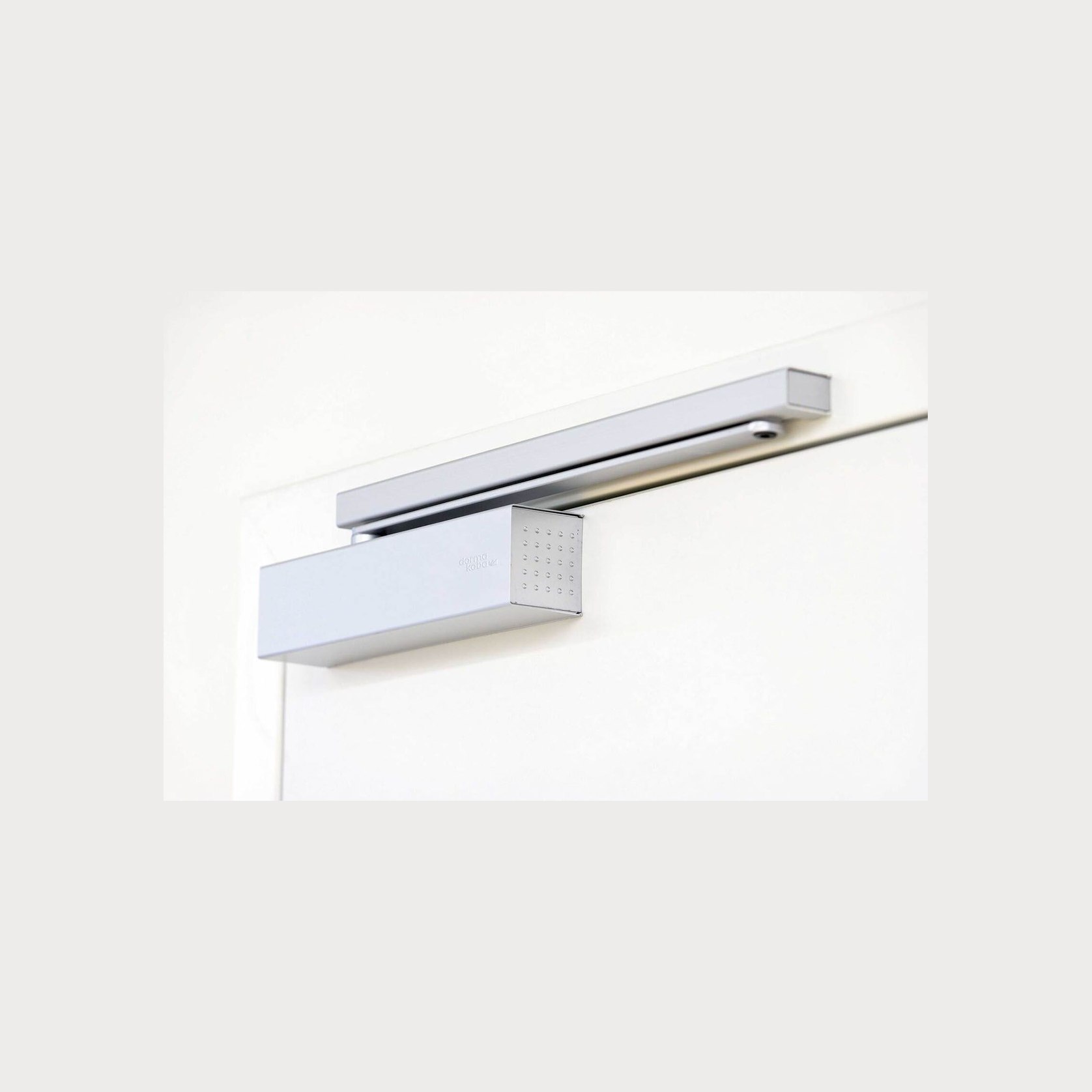

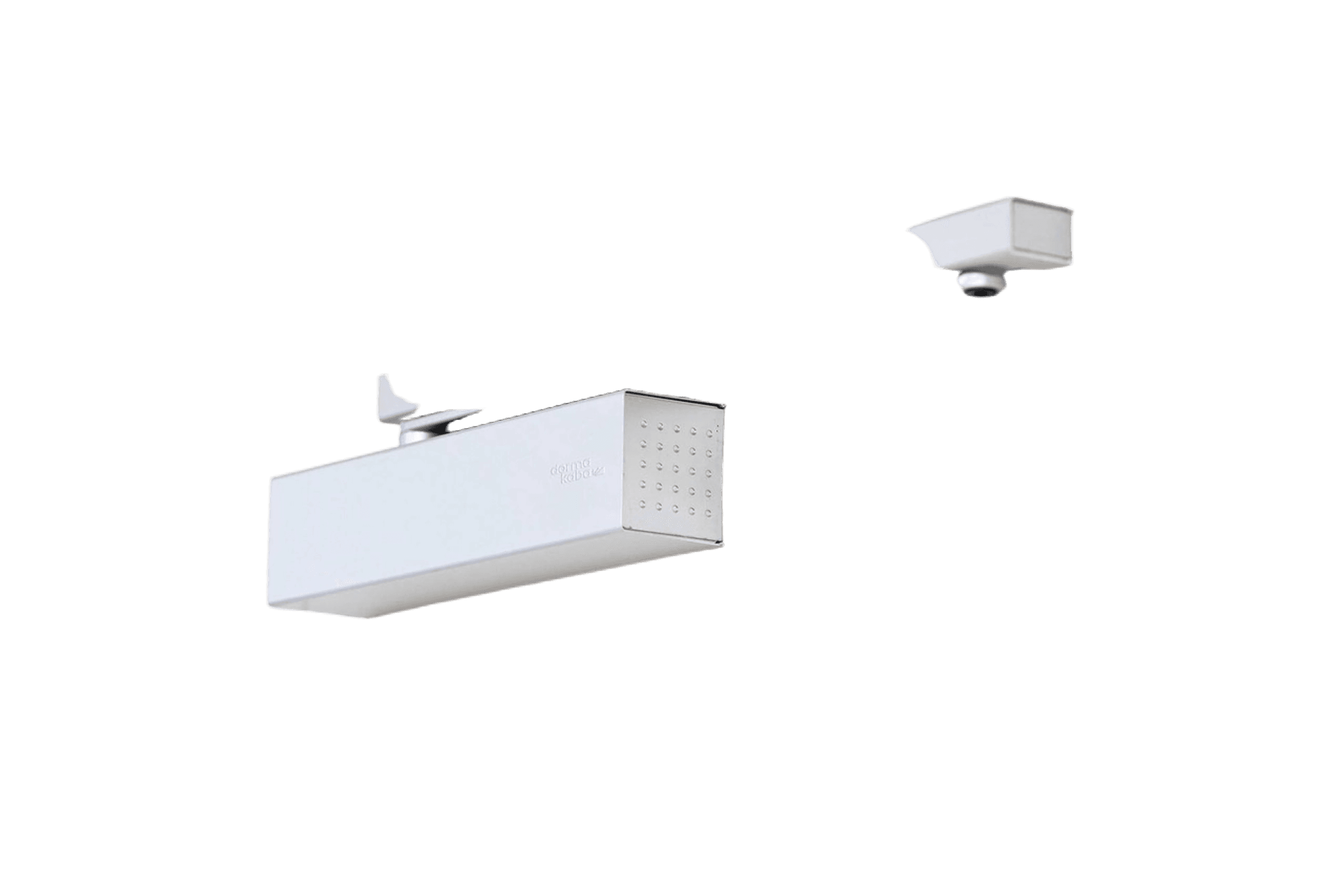

Dorma TS93G EN1-5 Door Closer Push Side Kit TS93G15GNAB

Name: Dorma TS93G EN1-5 Door Closer Push Side Kit TS93G15GNAB
Brand: Dormakaba

Wetherill Park, Australia

992.8K profile views
51 saves

Dorma EN1-5 Door Closer Push Side w/ Slide Arm and Bracket
TS93G15GNAB

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
Closing force adjustable with a screw and closing speed adjustable with a valve
The latching speed, backcheck and delayed action is also adjustable at the valve
Has a slide channel arm assembly
Special model for push-side door leaf fixing/pull-side transom fixing
Suitable for fire and smoke check doors where the cushioned limit stay is also used
Suitable for single and double doors installation up to 1250 mm (W)

Tags

hardware door hardware door handles door locks door closer

Product Details

Product: Dorma TS93G EN1-5 Door Closer Push Side Kit TS93G15GNAB
Category: Door Closers
Sold by: Keeler Hardware
Range: Dormakaba
Brand: Dormakaba
Country of origin: Australia
Type of use: Commercial and Residential
Package type: Fragile - handle with care
Care and cleaning: Easy maintenance
Installation: Minor installation required
Assembly: Minor assembly required

Product Variants

Colours
Material

Keeler Hardware is specified by

(34) Professionals

Dorma TS93G EN1-5 Door Closer Push Side Kit TS93G15GNAB

Visit site

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts. Features: Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions Closing force adjustable with a screw and closing speed adjustable with a valve The latching speed, backcheck and delayed action is also adjustable at the valve Has a slide channel arm assembly Special model for push-side door leaf fixing/pull-side transom fixing Suitable for fire and smoke check doors where the cushioned limit stay is also used Suitable for single and double doors installation up to 1250 mm (W)

Dorma EN1-5 Door Closer Push Side w/ Slide Arm and BracketTS93G15GNAB Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Features:

Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
Closing force adjustable with a screw and closing speed adjustable with a valve
The latching speed, backcheck and delayed action is also adjustable at the valve
Has a slide channel arm assembly
Special model for push-side door leaf fixing/pull-side transom fixing
Suitable for fire and smoke check doors where the cushioned limit stay is also used
Suitable for single and double doors installation up to 1250 mm (W)

Specs

Specifications:

Length: 275mm
Width: 53mm
Height: 60mm
Weight: 3.5kg
Adjustable Closing Speed: Yes
Adjustable Latching Speed: Yes
Has Backcheck: Yes
Has Delay Action: Yes
Has Hold Open: No
Has Slide Arm: Yes
Spring Strength: EN1-5
Suits Push Side Of Door: Yes
Fire Rated: Yes
Finish: Silver

Note: For applications involving particularly heavy or wide doors, and doors which have to close against wind resistance, the next highest door closer size should be selected, or the closing force adjusted to a higher setting.

What's in the box

Includes:

1 x Dorma TS93G EN1-5 Door Closer Push Side w/ Slide Arm & Channel Silver (43100501)
1 x Dorma TS92AB Angle Bracket G-N Channel Suit G92/G93 N/RF Closer Silver (64430001)
