Zurn Dual Flush Valve
Zurn ZDF-6152XL is a recess mounted toilet flush valve designed to be connected to mains pressure water supply. It is also available as a non potable valve where water is supplied from a dedicated supply tank or from a pressurized recycled water feed. The 2 button plate allows the user the option of flushing 3 or 6L. Flush volumes are consistent irrespective of pressure variations. The product is specified in 2 parts: the inwall valve is common to all versions - ref ZDF6152XL (L). The customer must then chose the type of face plate based on the Tech Data sheet (see Downloads)

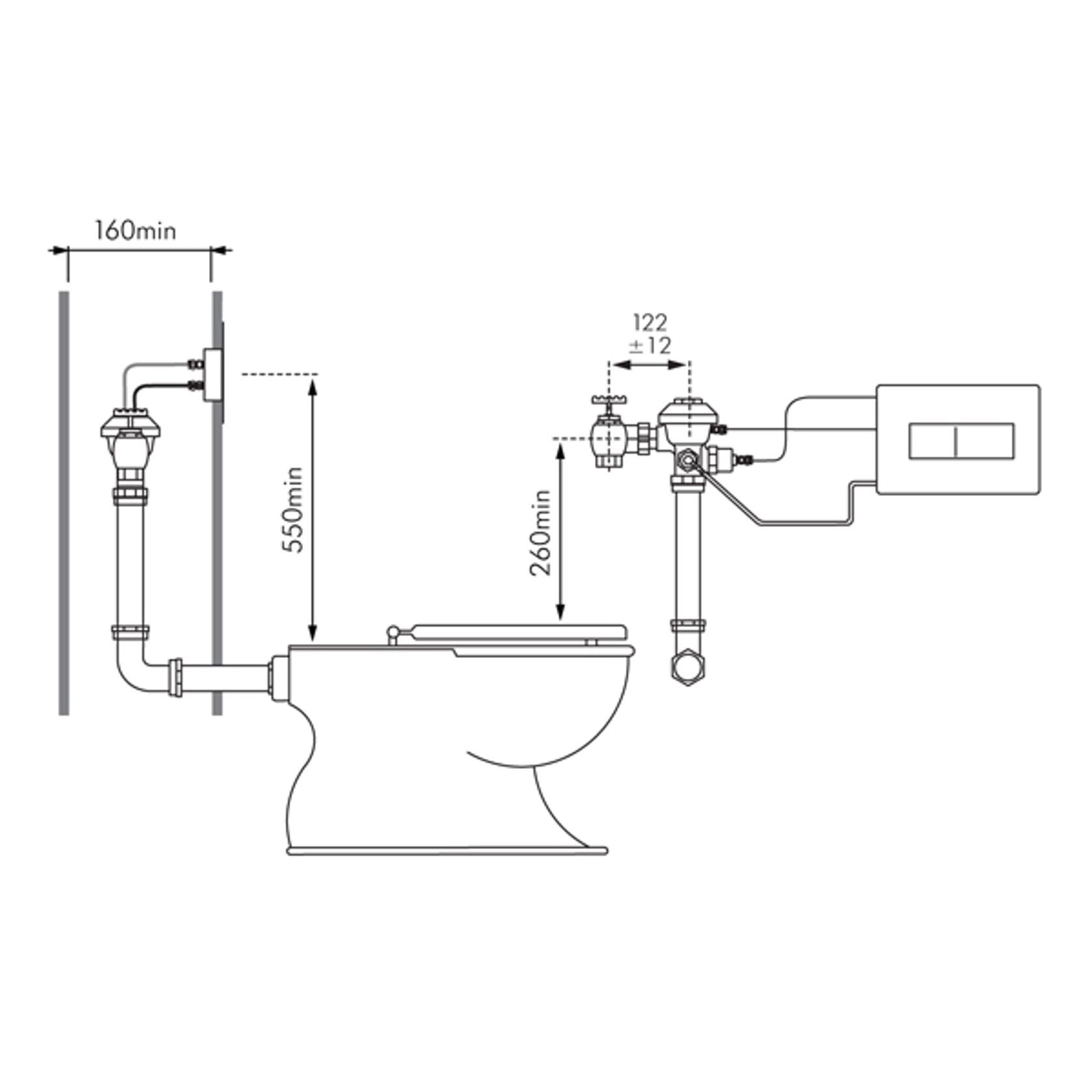

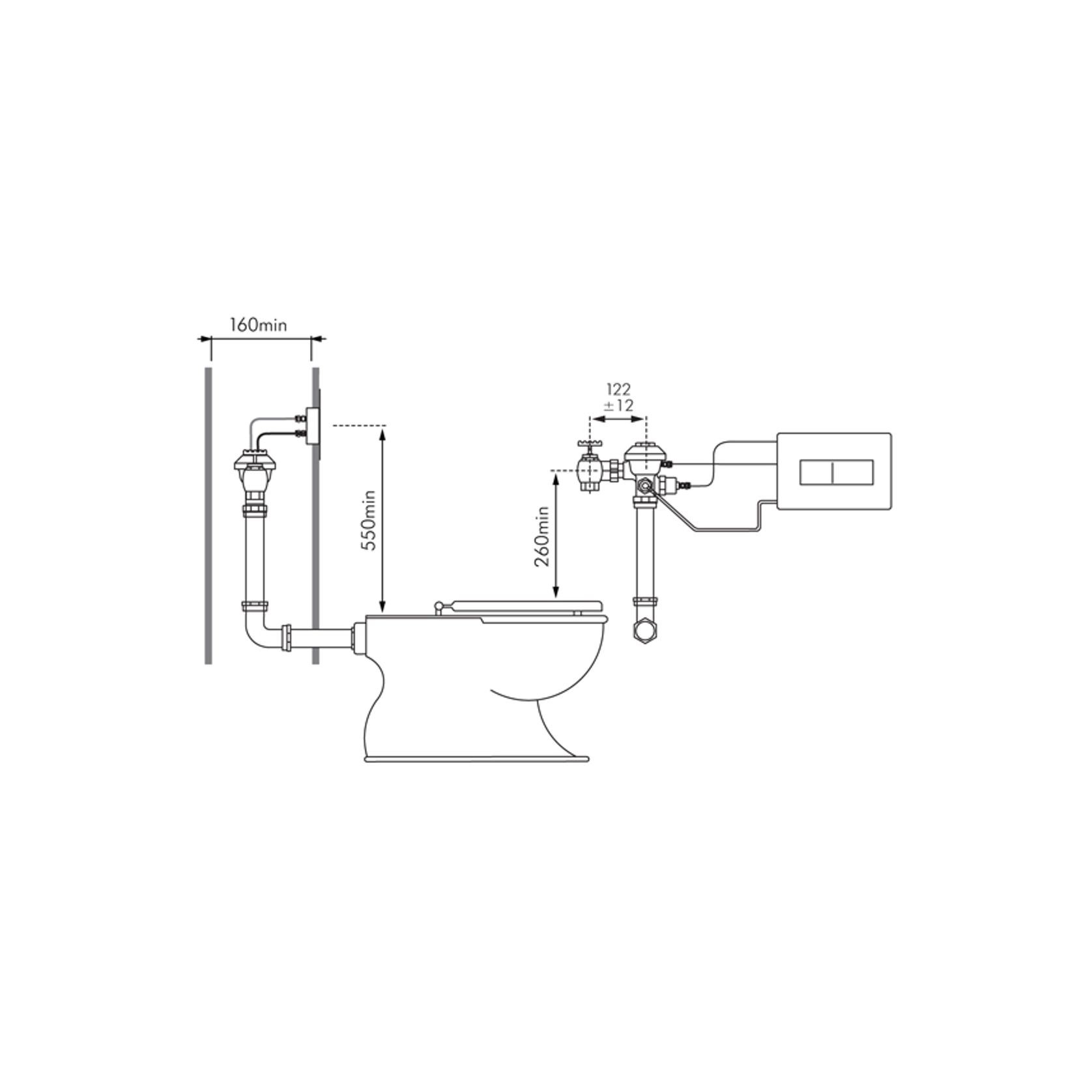

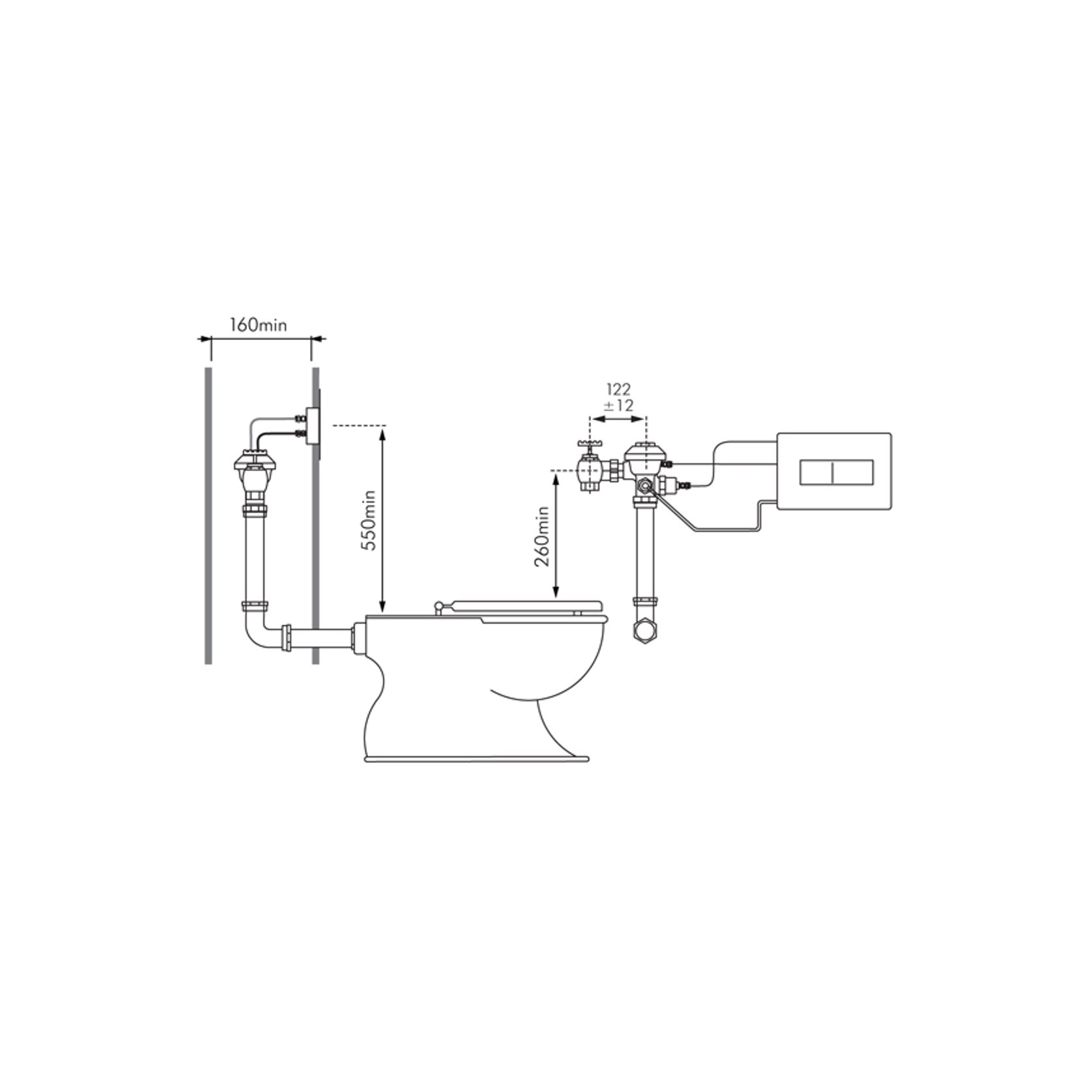

Correct pipe sizing is essential to flush valve installation. All mains pressure flush valves (ZDF-6152XL) require flow rates of 90l/min at dynamic pressures of 150 - 500kPa. Valves fed from a non-potable source are available (ZDF-6152L) but restricted to a dynamic pressure of 100 - 150kPa. All pipework should be designed by a suitably qualified person to ensure correct flow rates and pressures are available. Stated pressures are dynamic, not static.
- CategoryToilet Flush Buttons
- BrandZurn
- Type of useCommercial and Residential
Models:
ZDF-6152XL - Mains pressure valve only - requires faceplate to be specified.
ZDF-6152L-25 - Non potable valve with 25mm isolator. Pressure range 100 - 150kPa.

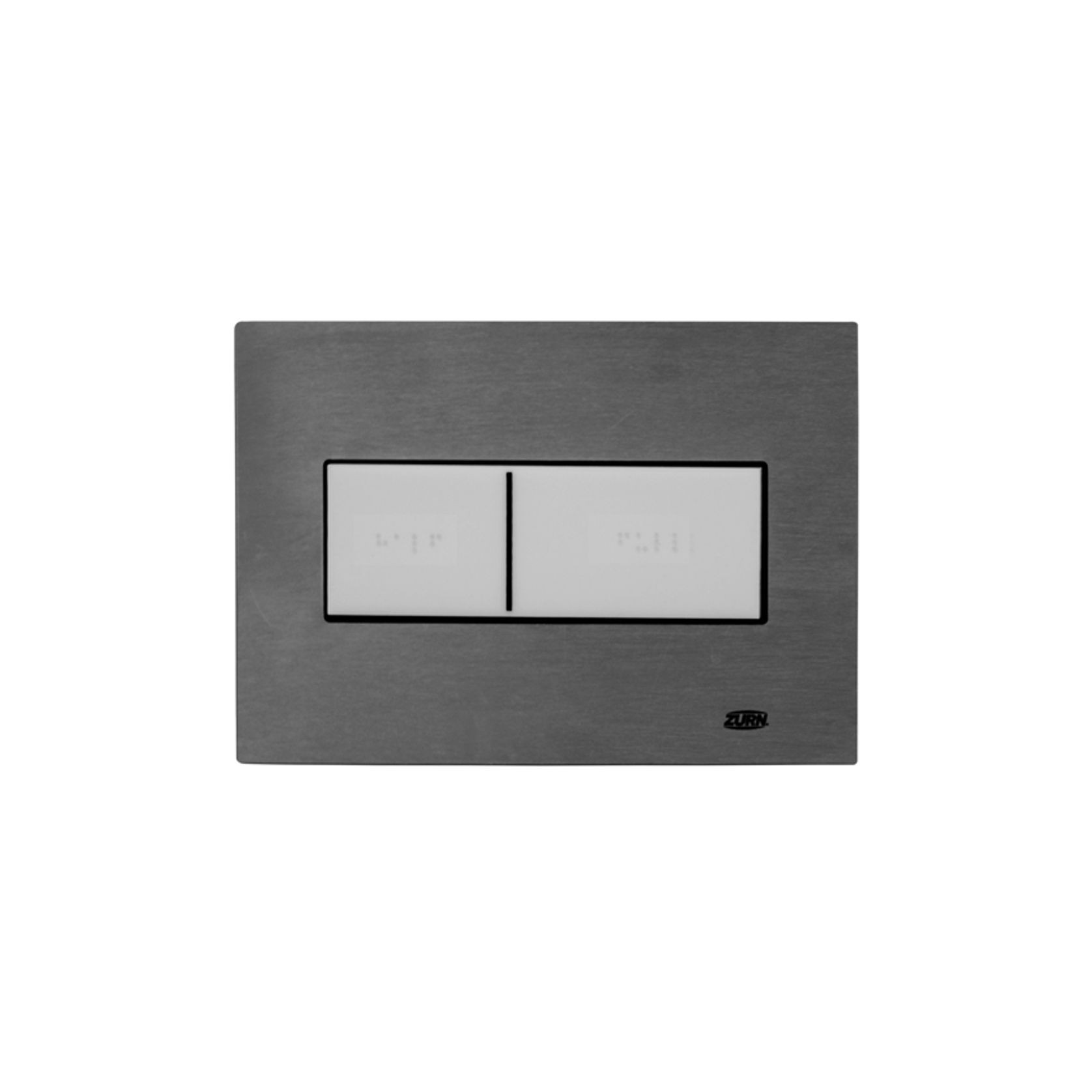

PUSH PANELS
ZDF-P - 150 x 210 satin stainless steel plate with push panel.
ZDF-PA - 345 x 345 as above but with stainless steel access panel
ZDF-PC - 330 x 330 as above but with stainless steel access panel with concealed fixing.
ZDF-B - 120 x 150 stainless steel plate dual flush round buttons
ZDF-BA - 340 x 340 as above but with stainless steel access panel
OPTIONS
...SP - Standard panel but with polished stainless steel.
...SW - Standard satin panel with raised white nylon push plate and braille (for accessible use).
...SWB - As above SW but with blue raised nylon push plate and braille (for accessible use).
