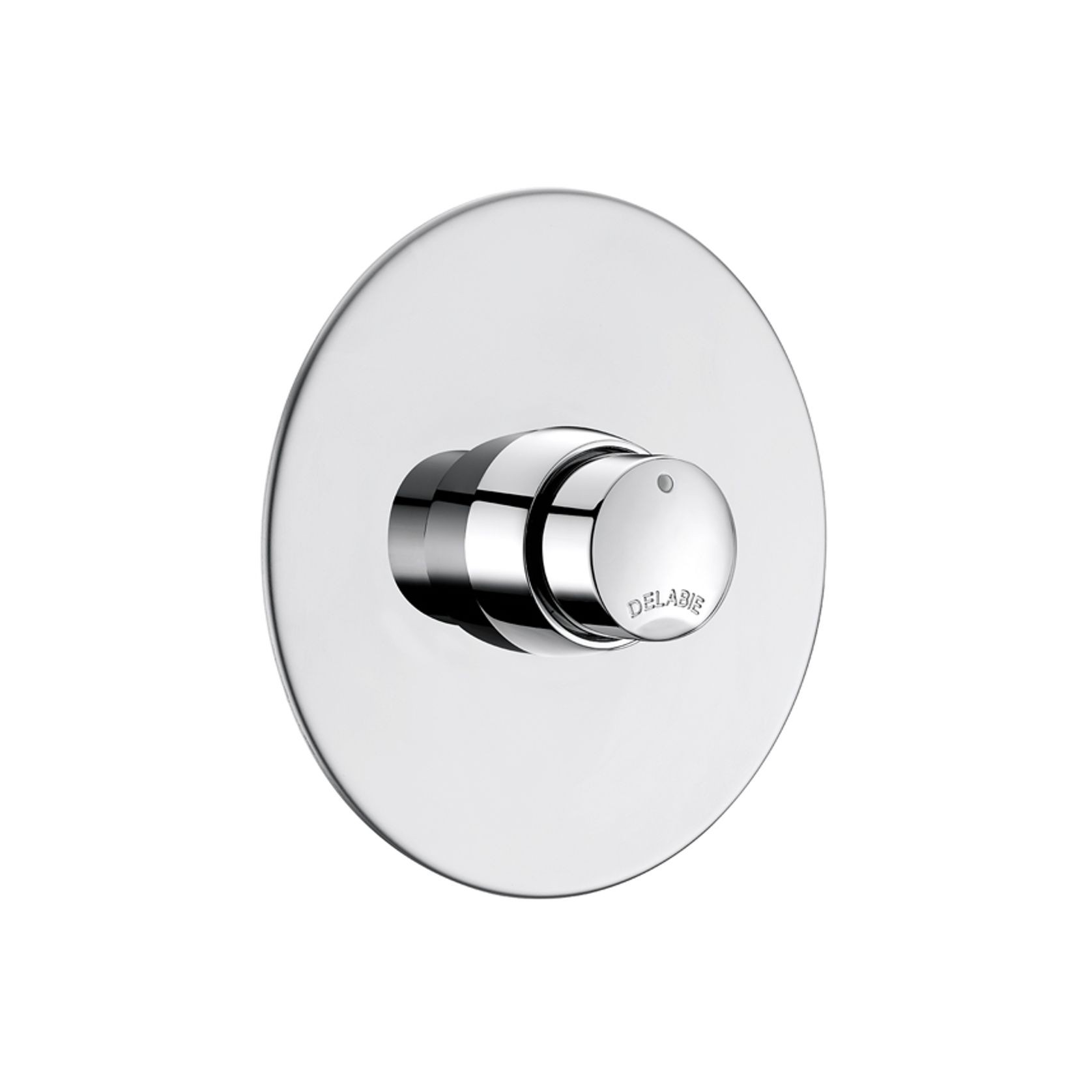

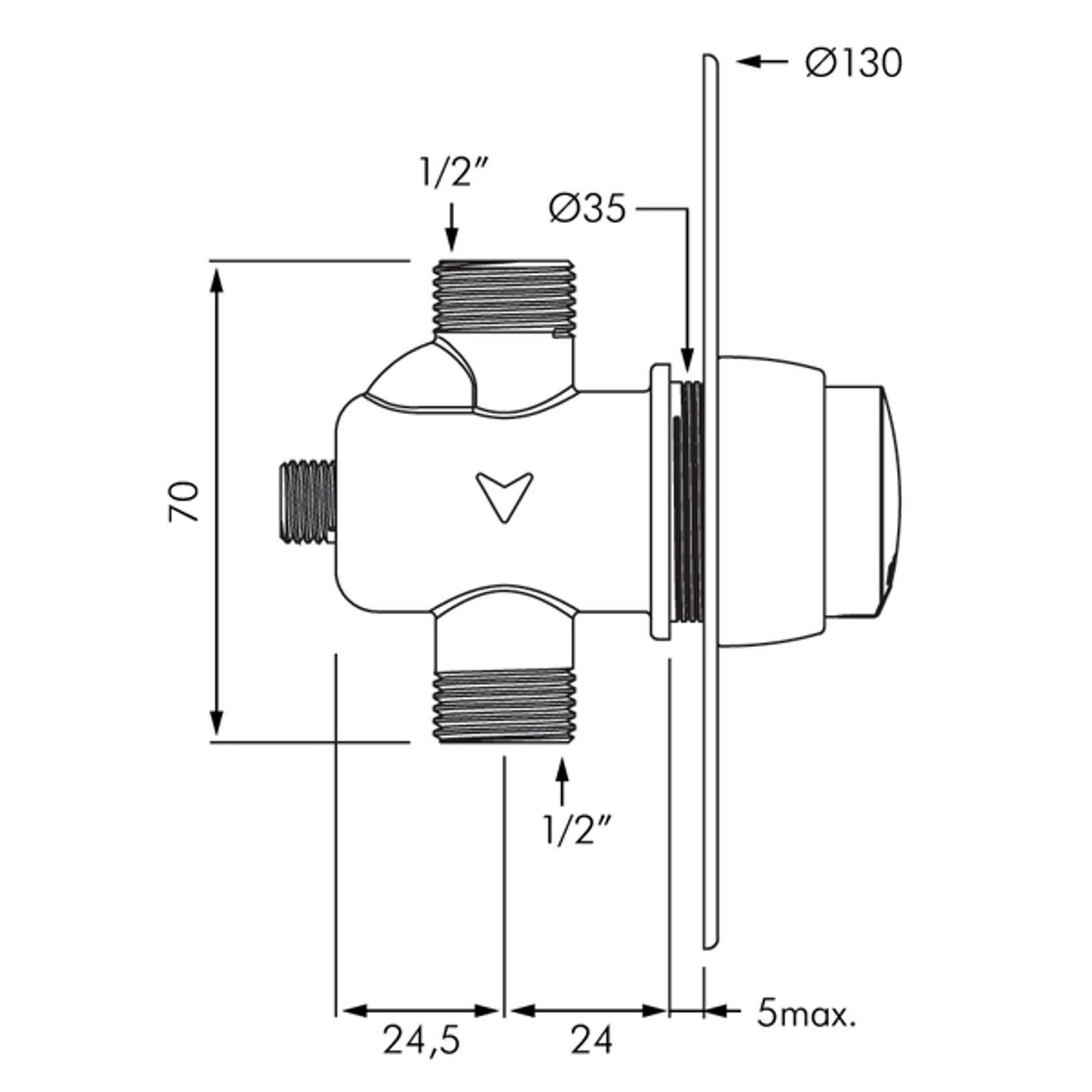

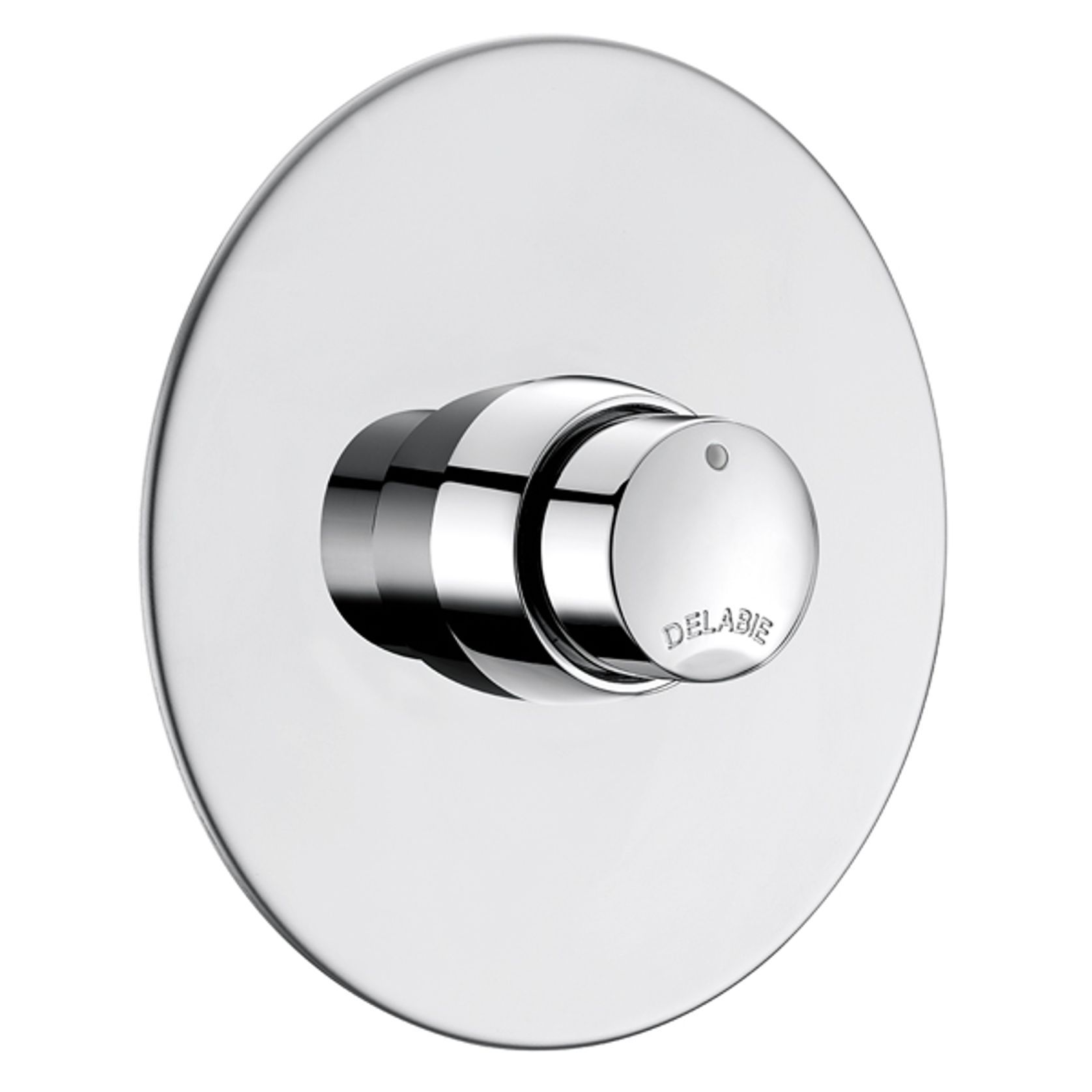

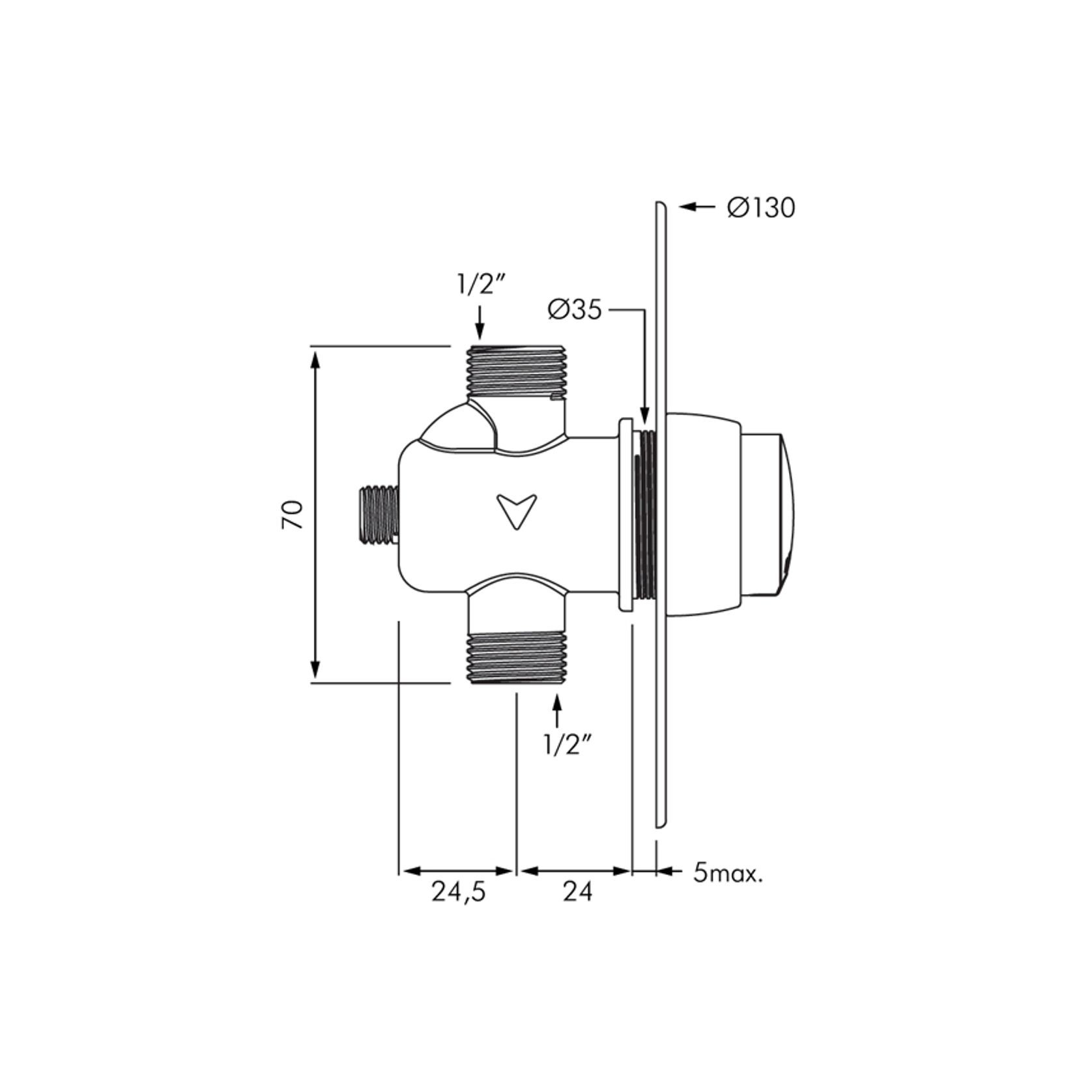

DELABIE DE777130 is a recessed mounted time flow urinal valve with a soft touch operation. Soft touch operation allows users to press the control with no effort especially children, elderly or people with reduced physical ability. Time flow is ~3 seconds. Flow rate is pre-set at 0.15L/second at 300kPa, can be adjusted. Operating pressure is 150-500kPa, 300kPa is recommended. Bright polished stainless steel wall plate Ø130mm with solid brass body. M1/2” water connections for water supply.
Suitable for use on all our back inlet wall hung urinals.
Models:
DE777130 - Standard model as shown - 3 star WELS rating.
DE777140 - Same as DE777130 but for >7mm panel-mounting (without wall plate).
