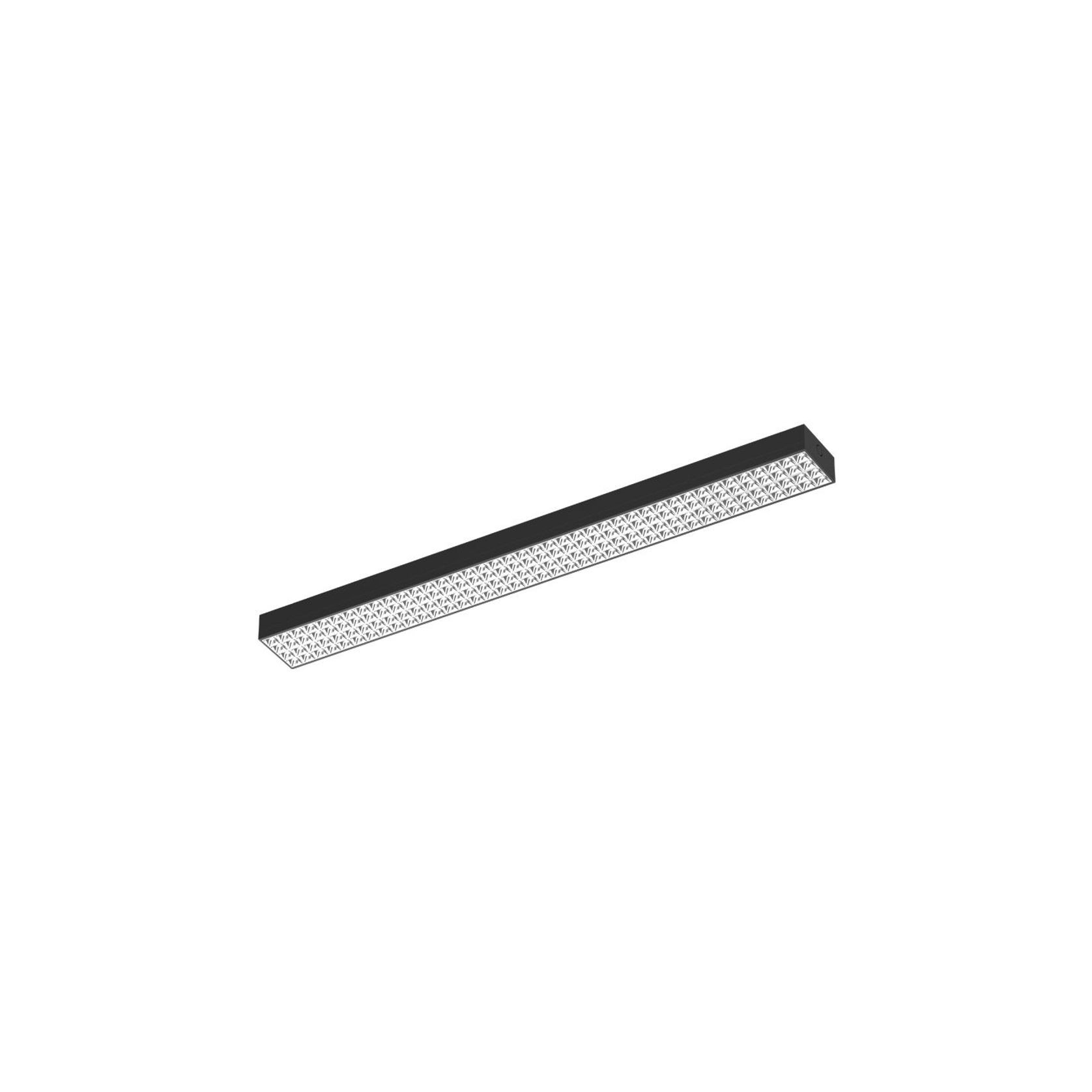

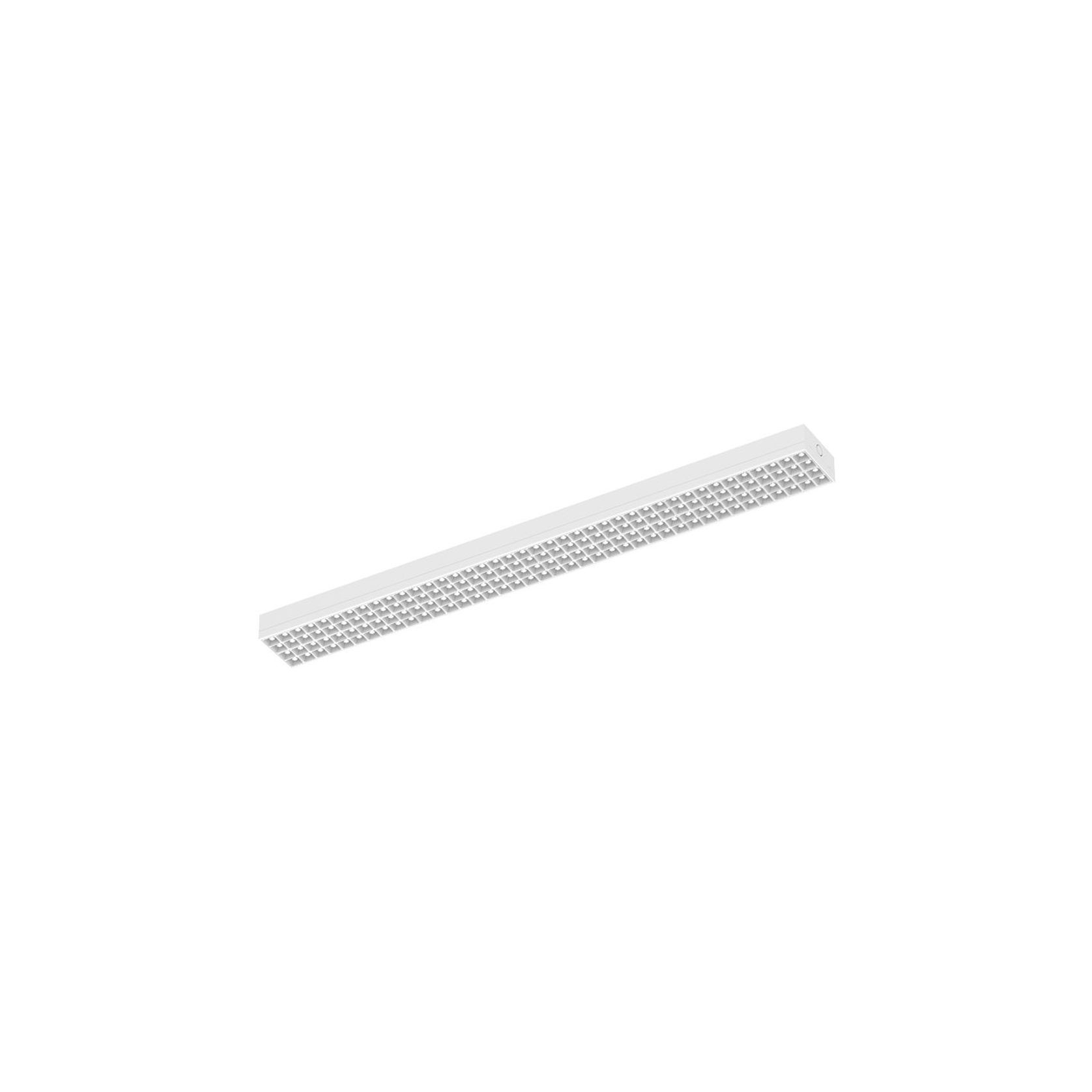

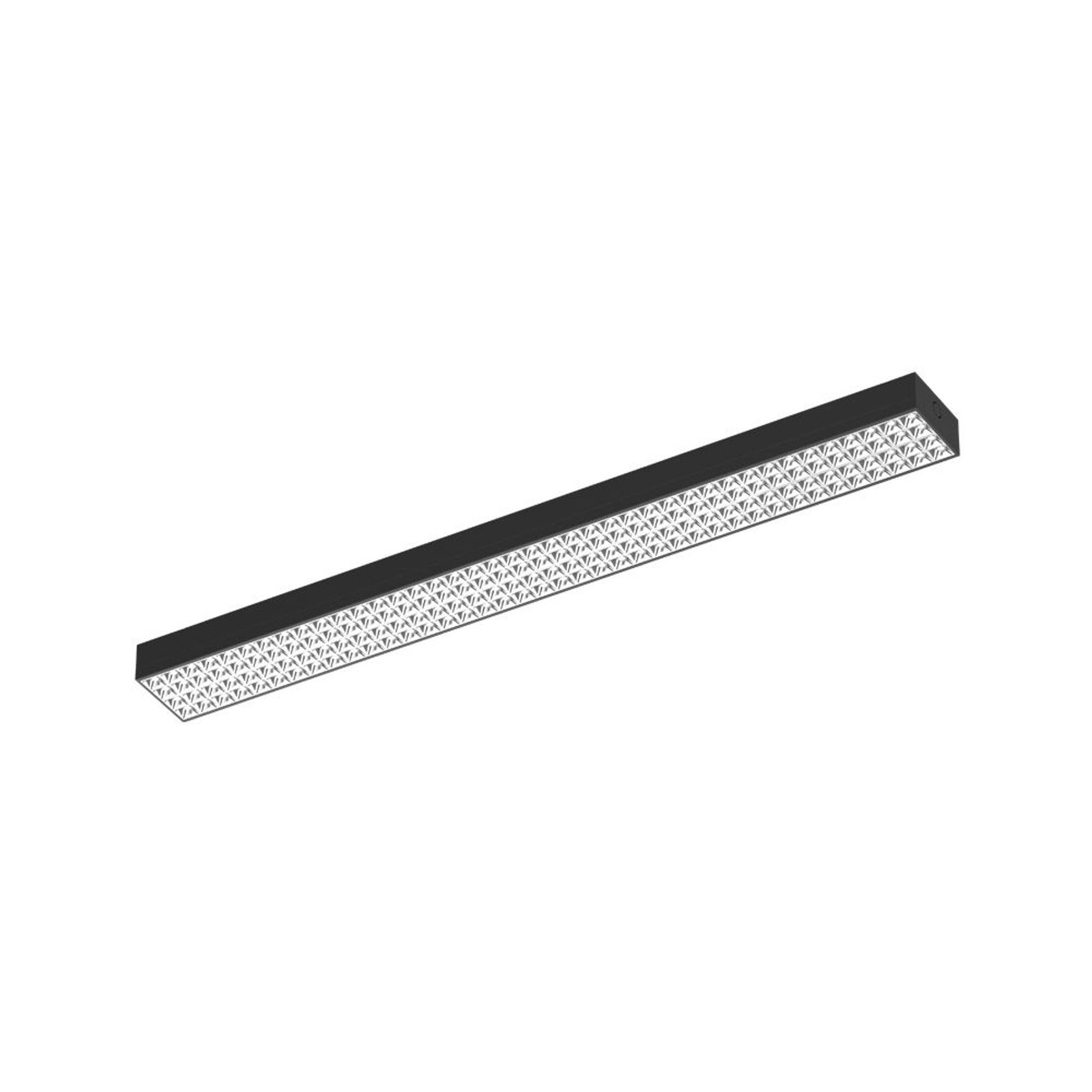

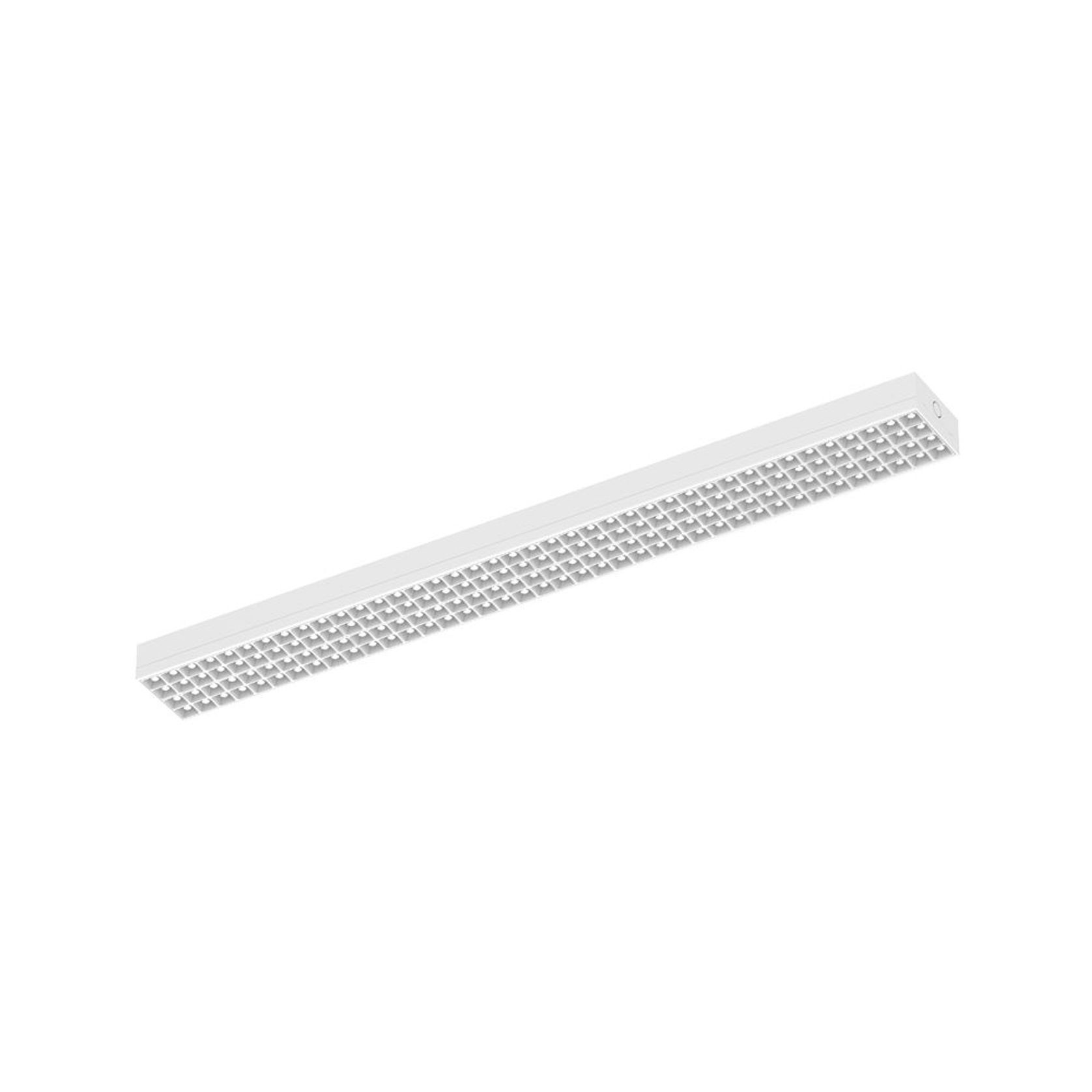

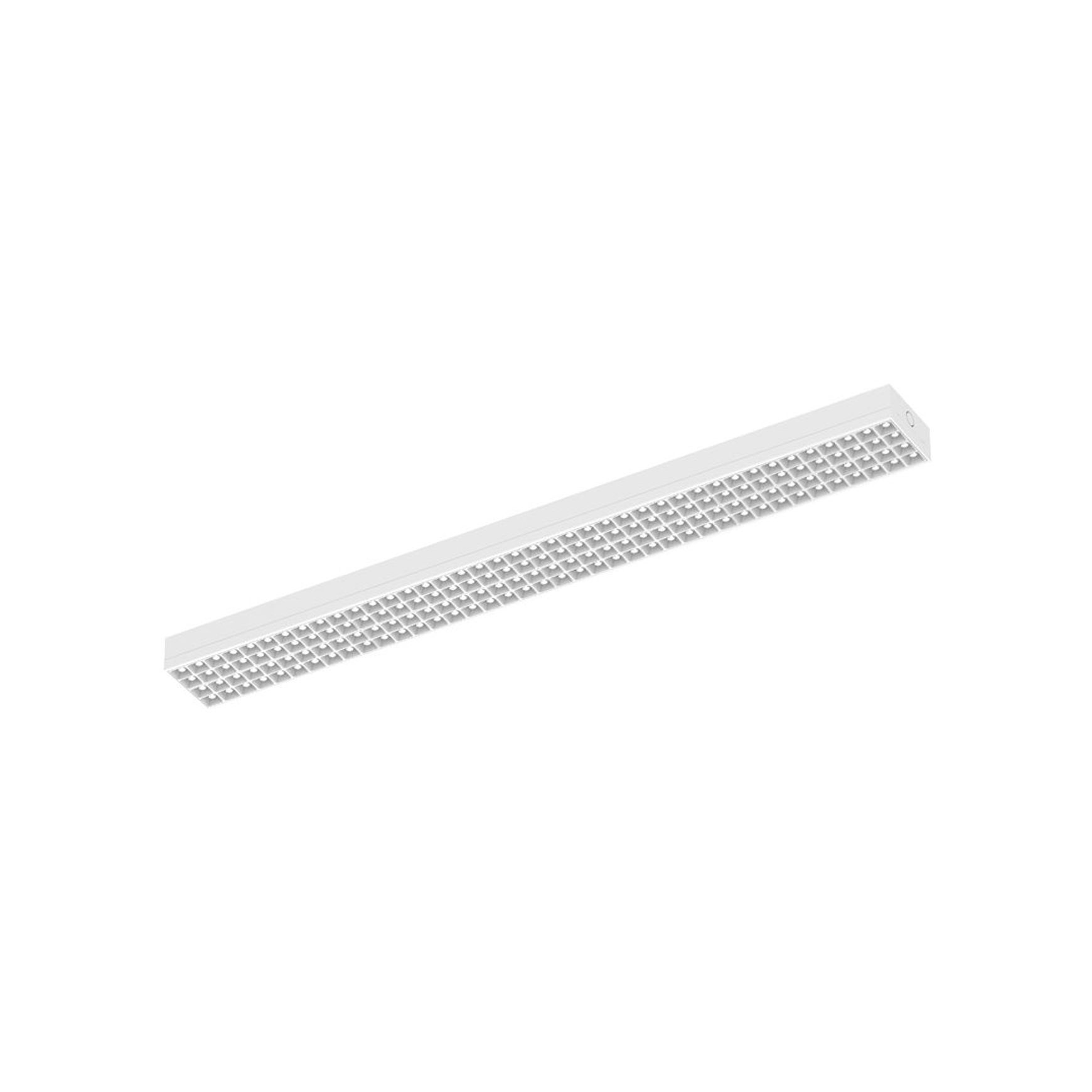

4ft LED Joinable Multi-Function Batten

Name: 4ft LED Joinable Multi-Function Batten
Brand: Halcyon Lighting

by Halcyon Lighting

1.0M profile views
112 saves

Visit Website

LED541
4ft Joinable Multi-Function Batten
Pro Spec UGR <19
Select 3000K/4000K & Quad Wattage

Tags

led joinable batten select ugr

Product Details

Product: 4ft LED Joinable Multi-Function Batten
Category: Flush Mount Lights
Sold by: Halcyon Lighting
Range: Joinable Batten
Light bulb type: LED
Fitting type: Surface-mounted
Warranty: 5 years

Halcyon Lighting is specified by

(49) Professionals

Visit site

LED541
4ft Joinable Multi-Function Batten
Pro Spec UGR <19
Select 3000K/4000K & Quad Wattage

Specs

Dimensions L1200 × W120 × H59mm
Wattage Selectable 15W, 23W, 29W or 35W (default factory setting)
Colour Temp Selectable 3000K or 4000K
CRI 95 (R9 <98)
Lifespan 54,000 hours (L70 B50)
UGR Halcyon Pro Spec battens are suitable for installations requiring UGR of less than 19.
Beam Angle 80°
Binning 3-Step SDCM
Finish White RAL9016 / Black RAL9005
Material Aluminium + PC
IP Rating IP20
IK Rating IK08
Termination Multiple rear termination points, knockouts at both ends for alternative installation methods
Driver Incorporated, adjustable output non-dimmable flicker free driver
Operating Temp -20° - 45°
Weight 3.03kg
Warranty 5 Year Warranty

Lumens
White with white reflector:
3000K: 15W-35W/1680lm-3840lm
4000K: 15W-35W/1760lm-4025lm

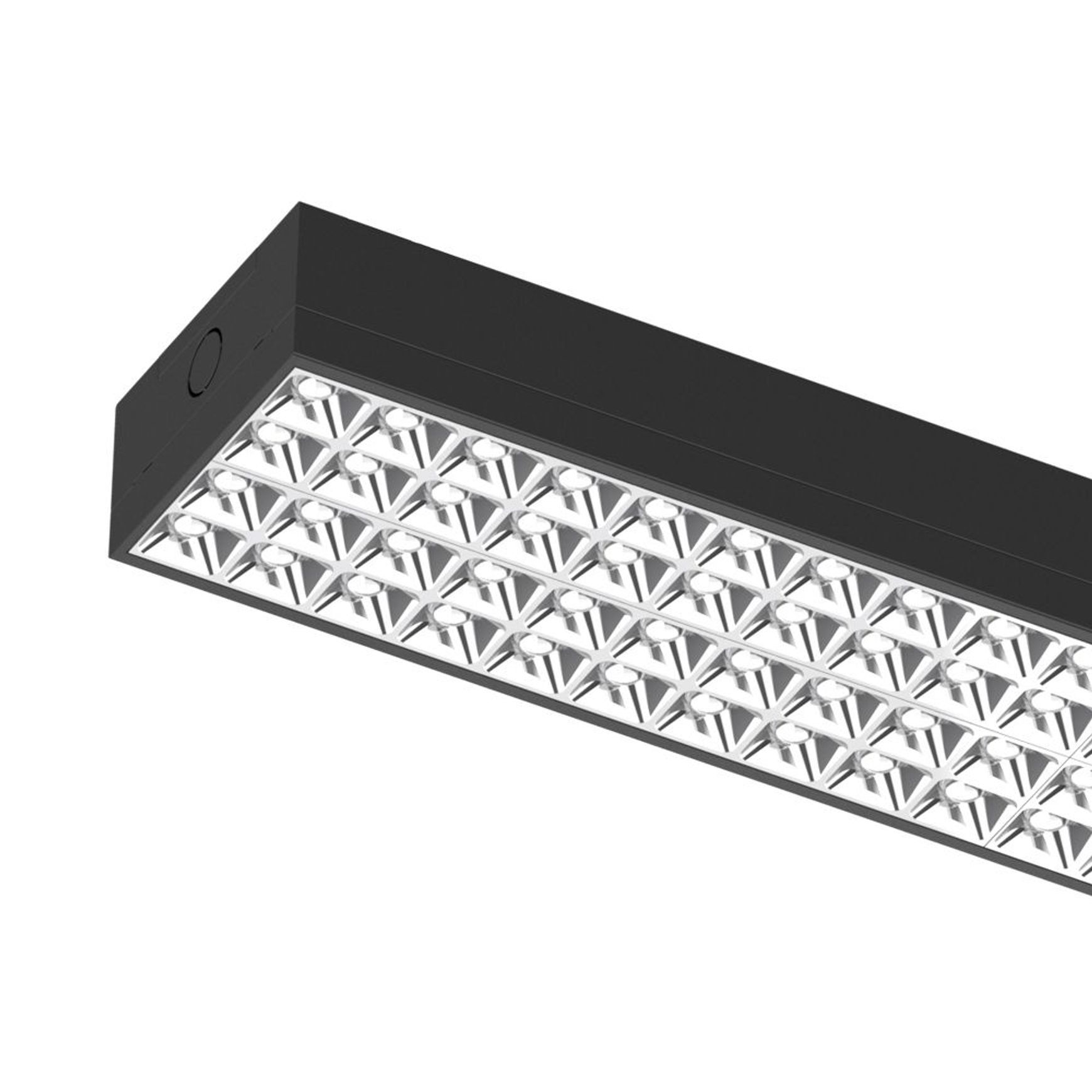

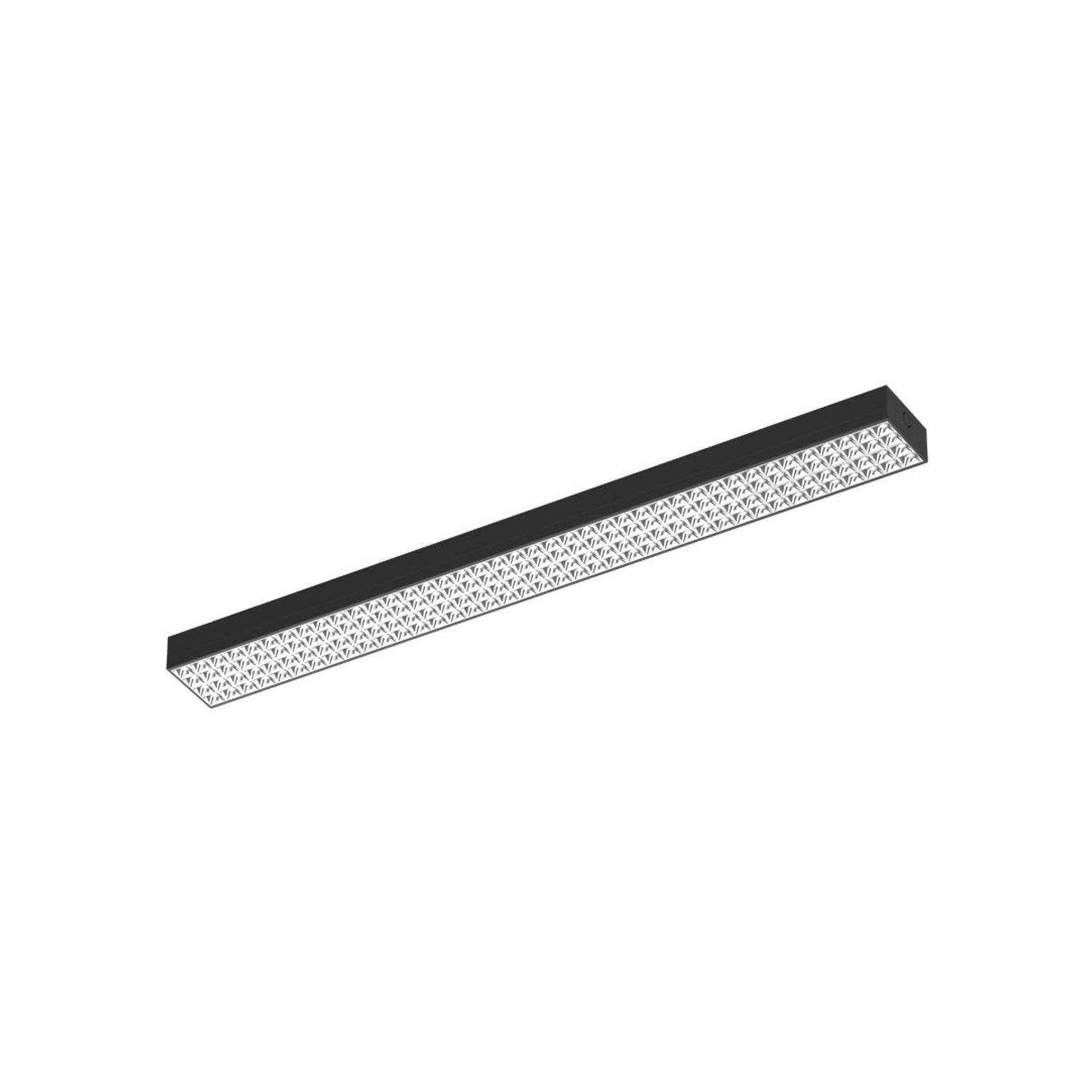

Black with silver reflector:
3000K: 15W-35W/1665lm-3750lm
4000K: 15W-35W/1750lm-3940lm

Scope of use

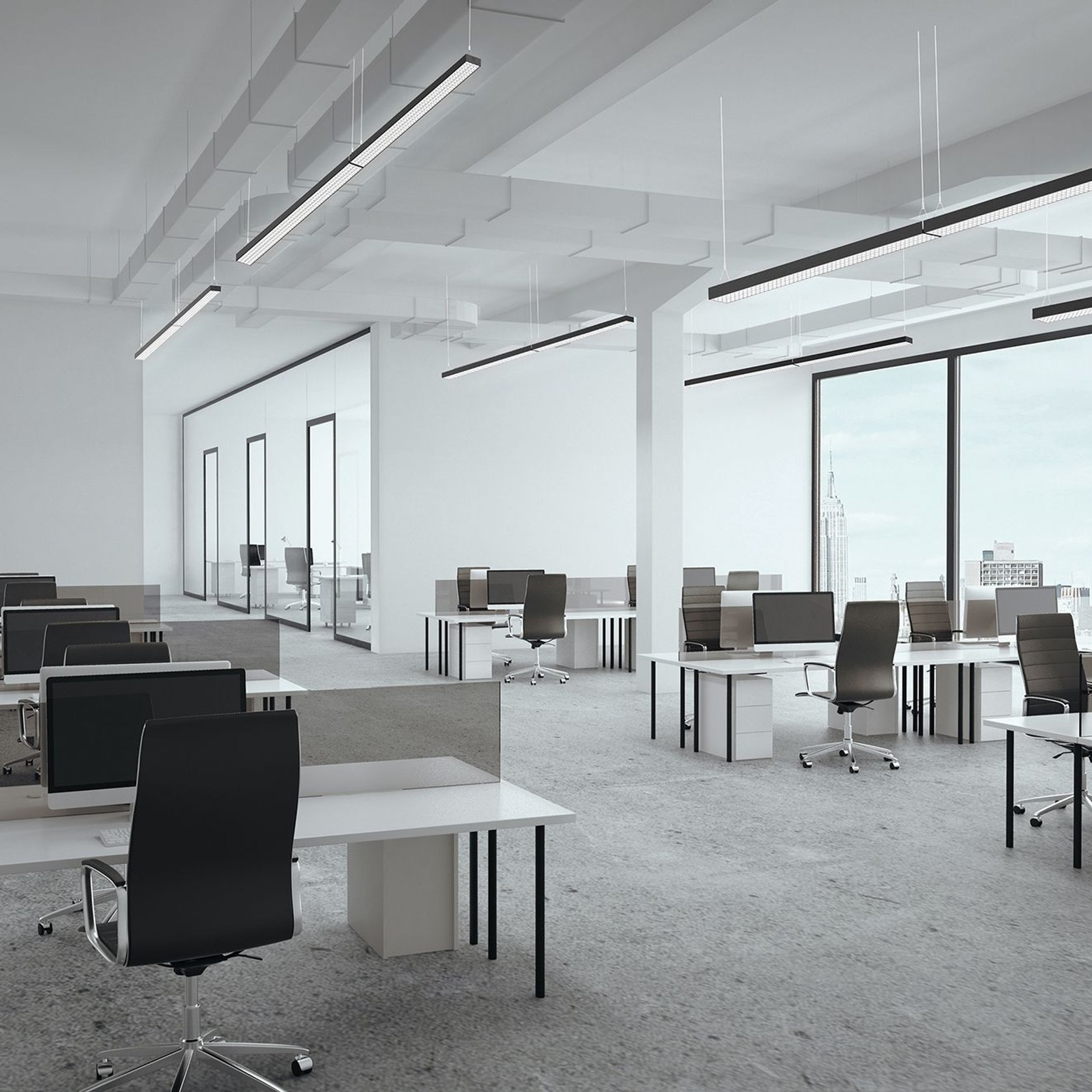

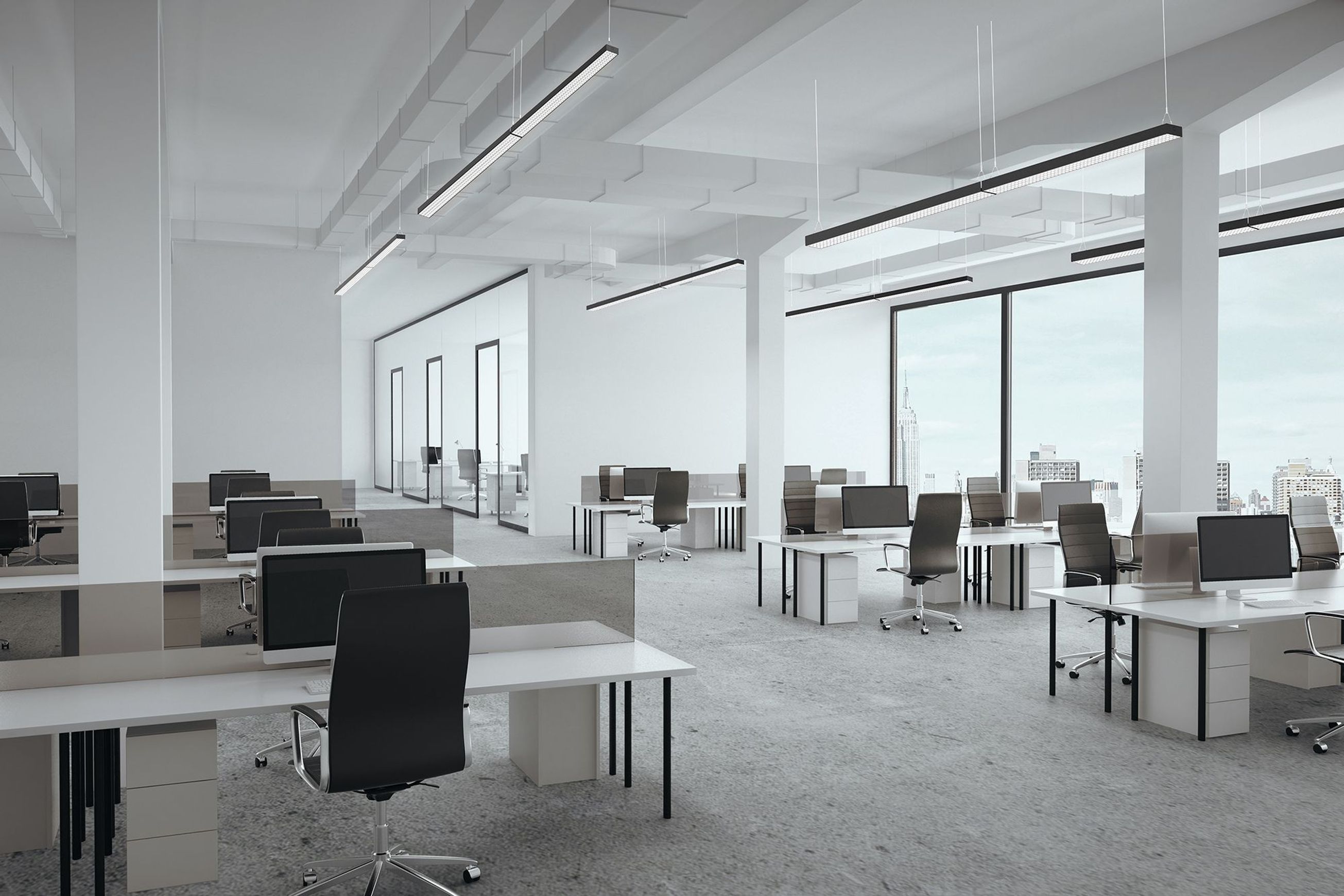

Interior education, commercial, office lighting

Performance

CRI95 (R9 <98)
54,000 hour lifespan
IK08
Joinable
Selectable colour temperature - 3000K or 4000K
Selectable wattage - 15W, 23W, 29W or 35W
5 year warranty
