How much does the 5ft LED Joinable Multi-Function Batten cost?

Halcyon Lighting does not publish a price for the 5ft LED Joinable Multi-Function Batten on ArchiPro. Send them an enquiry for pricing, or visit their website.

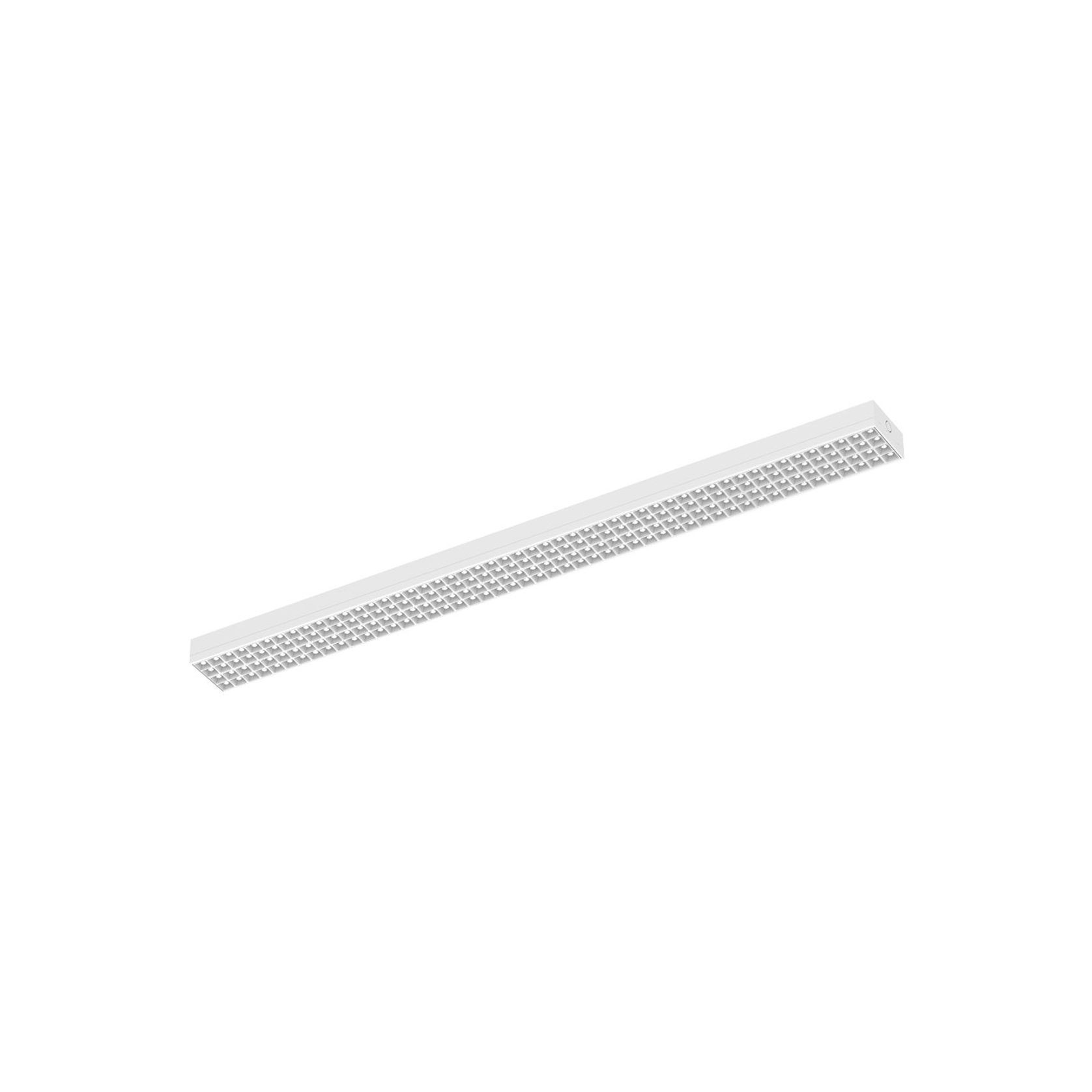

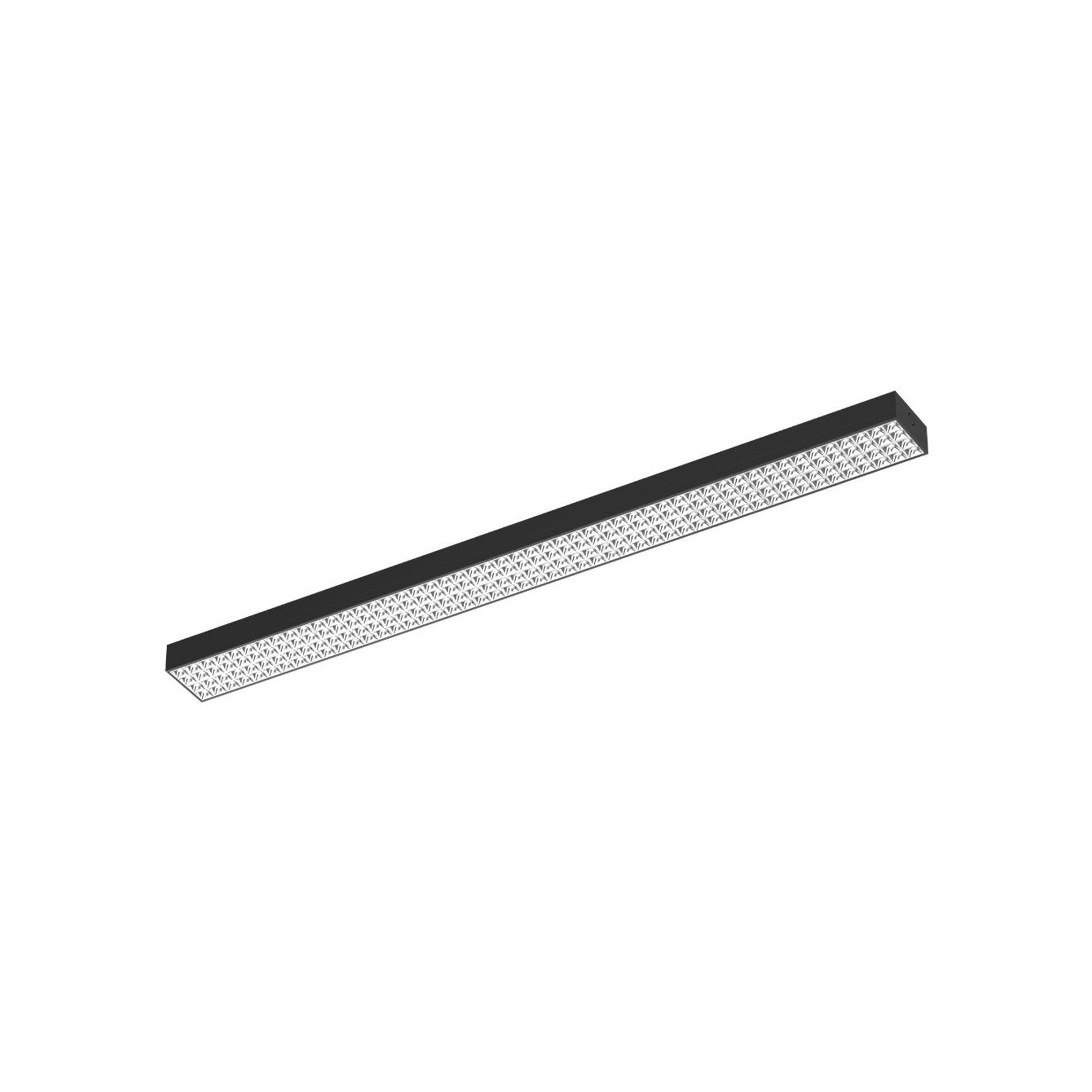

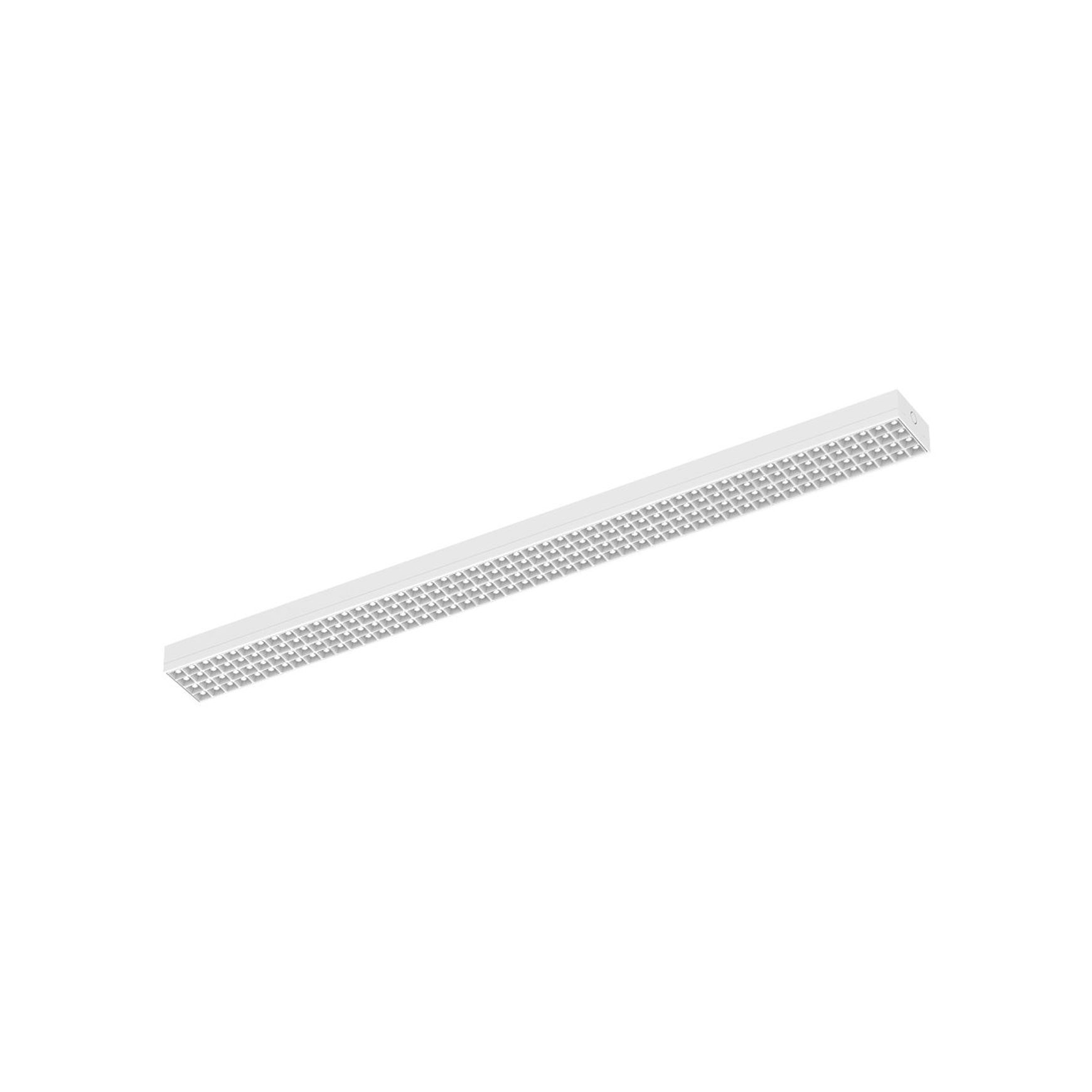

5ft LED Joinable Multi-Function Batten

Name: 5ft LED Joinable Multi-Function Batten
Brand: Halcyon Lighting

by Halcyon Lighting

1.0M profile views
112 saves

Visit Website

LED542
5ft Joinable Multi-Function Batten
Pro Spec UGR <19
Selectable 3000K or 3000K Quad Wattage

Tags

led linear light joinable linkable

Product Details

Product: 5ft LED Joinable Multi-Function Batten
Category: Flush Mount Lights
Sold by: Halcyon Lighting
Range: Joinable Batten
Light bulb type: LED
Fitting type: Surface-mounted
Warranty: 5 years

Halcyon Lighting is specified by

(49) Professionals

Visit site

LED542
5ft Joinable Multi-Function Batten
Pro Spec UGR <19
Selectable 3000K or 3000K Quad Wattage

Specs

Dimensions L1500 × W120 × H59mm
Wattage Selectable 35W, 40W, 45W, 50W (default factory setting)
Colour Temp Selectable 3000K or 4000K
CRI 95 (R9 <98)
Lifespan 54,000 hours (L70 B50)
UGR Halcyon Pro Spec battens are suitable for installations requiring UGR of less than 19.
Beam Angle 80°
Binning 3-Step SDCM
Finish White RAL9016 / Black RAL9005
Material Aluminium + PC
IP Rating IP20
IK Rating IK08
Termination Multiple rear termination points, knockouts at both ends for alternative installation methods
Driver Incorporated, adjustable output non-dimmable flicker free driver
Power Factor 0.9
Operating Temp -20° - 45°
Weight 3.63kg
Warranty 5 Year Warranty

Lumens White with white reflector:
3000K: 35W-50W/4115lm-5740lm
4000K: 35W-50W/4225lm-5850lm

Black with silver reflector:
3000K: 35W-50W/4035lm-5675lm
4000K: 35W-50W/4160lm-5875lm

Scope of use

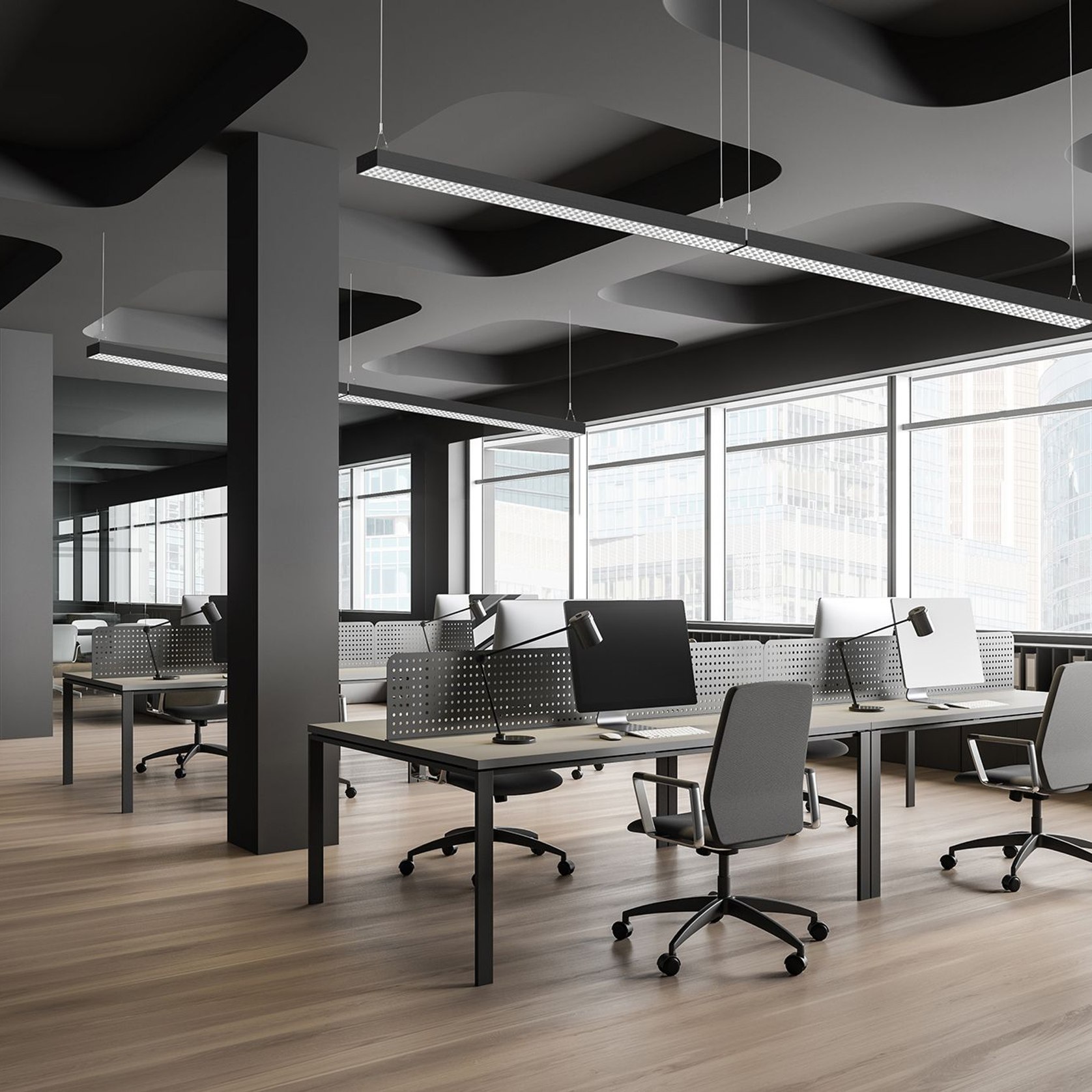

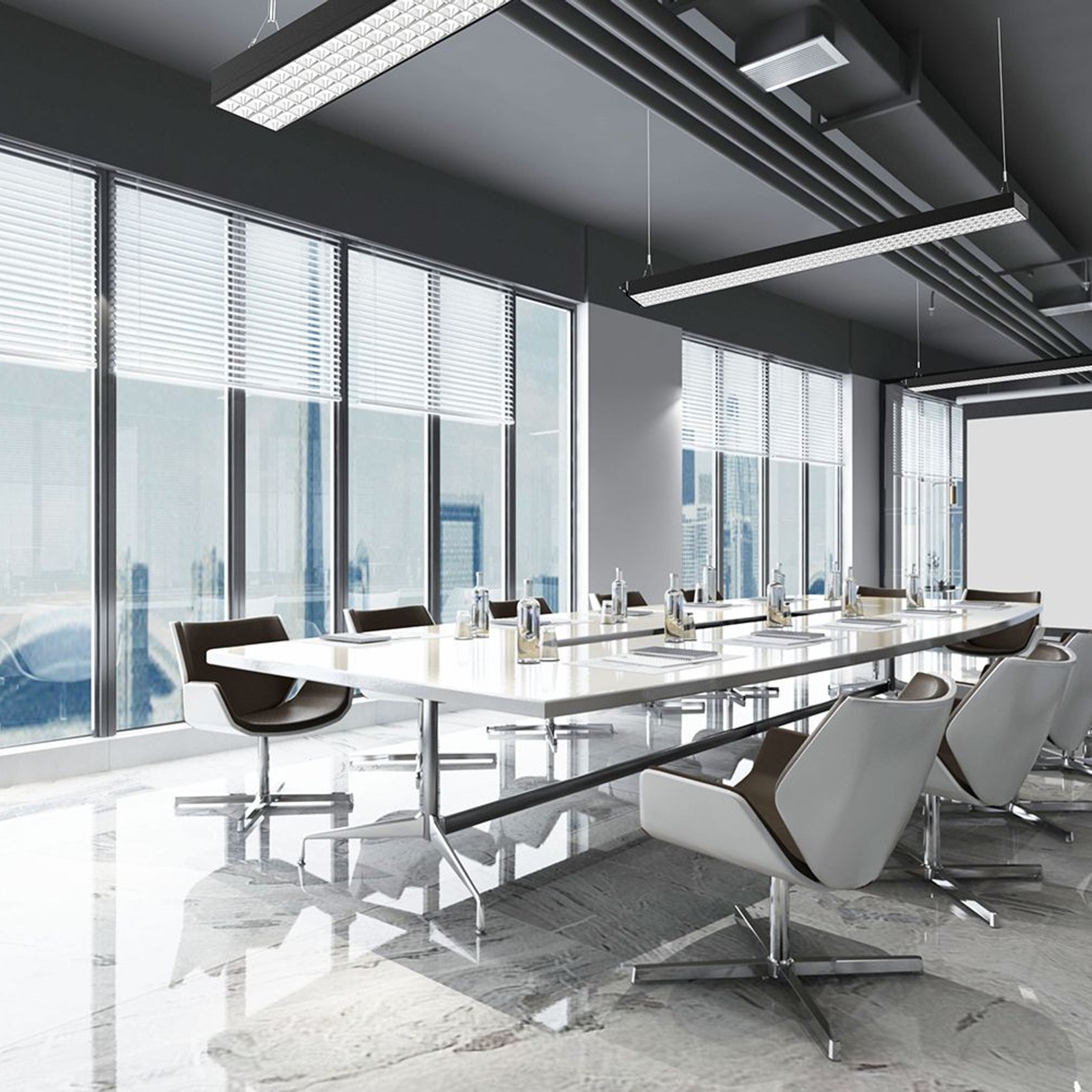

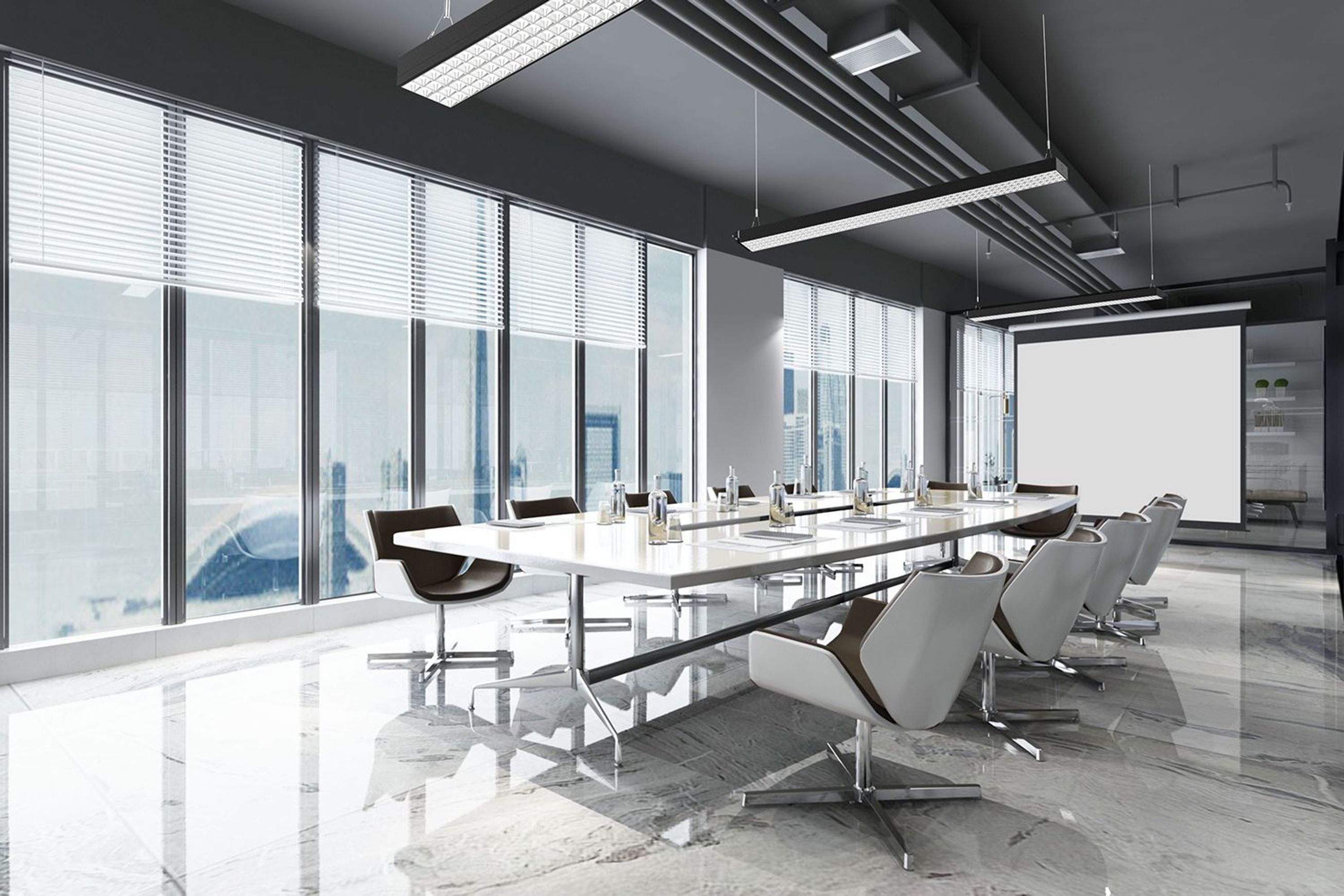

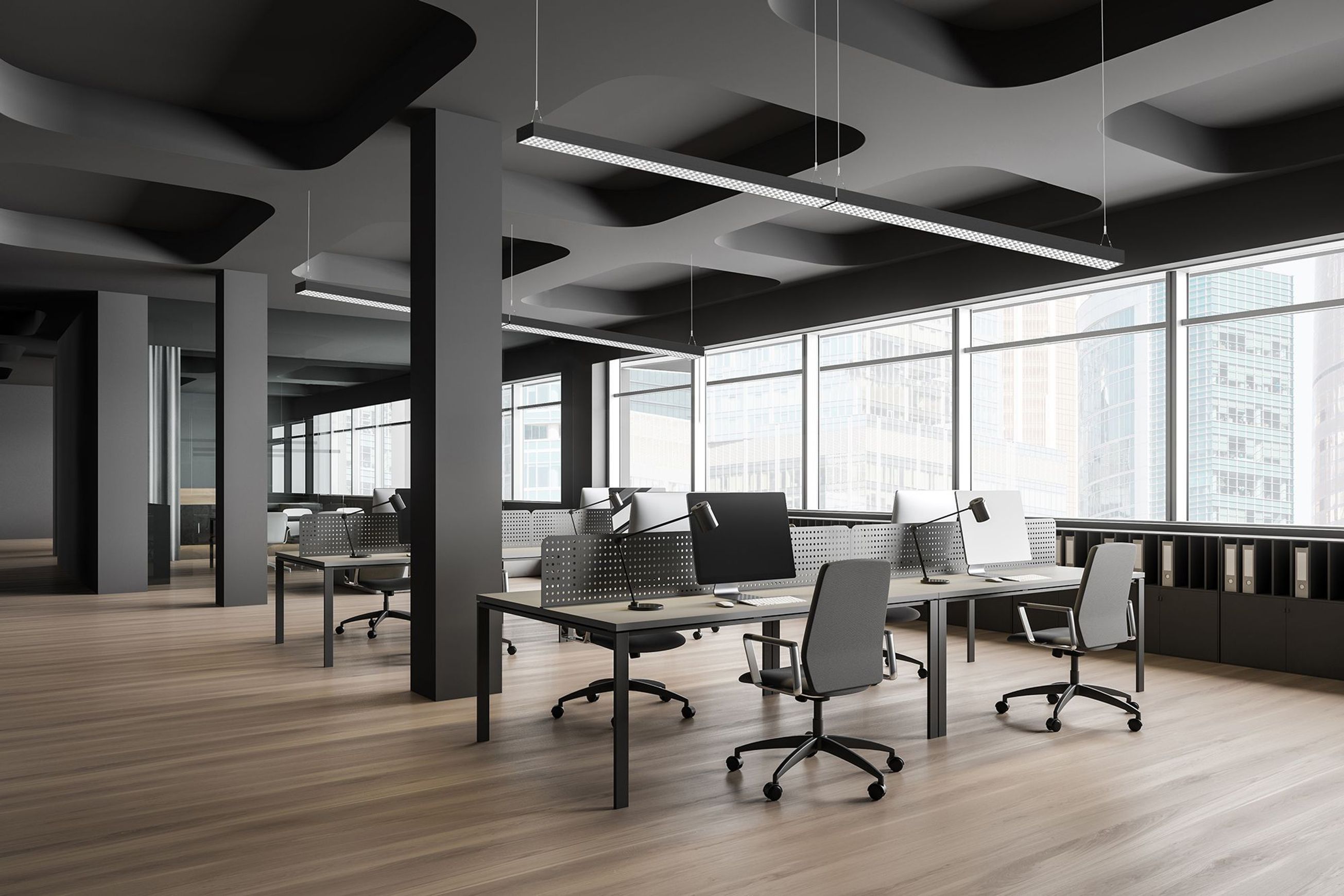

Interior education, commercial, office lighting

Performance

CRI95 (R9 <98)
54,000 lifespan
IK08
Joinable
Selectable colour temperature - 3000K or 4000K
Selectable wattage - 35W, 40W, 45W, 50W
5 Year warranty

Downloads

Downloads (3)3 Direct downloads • 9 Available on request

Get more Specific.

Halcyon Lighting

halcyon.co.nz

Visit the Halcyon Lighting website for the full range, specification detail and where to buy this product.

Visit Website

Frequently asked questions about
5ft LED Joinable Multi-Function Batten

The 5ft LED Joinable Multi-Function Batten is supplied by Halcyon Lighting. It is also on their website, and you can browse every product Halcyon Lighting lists on ArchiPro.

Halcyon Lighting does not publish a price for the 5ft LED Joinable Multi-Function Batten on ArchiPro. for pricing, or visit their website.

It is listed under Flush Mount Lights on ArchiPro, where you can compare it with flush mount lights from other suppliers.

Yes. It is part of the Joinable Batten range from Halcyon Lighting, where you can see every product in the range together.

from this page, see their contact details on ArchiPro, or visit their website. The Halcyon Lighting profile on ArchiPro has the rest of their products.
