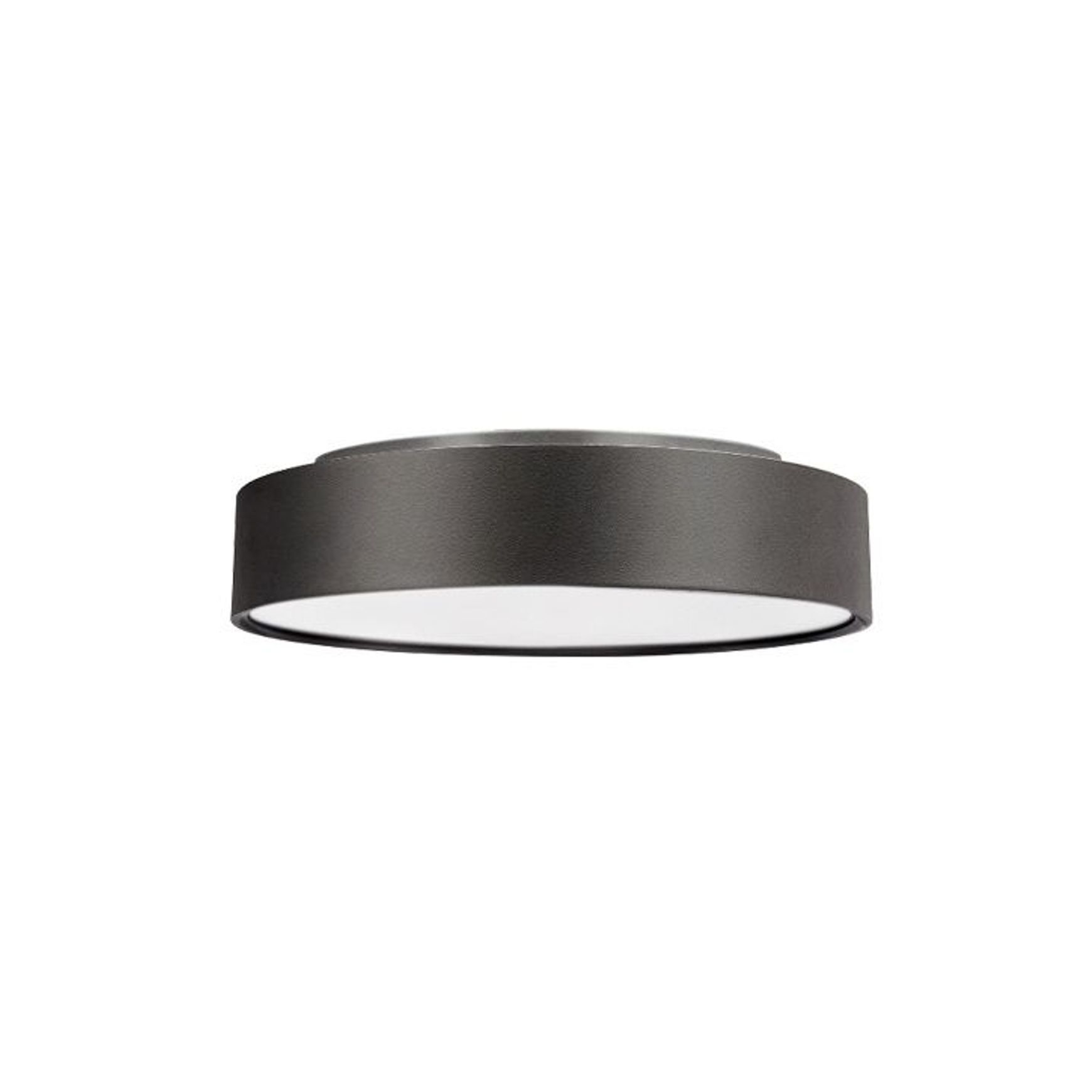

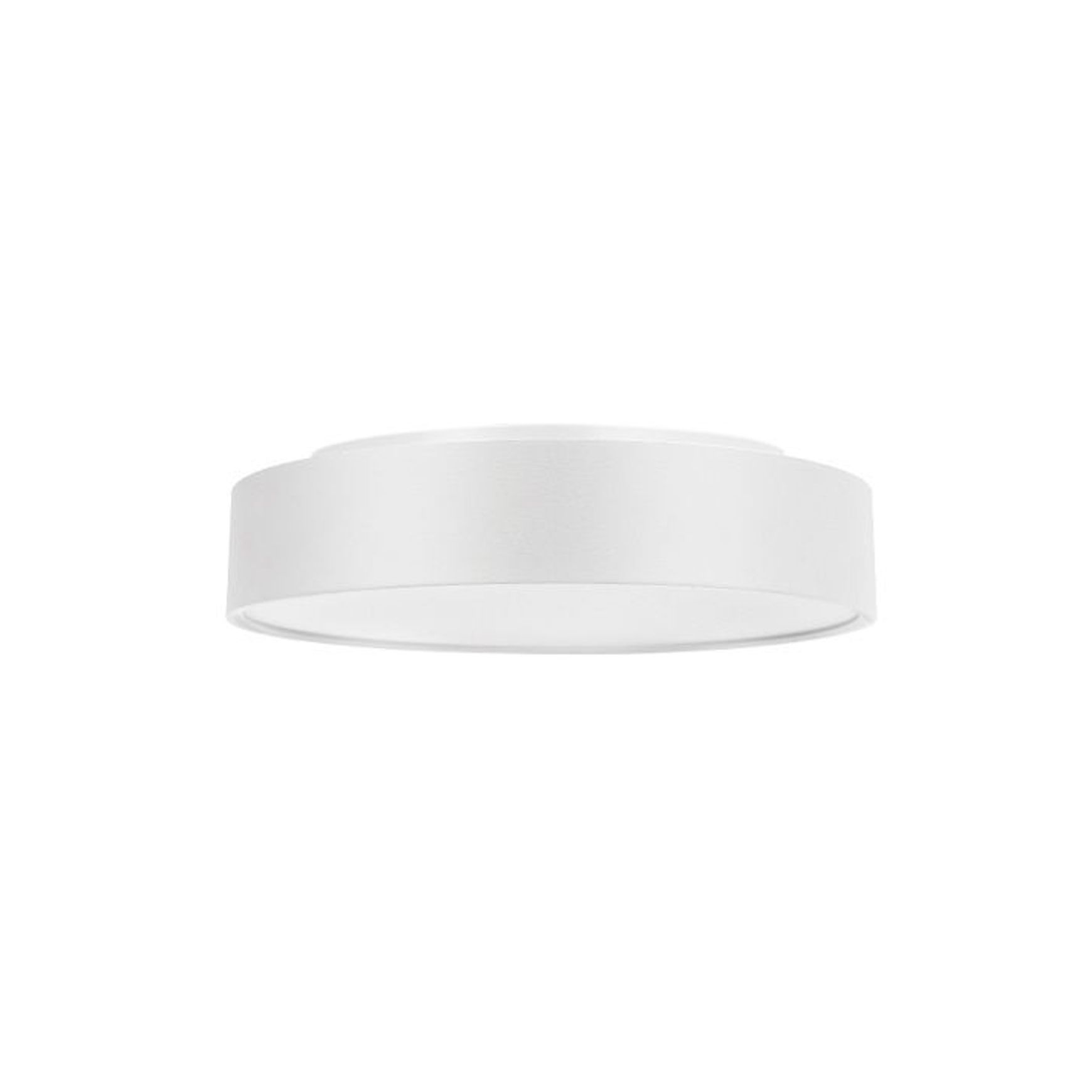

Modudisc 320mm Light

By Halcyon Lighting
Visit Website

LED345
Modudisc 320mm 3K/4K Light
Direct/Indirect Surface Mount or Suspended

Details
  • Category
    Flush Mount Lights, Pendant Lights
  • Range
    Modudisc
  • Warranty
    5 years
Attributes
  • Orientation
    Horizontal
  • Light bulb type
    LED
  • General features
    Dimmable
  • Type
    Ceiling lights
Specifications

LED345

Dimensions D320 x H79mm
Watts Selectable 10W, 18W or 24W
Lumens <2465lm
Input 240V AC
Beam 90°
Colour Temp Selectable 3000K or 4000K
CRI >90 (R9>75)
Lifespan 50,000hrs (L80 B10)
UGR Suitable for installations requiring UGR of less than 19
Binning 3-step SDCM
Material Aluminium + PMMA (Prism diffuser)
IP Rating IP20
Driver Incorporated, dimmable
TLAs "Flicker Free", PstLM ≤1.0; SVM ≤0.4
Electrical Class Class I luminaire, requires earth
Application Interior, surface mount
Inrush 0.53A @ 48μs
Drivers per MCB B16=144 / C16=144
Warranty 5 Year Warranty

Scope of use
  • Surface Mount or Suspended
  • Interior
Features
  • Uplight (can be manually switched off during installation if not needed)
  • CRI90
  • Selectable 3000K or 4000K
  • Suitable for installations requiring UGR of less than 19
  • Dimmable
  • Flicker Free (PstLM ≤1.0; SVM ≤0.4)
  • 5 Year Warranty
