TOPP ACK4 Chain Actuator 24V DC
Electric actuator model ACK4 with a double link articulated stainless steel chain, enclosed in a special diecast aluminium casing, painted with epoxy powders, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz. or, as an alternative, at 24V DC. Max. traction and thrust force 300N. End of stroke adjustable at 100, 150, 200, 250, 300, 350, 400 mm by an external knob located on both sides of the actuator. Electronic device with an acoustic warning to signal erroneous installation (buzzer). Upon request, a preset “S” version for the synchronous operation of two actuators on the same window is available. High protection IP 55 rated. Available IP66 version (fixed stroke). CE marked device.
- Compact
- Stroke selectable between 100-400m
- Stainless steel chain
- Can be powder coated
- IP55 ingress rating
- Fast opening and closing speed.
- 300N push/pull force.
- CategoryElectronics & Automation
- RangeNatural Ventilation
Available in:
SKU: 3A1#000000187 - Black
SKU: 3A1#000004311 - White
SKU: 3A1#000004170 - Grey
- Force 300N

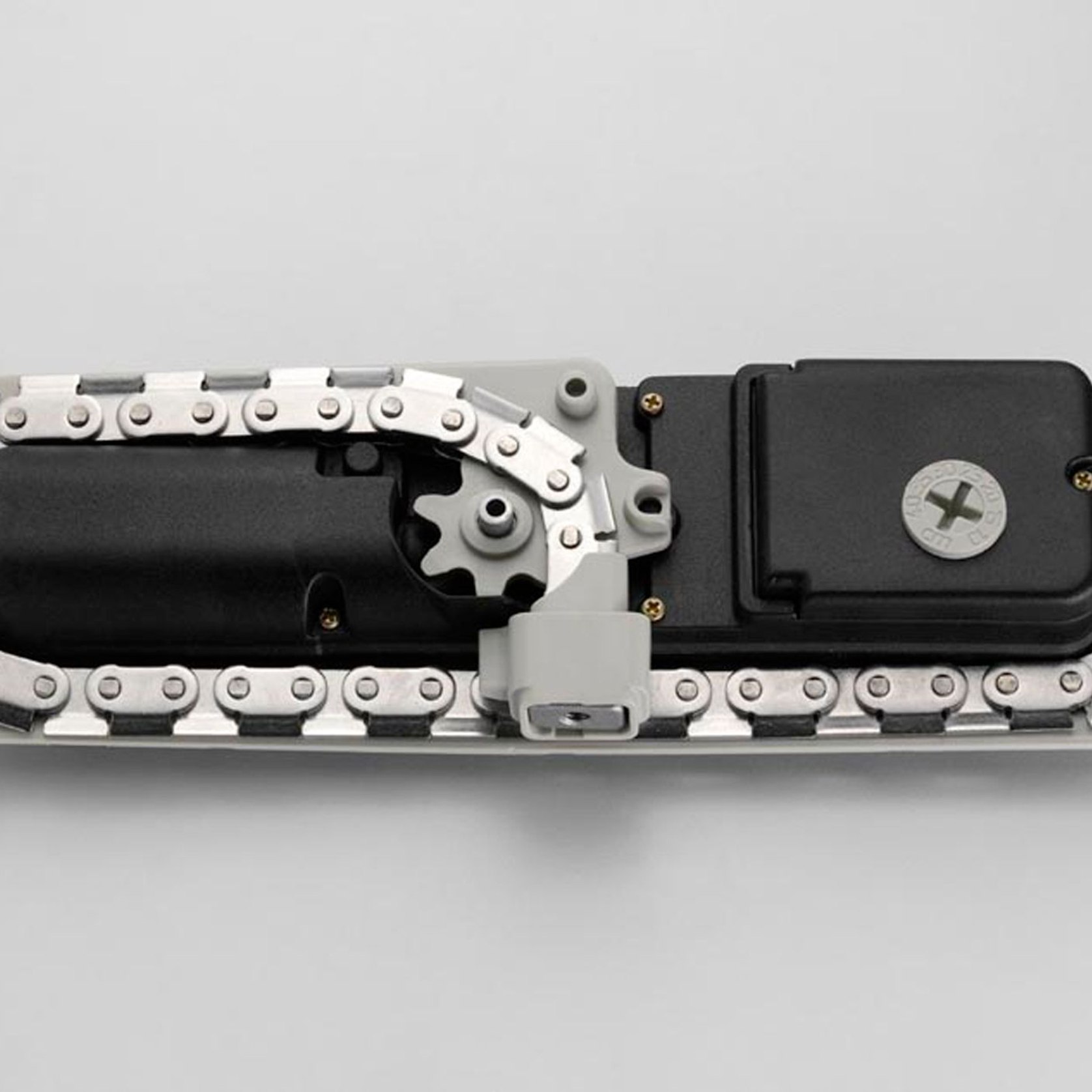

- Double link stainless steel chain
- Stroke selectable 100 - 400mm
- IP55 Rated
- Diecast aluminium casing
- Frontal brackets for mounting to the transom
