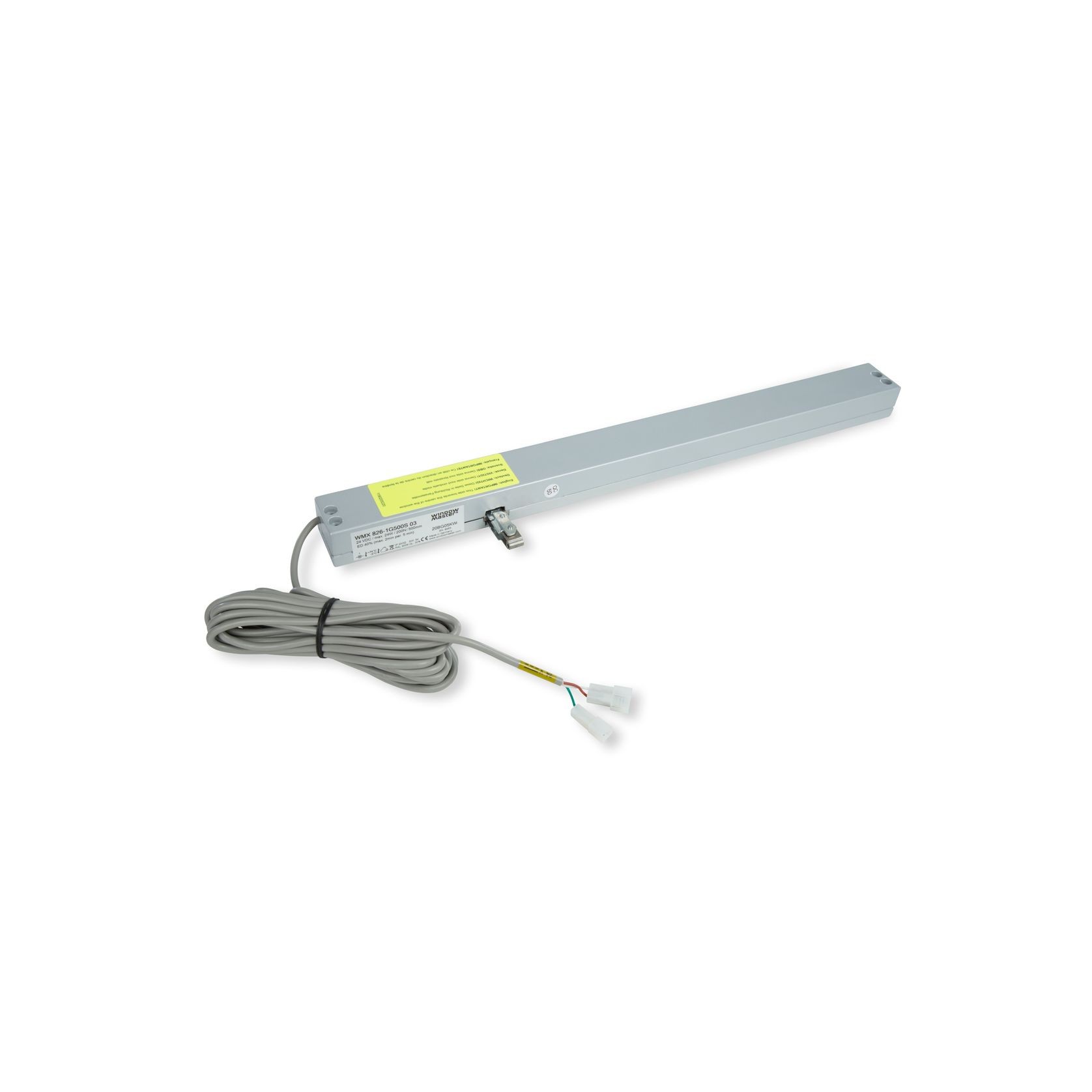

WindowMaster WMX 826-1 Grey 24V Actuator
by EllisCo
Christchurch, New Zealand
- 152.4K profile views
- 33 saves
Programmable 24V DC chain actuator for surface mounting for smoke and comfort ventilation.
To be used with top hung, bottom hung and turning windows. 200N, 500MM, 1amp
Description
• To be used together with ±24V control units or control units with MotorLink®
• Can be used together with espagnolette WMB
• External safety edge can be connected directly to the actuator (actuator version ’E’)
• Available with and without UL certification:
• Europe: order without UL certification (version 0)
• USA / Canada: order with UL certification (version U)
• Synchronization of up to four window actuators – no need for an external synchronization module
• Genuine position feedback and three speeds when using control unit with MotorLink®
• Soft close
• The electronics in this actuator can be programmed to suit specific requirements i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, also possible following installation
• Built-in electronic load switch-off/end stop
• Electronic actuator with micro controller
• The actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets
• Easy mounting
Tags
Product Details
- Product
- WindowMaster WMX 826-1 Grey 24V Actuator
- Category
- Electronics & Automation
- Sold by
- EllisCo
- Range
- Natural Ventilation
- Brand
- WindowMaster
EllisCo is specified by
Charissa Snijders ArchitectArchitects
JTB ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Megan Edwards ArchitectsArchitects
Condon Scott ArchitectsArchitects
Johnston ArchitectsArchitects
Fisher PartnersArchitects
Dalman ArchitectsArchitects
Parkhurst DesignInterior Designers
ThermosashManufacturers and Suppliers
AdluxManufacturers and Suppliers
HawkinsConstruction
Harnett BuildersBuilders
ao architectureArchitectural Designers
WPCWaterproofers
FortéManufacturers and Suppliers
UNEX SystemsManufacturers and Suppliers
Cult DesignManufacturers and Suppliers
MaxCladManufacturers and Suppliers
Programmable 24V DC chain actuator for surface mounting for smoke and comfort ventilation.To be used with top hung, bottom hung and turning windows.
200N, 500MM, 1amp
Description
• To be used together with ±24V control units or control units with MotorLink®
• Can be used together with espagnolette WMB
• External safety edge can be connected directly to the actuator (actuator version ’E’)
• Available with and without UL certification:
• Europe: order without UL certification (version 0)
• USA / Canada: order with UL certification (version U)
• Synchronization of up to four window actuators – no need for an external synchronization module
• Genuine position feedback and three speeds when using control unit with MotorLink®
• Soft close
• The electronics in this actuator can be programmed to suit specific requirements i.e. pressure- and traction force, stroke, speed/sound level – with the WAT 100 programming box, also possible following installation
• Built-in electronic load switch-off/end stop
• Electronic actuator with micro controller
• The actuator has an integrated reverse function to ensure a prolonged life span of the window gaskets
• Easy mounting
Downloads
Downloads (2)2 Direct downloads • 10 Available on request
Frequently asked questions about
WindowMaster WMX 826-1 Grey 24V Actuator
The WindowMaster WMX 826-1 Grey 24V Actuator is supplied by EllisCo. It is also on their website, and you can browse every product EllisCo lists on ArchiPro.
EllisCo does not publish a price for the WindowMaster WMX 826-1 Grey 24V Actuator on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Natural Ventilation range from EllisCo, where you can see every product in the range together.

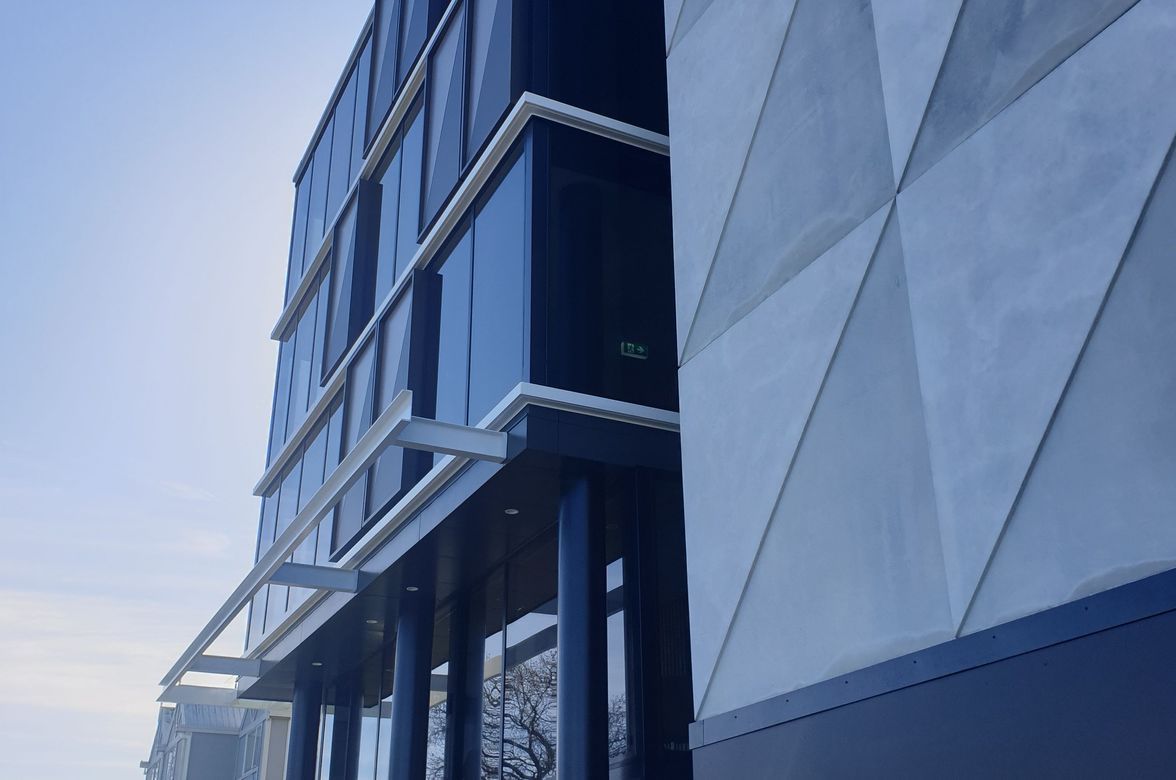

Yes. It has been specified in projects on ArchiPro, including Southern Cross Hospital, New Plymouth by EllisCo and University of Waikato, Student Living by EllisCo. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The EllisCo profile on ArchiPro has the rest of their products.
